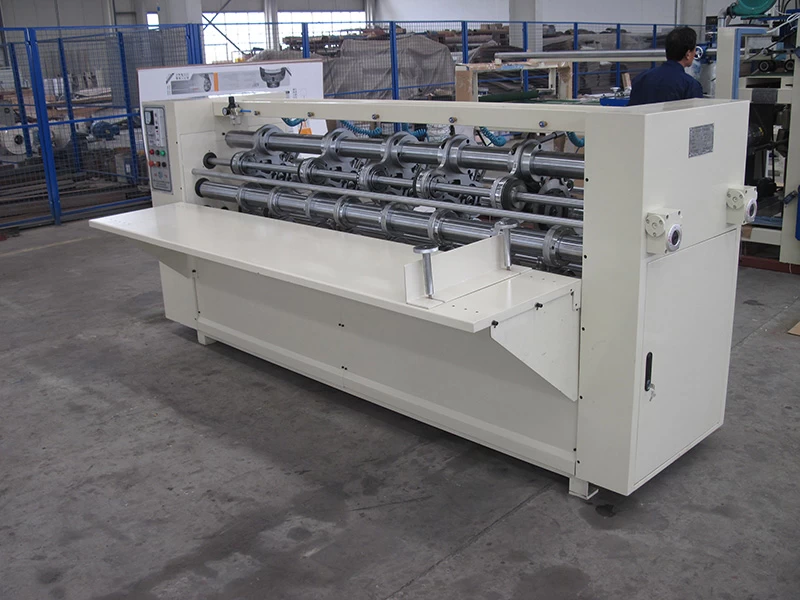

Product Name:BD THIN EDGE SLITTING MACHINE
Features：
This machine splits with thin knife which can be sharpened by means of auto or manual sand wheel to keep the blade sharp so as to make the split paperboard free of collapsed flute, clear cut and neat edge .It is equipped with the four-knife-six creasing lines or five-knife-eight lines. The option of modified thin knife splitting machine for corrugated paperboard processing line can be available for customers.
|
Models
|
BD-2000
|
BD-2500
|
|
Width of paper (mm)
|
1980
|
2450
|
|
Max speed of production (m/min)
|
141
|
141
|
|
slitting cutting
|
4
|
4
|
|
Min press line width (mm)
|
160
|
200
|
|
Min pressure line (mm)
|
200
|
200
|
|
Outer radii of thin round edge (mm)
|
260
|
260
|
|
thickness of thin round edge (mm)
|
1.25
|
1.25
|
|
Power (Kw)
|
4
|
4
|
The product specification is subject to amend without any notice in case of technical requirements
