Product Item: Beadless carbon fiber 85mm wide 27.5 inch fatbike rim tubeless ready
This 27.5 inch carbon fat bike rim 85mm external wide is durable with double wall design for snow, sand or single track riding. The 40mm deep section provides extra rigidity for more aggressive riders.
Specification:
Item:
|
MX785
|
Use:
|
snow, sand or single track
|
Rim type:
|
27.5" hookless (tubeless ready)
|
Material:
|
Toray T700 carbon fiber
|
Tubeless ready:
|
Yes
|
Weight:
|
660g±20
|

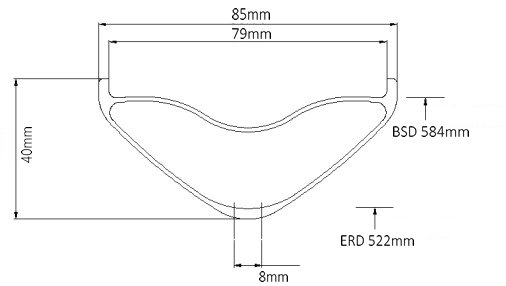

External/Internal width:
|
85mm / 79mm
|
ERD:
|
526mm
|
Depth:
|
40mm
|
Weave:
|
UD / 3K / 12K
|
Weight limit:
|
120kgs
|
Finish:
|
Matte / Gloss
|
Spoke hole count:
|
32 holes, (±3mm offset drill)
|
Assemble hole diameter:
|
8.5mm
|
Spoke hole diameter:
|
4.5mm or customized
|
Valve hole diameter:
|
6.5mm (presta) or 8.5mm (schrader)
|
Spoke hole angle:
|
±6°
|
Max spoke tension:
|
140kgf (recommended 110~130kgf）
|
Tire size:
|
3.8"~ 5.5"
|
Max tire pressure:
|
25psi / 1.75bar
|
Decal:
|
Customized
|
Standard:
|
EN standard
|
Features:
-
Double wall construction, lightweight but still stiff.
-
Providing a deep channel between the bead seats makes it easier to install and take off tires.
-
Zero bead look, rim bead more
straight and smooth side walls, tire can touch rim walls fully. More
durable and impact resistance compared to the traditional hooks rim.
-
Tubeless ready design, it makes rims better tubeless setup and better sealing.
-
Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
-
Presta valve & schrader valve available.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
More information about our Warranty Policy.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
