Komatsu Excavator Bearing 20Y-27-22230
|
P/N
|
20Y-27-22230
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Angular contact bearing
|
Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

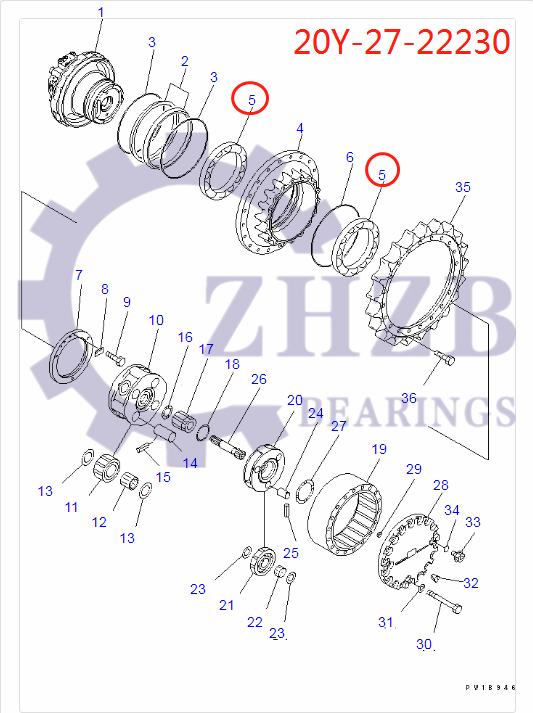

Any other parts for the final drive system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
|
206-27-00423
|
[2]
|
Final Drive Assembly Komatsu
|
394 kg.
|
|
|
206-27-00422
|
[2]
|
Final Drive Assembly Komatsu
|
394 kg.
|
|
|
150-27-00410
|
[1]
|
Floating Seal Assembly Komatsu China
|
2.99 kg.
|
|
3.
|
22U-27-21182
|
[1]
|
Hub Komatsu
|
79.81 kg.
|
|
4.
|
20Y-27-22230
|
[2]
|
Bearing Komatsu
|
4.6 kg.
|
|
5.
|
22U-27-21220
|
[1]
|
O-ring Komatsu
|
0.015 kg.
|
|
6.
|
20Y-27-22261
|
[1]
|
Lock Komatsu
|
5.22 kg.
|
|
7.
|
20Y-27-22270
|
[1]
|
Lock Komatsu
|
0.07 kg.
|
|
8.
|
01010-81020
|
[2]
|
Bolt Komatsu
|
0.161 kg.
|
|
9.
|
22U-27-21171
|
[1]
|
Carrier Komatsu OEM
|
20.65 kg.
|
|
9.
|
22U-27-21170
|
[1]
|
Carrier Komatsu OEM
|
20.65 kg.
|
|
10.
|
22U-27-21140
|
[4]
|
Gear Komatsu OEM
|
9.28 kg.
|
|
11.
|
20Y-27-22220
|
[4]
|
Bearing Komatsu China
|
0.3 kg.
|
|
12.
|
20Y-27-21250
|
[8]
|
Washer,Thrust Komatsu China
|
0.03 kg.
|
|
13.
|
22U-27-21230
|
[4]
|
Pin Komatsu OEM
|
1.543 kg.
|
|
14.
|
20Y-27-21290
|
[4]
|
Pin Komatsu OEM
|
0.03 kg.
|
|
15.
|
20Y-27-13310
|
[1]
|
Washer,Thrust Komatsu China
|
0.08 kg.
|
|
16.
|
22U-27-21130
|
[1]
|
Gear Komatsu OEM
|
2.01 kg.
|
|
17.
|
22U-27-21210
|
[1]
|
Washer,Thrust Komatsu
|
0.03 kg.
|
|
18.
|
22U-27-21153
|
[1]
|
Gear Komatsu
|
37.23 kg.
|
|
19.
|
22U-27-21161
|
[1]
|
Carrier Komatsu OEM
|
7.43 kg.
|
|
20.
|
22U-27-21120
|
[3]
|
Gear Komatsu China
|
5.34 kg.
|
|
21.
|
20Y-27-22210
|
[3]
|
Bearing Komatsu China
|
0.12 kg.
|
|
22.
|
22U-27-21240
|
[6]
|
Washer,Thrust Komatsu
|
0.02 kg.
|
|
23.
|
20Y-27-21220
|
[3]
|
Pin Komatsu China
|
0.411 kg.
|
|
24.
|
20Y-27-21280
|
[3]
|
Pin Komatsu China
|
0.01 kg.
|
|
25.
|
22U-27-21110
|
[1]
|
Shaft Komatsu OEM
|
1.5 kg.
|
|
26.
|
20Y-27-21310
|
[1]
|
Washer Komatsu China
|
0.17 kg.
|
|
27.
|
22U-27-21192
|
[1]
|
Cover Komatsu
|
18.75 kg.
|
|
28.
|
20Y-27-22250
|
[1]
|
Button Komatsu China
|
0.05 kg.
|
|
29.
|
20Y-27-13281
|
[20]
|
Bolt Komatsu
|
0.31 kg.
|
|
30.
|
01643-31645
|
[20]
|
Washer Komatsu
|
0.072 kg.
|
|
31.
|
07049-01012
|
[2]
|
Plug Komatsu
|
0.001 kg.
|
|
32.
|
07044-12412
|
[3]
|
Plug Komatsu
|
0.09 kg.
|
|
33.
|
07002-02434
|
[3]
|
O-ring Komatsu China
|
0.01 kg.
|
|
34.
|
20Y-27-11582
|
[1]
|
Sprocket Komatsu China
|
36.2 kg.
|
|
35.
|
20Y-27-11561
|
[20]
|
Bolt Komatsu China
|
0.14 kg.
|
|
36.
|
01010-61660
|
[36]
|
Bolt Komatsu
|
0.127 kg.
|
|
38.
|
20Y-30-21192
|
[2]
|
Cover Komatsu China
|
|
|
38.
|
20Y-30-21191
|
[2]
|
Cover Komatsu
|
12.25 kg.
|
|
39.
|
01010-81230
|
[8]
|
Bolt Komatsu
|
0.043 kg.
|
|
40.
|
01643-31232
|
[8]
|
Washer Komatsu
|
0.027 kg.
|
