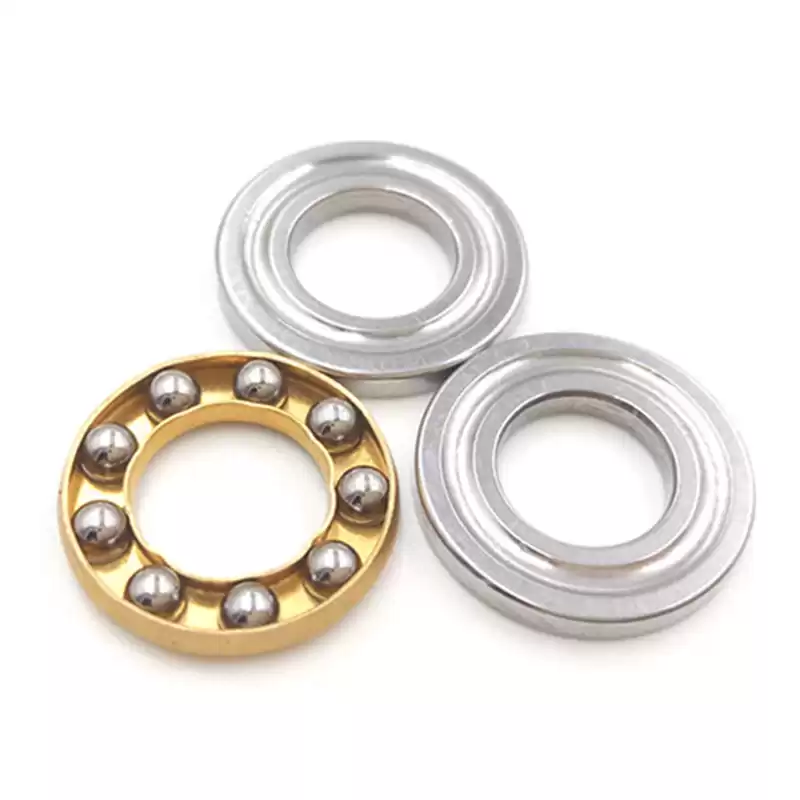

Bearing Factory Sale Miniature Axial Thrust Ball Bearing

The standout advantage of these miniature axial thrust ball bearings (F7-13M/F7-15M/F7-17M) lies in their versatile load-bearing capacity, offering options in material and design, while also providing precise axial positioning and the ability to handle directional loads efficiently, making them adaptable for various applications and installation conditions.



Bearing Factory Sale Miniature Axial Thrust Ball Bearing

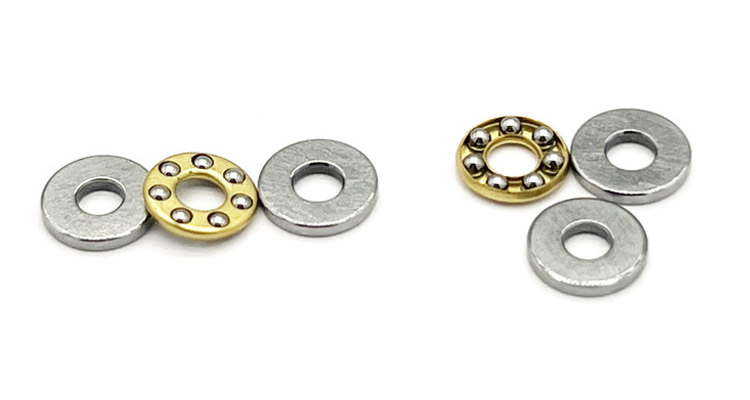

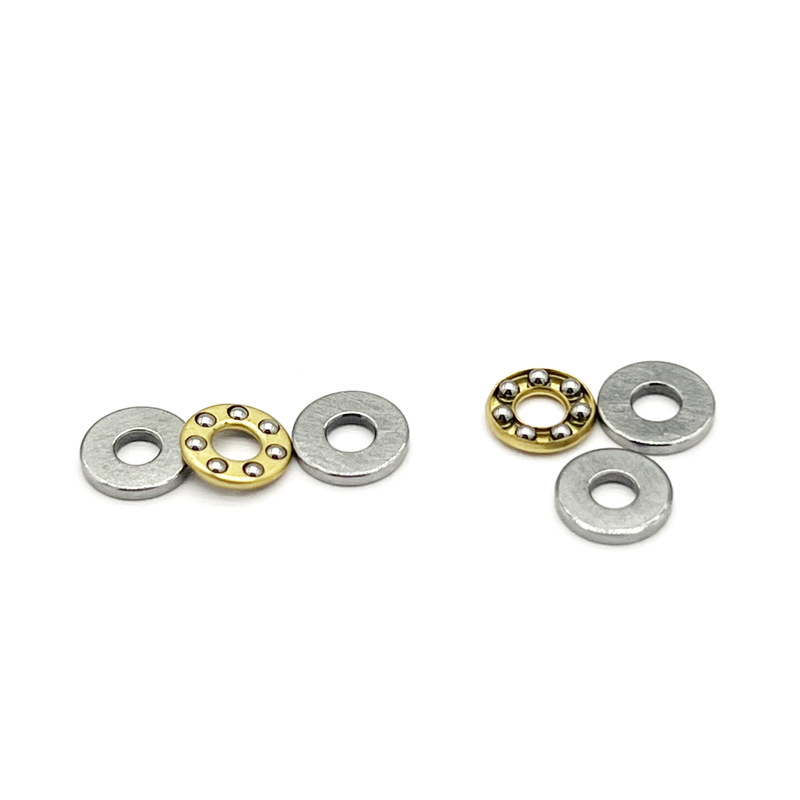

The gasket material of miniature thrust ball bearings is bearing steel or stainless steel, which can be divided into grooved and non-grooved. The retainer is made of stainless steel and copper. The flat thrust ball is a separable bearing with a contact angle of 90. It can be installed separately and can only bear axial load. The thrust bearing has a lower limit speed. The steel balls and centrifugal force squeeze the outside of the raceway and are easily scratched, but they are not suitable for high-speed operation. One-way thrust bearings can bear one-way axial load, and two-way thrust bearings can bear two-way axial load. Thrust bearings with spherical seats have self-aligning properties that eliminate the impact of installation errors.



Miniature Thrust Ball Bearings Size Chart:

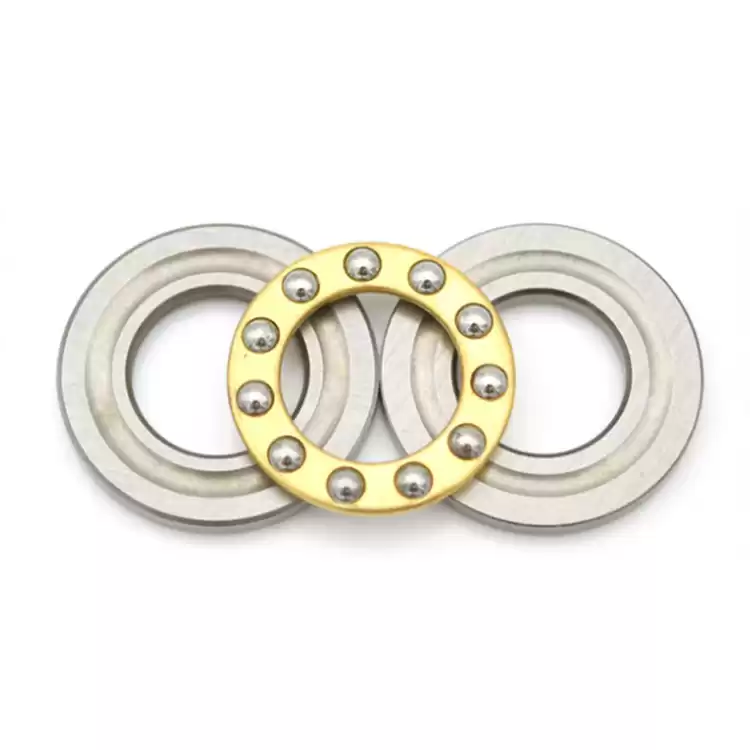

FM SERIES(WITH GROOVE)

Type d D d1 D1 H Load Load Rating Cor(N)
Rating
Cr(N)
F3-8M 3 8 3.2 7.8 3.5 600 480
F4-9M 4 9 4.2 8.8 4 800 520
F4-10M 4 10 4.2 9.8 4 658 580
F5-10M 5 10 5.2 9.8 4 950 830
F5-11M 5 11 5.2 10.8 4.5 988 880
F5-12M 5 12 5.2 11.8 4 988 880
F6-12M 6 12 6.2 11.8 4.5 1600 1255
F6-14M 6 14 6.25 13.8 5 1800 1588
F7-13M 7 13 7.2 16.8 4.5 1422 1255
F7-15M 7 15 7.2 14.8 5 2200 2000
F7-17M 7 17 7.2 16.8 6 2600 2256
F8-16M 8 16 8.2 15.8 5 2500 3000
F8-19M 8 19 8.2 18.8 7 3452 3000
F9-20M 9 20 9.2 19.8 7 3356 2999
F10-18M 10 18 10.2 17.8 5.5 2230 2721

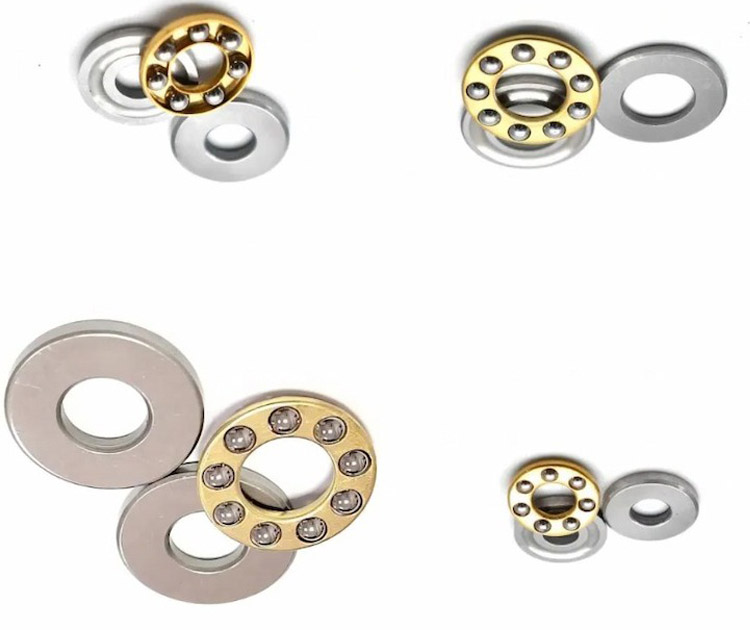

F  SERIES(WITHOUT GROOVE)

Type d D d1 D1 H Load RatingCr(N) Load Rating Cor(N)
F2-6 2 6 2 6 3 117 83
F2X-7 2.5 7 2.5 7 3.5 156 117
F3-8 3 8 3.2 7.8 3.5 600 480
F4-9 4 9 4.2 8.8 4 800 520
F4-10 4 10 4.2 9.8 4 658 580
F5-11 5 11 5.2 10.8 4.5 988 880
F6-12 6 12 6.2 11.8 4.5 1600 1255
F7-15 7 15 7.2 14.8 5 2200 2000
F8-16 8 16 8.2 15.8 5 2500 3000
F9-17 9 17 9.2 16.8 5 578 627
F10-18 10 18 10.2 17.8 5.5 2230 2721



Bearing Factory Sale Miniature Axial Thrust Ball Bearing

F7-13M/F7-15M/F7-17M Thrust Ball Bearings







Application :

  • Motorcycles
  • Small power tool
  • Tractor gearbox
  • Machine tool gearboxes
  • Automobile
  • Textile industry
  • Agricultural
  • Electric motors

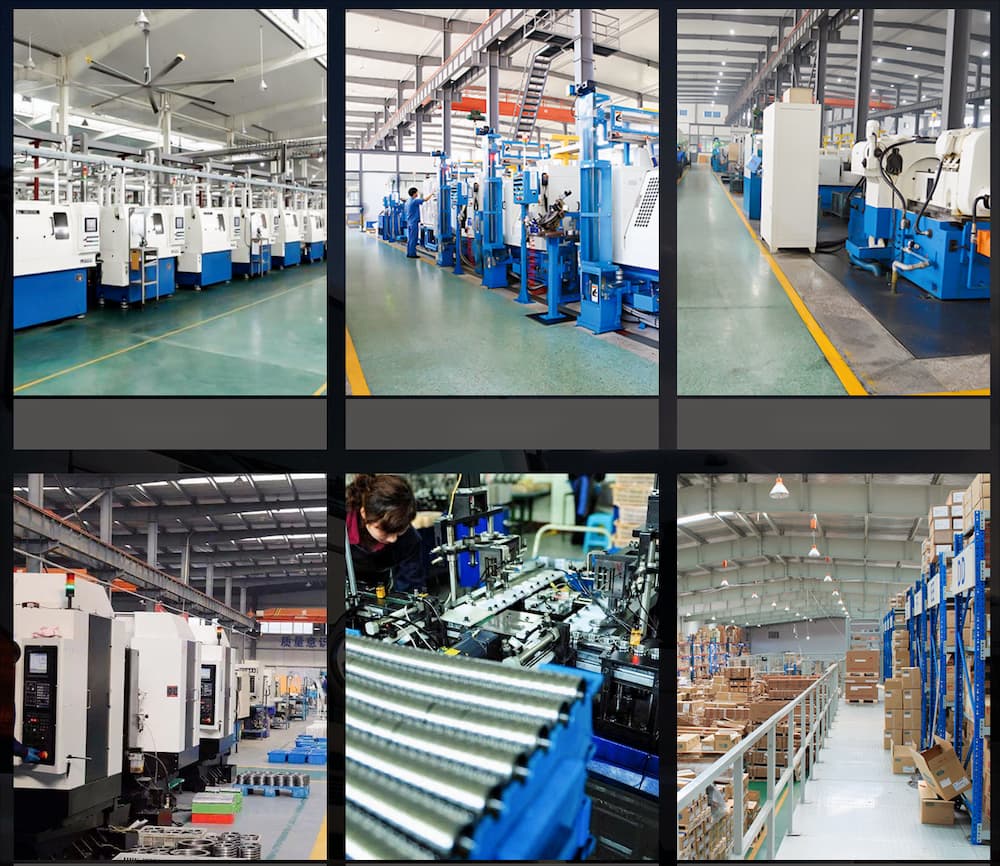

Advantage of WIS Bearing:



  • Rich experience

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support

  • Competitive price and small MOQ

Direct manufacturer of bearings can offer you lowest price with small MOQ

  • Customized service

WIS bearings can provide OEM and ODM service as to your sample or drawings.

  • Strict quality control

We focus on quality during production and guarantee 100% quality inspection before delivery

  • Delivery strength

WIS bearings give you on time delivery

  • Free sample provided
