Hyundai excavator travel bearing XKAH-01099
|
P/N
|
XKAH-01099
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Angular contact bearing
|
Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

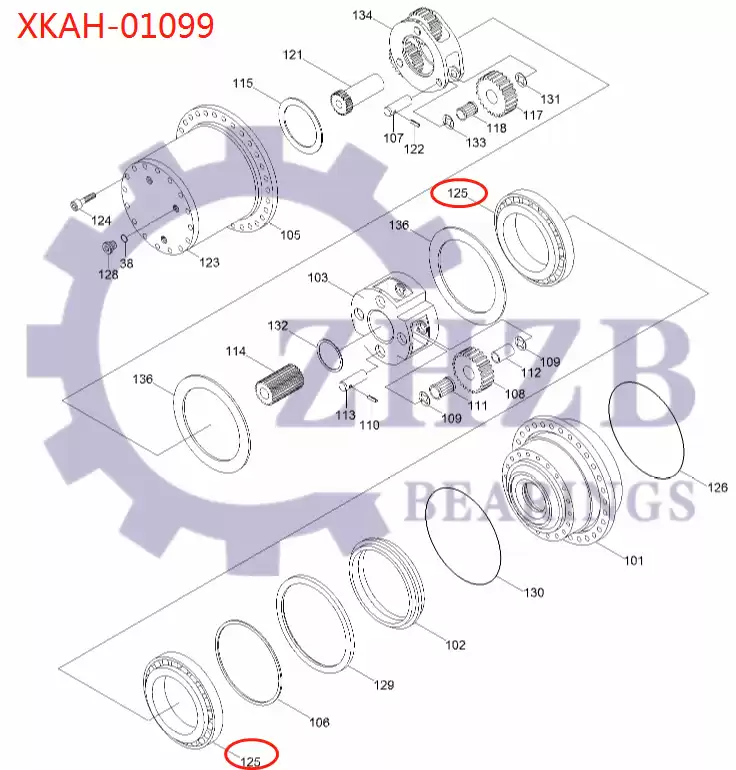

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
*.
|
@
|
[1]
|
TRAVEL MOTOR ASSY
|
SEE 4150
|
|
*-1.
|
XKAH-01577
|
[1]
|
TRAVEL REDUCTION GEAR
|
|
|
*-11.
|
XKAH-01421
|
[1]
|
CARRIER ASSY 1
|
|
|
107.
|
XKAH-01110
|
[3]
|
SHAFT BEARING(R)
|
|
|
117.
|
XKAH-01109
|
[3]
|
PLANETARY GEAR(R)
|
|
|
118.
|
XKAH-01003
|
[3]
|
CAGE-NEEDLE
|
|
|
122.
|
XKAH-01114
|
[3]
|
PIN SPRING
|
|
|
131.
|
XKAH-01111
|
[6]
|
THRUST WASHER(R)
|
|
|
134.
|
XKAH-01285
|
[1]
|
CARRIER NO1.
|
|
|
*-12.
|
XKAH-01422
|
[1]
|
CARRIER ASSY 2
|
|
|
103.
|
XKAH-01282
|
[1]
|
CARRIER NO2.
|
|
|
108.
|
XKAH-01102
|
[4]
|
GEAR-PLANET 1
|
|
|
109.
|
XKAH-01101
|
[8]
|
THRUST WASHER(F)
|
|
|
110.
|
XKAH-01113
|
[4]
|
PIN-SPRING
|
|
|
111.
|
XKAH-01103
|
[4]
|
NEEDLE BEARING
|
|
|
112.
|
XKAH-01104
|
[4]
|
FLOATING BUSHING
|
|
|
113.
|
XKAH-01105
|
[4]
|
SHAFT BEARING(F)
|
|
|
*-13.
|
XKAH-01420
|
[3]
|
PLUG ASSY-RO,PF1/2
|
|
|
K38.
|
XKAH-00035
|
[3]
|
O-RING
|
|
|
128.
|
XKAH-00032
|
[3]
|
PLUG-RO
|
|
|
101.
|
XKAH-01281
|
[1]
|
SPINDLE
|
|
|
K102.
|
XKAH-00916
|
[2]
|
SEAL-FLOATING
|
|
|
105.
|
XKAH-01578
|
[1]
|
HUB
|
|
|
106.
|
XKAH-00348
|
[1]
|
PIECE-DISTANCE
|
|
|
114.
|
XKAH-01107
|
[1]
|
SUN GEAR
|
|
|
115.
|
XKAH-01108
|
[1]
|
SNAP RING
|
|
|
121.
|
XKAH-01116
|
[1]
|
DRIVE GEAR
|
|
|
123.
|
XKAH-01117
|
[1]
|
COVER
|
|
|
124.
|
XKAH-00755
|
[16]
|
BOLT-SOCKET
|
|
|
125.
|
XKAH-01099
|
[2]
|
A/BALL BEARING
|
|
|
K126.
|
XKAH-00028
|
[1]
|
O-RING
|
|
|
129.
|
XKAH-01283
|
[1]
|
SEAL RING
|
|
|
K130.
|
XKAH-00335
|
[1]
|
O-RING
|
|
|
132.
|
XKAH-01284
|
[1]
|
WASHER-THRUST(M)
|
|
|
133.
|
XKAH-00344
|
[1]
|
PLATE-THRUST
|
|
|
136.
|
XKAH-01286
|
[2]
|
SHIM PLATE
|
|
|
*-2.
|
@
|
[1]
|
CONTROL PART ASSY
|
SEE 4150
|
|
*-3.
|
@
|
[1]
|
TRAVEL MOTOR UNIT
|
SEE 4151
|
|
*-4.
|
@
|
[1]
|
RELIEF VALVE ASSY
|
SEE 4150
|
|
K.
|
XKAH-01279
|
[1]
|
SEAL KIT
|
SEE ILLUST
|
|
N.
|
@
|
[1]
|
NOT SUPPLIED PARTS
|
|
Company
ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!
ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!
Packaging
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.
Why choose us?
✬1.Trusted Product
✬2.Advanced Technology
✬3.Reliable Service
✬4.Competitive price
FAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock
