Bearing YN32W01030P1 for KOBELCO SK210-9

Kobelco Excavator Slewing Gearbox Bearing: YN32W01030P1


YN32W01029P1 SPHERICAL BEARING Kobelco parts fit: SK200, 230SR-3, SK200LC, SK210-9, SK200LC-6, ED195-8, SK235SRLC, SK210D-8, SK200SRLC-1S, SK210LC, SK200SRLC, SK210LC-6E, SK210LC-8, SK200LC-6ES, SK200SR, 200-8, SK160LC, SK200SR-1S, SK160LC-6E, SK210D.







Facebook Twitter Pinterest LinkedIn 分享

Kobelco Excavator Slewing Gearbox Bearing YN32W01030P1

P/N YN32W01030P1 Material:
 GCR15
i/d mm
 O/D
 mm
H mm
 Brand： ZHZB
Precision
 P0 , P6 , P5
 Structure:
 Spherical roller bearing

 Product features:

1. Special bearing for excavator slewing gearbox
2. With high radial load capacity, it can also bear axial load in any direction.
3. High-strength high-quality steel
4. Long service life
5. Smooth rotation, low noise

Our advantage:
100% factory quality inspection
Respond to customer questions within one day;
Allow small orders;
Faster transportation efficiency
Good after-sales service.

Professional manufacturer of bearings for slewing gearboxes of excavators. Has many years of manufacturing experience

Production Process




Product Photos


YN32W01030P1

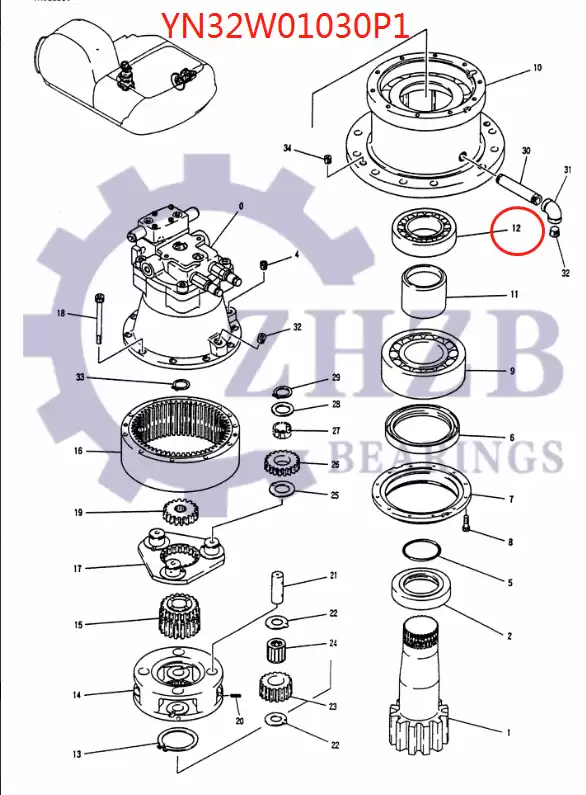

 If you need any part in the picture above or in this form, please mark it and we can provide it for you.




Pos.

Part No

Qty

Parts name

Comments

. .

YN32W00002F2

[1]

  HYDRAULIC MOTOR

  KOB MOTOR ASSY, SWING Superseded by part number: YN32W00002F3

0.

YN15V00002F2

[1]

  HYDRAULIC MOTOR

  KOB Superseded by part number: YN15V00002F3

1.

YN32W01003P1

[1]

  PINION SHAFT

  KOB

2.

YN32W01004P1

[1]

  SLEEVE

  KOB

4.

ZE82T08000

[1]

  PLUG

  KOB 1/2" PT

5.

ZD11G10000

[1]

  O-RING,99.40mm ID x 105.60mm OD x 3.10mm

  KOB (G100 1A)

6.

2418Z1358

[1]

  OIL SEAL

  KOB Superseded by part number: YN32W01034P1

7.

YN32W01005P1

[1]

  RETAINER

  KOB

8.

ZS23C08025

[12]

  SCREW,Hex Socket Head, M8 x 25mm

  KOB M08x1.25x25mm

9.

YN32W01029P1

[1]

  SPHERICAL BEARING

  KOB SPHERICAL Superseded by part number: R25P0047D9

10.

YN32W01013P1

[1]

  HOUSING

  KOB HOUSING

11.

YN32W01015P1

[1]

  SPACER

  KOB

12.

YN32W01030P1

[1]

  SPHERICAL BEARING

  KOB SPHERICAL Superseded by part number: 25Z804D18

13.

ZR16X09000

[1]

  RING

  KOB Retaining -- ID 84.50 x OD 108 x 3.0mm

14.

YN32W01011P1

[1]

  SPIDER

  KOB

15.

YN32W01006P1

[1]

  SUN GEAR

  KOB

16.

YN32W01012P1

[1]

  RING GEAR

  KOB

17.

YN32W01019F1

[1]

  SPIDER ASSY.

  KOB SPIDER ASSY

18.

ZS23C14130

[10]

  CAPSCREW,Hex Socket Head, M14 x 130mm

  KOB SCREW M14x2.0x130mm

19.

YN32W01007P1

[1]

  SUN GEAR

  KOB

20.

ZP26D08025

[4]

  PIN

  KOB Roll -- OD 08 x 25mm Long

21.

YN32W01001P1

[4]

  SHAFT

  KOB

22.

YN32W01027P1

[8]

  THRUST WASHER

  KOB

23.

YN32W01008P1

[4]

  PINION

  KOB

24.

YN32W01021P1

[4]

  BEARING

  KOB NEEDLE

25.

YN32W01026P1

[3]

  THRUST WASHER

  KOB

26.

YN32W01002P1

[3]

  PINION

  KOB

27.

YN32W01022P1

[102]

  ROLLER

  KOB

28.

YN32W01028P1

[3]

  THRUST WASHER

  KOB

29.

2418R2D25

[3]

  RING

  KOB RETAINING Superseded by part number: ZR16X04000

30.

2420T6698D2

[1]

  PIPE

  KOB

31.

ZG31U12000

[1]

  ELBOW

  KOB 90°

32.

ZE82T12000

[2]

  PLUG

  KOB 3/4" PT

33.

2418R2D22

[1]

  RING

  KOB RETAINING Superseded by part number: ZR16X03500

34.

ZS83C20020

[2]

  SCREW

  KOB Set -- M20x2.50x20mm




BEARING YN32W01030P1spare parts YN32W01030P1Kobelco parts YN32W01030P1


Company

ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!

ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!


Product production process: rough forgings-annealing-turning processing-heat treatment-grinding processing-super fine grinding-finished product assembly.




Packaging



Delivery：

1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.


Why choose us?

  ✬1.Trusted Product


  ✬2.Advanced Technology


  ✬3.Reliable Service


  ✬4.Competitive price



FAQ

Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.

Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock
