About product:
|

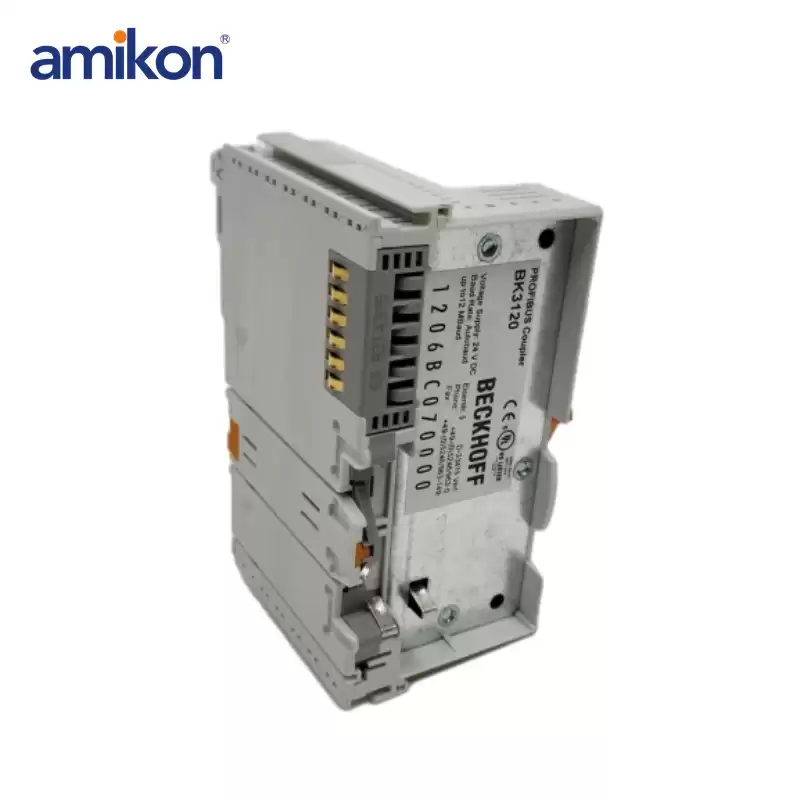

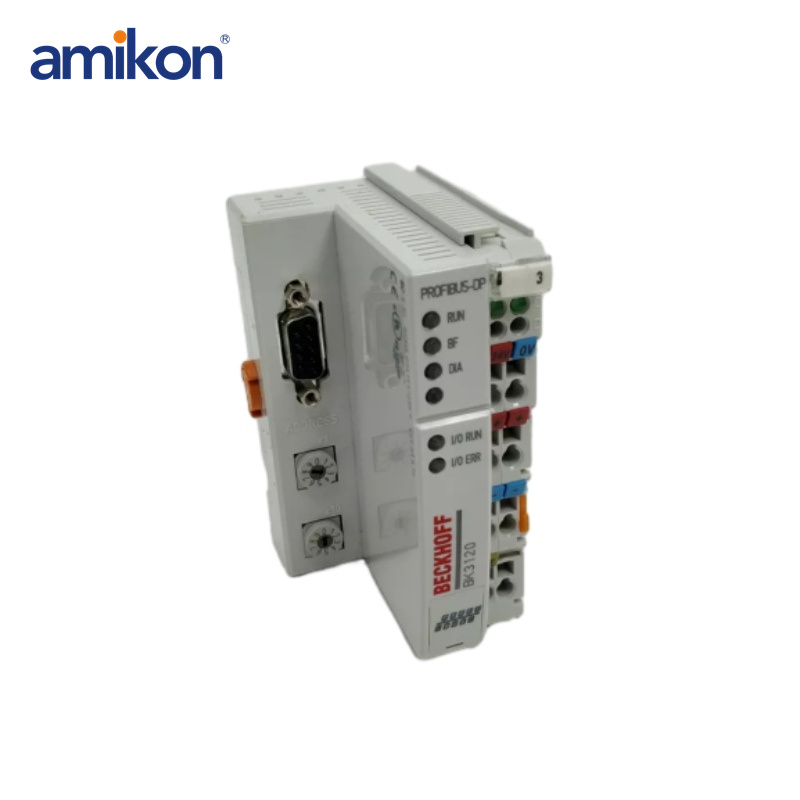

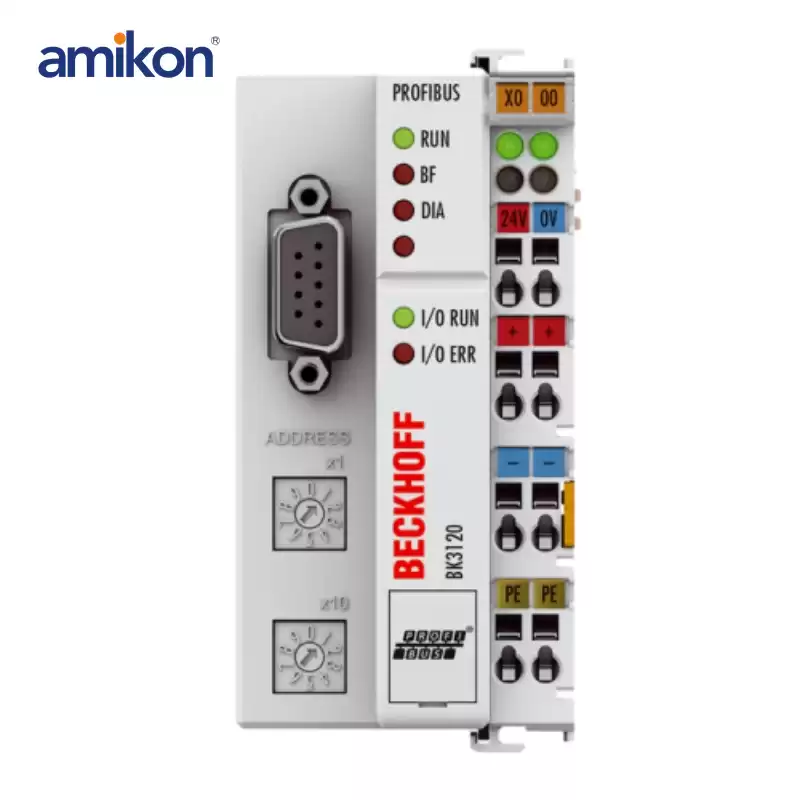

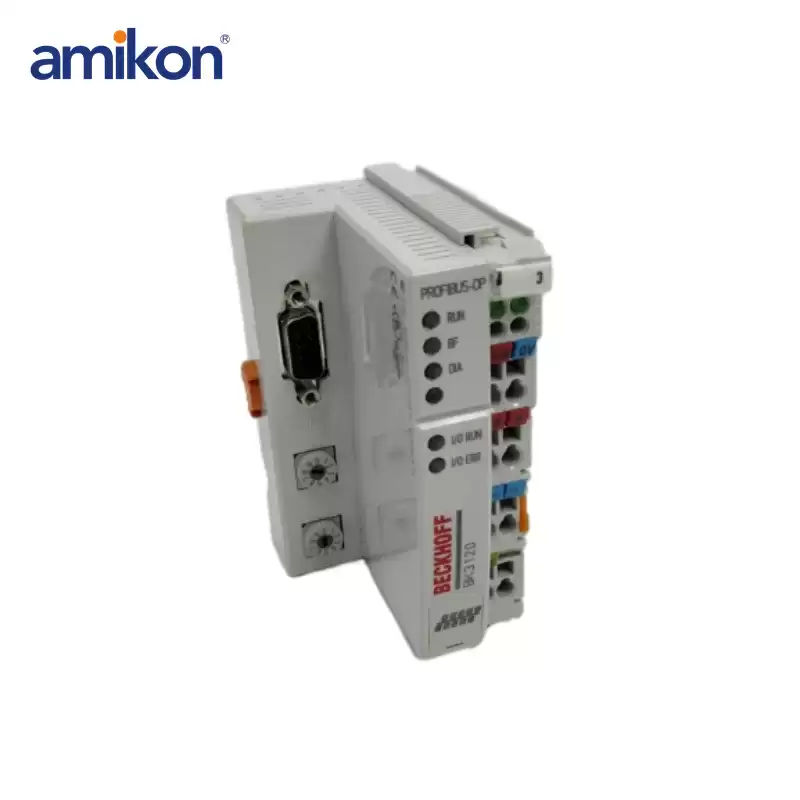

Beckhoff PROFIBUS Economy plus Bus Coupler BK3120
|
|
The Beckhoff BK3120 PROFIBUS Economy plus Bus Coupler is designed for cost-effective and efficient automation solutions. It enables the connection of Beckhoff's I/O terminals to the PROFIBUS fieldbus system. This Bus Coupler provides seamless communication between the terminal devices and the higher-level PROFIBUS master, making it ideal for various industrial applications requiring reliable data exchange and control.
The BK3120 supports the PROFIBUS DP protocol, allowing it to integrate into distributed control systems with ease. It features a compact design, which saves space in control cabinets, and is equipped with diagnostic LEDs to provide system status and error monitoring.
|
Specifications:
|
Data Transfer Rate：
|
Up to 12 Mbaud
|
|
I/O Terminals
|
：Supports up to 64 terminals
|
|
Dimensions (HxWxD)
|
：100 mm x 65 mm x 90 mm
|
|
Weight
|
：Approximately 200 g
|
|
Operating Temperature：
|
0°C to +55°C
|
|
Diagnostic LEDs：
|
Yes, for status and error monitoring
|
|
Installation
|
：DIN rail mountable
|
Applications:
The BK3120 is typically used in a variety of industries for connecting decentralized I/O terminals to PROFIBUS DP systems. It is commonly applied in:
-
Factory automation
-
Process control systems
-
Building automation
-
Machine control
