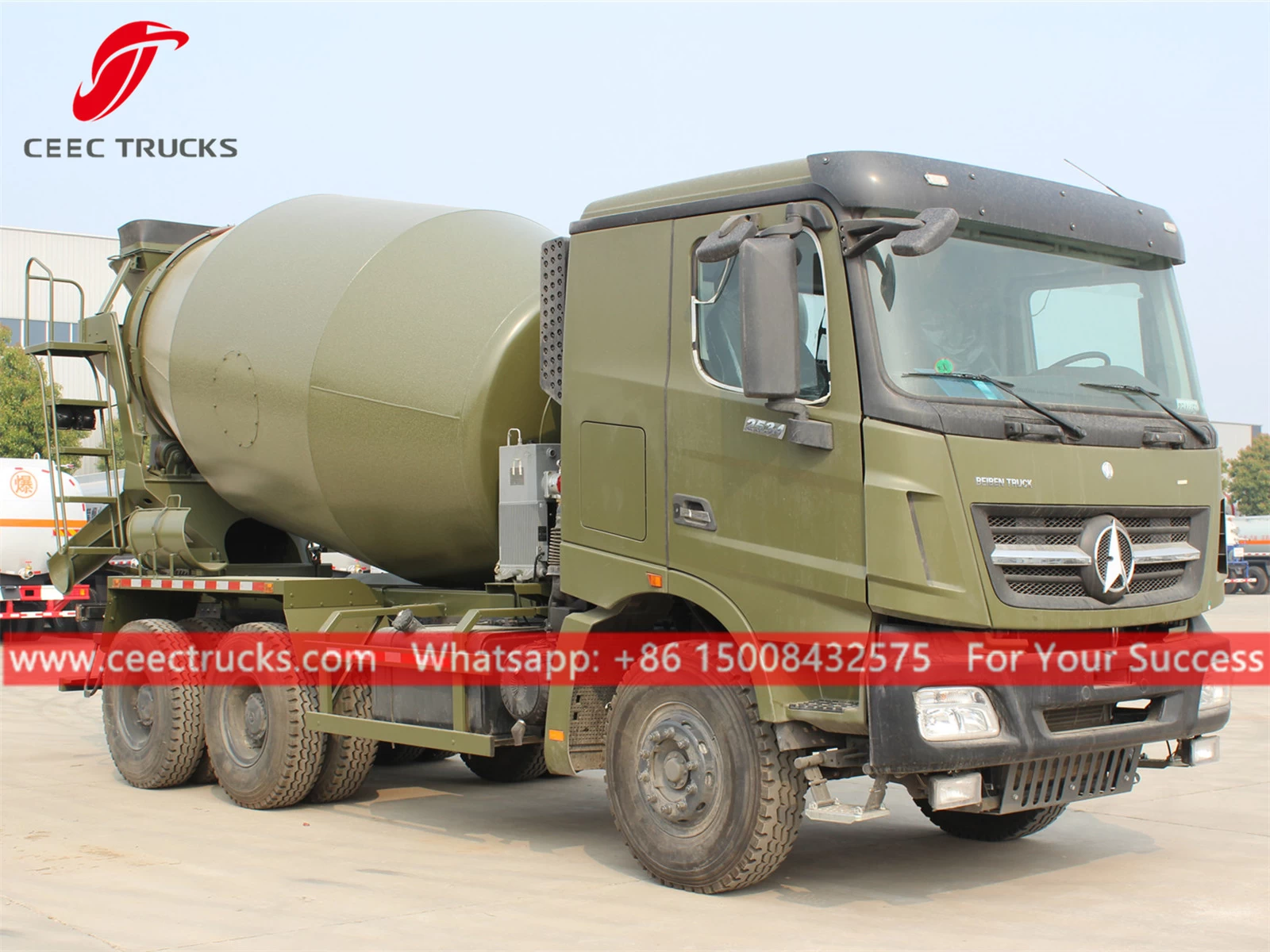

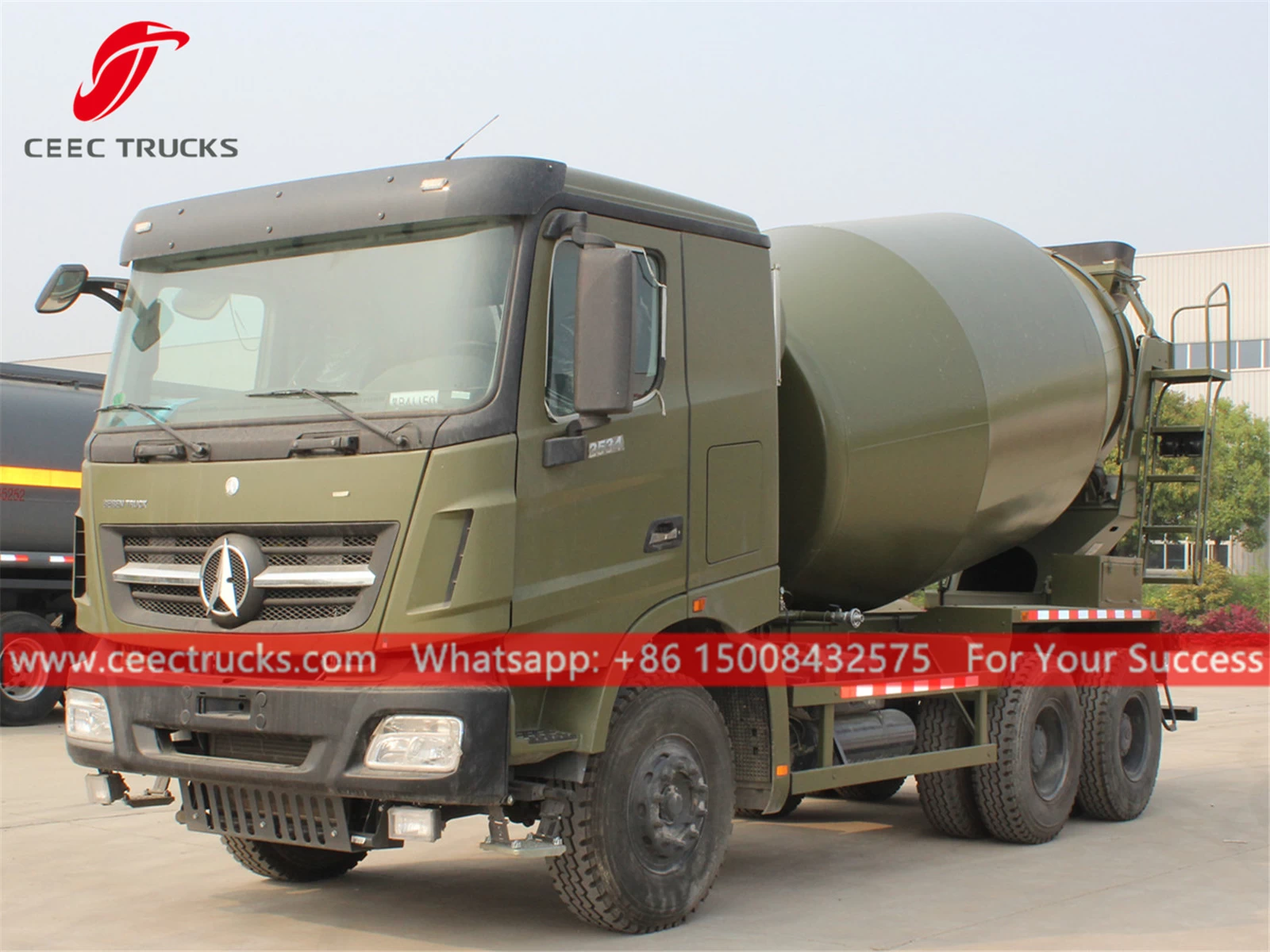

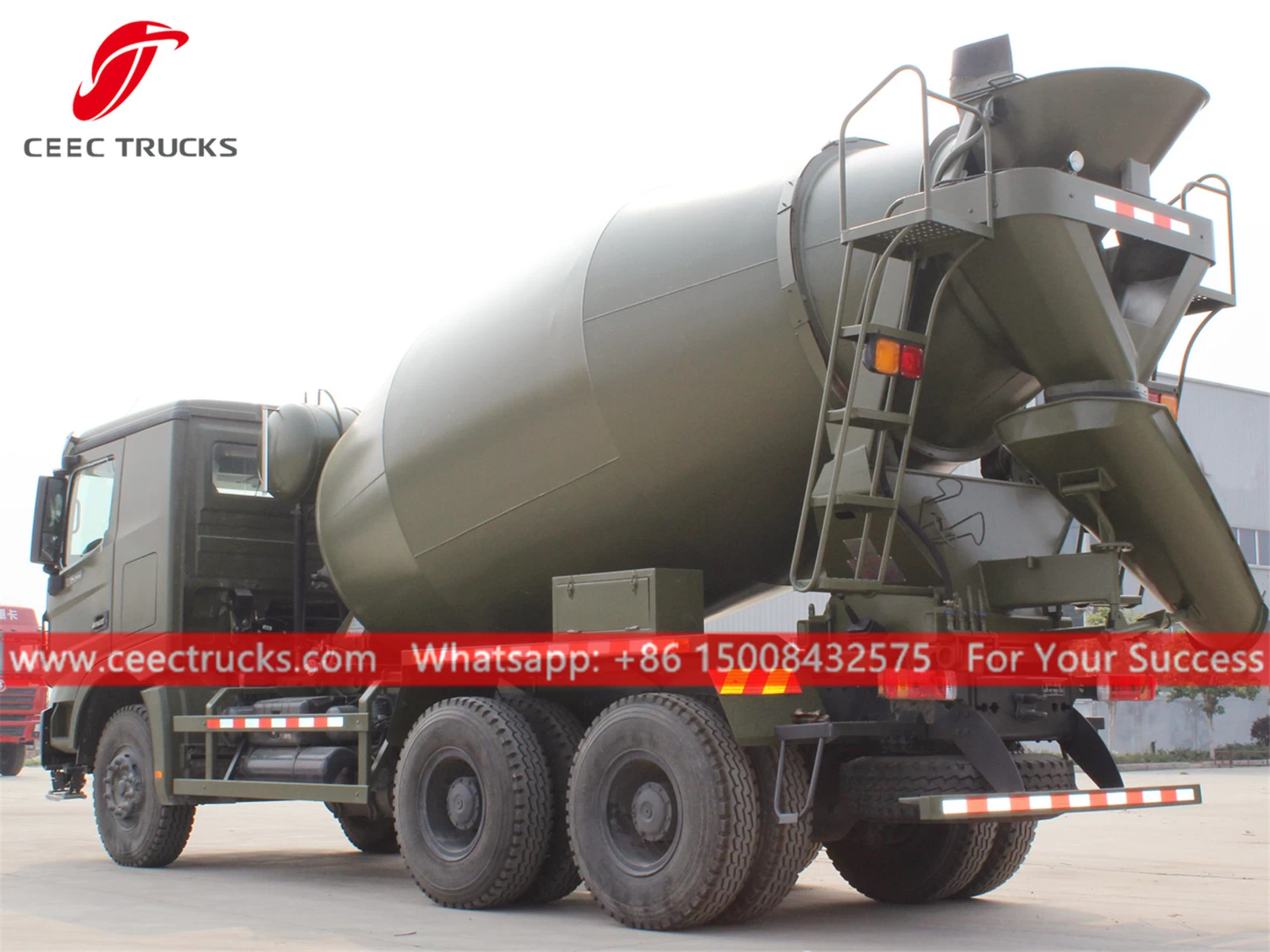

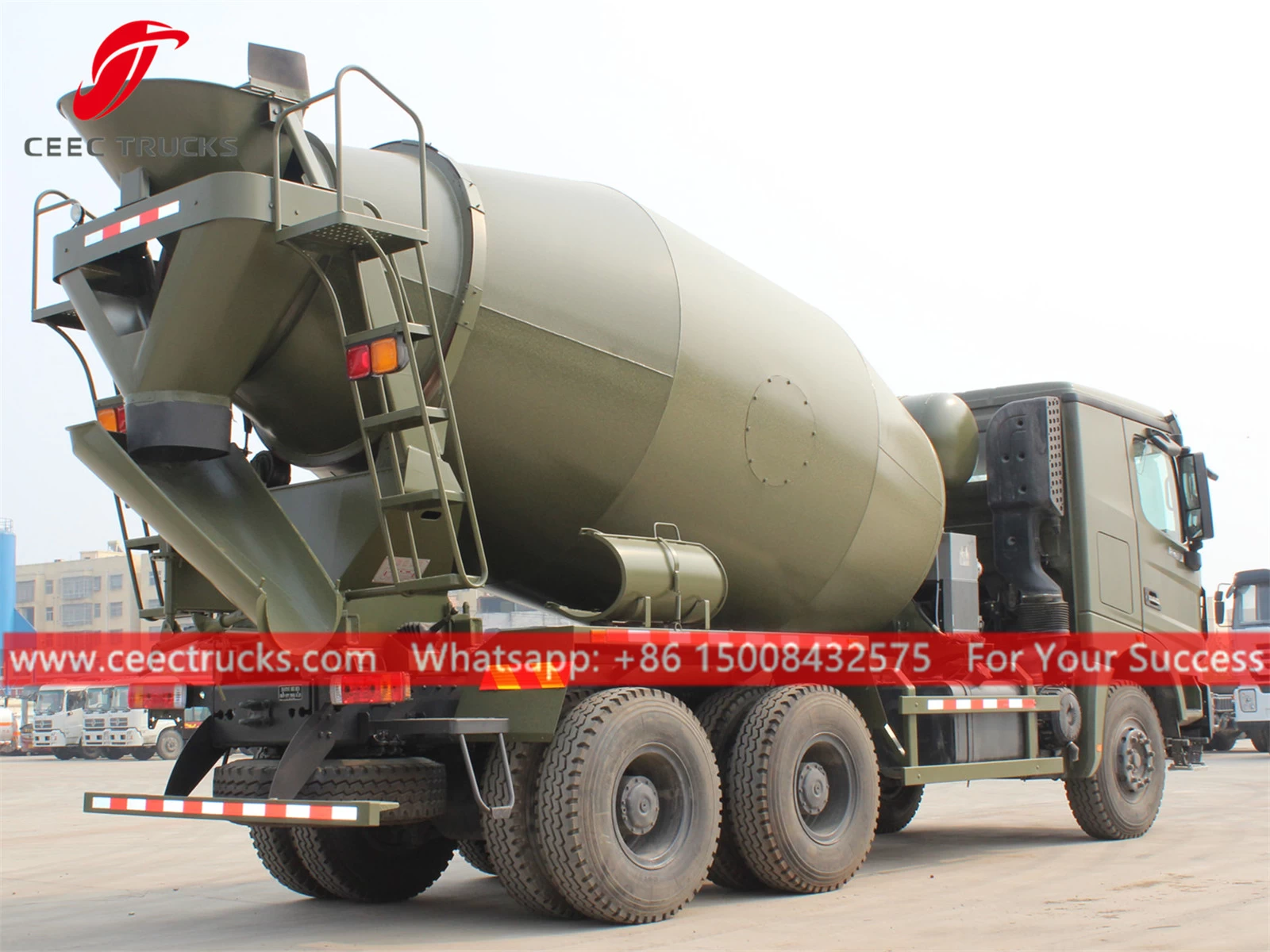

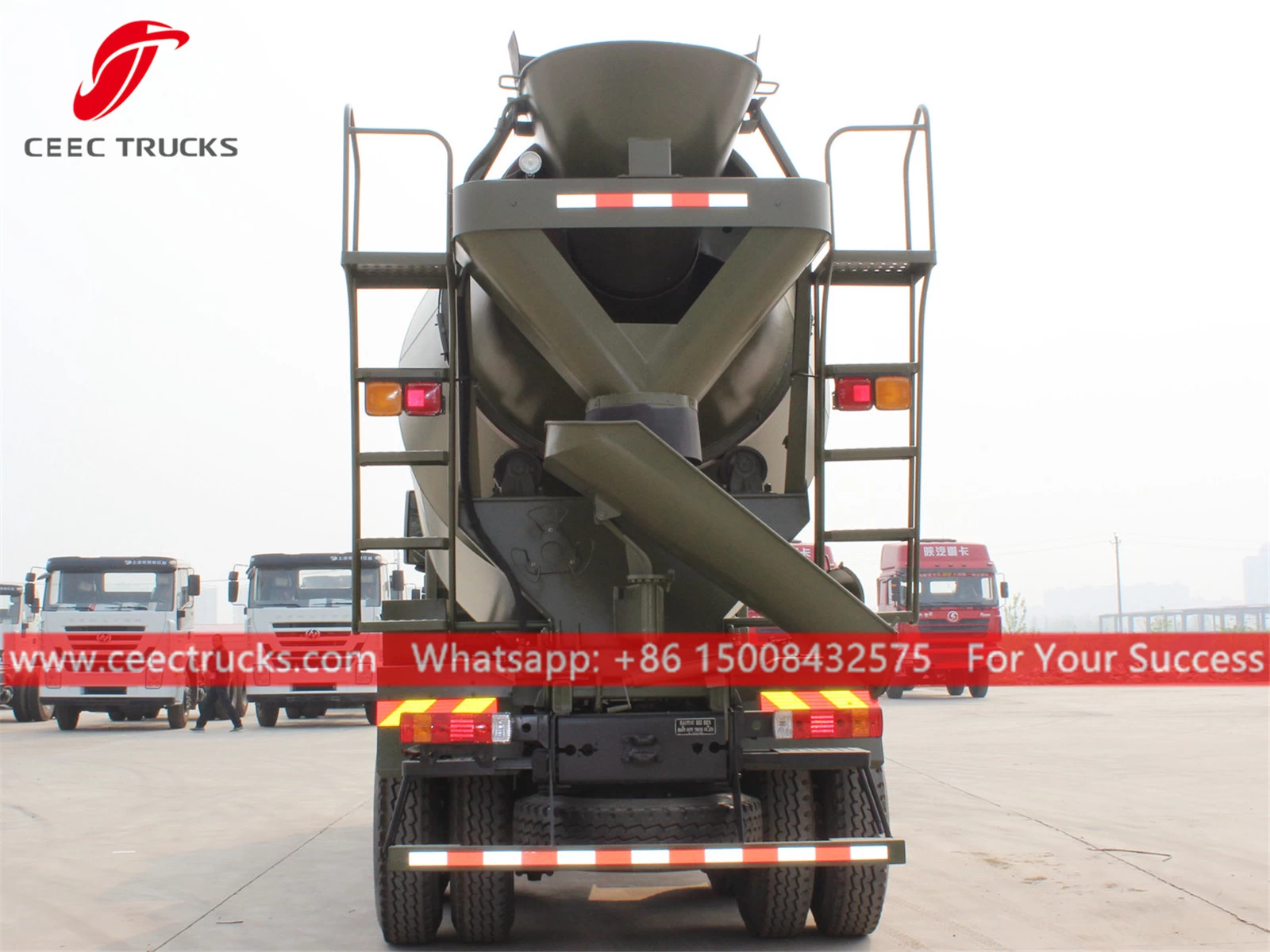

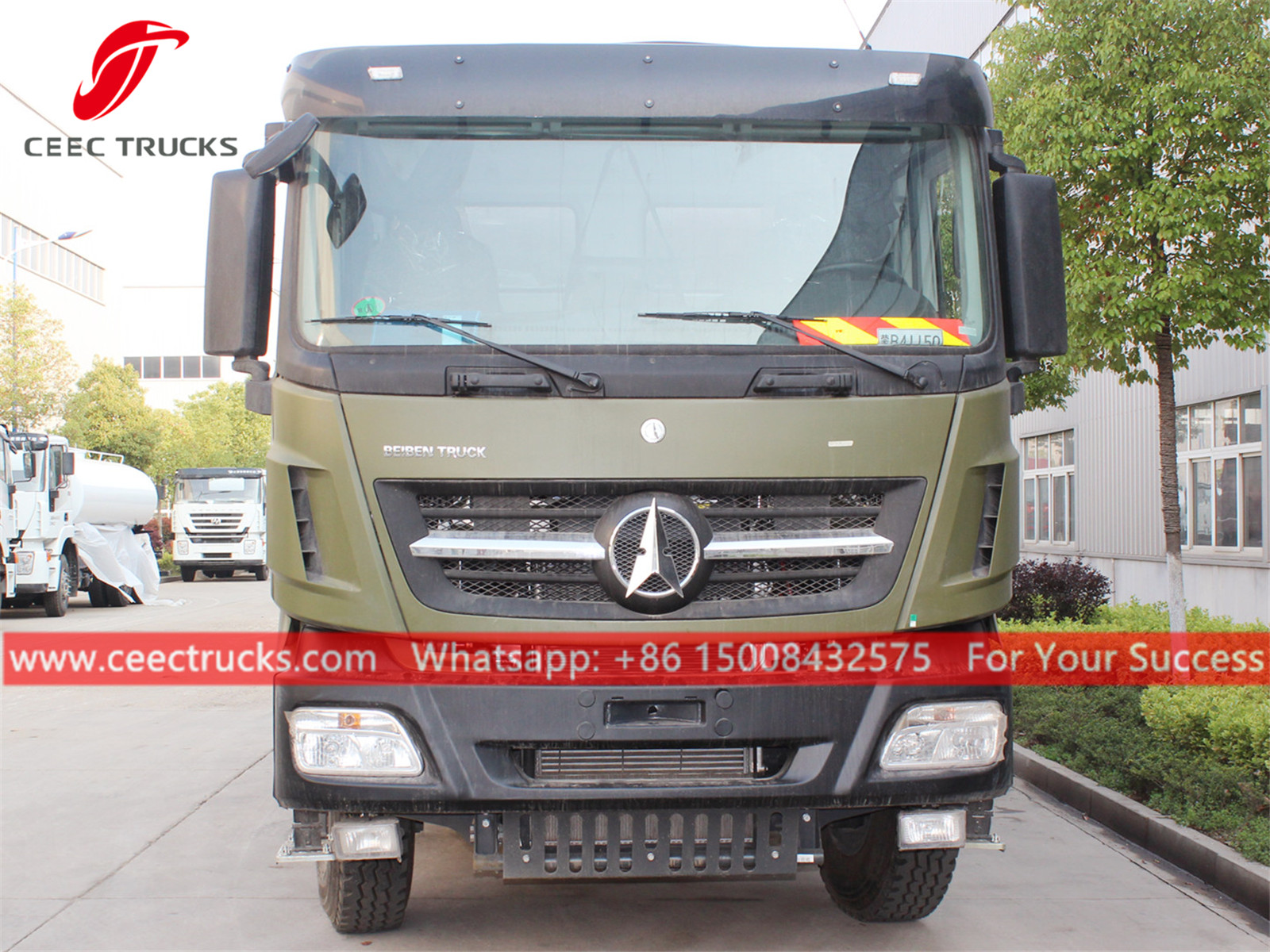

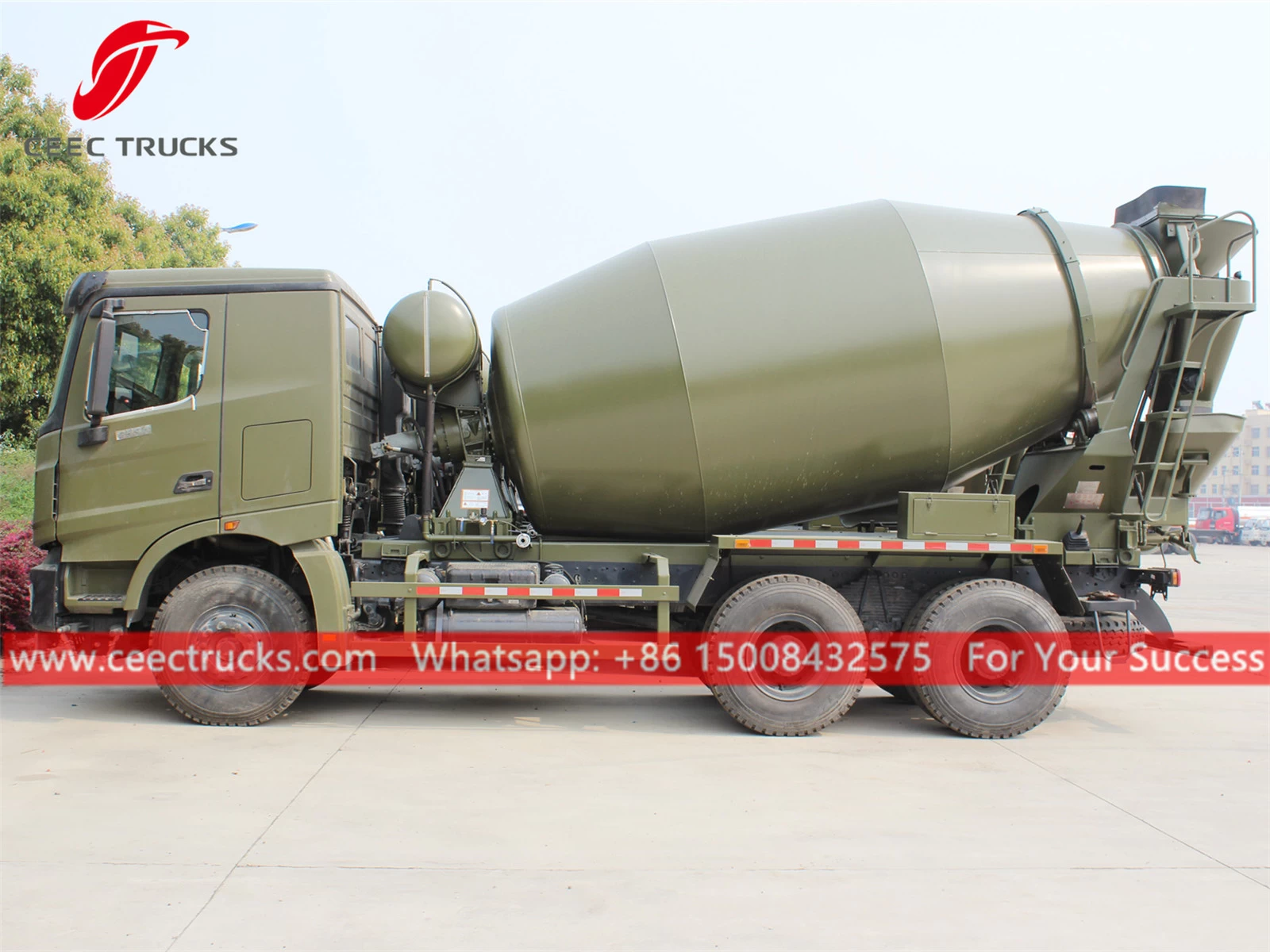

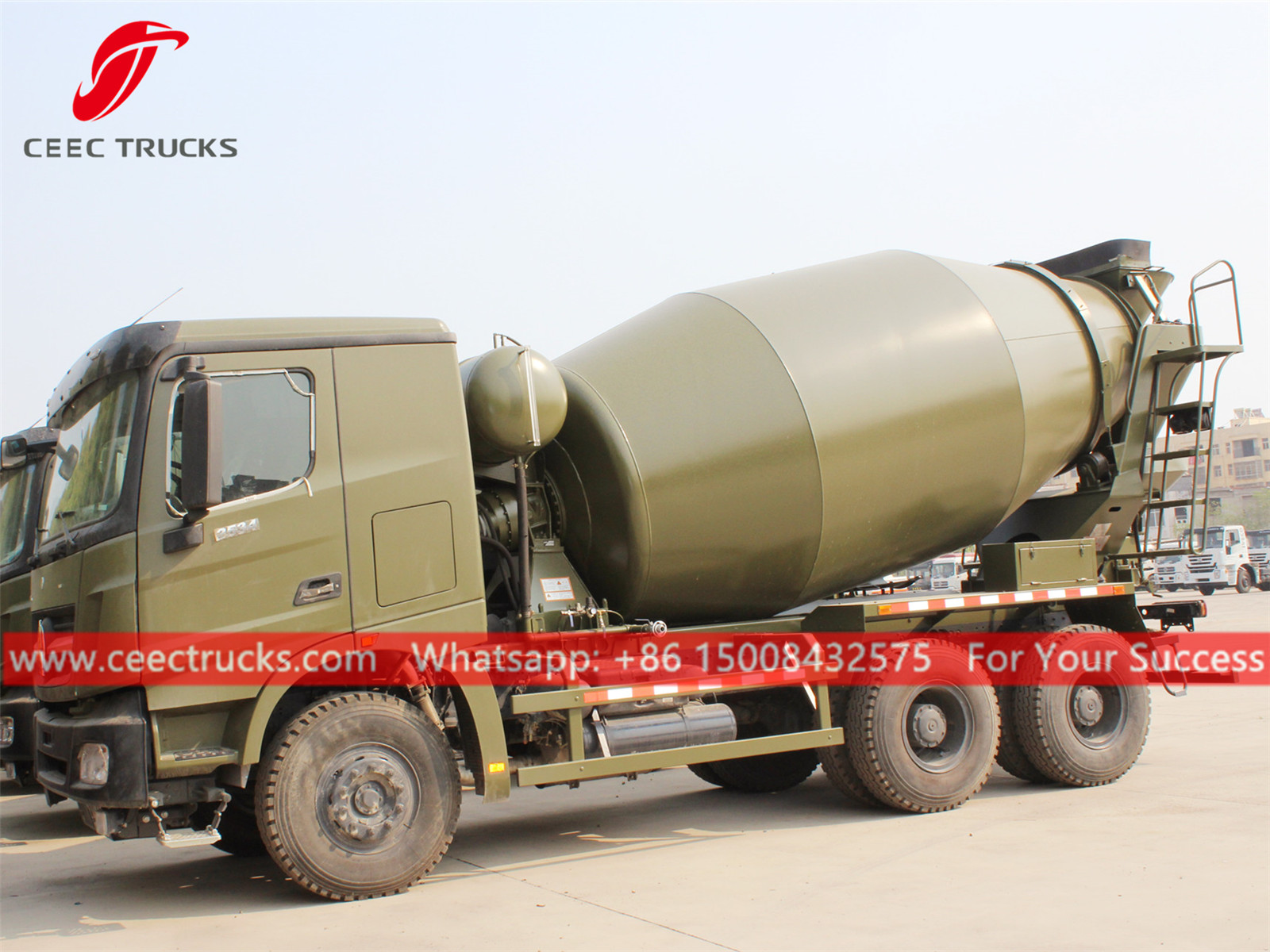

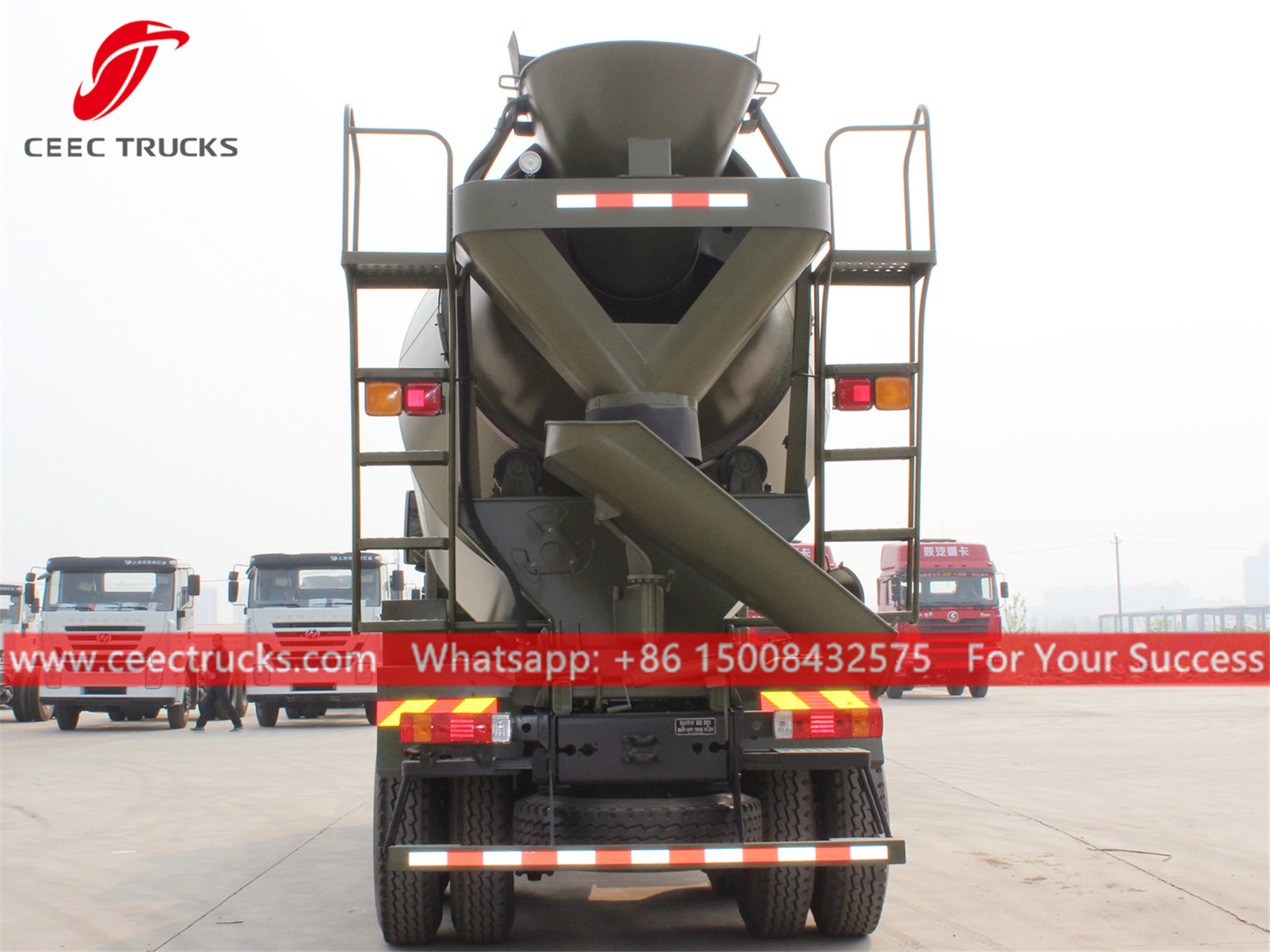

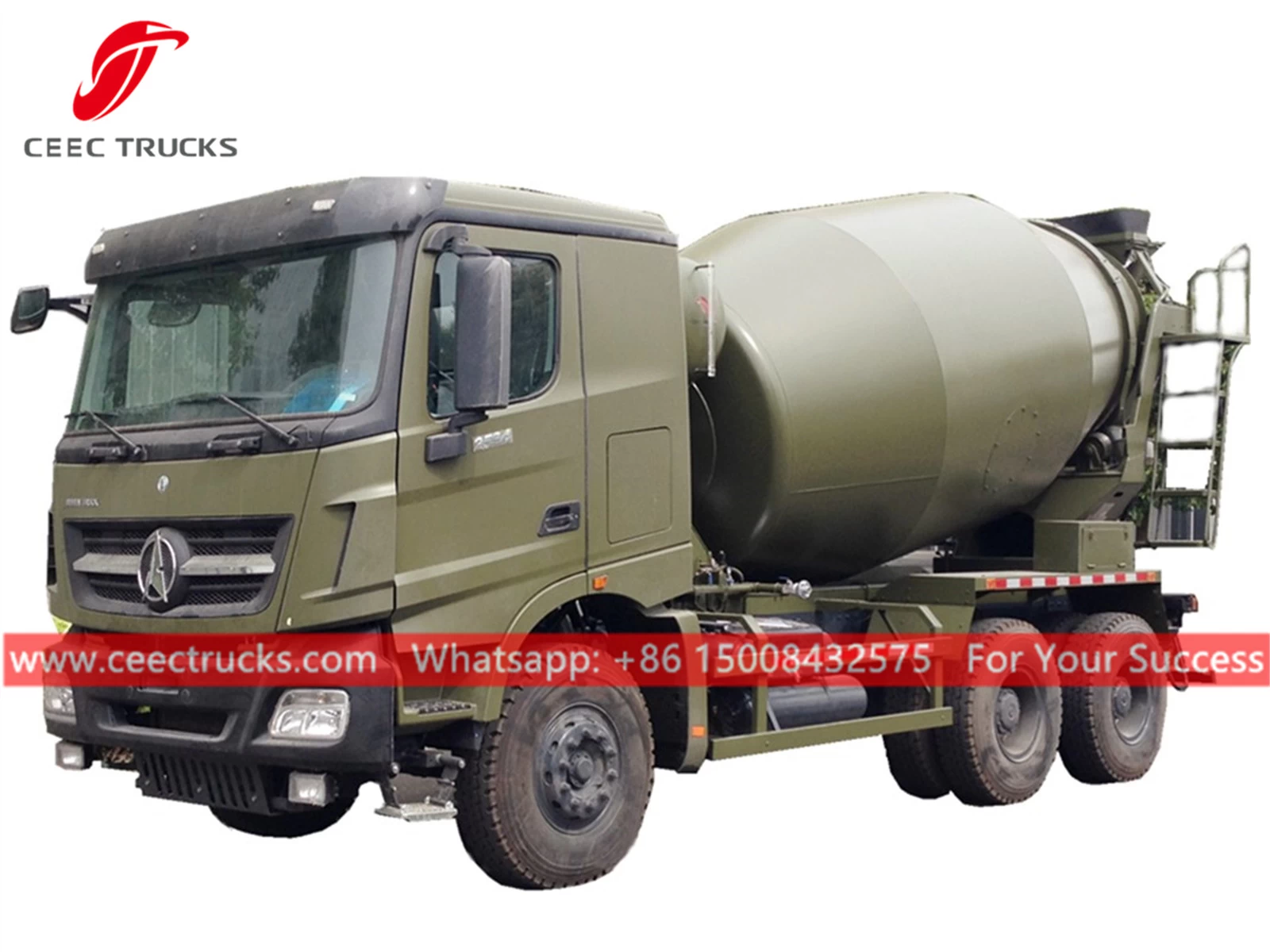

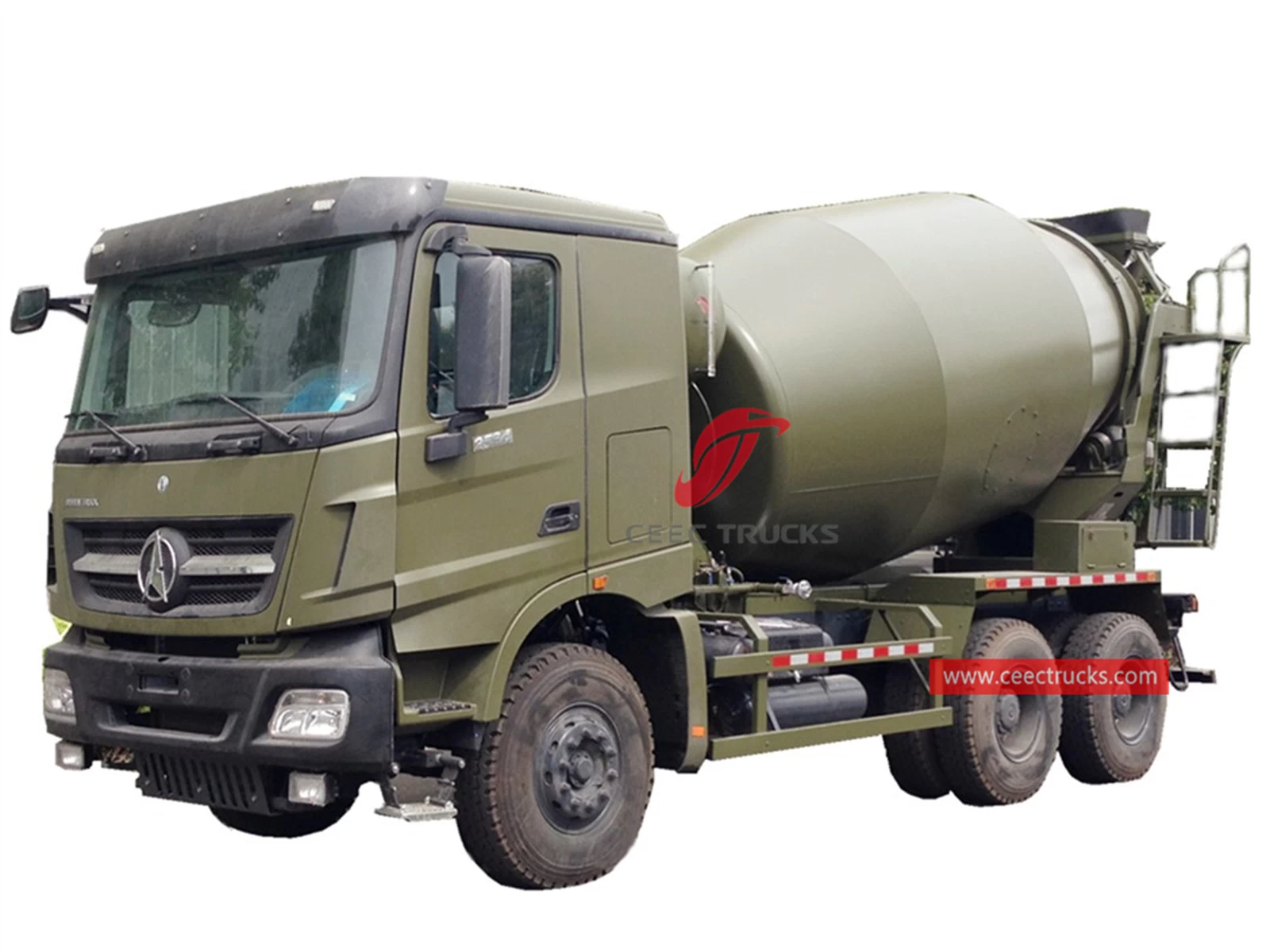

Beiben 10 CBM Concrete Mixer truck

Top quality beiben mixer truck, 6x4 LHD chassis, weicha 340HP diesel engine, FAST 9-shift manual gearbox, as for main parts motor, pump, reducer, which can have brand optional as Eaton, PMP, Rexroth, Bonfiglioli, etc, painting and logos depend on request.

Facebook Twitter Pinterest LinkedIn 分享



 Applications:

Concrete Mixer truck (also called transit mixer, concrete transport truck, mixer truck, cement mixing truck, concrete mixer, cement mixer, volumetric mixer truck, agitator truck, Cement mixer truck, Transit mixer truck, ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC Trucks dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- BEIBEN heavy duty chassis, perfect performance
---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Pay loading from 3CBM to 18CBM.
---- Easy operation and easy maintenance.

---- Various types of Hydraulic main parts are available.

mixer truck advantage



 Specifications:



Concrete Mixer truck BEIBEN (10 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

BEIBEN

Overall Dimension

8420 * 2500 * 3270 mm

GVW / Kerb Weight

25,000kg / 11,350kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

340 HP (250 KW)

Displacement

9726 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

6X4 (left hand drive)

Transmission

FAST 9 speed levers with 1 reverse

Wheelbase/No. of axle

3640+1410 mm / 3

Tire Specification

11.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Mixer tank volume

10 cubic meter

Barrel wall Thickness

5 mm

Barrel wall material T520JJ

Loading speed

≥  1.2

Discharging speed

≥  2.7

Rest rate

≤  1

Control

Both side with hydraulci control

Pump EATON 5423
Motor EATON 5433
Reducer TOP P68

Color & LOGO

According to wish

All standard accessories: All tools. .

Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other body capacity can be choose.

** Other material and plate thickness can be choose.
