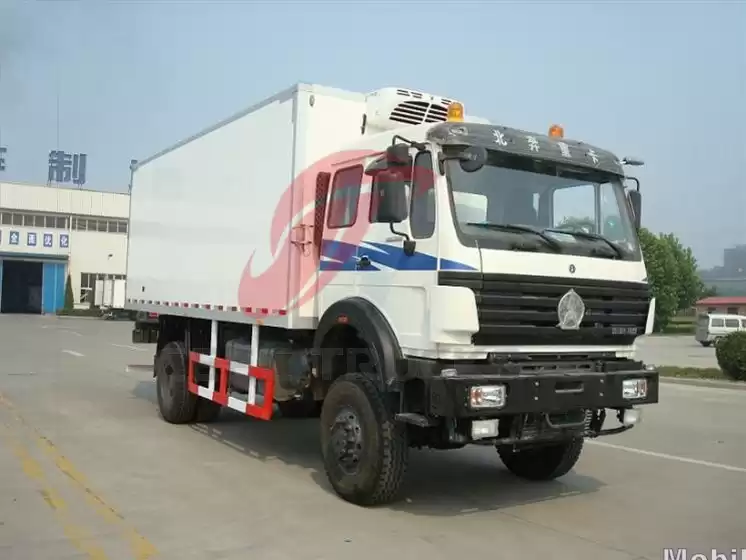

beiben 10 CBM Refrigerator truck
beiben 10 CBM Refrigerator truck ,beiben 1928 4*2 drive system, Brand WeiChaiWD615.50 / Diesel 280 hp engine, ZF 5S-111GP 8-forward &1-reverse gears transmission, GFX420, single disc, dry type, diaphragm spring, 4800 wheel base, 12.00R20 tyre.
1.North benz 10 CBM refrigerator manufacturer
2.China beiben refrigeration supplier
3.Famous BENZ technology
4.America cooling system
5.Beiben trucks
beiben 10 CBM Refrigerator truck for sale
Beiben trucks refrigeration truck . As the most professinal beiben refrigeration trucks manufacturer in china, we can produce the beiben 5 T refrigeration truck, beiben 6.3 Trefrigeration truck, beiben 8 T refrigeration truck , and beiben 16 T refrigeration truck.
We can supply beiben 5 T 4*2 refrigeration truck, beiben 6*4 drive refrigeration truck, beiben 8*4 refrigeration truck

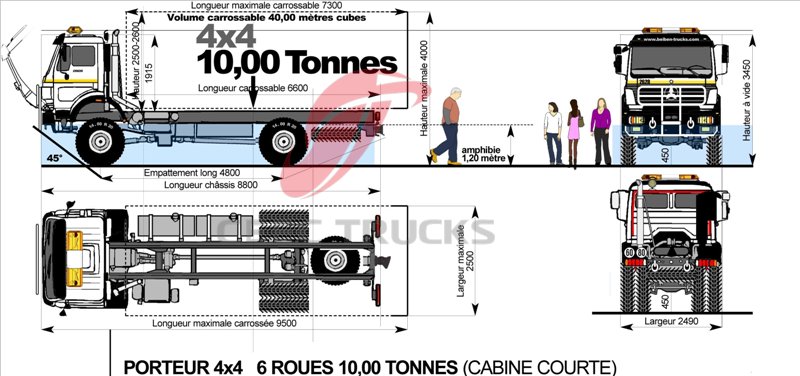

Beiben 4*4 drive refrigeration truck for congo
Beiben 6*4 refrigeration transportation truck for africa using .

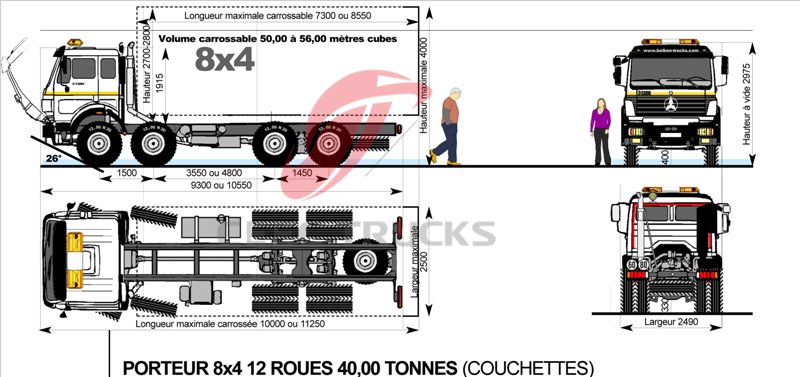

Beiben 8*4 drive refrigeration truck manufacturer for south asia customer .
China Bei Ben new NG80B truck beiben 10 T refrigeration truck for
africa congo customer using, with Excellent quality Mercedez benz
technology, We can supply beiben 5 CBM , 8 CBM , 10 CBM , 12 CBM , 16 CBM, 25 CBM refrigeraton truck .
China beiben china north benz beiben 10 T
|
Technical Parameters |
||
| Brand | BEIBEN TRUCK | |
| Vehicle model | 1928RE | |
| Cabin | Full steel skeleton structure, covered with double layer steel plate | |
| Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles | ||
| Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure | ||
| Persons in cab: 3 | ||
| Driving | 4×2 | |
| Wheel base (mm) | 4800 | |
| Curb Weight(kg) | 8000 | |
| Engine | Model | Brand WeiChaiWD615.50 / Diesel, 6 cylinders in line, water cooled ,four stroke ,direct injection, turbocharger and intercooler |
| Power | 280HP | |
| Emission | EUROⅡ | |
| Rated power(kw/rpm) | 206Kw/2200rpm | |
| Transmission | Gearbox Model:ZF 5S-111GP 8-forward &1-reverse gears | |
| Clutch | GFX420, single disc, dry type, diaphragm spring | |
| Frame | BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame | |
| Fish belly, various width, various sections, side beam structure | ||
| Axle | Front: | Mercedes Benz Technology, Double-shoe pneumatic brake, driving steering axle |
| Rear: | Mercedes Benz Technology, Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |
| Suspension | Non-free standing stabilization spring, hydraulic shock absorber， stabilization suspension， | |
| Steering | ZF8098 (Original ZF technology) | |
| Wheels and tyre size | 6+1/12.00-R20 | |
| Fuel tank (L) | 400L | |
| Upper body Dimension(Lx W xH) | 6200×2300×2300 mm | |
| Colour | Metal Black, multi-colored options | |
|
Refrigerator Specification |
||
|
Refrigerator body |
Exterior Dimension(mm) | 6200x2300x2300 |
| Remarks | 1,bottom plate with slide way for ventilation. | |
| 2,board thickness of loading space: | ||
| Bottom plate: 100mm | ||
| Others plate: 100mm | ||
| Refrigeration unit Model | ZX650 | |
| Compressor | TM-16 | |
| Refrigeration Fluid | R404A | |
| Refrigeration capacity | 10CBM | |
