Beiben 10 CBM waste compactor truck supplier in china

China beiben 10 CBM garbage compactor truck , benz technology 4*2 truck chassis, famous weichai 290 hp engine, fast 9 shift transmission, 10 cbm garbage compactor system.



           Best manufacturer for beiben 10 cbm garbage compactor truck



China best quality beiben 10 CBM garabge compactor truck with 4*2 drive system, with fully benz technology front axle and rear axle, to ensure the best work performance and excellent drive interest. With the 15 years expereience in beiben garbage compactor trucks manufacturing, we can make sure the best price for all beiben 10 cbm garbage trucks from us.

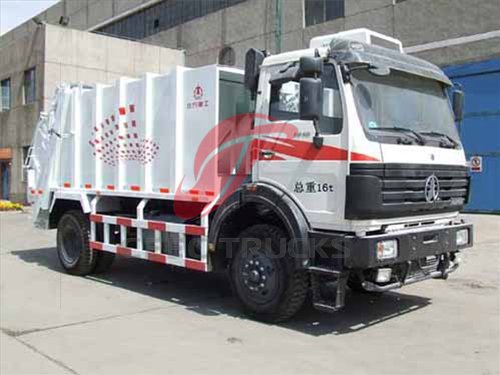

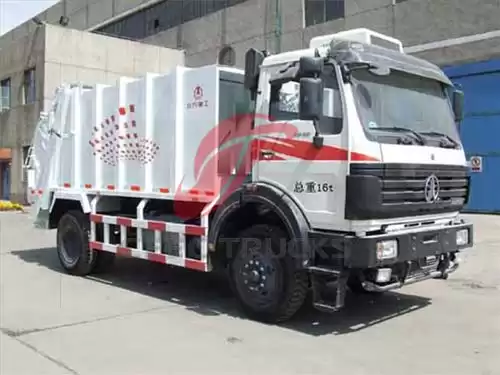

north benz 10 cbm garbage compactor truck

Technical Parameters

Brand

BEIBEN Garbage compactor  TRUCK

Vehicle model

1929GA

Cabin

Full steel skeleton structure, covered with double layer steel plate

Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles

Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure

Persons in cab: 3

Driving

4×2

Wheel base (mm)

4800

Weight data

Curb Weight(kg) 7760

Engine

Model

Brand WeiChai WP10.290 / Diesel, Straight in linewater-cooledturbocharged, intercooled, 6 cylinders,

Power

290HP

Emission

EURO III

Rated power(kw/rpm)

213Kw/2200rpm

Transmission

5S-112P,  9-forward &1-reverse gears

Option: ZF9T-160

Clutch

single disc, dry type, diaphragm spring, φ430

Frame

BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame

Fish belly, various width, various sections, side beam structure

Axle

Front:

Mercedes Benz Technology, 7.5 ton, non-driving steering axle

Rear:

Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle

Suspension

Non-free standing stabilization spring, hydraulic shock absorber stabilization suspension

Steering

ZF8098 (Original ZF technology)

Wheels and tyre size

6+1/12.00-R22.5

Fuel tank (L)

400L

Colour

Metal white, multi-colored options

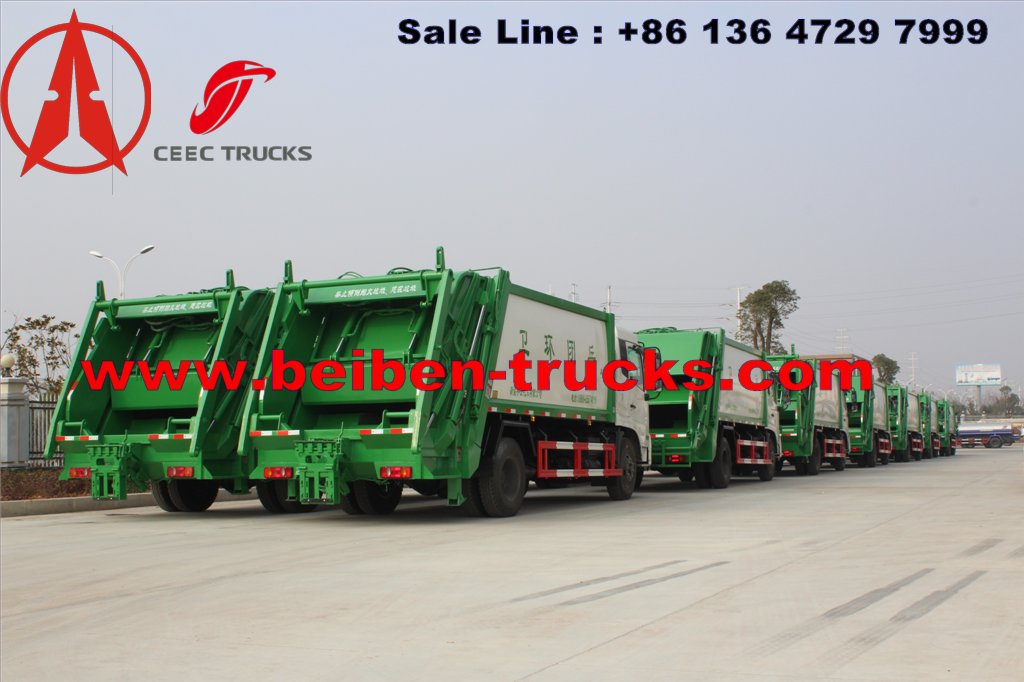

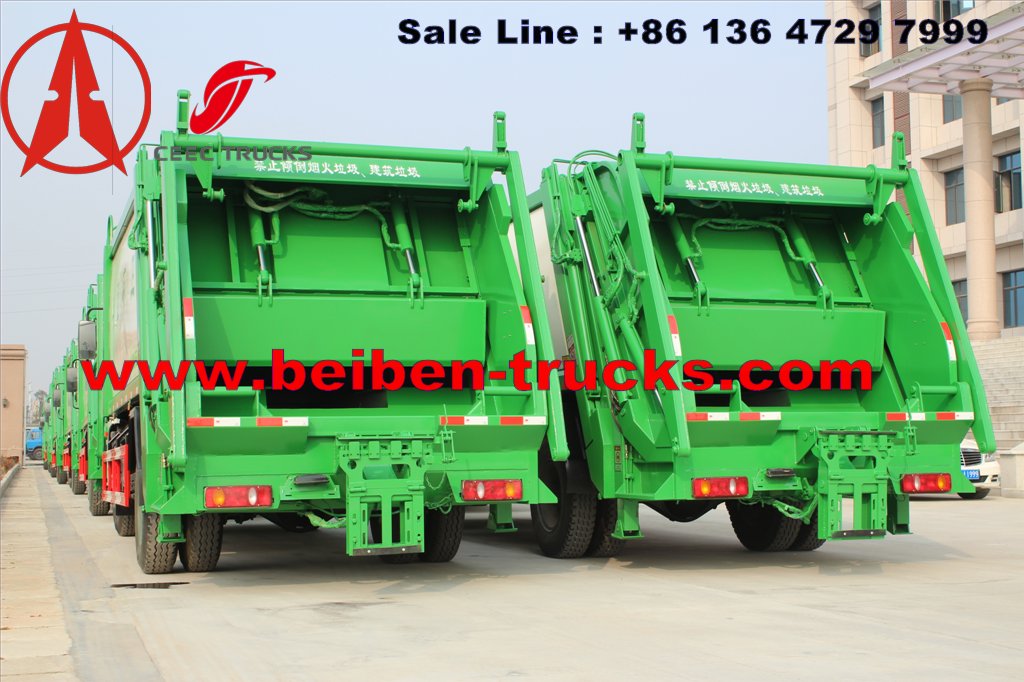

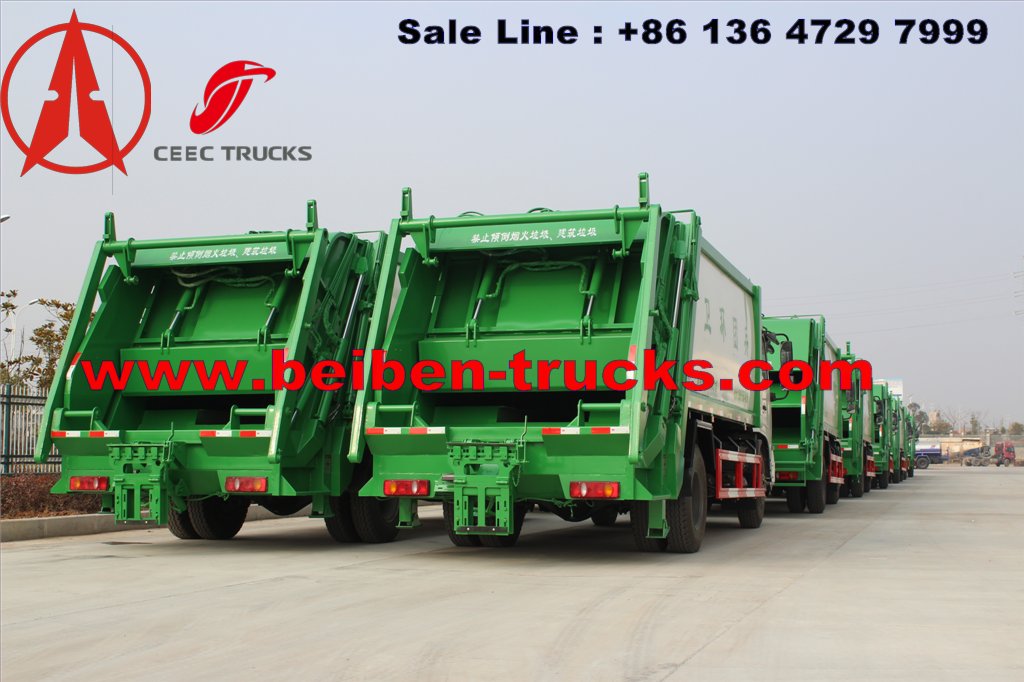

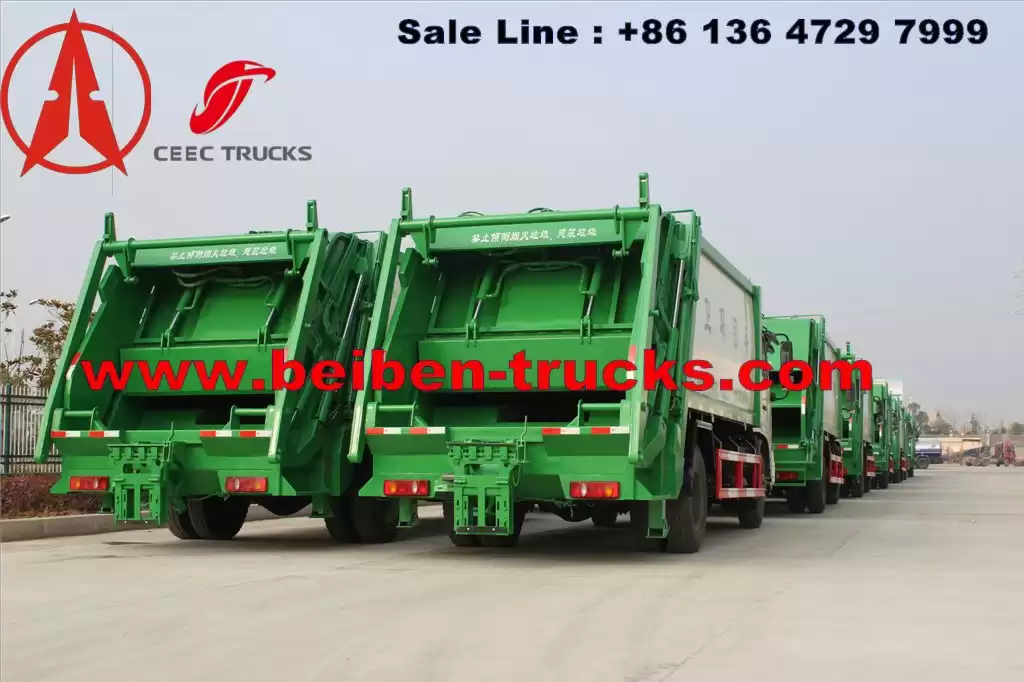

We have exported great quantity beiben rear loading garbage trucks to congo, ghana,ethopia, nigeria, senegal, algeria, tanzania, kenya, and other middle east country.

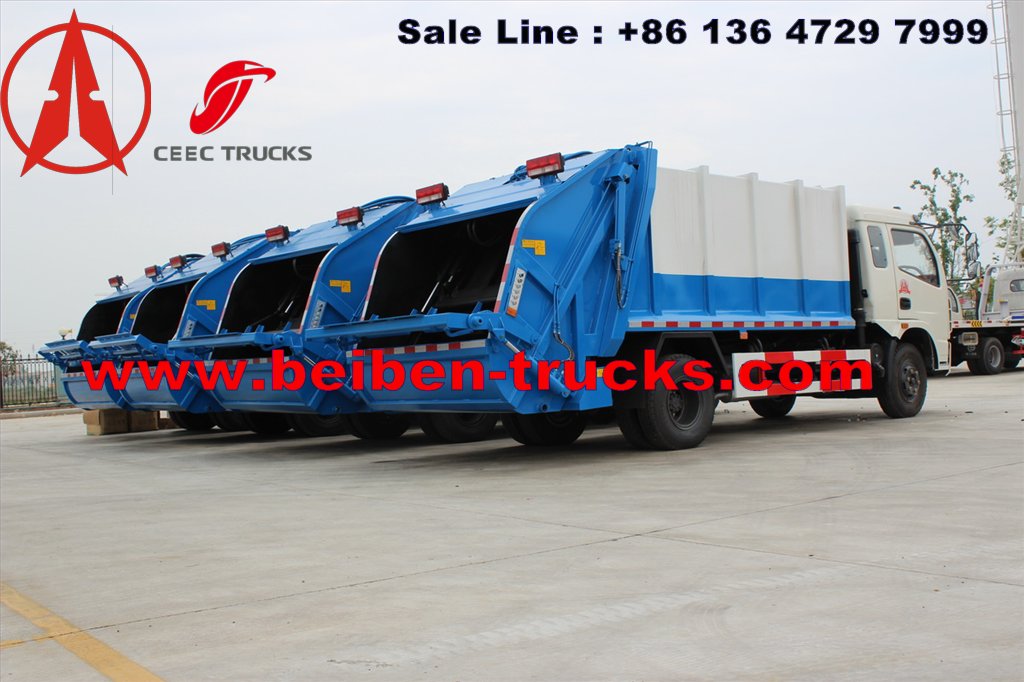

north benz 10 cbm garbage compactor truck

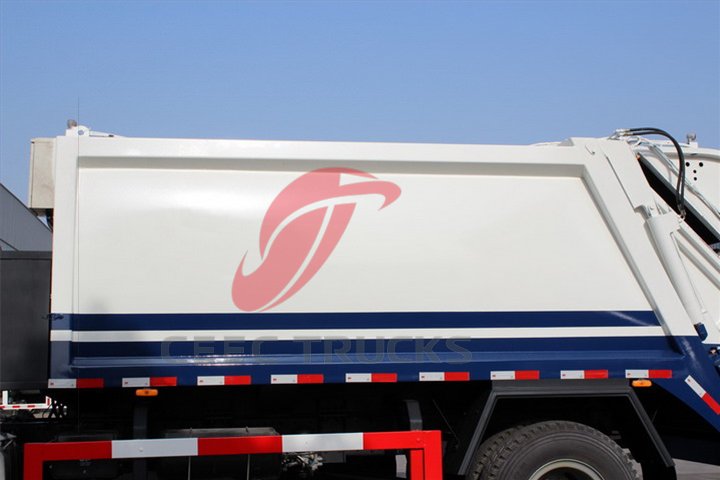

north benz 10 cbm garbage compactor truck

Super quality for north benz 10 CBM garbage compactor trucks

north benz 10 cbm garbage compactor truck

north benz 10 cbm garbage compactor truck

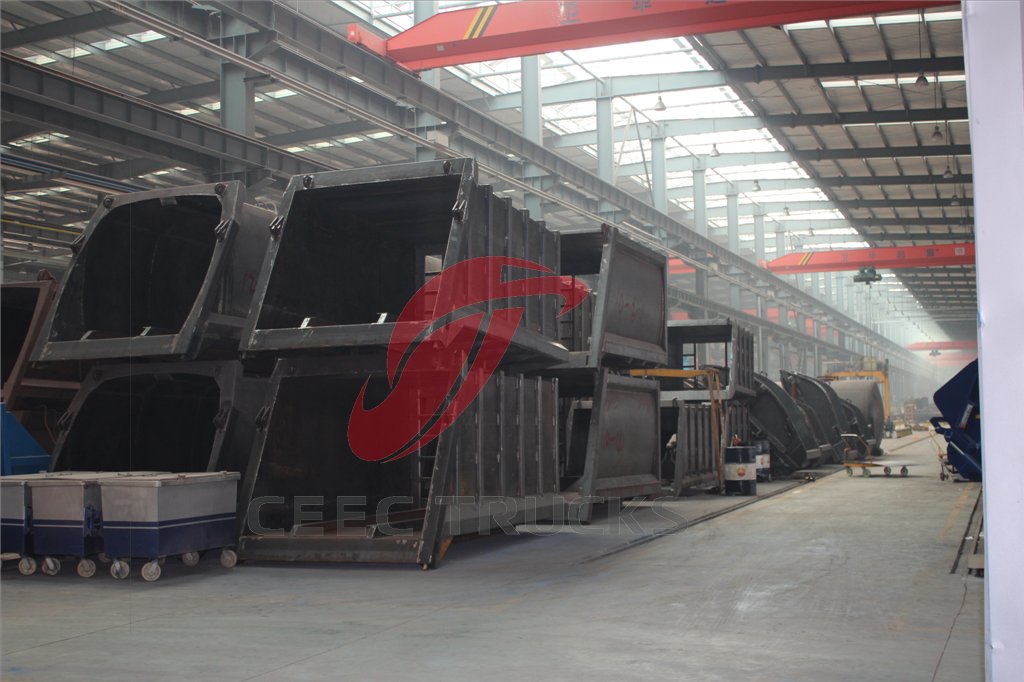

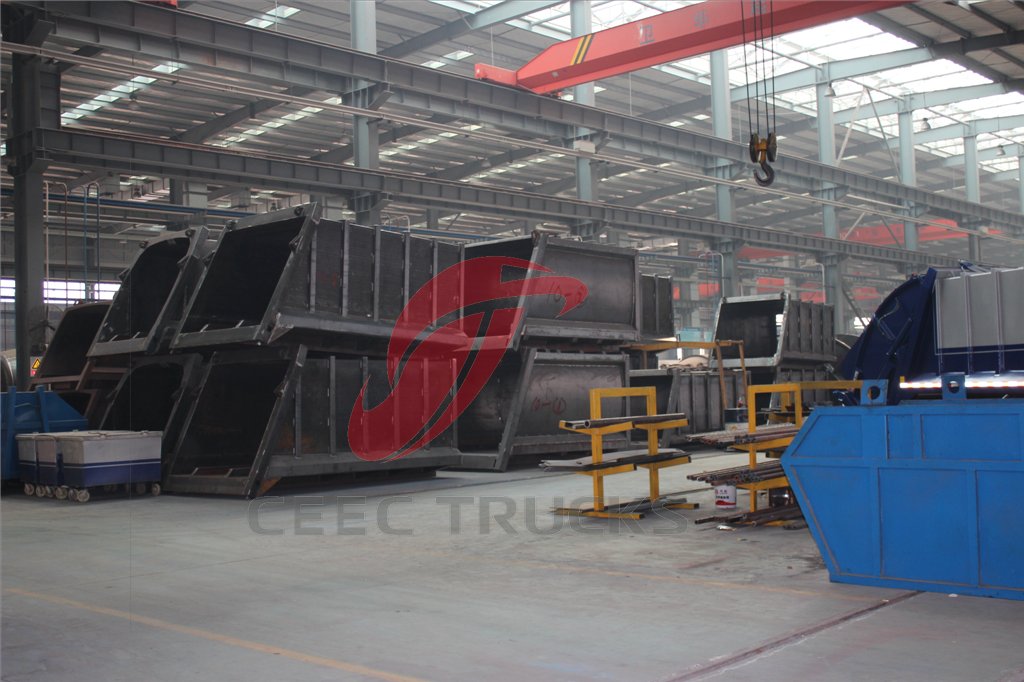

The most professional garbage compactor truck manufacturer on beiben 4*2 truck chassis, beiben 6*4 drive truck chassis and beiben 8*4 drive truck .

north benz 10 cbm garbage compactor truck

north benz 10 cbm garbage compactor truck

north benz 10 cbm garbage compactor truck

north benz 10 cbm garbage compactor truck

north benz 10 cbm garbage compactor truck

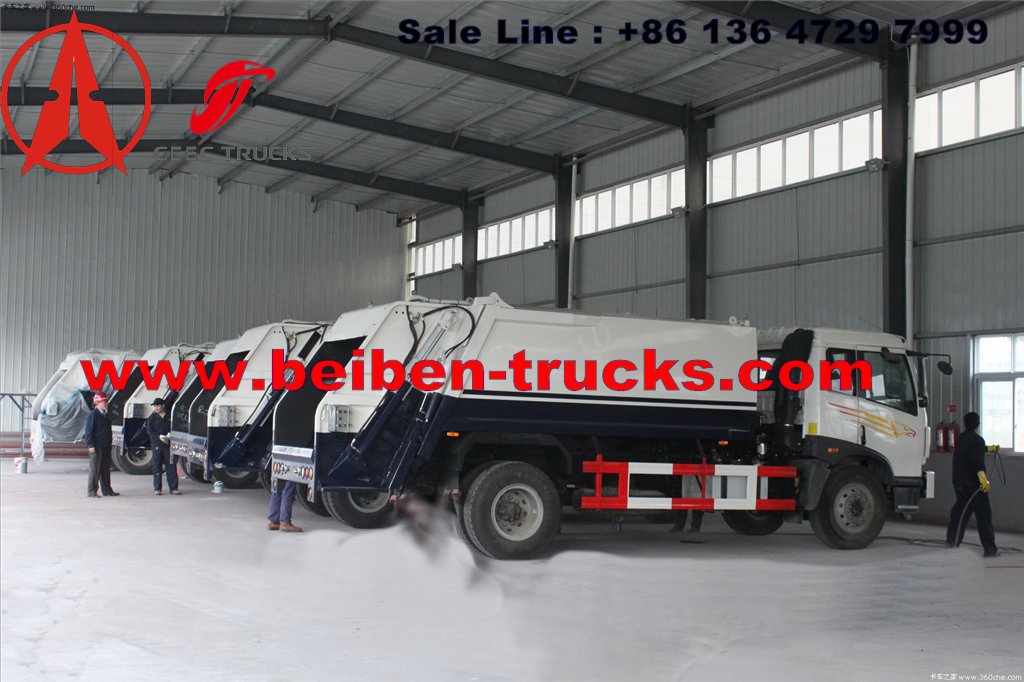

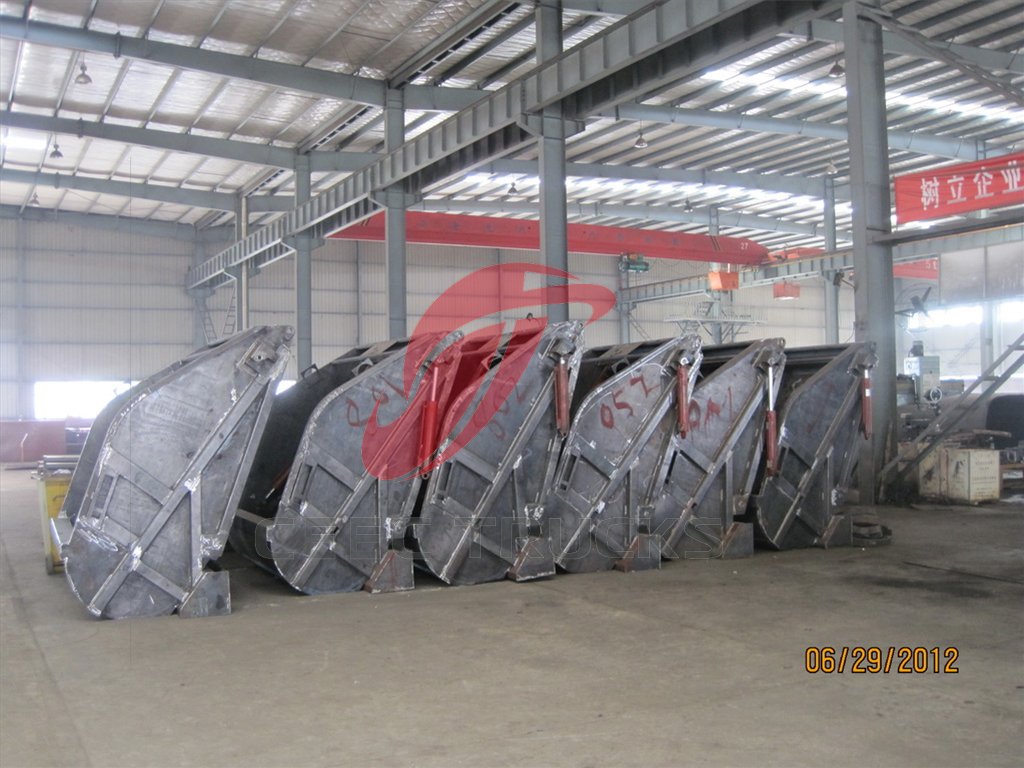

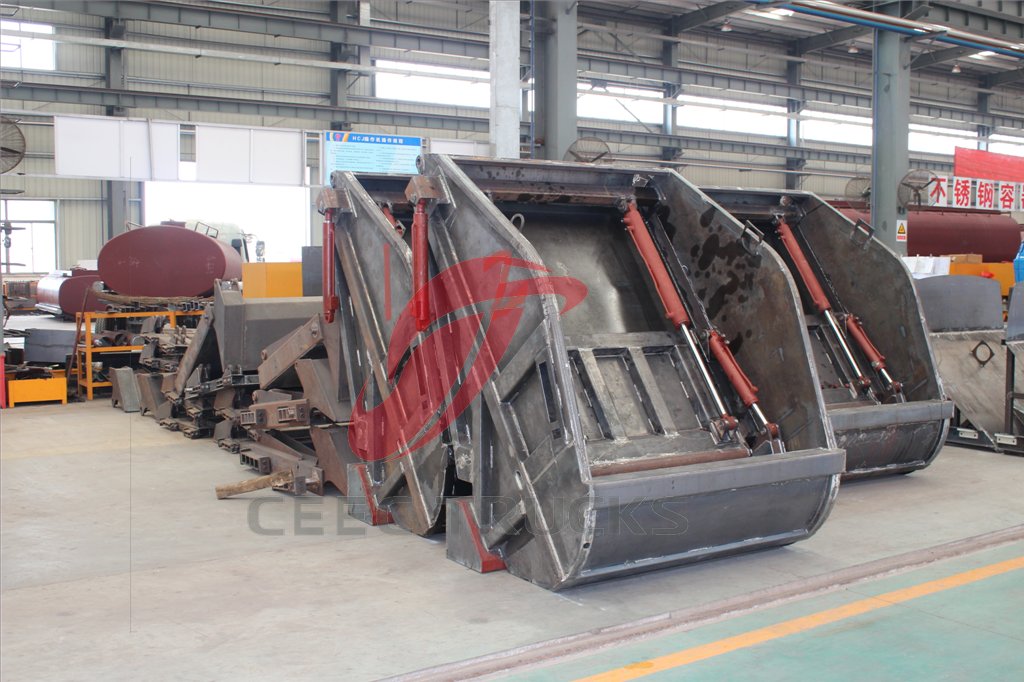

We have great quanity garbage compactor truck in stock for beiben truck chassis.

north benz 10 cbm garbage compactor truck



north benz 10 cbm garbage compactor truck

north benz 10 cbm garbage compactor truck
