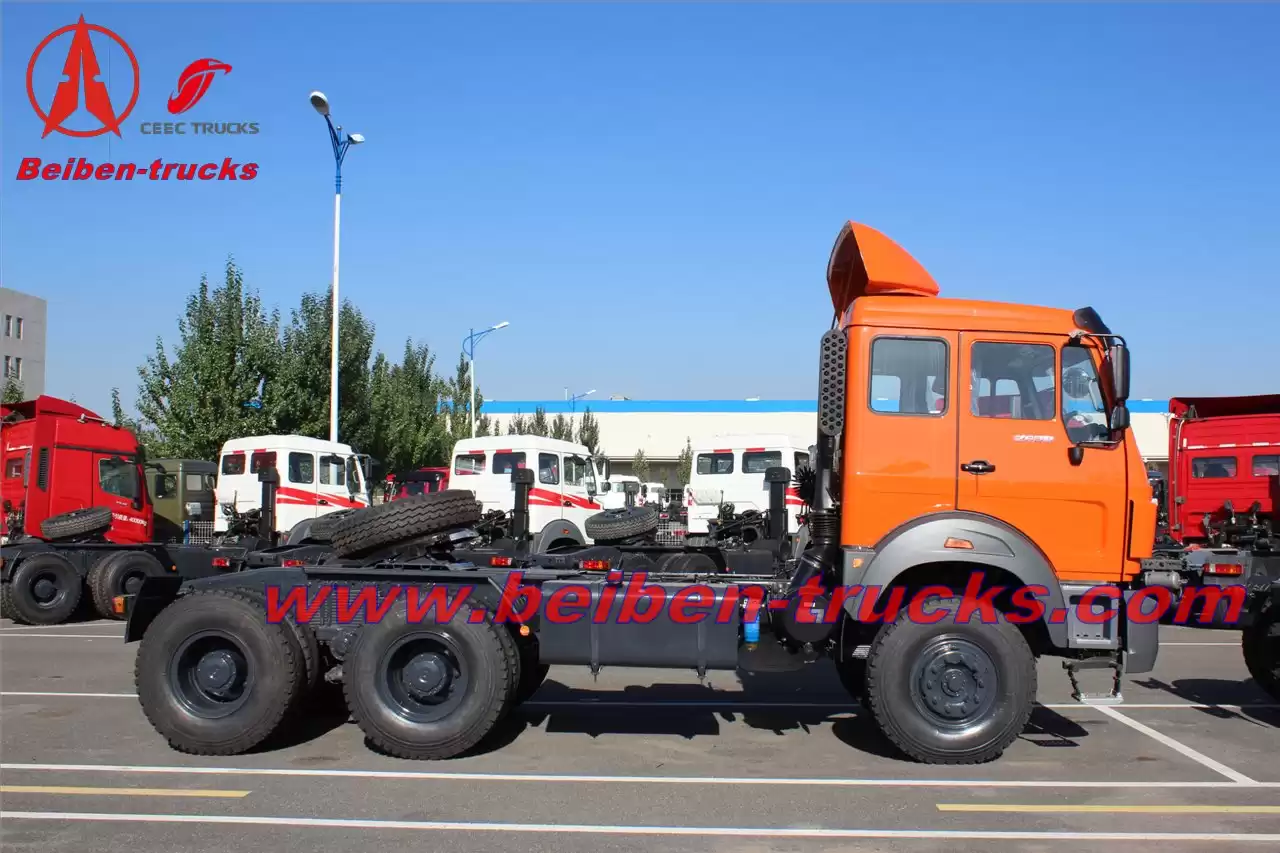

BEIBEN 10 roues camion-tracteur/tow truck
Chassis specification
|
Wheel base (mm)
|
3450+1450
|
Curb weight kg
|
9200
|
Engine
|
Model
|
WD12.375,water-cooled,four strokes,6 cylinders straight in line,turbocharged,
|
Emission standard
|
EUROII
|
Fuel tanker capacity L
|
300
|
Clutch
|
Model
|
GFX430, Single dry frictional disc,Hydraulic boosting
|
Gearbox
|
Model
|
12JS160T (With 12 forward gears,1 reverse gear)
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering system
|
Model
|
ZF8098,whole circulation in ball type, hydraulic boosting
|
Frame
|
Fish belly shape, variable width, variable sections
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Tyre
|
radial 12.00R20
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Cab
|
Long cab with sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly; Inner A/C
|
