Product Descriptions
In the field of heavy-load transportation, a tractor truck with exceptional performance, stability, and reliability is the key to success. The Beiben 6×4 RHD tractor truck, with its outstanding design, powerful carrying capacity, and advanced configuration, has become the preferred choice for numerous transportation companies and individual users. The cab is the NG80B long-type, equipped with two sleeper berths, featuring a full steel skeleton structure covered with double-layer steel plates, making it both sturdy and comfortable. The cab can also be tilted forward for convenient maintenance and servicing. With a maximum towing capacity of 40 tons, it fully meets the demands of heavy-load transportation. Whether it's for long-distance logistics or construction site transfers, this tractor truck can easily handle the task, demonstrating its strong carrying capacity.
Powered by the Weichai WP10.380E32 engine, this Beiben tractor head possesses a robust power source. The maximum output power of 380HP/280kW ensures smooth driving on various road conditions. At the same time, the equipped FAST 12JS200T mechanical transmission makes gear shifting smoother, enhancing transportation efficiency.
The chassis of this Beiben 2638 tractor truck adopts advanced technological design. The front axle incorporates Mercedes-Benz technology, equipped with double-shoe pneumatic brakes and a 7.5-ton non-driving steering axle, providing good steering flexibility and braking performance. The middle and rear axles also utilize Mercedes-Benz technology, with the middle axle model being HD7/016DGS-13/5.263 and the rear axle model being HL7/015DS-13/5.263, ensuring the vehicle's carrying capacity and driving stability.
Product Specifications
|
6X4 10 wheels Beiben 2638 RHD tractor truck
|
|
Wheel base (mm)
|
3450+1450
|
|
Curb weight (kg)
|
9200
|
|
Max. towing weight (kg)
|
40 tons
|
|
Max Speed (Km/h)
|
≤90
|
|
Dimension (Length*Width*Height)
|
7150×2500×3200mm
|
|
Front overhang/rear overhang (mm)
|
1410/740
|
|
Approach angle/Departure angle
|
26/64
|
|
Engine
|
Brand
|
Weichai
|
|
Model
|
WP10.380E32, water-cooled, four strokes,6 cylinders straight in line, turbocharged
|
|
Fuel type
|
Diesel
|
|
Power
|
380HP/280 kW
|
|
Emission
|
EURO III
|
|
Displacement(L)
|
9.726
|
|
Fuel tanker capacity (L)
|
400L Aluminum alloy
|
|
Clutch
|
Φ430, Diaphragm Spring, Hydraulic boosting
|
|
Gearbox
|
FAST 12JS200T, mechanical type,12 Forward speed gear.
|
|
Steering system
|
ZF8098
|
|
Front axle (Mercedes Benz
Technology)
|
Double-shoe pneumatic brake,7.5tons non-driving steering axle
|
|
Middle and Rear axle
(Mercedes Benz technology)
|
Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263
|
|
Tire
|
12.00R20 radial tire 11 (10+1)
|
|
Cab
|

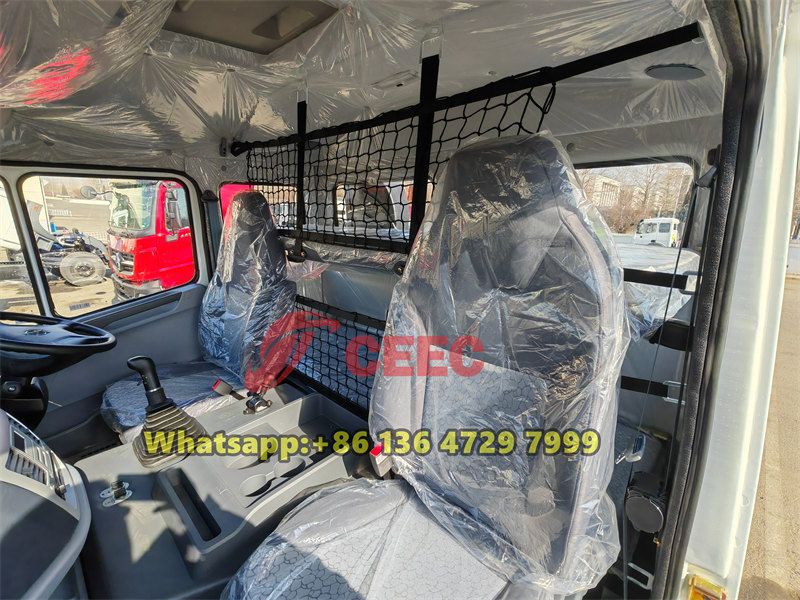

NG80B Long cab with two sleeper,
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
|
|

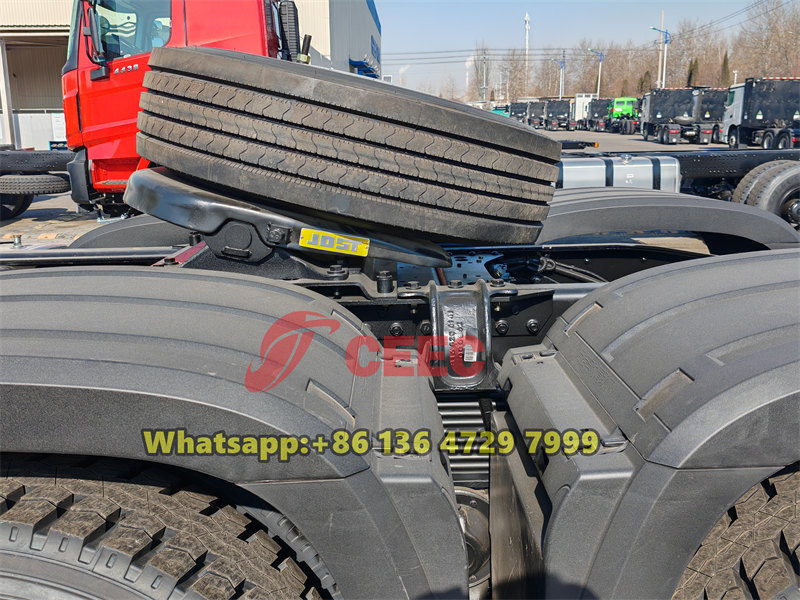

Fifth wheel
|
#90 single direction
|

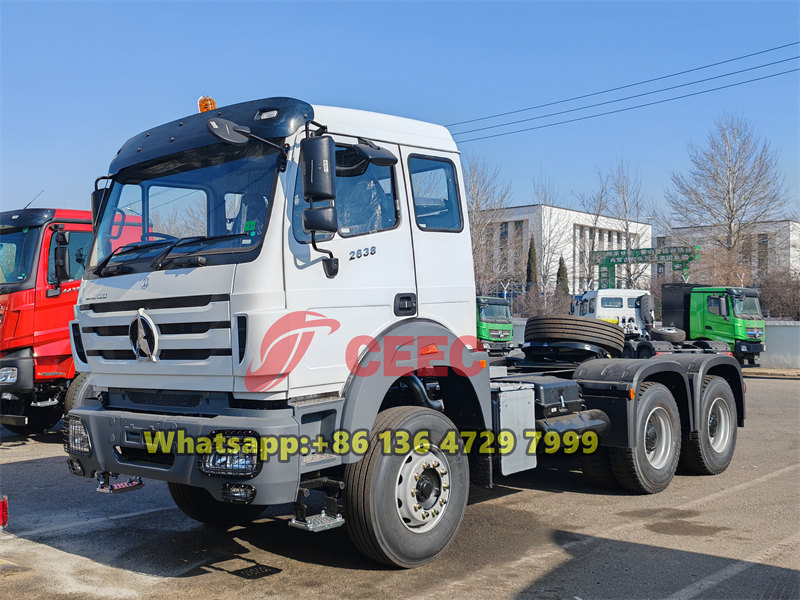

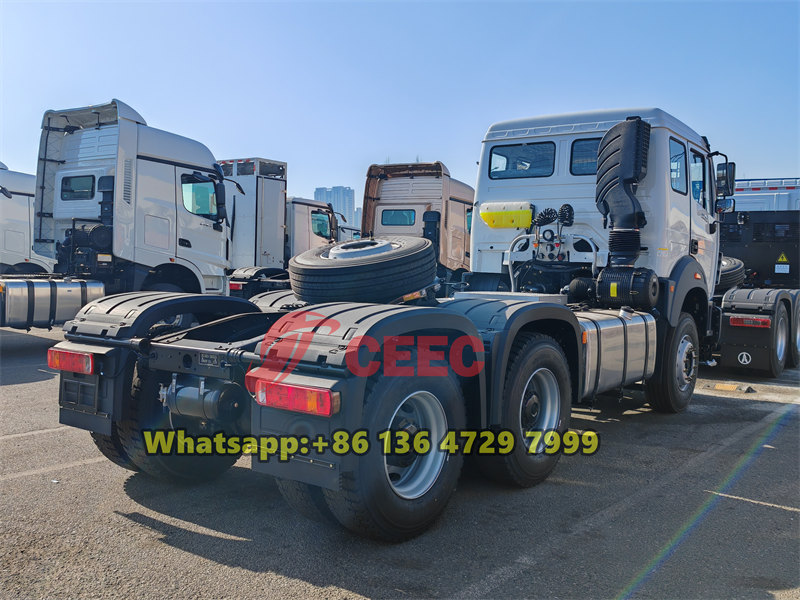

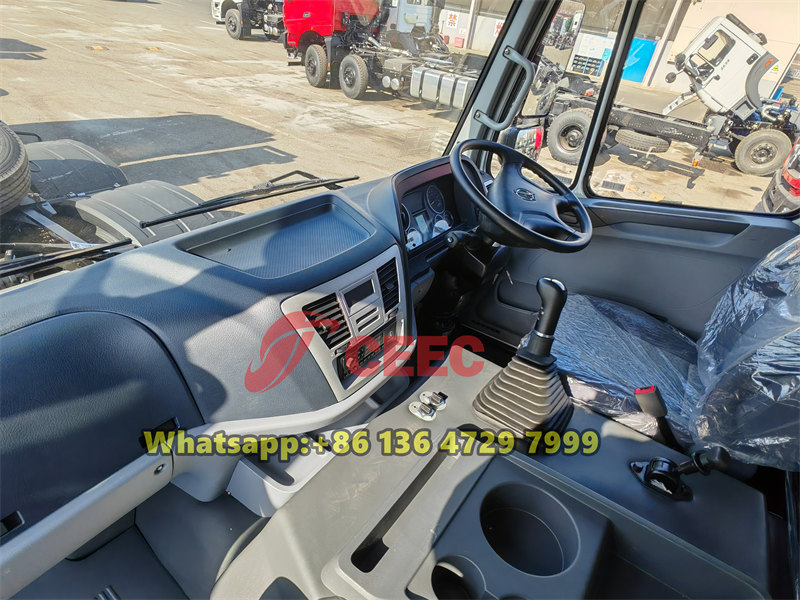

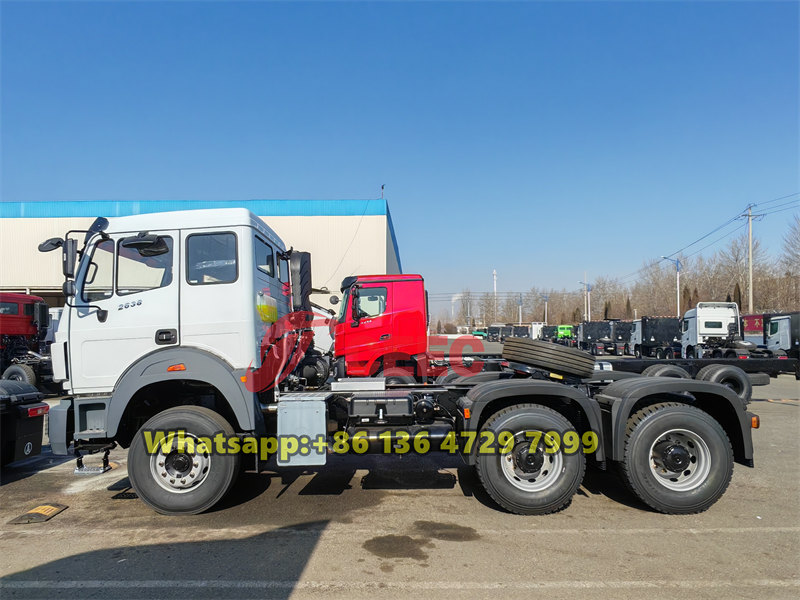

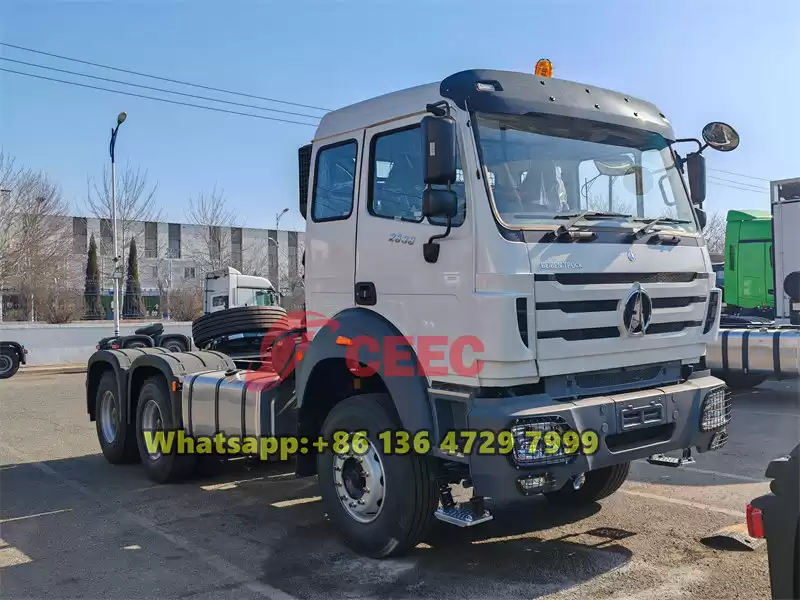

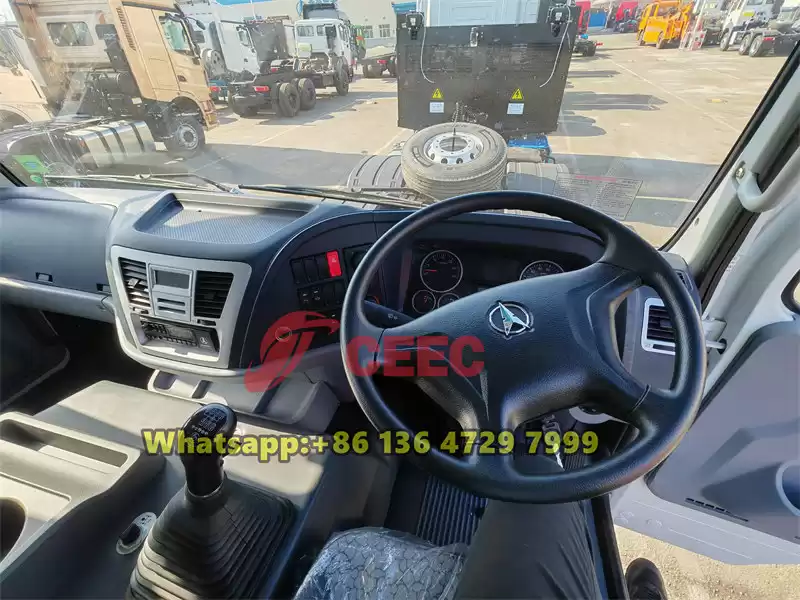

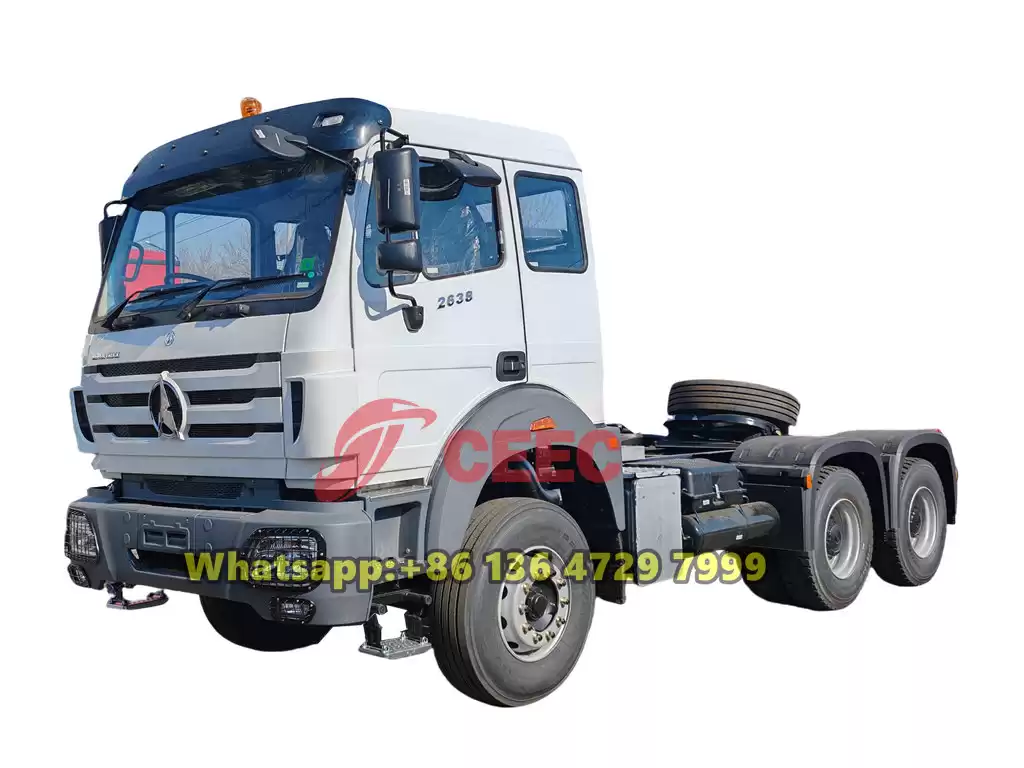

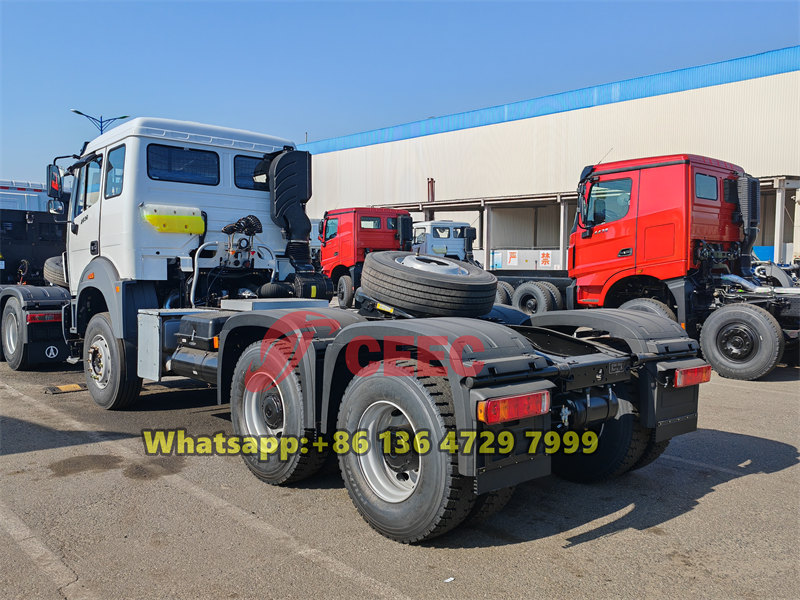

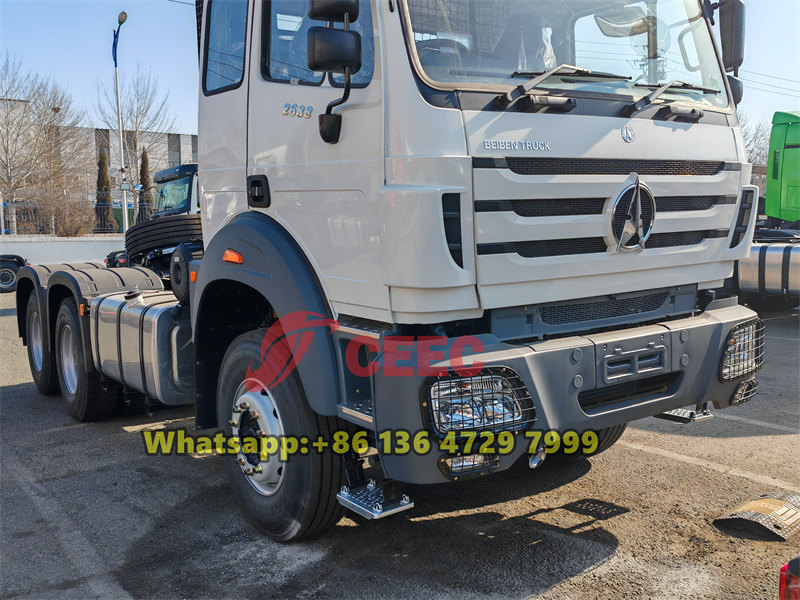

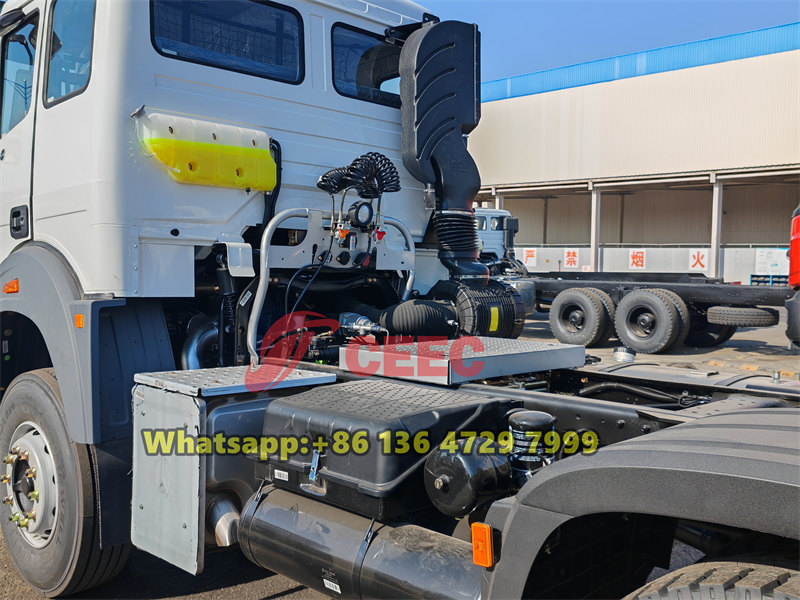

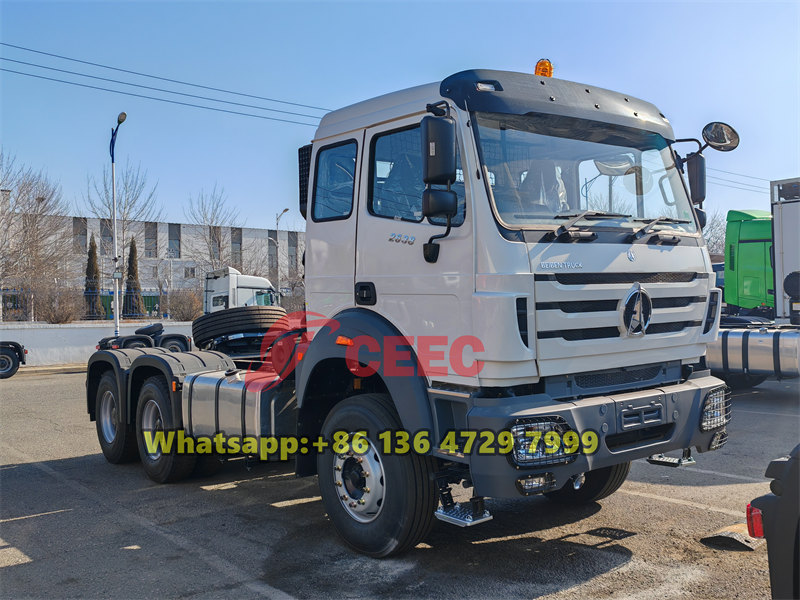

Product Detailed Pictures
