Product Description
The Beiben 2642 tractor truck is a heavy-duty transportation vehicle with exceptional performance and exquisite design, widely used in logistics, engineering construction, and other fields. Its outstanding towing capacity and stable driving performance make it one of the most popular models in the market. This Beiben tractor head is powered by the WP12.420E32 engine, which is a water-cooled, four-stroke, in-line six-cylinder, turbocharged, direct-injection diesel engine. With a displacement of 12 liters, a maximum power of 309KW/420HP, and a maximum torque of 1750N.m, it provides robust power output for the vehicle. Additionally, the engine meets Euro III emission standards, making it suitable for African countries.
The Beiben 10 wheels tractor truck features an NG80B type long flat-top cab design with a single sleeper berth. The all-steel frame structure is covered with double-layer steel plates and can be tilted forward. The high-back seat provides a comfortable riding experience for the driver, while the electric lifting windows and built-in air conditioning further enhance the comfort and practicality of the cab.
The transmission system of the Beiben 2642 prime mover is also excellent. The clutch is of the 430 type, featuring a single dry friction plate and hydraulic assistance design for easy operation. The transmission is of the 12JS200T type, with 12 forward gears and 2 reverse gears, allowing for manual operation and smooth shifting. This design enables the driver to flexibly select gears based on different road conditions and load situations, improving driving comfort and economy.
In terms of suspension and braking, the Beiben 2642 tractor truck adopts a non-independent suspension design, with 13 stabilizing springs and a balanced suspension system both in the front and rear, effectively absorbing vibrations during driving and enhancing riding comfort. As for the braking system, the vehicle is equipped with a dual-circuit air braking system that can automatically adjust the brake clearance, as well as engine exhaust braking and parking braking devices, ensuring safe braking in various situations. The vehicle uses a ZF8098 type full-circulation ball hydraulic power steering gear, providing flexible and lightweight steering. The frame adopts a fish-belly shape design with a variable-width and variable-section structure, which not only enhances the strength of the frame but also improves the vehicle's load-bearing capacity.
Product Specifications
|
Beiben 10 Wheels Tractor Truck
|
|
Dimension
|
7136*2495*3180mm
|
|
Approaching angle/Departure angle
|
26/64°
|
|
Overhang(front/rear)
|
1410/825mm
|
|
Wheel base
|
3450+1450mm
|
|
Max speed
|
90km/h
|
|
Curb weight
|
9200kg
|
|
Max towing weight
|
40000kg
|
|
Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP12.420E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection
|
|
Displacement
|
12 L/Diesel
|
|
Stroke
|
126/155mm
|
|
Max. power
|
309KW/420HP
|
|
Max. torque
|
1750 N.m
|
|
Emission standard
|
Euro 3
|
|
Fuel tanker capacity
|
400L
|
|
Clutch
|
430, Single dry frictional disc, Hydraulic boosting
|
|
Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
|
Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|
|
Suspension system
|
Front
|
Non-free standing leaf spring, telescopic shock absorber with stablizer bar suspension , 13pcs
|
|
Rear
|

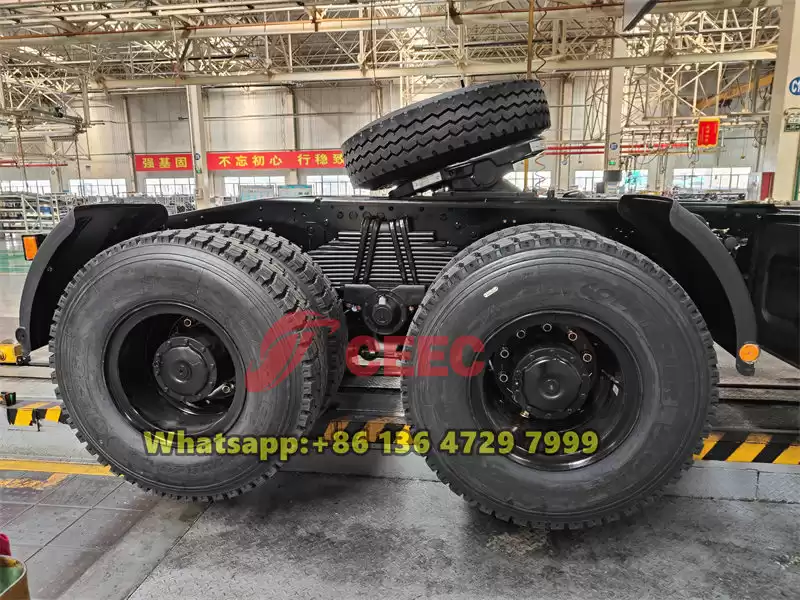

Non-free standing stablization spring, balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
ZF8098, whole circulation in ball, hydraulic booster
|
|
Frame
|
Fish belly shape, variable width, variable sections
|
|
Model
|
JOST 90 single direction
|
|
Height of fifth wheel(mm) (unload)
|
1410
|
|
Radius of front gap (mm)
|
2300
|
|
Radius of rear slew (mm)
|
2600
|
|
Front axle (Germany Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
|
Middle and Rear axle (Germany Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
|
Tyre
|
12.00R20
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cabin
|
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver; Electric lifting window ;
With inner A/C
|

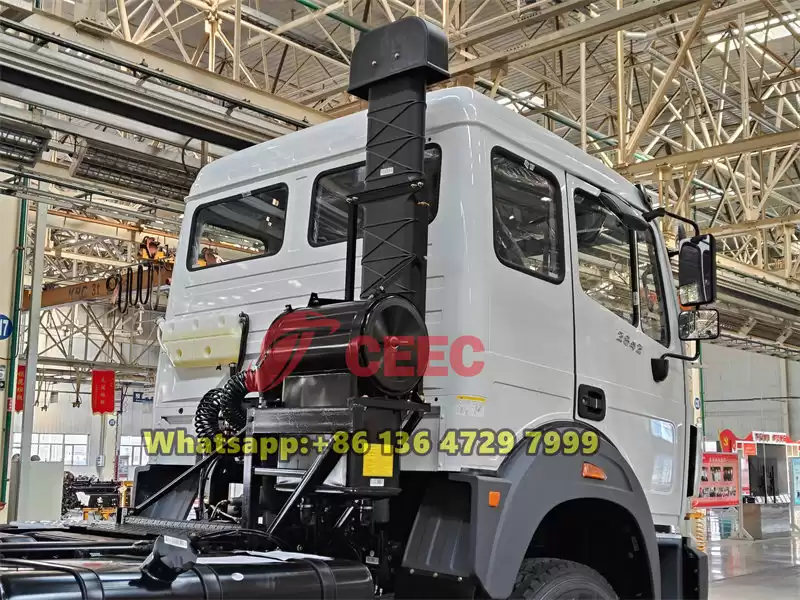

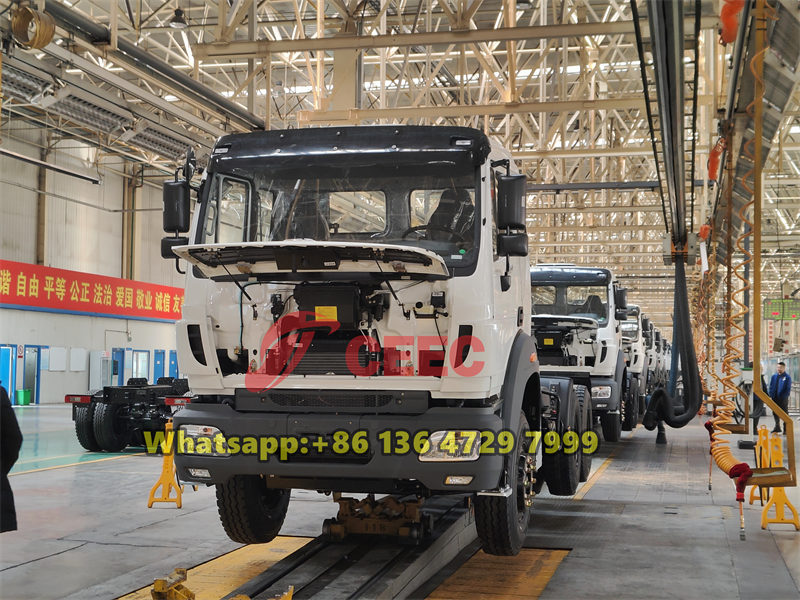

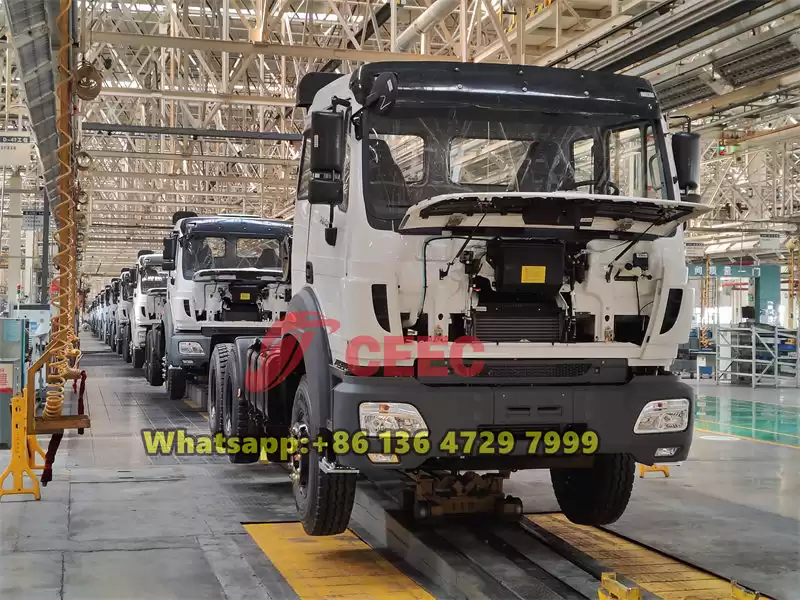

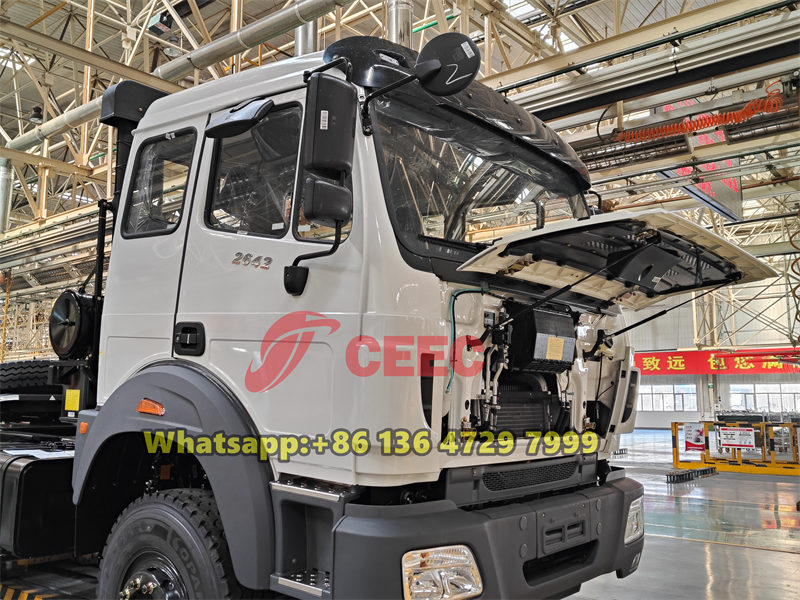

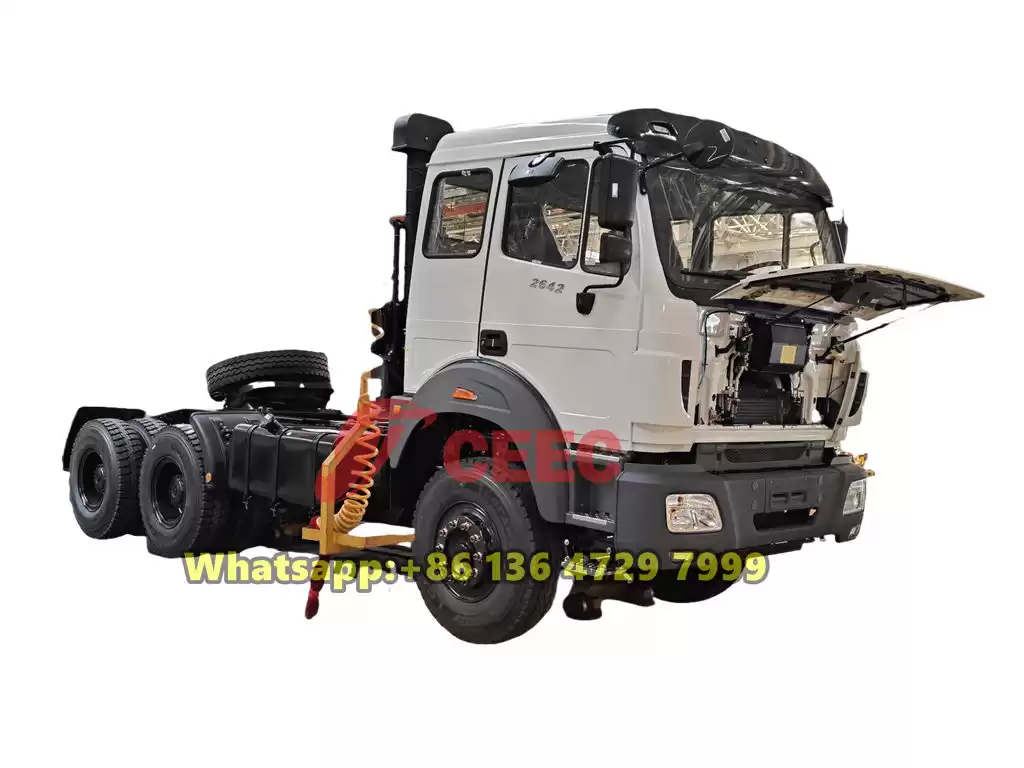

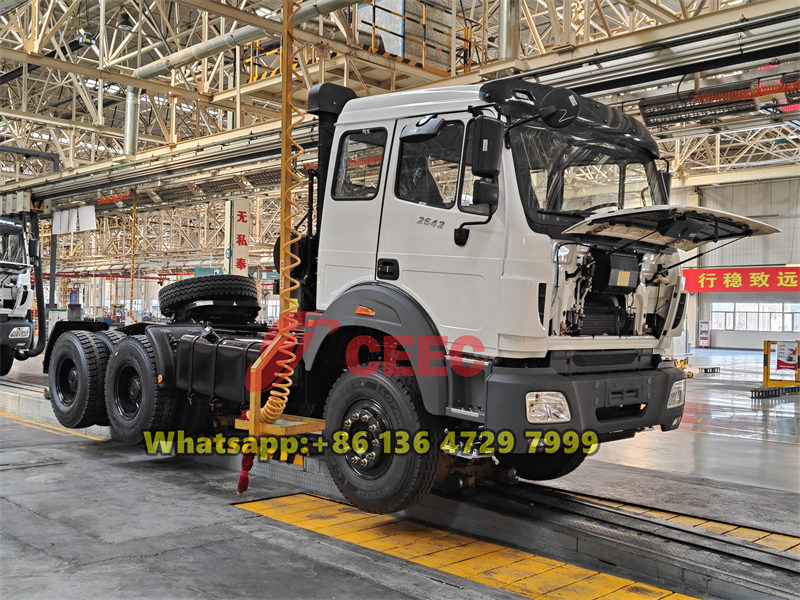

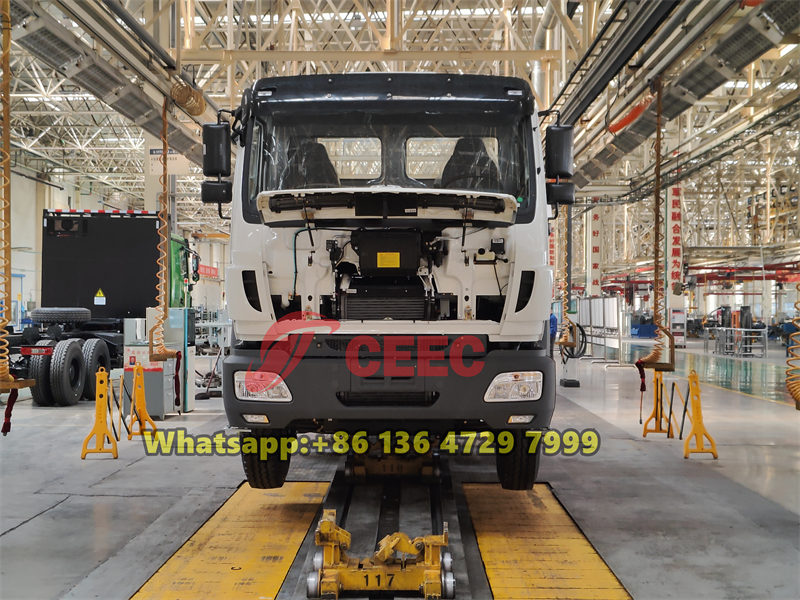

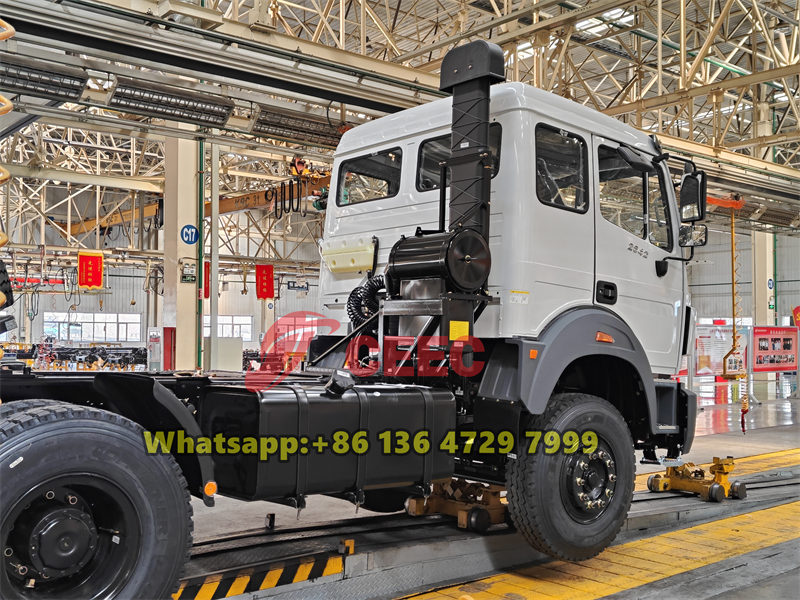

Product Details
