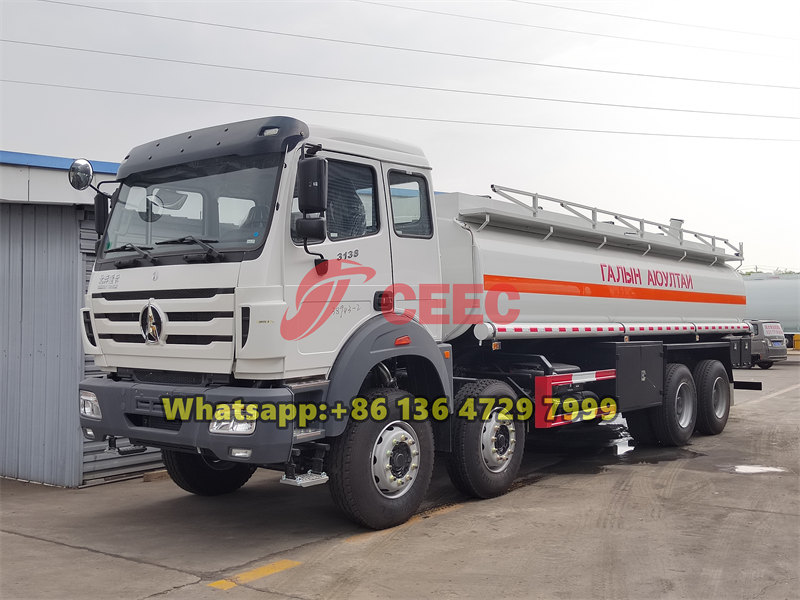

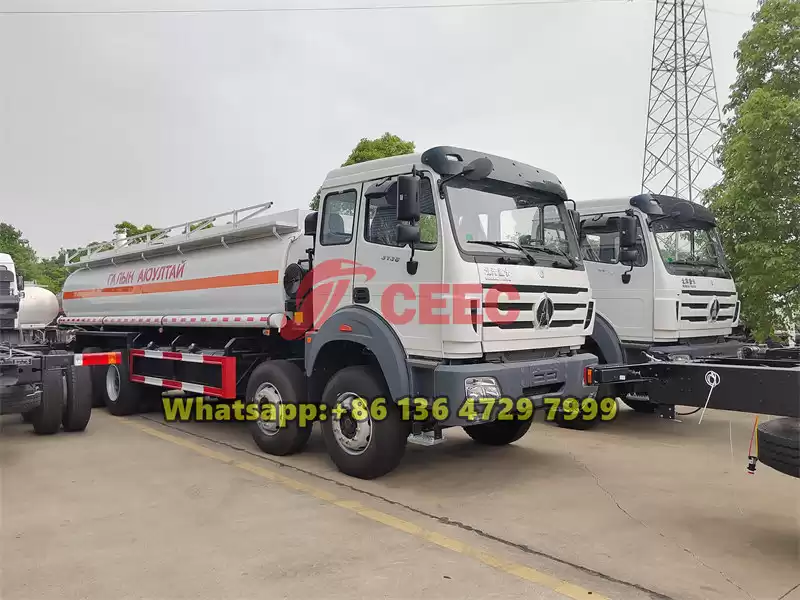

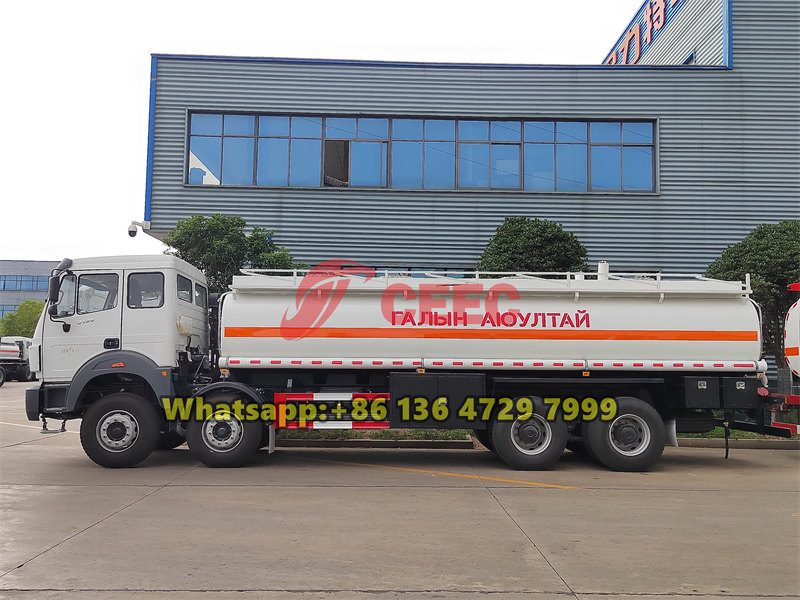

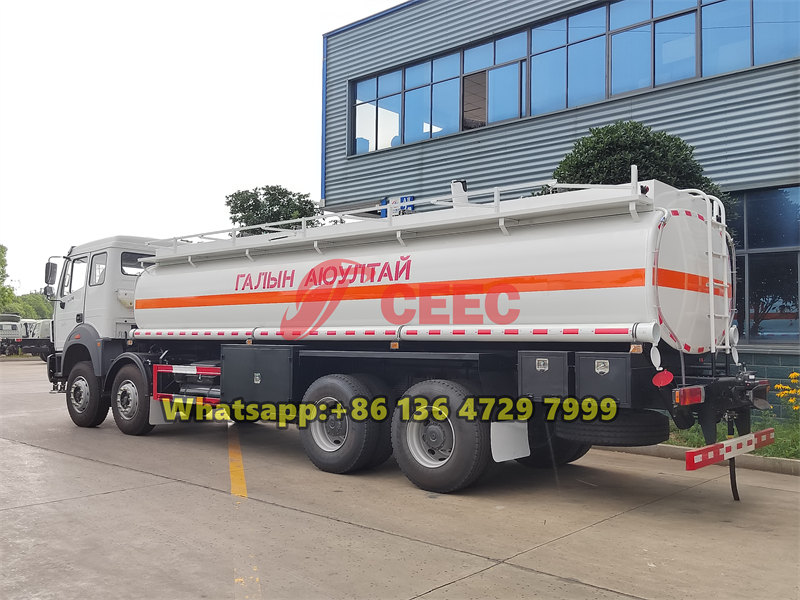

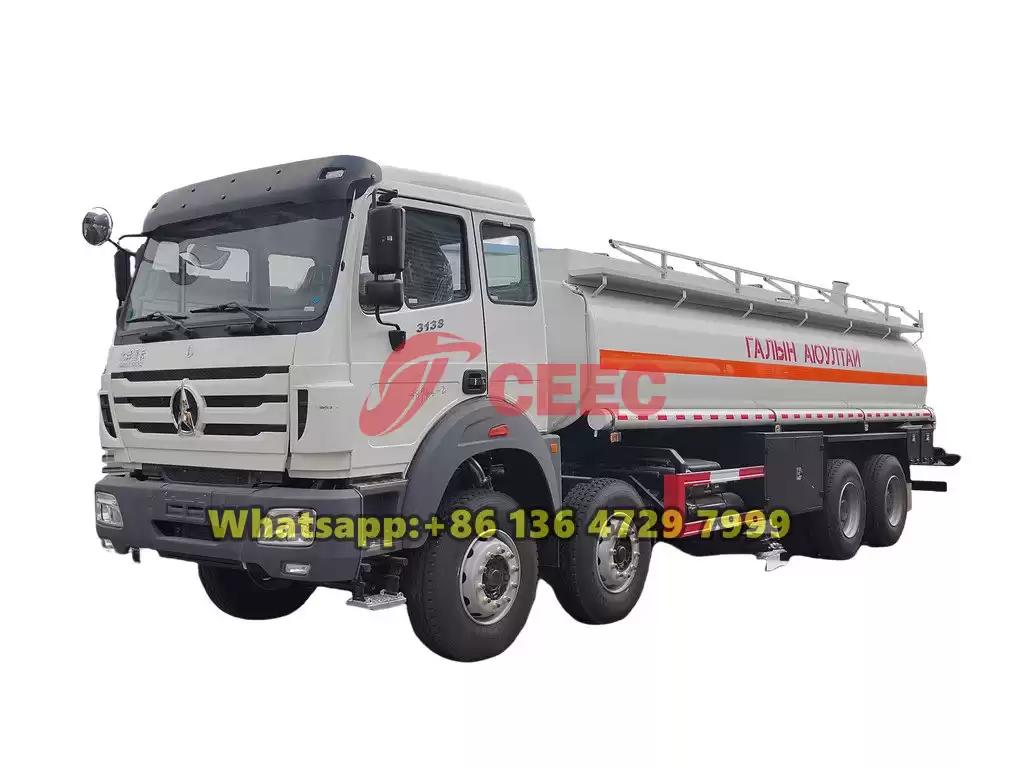

Beiben 12 wheeler fuel tanker truck

The Beiben 8×4 fuel tanker truck, as the elite choice for logistics transportation, combines a sturdy chassis, a comfortable cab, and powerful engines. Equipped with the WEICHAI WP10.380E32 engine, it boasts an output of 380 horsepower, effortlessly handling various road conditions. With a large 30,000-liter fuel tank and an efficient fuel pump capable of a flow rate of 60 cubic meters per hour, it ensures highly efficient transportation. Widely applied in the petroleum, chemical, and other industries, it demonstrates exceptional value.


  • Engine power380 HP
  • Working Capcity30000 liters
  • Payment termsTT
  • Production time40 days
  • Drive system8×4

Product Descriptions



The Beiben 8×4 fuel tanker truck, with its powerful carrying capacity and exceptional performance, has become the ideal choice for long-distance transportation, oilfield operations, chemical logistics, and other fields. Equipped with the classic Beiben NG80 cab, it not only boasts a stylish exterior and sleek lines but also excels in interior configuration, ensuring driver comfort and safety. Its core power comes from the renowned Chinese brand WEICHAI WP10.380E32 engine, which provides continuous and reliable power support with its efficiency and dependability.



Beiben 30000 liters fuel tanker

The Beiben 12 wheeler fuel truck features a North Benz (Beiben) brand chassis, renowned for its excellent carrying capacity and stable driving performance. With a front/rear axle weight configuration of 7.5T/7.5T or 16T (combined for both axles), it ensures stability and safety under various road conditions. The extra-long wheelbase design not only enhances the vehicle's smooth driving but also provides ample space for the fuel tank layout, making the overall vehicle structure more reasonable and compact.


Powered by the WEICHAI WP10.380E32 engine, the Beiben 8×4 fuel bowser possesses a robust power source. With an output power of 380 horsepower and a maximum power of 280 kilowatts, it can easily handle various road conditions. The engine employs advanced technologies such as a 6-cylinder inline configuration, 4-stroke operation, water cooling, turbocharged intercooling, and direct injection, which not only improve fuel economy but also reduce environmental pollution. Furthermore, the engine meets the Euro III emission standards, complying with national environmental requirements.


The fuel tank of this Beiben tanker truck has a capacity of up to 30,000 liters, divided into four independent compartments. Each compartment is equipped with a European standard tank opening with a breathing valve, facilitating loading and unloading operations while ensuring safe storage and transportation of oil products. The tank body is made of high-quality carbon steel with a thickness of 5 millimeters (6 millimeters at the ends) and has undergone professional corrosion protection treatment to extend its service life. The tank body also contains baffle plates, effectively reducing the sloshing and impact of oil products during transportation, thereby ensuring transportation safety and stability.

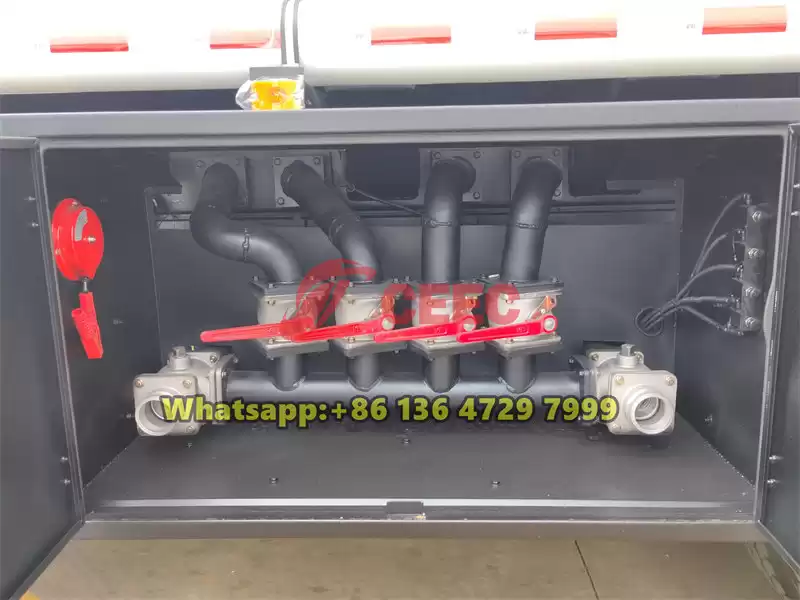

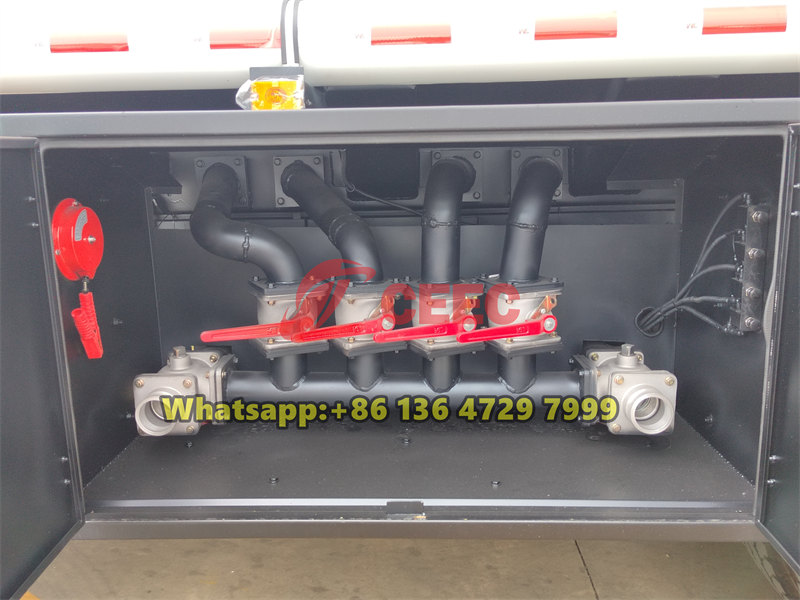

The fuel pump of the Beiben 12 wheeler fuel delivery truck is selected from a reputable brand, with a model of 80YHCB-60 and a flow rate of up to 60 cubic meters per hour, meeting the demands of efficient loading and unloading. The pump has a self-priming height of 6 meters and is equipped with various advanced valves and accessories, such as manholes, breathing valves, bottom valves, and drain valves, ensuring the safety, convenience, and efficiency of the entire loading and unloading process. Additionally, the vehicle is equipped with safety devices such as antistatic straps, emergency shutdown devices, oil and gas recovery systems, and overflow sensors, further enhancing transportation safety.



Beiben 12 wheeler fuel bowser for sale



Product Specifications



Truck Chassis

Chassis Brand

North Benz (Beiben)

F/R Axle

7.5T,7.5T/ 16T(2 axle combined)

Wheelbase

1500+4750+1450 mm

Gearbox

FAST 12JS200T, 12 forward,2 reverse

Tire

12.00R20, 12+1pcs

Brake

Air brake type

Cabin

NG80, one and a half cabin, with A/C, hydraulic driver's seat, manual reversal, etc

Engine

Model

Weichai WP10.380E32

Horsepower

380 HP

Max. output power

280 KW

Displacement

9.726L

Emission

Diesel, Euro 3

Type

6 cylinders in-line, 4 strokes, water-cooled, turbo-charged intercooling, direct injection

Fuel Tank

Tank

Volume

30000L, 4 compartments

Material & Thick

steel Q235A; end 6mm, body 5mm

Color & Logo

Customized

Fuel pump

Model

80YHCB-60

Fuel flow rate

60m3/h

Working pressure

0.6 Mpa

Speed

900 rpm

Self-suction height

6 m

Fittings

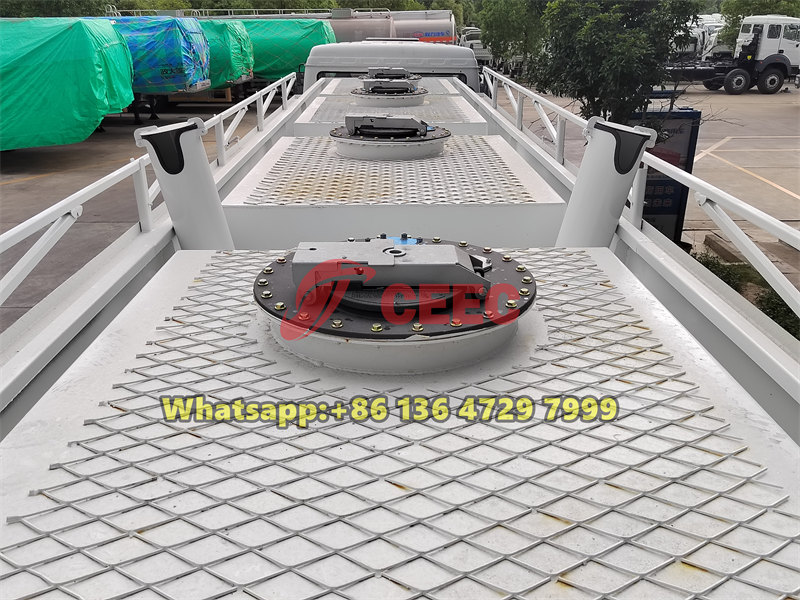

Manhole

DN500, 4 units, with European standard manhole cover

Breather Valve

Equipped

Bottom Valve

Equipped

Discharge Valve

Equipped

Flowmeter

Equipped

Anti-static belt

Equipped

Emergency Cutoff Device

Equipped

Vapor Recovery System

Equipped

Overfill sensor

Equipped

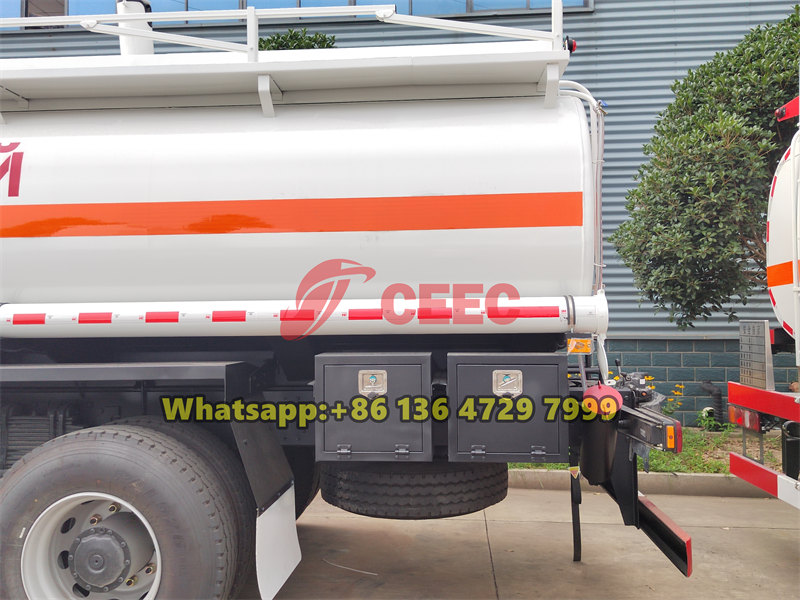

Tool Box

1pcs

Fire extinguisher

1 pcs



Product Details



  • #
  • #
  • #
