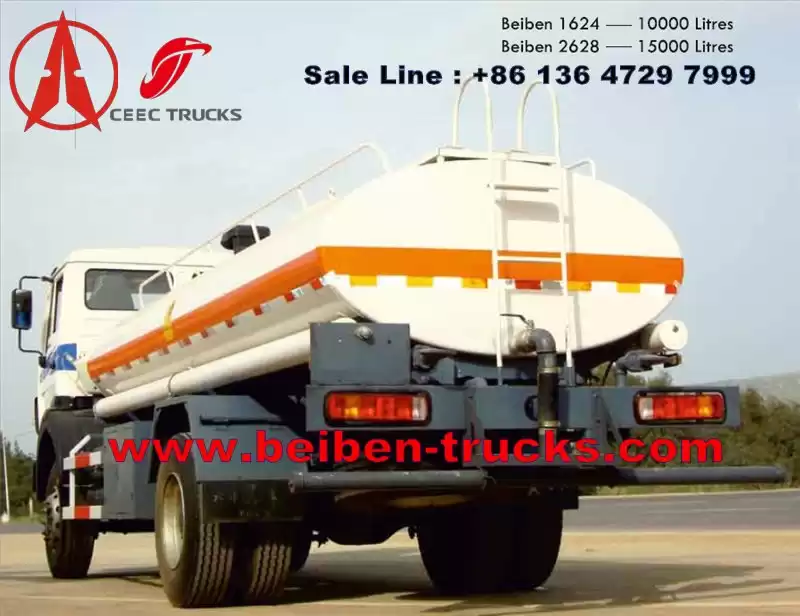

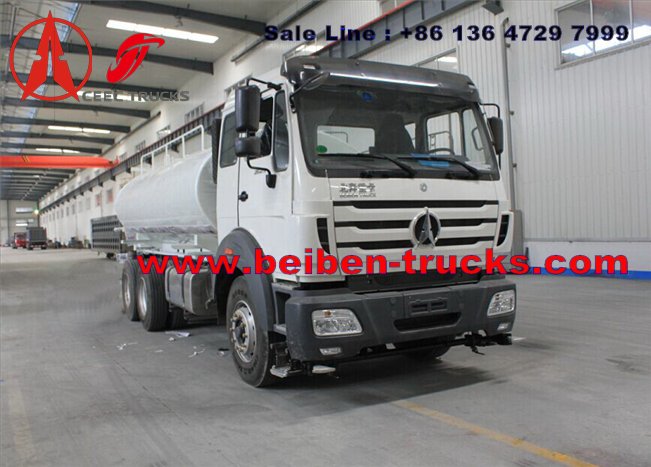

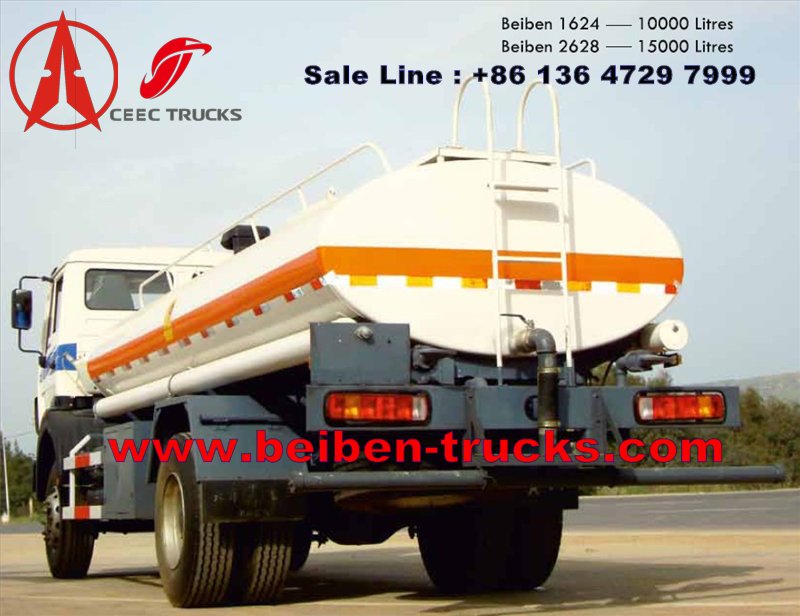

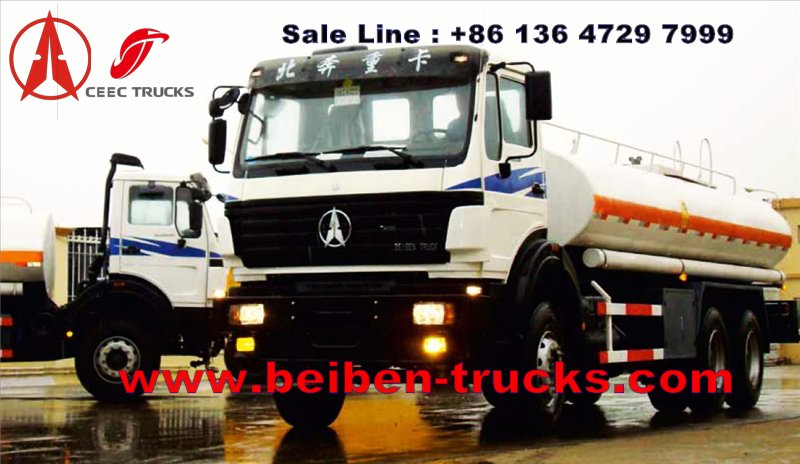

Beiben NG80B fuel tanker truck 15000 Liters.
CEEC TRUCKS plant is the most professional beiben fuel trucks manufacturer,
more than 15 years great experience on manufacturing beiben 2527 fuel
truck, beiben 2529 fuel truck,beiben 2534 fuel truck ,beiben 2538 fuel
tanker truck,beiben 3132 fuel tankers.
The beiben fuel tanker
from us can be beiben 4*2 fuel tanker, beiben 6*4 fuel tanker and beiben
8*4 fuel tankers. All the beiben fuel tanker trucks from ceec trucks
plant can have long guarantee more than 12 months.
All the fuel tanker components that we applied on beiben fuel trucks is china famous brand and reliable quality.
Technical Parameters
|
|
Brand |
BEIBEN fuel tanker TRUCK |
|
Vehicle model |
2630FU
|
|
Cabin |
Full steel skeleton structure, covered with double layer steel plate
|
|
Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles
|
|
Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure
|
|
Persons in cab: 3
|
|
Driving |
6×4
|
|
Wheel base (mm)
|
4450+1450/5050+1450
|
|
Weight data
|
Curb Weight(kg)
|
12270
|
|
Engine |
Model
|
Brand WeiChai WP10.300N / Diesel, Straight in line，water-cooled，turbocharged, intercooled, 6 cylinders |
|
Power |
300HP
|
|
Emission
|
EUR III
|
|
Rated power(kw/rpm)
|
221Kw/2200rpm
|
|
Transmission
|
FAST GEAR Model: 9JS150 9-forward &1-reverse gears
|
|
Option: 12JS160T
|
|
Clutch
|
single disc, dry type, diaphragm spring, φ430
|
|
Frame
|
BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame |
|
Fish belly, various width, various sections, side beam structure
|
|
Axle |
Front: |
Mercedes Benz Technology, 7.5 ton, non-driving steering axle |
|
Middle/Rear:
|
Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle
|
|
Suspension
|
Non-free standing stabilization spring, hydraulic shock absorber， stabilization suspension， |
|
Steering
|
ZJ120D/TAS85/ ZF8098 (Original ZF technology)
|
|
Wheels and tyre size |
10+1/12.00-R20
|
|
Fuel tank (L)
|
400L
|
|
Up Body Volume(m)
|
15000L/20000L/22000L
|
|
Colour
|
Metal white, multi-colored options
|
