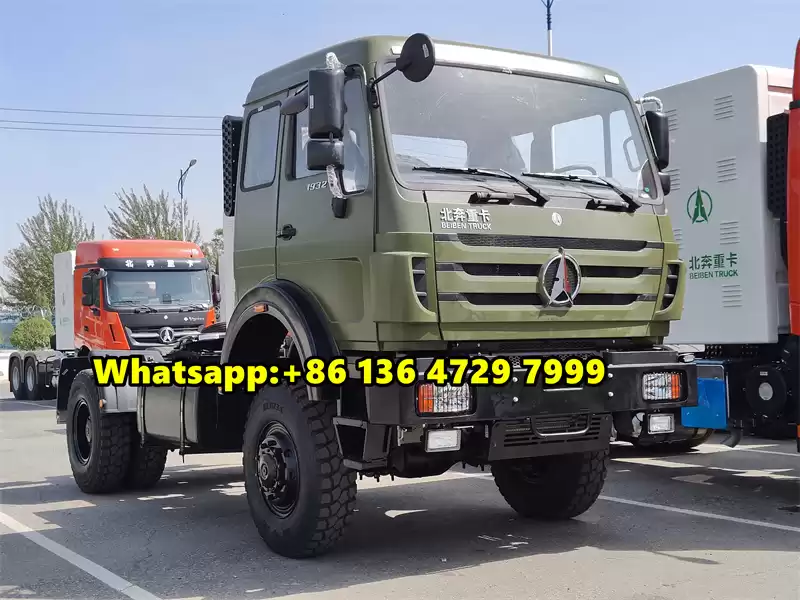

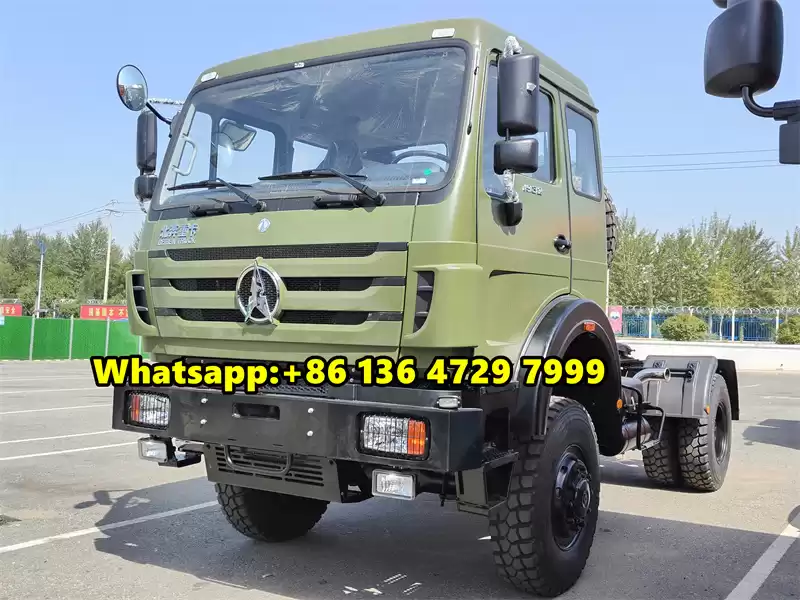

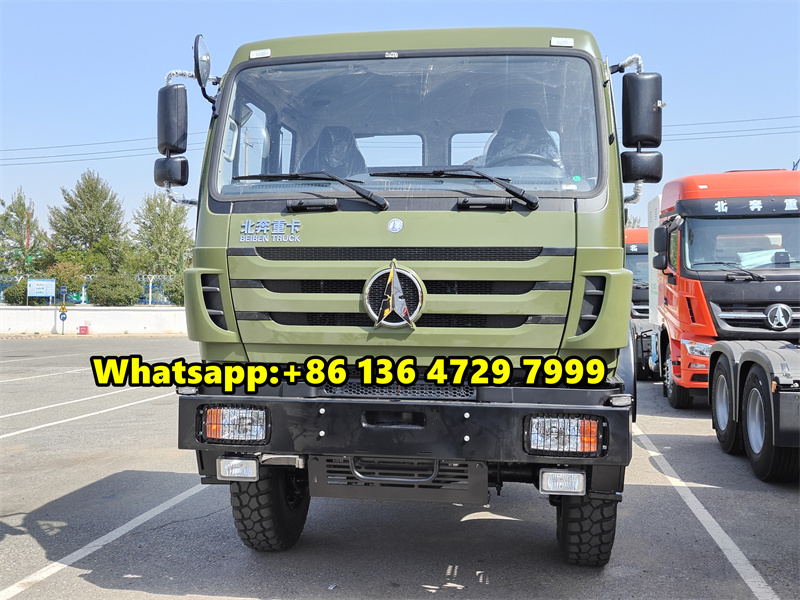

The Beiben 1929 off-road truck is a rugged and reliable vehicle designed for tough terrain and challenging conditions. This truck is equipped with a powerful WP10.290 engine, which provides ample torque and horsepower to tackle any off-road situation. The full-time 4X4 drive system ensures that this truck can navigate through mud, sand, rocks, and other obstacles with ease.
The Beiben 1929 off-road truck is built to withstand the rigors of off-road driving, with a durable chassis and suspension system that can handle rough terrain without compromising on stability or control. The cabin is spacious and comfortable, with ergonomic seats and modern amenities to keep the driver and passengers comfortable during long journeys.
| General Performance Parameters |
| Maximum Driving Speed |
km/h |
90 |
| Average Fuel Consumption |
liter/km |
30liters/100km |
| Maximum Gradeability |
% |
≈35° |
| Max Loading Capacity |
kg |
12000 |

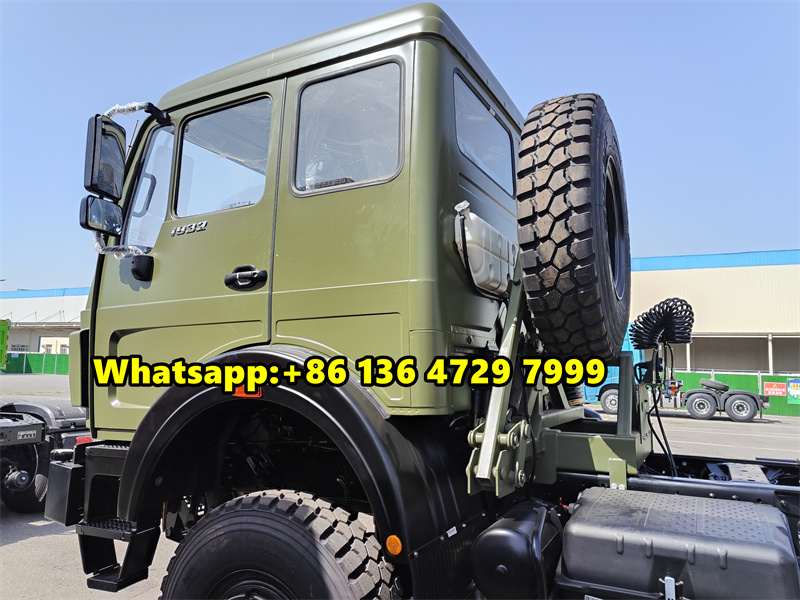

| Cabin (NG80B Model) |
"Long cab with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; Interior trimming: High back/shock absorption seat for driver. Inner A/C, Manual door locks, manual glass lift;Exterior trimming:
NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system." |
|
|
|
|
|
|
| ONE SLEEPER |
WITH A/C |
|
|
| Chassis & Dimensions |
| Frame Details |
317x70x8.5 |
|
|
|
| Overall Dimension |
length |
8690mm |
| width |
2500mm |
| height |
3400mm |
| Wheelbase |
mm |
4800 |
| Ground Clearance |
mm |
314 |
| Vehicle Overhang |
front |
1410 |
| rear |
2480 |
| Front/Approach angle |
% |
25° |
| Rear/Departure angle |
% |
24° |
| Electrical System |
| Battery |
V/ah |
24V/165ah |
| quantity |
2 |
| Alternator |
volts |
28V |
| Operating Voltage |
volts |
24V |
| Fuel Tank |
| Capacity |
liters |
400 |
| Shape / Structure |
|
Rectangular / Iron |
| Water Tanker |
| water tank capacity |
cbm |
10 |
| Thickness of tank body |
mm |
4 |
| Material |
|
Q235 |
| Main equipments |
water pump |
| Full set spraying system |
front and rear sprinkle system,high pressure water |
| General Specification |
| Chassis Model |
1929T |
| Series |
NG80 |
| Wheel Traction / Drive Style |
4X4 |
| Full Load Mass Weight |
kg |
19000 |
| Curb Mass/ Self Weight |
kg |
7500 |
| Steering Wheel Position |
LHD/RHD |
LHD (Left Hand Drive) |
| Engine |
| Model |
WP10.290E32 |
| Brand |
WEICHAI |
| Displacement |
9.726L |
| Type |
In-line, Six-cylinder, Four-stroke, Water-cooled, Direct Injection, Intercooled Turbocharged Diesel Engine |
|
| Engine Classification / Standard |
EURO III EGR |
| Bore/Stroke |
mm |
126/130 |
| Rated Horse Power |
hp |
290 |
| Net Power |
KW/rpm |
213KW/2200rpm |
| Torque (Nm/rpm): |
Nm/rpm |
1160Nm @ 1200-1600rpm |
| Clutch & Gear Box Systems |
| Clutch |
BEIBEN's 430 diaphragm spring clutch |
| Gear Box |
9JS150A |
| Gear Speed/Lever |
9 forward/ 1 reverse |
| Gear Ratio |
12.57,8.39,6.15,4.59,3.4,2.47,1.81,1.35
reverse1: 13.14 |
|
| Axle & Steering |
| Steering Model |
8098 |
| Front Axle |
7T |
| Rear Axle |
13T , Drum Brake |
| Ratio of Rear Axle |
5.263 |
| Loading Capacity per Axle |
front |
7000kg |
| rear |
13000kg |
| Brake System & Suspension |
| Service Brake |
dual circuit compressed air brake |
| Auxiliary Brake |
engine exhaust valve brake |
| Parking Brake (Emergency Brake) |
front |
spring energy |
| rear |
compressed air |

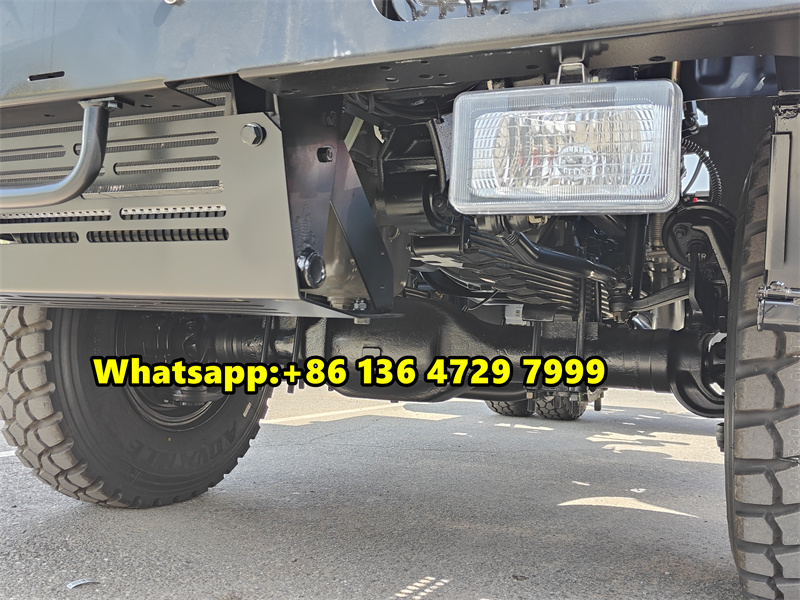

| Suspension Type |
front |
10pcs leaf spring |
| rear |
13pcs leaf spring |
| Wheels & Tires |
| Wheel Type |
Radial Tires |
| Number of Tires |
6+1 (spare tire) |

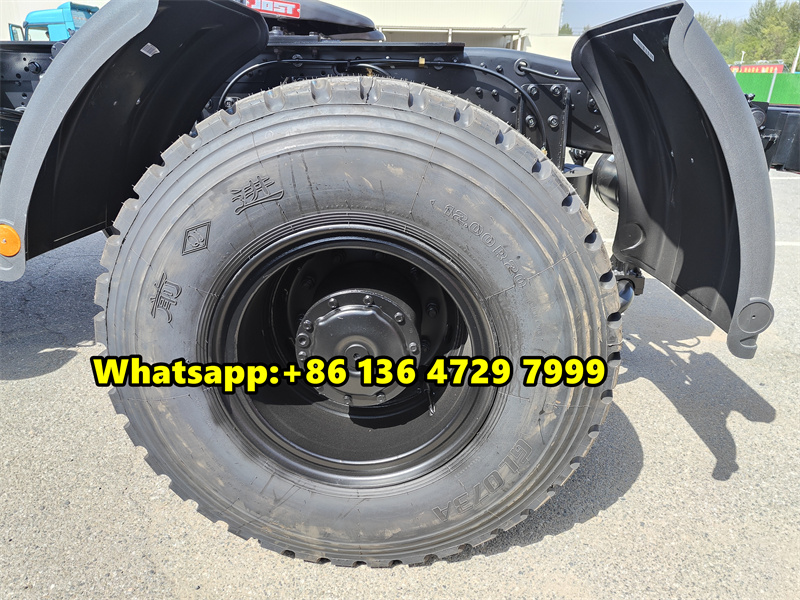

| Tire Type/Size |
12.00R20 |
| Track |
front |
1995mm |
| rear |
1800mm |
The Beiben 1929 off-road truck is a versatile vehicle designed for rugged terrain and challenging environments. Its primary purpose is to transport heavy loads and equipment in off-road conditions where conventional vehicles may struggle to operate effectively. Here are four key uses of the Beiben 1929 off-road truck:
1. Mining Operations: The Beiben 1929 is well-suited for use in mining operations due to its robust construction and powerful engine. It can navigate rough terrain and steep inclines with ease, making it ideal for transporting materials and equipment between different areas of a mining site.
2. Construction Site Support: Construction sites often have uneven or unpaved surfaces that require a rugged vehicle like the Beiben 1929 to navigate. This off-road truck can transport construction materials, machinery, and personnel to remote or hard-to-reach locations on the site, helping to streamline operations and increase efficiency.
3. Forestry and Logging: In the forestry and logging industry, the Beiben 1929 is essential for transporting timber, equipment, and supplies through dense forests and rough terrain. Its large cargo capacity and off-road capabilities make it a valuable asset for forestry companies looking to access remote areas for timber harvesting and processing.
4. Disaster Relief and Emergency Response: When natural disasters or emergencies occur, the Beiben 1929 off-road truck can be deployed to transport supplies, personnel, and equipment to affected areas quickly and efficiently. Its rugged design and off-road capabilities ensure that it can navigate through debris, mud, and other obstacles to reach disaster-stricken areas and provide much-needed support.
In conclusion, the Beiben 1929 off-road truck is a versatile and reliable vehicle that serves a variety of purposes in industries such as mining, construction, forestry, and disaster relief. Its rugged design, powerful engine, and off-road capabilities make it an essential asset for navigating challenging terrain and transporting heavy loads in demanding environments.
