Beiben 1934 off road crane truck

The Beiben 1934 off-road crane truck is a rugged and powerful vehicle equipped with a Mercedes 4X4 all-wheel drive system, differential lock, and NG80B all-steel cab. This truck is designed to handle tough terrain and heavy loads with ease.

The Mercedes 4X4 all-wheel drive system ensures that the Beiben 1934 has excellent traction and stability on rough and uneven surfaces. The differential lock allows for better control and maneuverability in challenging off-road conditions.

The NG80B all-steel cab provides a comfortable and secure environment for the driver, with ample space and protection against the elements. The cab is designed to withstand the rigors of off-road driving and keep the driver safe and comfortable during long journeys.




  • Drive system4x4
  • Engine power340 Hp, WP10.340
  • Working Capcity5 Ton
  • Payment terms30% T/T deposit, 70% T/T before shipping
  • Production time60 days

Beiben 1934 crane mounted on the truck allows for the lifting and placing of heavy materials such as steel beams, concrete blocks, and machinery. This is essential in the construction of bridges, buildings, and roads. The off-road capabilities of the Beiben 1934 crane truck make it ideal for use in emergency situations such as natural disasters or road accidents. The crane can be used to clear debris, rescue trapped individuals, and transport supplies to affected areas.

Beiben 4x4 off road crane truck is also valuable in infrastructure maintenance and repair projects. It can be used to replace utility poles, repair damaged structures, and assist in routine maintenance tasks that require lifting and positioning heavy equipment.

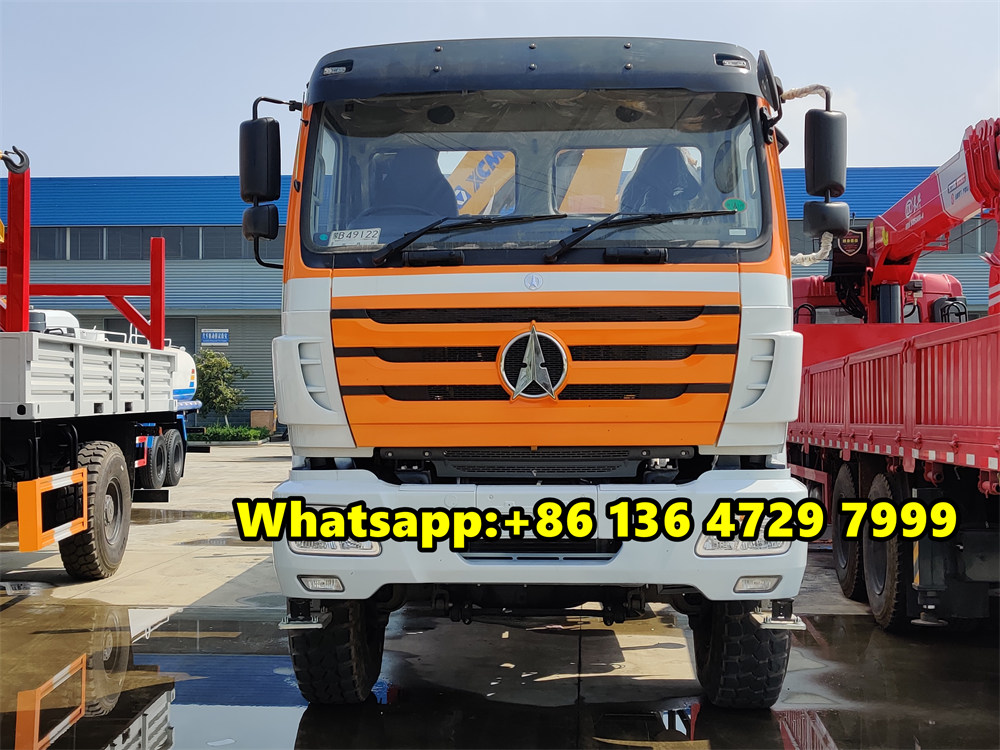

Beiben 1934 off road crane truck

The crane mounted on the truck allows for the lifting and placing of heavy materials such as steel beams, concrete blocks, and machinery. This is essential in the construction of bridges, buildings, and roads. The off-road capabilities of the Beiben 1934 crane truck make it ideal for use in emergency situations such as natural disasters or road accidents. The crane can be used to clear debris, rescue trapped individuals, and transport supplies to affected areas.

Beiben 4x4 All Wheel Drive Off-Road Hydraulic Boom Lifting Crane Truck

This powerful truck is specifically designed for lifting and transporting heavy goods with ease. Equipped with a China well-known brand of 12-ton telescopic boom crane, this truck is perfect for handling a variety of heavy-duty tasks efficiently and safely.

Product Parameters

Vehicle Name Beiben 4x4 All Wheel Drive Off-Road Hydraulic Boom Lifting Crane Truck
Chassis brand Beiben
Drive Type 4x4, LHD (option right-hand drive)
Wheelbase 5100 mm
Overall Dimension 7990x2550x3680 mm

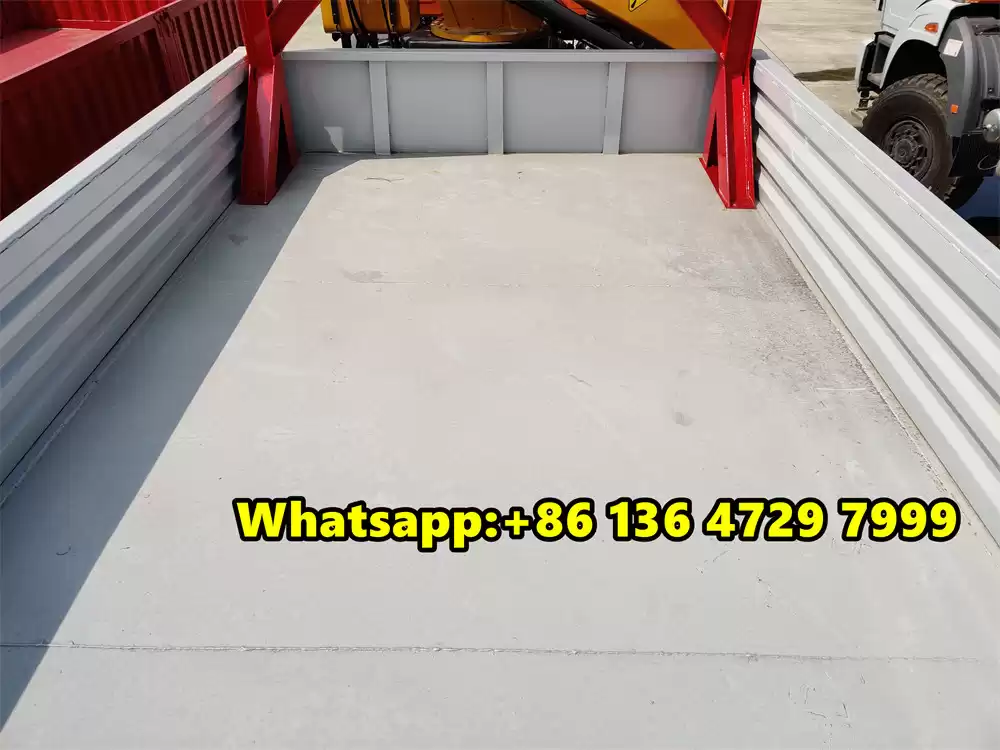

Cargo Body Dimension 5100x2300x550 mm
Gross Weight 16000 kg
Curb Weight 8230 kg
Payload Weight 7575 kg
Engine Model WP10.340
Rated Power 340 HP
Displacement 9726 cc
Type Diesel, in-line, 6-cylinders, turbocharged water cooled.
Gearbox Manual, 9 speed forward, 1 reverse
Front Axle 7.5-Ton
Rear Axle 13-Ton
Superstructure
Crane SQS125SK
Type

Folding boom, 4 arm.

Max Lifting Capacity 5 Ton (can option 6.3ton)
Max lifting Height 11 m
Max Working Radius 8 m

Rotation

360° all rotation

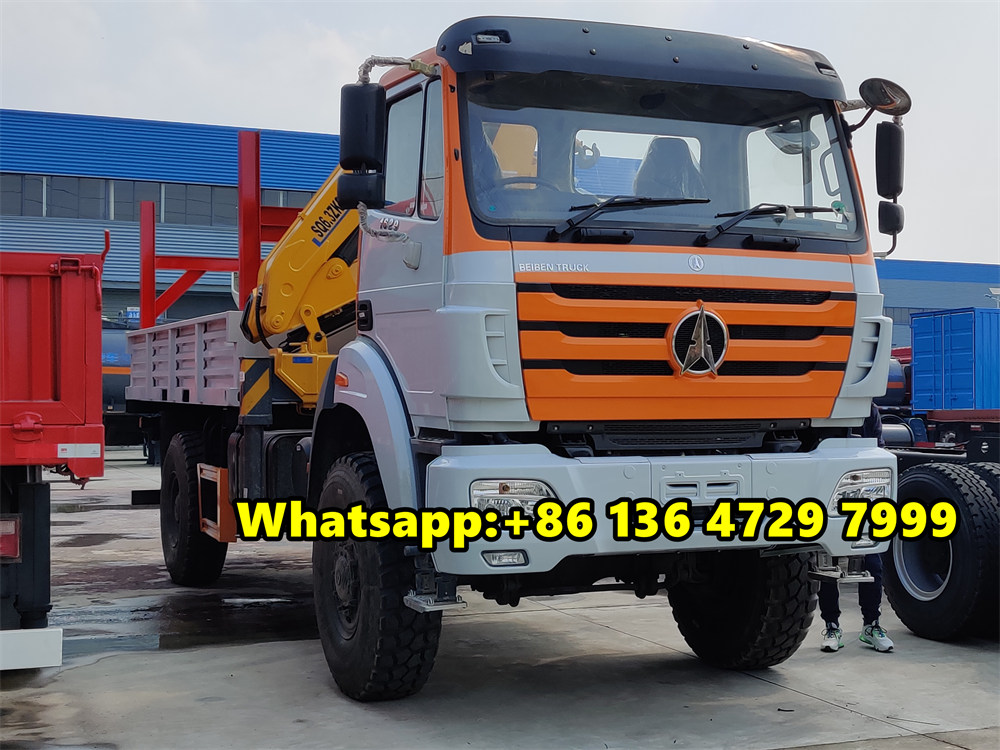

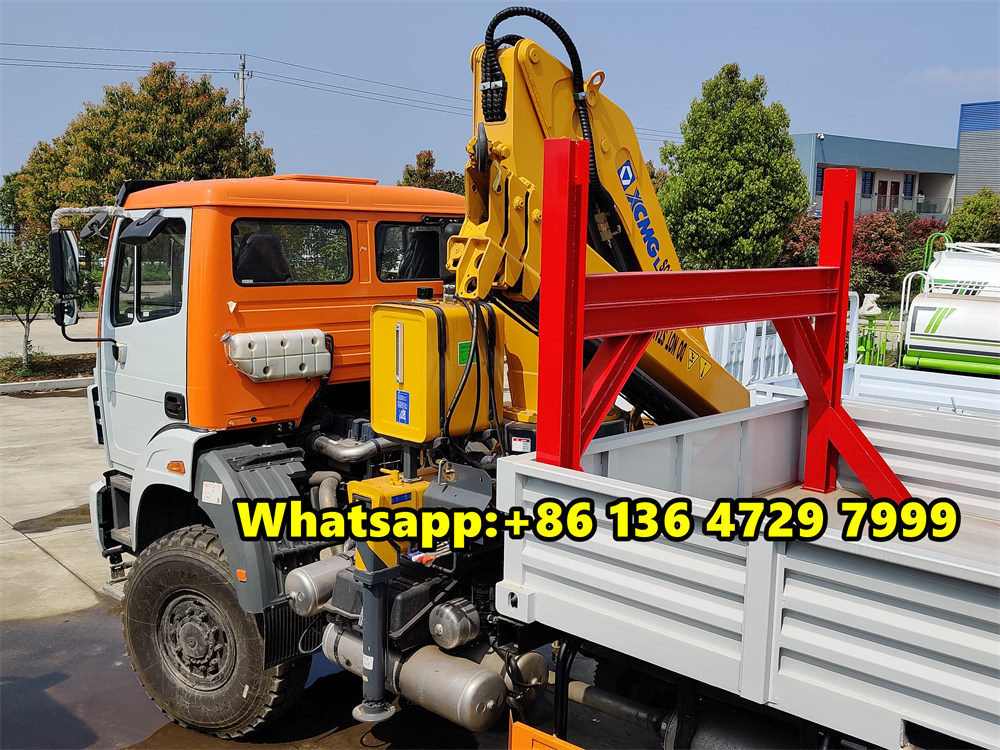

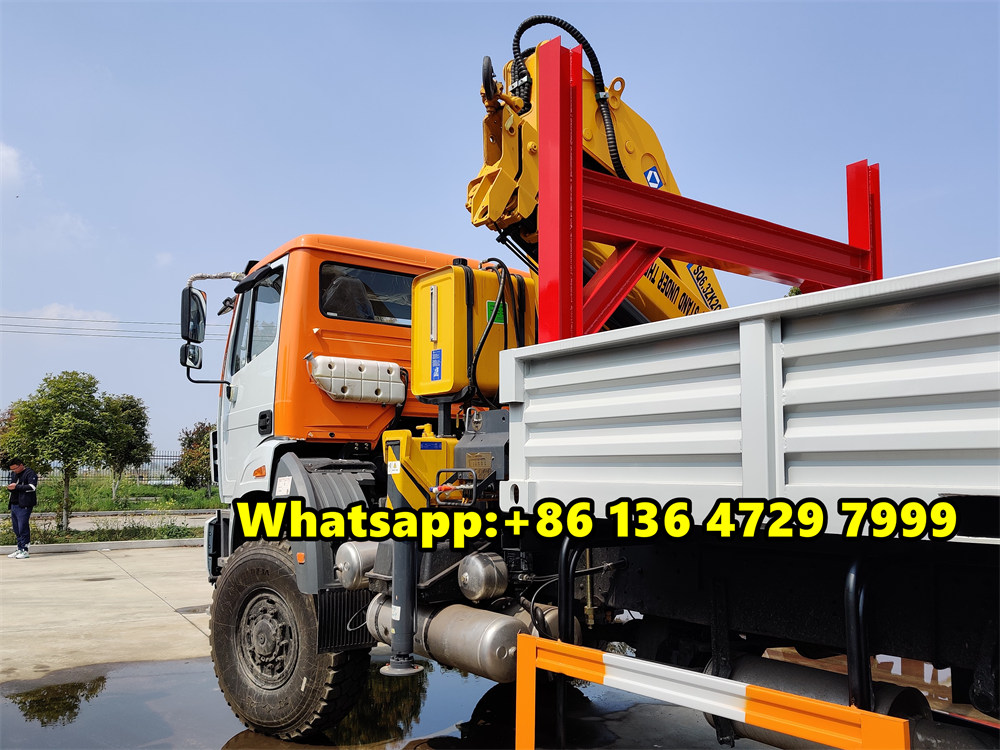

Beiben 4x4 off road crane truck

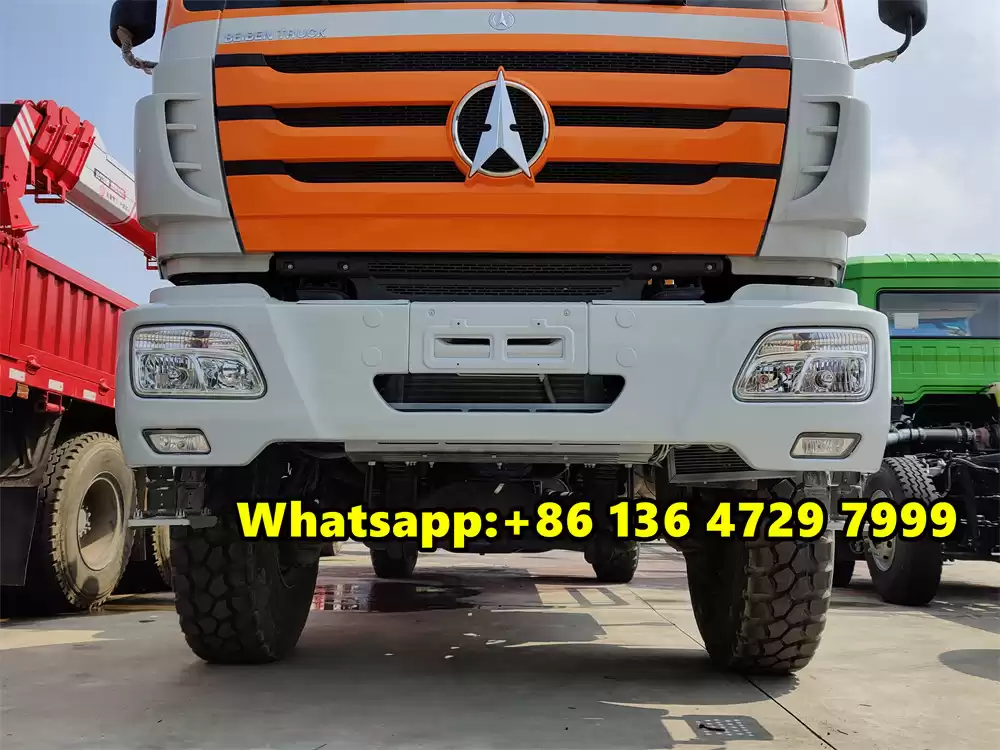

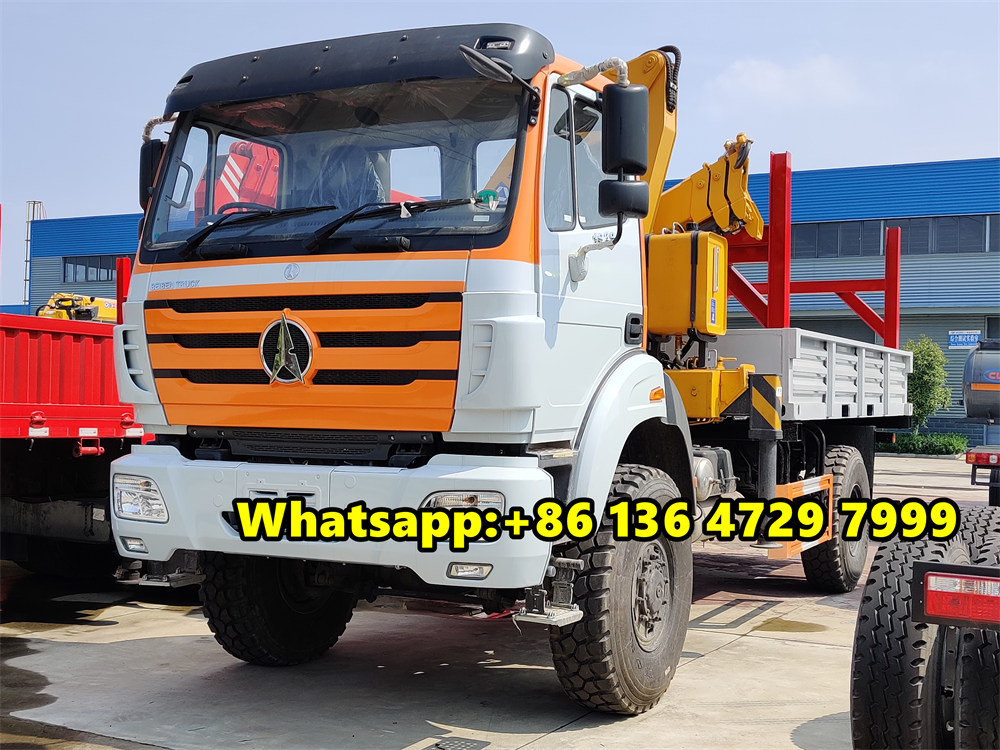

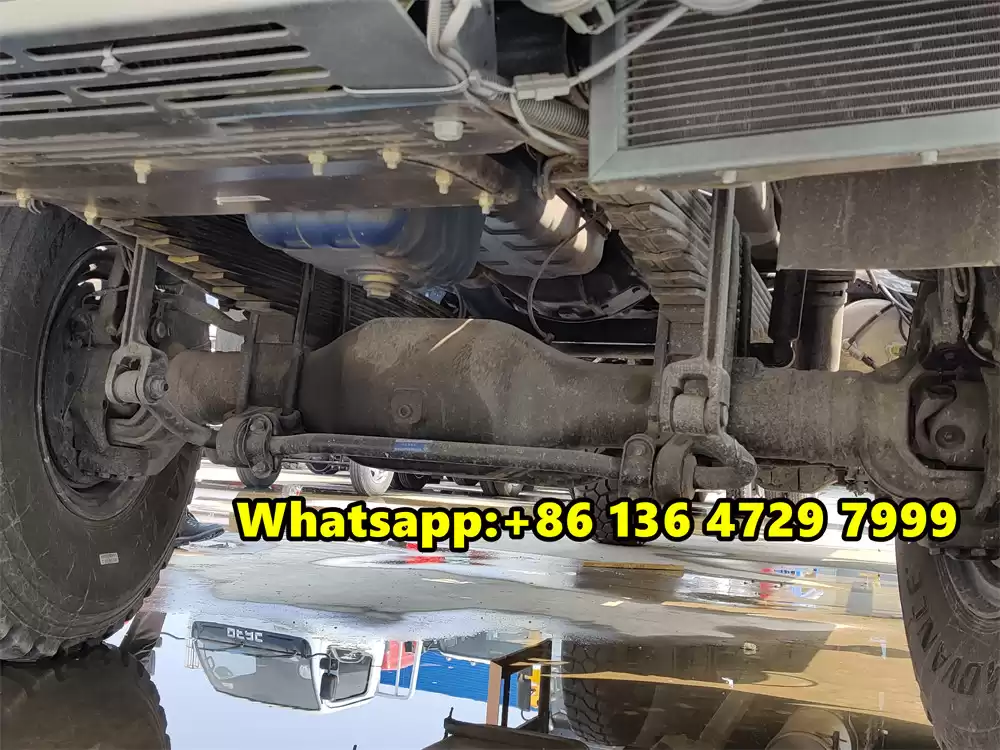

Beiben 4x4 off road crane truck

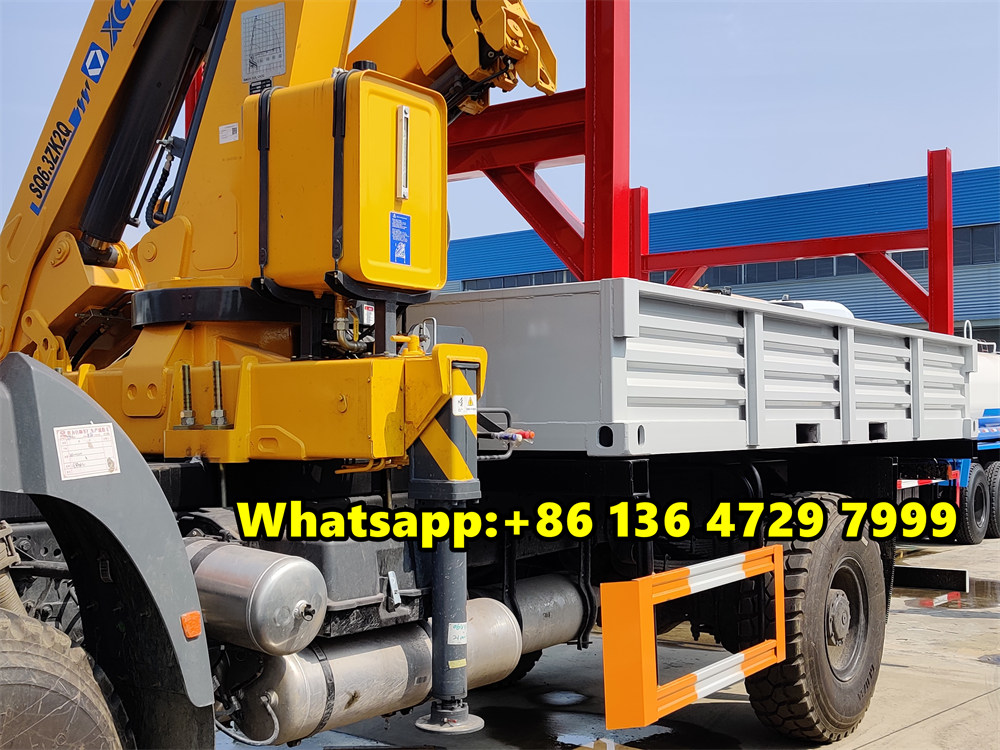

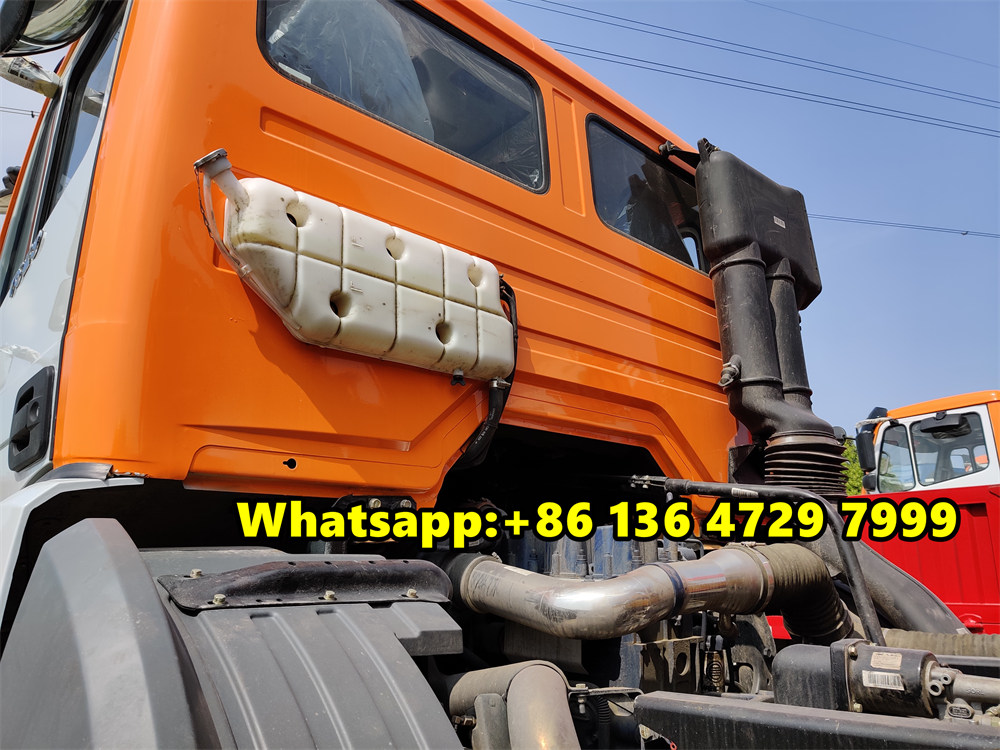

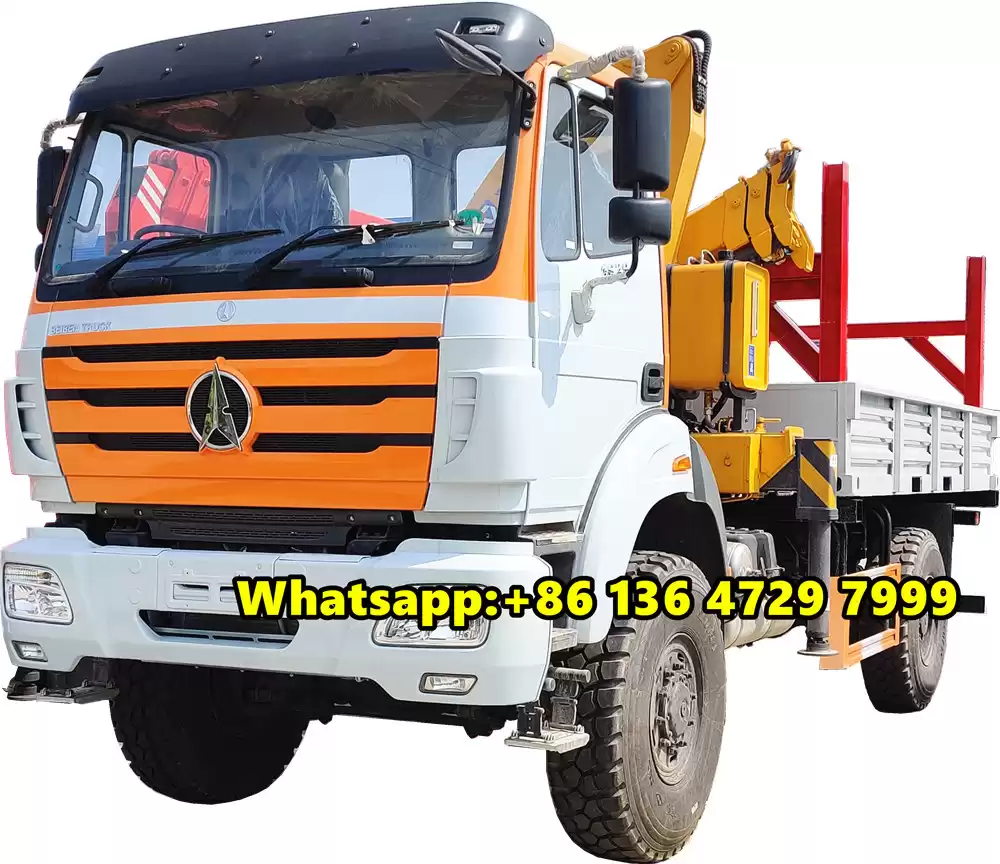

Beiben 4x4 off road crane truck price

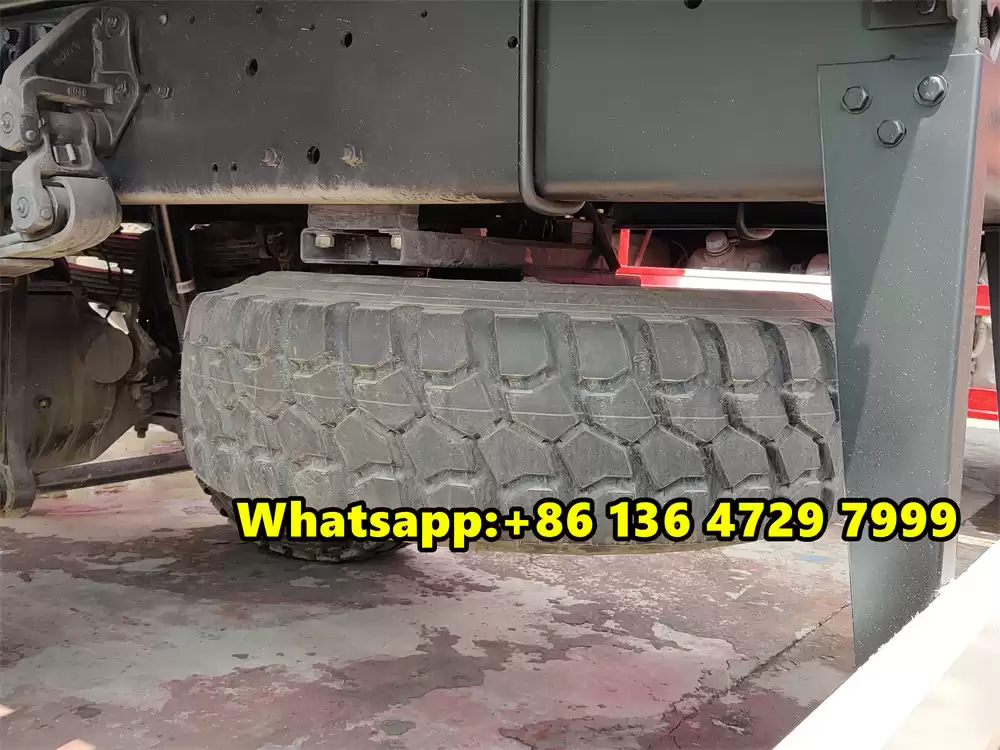

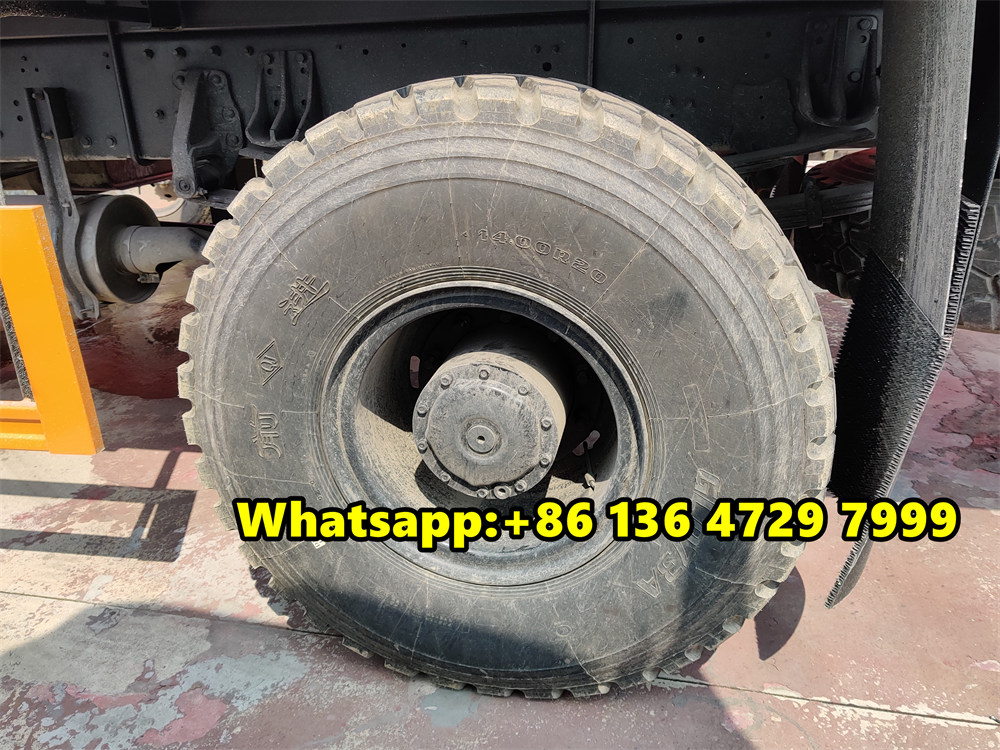

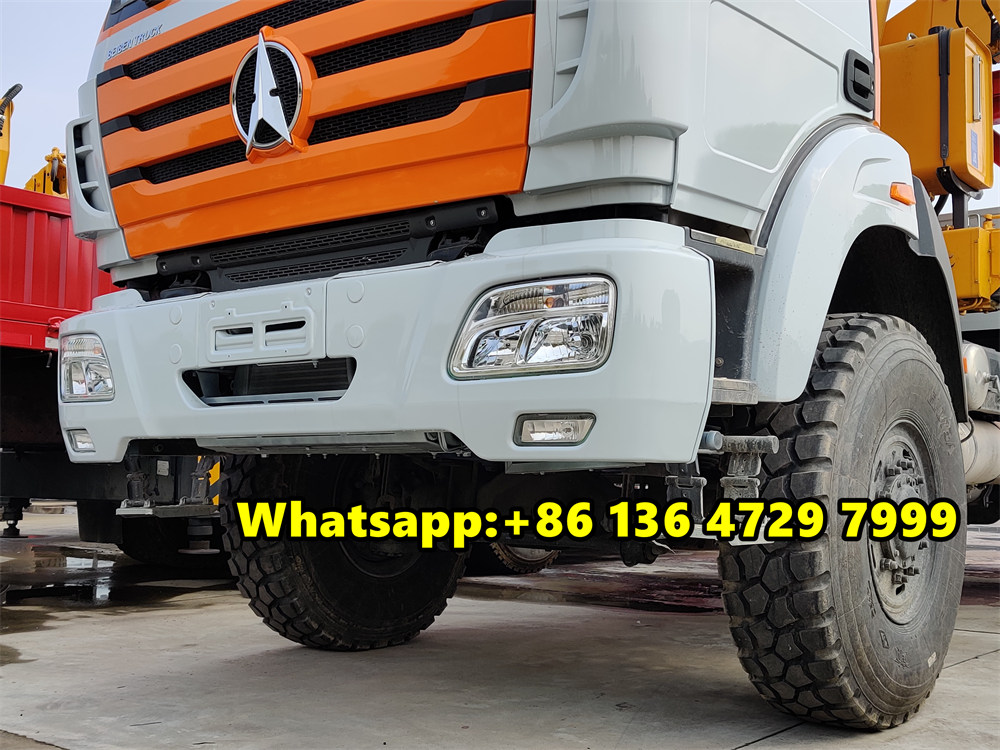

Beiben off road crane truck with 12.00R24 tyre

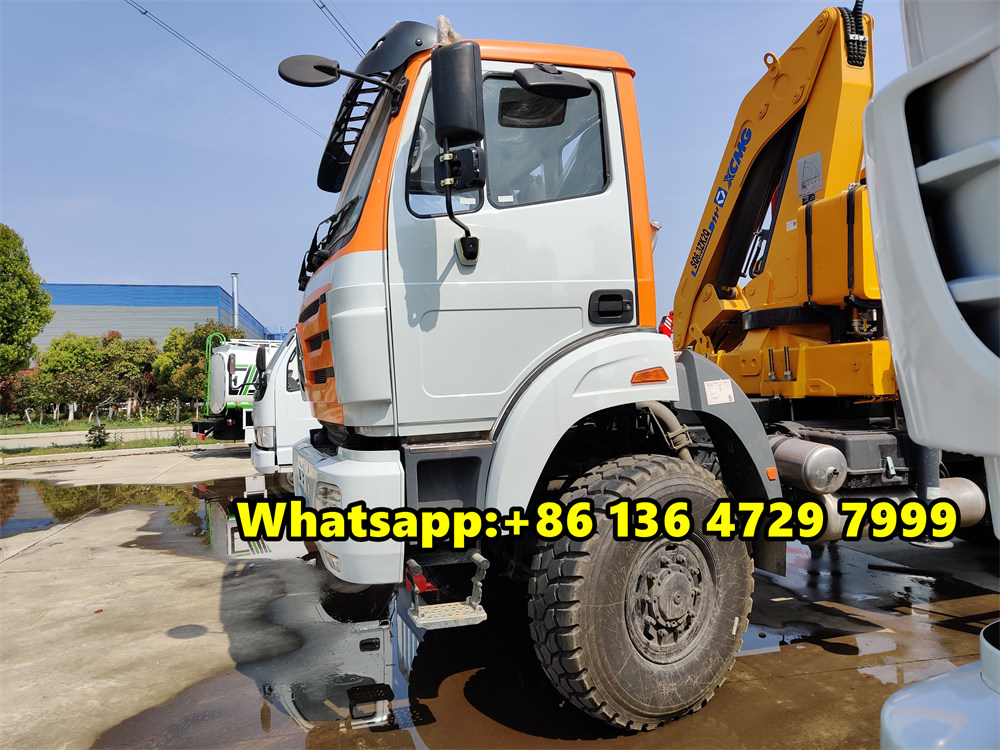

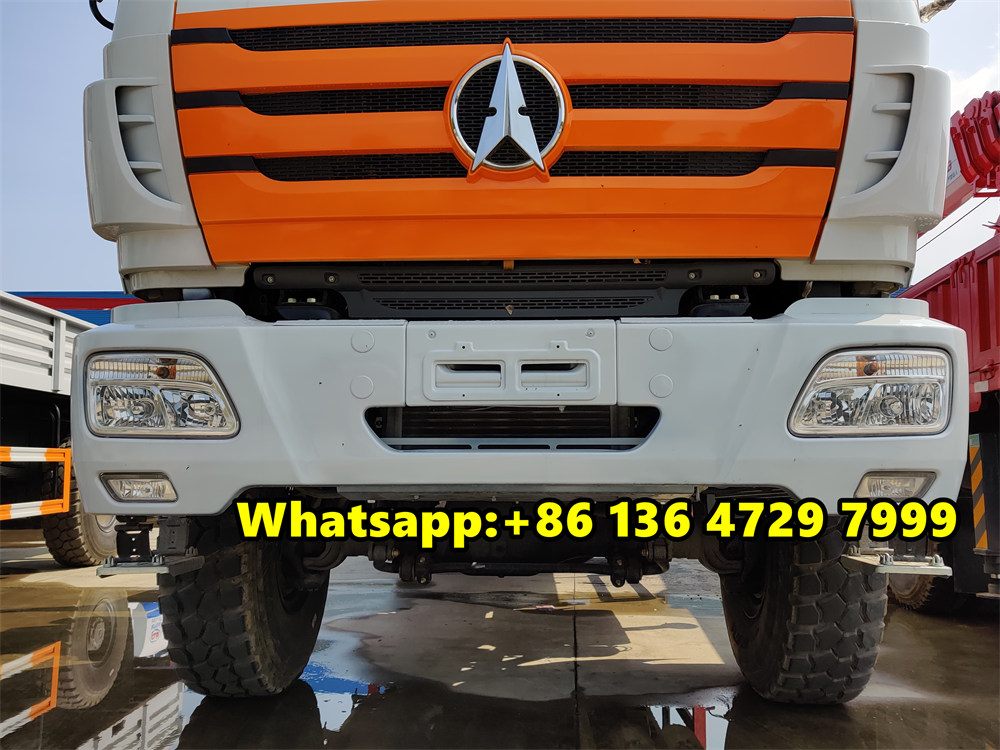

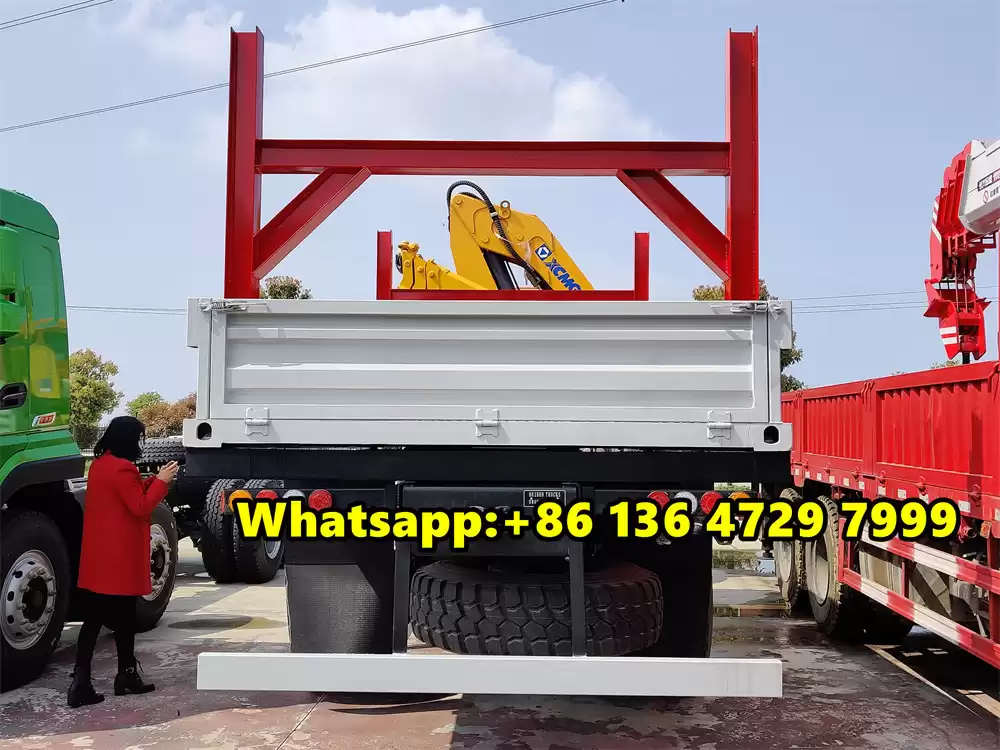

Beiben 4x4 off road crane truck

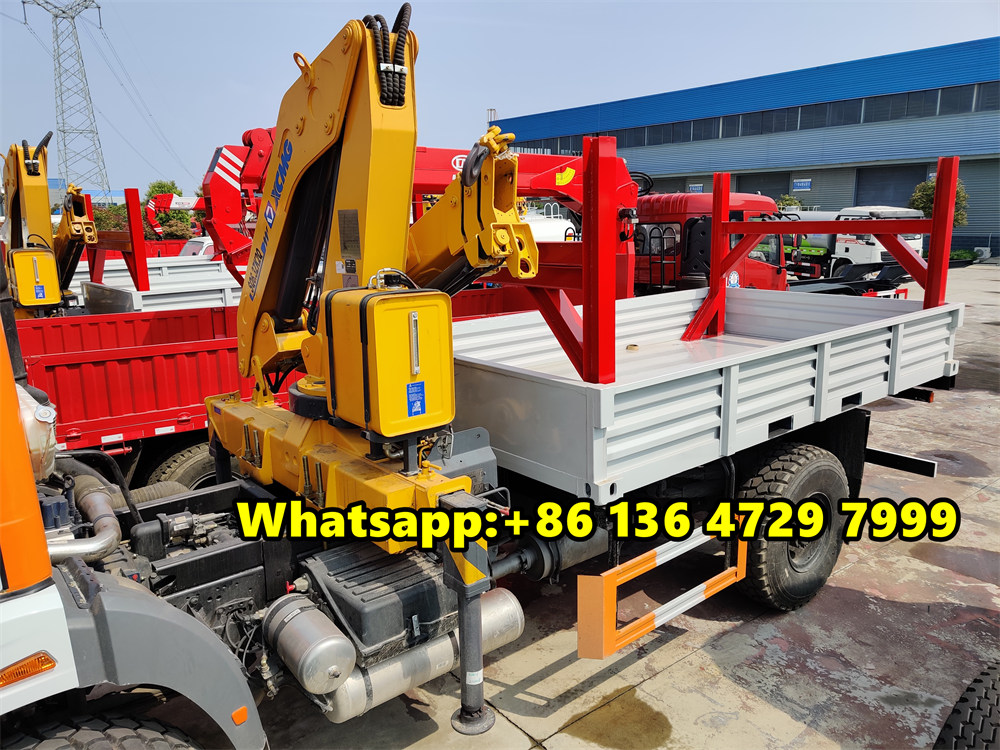

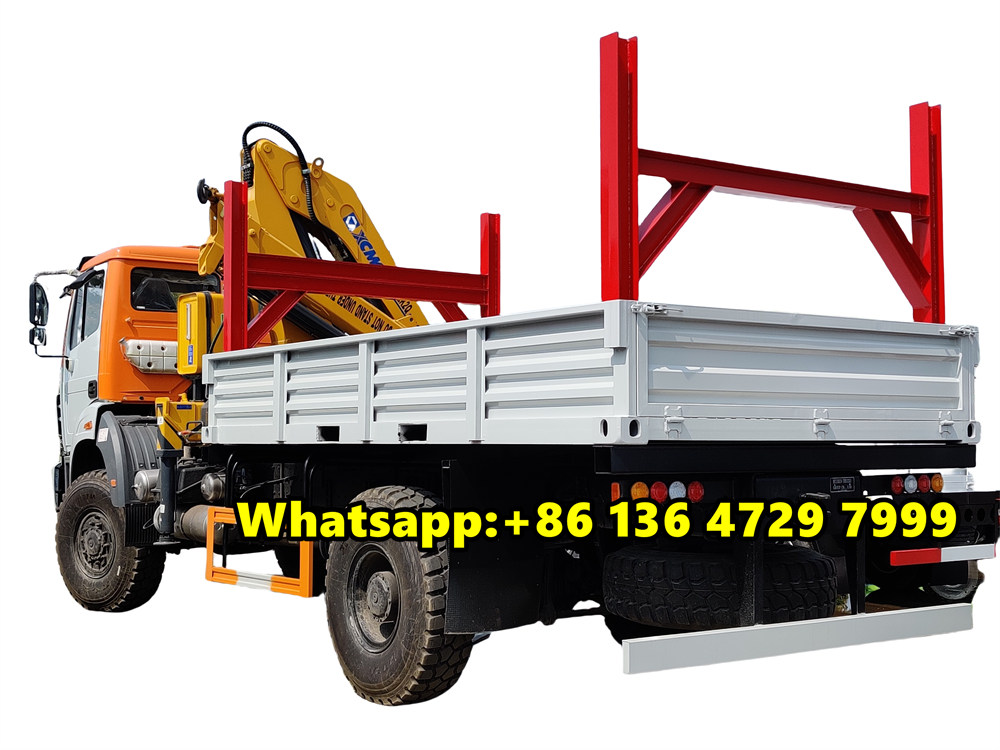

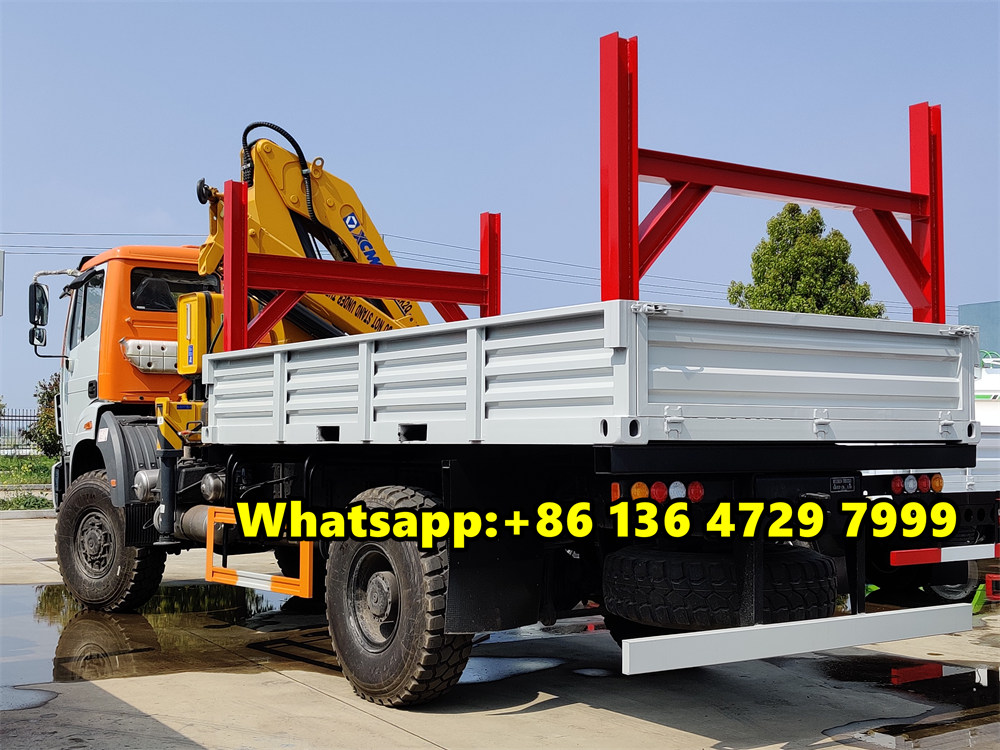

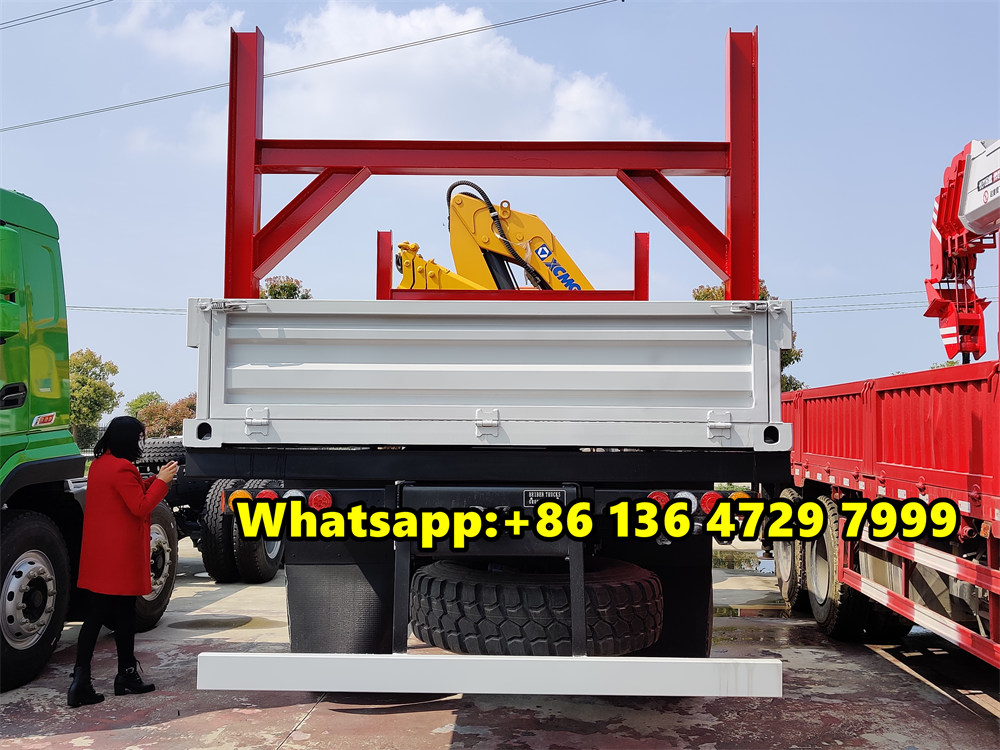

Beiben 4x4 off road crane truck

The Beiben 1934 off-road crane truck is a rugged and versatile vehicle that plays a crucial role in infrastructure development in Africa. Here are four main uses of this truck in infrastructure construction:

1. Transporting heavy materials: The Beiben 1934 off-road crane truck is equipped with a powerful crane that allows it to lift and move heavy materials with ease. This makes it ideal for transporting construction materials such as steel beams, concrete blocks, and equipment to remote construction sites where traditional vehicles may struggle to access.

2. Building roads and bridges: In Africa, where many roads and bridges are in need of repair or construction, the Beiben 1934 off-road crane truck plays a vital role. Its ability to navigate rugged terrain and lift heavy loads makes it instrumental in laying foundations, setting beams, and constructing infrastructure that connects communities and improves transportation networks.

3. Assisting in mining operations: The mining industry in Africa relies heavily on vehicles like the Beiben 1934 off-road crane truck to transport ore, machinery, and equipment across challenging landscapes. Its robust construction and lifting capabilities make it indispensable in the extraction, processing, and transportation of valuable minerals and resources.

4. Supporting disaster relief efforts: When natural disasters strike, the Beiben 1934 off-road crane truck is often called upon to assist in relief efforts. Its ability to access remote areas and lift heavy debris makes it invaluable in clearing roads, rescuing trapped individuals, and rebuilding infrastructure in the aftermath of disasters.
