beiben 2634 oil tanker truck
Applications:
Beiben 2634 fuel tanker truck, also called as beiben oil tanker truck, beiben 2634 fuel bowser , beiben 2634 oil distribution truck, north benz 340hp engine oil fuel truck, north benz oil tanker truck, beiben oil wagon trucks.
beiben 2634 fuel tanker truck is used for used to transport oil, diesel, gasoline, kerosene, etc. fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol...
The fuel truck can be equipped with oil pump and refueling machine, all for easy operation.
Key Features:

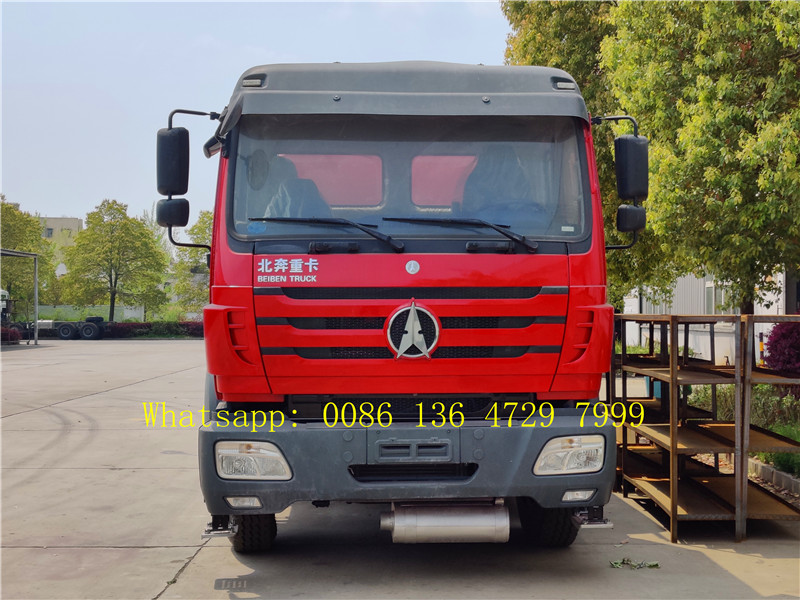

---- Germany benz NG80B cabin, safety and convenience
---- Mercedes benz front axle, rear axle.
---- ZF8098 steering system, Germany original.
---- heavy duty suspension, maximum payload 80 ton
---- Military Germany mercedes benz technology controlling system.
Specifications:
beiben 2634 fuel tanker truck
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
beiben 2634
|

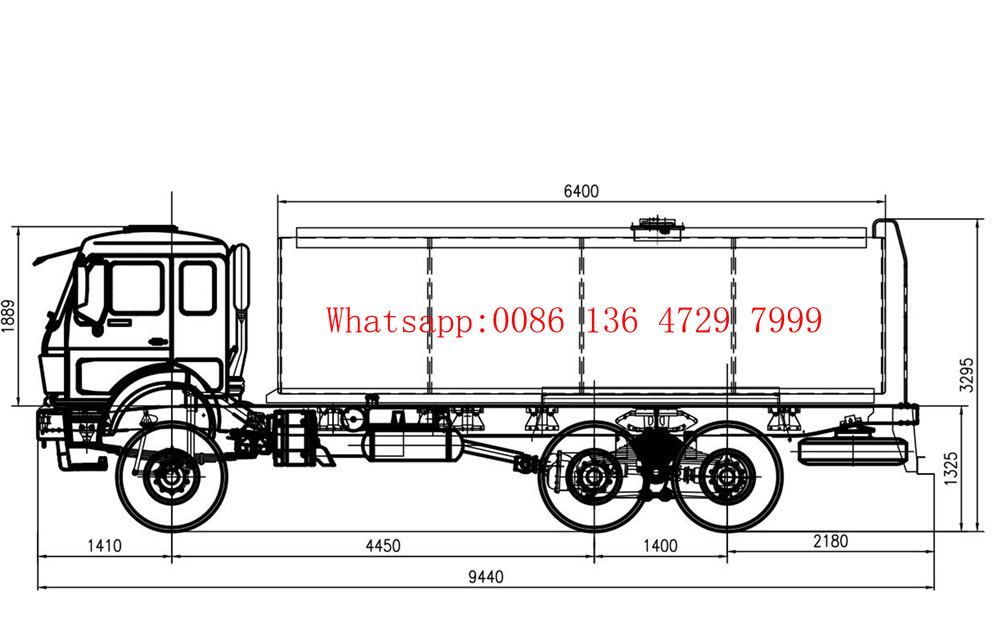

| Overall Dimension
|
9800 * 2500 * 3050 mm
|
| GVW / Kerb Weight
|
25,000kg / 12,000kg
|
| Cab
|
Cab Capacity
|
2+1 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
WEICHAI
|
| Power
|
340 HP (250 KW)
|
| Displacement
|
9726 ml
|
| Emission Standard
|
Euro 3
|
| Chassis
|
Drive Type
|
6X4
|
| Transmission
|
FAST 9 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
4450+1450 mm / 3
|
| Tire Specification
|
12.00R20
|
| Tire Number
|
10 tires and 1 spare tire
|
| Max Speed
|
95 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Tank Capacity
|
20,000 Liters
|
| Tank shape
|
Ellipse
|
| Material
|
Carbon steel, 5mm
|
| Body Material
|
Whether resisting steel
|
| Fuel pump
|
Fuel pump equipped for overhead delivery |
| Loading type
|
Self loading
|
| Tank thickness
|
5 mm
|
| Cover thickness
|
5 mm
|
| Hose
|
High quality, wire strengthened hose,
with cooper wire, anti-static |
| Tank cover
|
China famous
|
| Control
|
Manual (Optional air operated)
|
| Control panel
|
English or Your language
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
| Optional
|
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).
** It can be divided into many compartments.
** Imported American pump as optional.
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
|

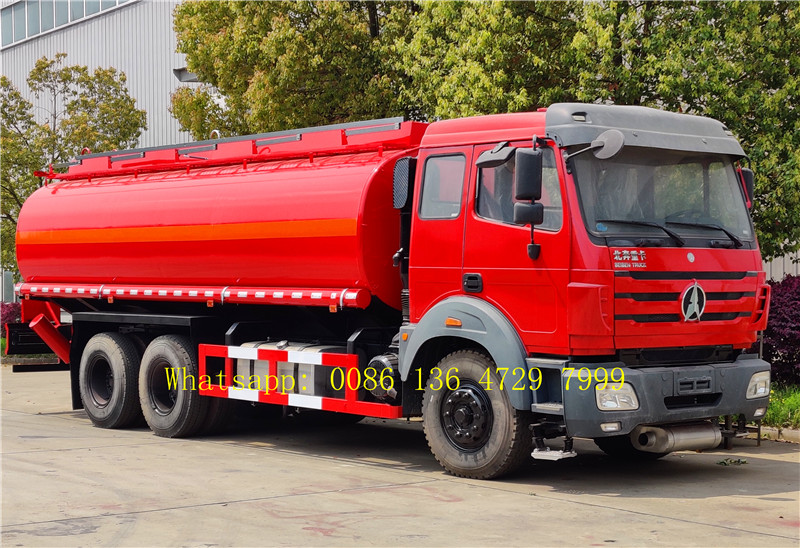

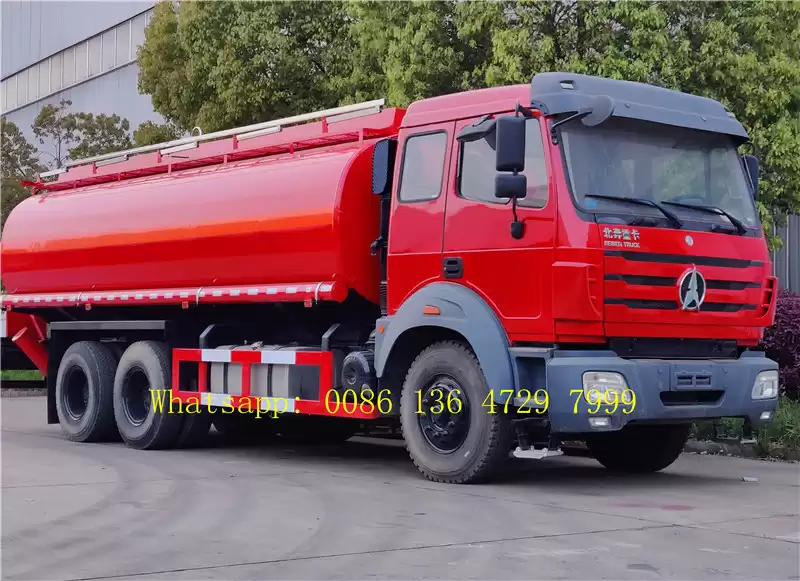

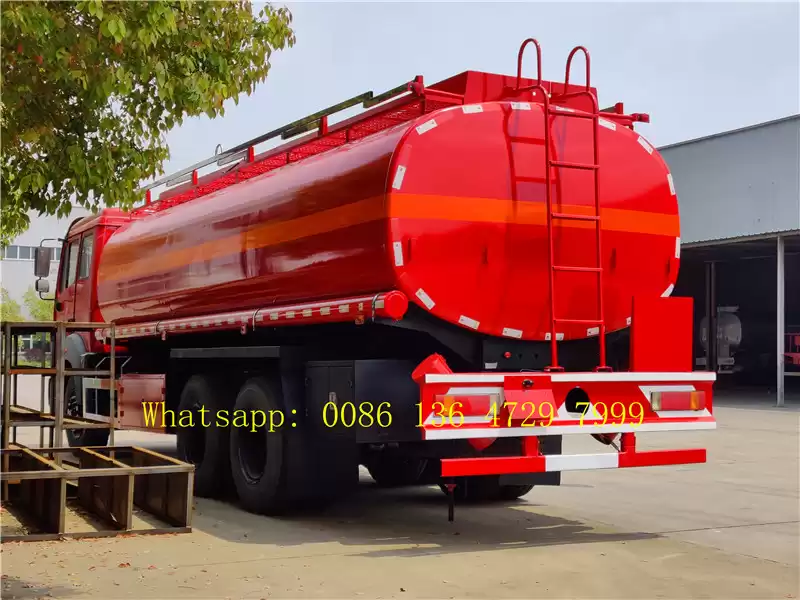

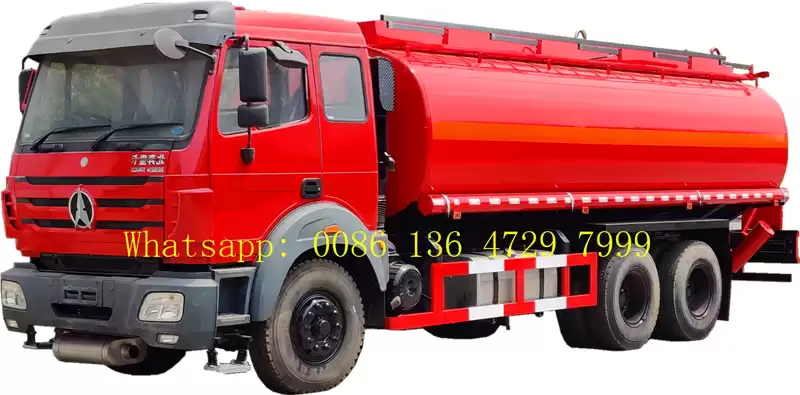

beiben 2634 oil tanker truck, mercedes benz front axle and rear alxe.

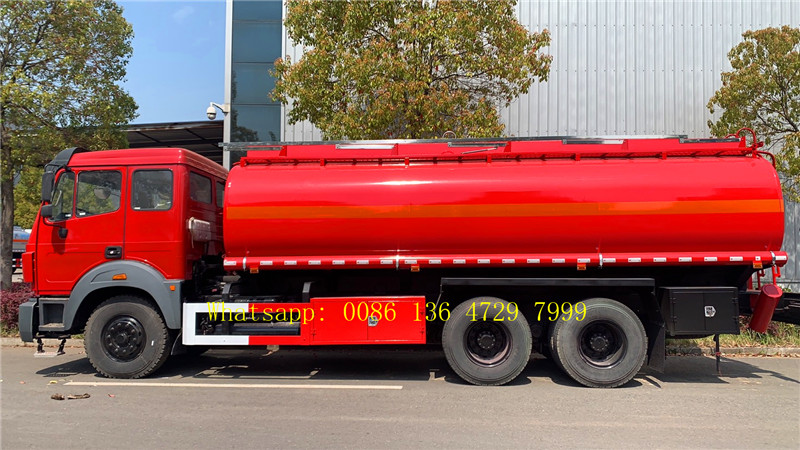

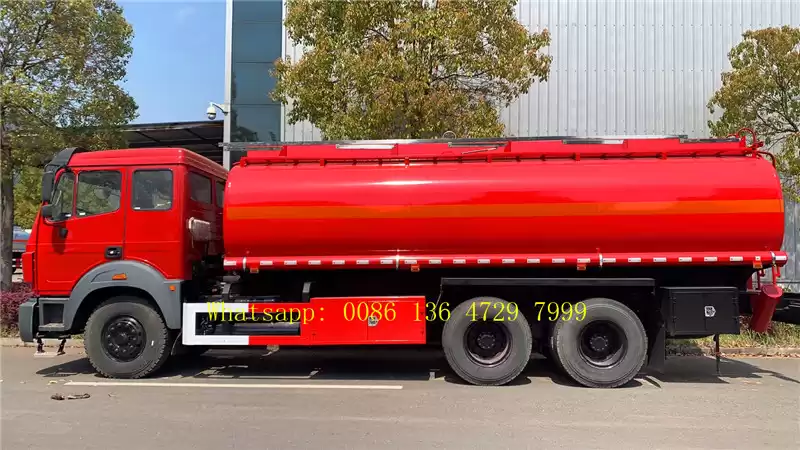

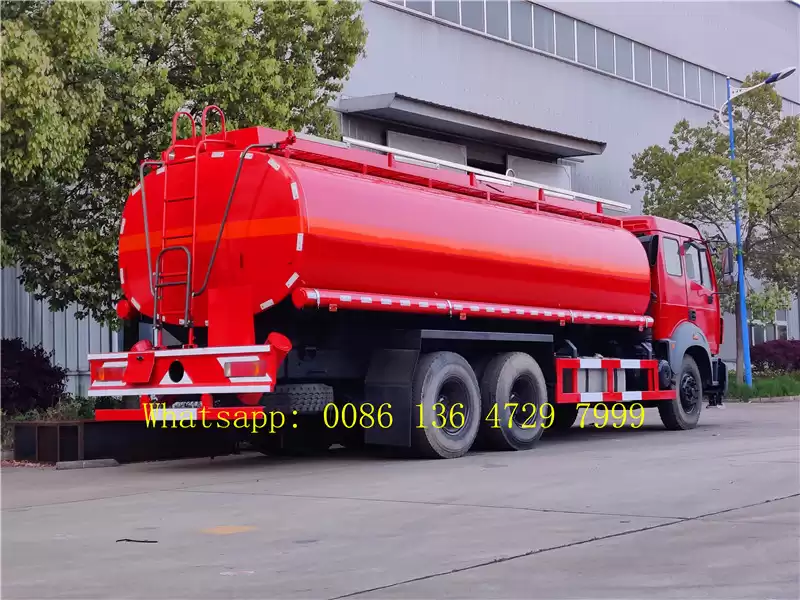

20 CBM beiben fuel tanker truck, with 20,000 liters fuel tanker body on china beiben 2634 truck chassis.
