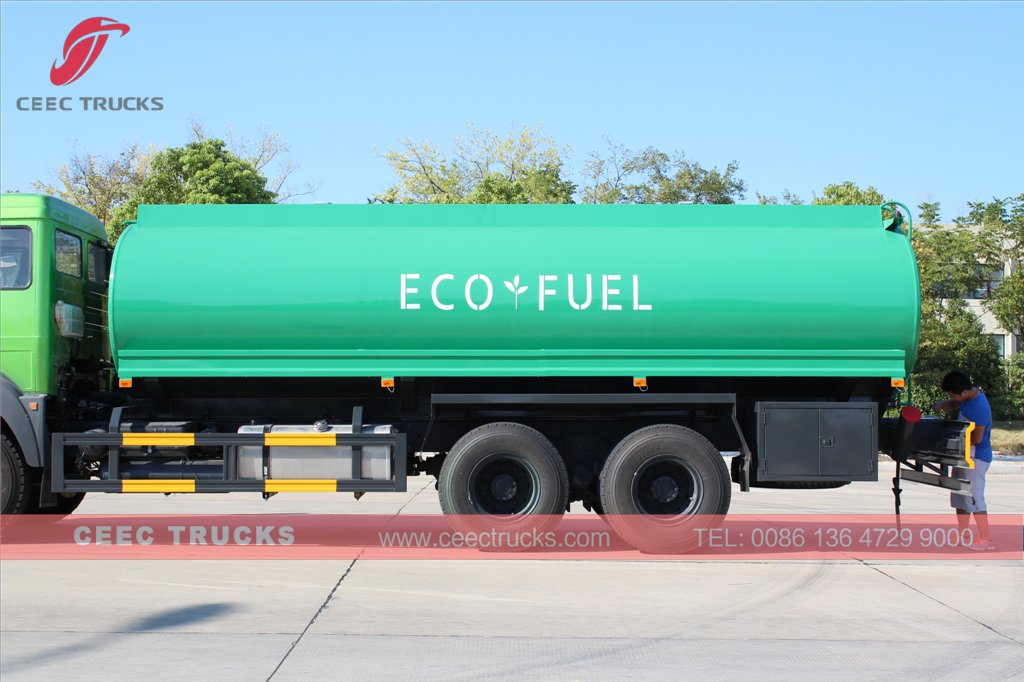

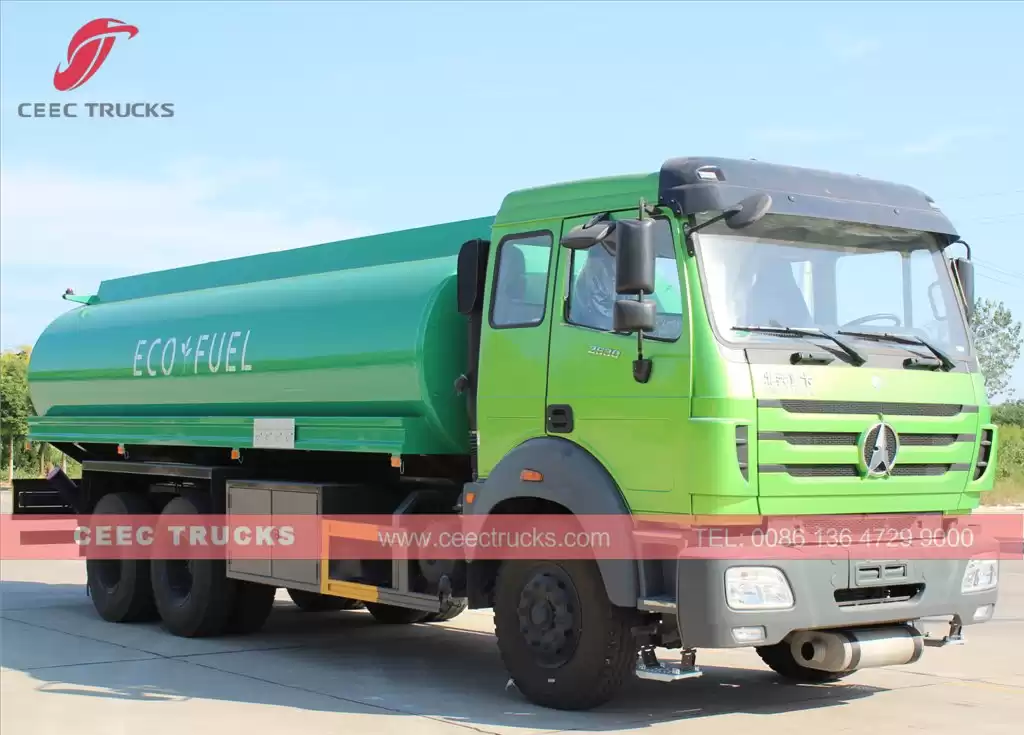

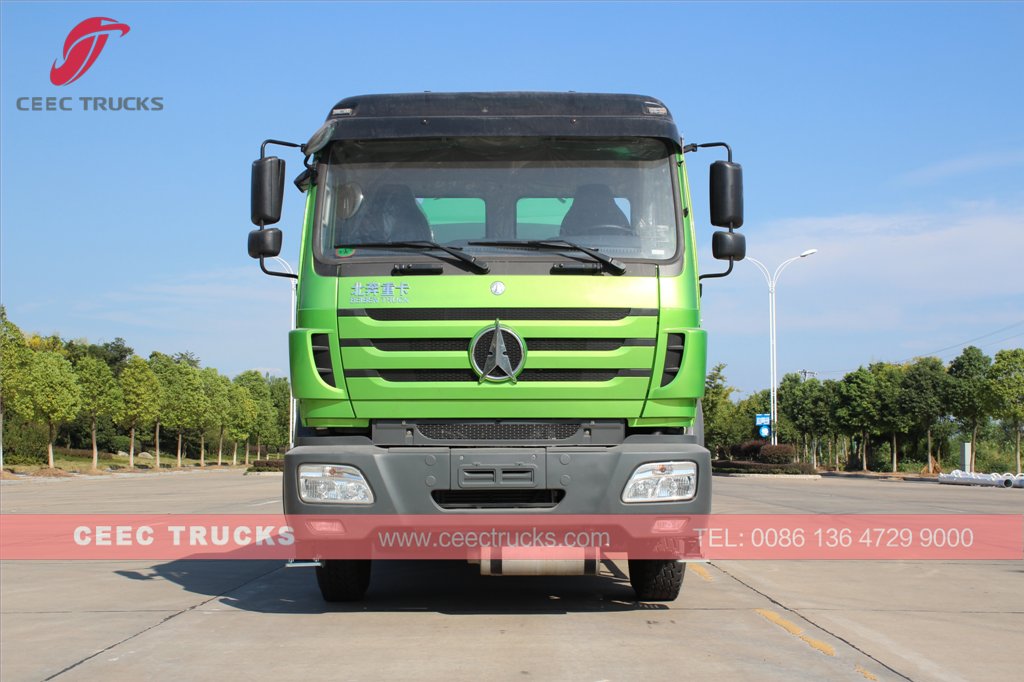

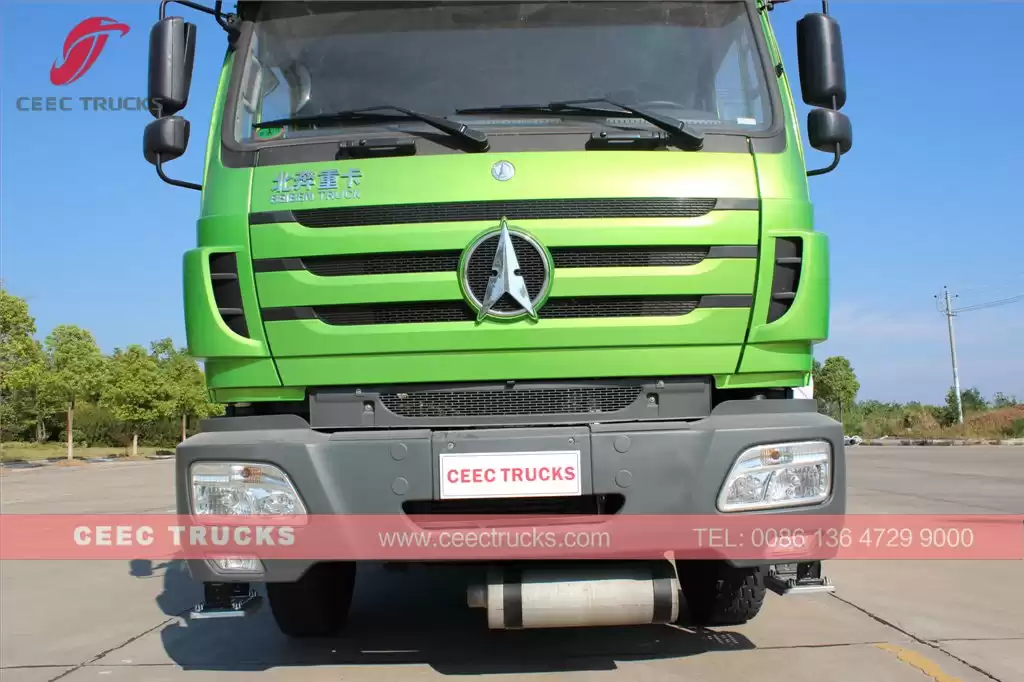

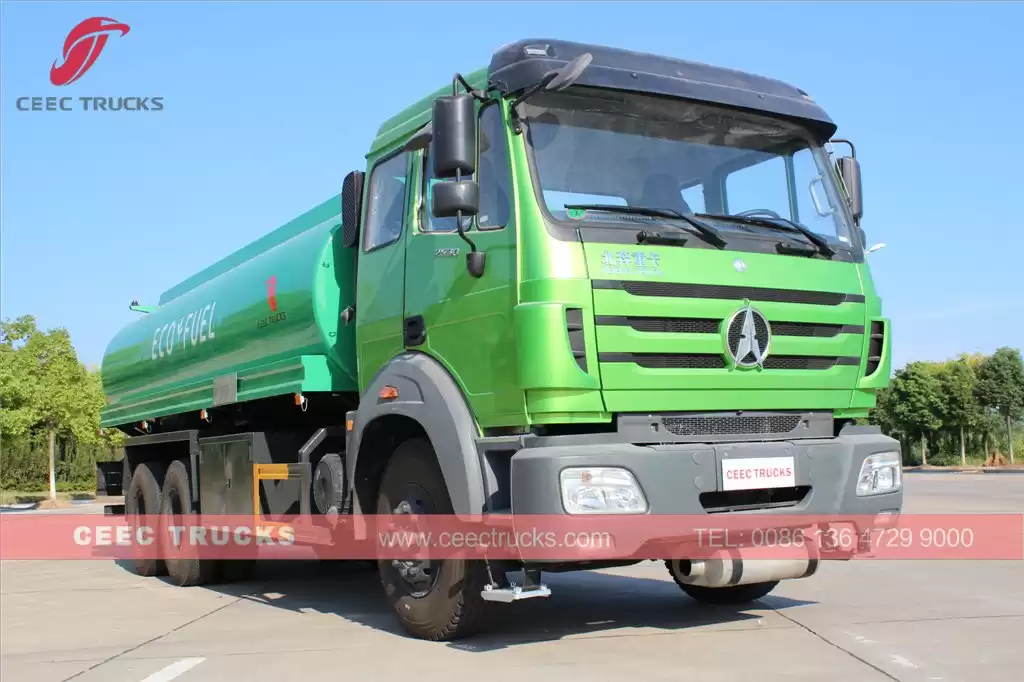

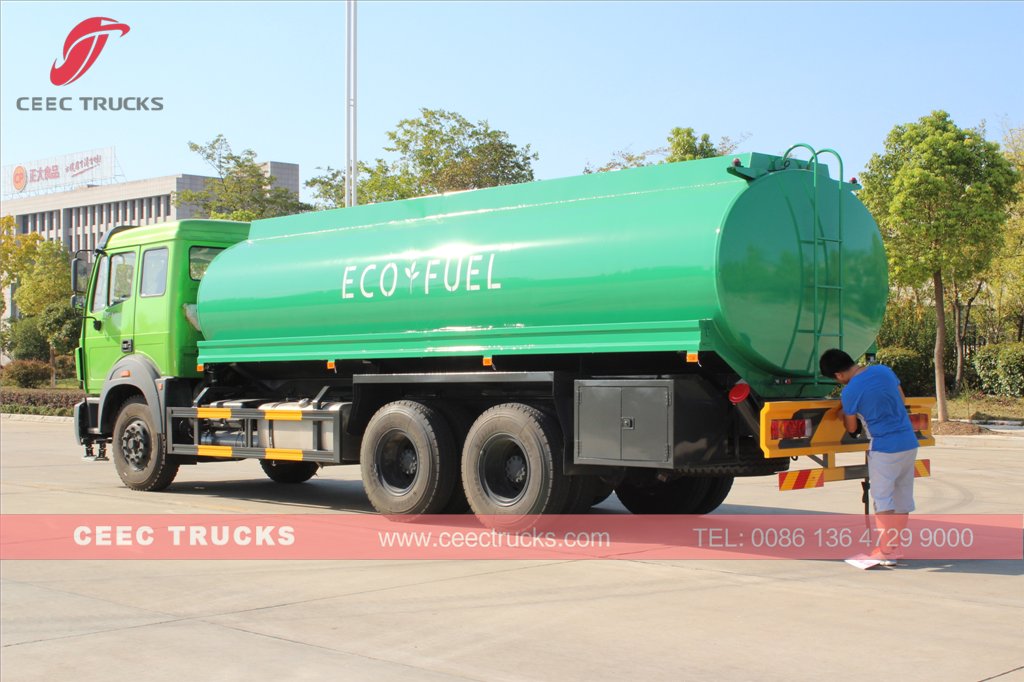

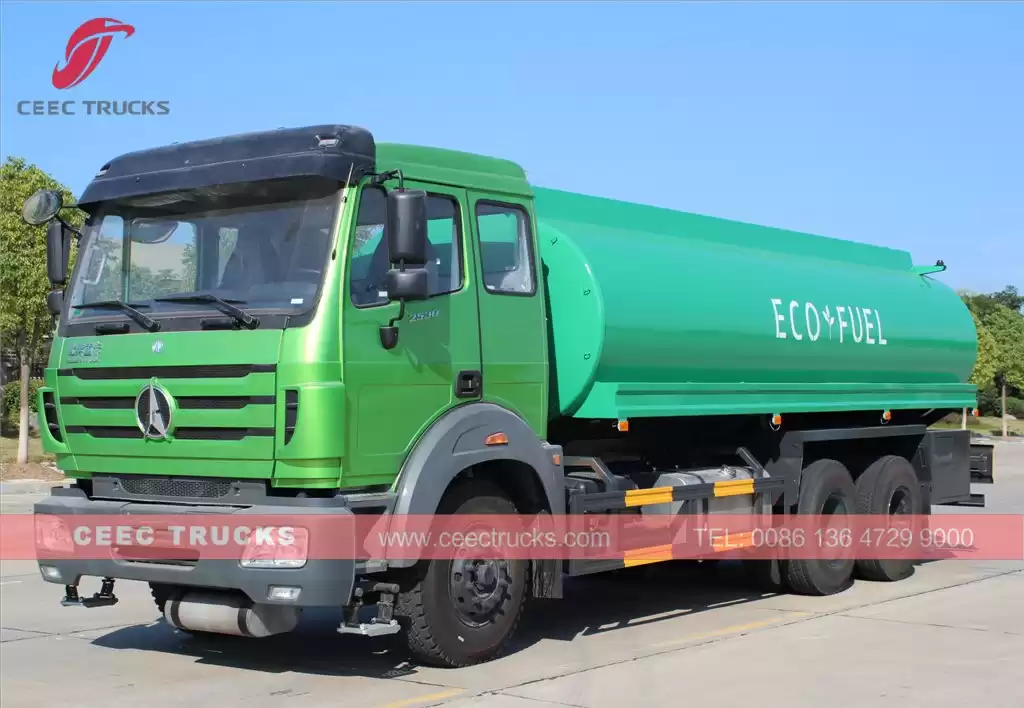

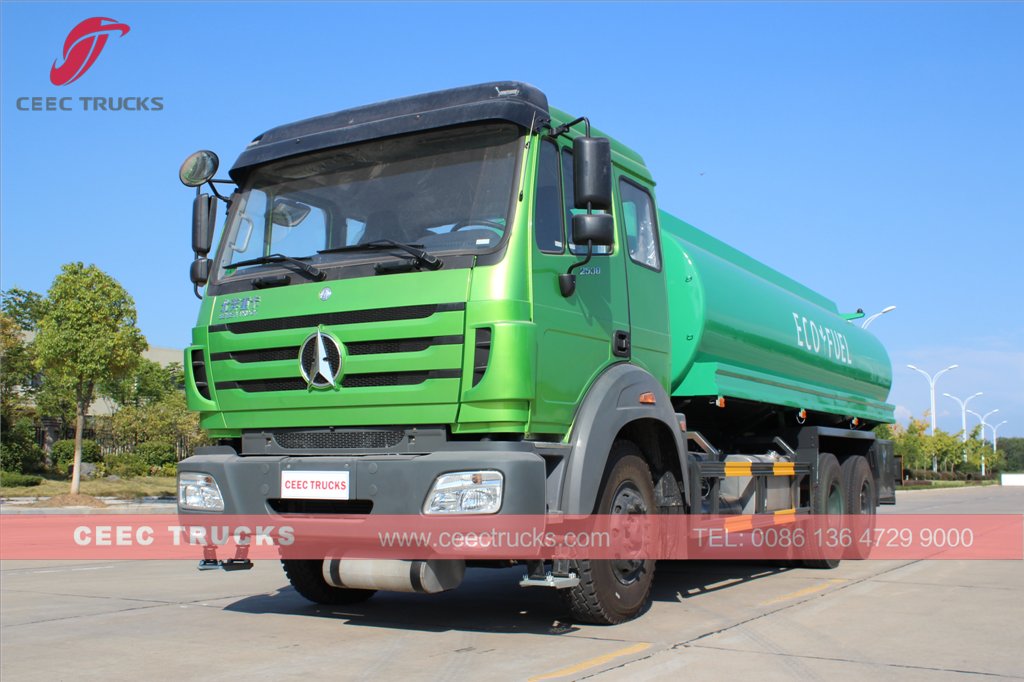

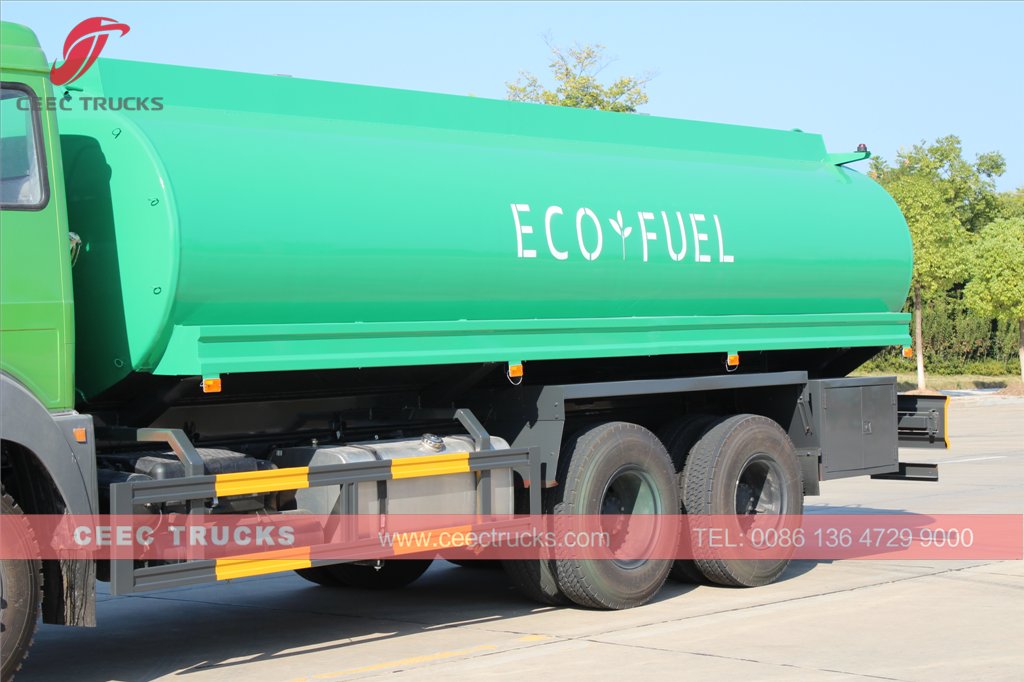

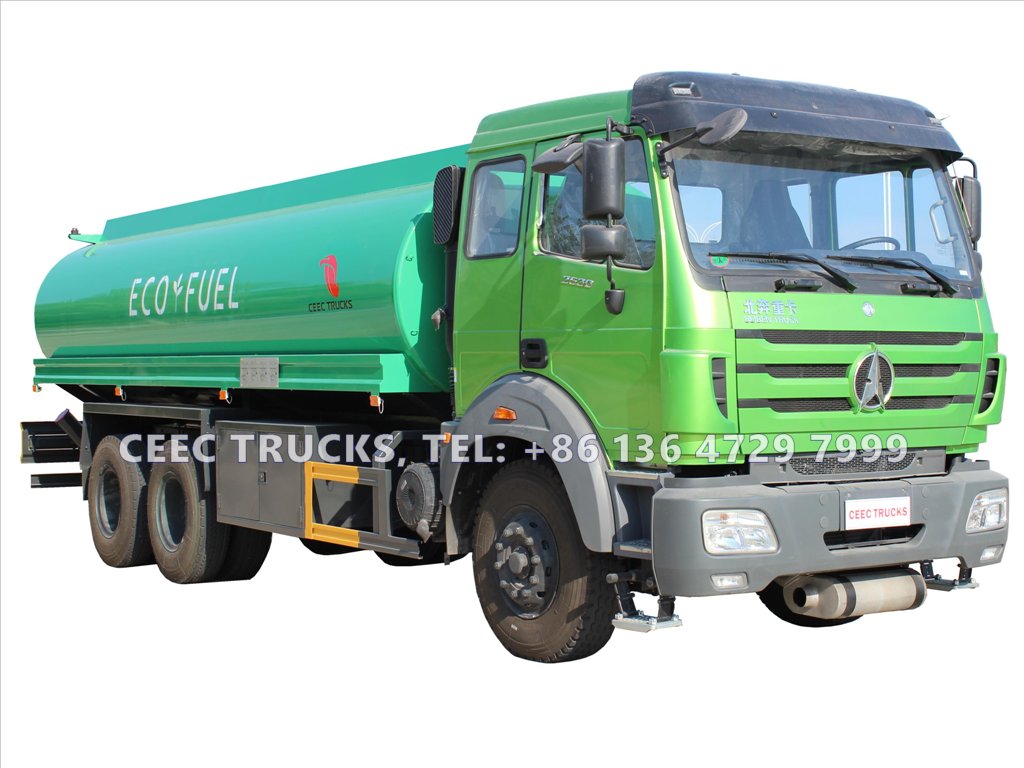

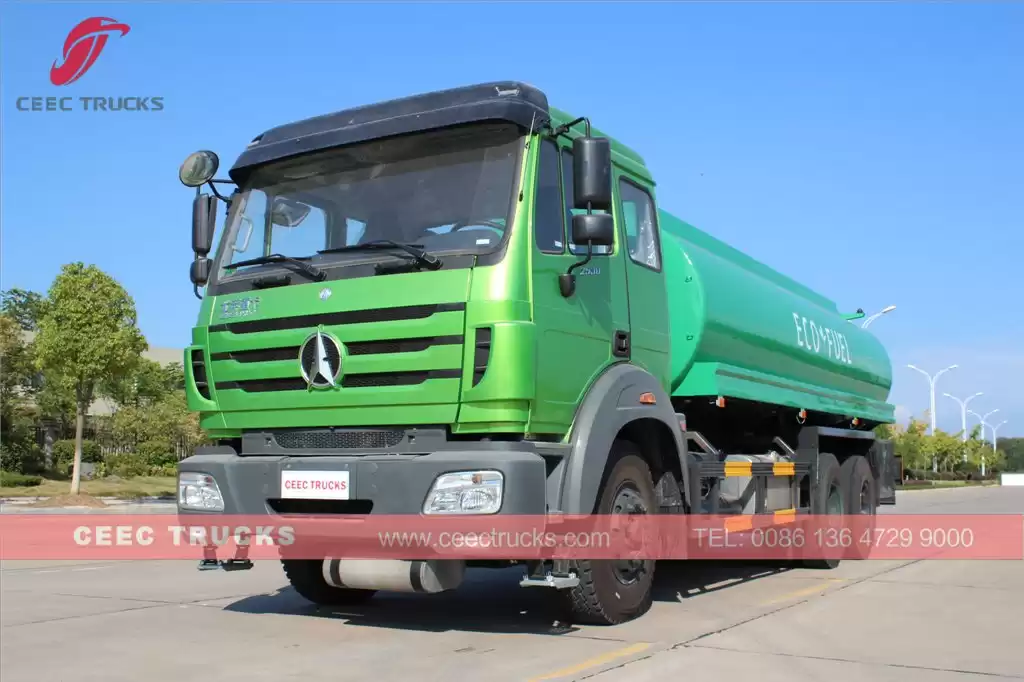

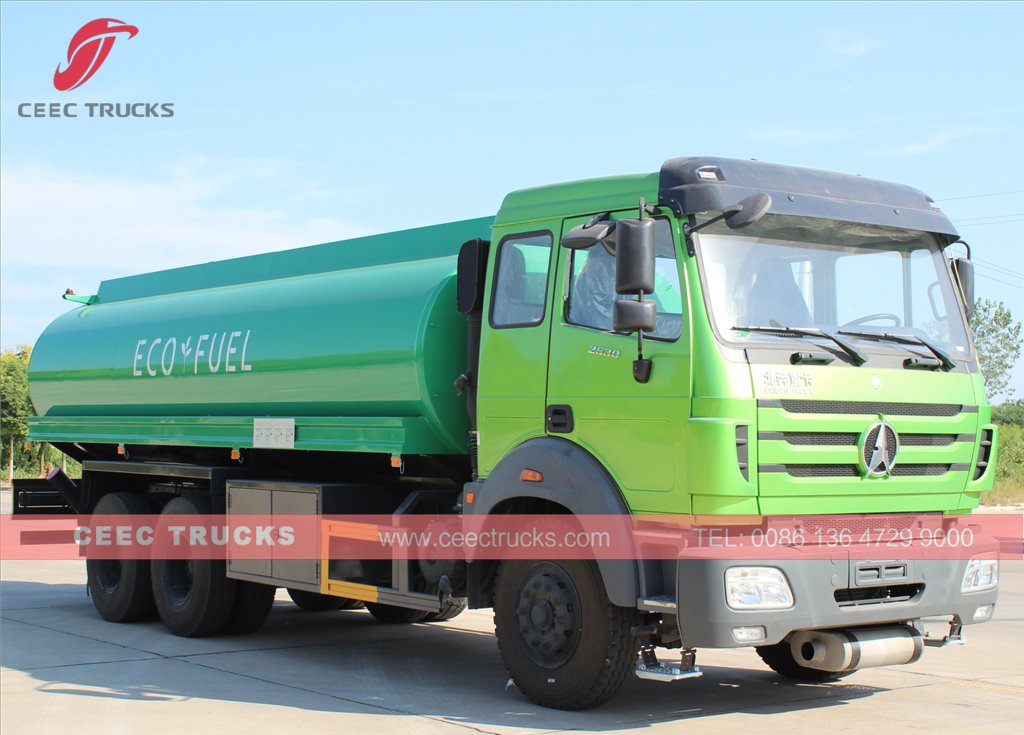

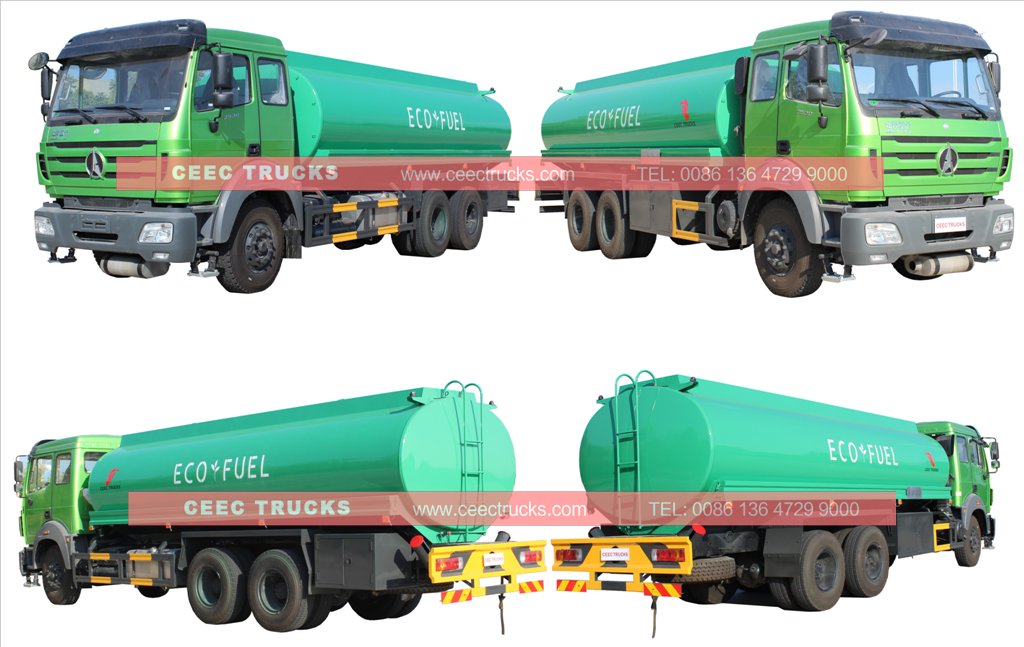

Beiben 20 CBM fuel tanker

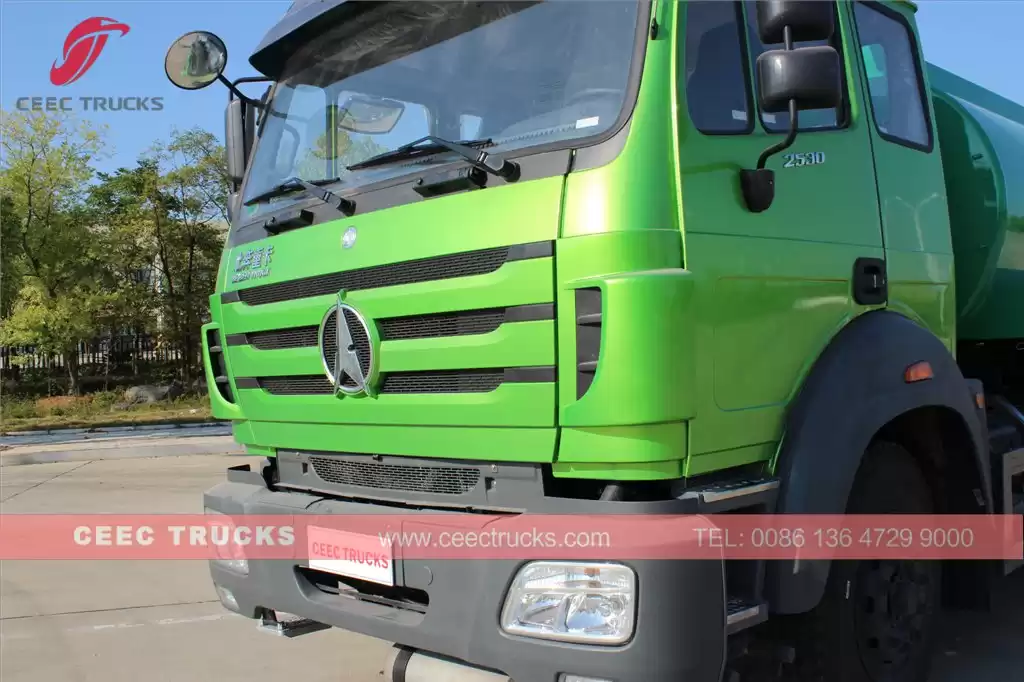

Beiben 2530 truck chassis, WEICHAI Euro 2 engine 300 hp , fast 9 shift transmission, 4500+1350 mm wheelbase,  7 T benz front axle, 13 T double rear axle with wheel reducer, 11.00R20.   CEEC latest technology on 20 cbm fuel tanker trucks.





   beiben fuel truck supplier

 Applications:



Beiben fuel tanker (also called beiben fuel truck, beiben fuel distributor, north benz fuel tanker, north benz fuel  bowser, beiben Portable fuel tanker) is is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It  is used to transport oil, diesel, gasoline, kerosene, etc.



The refueling tank truck manufactured by us is designed based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.



 Key Features:



----Beiben chassis, Benz quality assurance.

---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.



 Specifications:





Beiben fuel Tanker Trucks  (20,000L)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Beiben

Overall Dimension

9800 * 2500 * 3050 mm

GVW / Kerb Weight

35,000kg /11 ,000kg

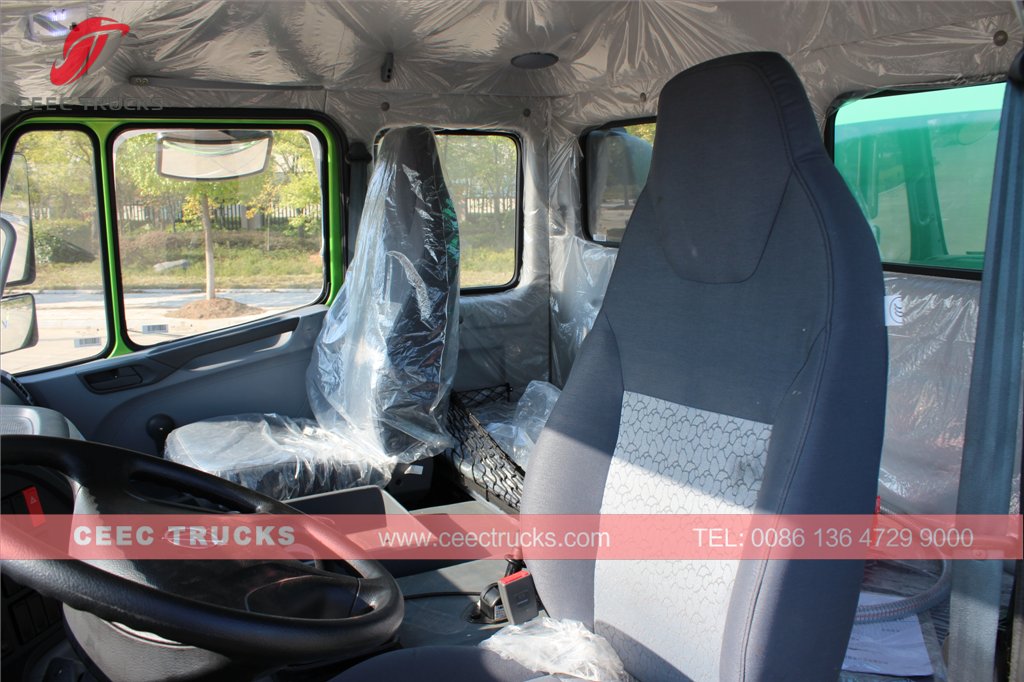

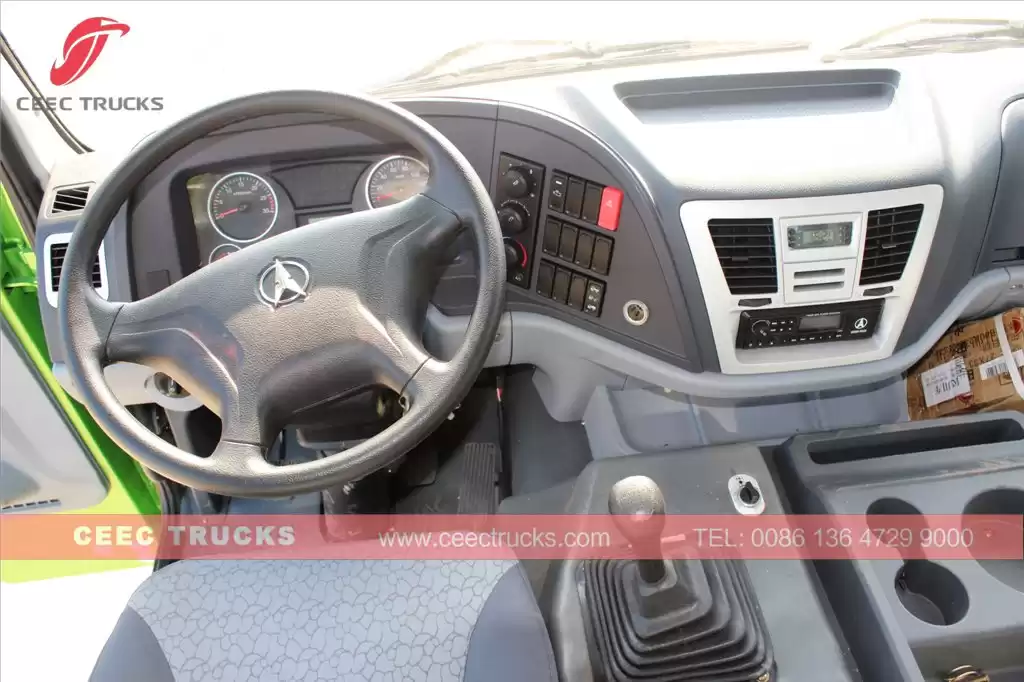

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI       WD7.300

Power

300 HP (247 KW)

Displacement

9856 ml

Emission Standard

Euro III

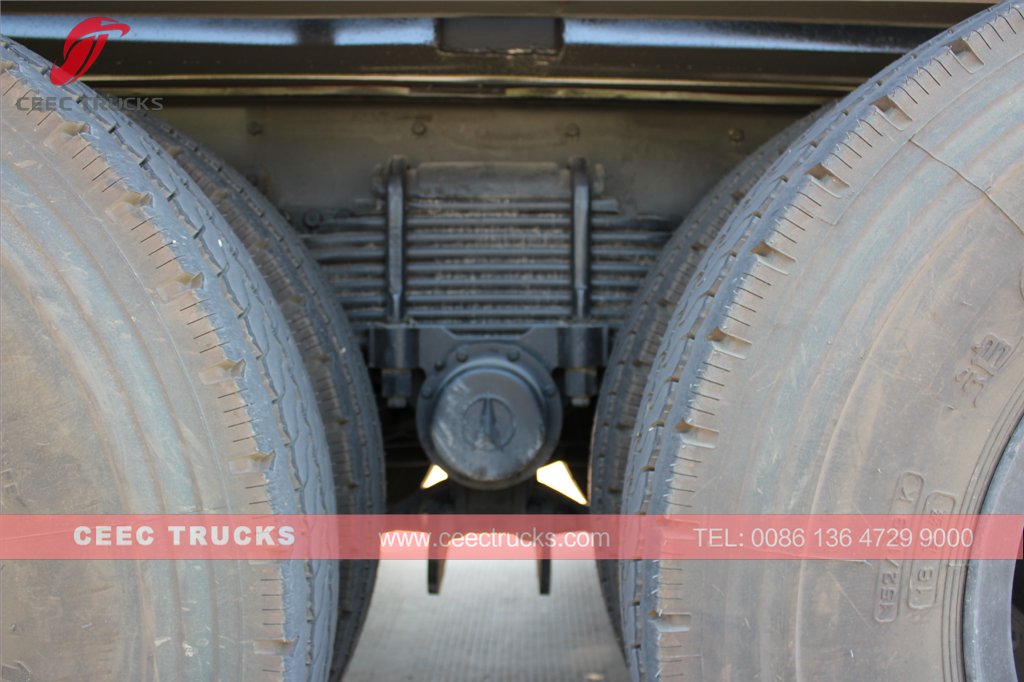

Chassis

Drive Type

6X4, (left hand drive)

Transmission

Fast 9 speed levers with 2 reverse

Wheelbase/No. of axle

4500+1350  mm / 3

Tire Specification

11.00R20

Tire Number

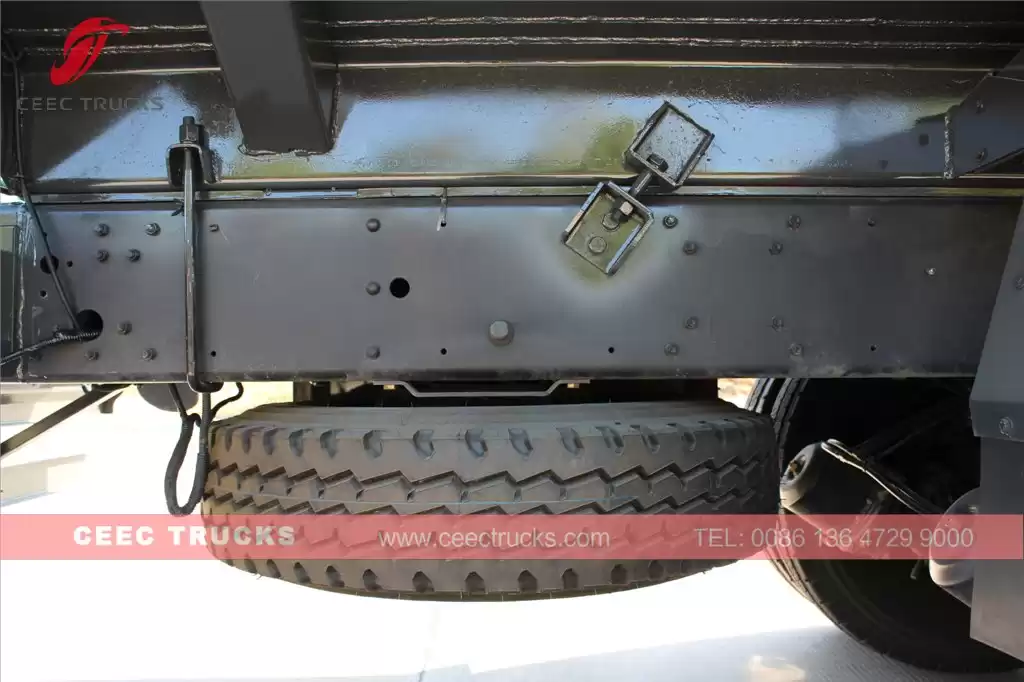

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Tank Capacity

20,000 Liters

Tank shape

Ellipse

Material

Carbon steel, 5mm

Body Material

Whether resisting steel

Pump

Equipped for overhead delivery, 1000 liter/min

Suction head

6 m

Hose

High quality , wire strengthed hose,

Valve

China famous brand

Couple system

Stainless type

Tanker cover

JIALONG

Flow meter

HEFEI

Control panel

English or Your language

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.

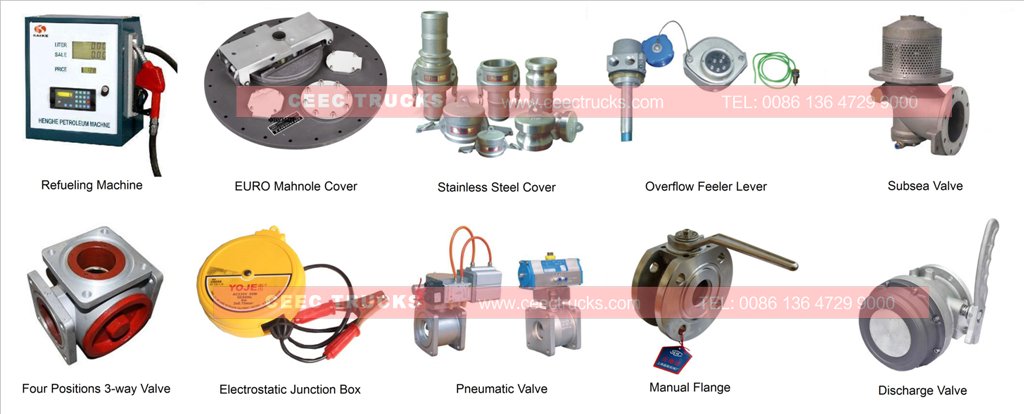

** Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

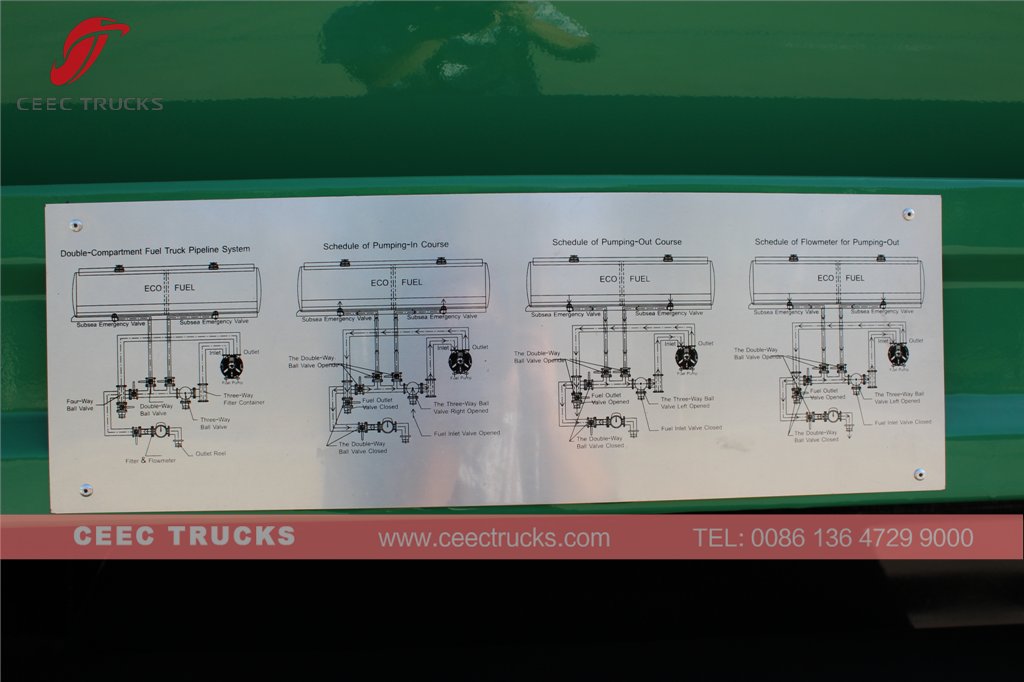

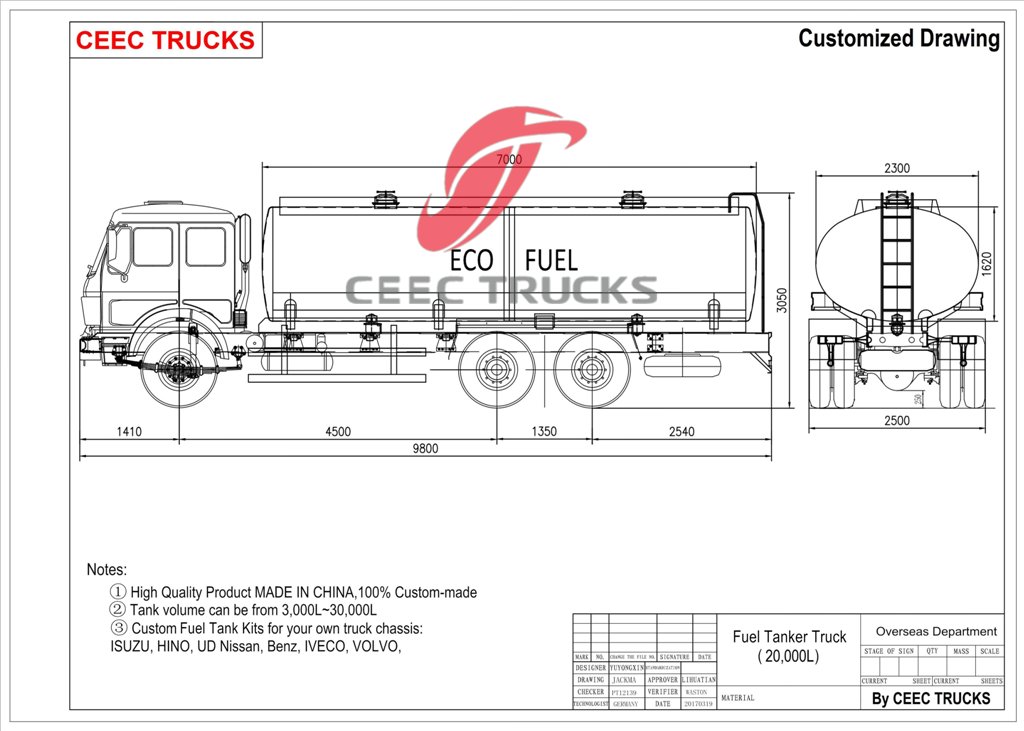

beiben fuel truck drawing







---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.

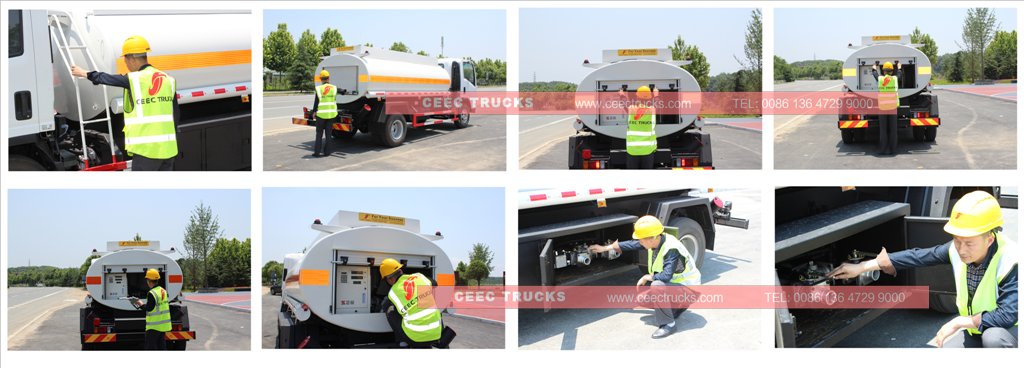

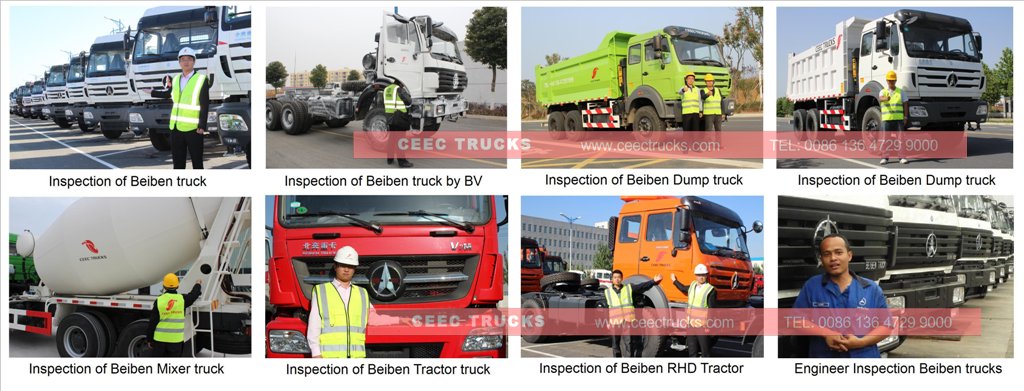

beiben fuel truck inspection

beiben trucks traing





---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.



beiben water tanker manual







---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...

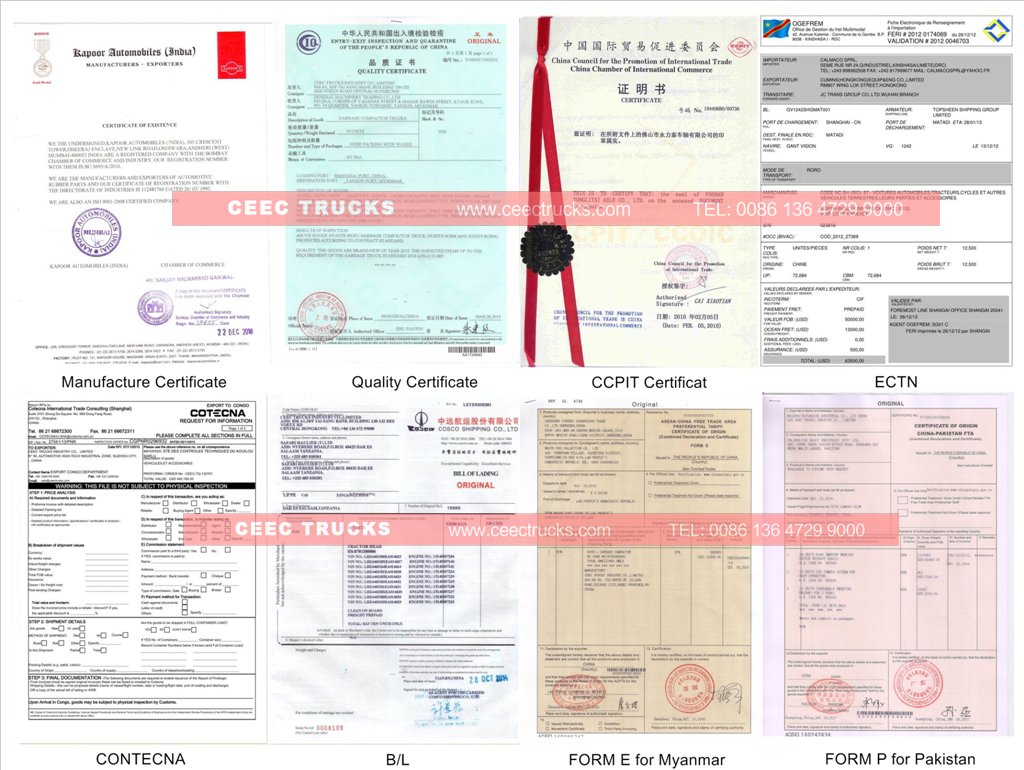

  beiben water trucks documents.





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



beiben trucks factory





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

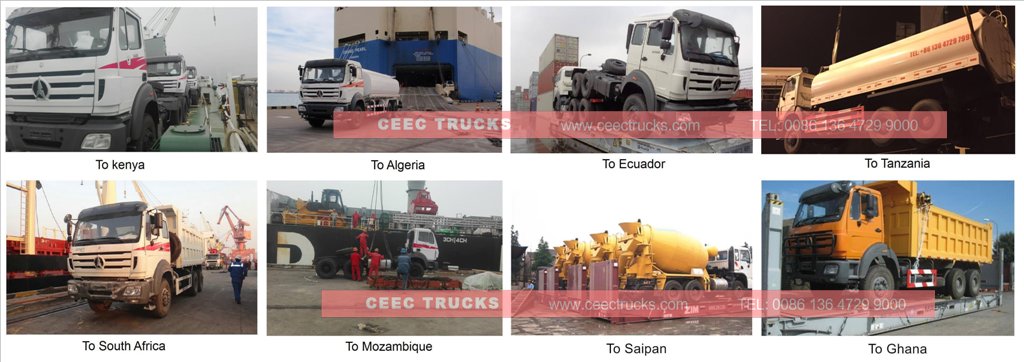

     beiben water trucks shipping







---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.

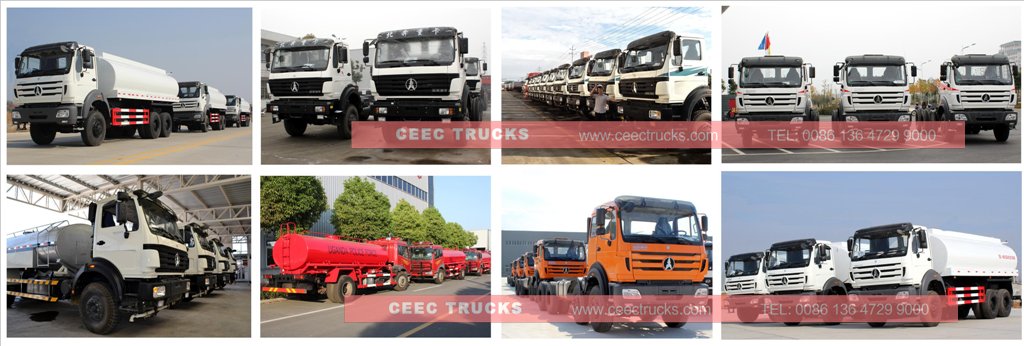

   beiben trucks in stock

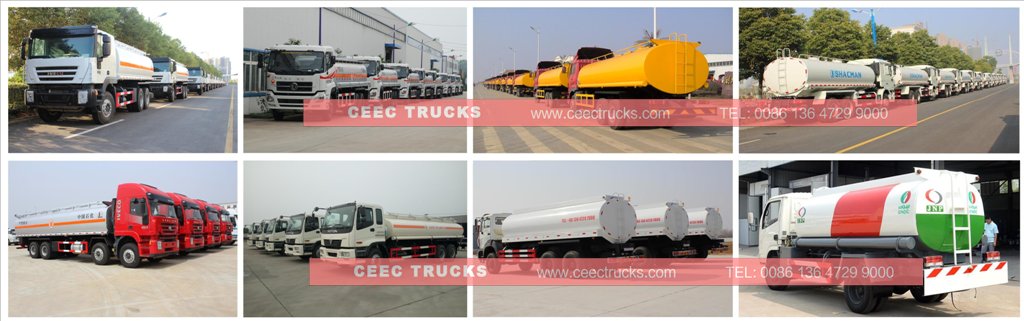

beiben fuel truck in stock



Watch Beiben fuel Trucks on YOUTUBE

China beiben 2530fuel tanker trucks     :     https://youtu.be/Fg--X-UiXkk

                                                                        https://youtu.be/0YK8m_Zo03s
