beiben 20 CBM water transportation truck

beiben 20 CBM water transportation truck, for tranporting drinking water, portable water, industrial water , we can produce beiben 2534 water carrier truck, beiben 2538 water carrier truck, beiben 2542 water carrier truck.



beiben 20 CBM water transportation truck plant

beiben 20 CBM water carrier truck

Beiben water carrier  truck is applicable for city roads, trees, green belts, green lawns, factories, mines and tall buildings .Has sprinkling water, dust fall, high-low spraying, agriculture chemical spraying, fence washing and other functions, also can carrying water, drainage, firefighting, and water supply for government agencies.





SPECIFICATIONS FOR WATER TANK TRUCK

Vehicle Specifications

Model

18CBM

2638GFZ

Chassis model



Traction 4X2,6X4

6X4

Power

380HP

Weight Parameter

Complete Vehicle Kerb Mass(kg)

10900

Load weight(kg)

13970

Total mass (kg)



Dimension Parameter

External Dimensions(mm)

Length (mm)

9566

Width(mm)

2500

Height(mm)

2975

wheelbase(mm)

4450+1450

Tank-style

oval

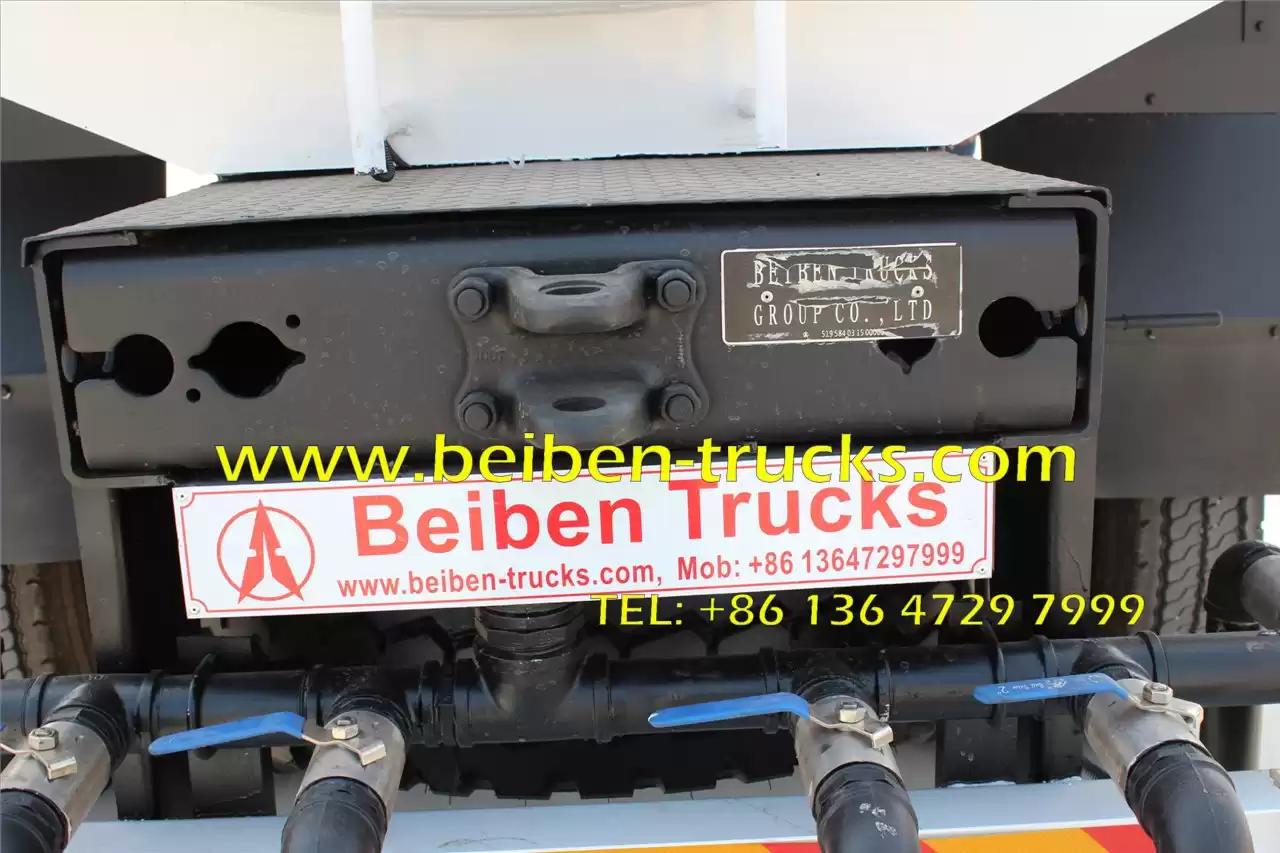

Sprinkling  Performance Parameter

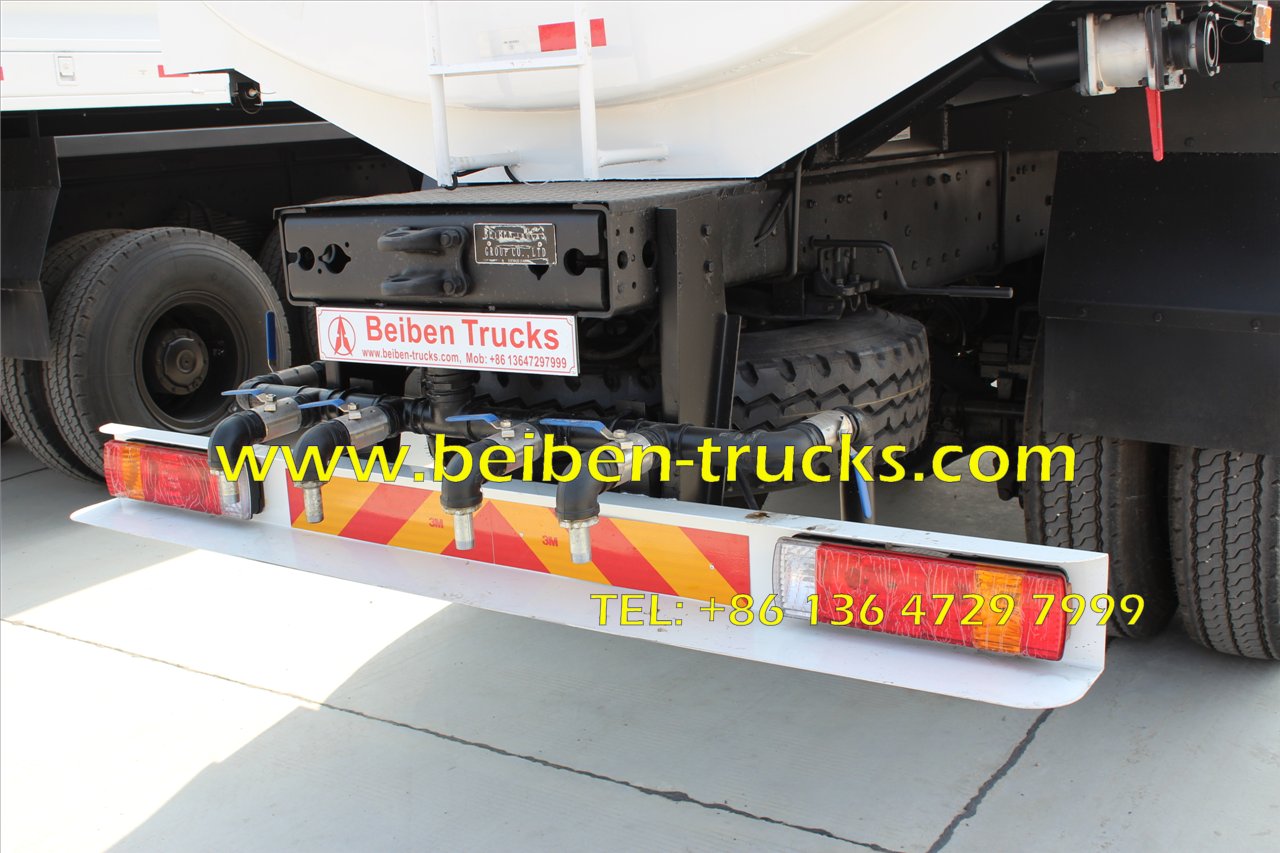

Sprinklers way

rear spraying

back sprinkling

Side spray

Watering amount(L/m2 )

0.2-2

Sprinkler / flushing pressure (Kpa)

250-450

Sprinkler width (m)

≥14

The maximum height of self-absorption (m)

6.5

Sprinkling Area (m)

≥45

Recommended Configuration

Engine

Engine Type

6x4

Rated power(kW)/Rev(r/min)

280/2200

Horse power

380HP

Torque(N*m)/Rev(r/min)

1460/1400-1600

Transmission

9JS180

gearbox

9 forward,

1 backward

Clutch(mm)

430

Axle

Front Axle

BENZ-7.5

Rear Axle

BENZ-17

Axle load-bearing

Front axle

7.5ton

Rear axle

17ton X2

Fuel Tank(L)

400

The maximum speed(km/h)

85

Tire

12.00R20

PTO

No

Cabin

Sleeper

NO

Steering

standard configuration doesn t, you can choose

OTHER

Pediment valve

266,290,336,370hp is optional

Engine horse power

nylon, radial and tubeless is optional

Tire

nylon, radial and tubeless is optional

ABS

 optional

COLOR

 optional

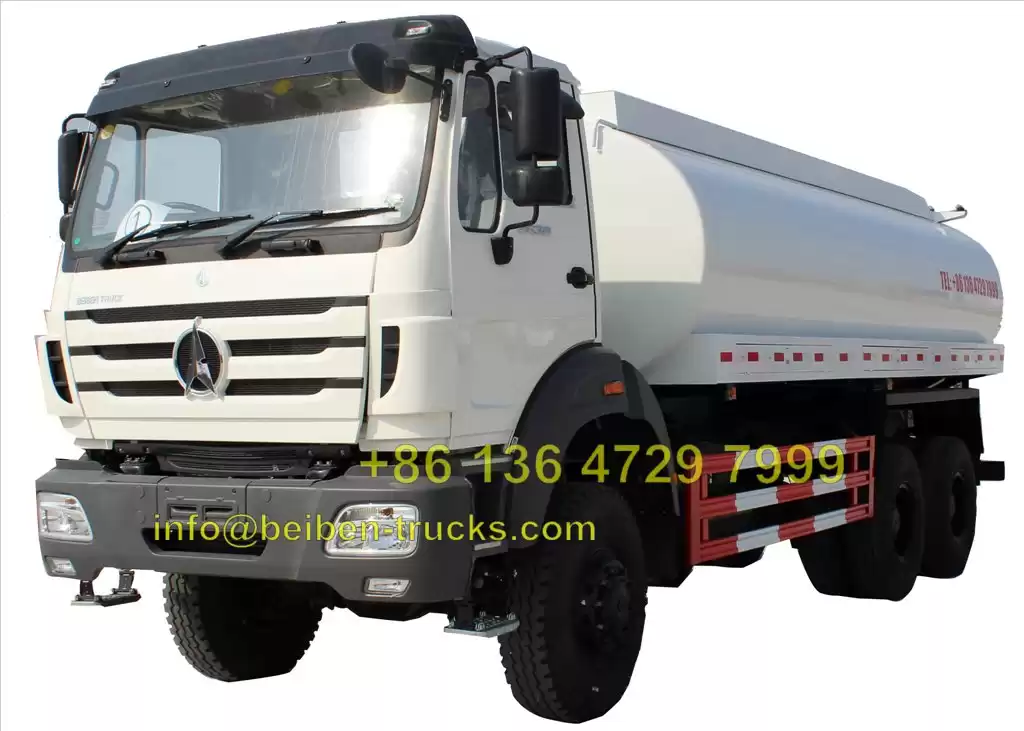

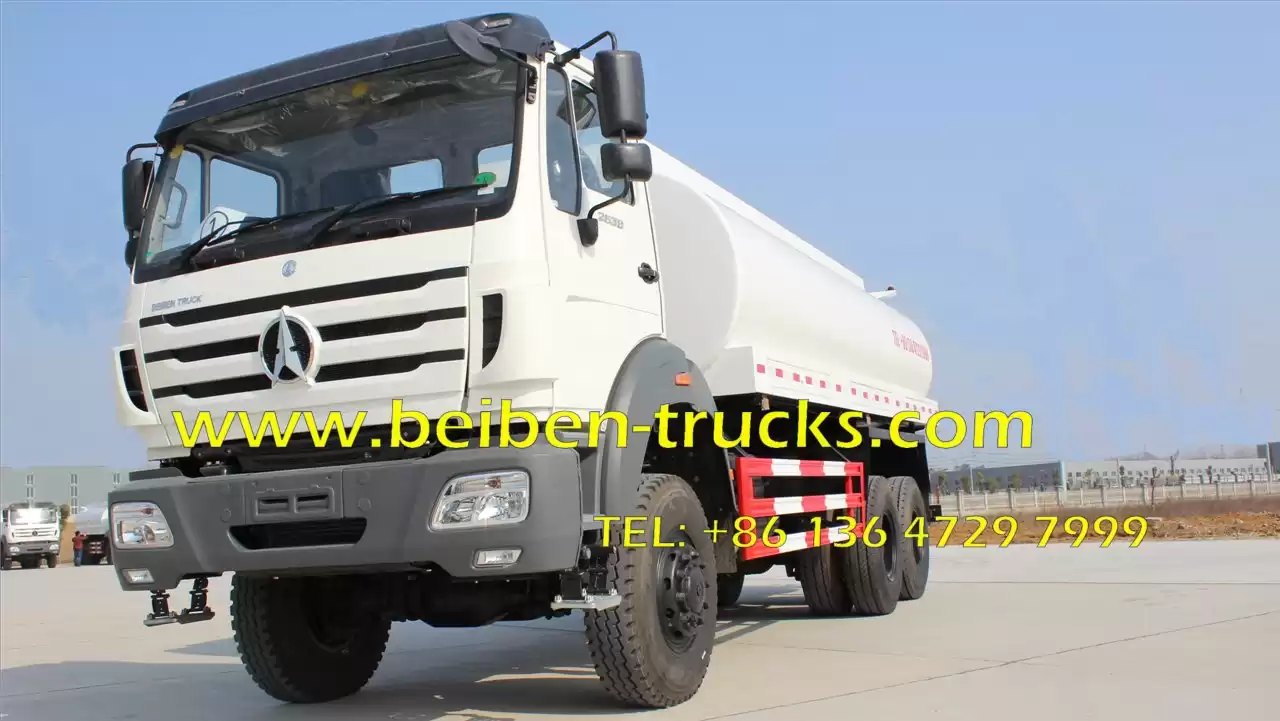

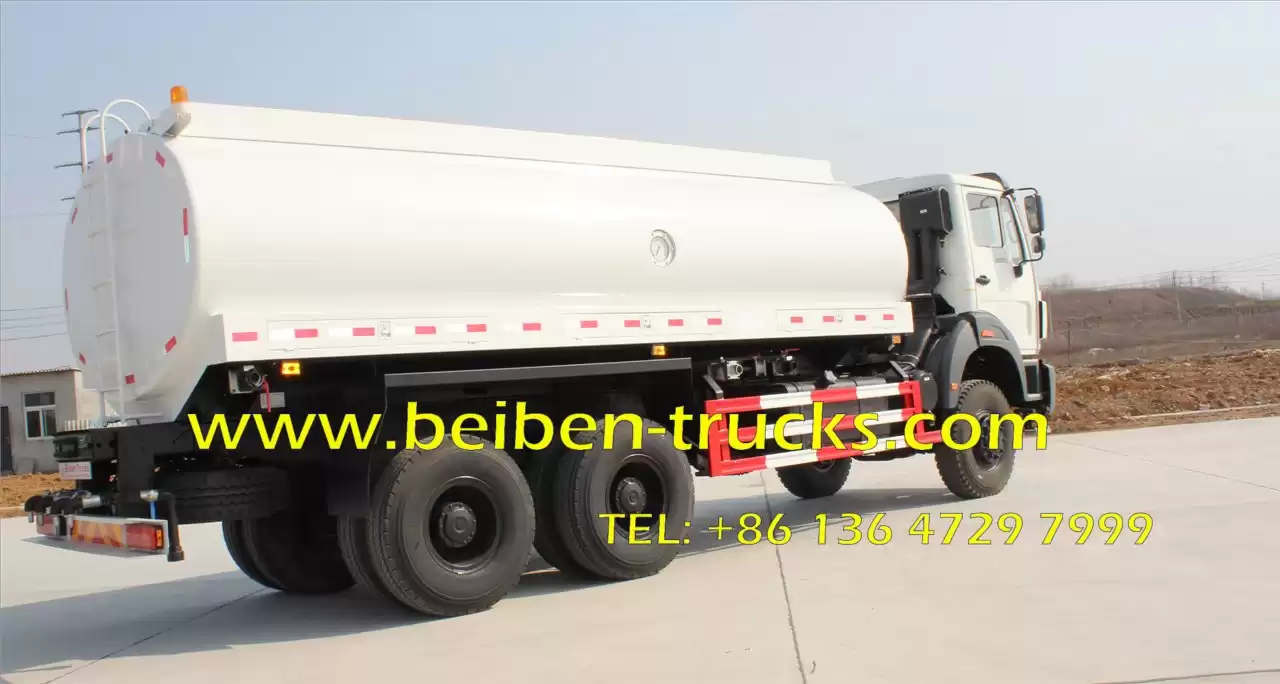

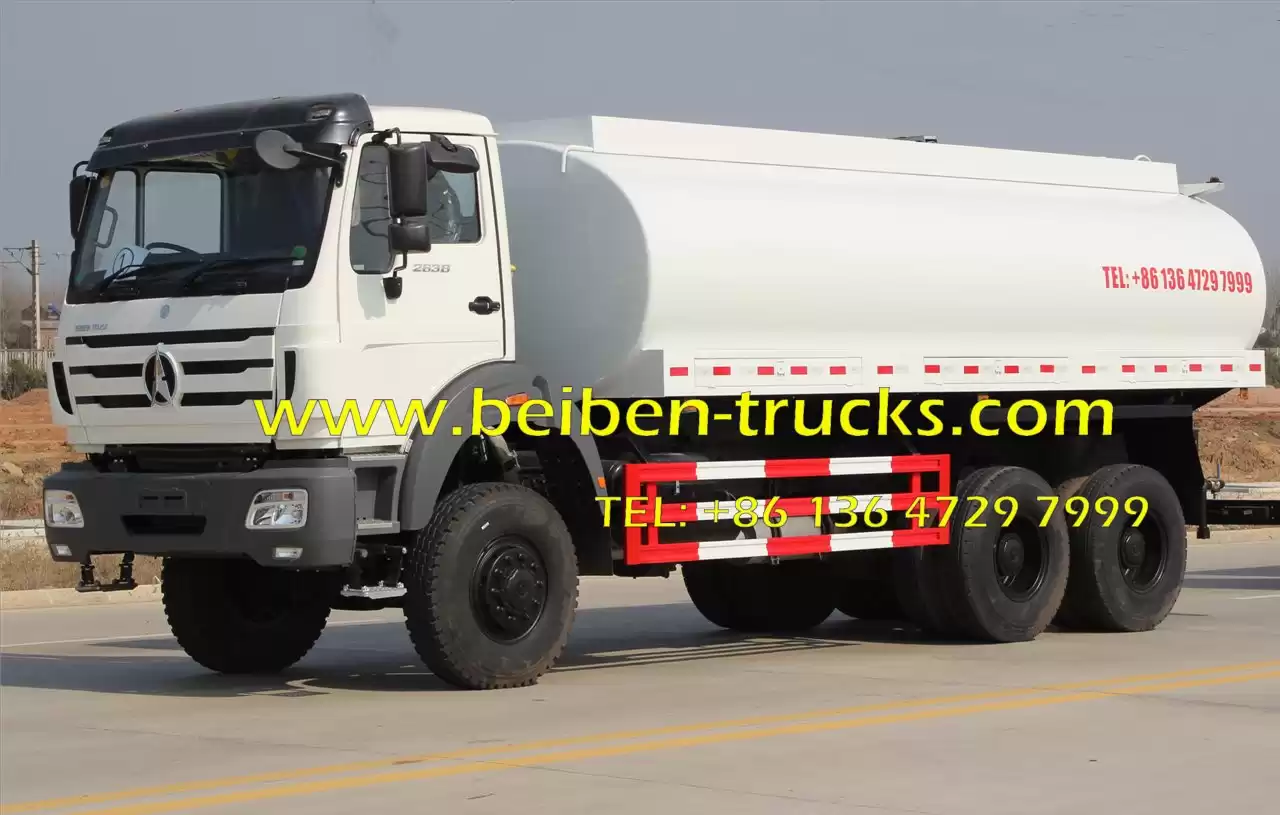

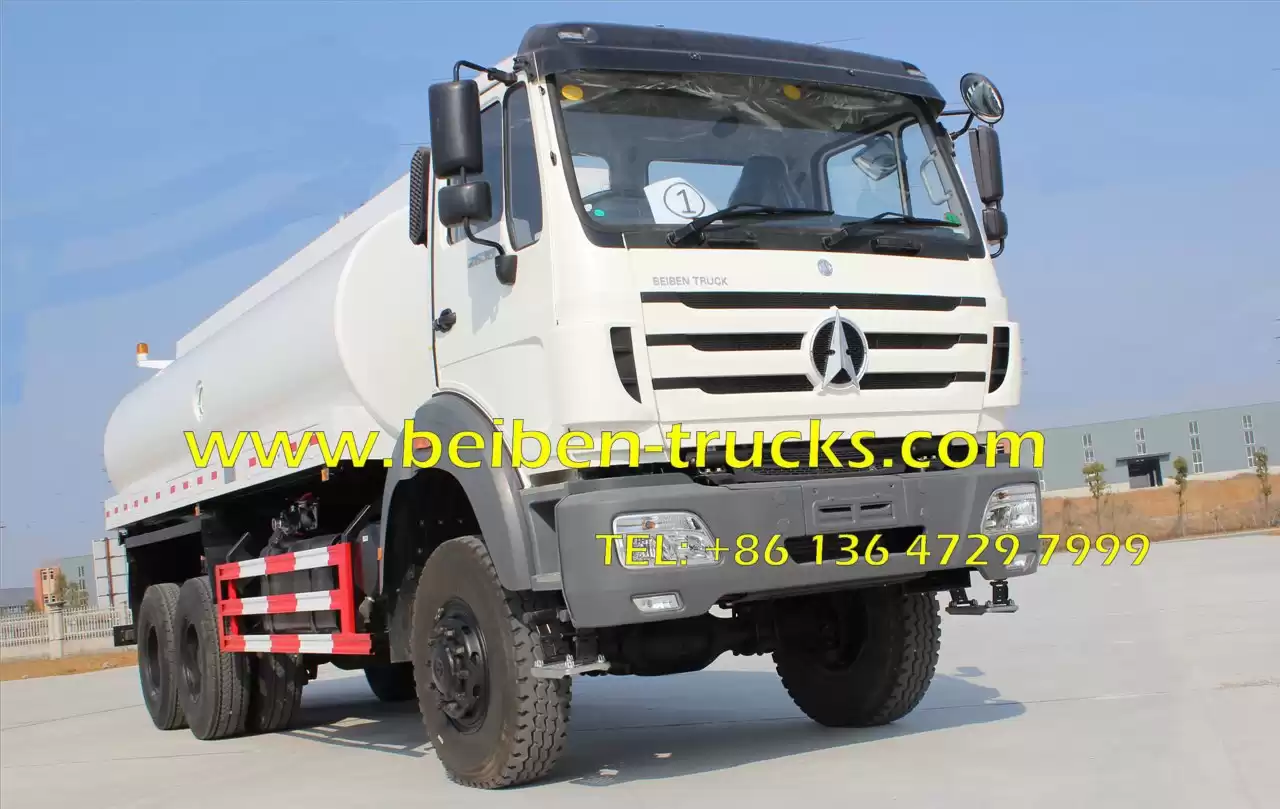

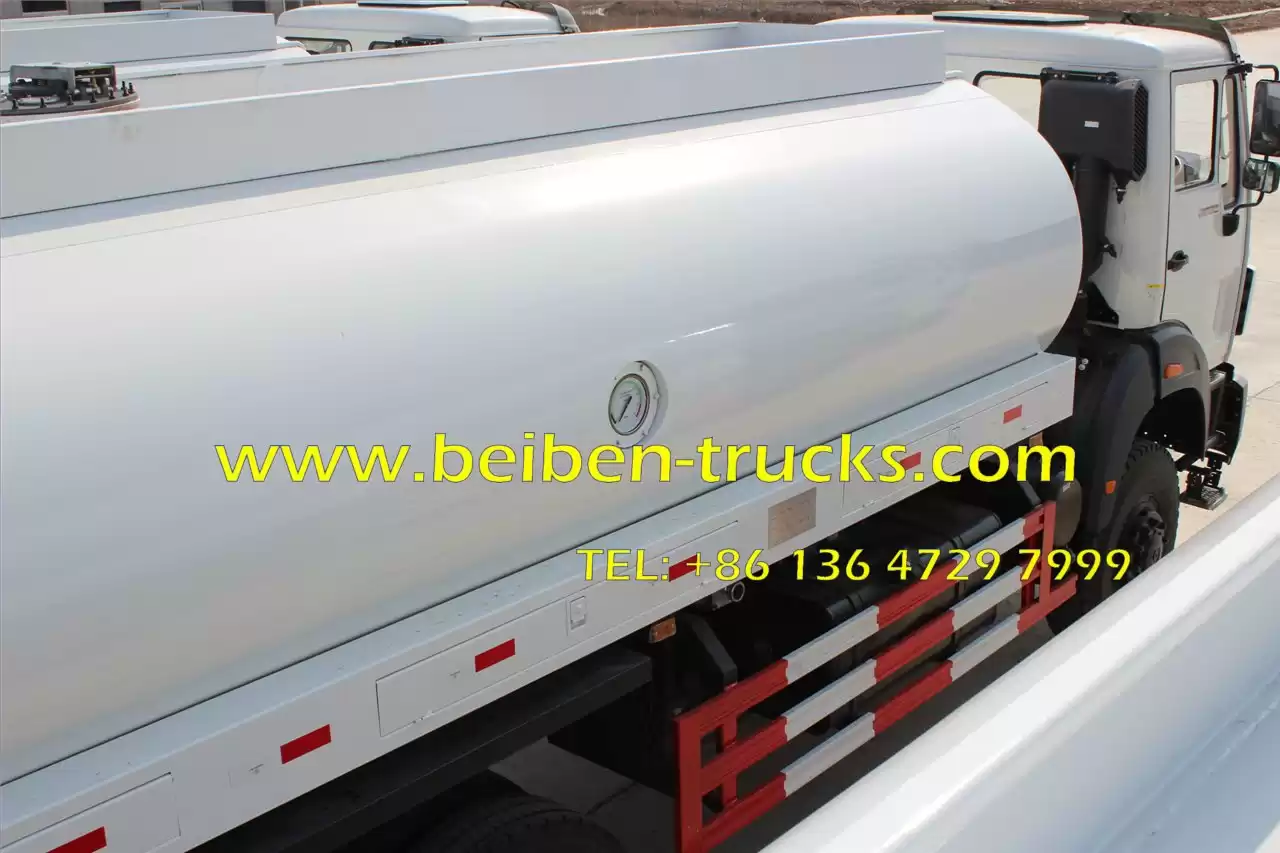

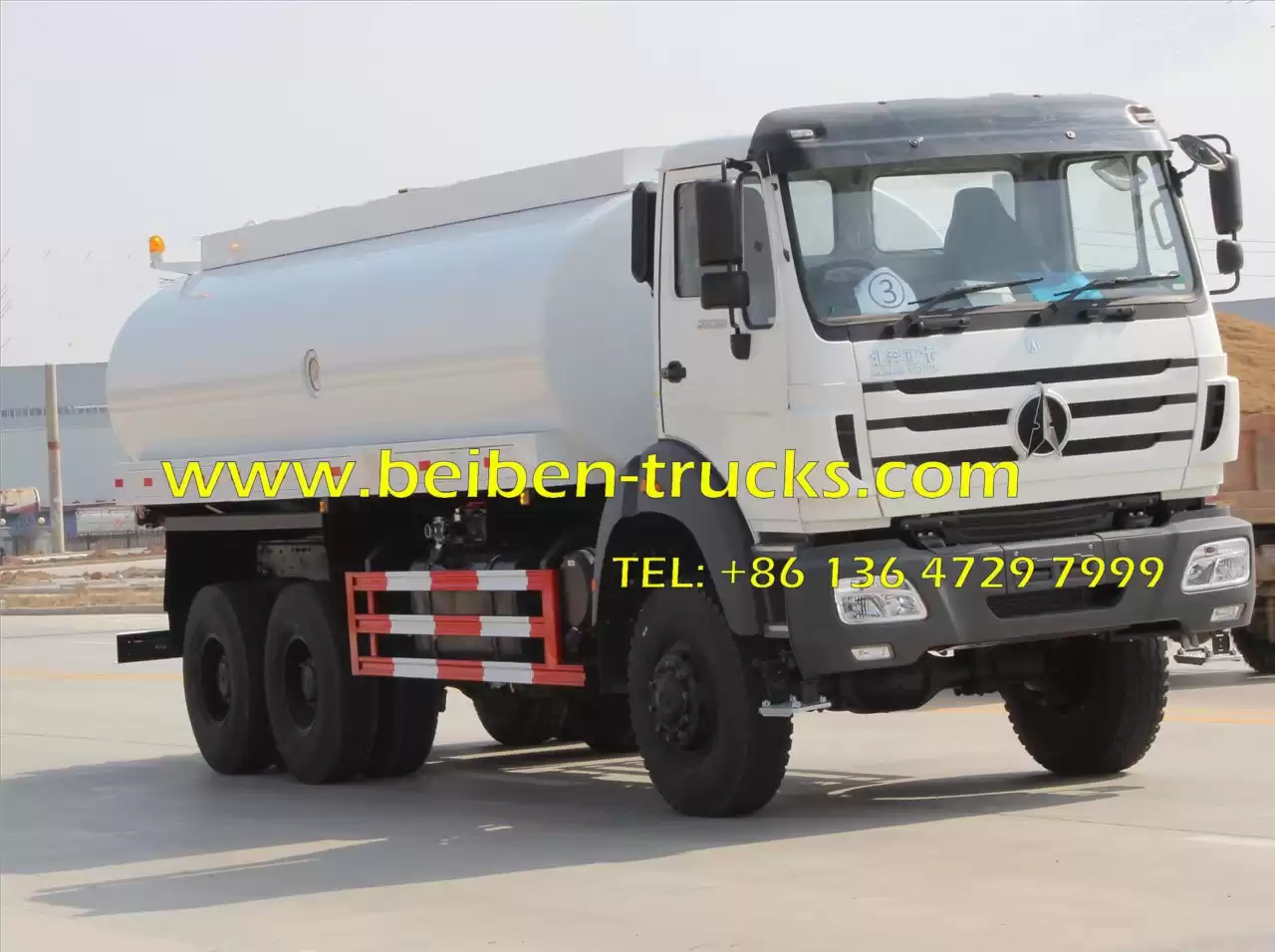

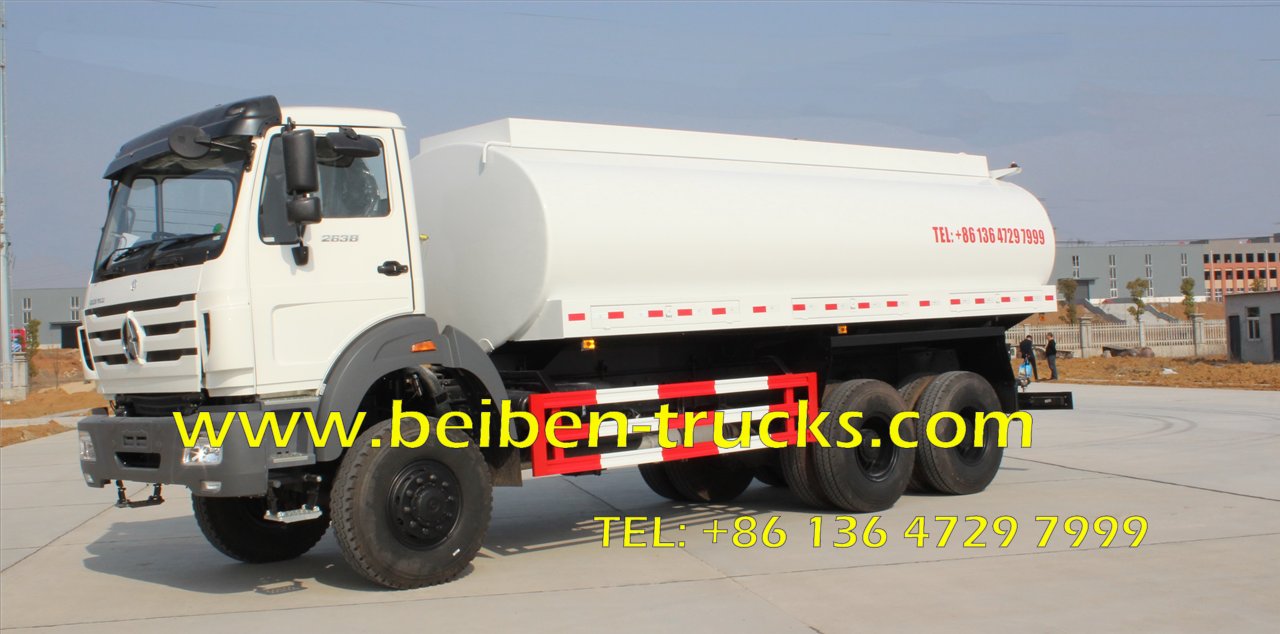

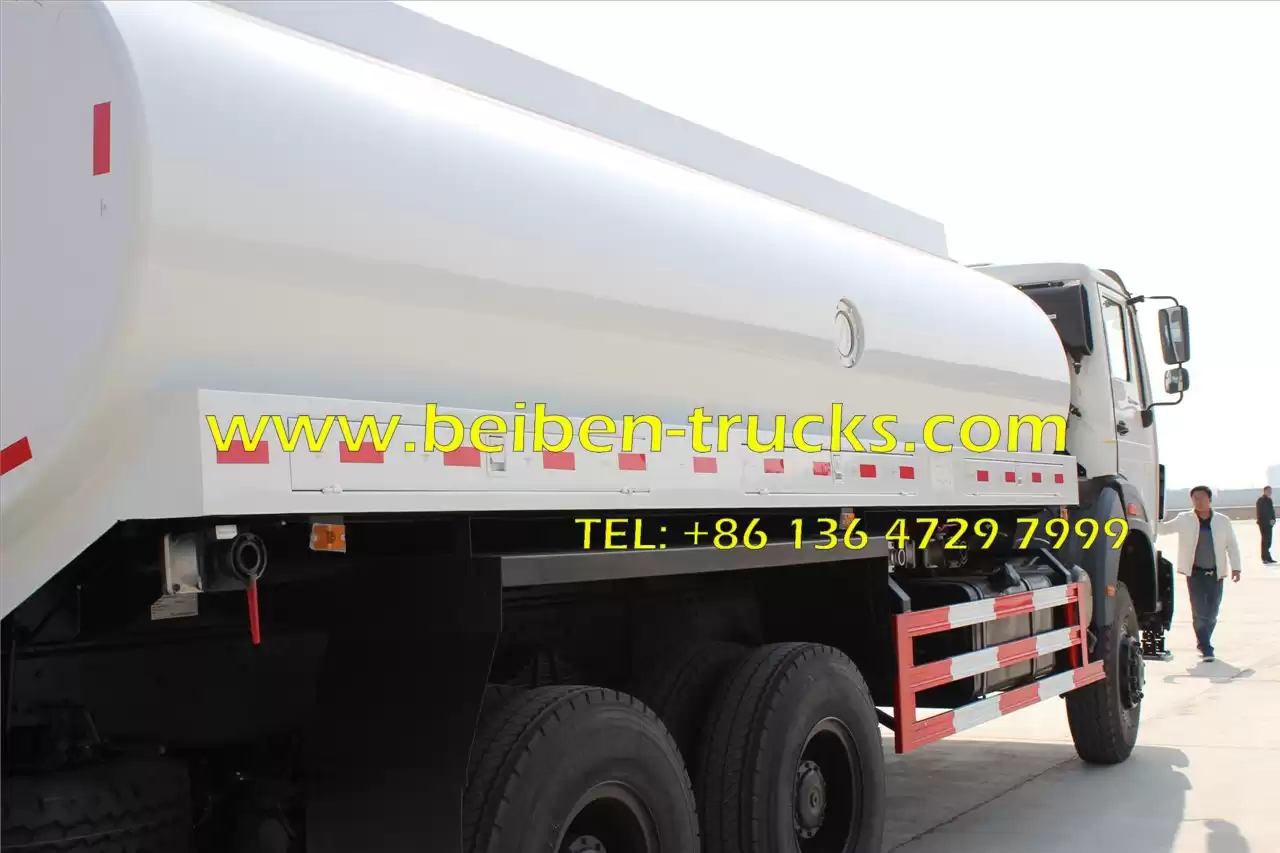

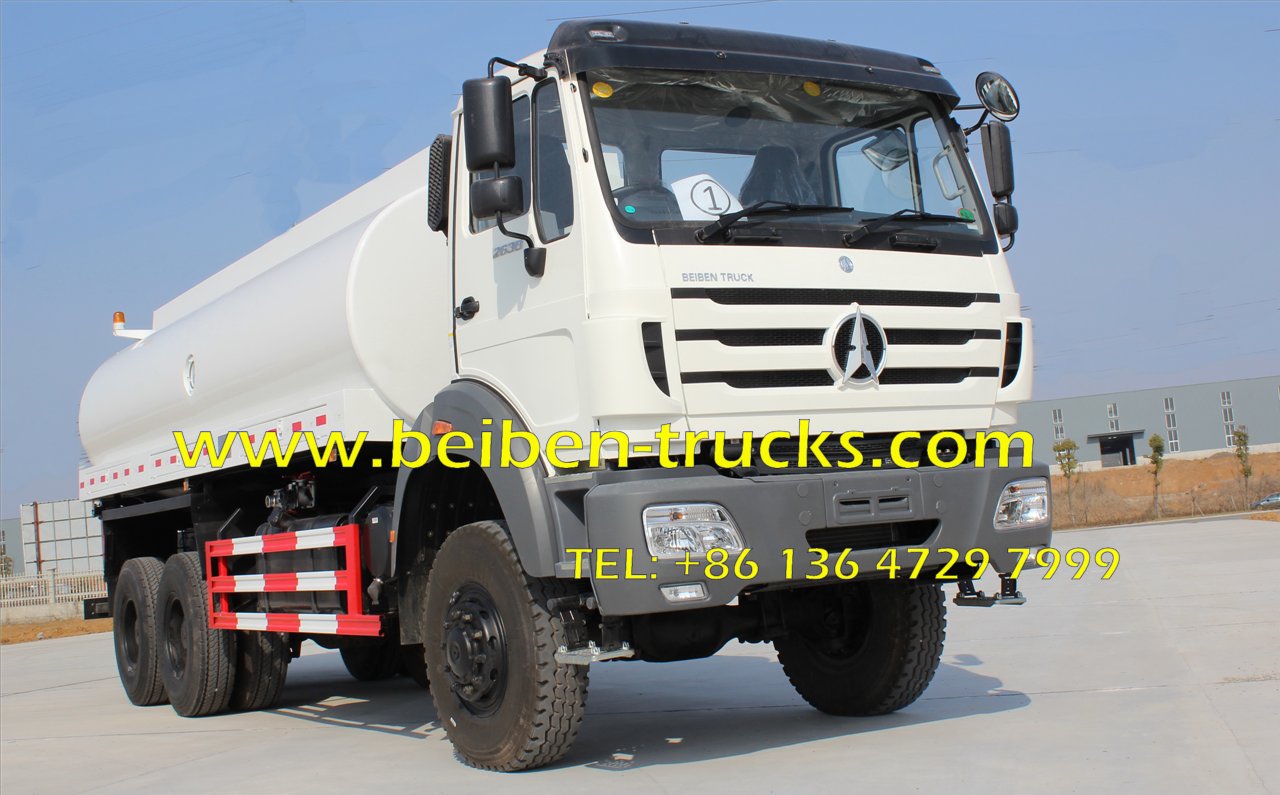

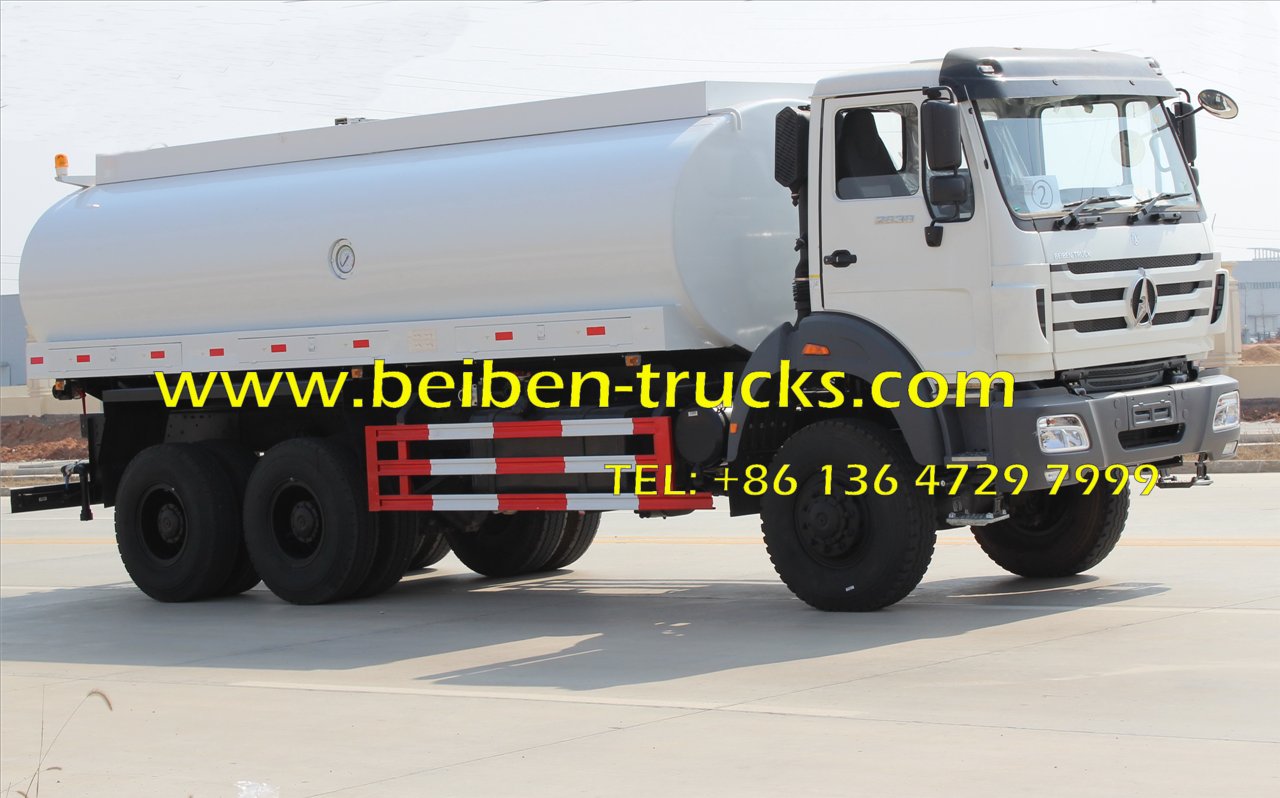

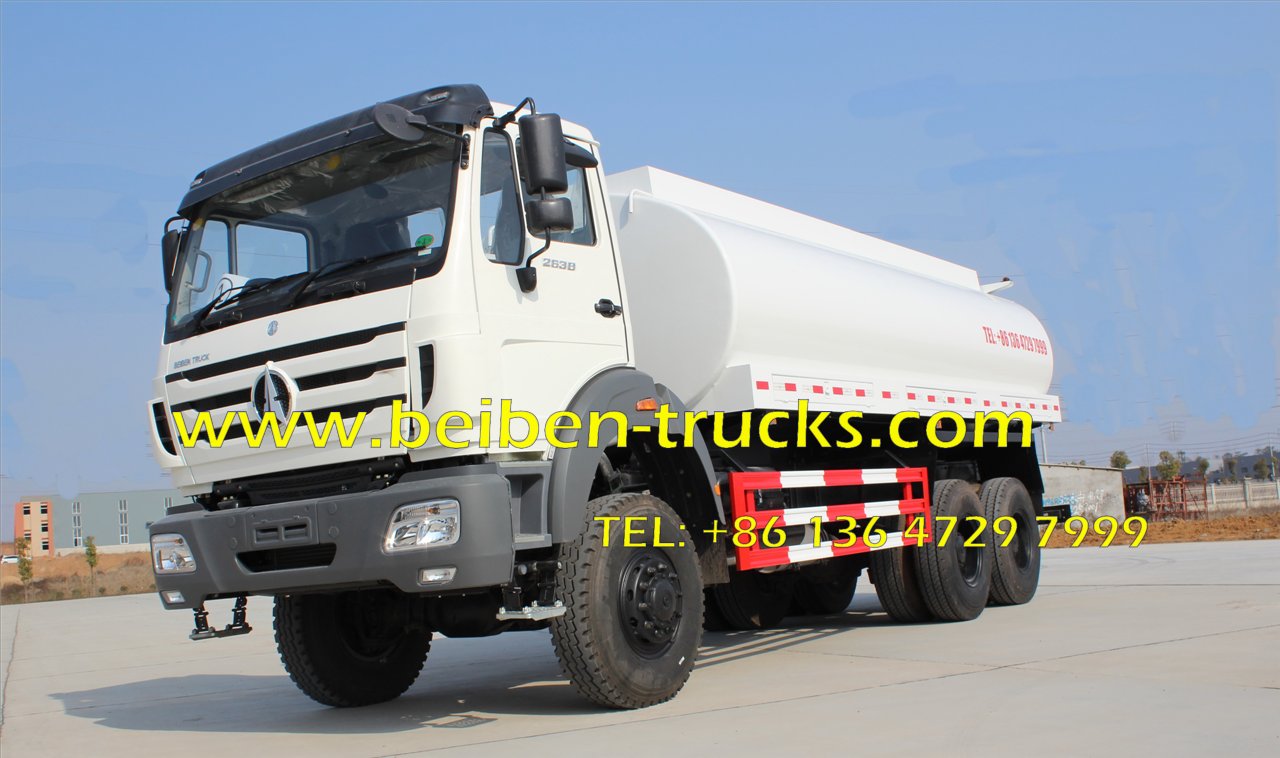

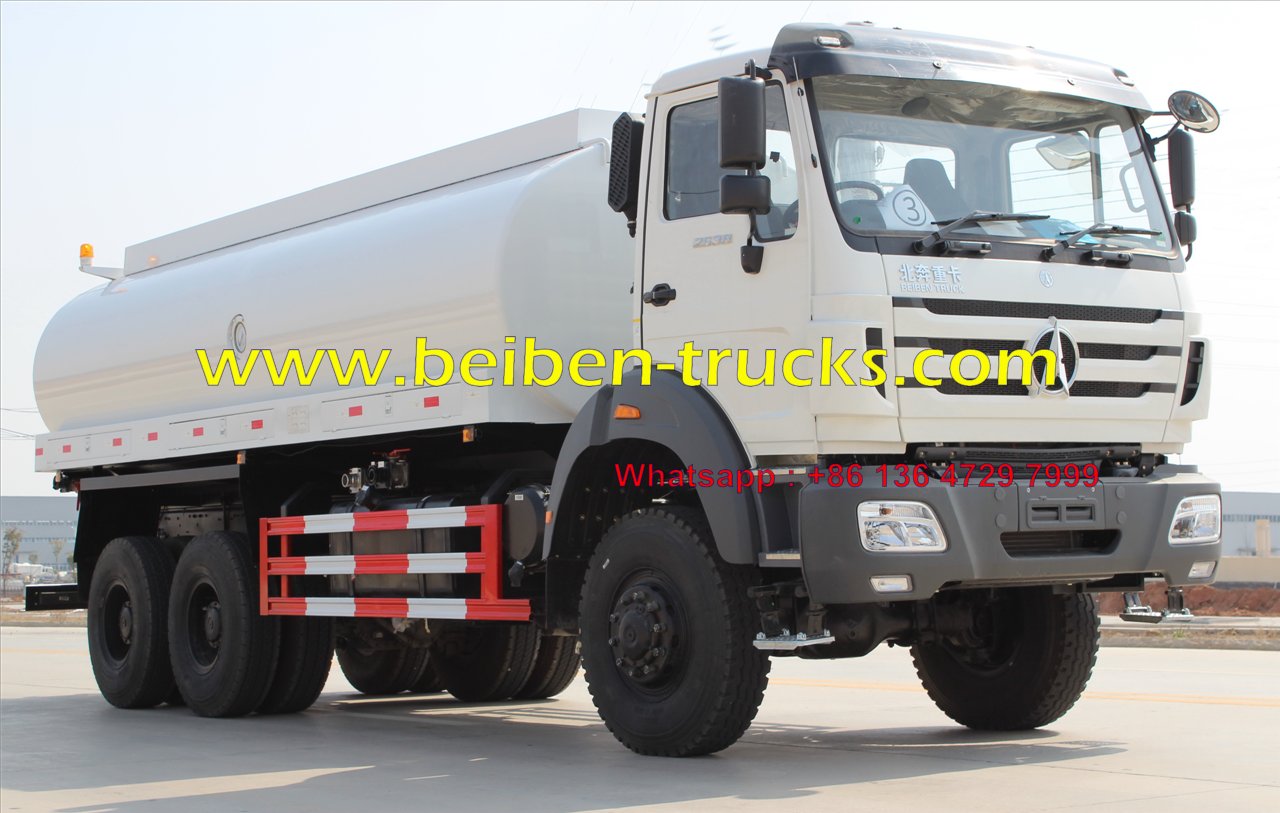

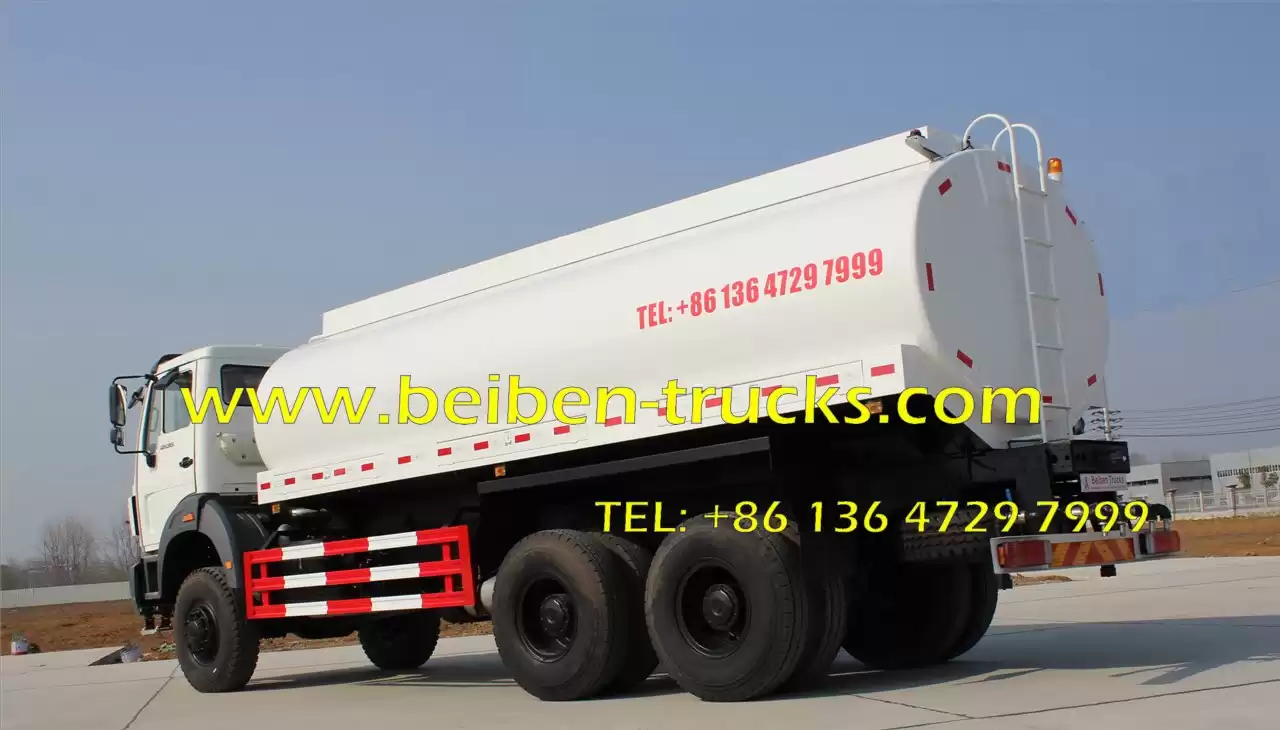

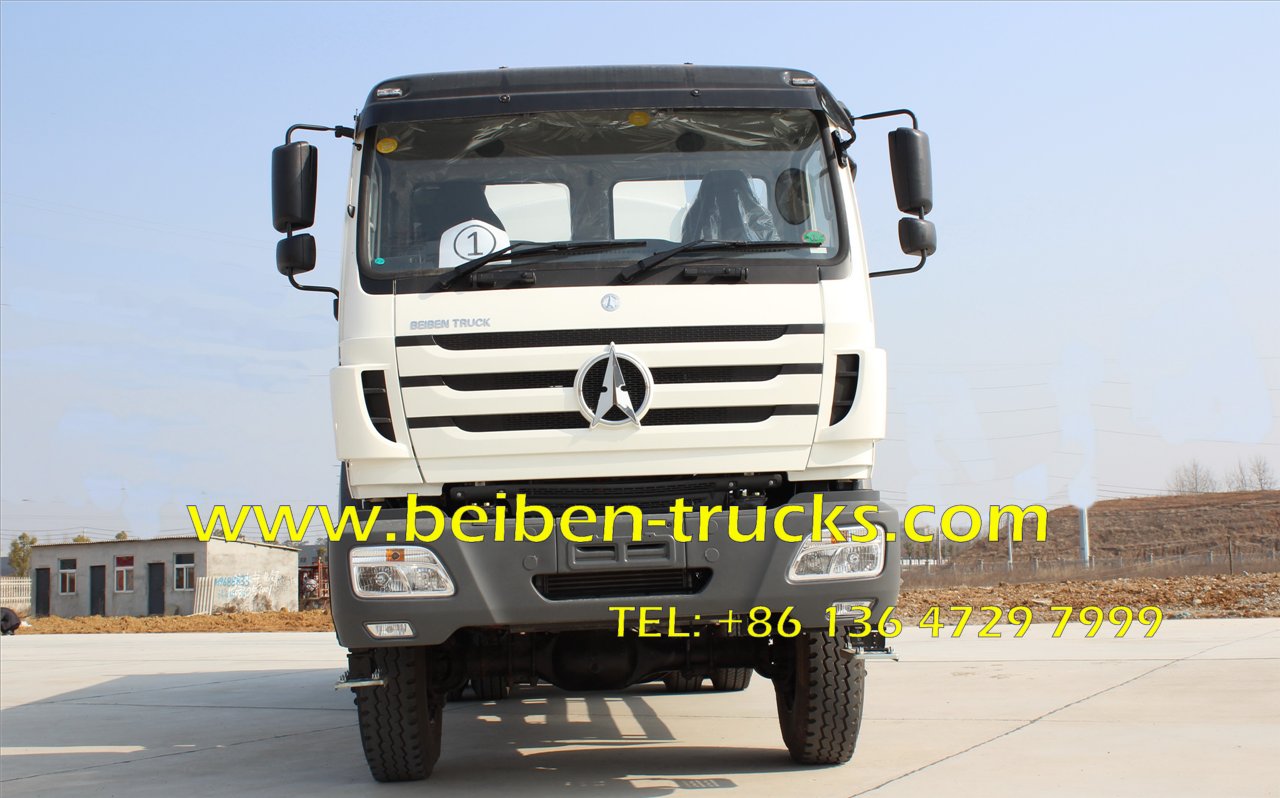

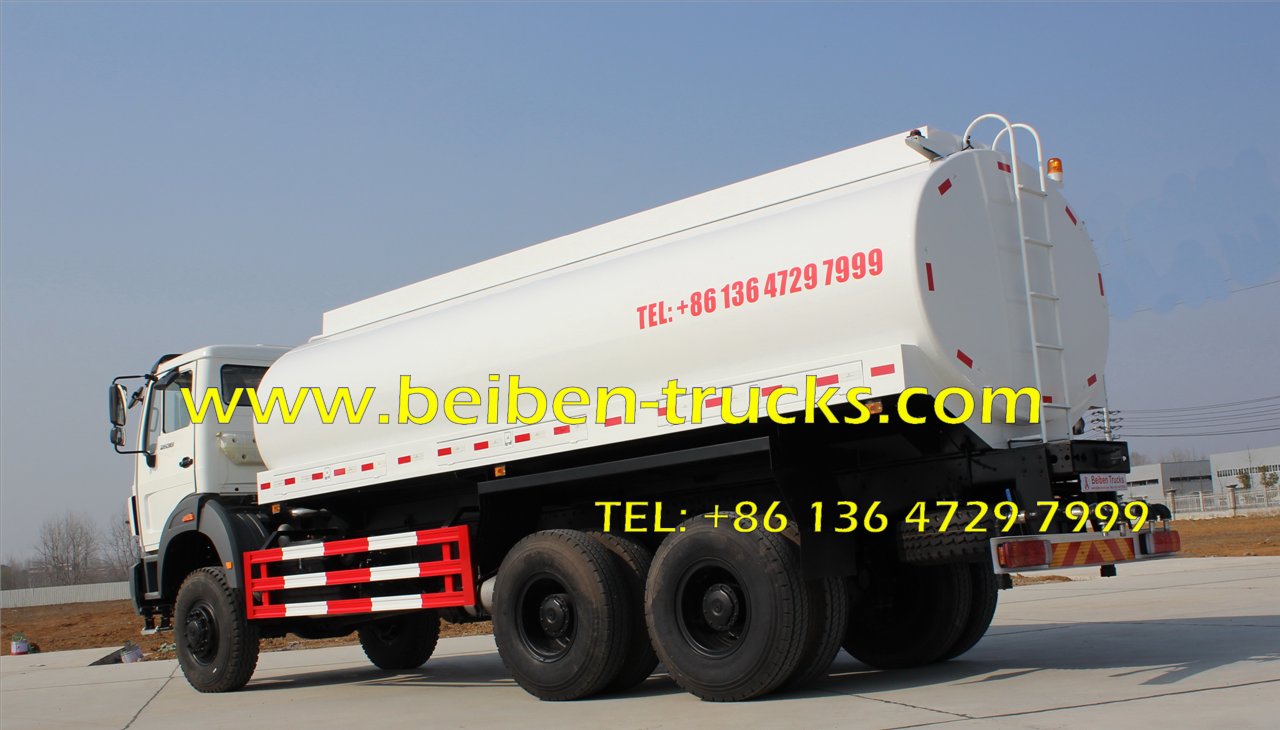

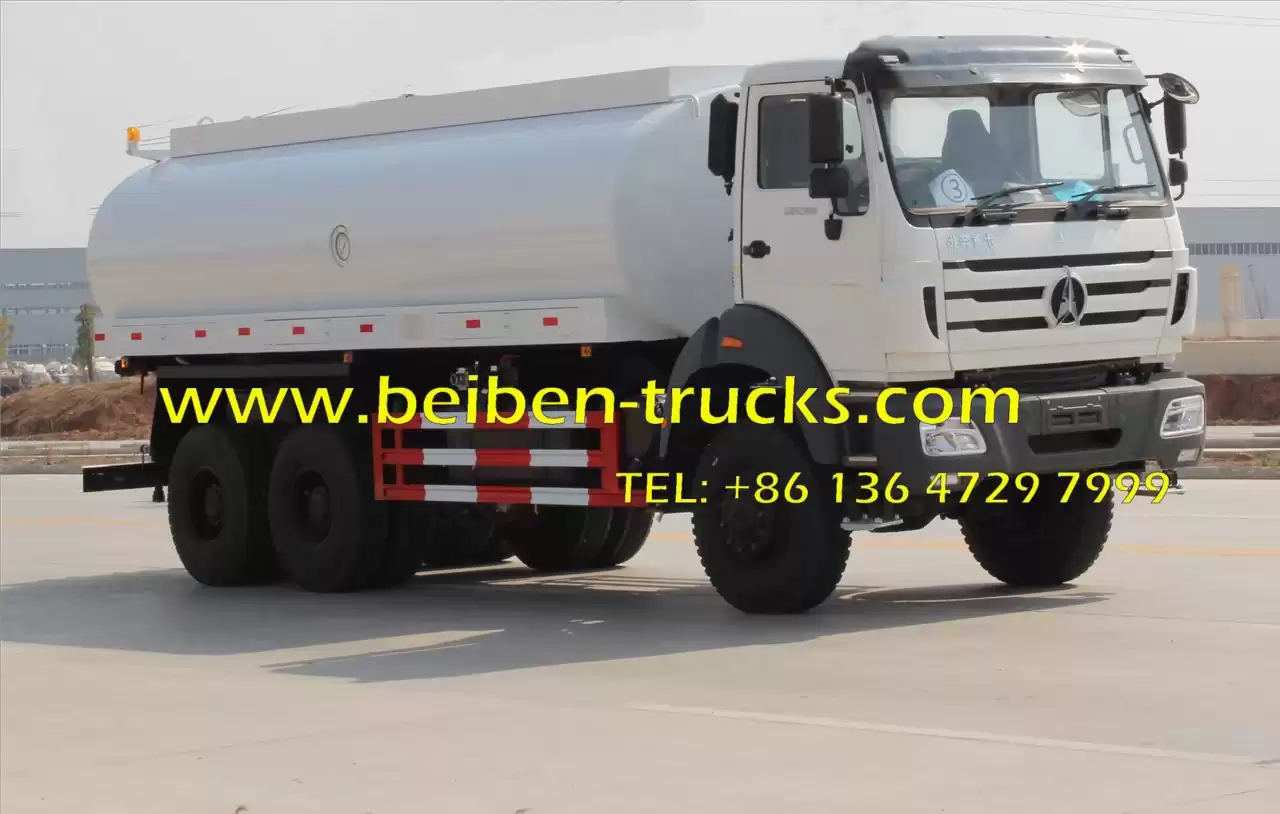

beiben 20 CBM water carrier truck

beiben 20 CBM water carrier truck

beiben 20 CBM water carrier truck

beiben 20 CBM water carrier truck

beiben 20 CBM water carrier truck
