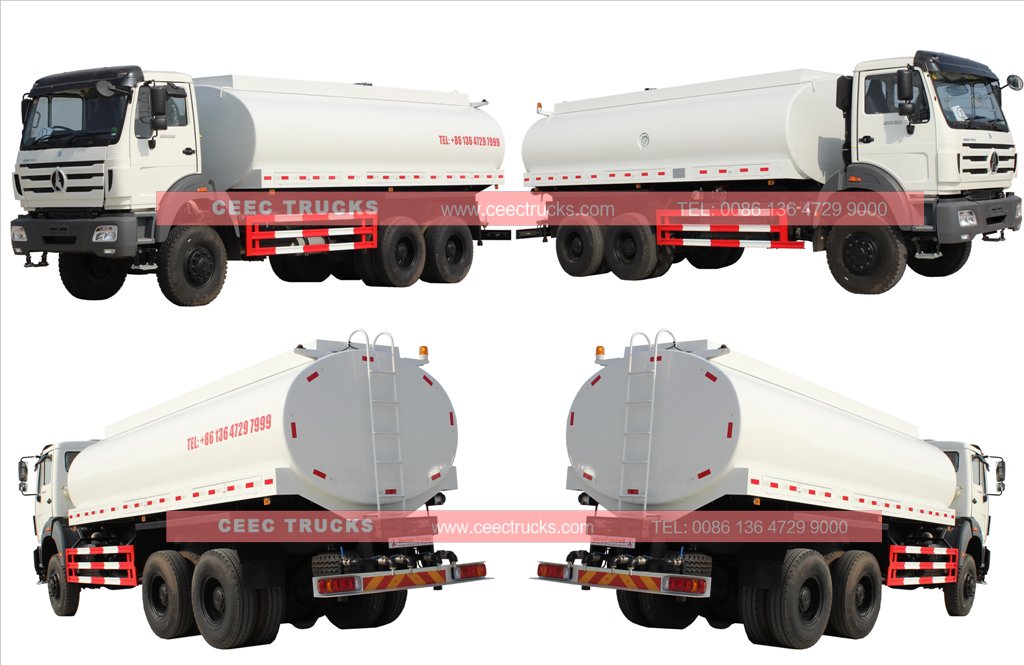

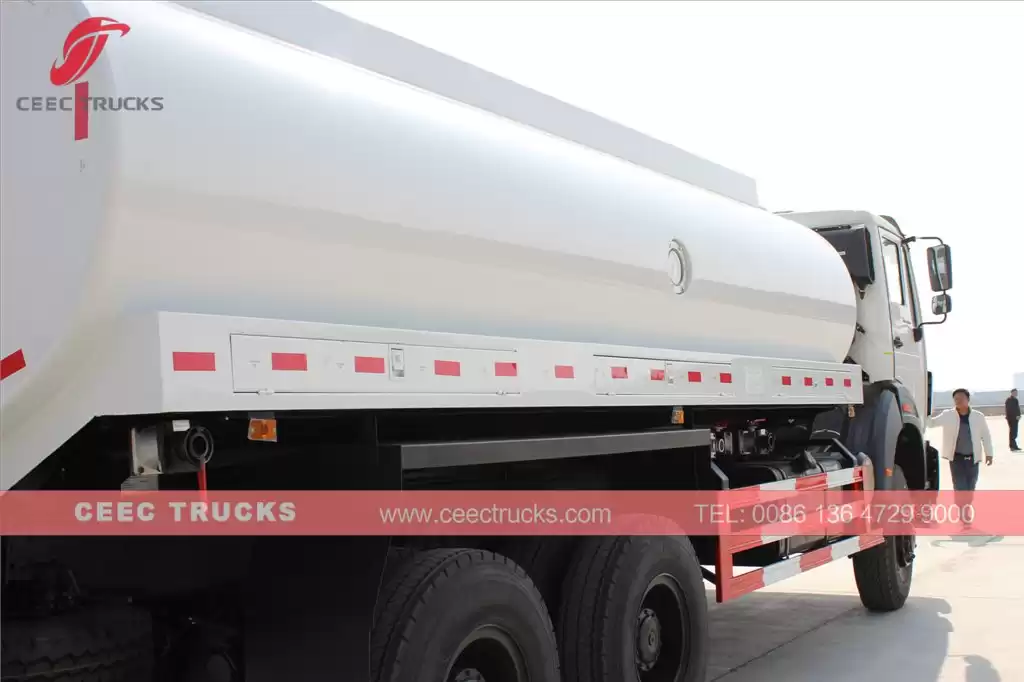

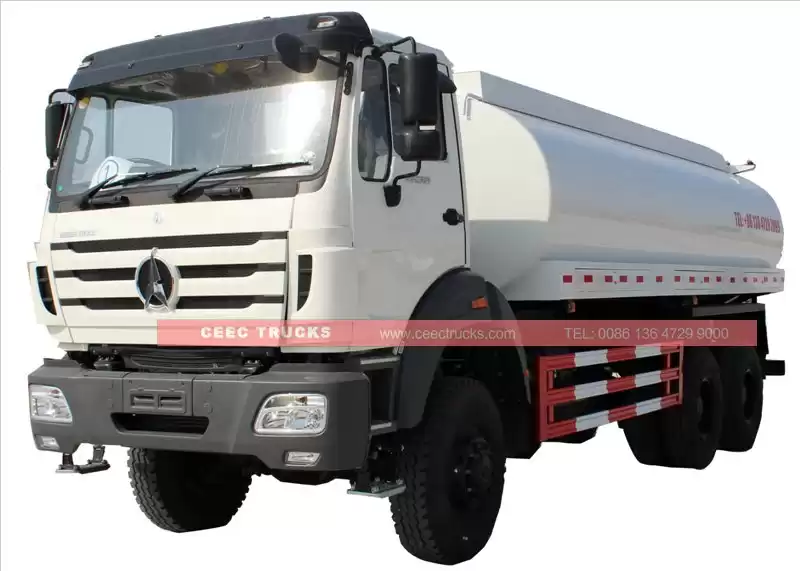

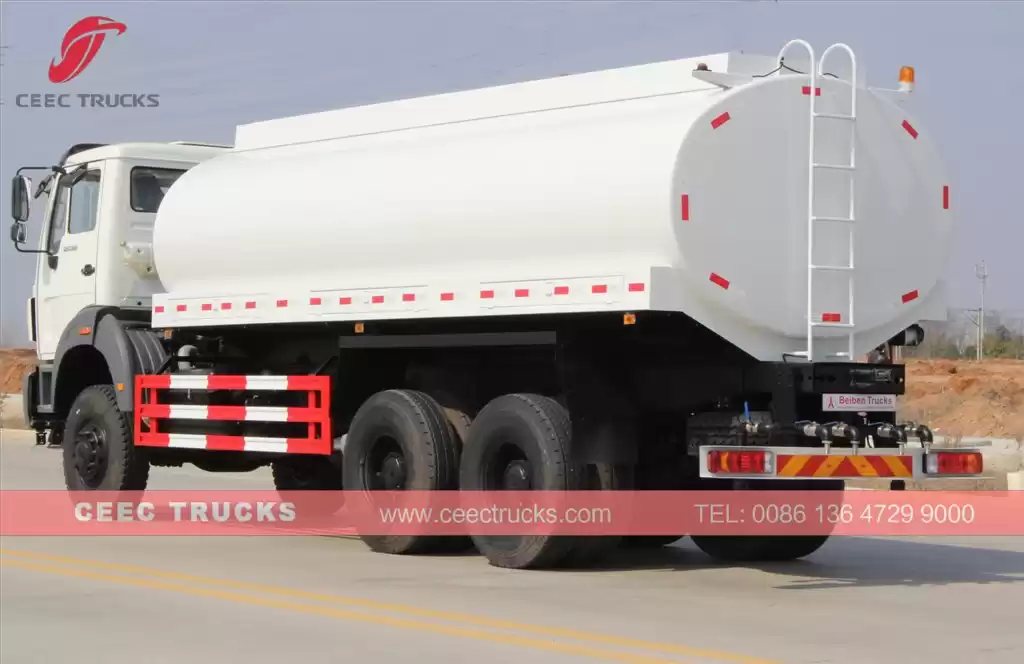

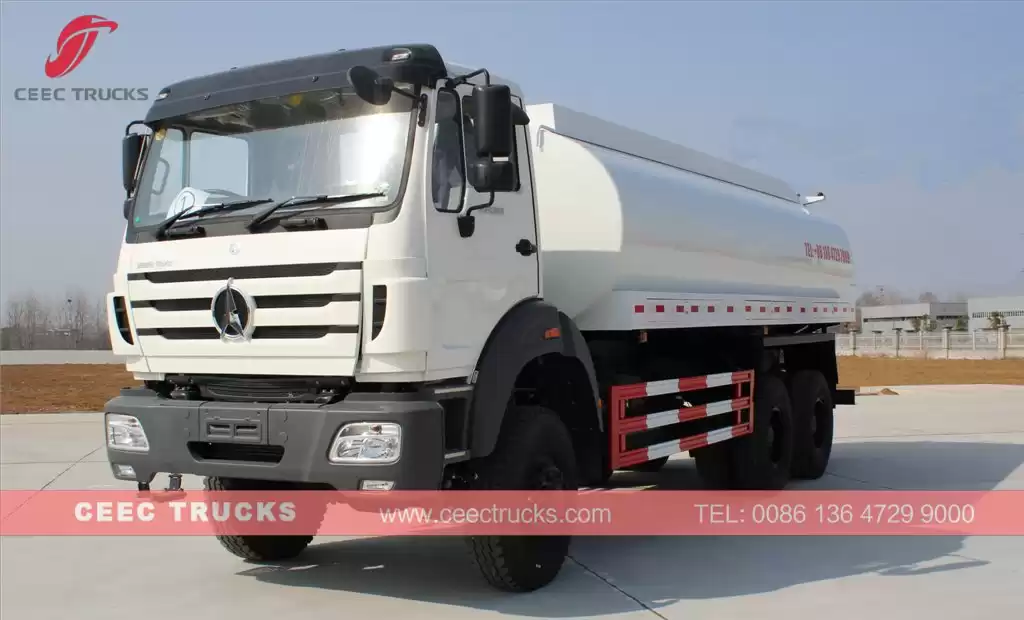

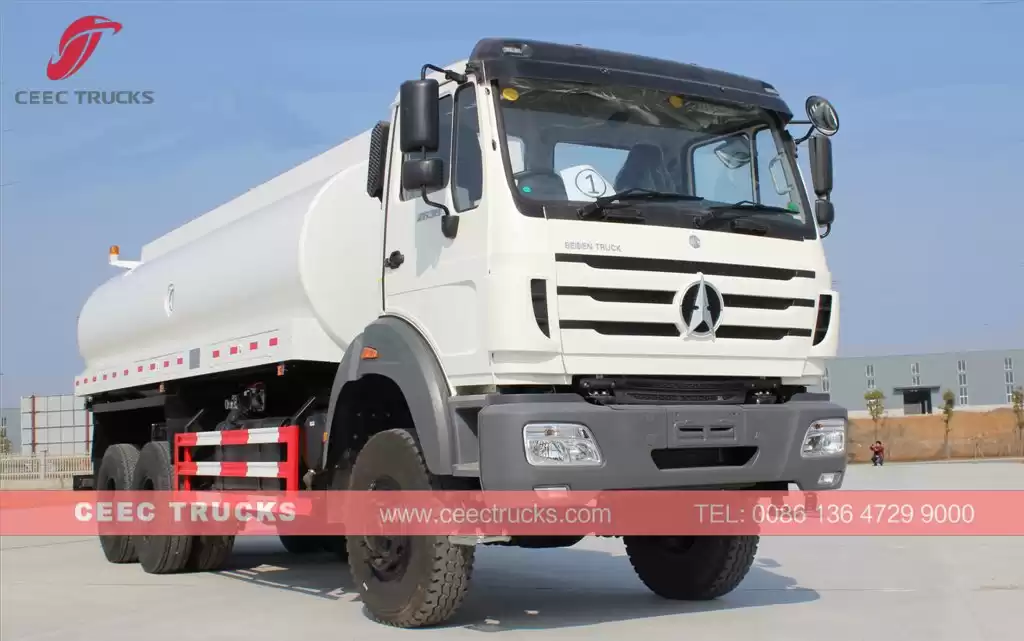

Beiben 20 CBM water truck

Beiben 2538 truck chassis, Euro 2 engine 380 hp , fast 9 shift transmission, 4450+1350 mm wheelbase,  7 T benz front axle, 16 T benz double rear axle with wheel reducer, 12.00R20.   CEEC latest technology on 20 cbm water tanker trucks.


  • Payment termsT/T, L/C
  • Production time30 days



   beiben 2538 water truck

 Applications:



Beiben 20 CBM water truck (also called beiben Water bowser, beiben Water spray truck, north benz Water tanker truck, north benz Water tank lorry, beiben Portable water tanker) is is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.

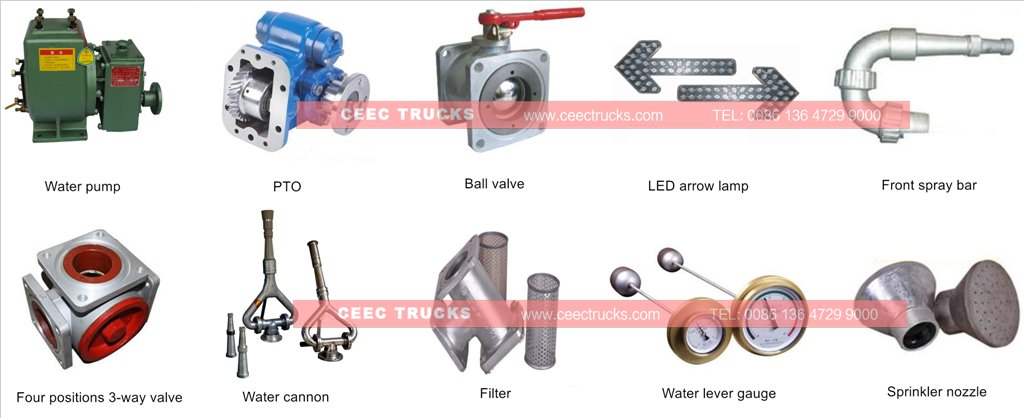

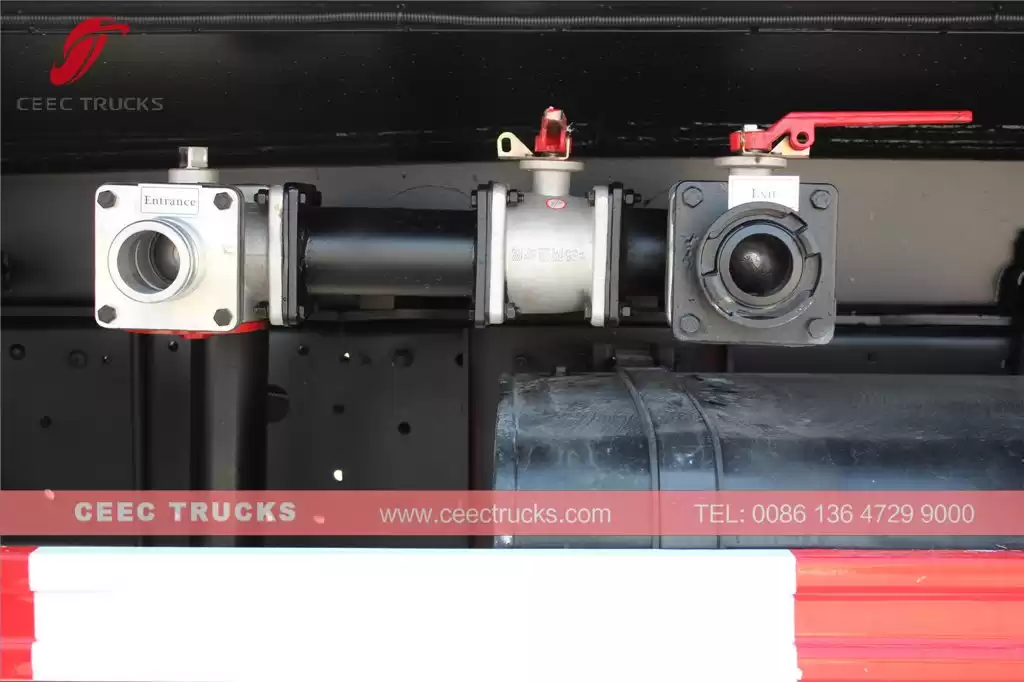

China beiben water truck is mainly composed of chassis, tanks, pumps, valves, and the water pipe, sprinkler and other parts. Water truck is made of high quality carbon steel sheet.



 Key Features:



----Beiben chassis, benz quality

---- Weichai engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Benz NG80 shape, rational structure

---- Water pump super powerful, efficient pump in and out

---- Strong, durable, perfect performance



 Specifications:



Beiben Water Tanker Trucks  (20,000L)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Beiben

Overall Dimension

9440 * 2500 * 3295 mm

GVW / Kerb Weight

35,000kg /12 ,000kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI       WD615.38

Power

380 HP (279 KW)

Displacement

9856 ml

Emission Standard

Euro II

Chassis

Drive Type

6X4, (left hand drive)

Transmission

Fast 9 speed levers with 2 reverse

Wheelbase/No. of axle

4450+1450  mm / 3

Tire Specification

12.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

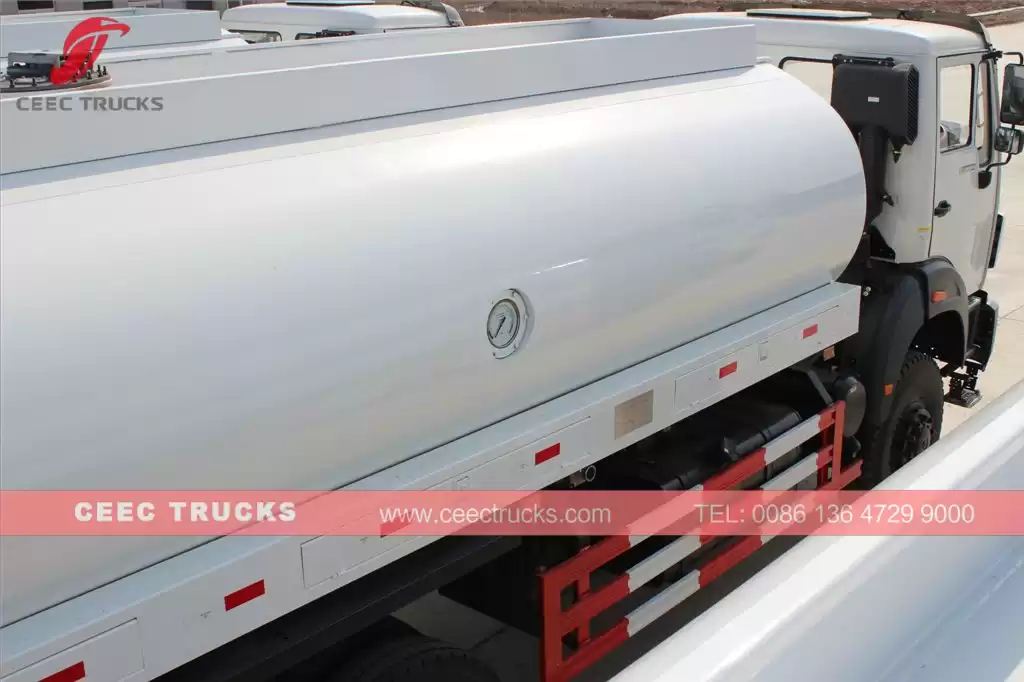

Tank Capacity

20,000 Liters

Tank shape

Ellipse

Material

Carbon steel, 5mm

Body Material

Whether resisting steel

Water pump

China famous brand

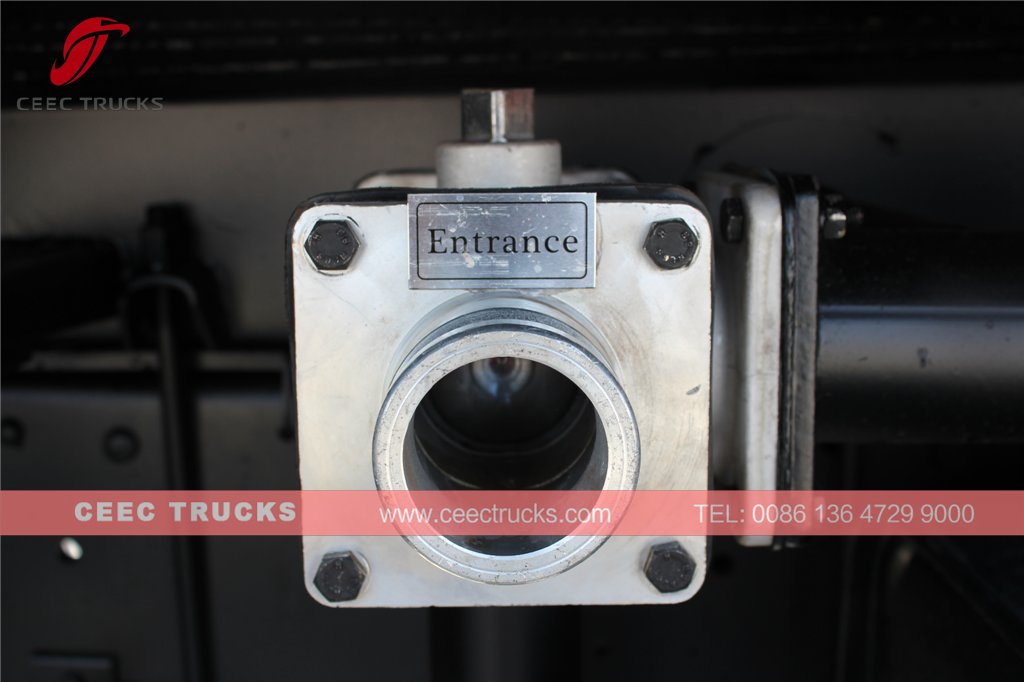

Loading type

Self loading

Front spray bar

YES

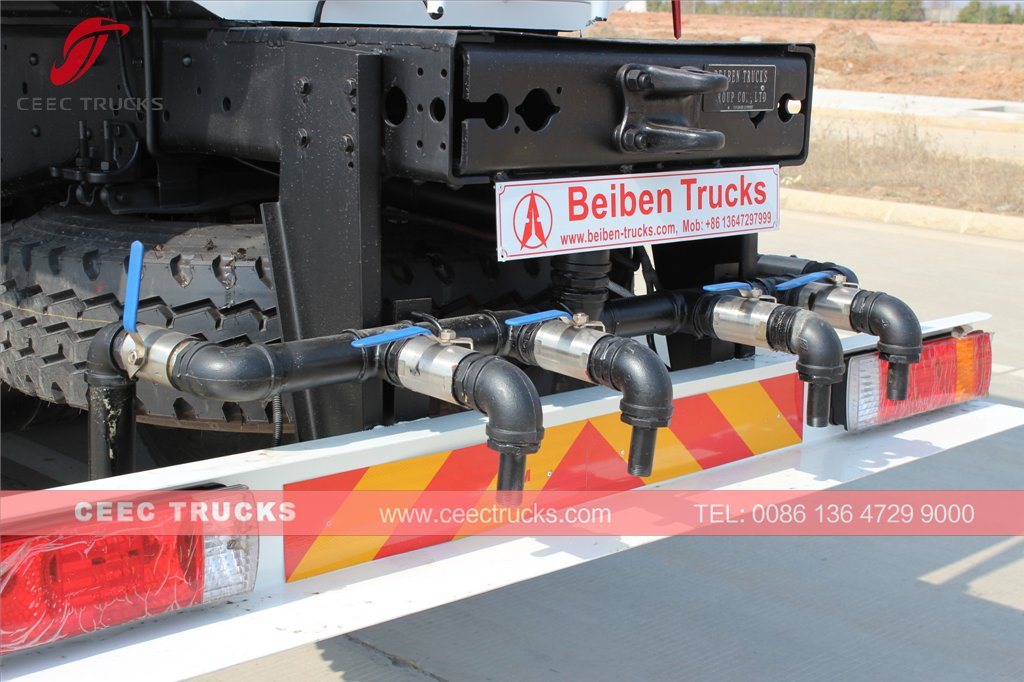

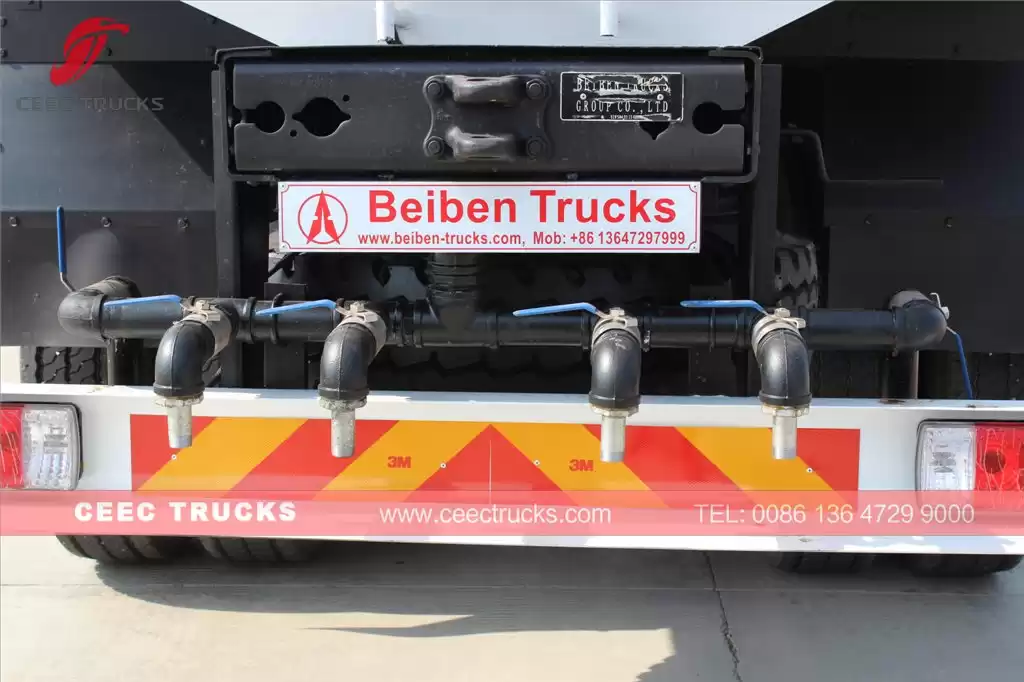

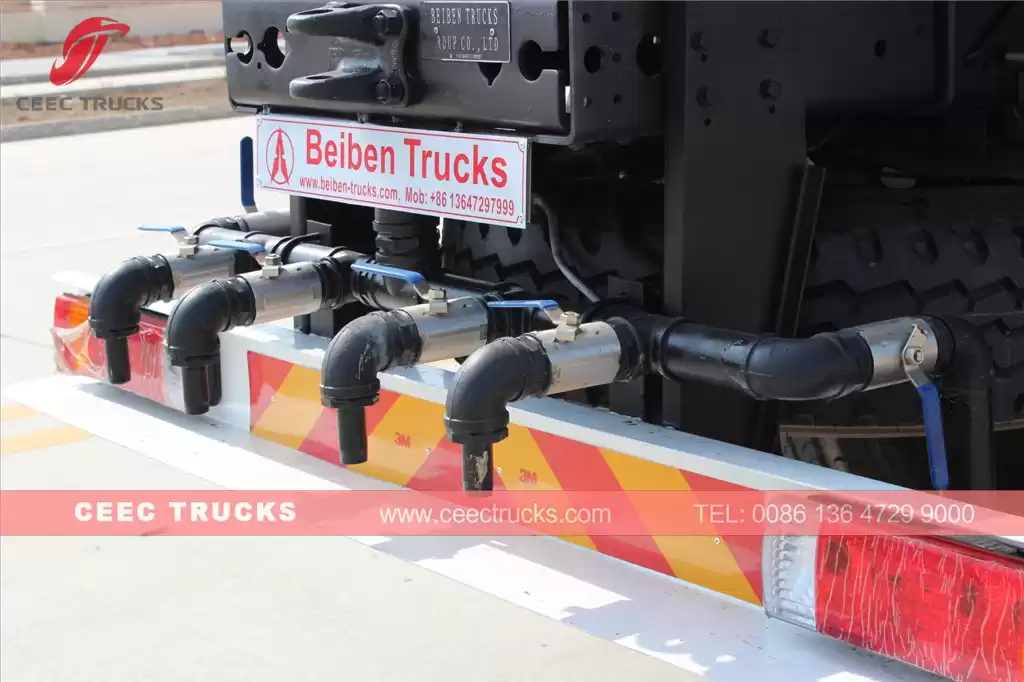

Rear spray bar

YES

Water Canon

28 meters

Fire coupling

Standard

Control

Manual (Optional air operated)

Control panel

English or Your language

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.

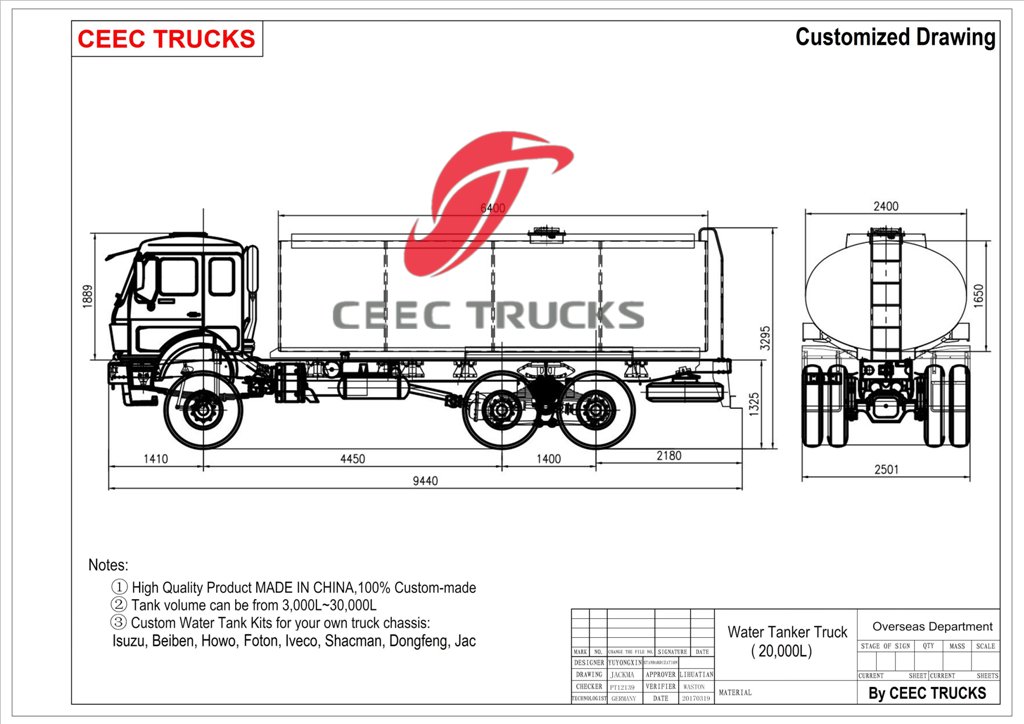

beiben water truck drawing





---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.



beiben trucks traing

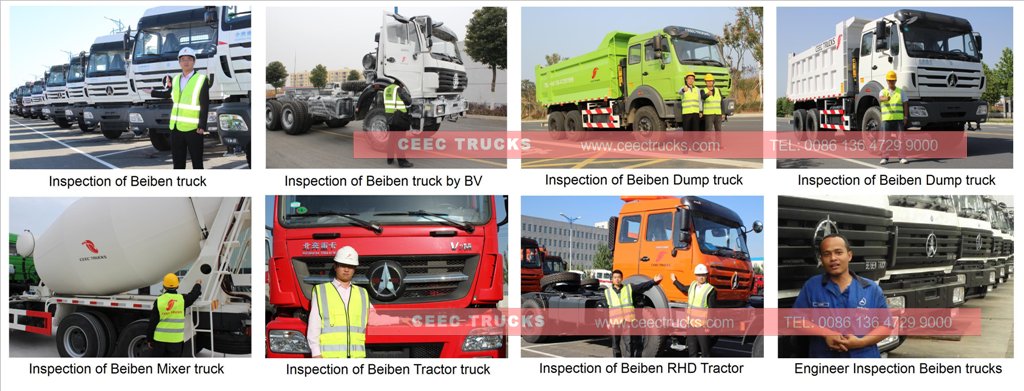

beiben trucks inspection





---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.

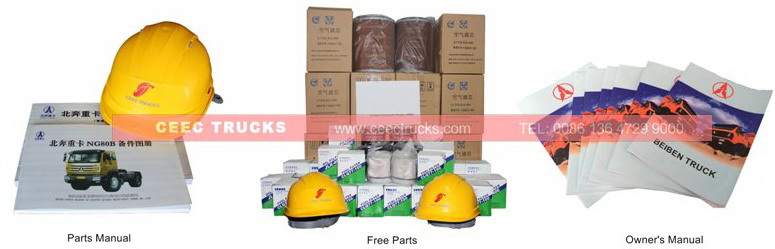

    beiben water truck parts

beiben water tanker manual







---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...

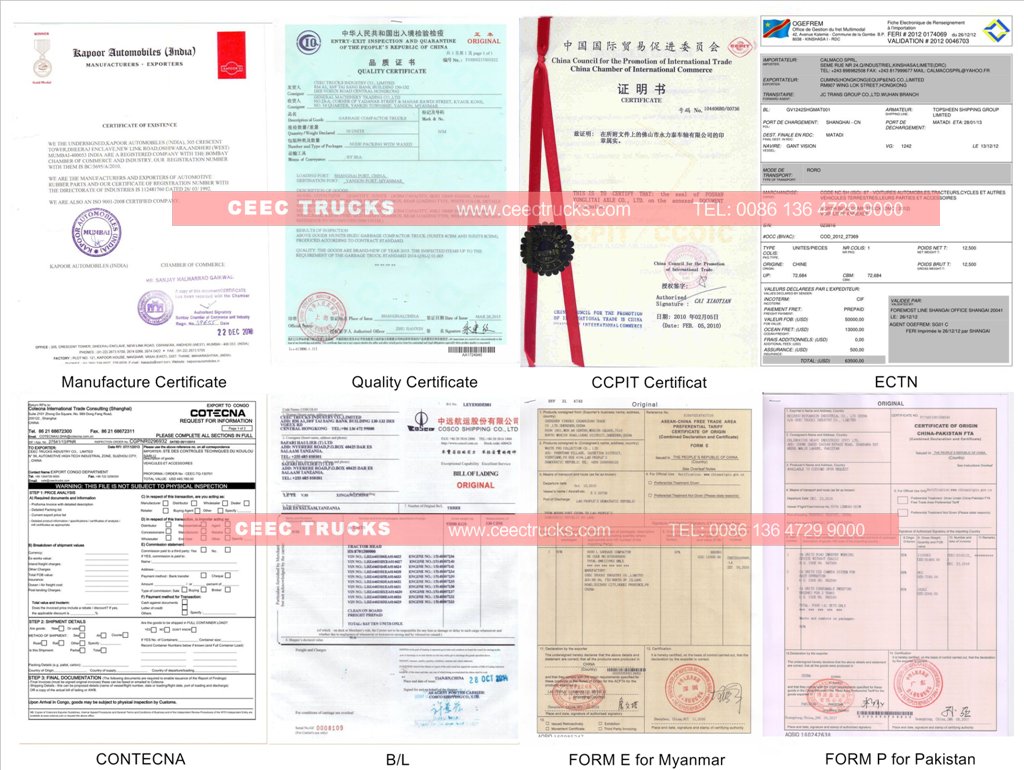

  beiben water trucks documents.





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

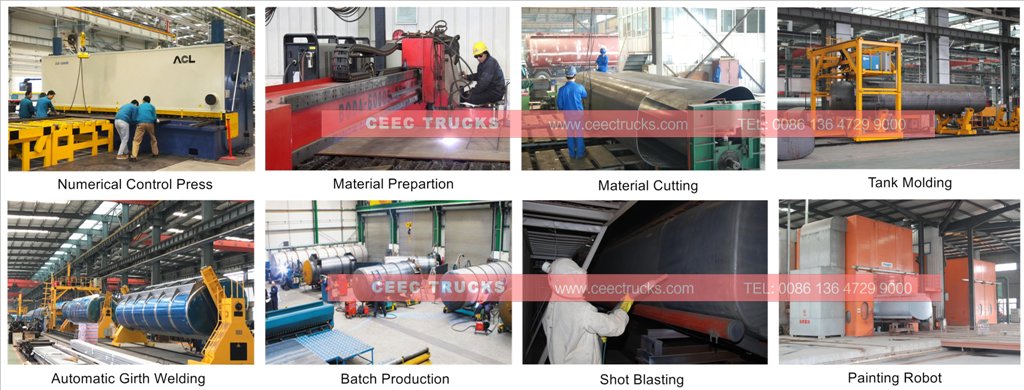

beiben trucks factory





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

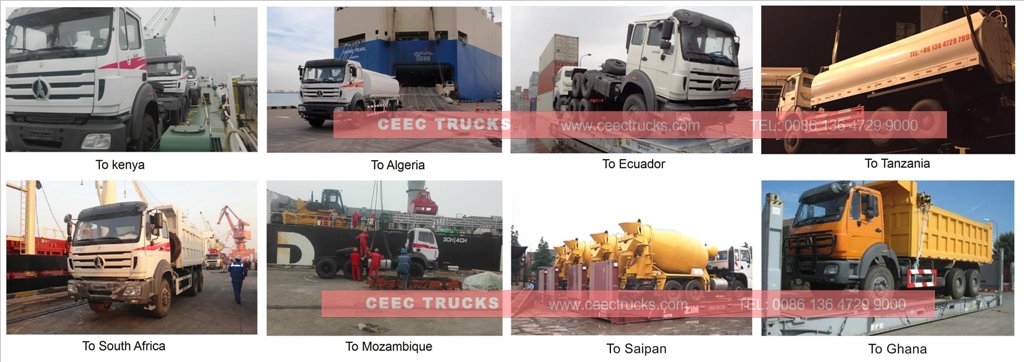

     beiben water trucks shipping







---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.

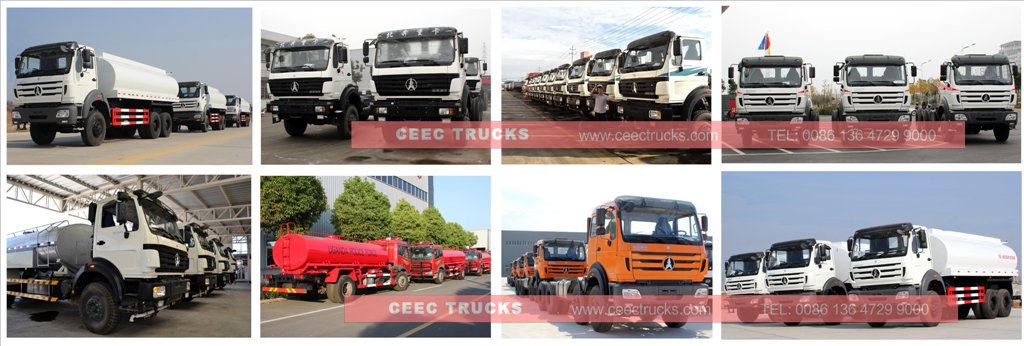

   beiben trucks in stock
