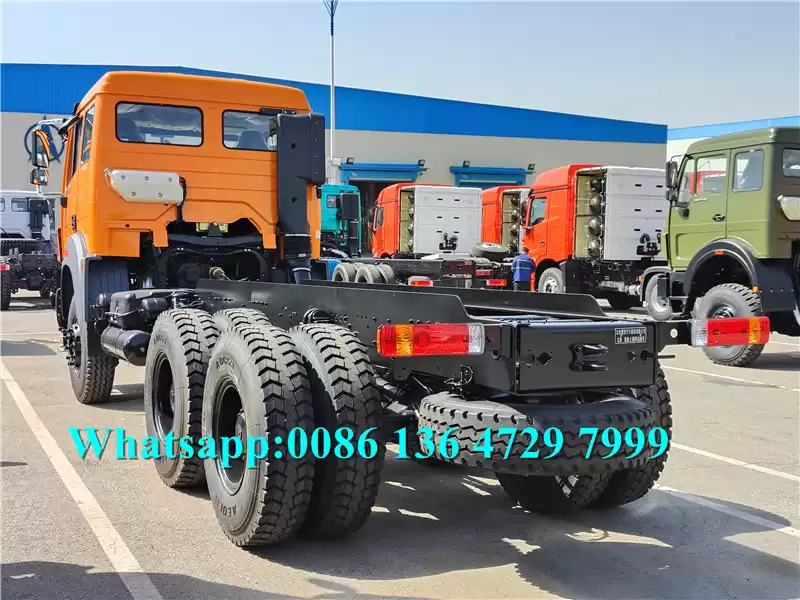

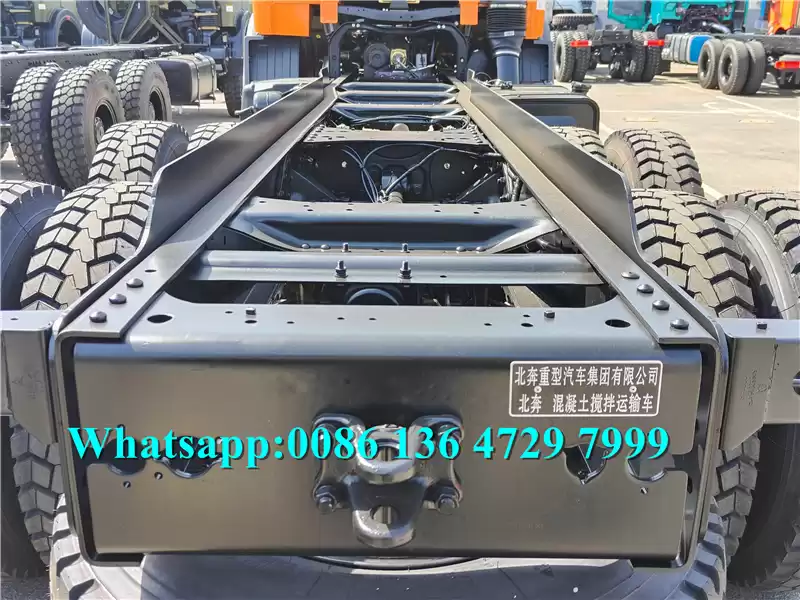

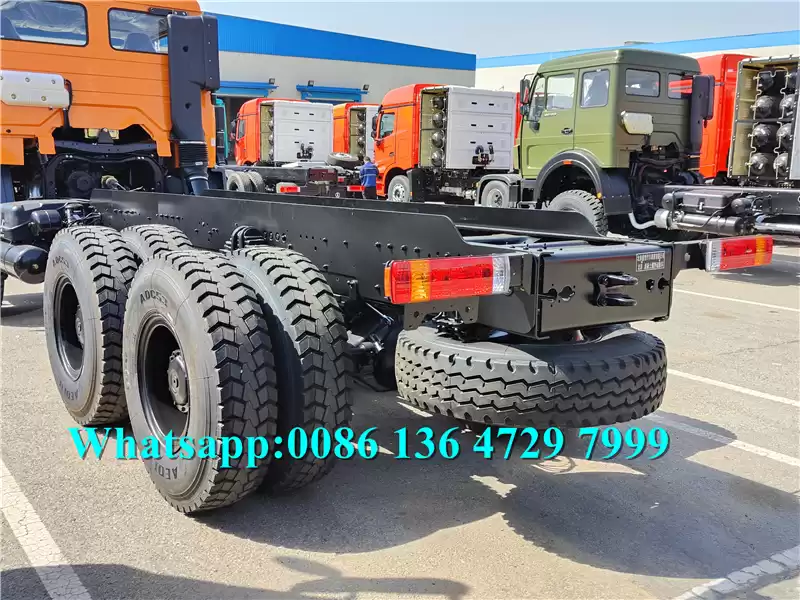

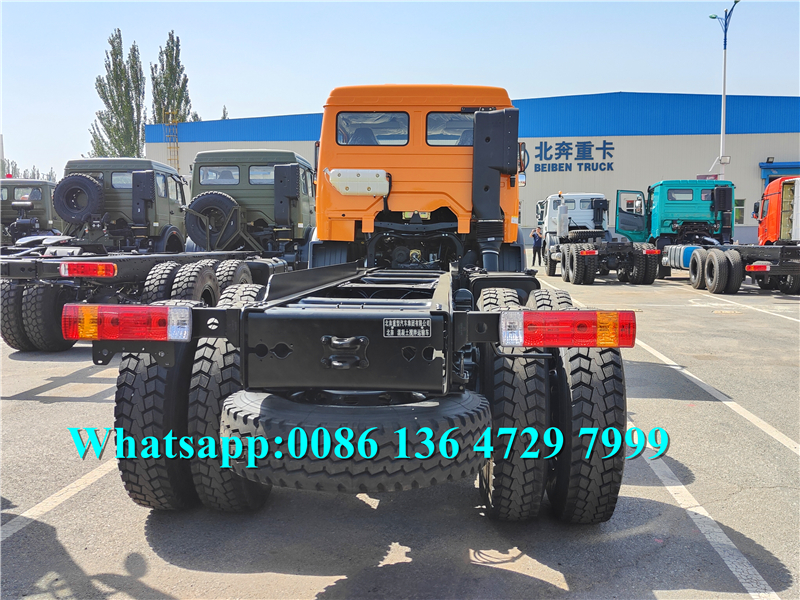

Beiben 2528 truck chassis

Beiben 2528 truck chassis,  6*4 drive system with NG80B cabin , fully equipped with WEICHAI diesel 280 hp engine, easily maintenance and repair, mercedes benz 7.5 T front axle and mercedes benz 13 T double rear axle, 12.00R20 tyre.


  • Production time40 days
  • Payment termsT/T, L/C

                                                               beiben 2527 cargo truck chassis

beiben 2528 cargo truck chassis



 Applications:



Beiben2528 cargo truck chassis, also called as beiben 2528 truck, beiben 2528 cargo truck. Can be refitted as beiben 2528 water tanker truck, beiben 2528 fuel tanker truck, beiben 2528 truck mounted crane, beiben 25287 mixer truck.

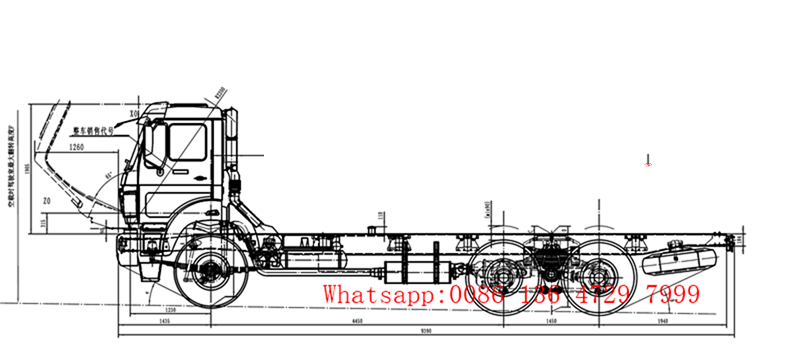

This congo beiben truck is equipped with NG80B long cabin, with 4450+1450 mm wheelbase , germany benz technology NG80B cabin .


The cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.

 congo beiben 2638 truck

 Key Features:

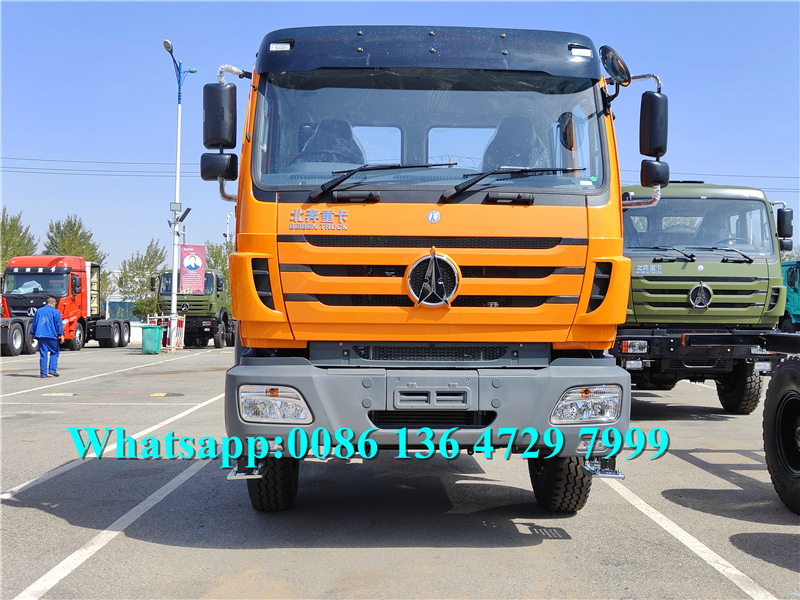

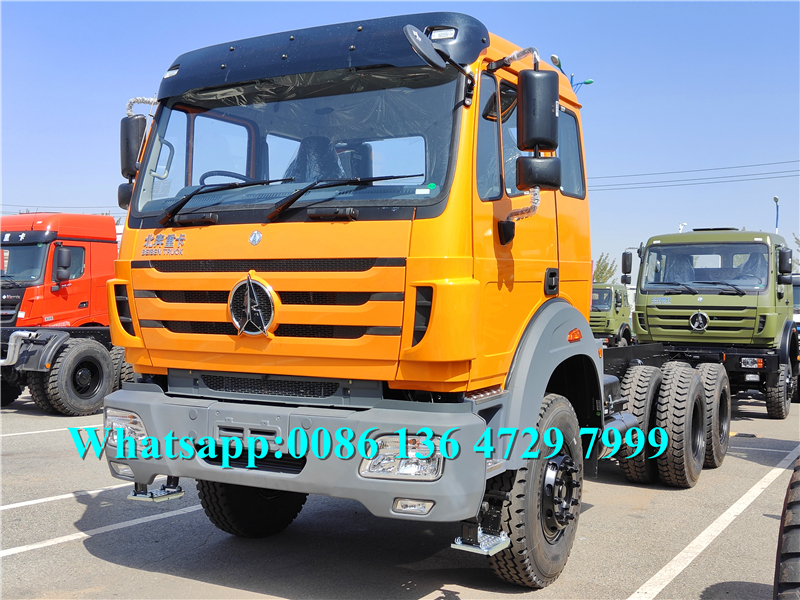

---- Germany benz NG80B cabin, safety and convenience

---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- ZF8098 steering system, RHD for kenya country.

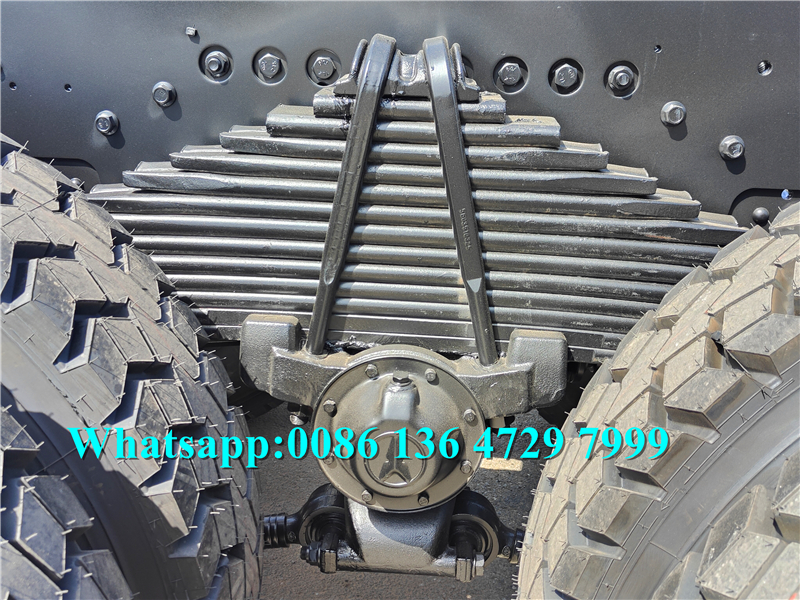

---- extremely heavy duty suspension, maximum payload  80 ton

---- Military Germany mercedes benz technology axle.



 Specifications:



china beiben 2528 cargo truck

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Beiben

Overall Dimension

9800*2490*3340 mm

GVW / Kerb Weight

55,000 kg / 14,800 kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

280 HP (205 KW)

Displacement

9726 ml

Emission Standard

Euro 3

Chassis

Drive Type

6X4, (left hand drive)

Transmission

FAST 9 speed levers with 1 reverse

Wheelbase/No. of axle

4450+1450 mm / 3

Tire Specification

12.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body Capacity

20 T

Tilting Device

Front lifting device

Hydraulic Cylinder

China brand

Discharging model

Rear discharging

Dump Body Dimension
7500*2300*1500 mm

Thickness

Side Board: 2mm

Floor Board: 3 mm

Control panel

English or Your language

All standard accessories: basic tool kit, English manual……

Optional

** cabin colour , white, red, orange, blue..

** Longer wheelbase avaiable. 4450+1450 mm, 5050+1450 mmm,

** cargo box can be customized as requirement.



 beiben 2642 tractor truck

Beiben NG80B cabin truck, with sleeper bed .

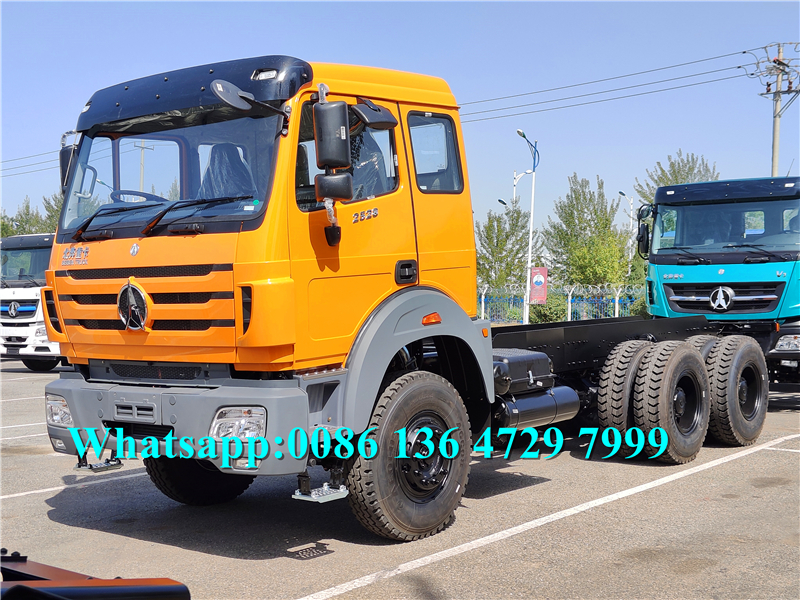

beiben 2528 truck chassis

Beiben 10 wheeler cargo truck chassis
