Function:
◆ Mining area
◆ Construction site
◆ Municipal road construction
◆ Transport of stone, sand, gravel
Feature:
◆ Germany
BENZ technology dumper chassis with high durability and reliability
◆ Weichai diesel engine combined
with original rear axle reducer gear and differential gear
◆Continuous welding throughout
body for additional strength, Full depth rear corner post with full depth rear
crossmember.
◆ Enhanced dumper body, and the
motherboard adopts variable cross-section beams.
◆ Special
beiben Dump Body Design are optional
Specification:
Similar key words beiben 2534 dumper truck, north benz 2534 dump truck,
beiben 2534 sand transportation truck, beiben 2534 tipping truck, beiben 2534
dump truck price, africa beiben dumper manufacturer, kenya beiben dumper truck,
congo beiben 2534 dump truck, baotou beiben 2534 dump truck supplier.
Best supplier of beiben 6*4 drive
dump truck, beiben 6*6 dump truck, we have more than 20 years experience in
manufacturing beiben 2527,2529,2532,2534,2538 dumper. Genuine beiben dump truck
spare parts are avaiable in 24 hours. we provide beiben 6 wheeler dump tuck,
beiben 10 wheeler dump trucks, beiben 12 wheeler earth moving tipping trucks. .
The best
supplier of beiben RHD dump truck, beiben LHD dump truck, beiben RHD tipper,
beiben RHD wrecker trucks. supply lots of beiben Right hand drive
2534,2538,2542,2546 dump trucks for east africa customer.
|

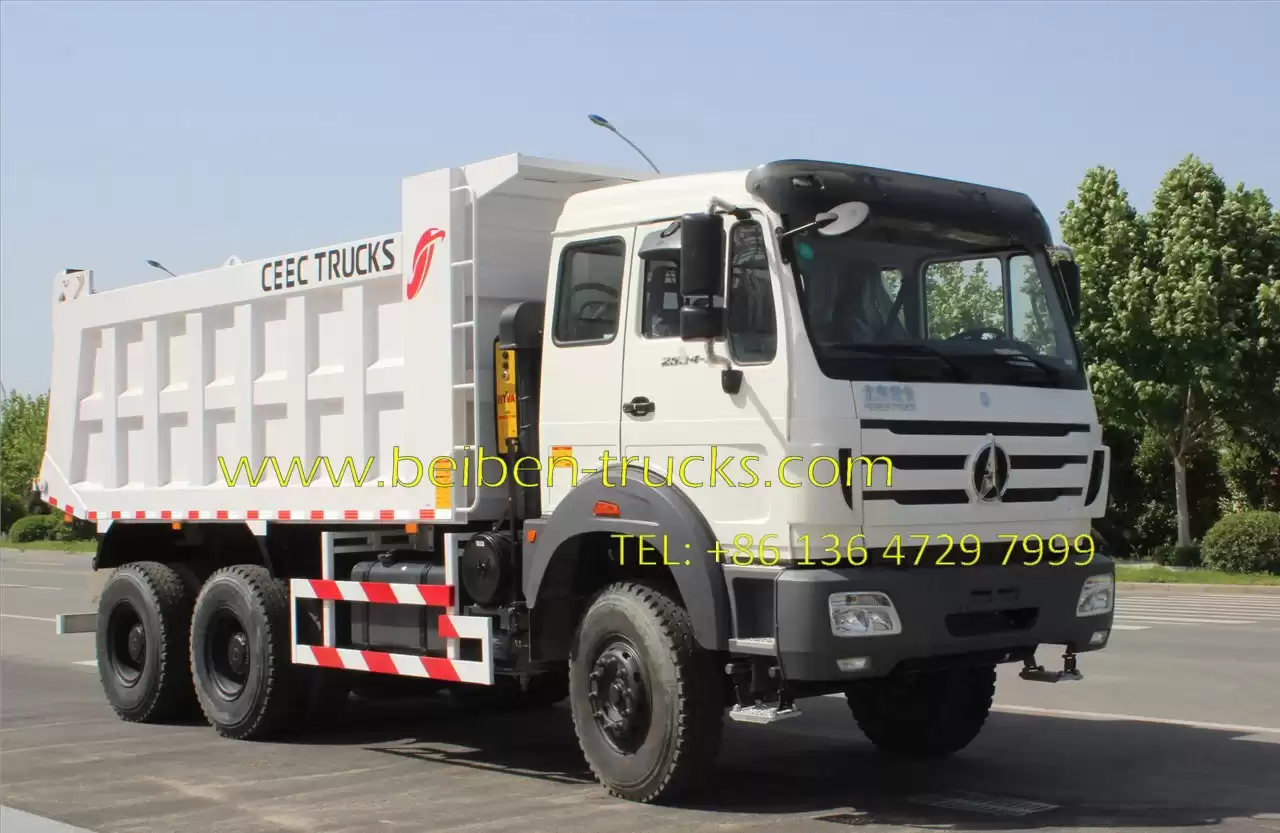

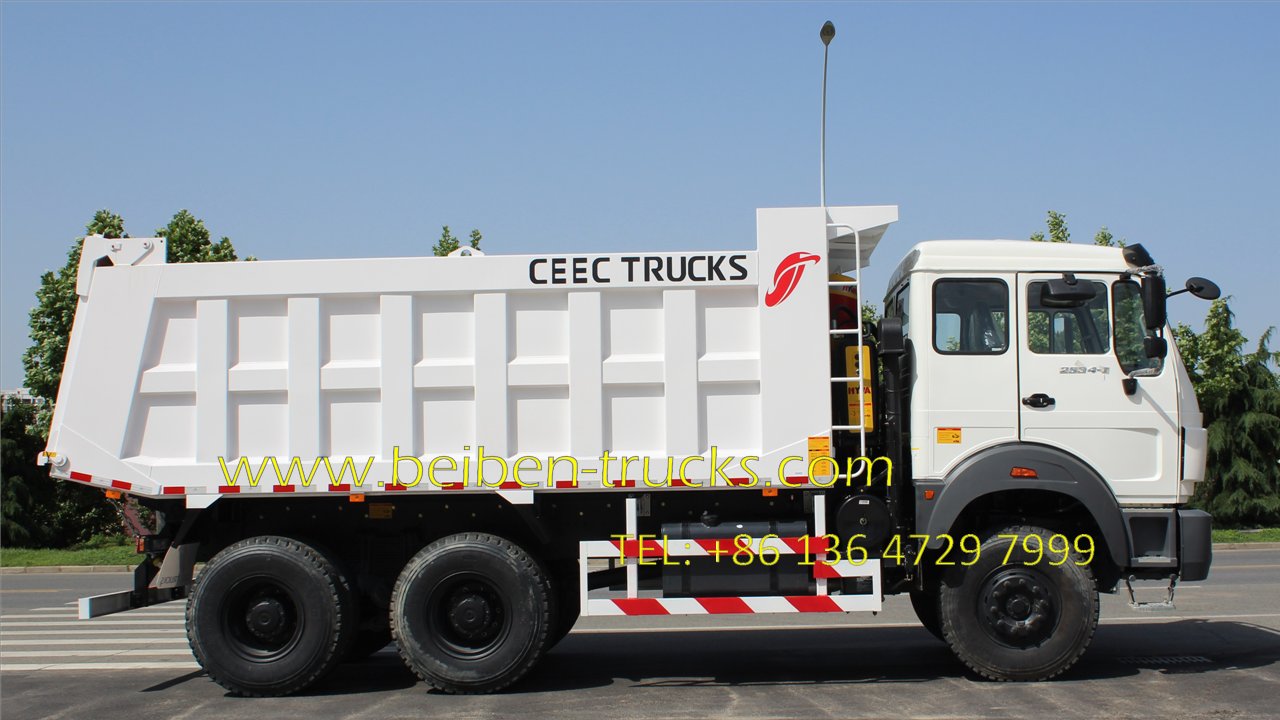

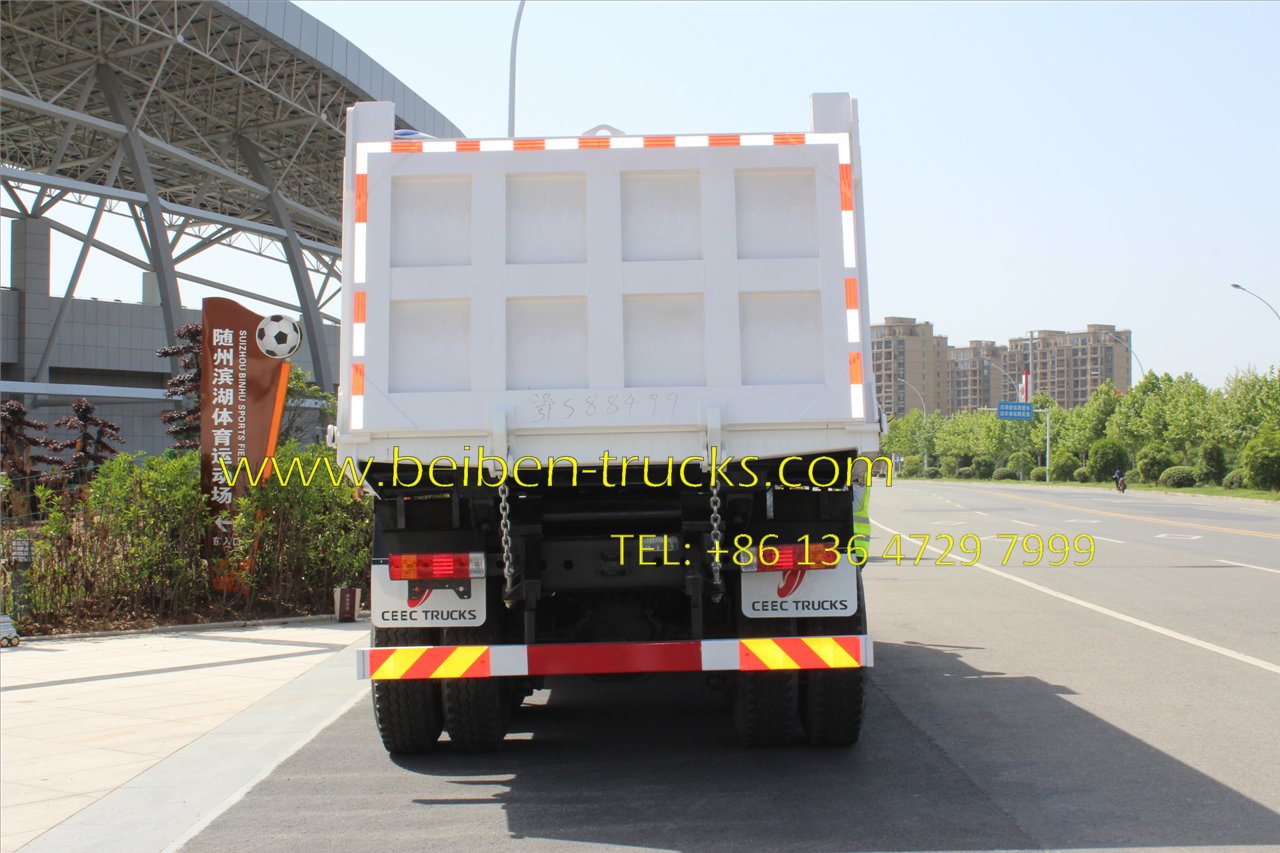

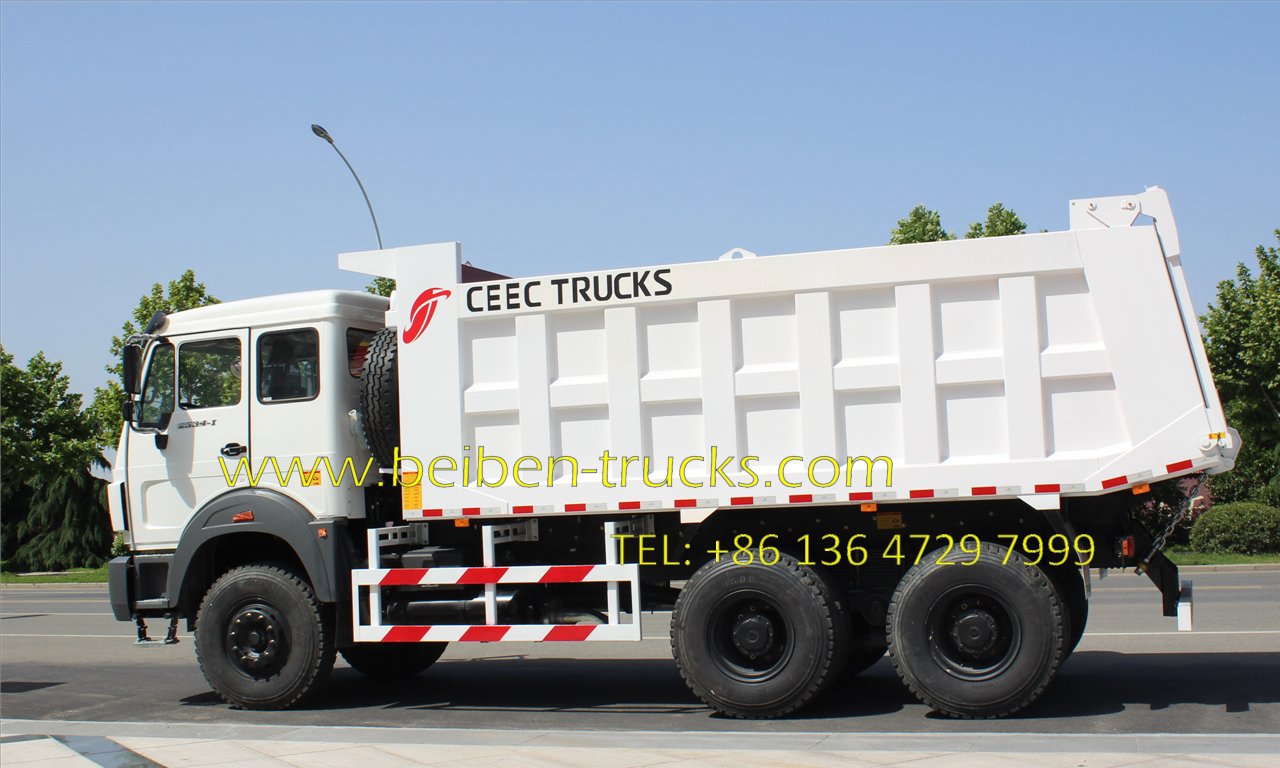

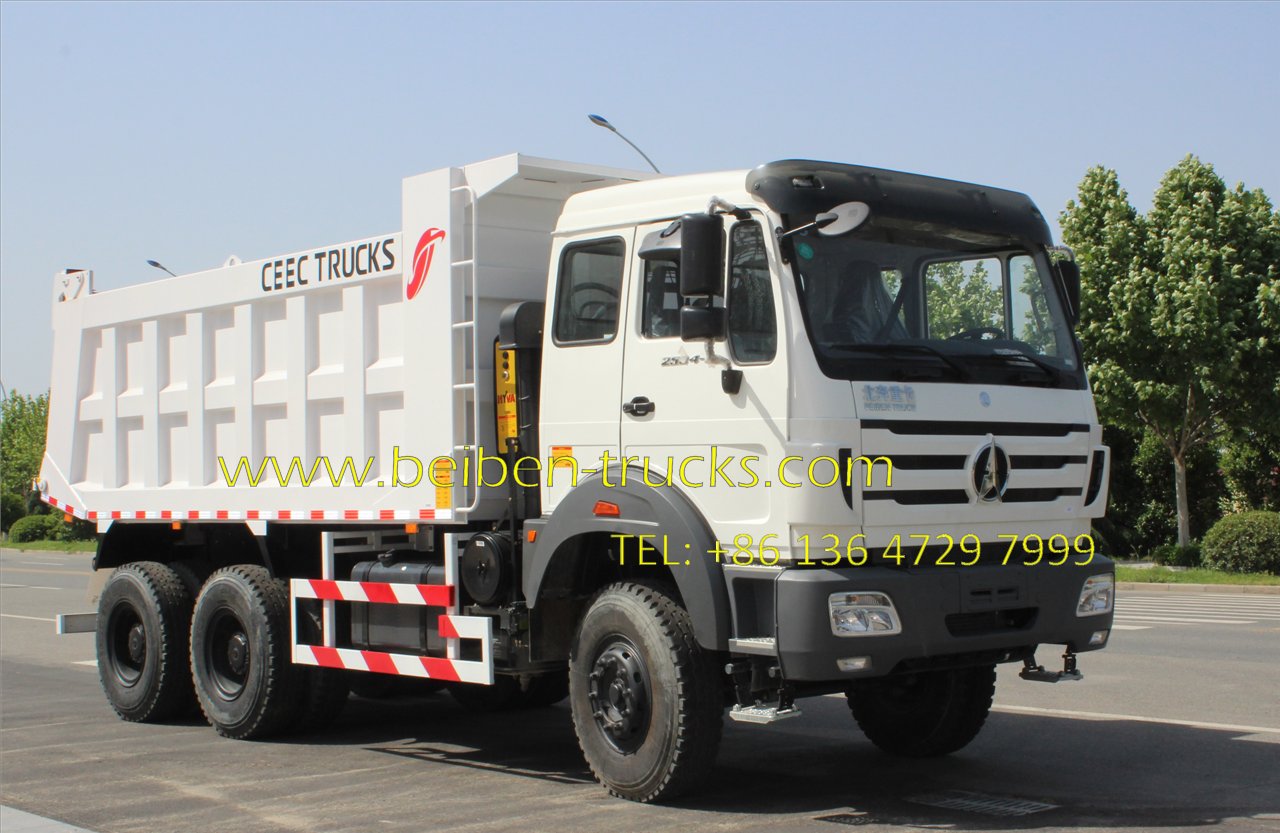

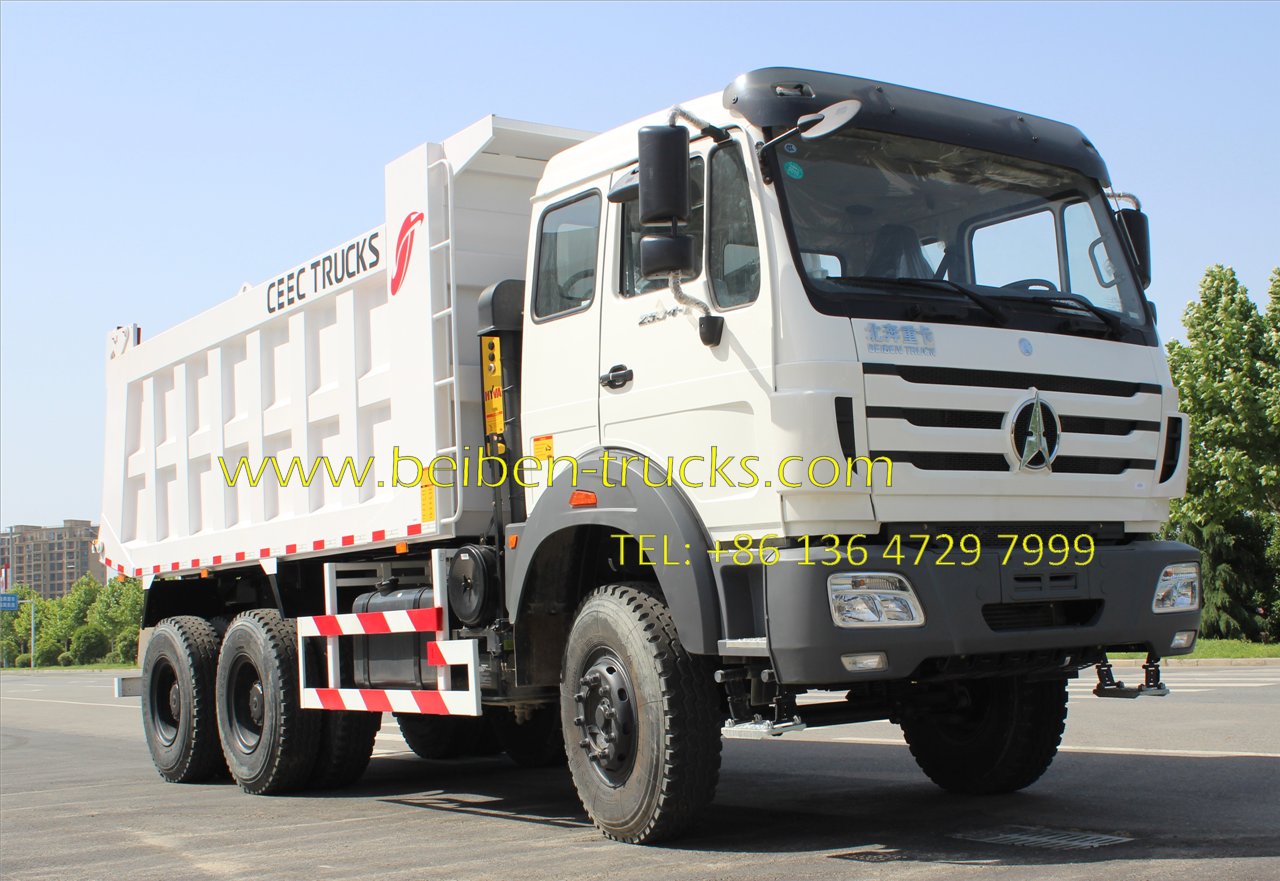

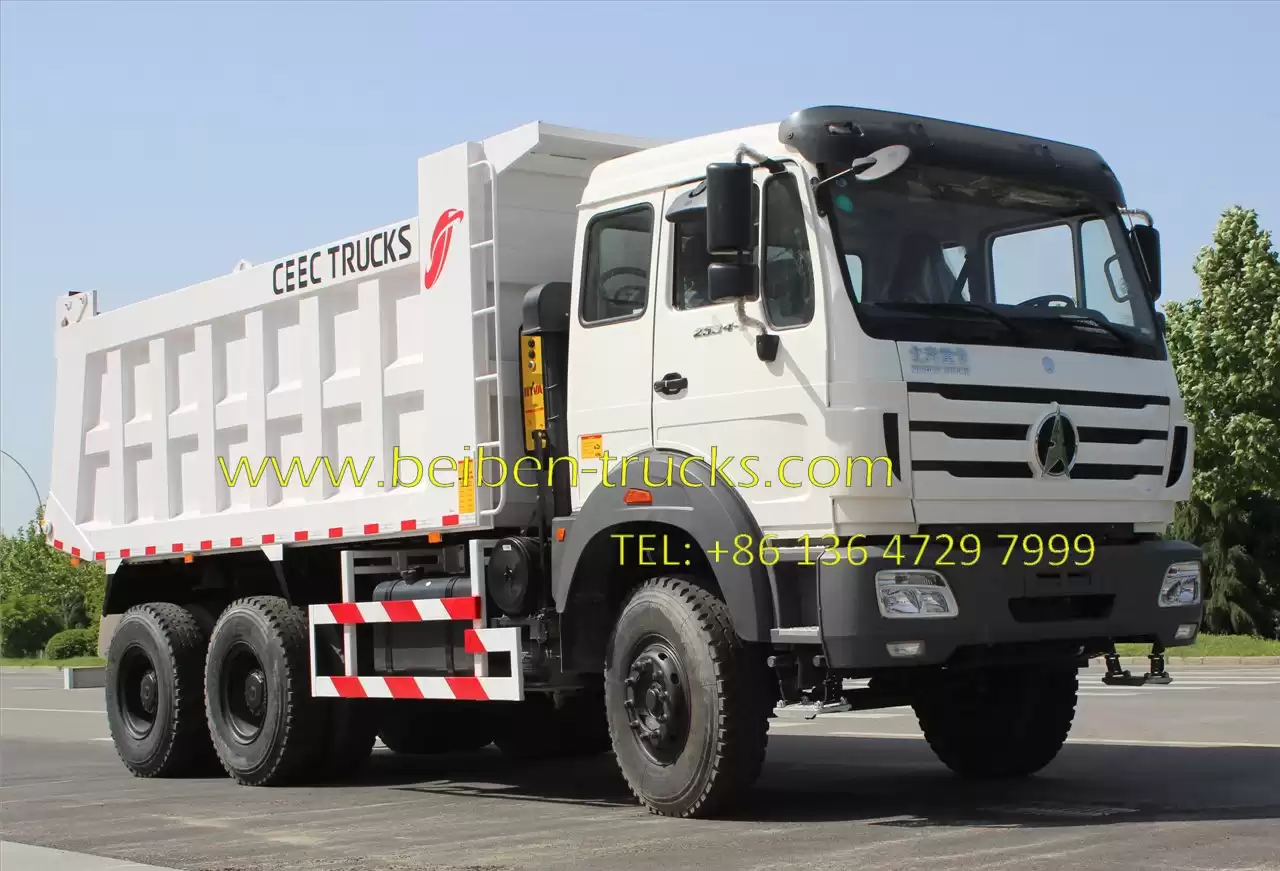

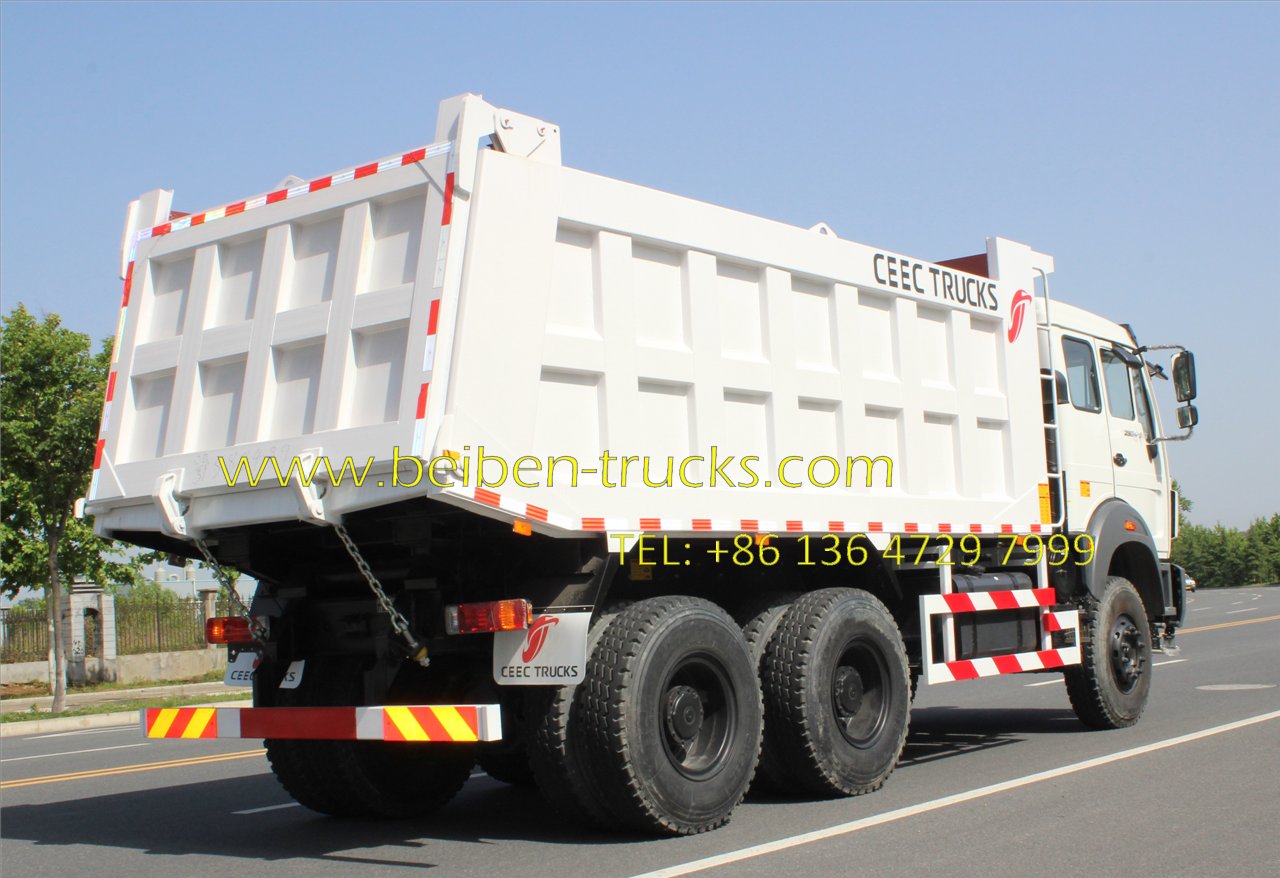

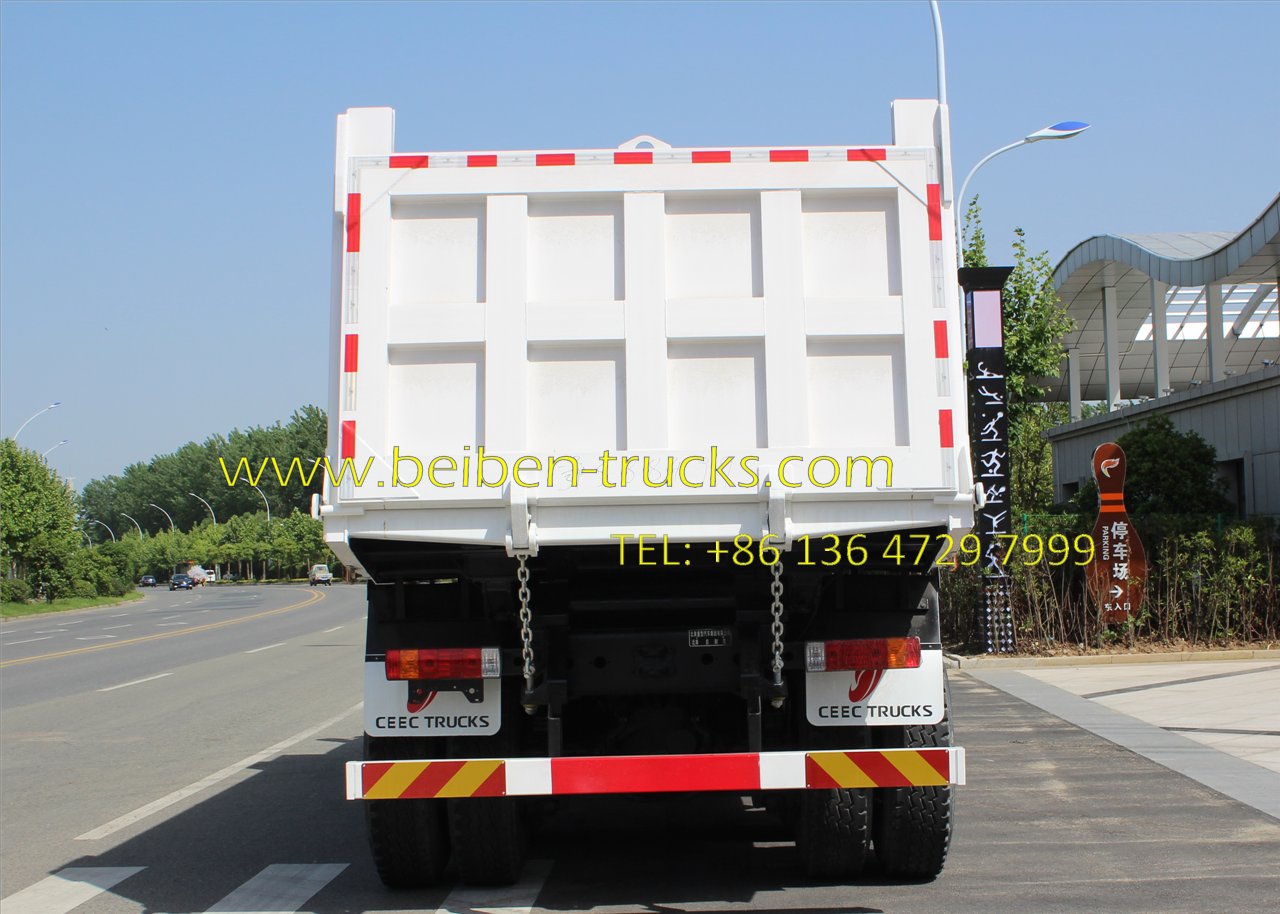

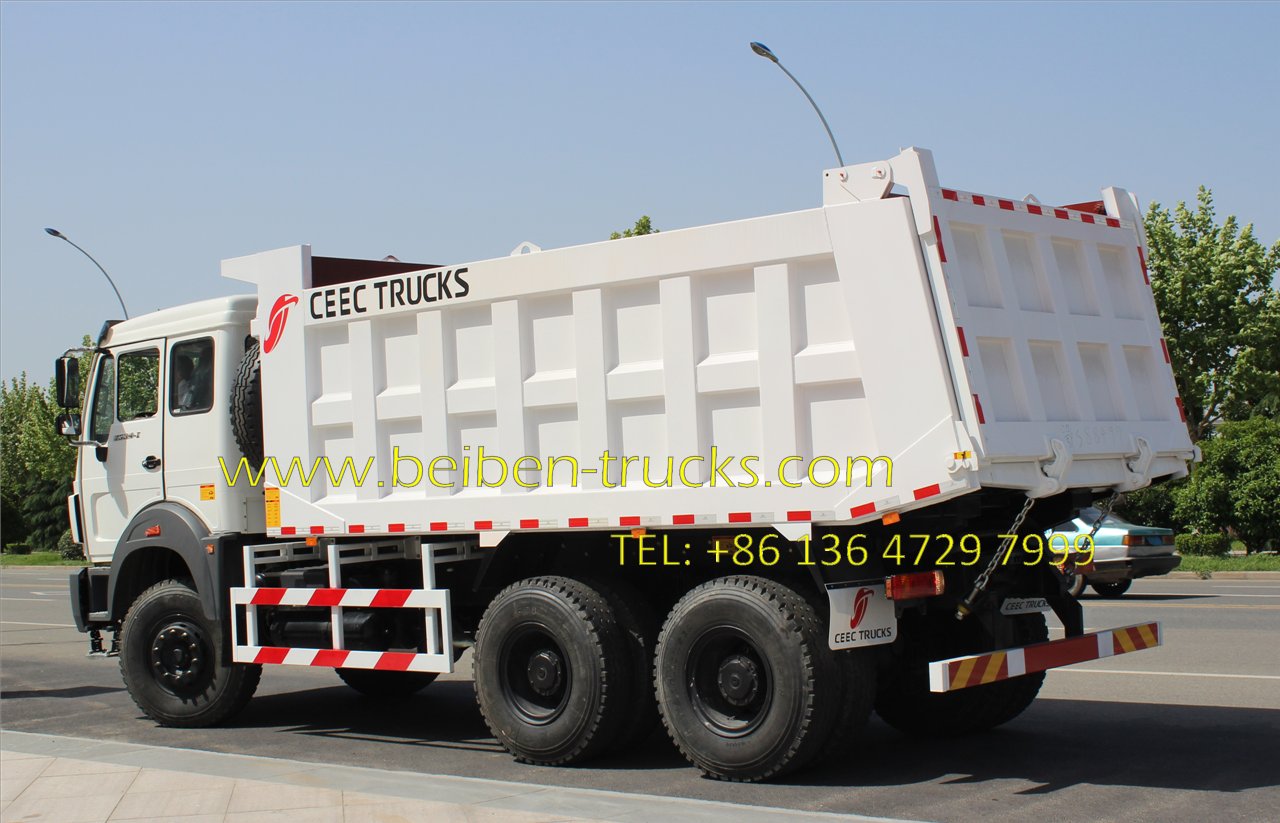

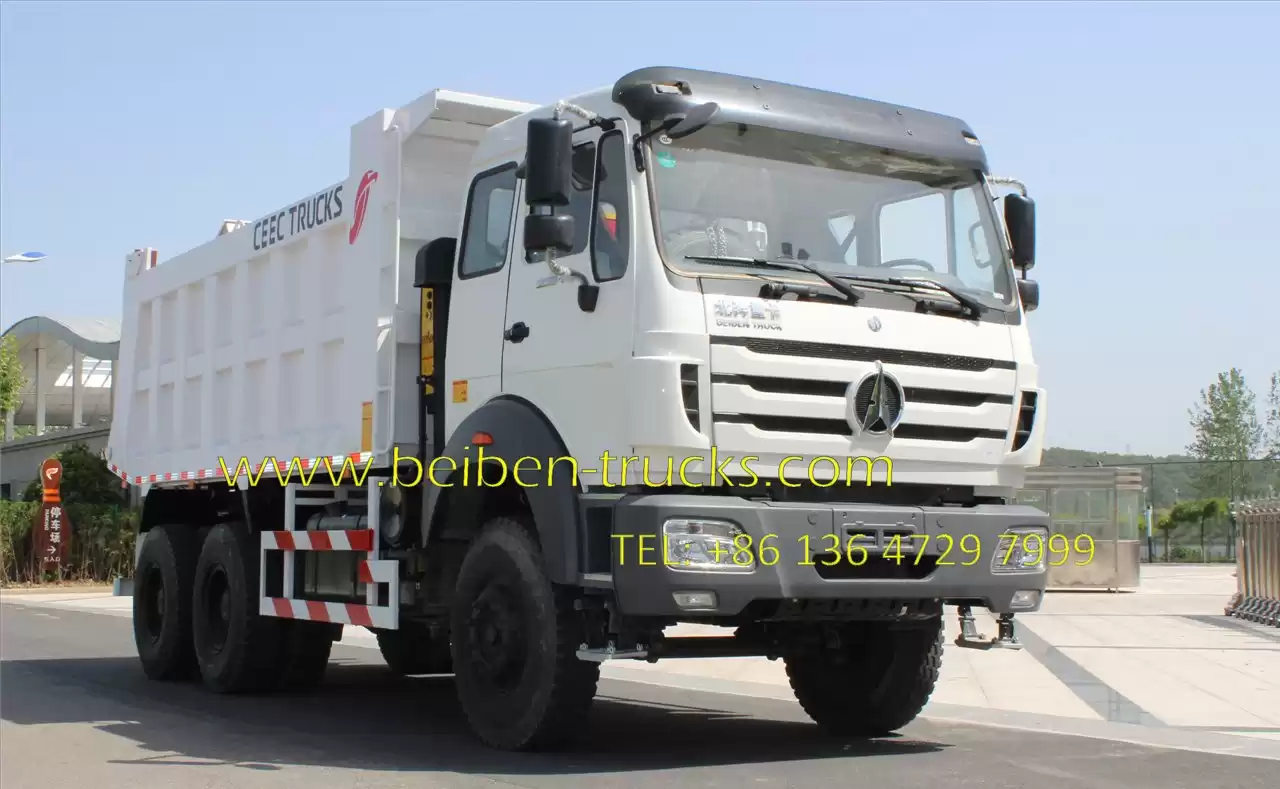

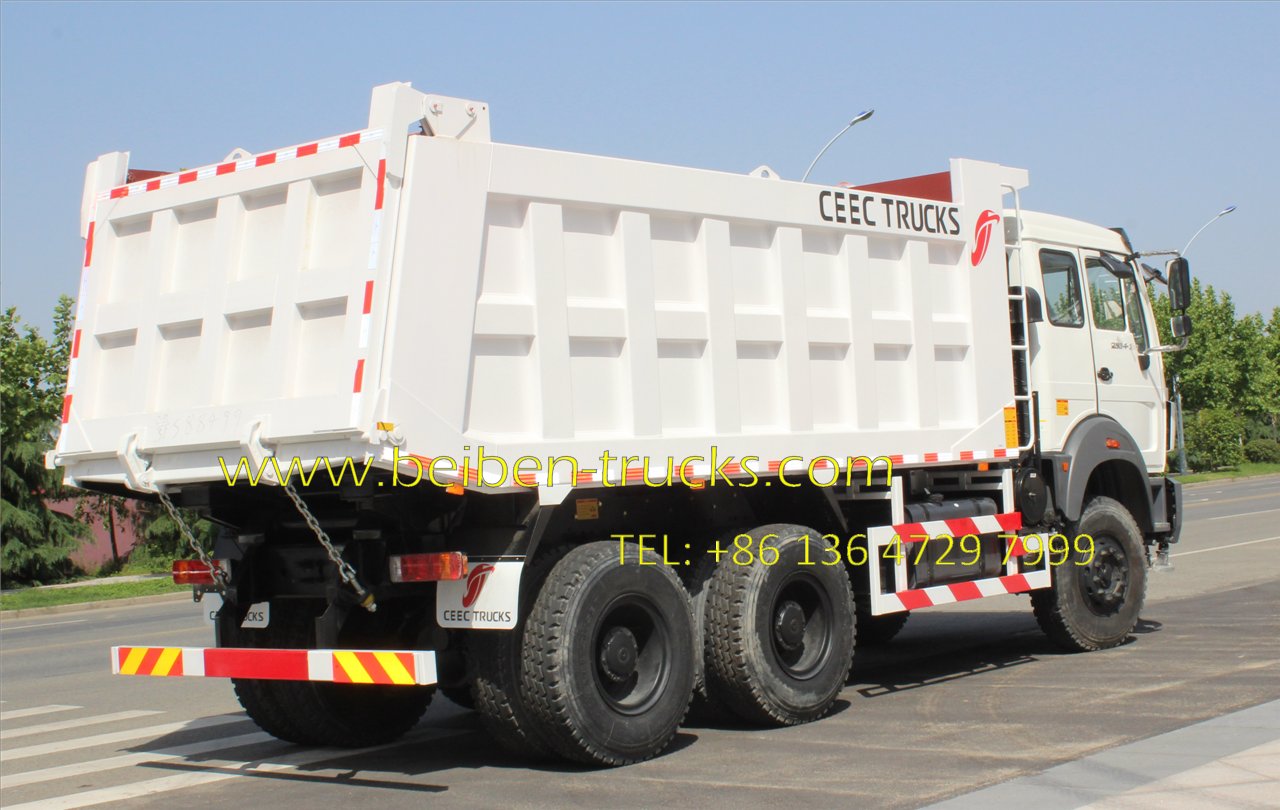

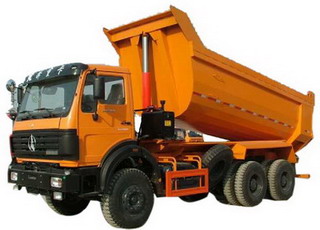

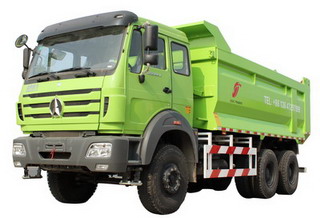

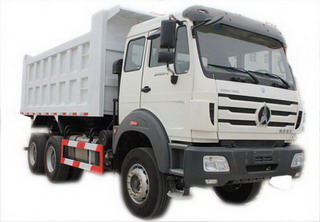

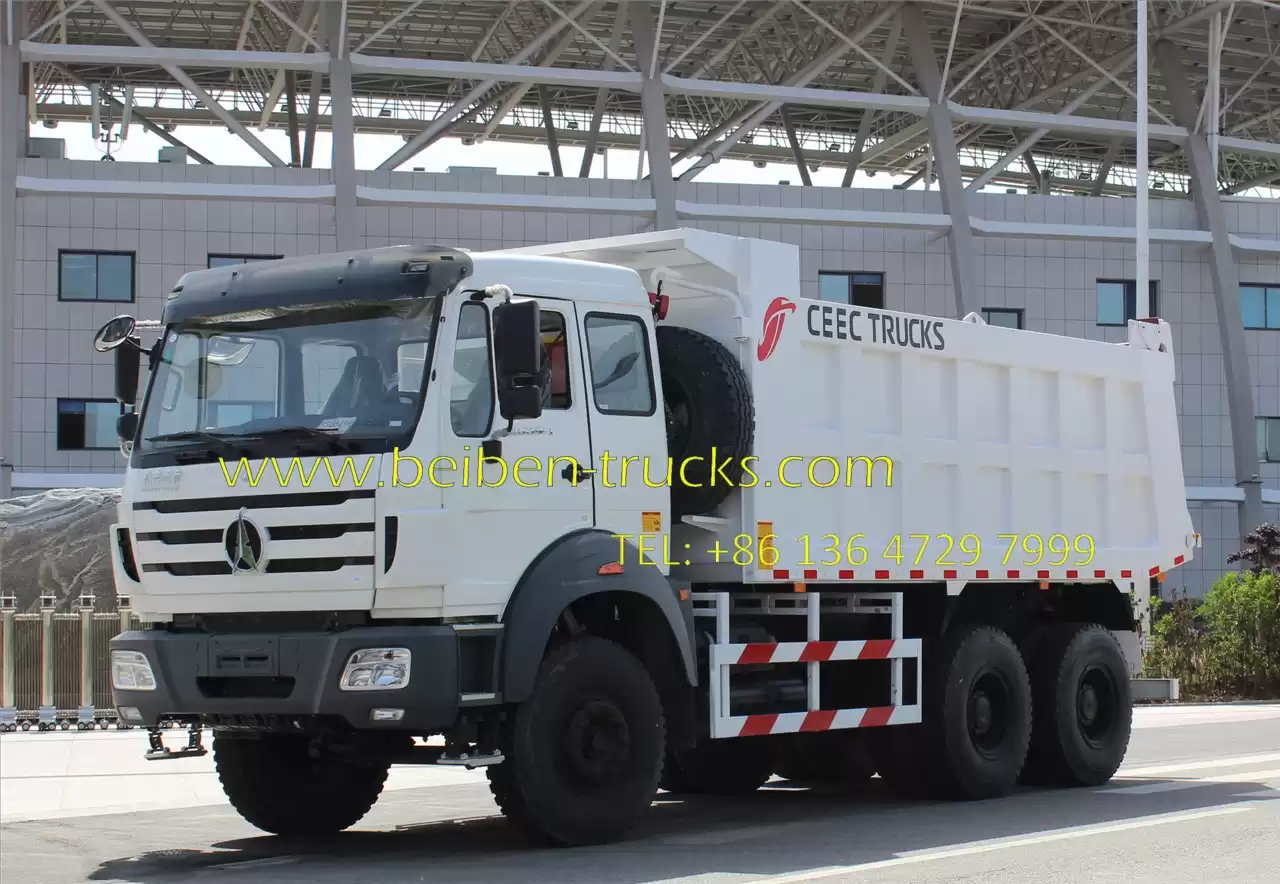

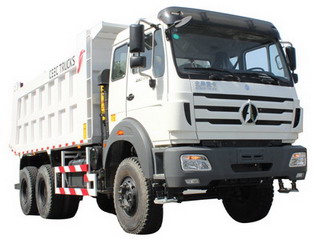

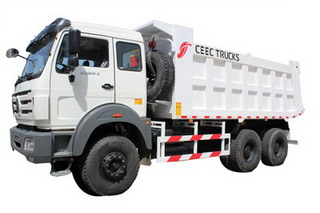

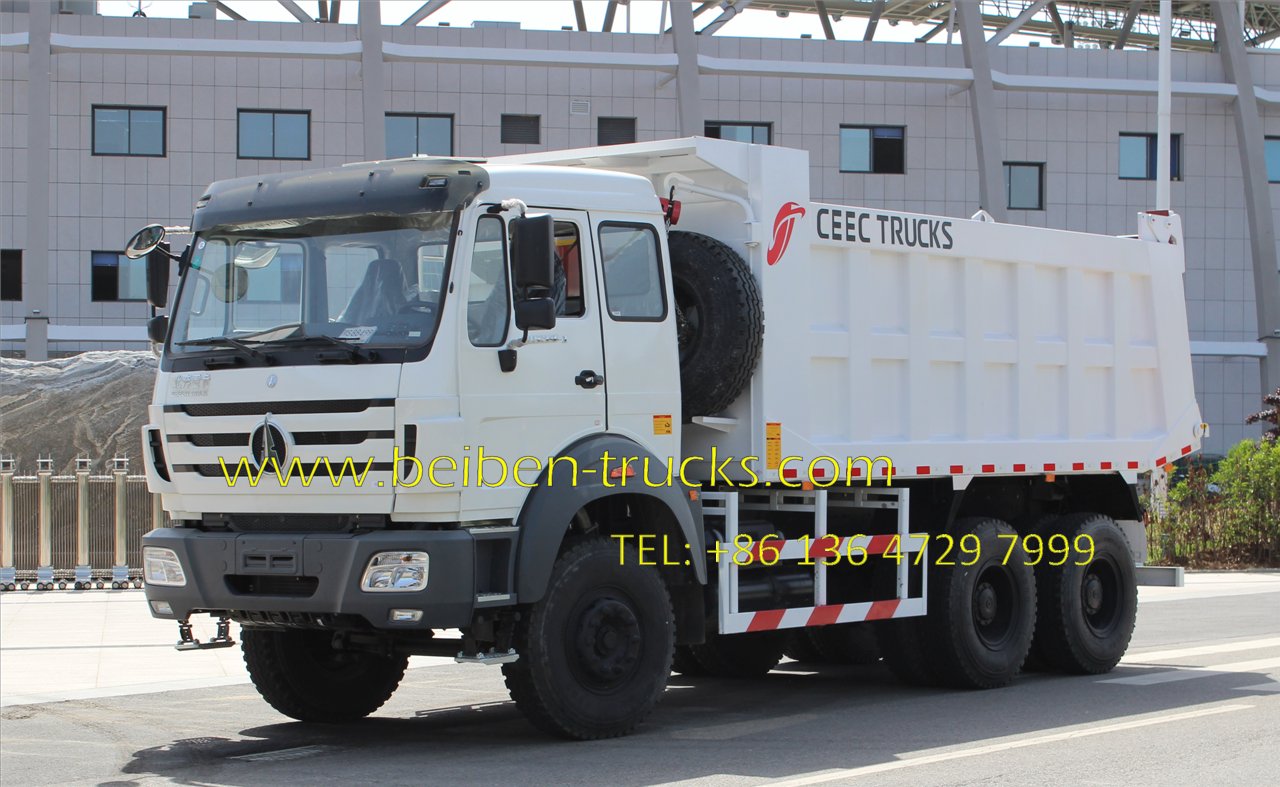

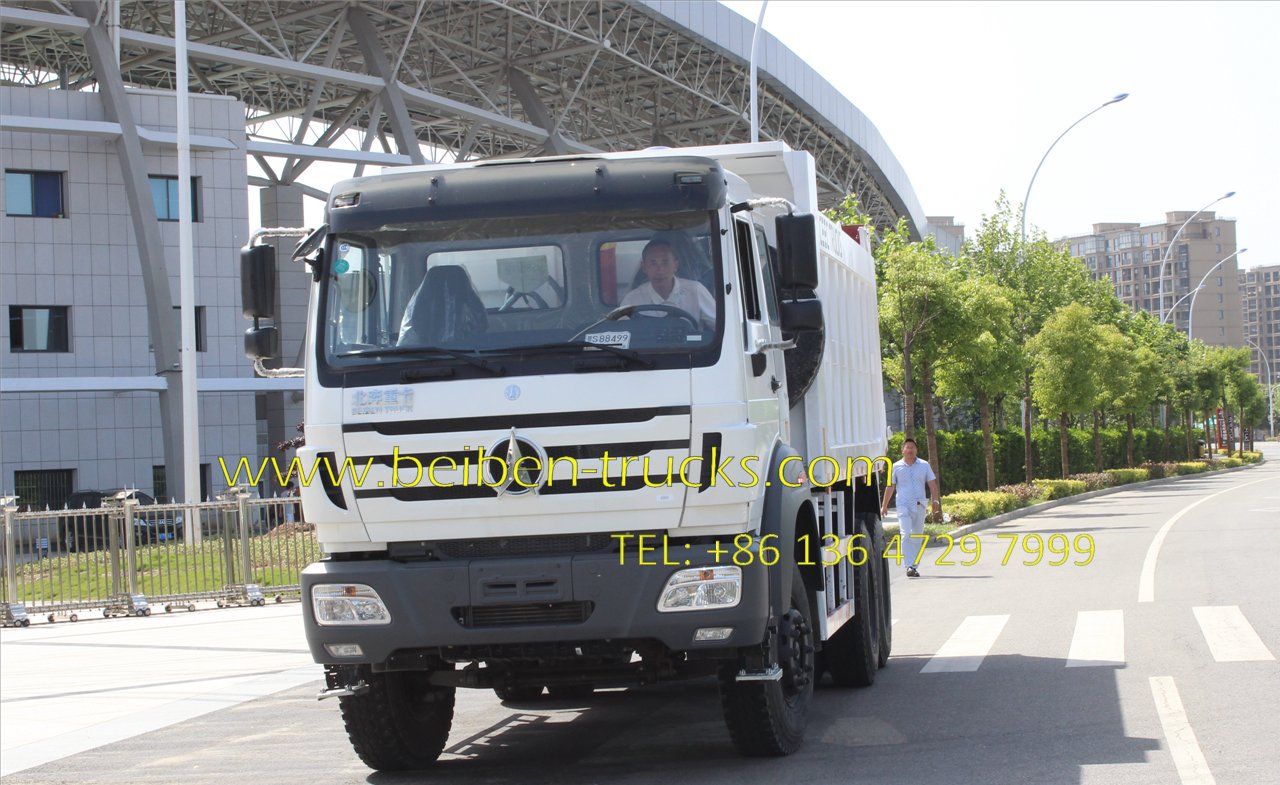

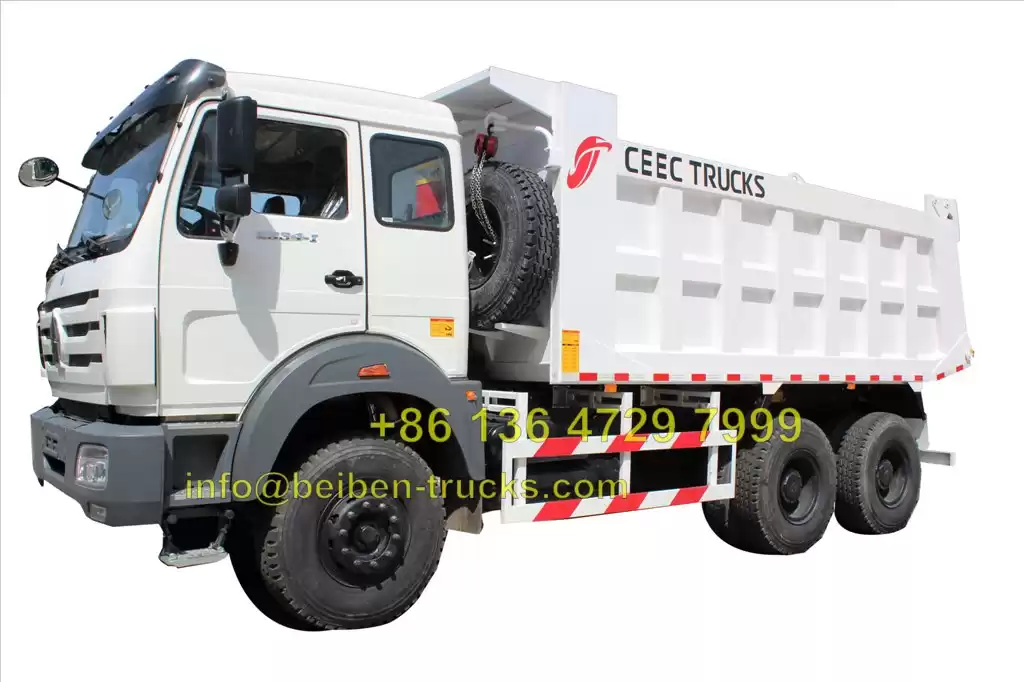

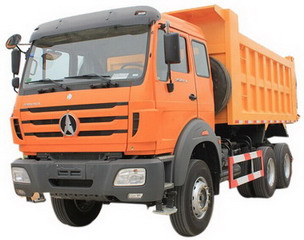

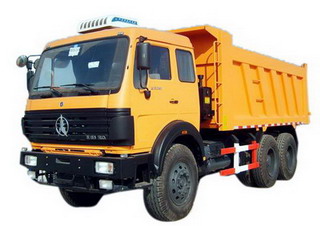

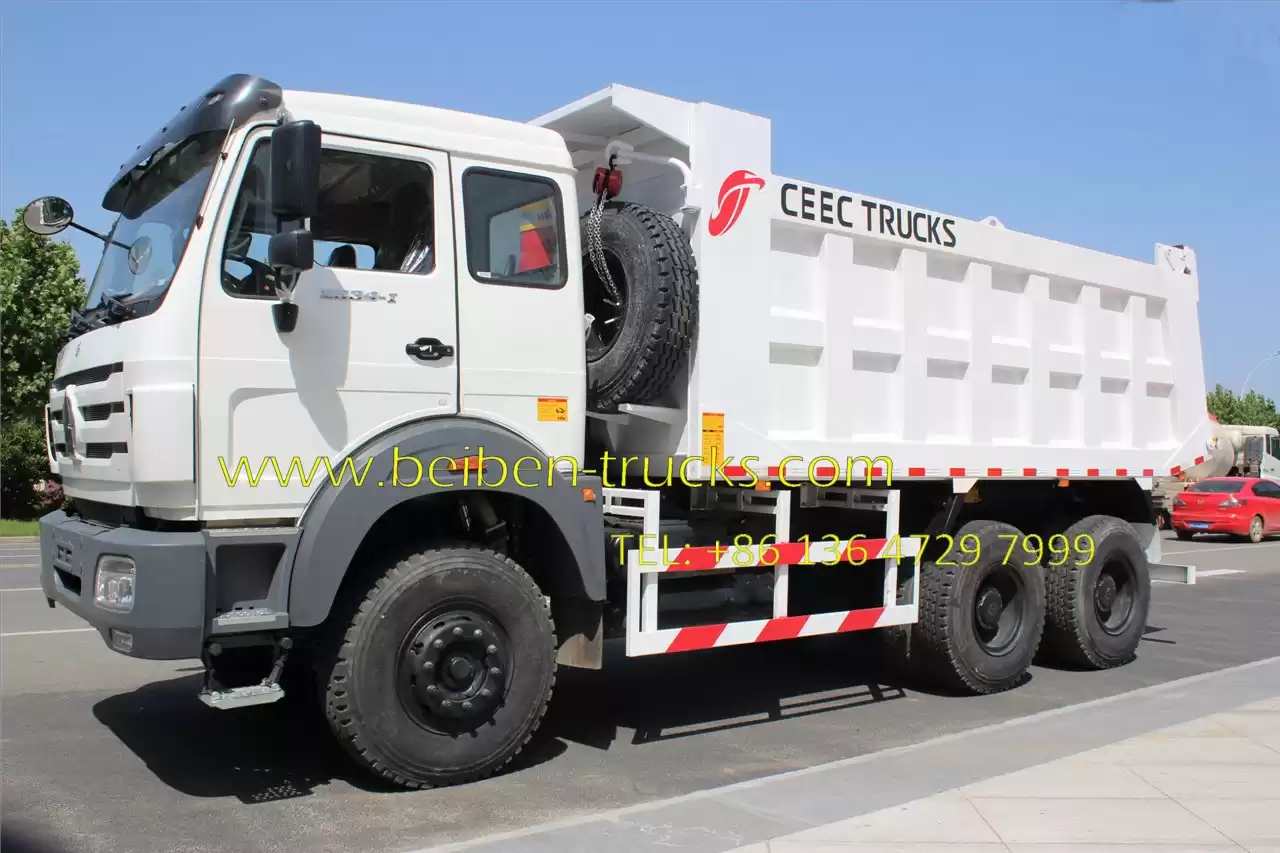

Beiben 2534K dumper /6×4/4100+1450/Short Cab/LHD or RHD
|
|
Dimension
|
8880*2500*3430mm
|
|

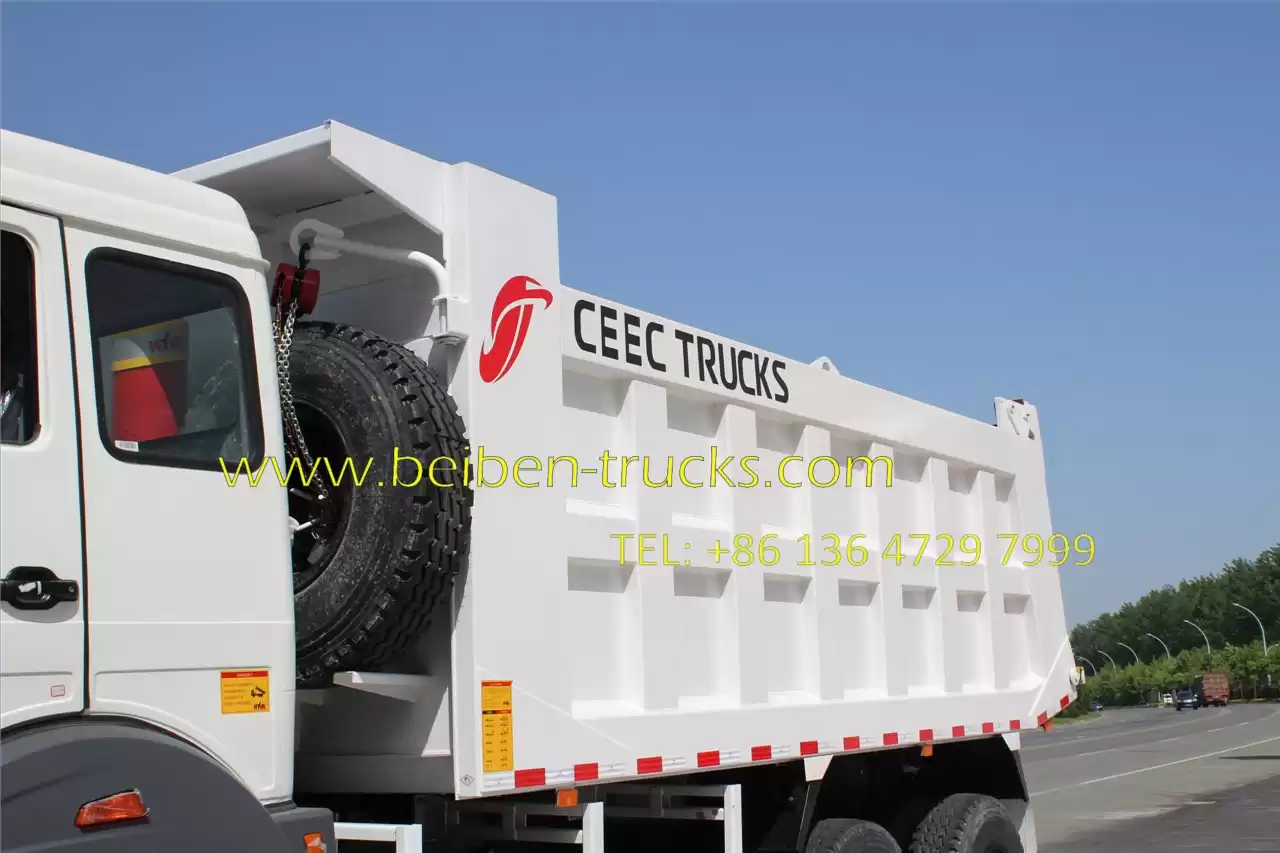

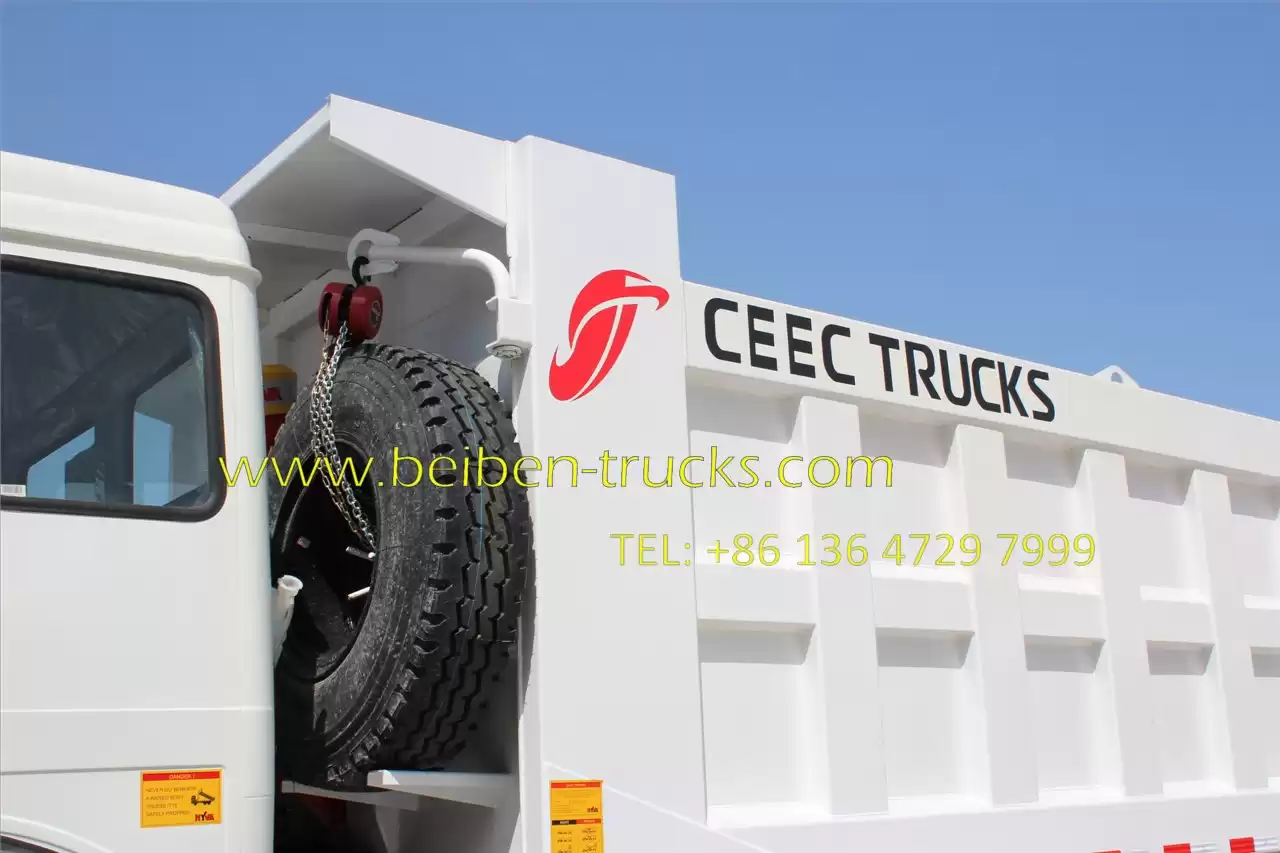

Cargo box
|

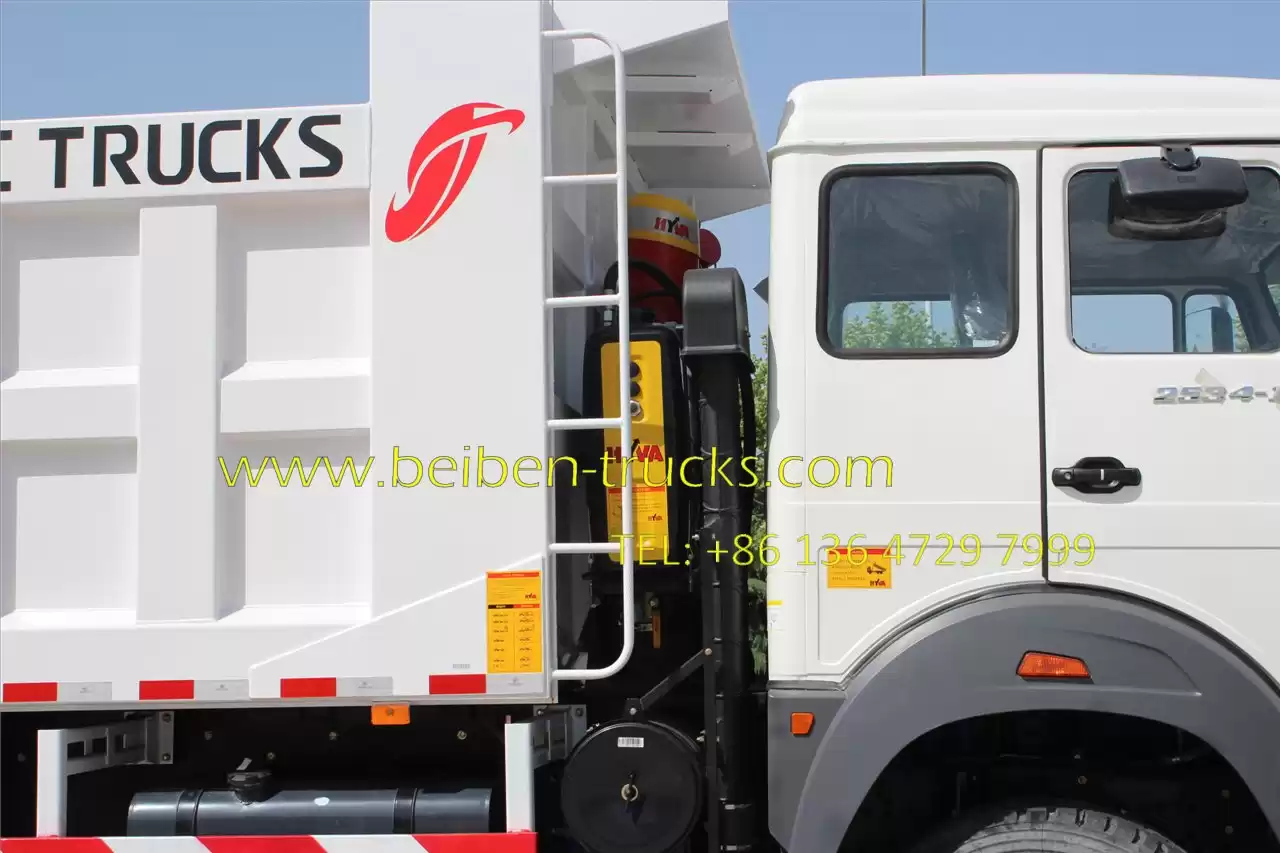

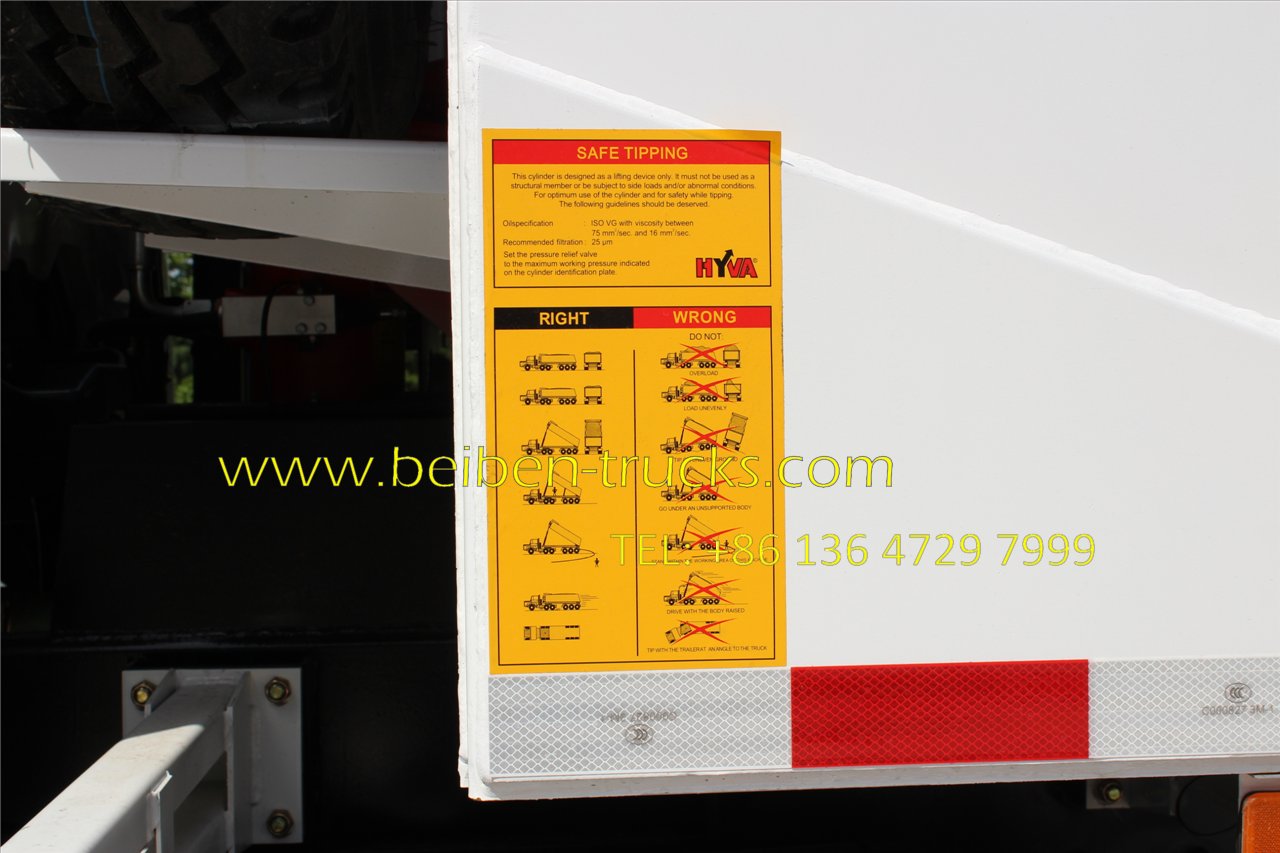

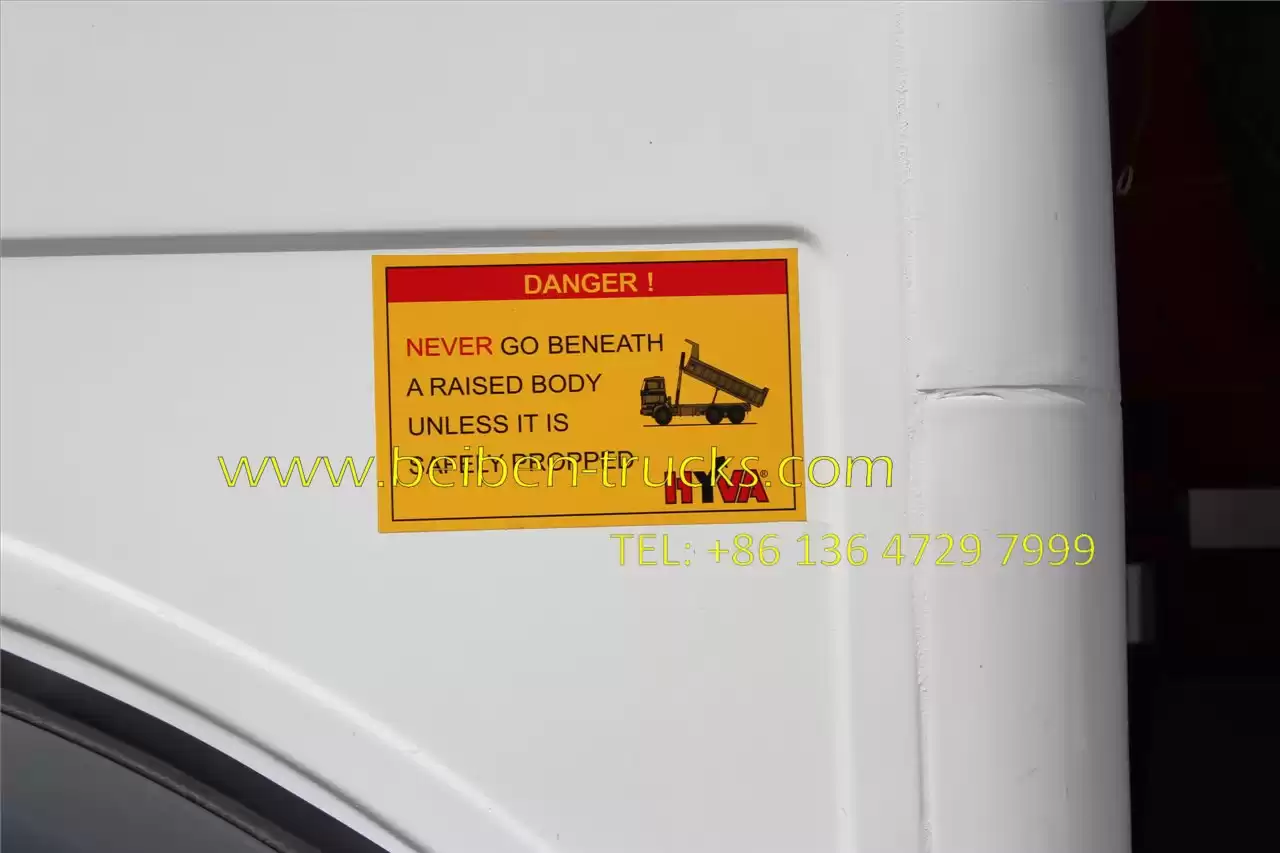

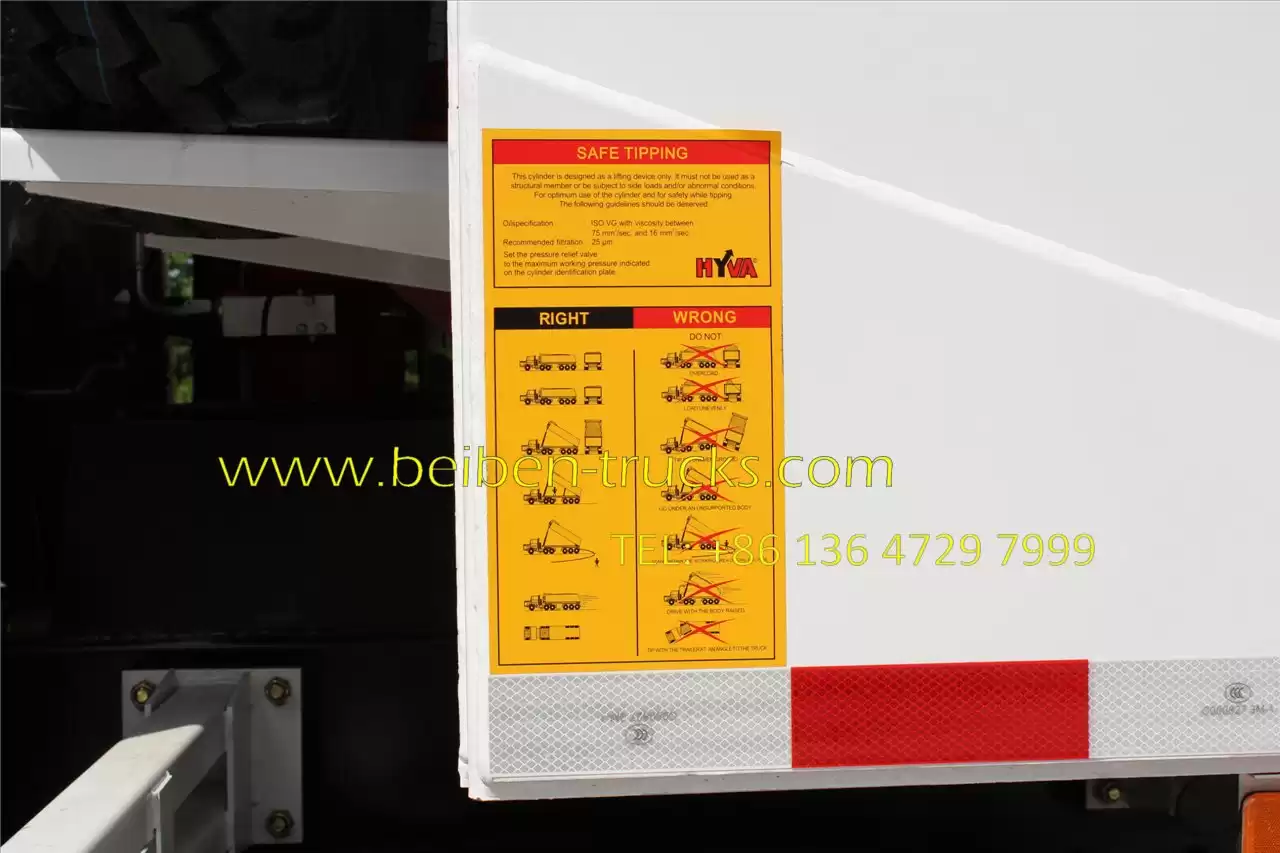

5600x2300x1350mm, HYVA hydraulic lifting system; thickness:
bottom 8mm, side 6mm
|
|
Approaching angle/Departure angle
|
26/28°
|
|
Overhang(front/rear)
|
1410/1720mm
|
|
Wheel base
|
3800+1450mm
|
|
Max speed
|
85km/h
|
|
Curb weight
|
12650kg
|
|
Engine
|
Model
|
WP10.340E32, water-cooled, four strokes, 6 cylinders in line,
turbocharged, directly injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
250/2200 (kw/rpm)
|
|
Max.torque
|
1600/1800(N.m/rpm)
|
|
Emission
|
Euro III
|
|
Fuel tanker capacity
|
300L
|
|
Clutch
|
∮430, Single dry frictional disc,Hydraulic boosting
|
|
Gearbox
|
9JS180, mechanism, 9 forward gears, 1 reverse gear, manual
operated
|
|
Gear ratio of gear box
|
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22
|
|
Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with
stabilizer bar suspension , 10pcs
|
|
Rear
|
Non-free standing stabilization spring, balance suspension
system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation
air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
ZF8098 hydraulic steering with power assistance
|
|
Frame
|
Strengthened Straight beam
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
|
Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub
redactor, double reduction 16 T axle
|
|
Tyre
|
12.00-20 tyres
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

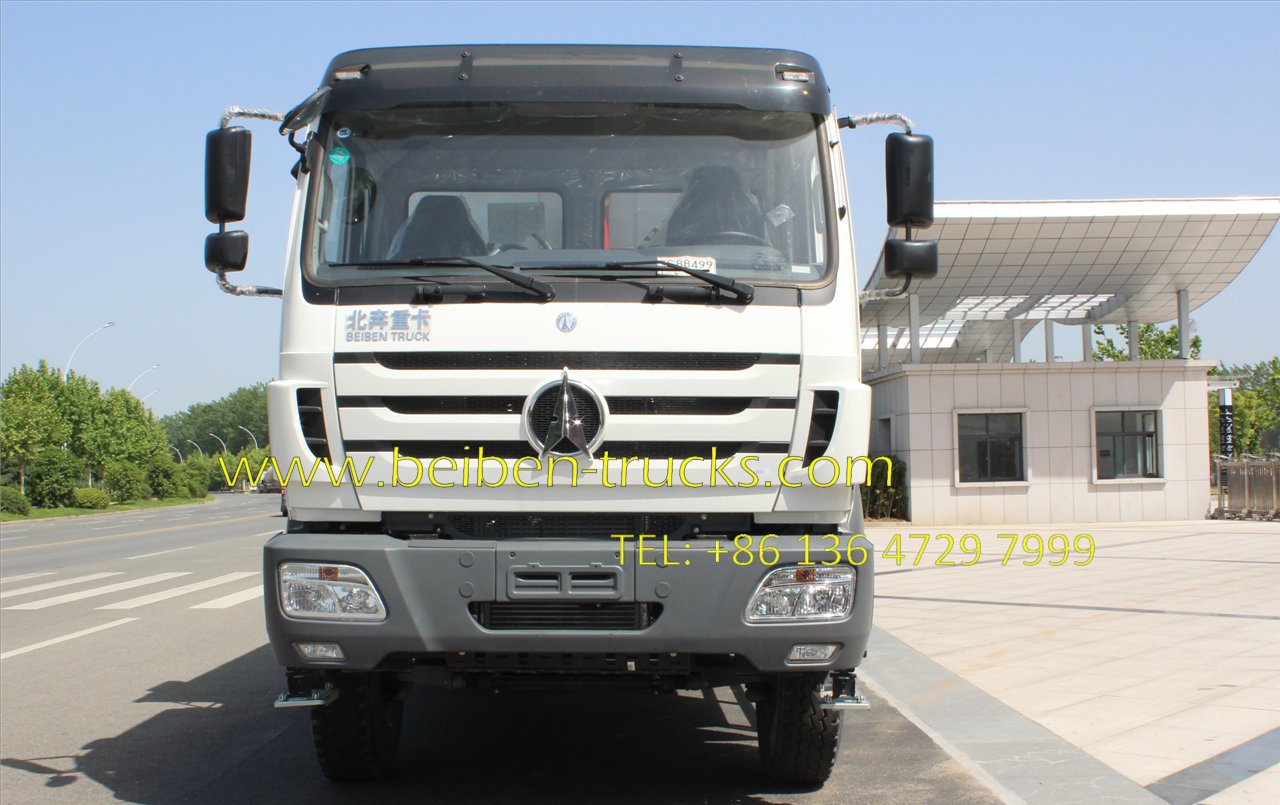

Beiben NG80B dumper Cabin
|
NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner
A/C
|
