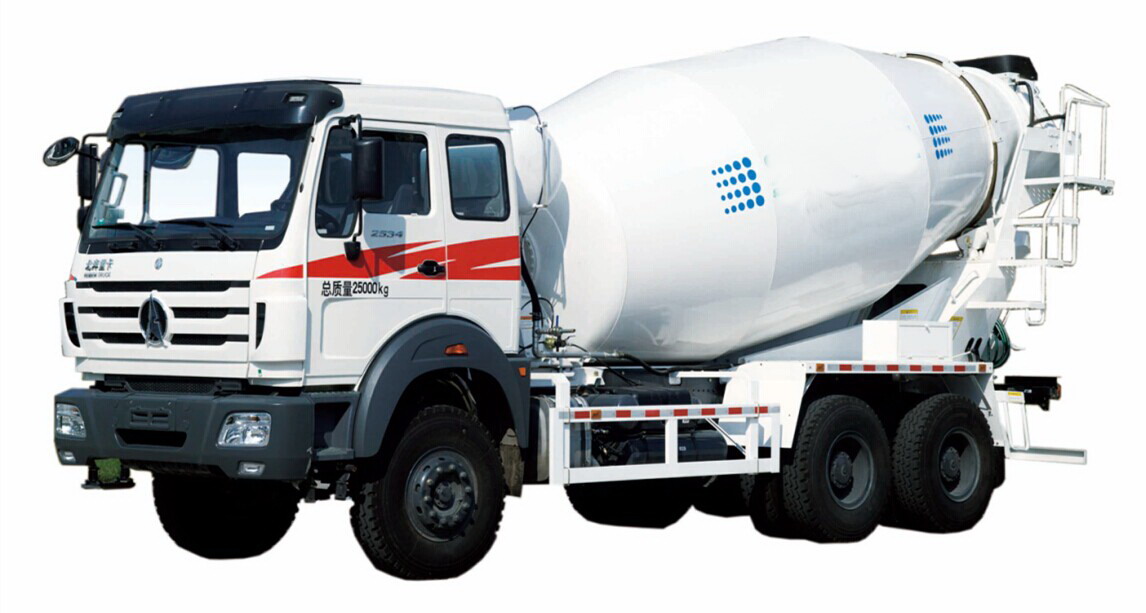

Beiben 2534 Mixer truck

Beiben 2534 transit mixer truck chassis, 340 Hp engine europen technology, fast 9 shift transmission, benz 7 T front axle , benz technology  16 double rear axle, 12.00R20 tyre. 3800+1450 mm wheelbase.

Facebook Twitter Pinterest LinkedIn 分享

BEIBEN 2534 CONCETE MIXER TRUCK BEST PRICE

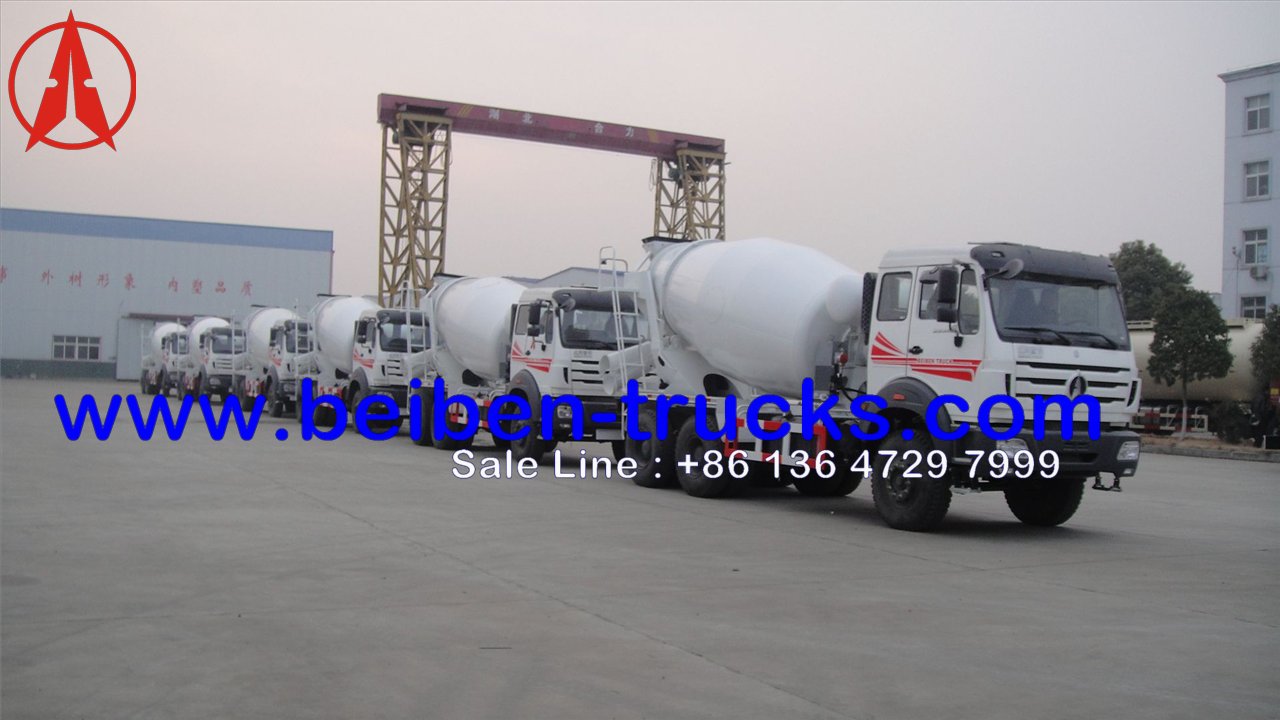

 beiben 9 CBM concrete mixer truck

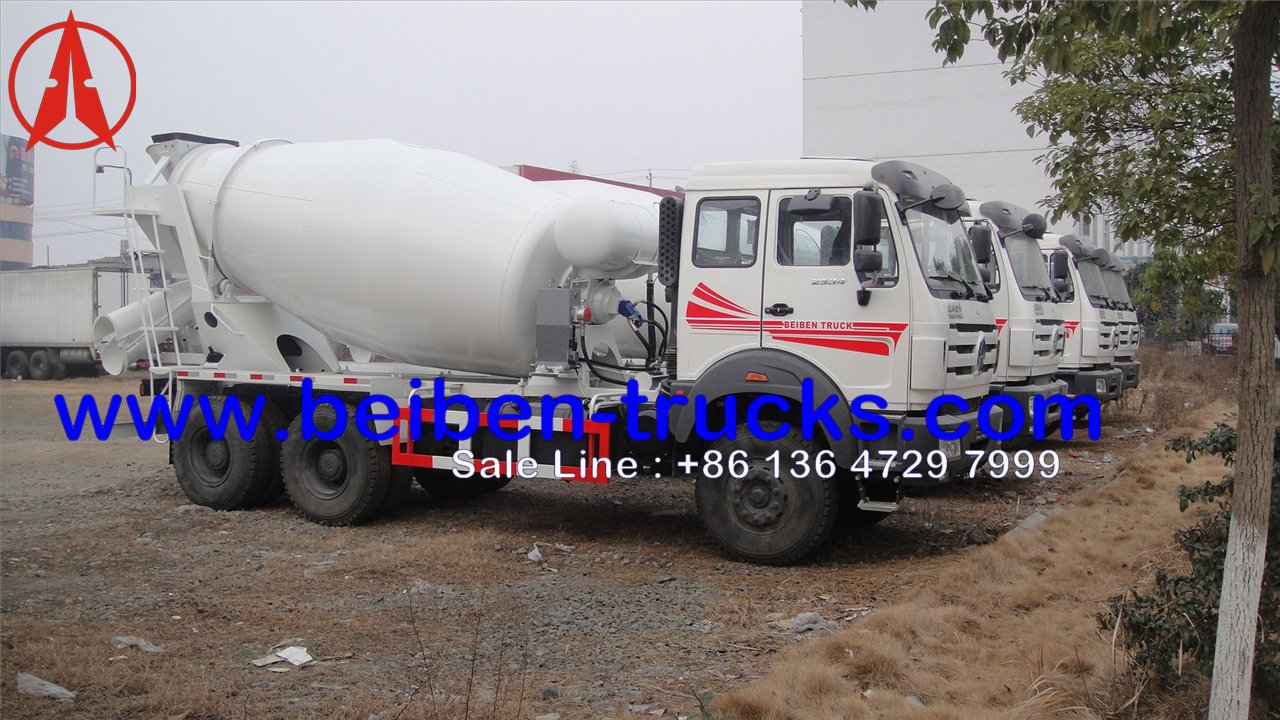

beiben 9 CBM concrete mixer truck

Driving type LHD (Right Hand Drive is optional)
Driver's cab Long cabin, single sleeper
Engine Maker: WEICHAI
  Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter-cooling
  Engine model: WP10.336
EURO II/EUROIII emission standard
  Maximum output: 336HP@2200 rpm
  Number of cylinder:6
  Displacement: 9.726L
Clutch 430mm, hydraulically operating with air assistance
Transmission FULLER Brand transmission. 9T-160
Front Axle Benz front axle 7.5 tons
Rear Axle Benz 13T double reduction drive axle
Steering TAS85
  Option: ZF8098, hydraulic steering with power assistance
Wheel & Types Tyres: 12.00-20
  Optional: 12R22.5,12R20
  Radial tire and tubeless tire is optional
Electrics Operating voltage: 24V, negative grounded
Dimensions in mm Wheel base:                            3450+1450
  Overall size:                     8650×2500×3840
Weight in kg Kerb weight                           13350
  Permissible trailing capacity               25000
Performance Maximum driving speed(km/h)             85
Body mm 8CBM Mixer body
