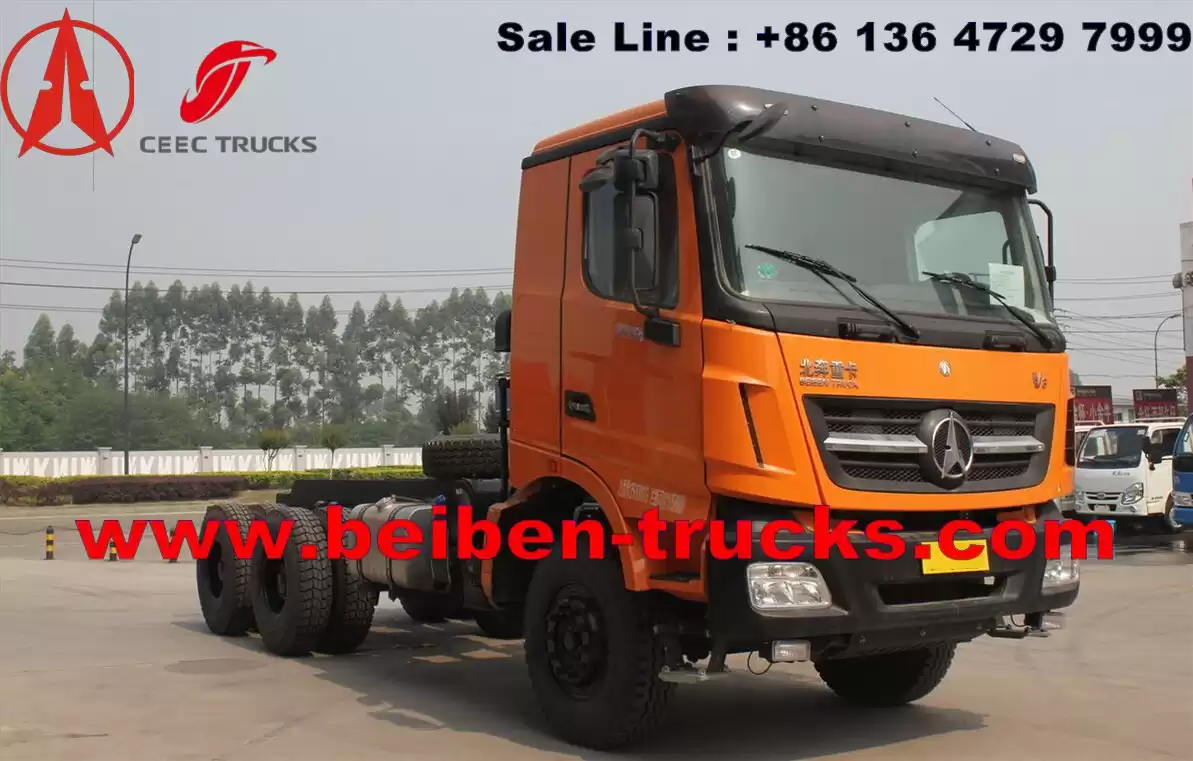

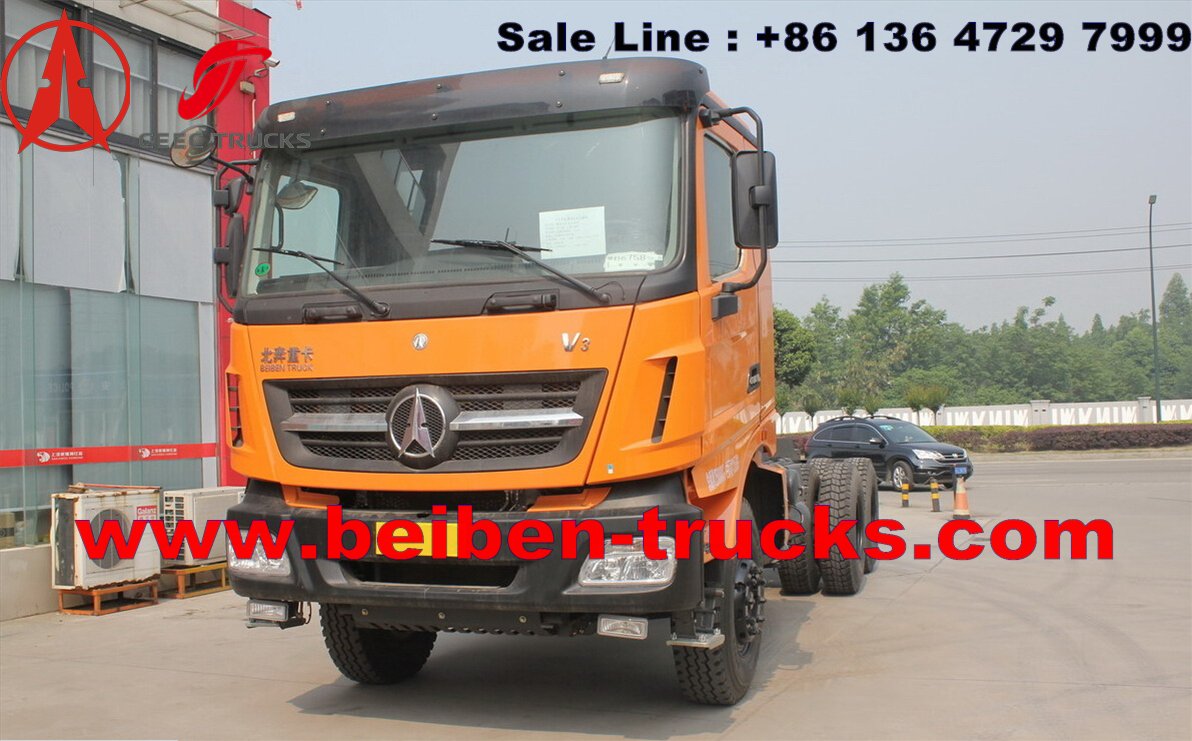

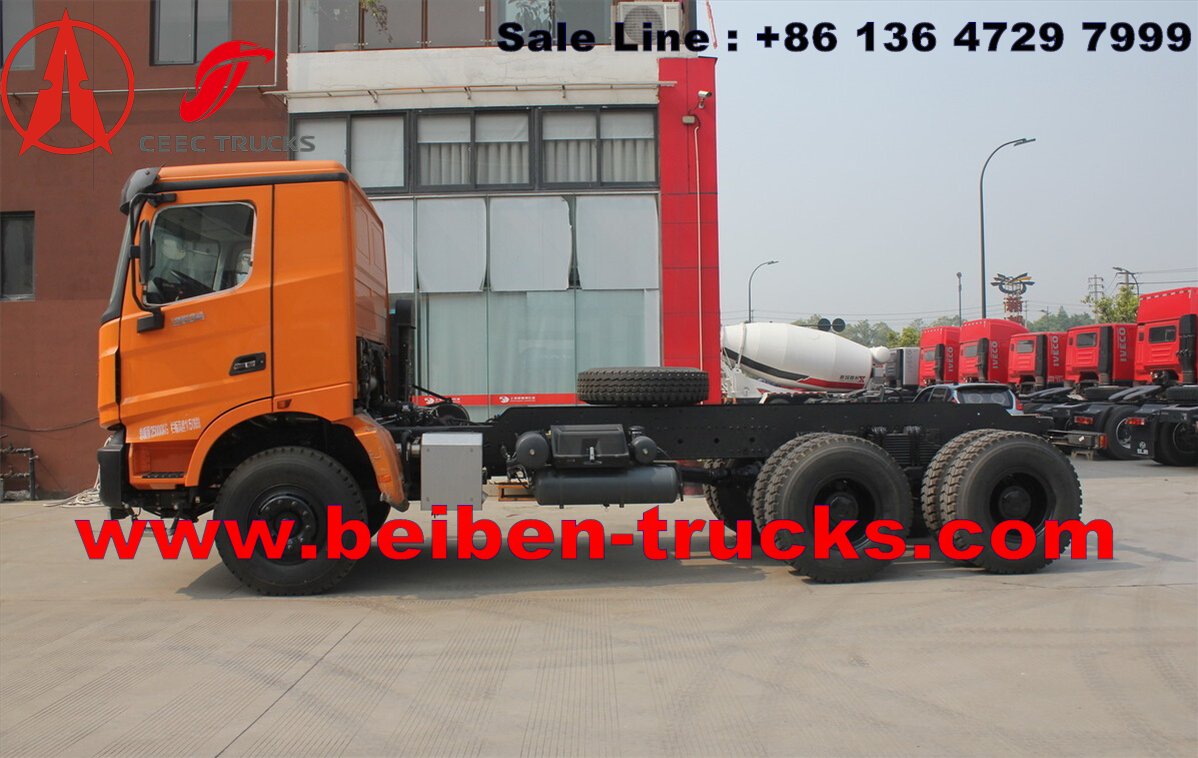

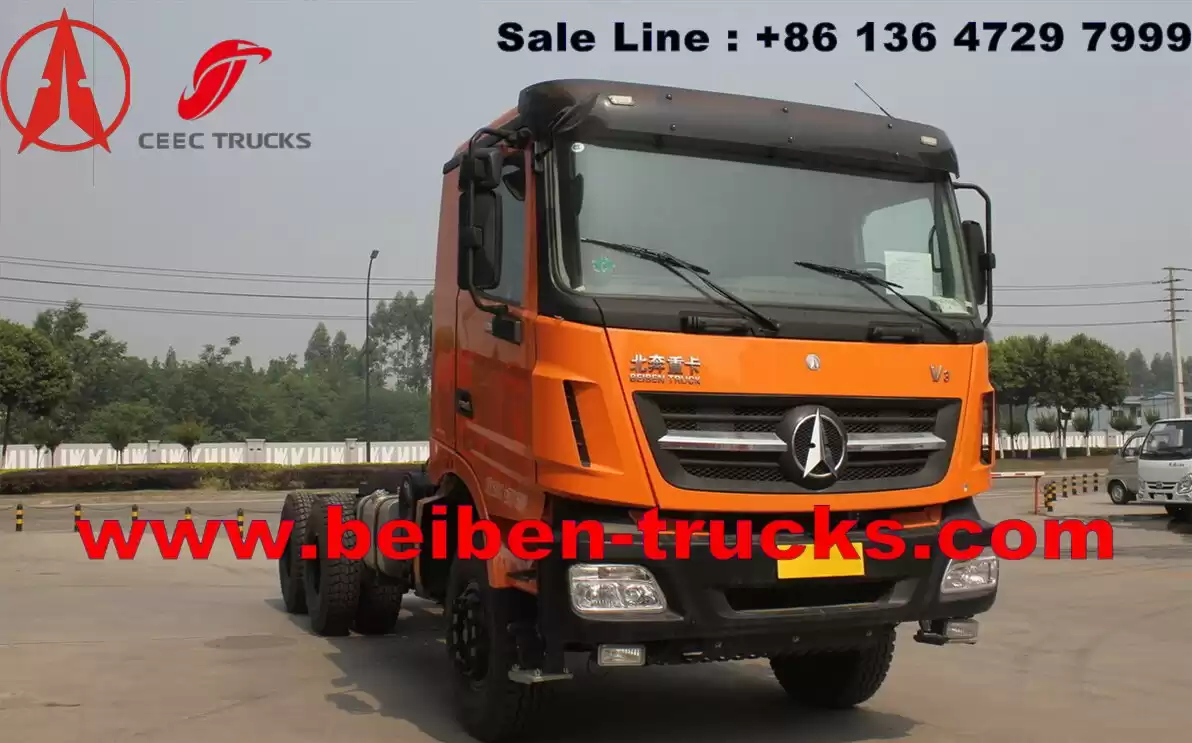

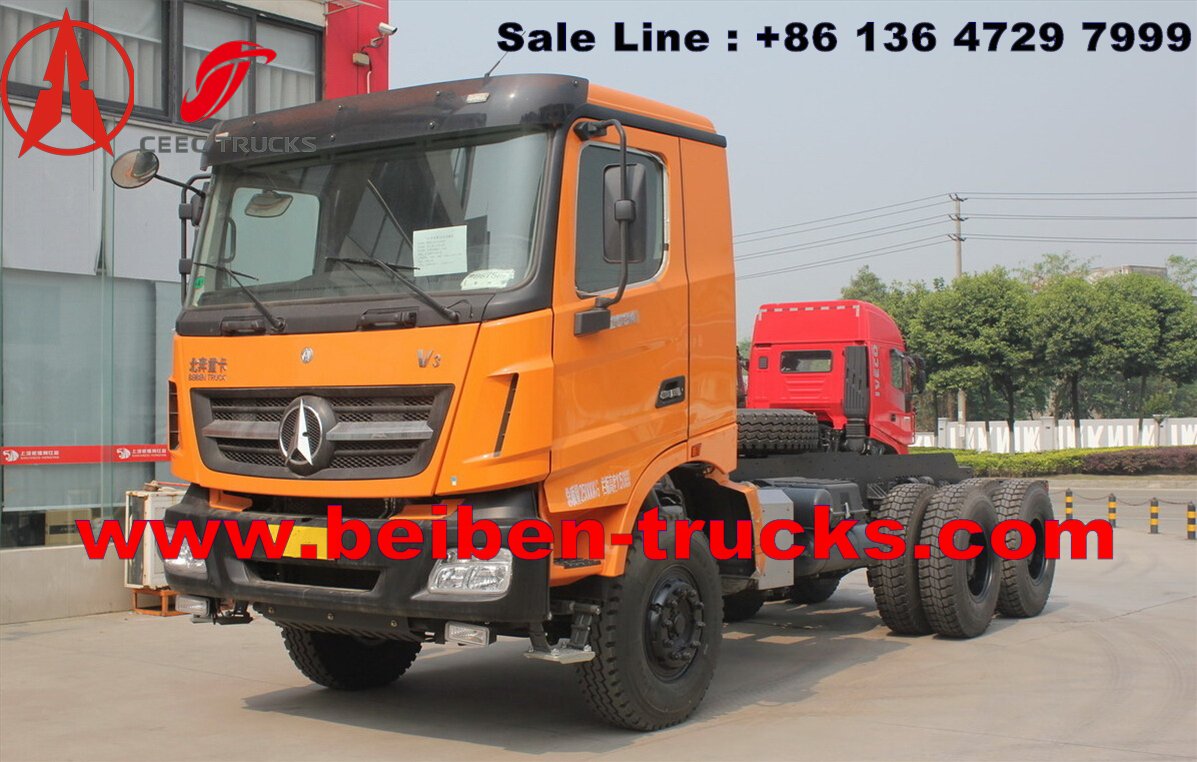

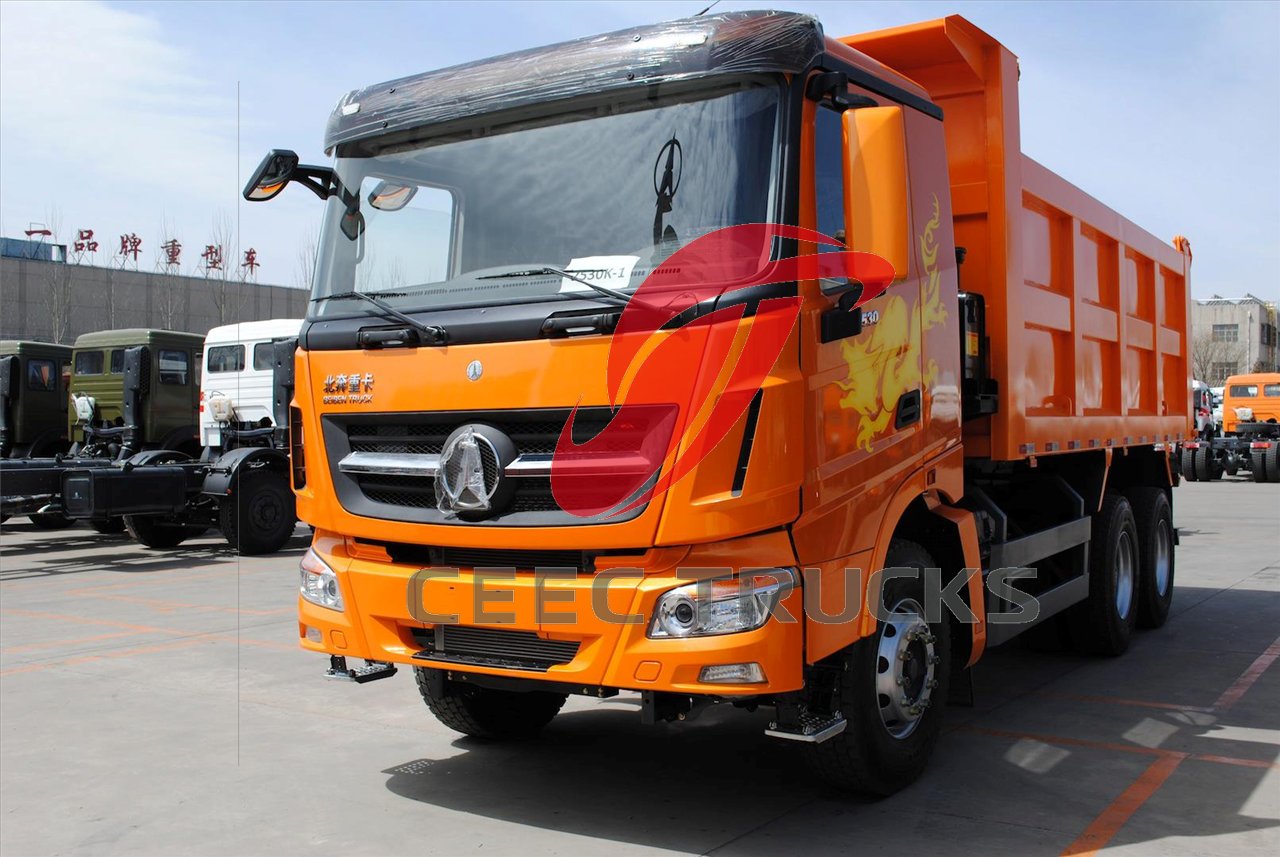

2538KY /6×4/4750+1450 Middle Long Cab
|
|
Dimension
|
9880*2500*3430mm
|
|

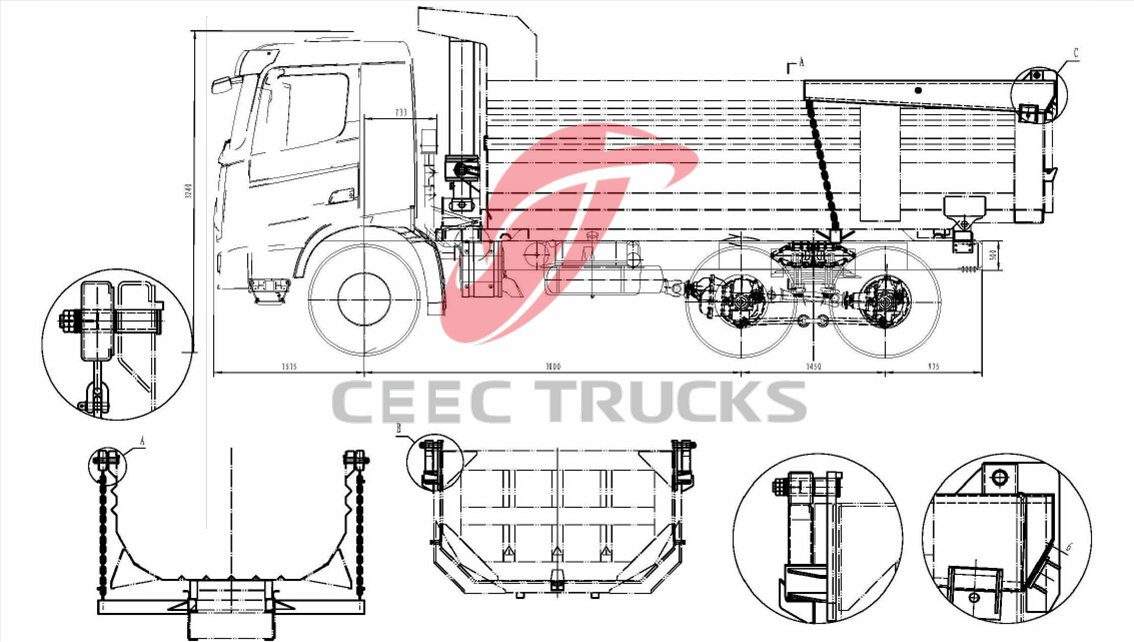

Upper body inner dimension
|
7000x2300x950 sand body, Hyva hydralic
lifting system, thickness: bottom 8mm, side 6mm
|
|
Approaching angle/Departure angle
|
26/28°
|
|
Overhang(front/rear)
|
1515/2215mm
|
|
Wheel base
|
4750+1450mm
|
|
Max speed
|
90km/h
|
|
Curb weight
|
12280kg
|
|
Loading capacity
|
12590kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP10.375，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
276/2200 (kw/rpm)
|
|
Max.torque
|
1460/1200-1600（Nm/rpm）
|
|
Emission stantard
|
EuroⅢ
|
|
Fuel tanker capacity
|
300L
|
|
Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
|
Gearbox
|
9JS180, mechanism,9 forward gears,1
reverse gear, manual operated,
|
|
Gear ratio of gear box
|
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00
R:13.22
|
|

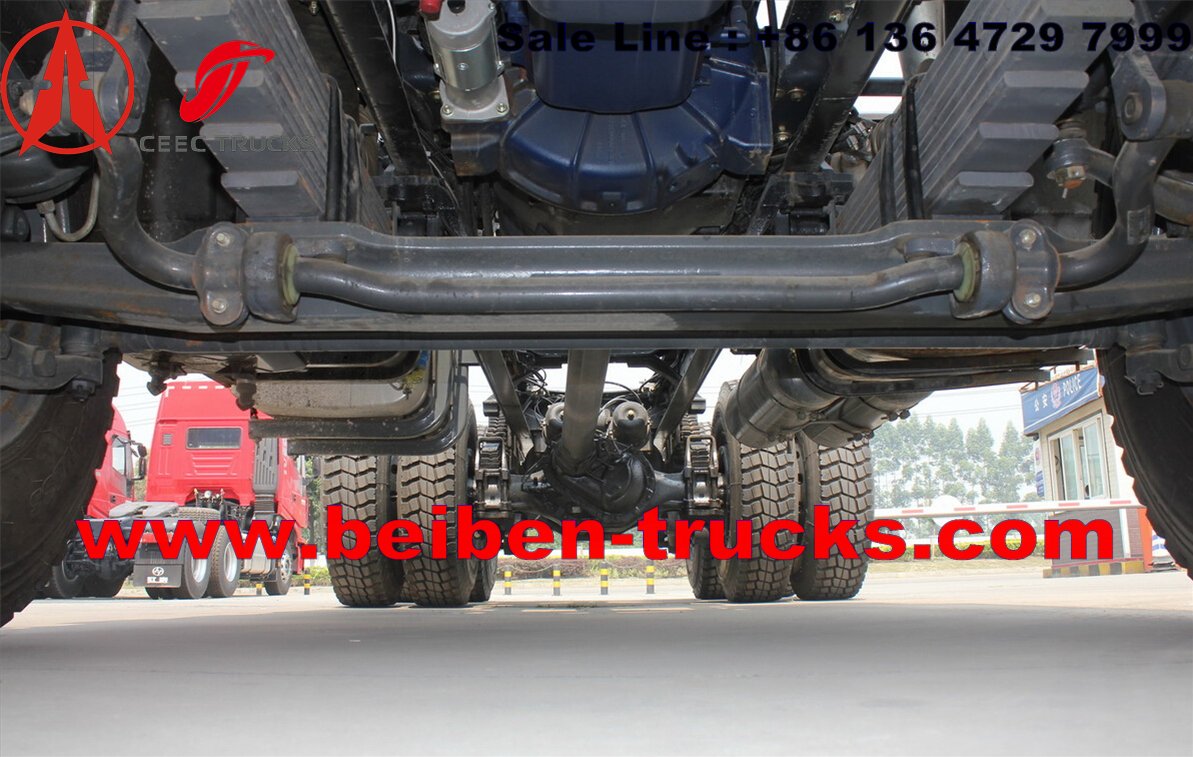

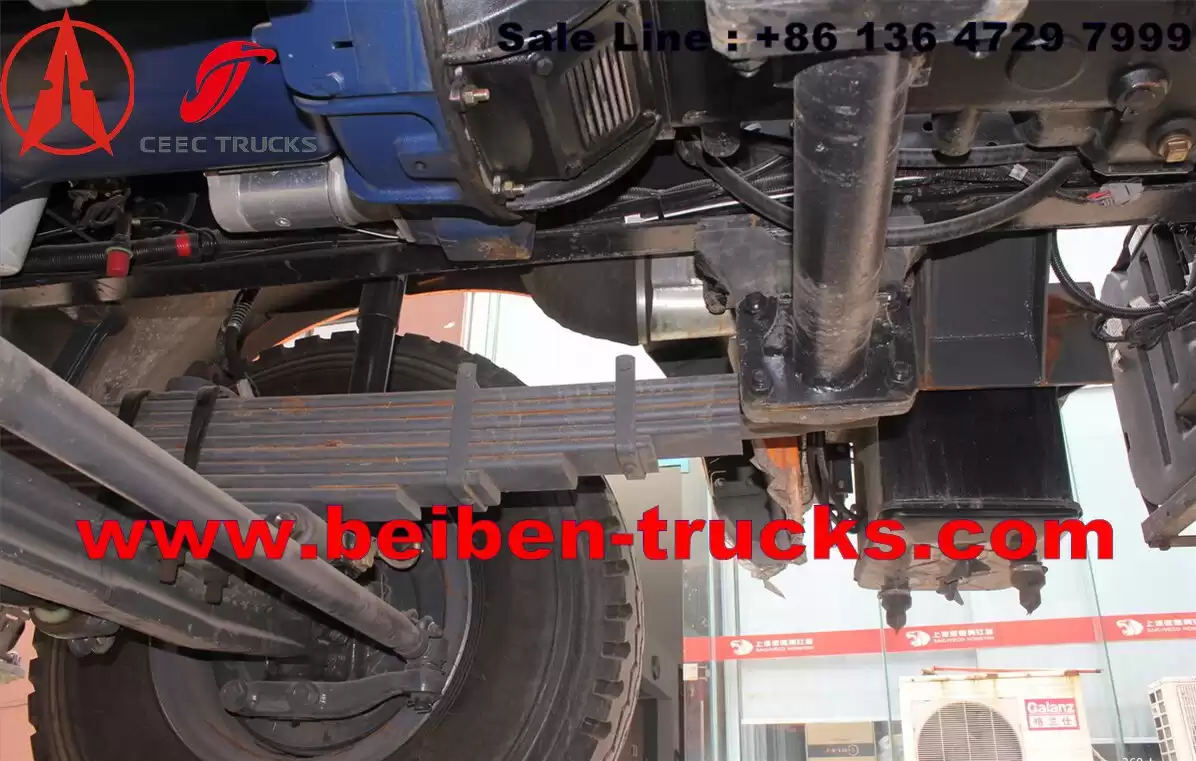

Suspension system
|
Front
|
Non-free standing leaf spring,telescopic
shock absorber with stablizer bar suspension , 10pcs
|
|

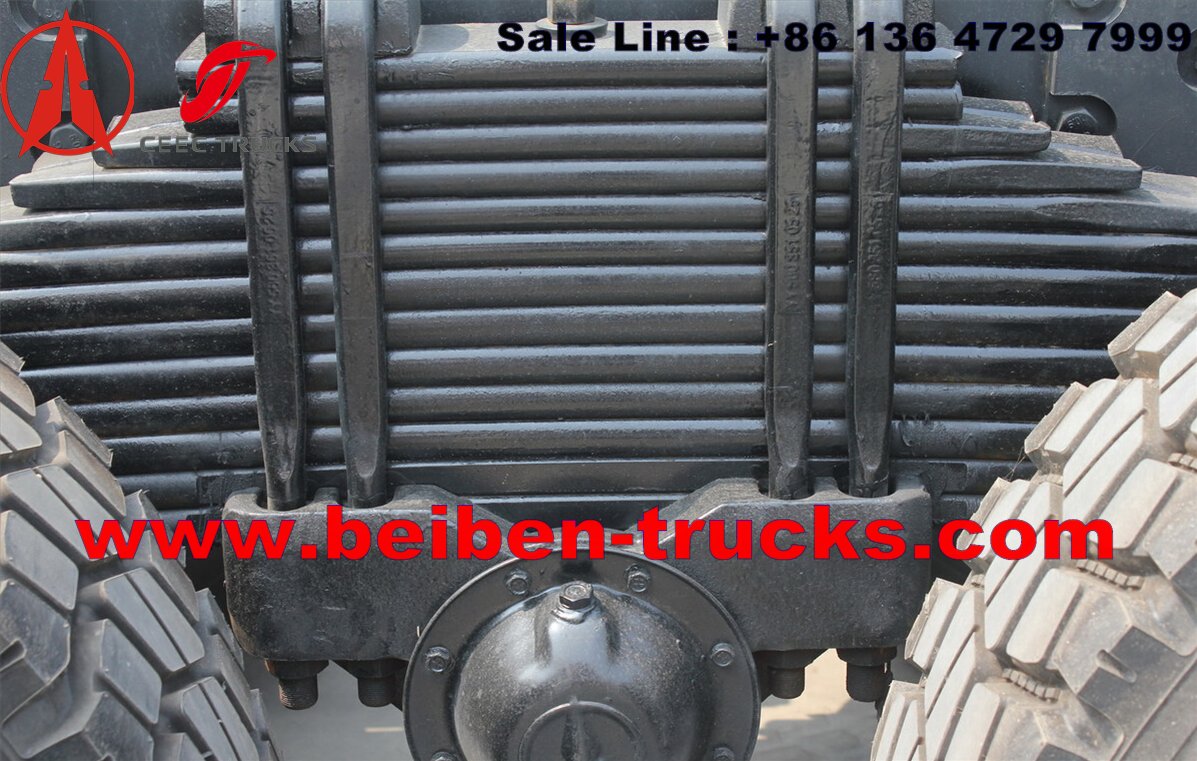

Rear
|
Non-free standing stablization spring,
balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically,
double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and
rear wheels
|
|
Steering system
|
ZJ120D,whole circulation in ball,
hydraulic booster
|
|

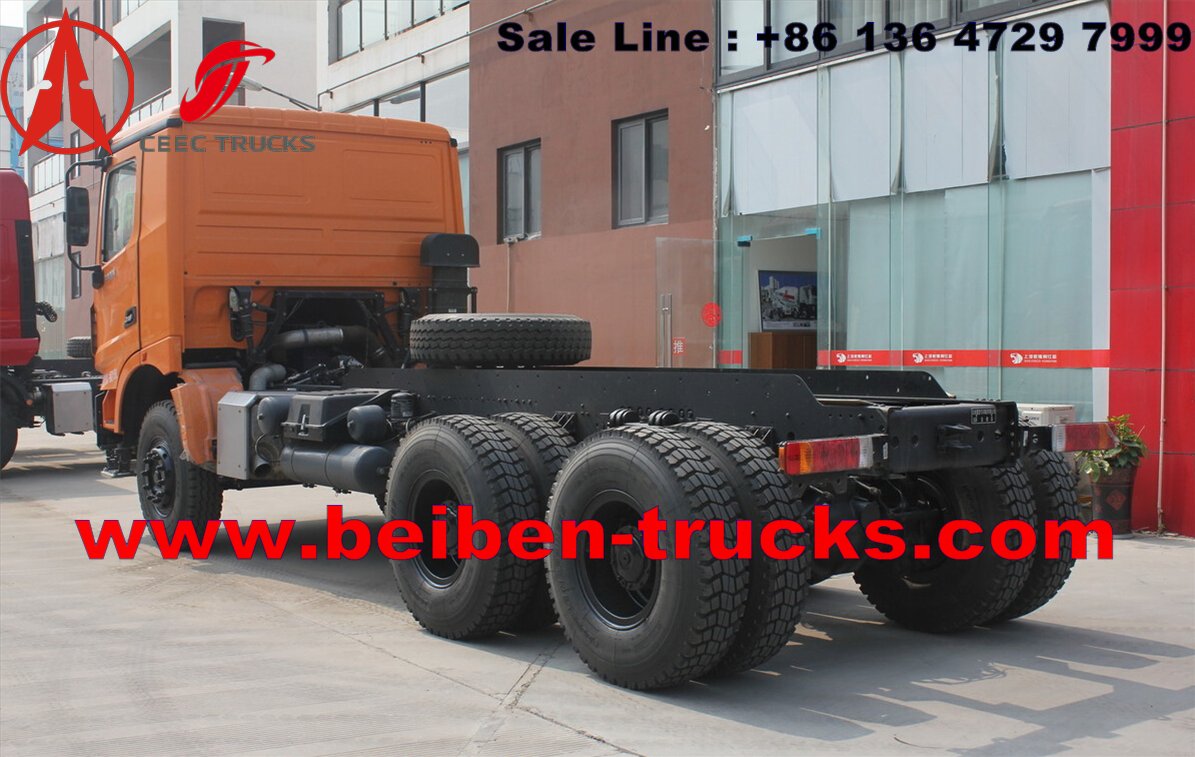

Frame
|
Strengthened Streight beam
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving
steering axle
|
|
Middle and Rear axle (Mercedes
Technology)
|
Double-shoe pneumatic brake, ductile
casting casing, with hub redactor, double reduction driving axle
|
|

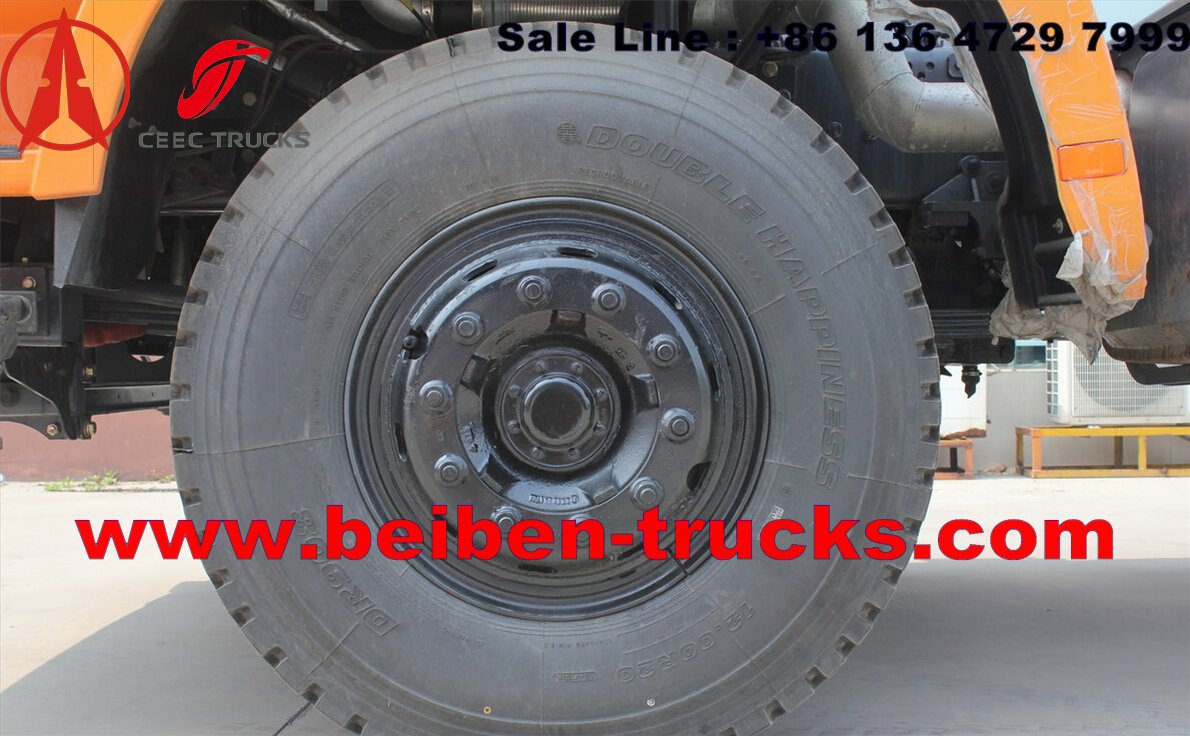

Tyre
|
12.00R20 Radial
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

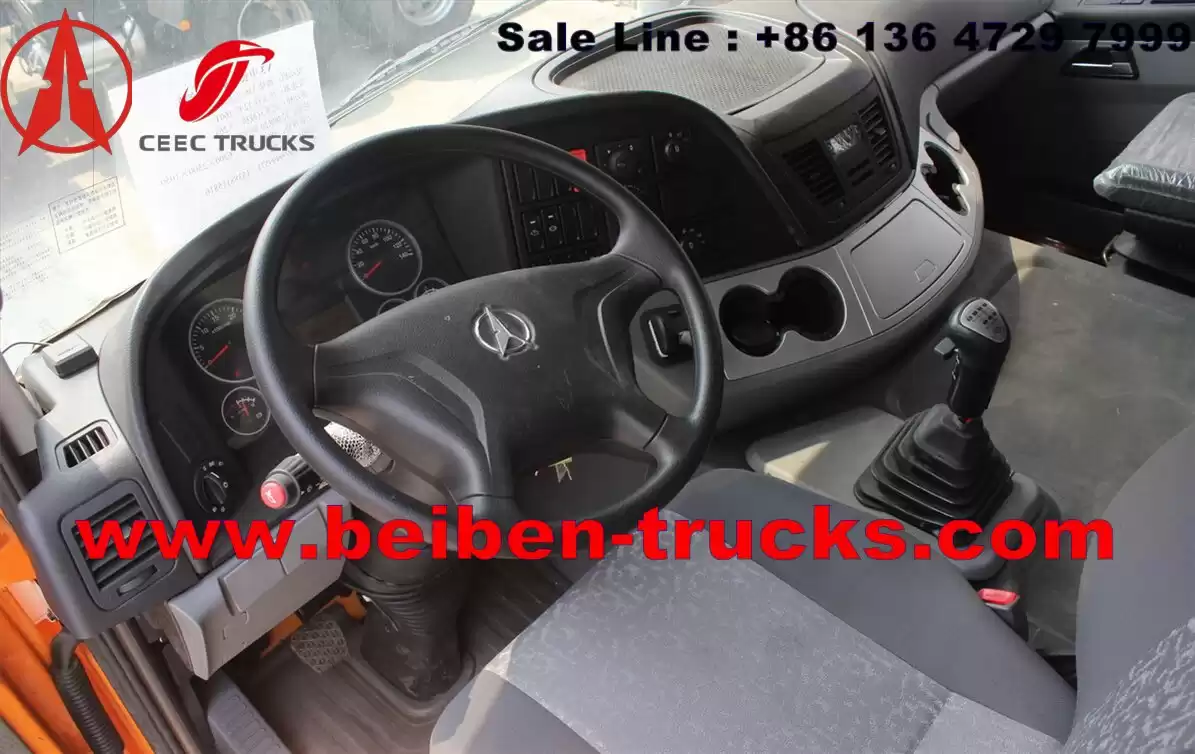

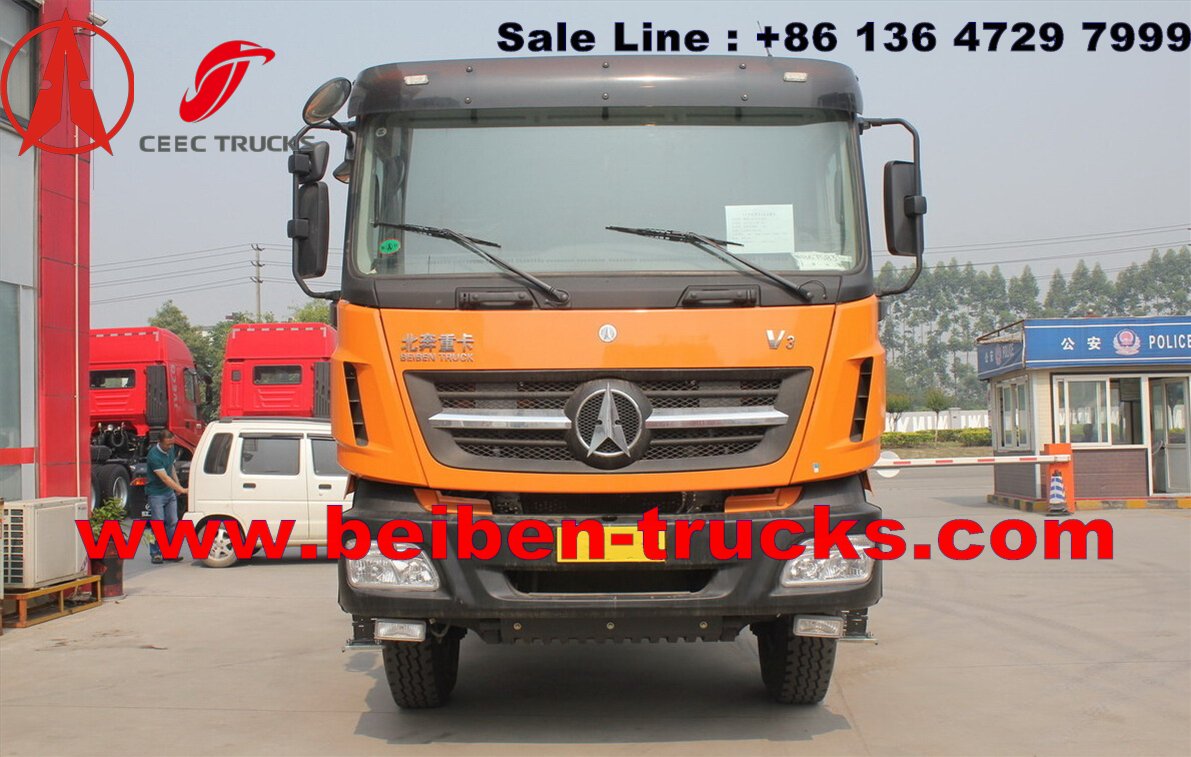

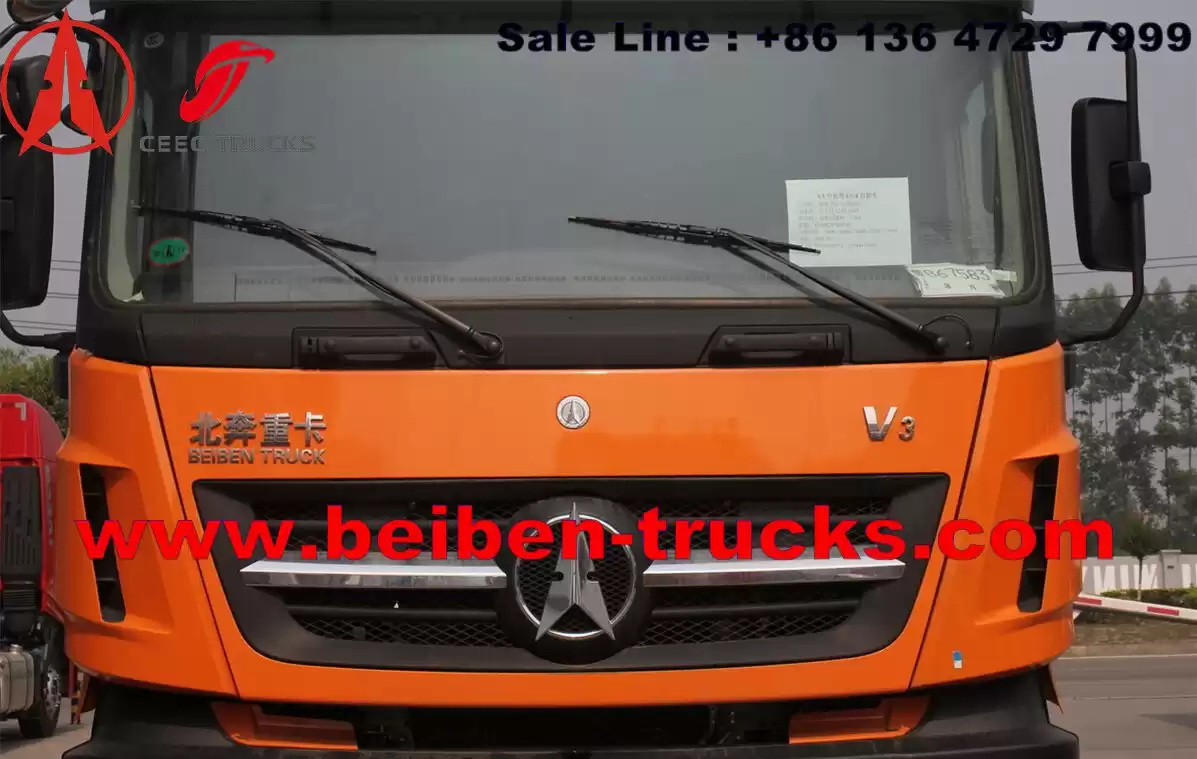

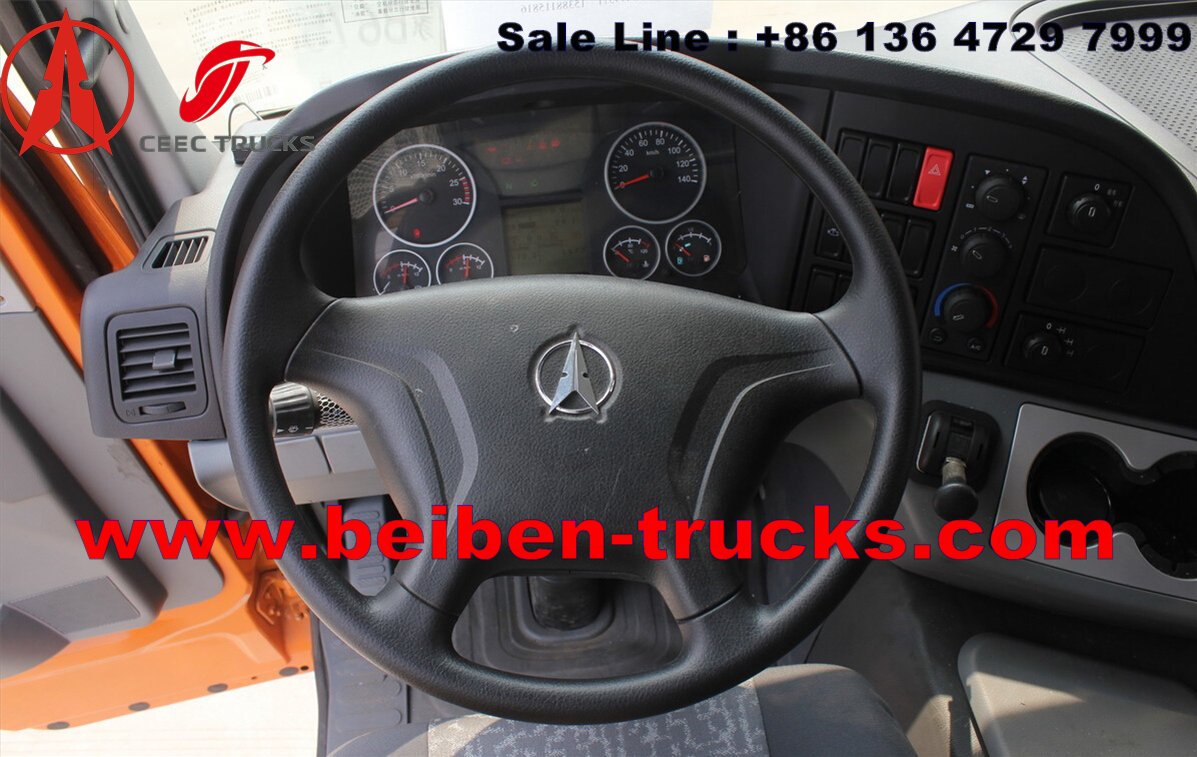

Cabin
|
V3 Middle-Long cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
