Beiben V3 Tractor Head Truck (also called V3 tractor head, beiben 2534 tractor head truck, beiben V3 tractor unit, tractor unit truck, mobile tractor unit, North Benz mobile tractor unit, beiben 2534 semi tractor, Benz V3 semi truck tractor, tractor semi truck, prime mover,etc.) is a specialized towing engine that provides motive power for hauling a towed or trailered load.
beiben V3 Tractor Unit 534 towing trucks for sale
2016 brand New beiben V3 tractor head from supplier CEEC TRUCKS:
★ Beiben 6*4 Tractor chassis ensures perfect driving performance.
★ WEICHAI WP10.340 engine, 340HP super powerful; reliable performance.
★ Nice shape, rational structure, New V3 Cabin
★ High strength fifth wheel coupling, JOST single direction
★ Strong, durable, perfect performance
★ Benz technologyProlonged service life
Similar Key Words: tractor, beiben V3 tractor head truck, V3 heavy haul tractor, Beiben V3 tractor unit truck, Benz 2534 mobile tractor unit, North Benz 2534 V3 mobile tractor unit, road tractor, semi tractor, semi truck tractor, tractor semi truck, prime mover, towing truck
| 2634S /6×4/3450+1450/Long Cab/RHD Beiben V3 2534 model 340HP Tractor Truck
|
| Dimension
|
7136*2495*3180mm
|
| Approaching angle/Departure angle
|
26/64°
|
| Overhang(front/rear)
|
1410/825mm
|
| Wheel base
|
3450+1450mm
|
| Max speed
|
90km/h
|
| Curb weight
|
9200kg
|
| Max towing weight
|
36900kg
|
| Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WP10.380,water-cooled,four strokes,6 cylinders in line, turbocharged, directly injection
|
| Displacement
|
9.726L/Diesel
|
| Stroke
|
126/130mm
|
| Max. power
|
280/2200 (kw/rpm)
|
| Max.torque
|
1460/1200-1600(Nm/rpm)
|
| Emission stantard
|
Euro â…¢
|
| Fuel tanker capacity
|
400L
|
| Clutch
|
430, Single dry frictional disc, Hydraulic boosting
|
| Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
| Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|

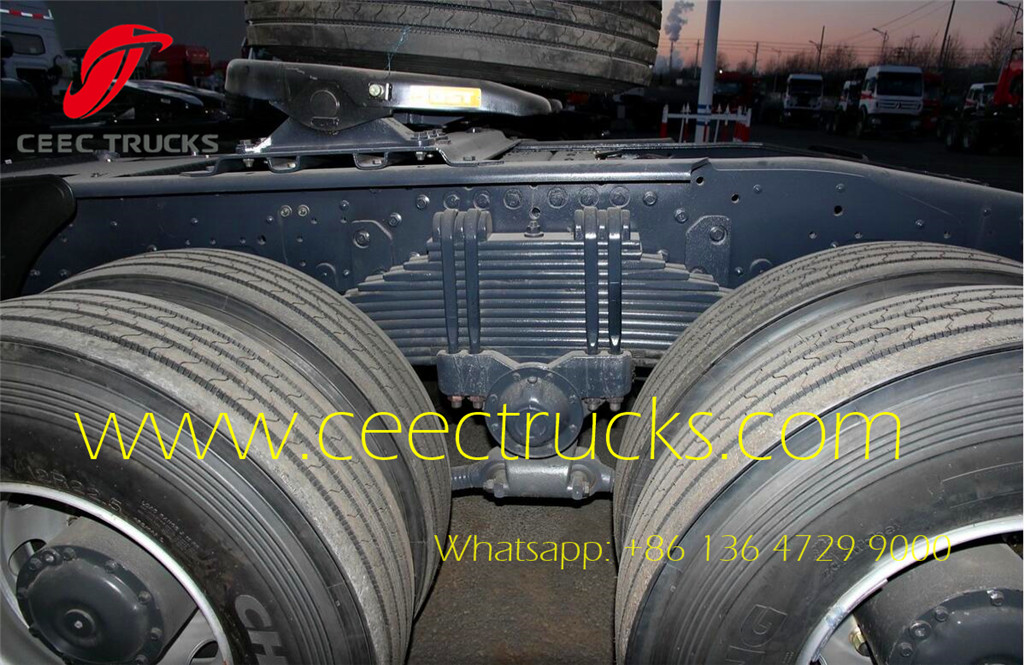

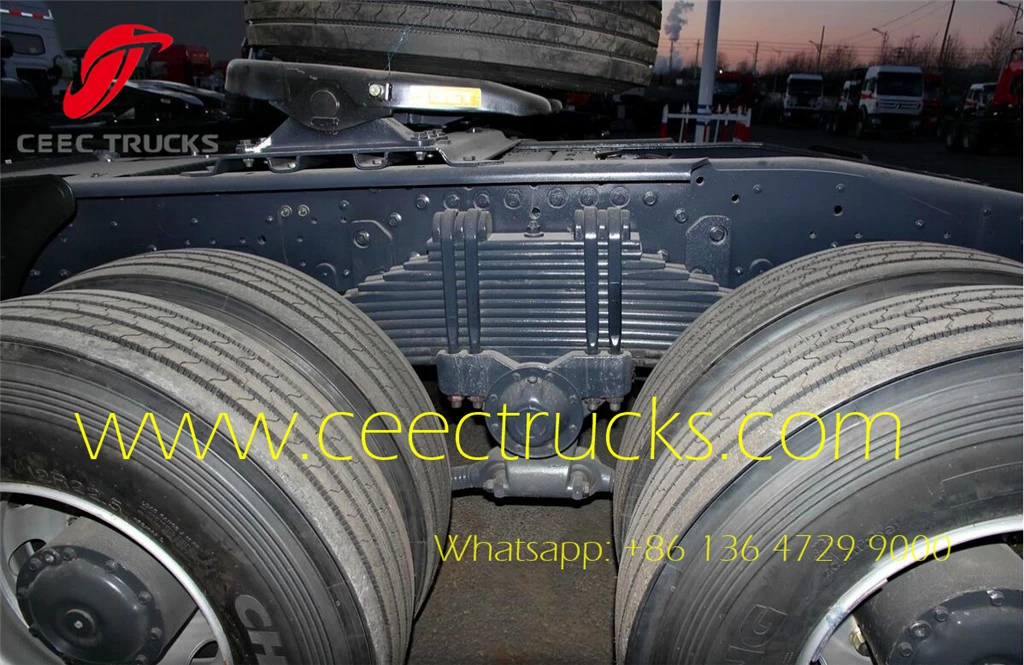

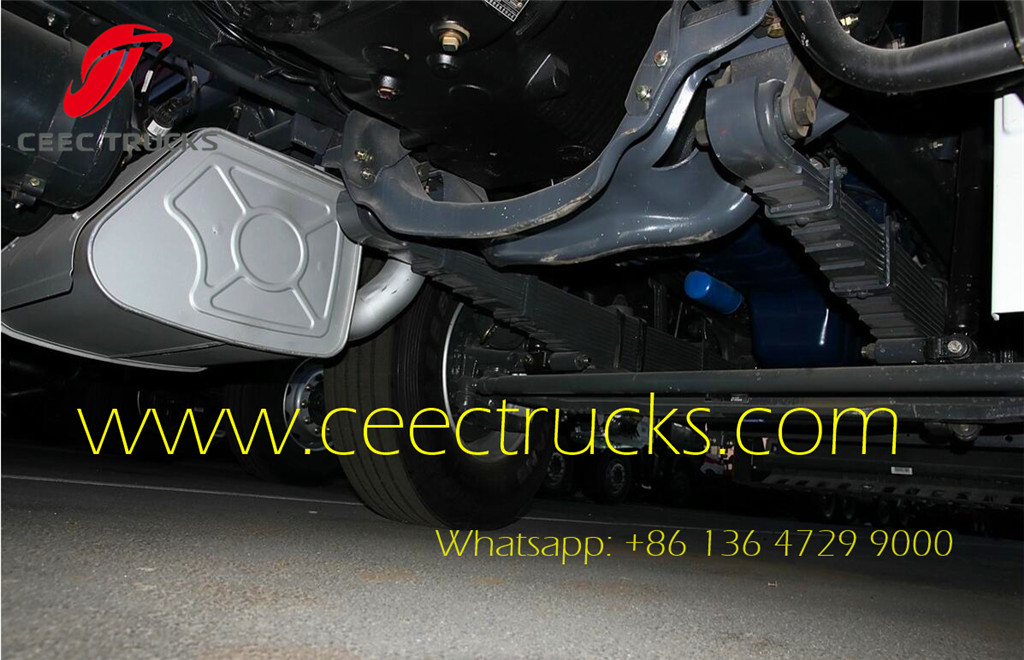

| Suspension system
|
Front
|
Non-free standing leaf spring, telescopic shock absorber with stablizer bar suspension , 13pcs
|
| Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| Model
|
JOST 90 single direction
|
| Height of fifth wheel(mm) (unload)
|
1410
|
| Radius of front gap (mm)
|
2300
|
| Radius of rear slew (mm)
|
2600
|

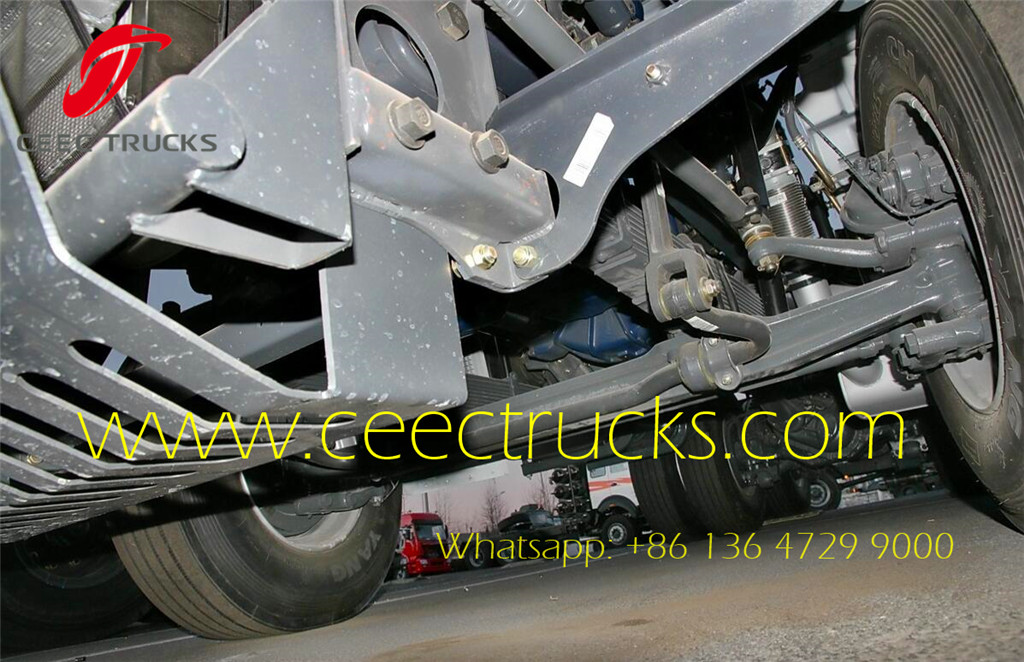

| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|

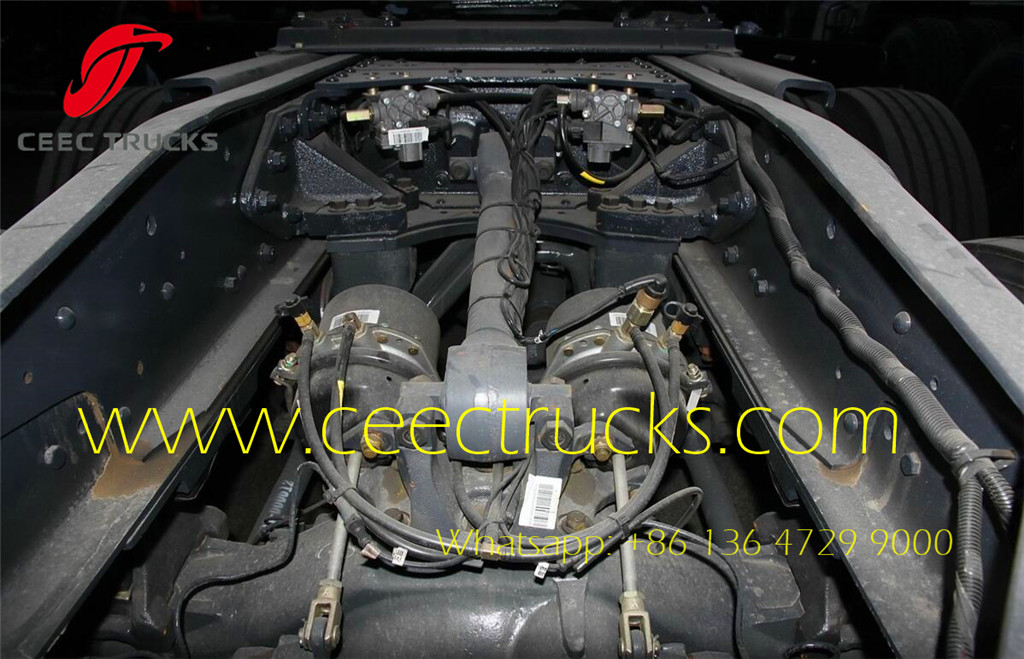

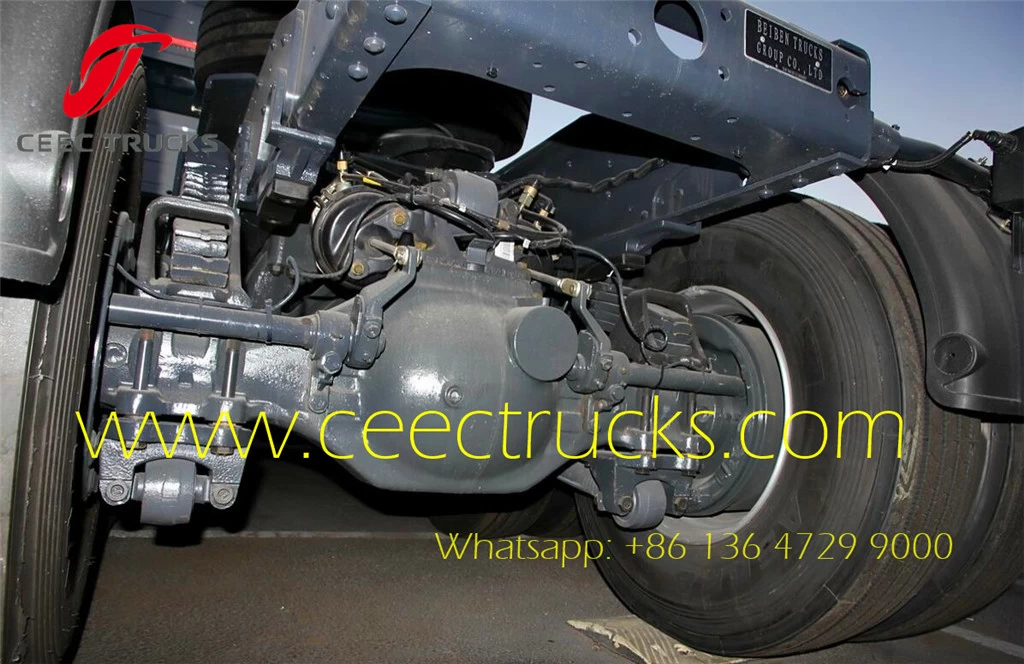

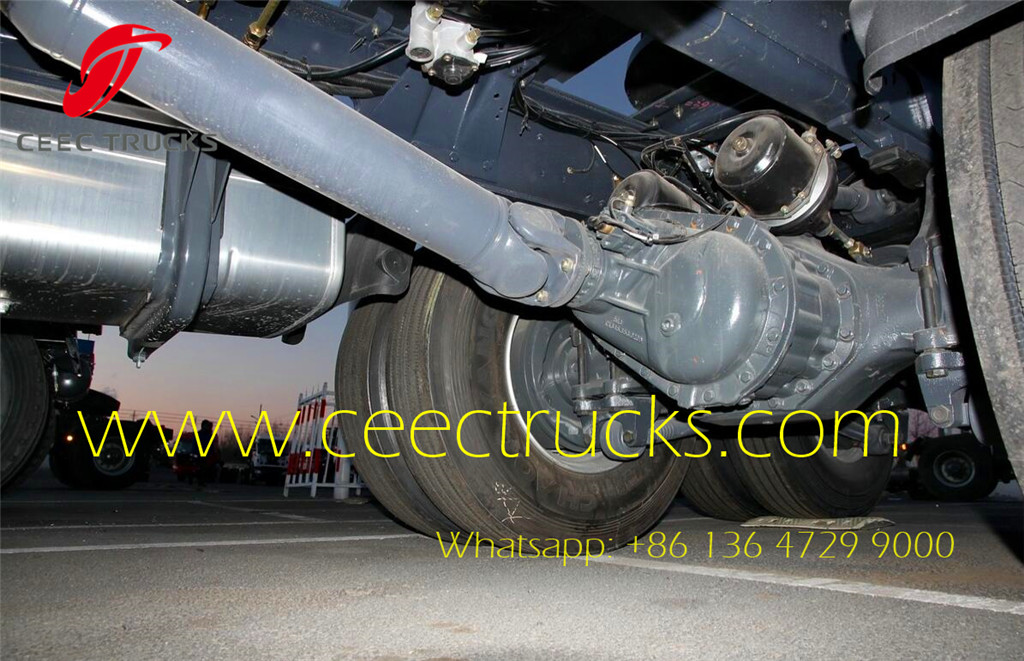

| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
12.00-R20
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|

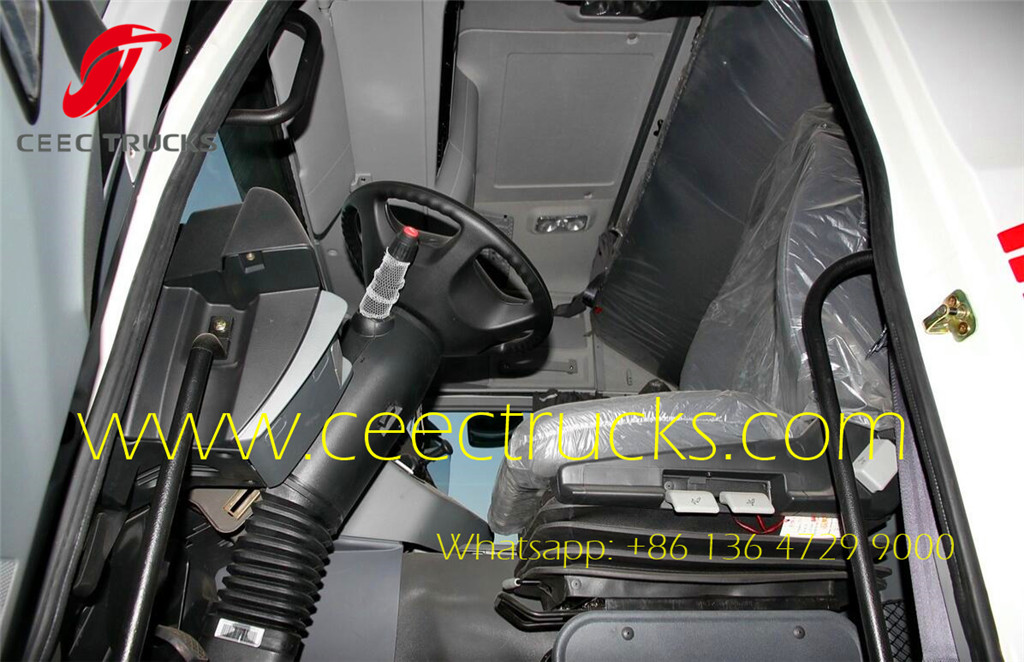

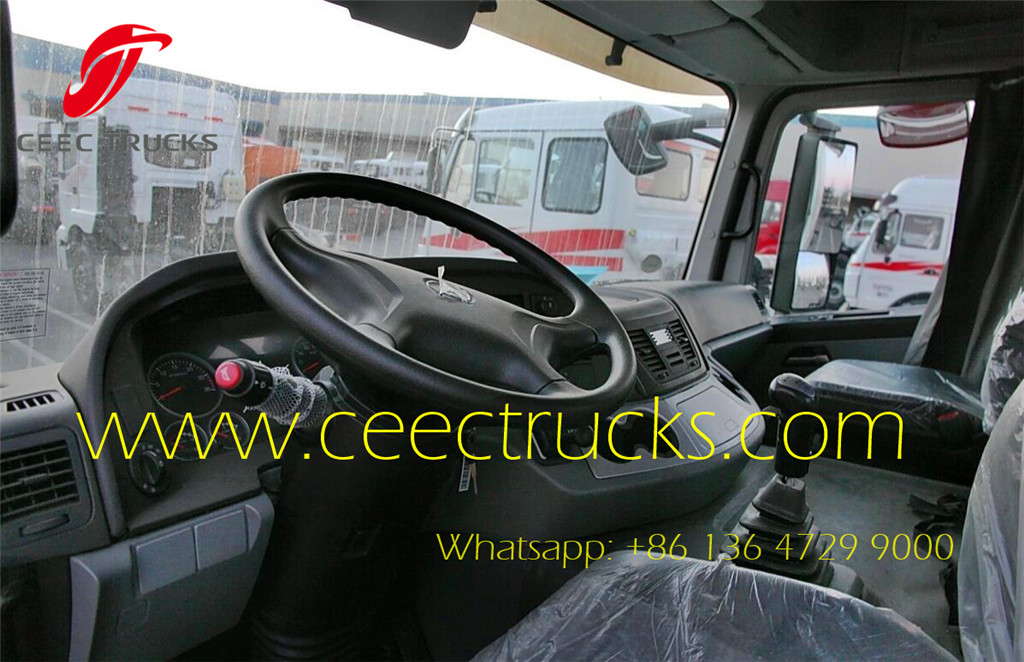

| Cabin
|
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver; Electric lifting window ;
With inner A/C
|
