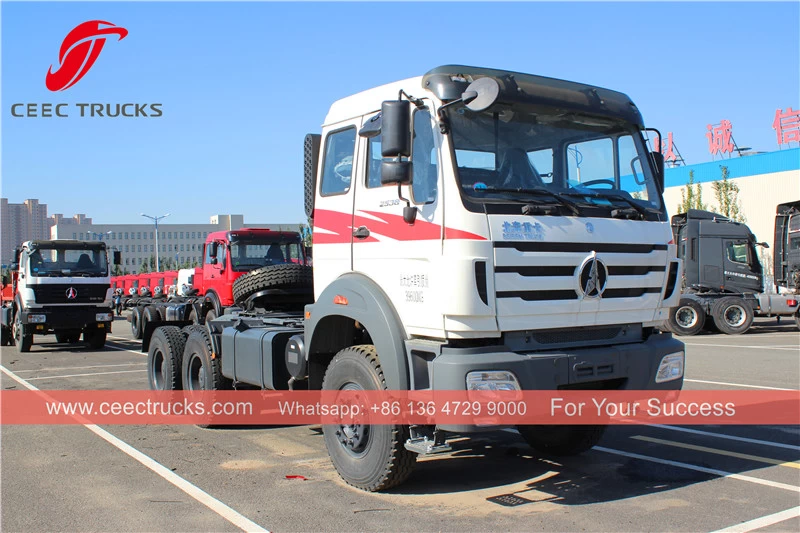

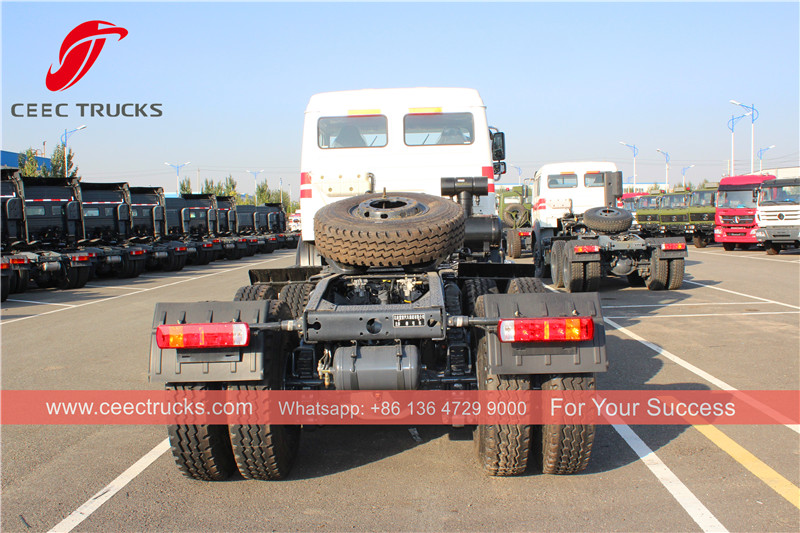

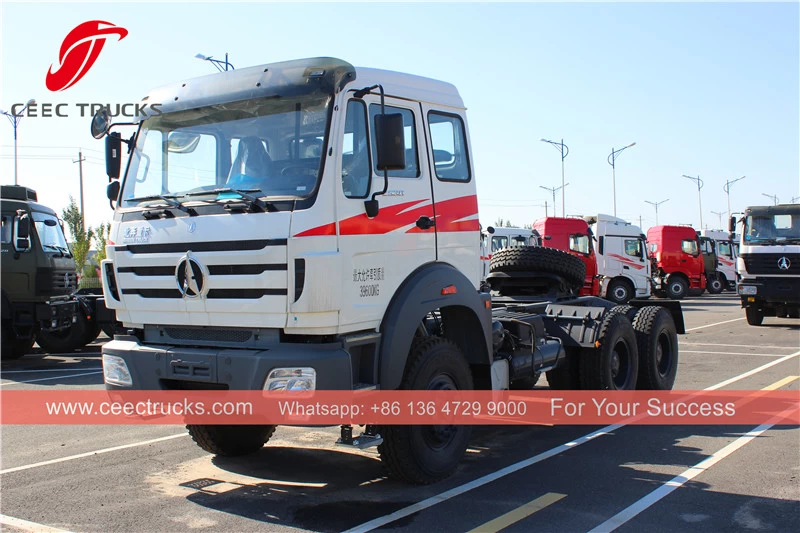

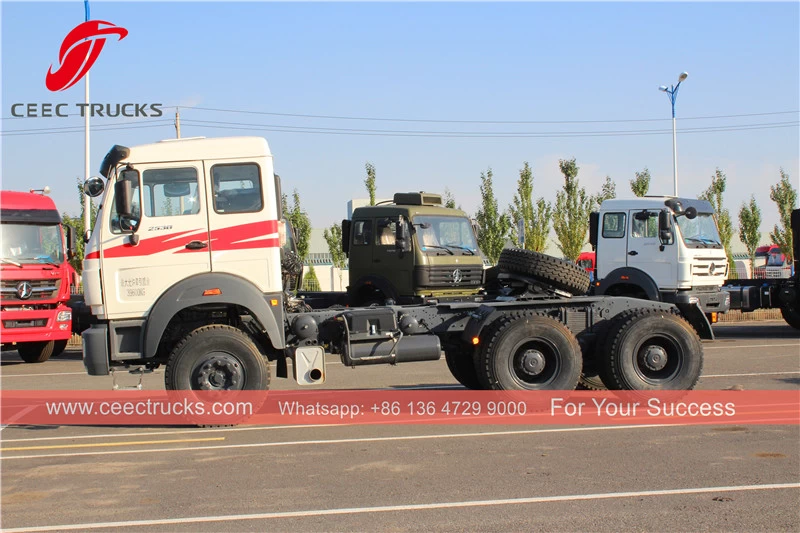

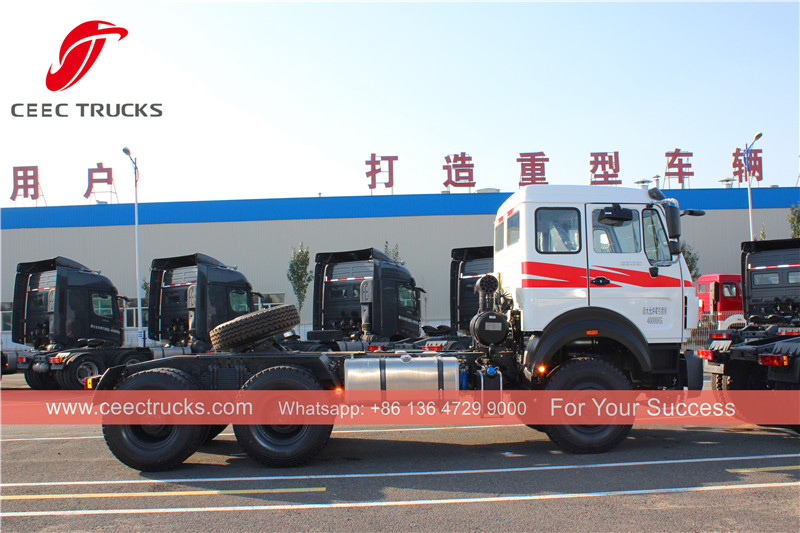

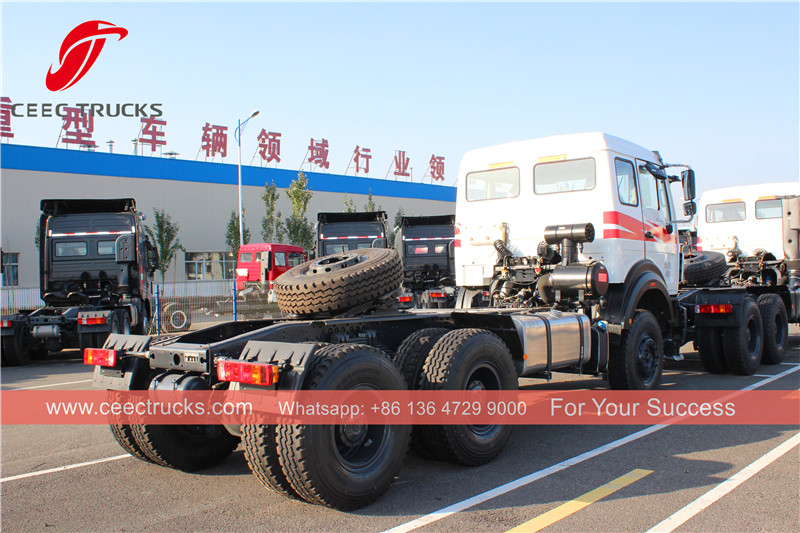

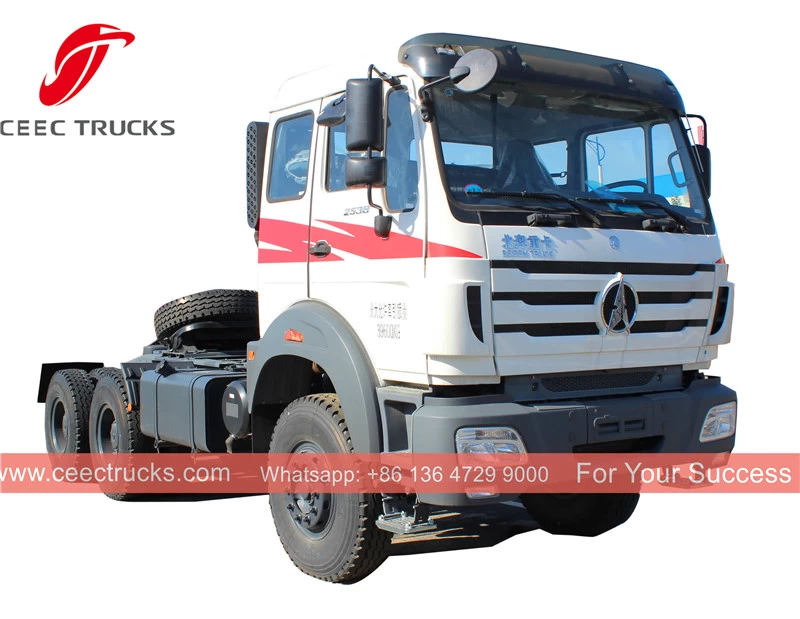

China Number One beiben 2638 LHD tractor trucks as one of best selling north benz 6*4 towing trucks, which is very popular in Africa and East Asia coutries, and being widely sold in Pakistan, Dominica, Mauritius, Saychelles, Uganda, Zambia, Tanzania and Kenya countries. Because of the original Germany Mecedes Benz technology and ZF gearbox technology, all our Beiben 2638 prime movers have almost same quality than benz tractors. Besides, as the authorized supplier by Beiben Truck Company, we CEEC TRUCKS can provide beiben 4*2, 6*4 heavy duty trucks, which has relatively 5%~10% lower price than competitor suppliers in European, American and Asia countries.

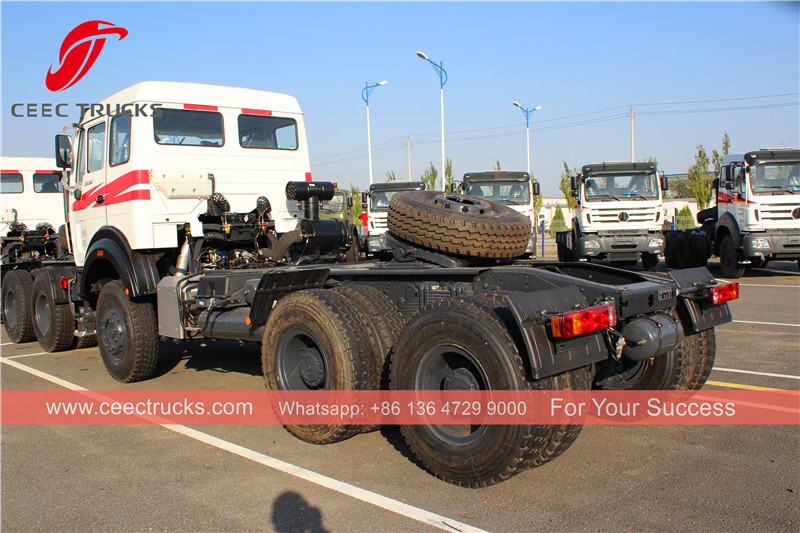

Congo beiben 2534 tractor truck

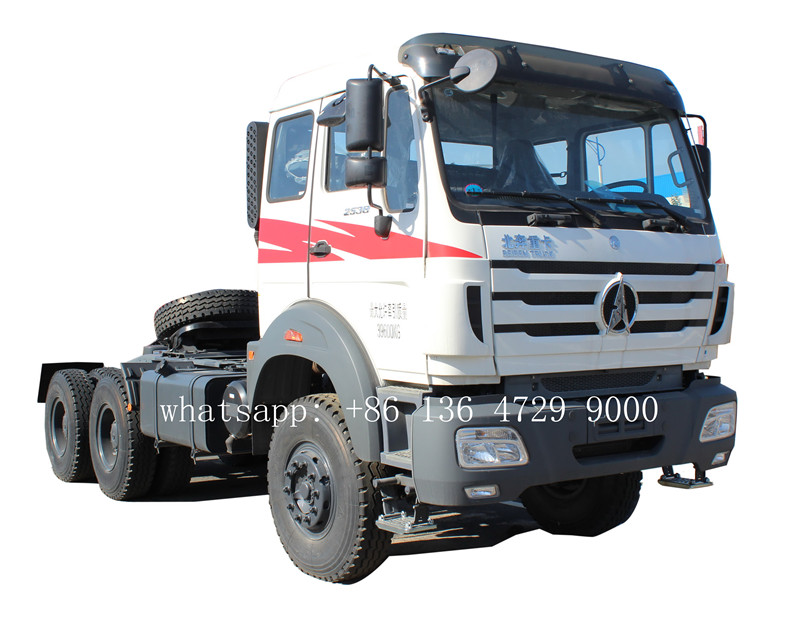

★ CEEC TRUCKS are authorized Beiben 2638 RHD tractor trucks supplier in China, who can supplier all kinds of north benz 6*4 prime movers.
★ Beiben RHD 2638 towing trucks use newly designed NG80B cabin, with air deflector on top of cab, Orange color is for Kenya customer requirement.
★ The price for Benz 2634 towing trucks are relatively at least 10% lower than European and Asian competitors.
★ Beiben truck and benz trucks share familiar gearboxes - ZF and Fuller Fast. mainly 9-shift manual gearbox and 12-sfhit manual transmissions.
★ Equipped with Mercedes Benz tractors used Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and 4 dimension, have displacements of 10 and 12 liters and HP of 270 to 480.
★ JOST ∮90 single direction towing seat for maximum 60T towing capacity and special used for fuel tanker semitrailer and low bed semitrailer.
Similar
Key Works: Beiben 6*4 tractor truck, Beiben 2638 congo tractor head, benz 2638 towing trucks, Beiben 6*4 prime mover, Beiben 2538, 2638 tractor trucks, North benz 2542 towing truck,

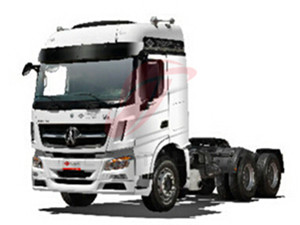

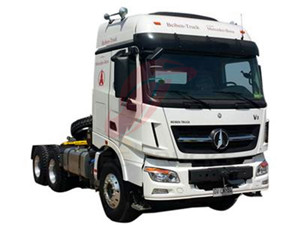

beiben 6*6 tractor trucks
|
Wheel base (mm)
|
3450+1450
|
|
Curb weight (kg)
|
9200
|
|
Max Speed:(Km/h)
|
≥90
|
|
Engine
|
Model
|
WD615.38, 380HP, water-cooled, four strokes, 6 cylinders straight in line, turbocharged
|
|
Fuel type
|
diesel
|
|
Min rate of consuming fuel(g/(kW.h))
|
≤198
|
|
Rated Power / rotating
(KW/(r/min)
|
280Kw/2400rpm
|
|
Emission
|
EURO â…¡
|
|
Maximum Torque
rotating speed(N.m/(r/min))
|
1460Nm/1400-1600rpm
|
|
Displacement(ml)
|
9726
|
|
Fuel tanker capacity (L)
|
400
|
|
Clutch
|
Model
|
#430, Single dry frictional disc, Hydraulic boosting
|
|
Gearbox
|
Model
|
12JS200T, mechanical type,12 Forward speed gear, 2 reverse gear
|
|
Gear ratio
|
12.1/9.41/7.31/5.71/4.46/3.48/2.71/2.11/1.64/1.28/1.00/0.78R1: 11.56 R2: 2.59
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air
brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
Model
|
ZF8098, whole circulation in ball type, hydraulic boosting
|
|
Suspension system
|
Front Suspension
|
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension
|
|
Rear Suspension
|
Non-free standing stabilization spring, stabilization suspension
|
|
Frame
|
Fish belly shape, variable width, variable sections
|
|
Cross section dimension of frame(mm)
|
317×70×8.5+7+8
|
|
Front axle
|
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.263
|
|
Middle and Rear axle
|
Double-shoe pneumatic brake, ductile casting casing,
with hub redactor, double reduction driving axle
Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263
|
|
Tire
|
12.00-24 (one spare tire)
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cab
|
Short cab, Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly; with Air deflector
|
|
Interior trimming: Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio
(with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.
|
|
Exterior trimming: Single layer road bumper, three steps, with new mirror. with outer sun visor
|
Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale

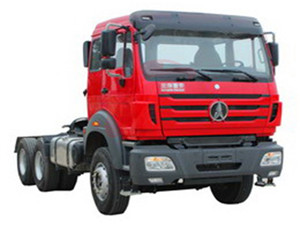

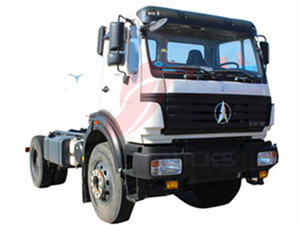

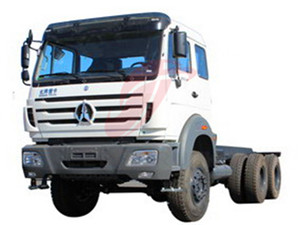

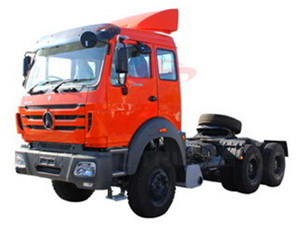

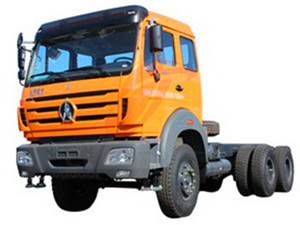

Other beiben trucks display
