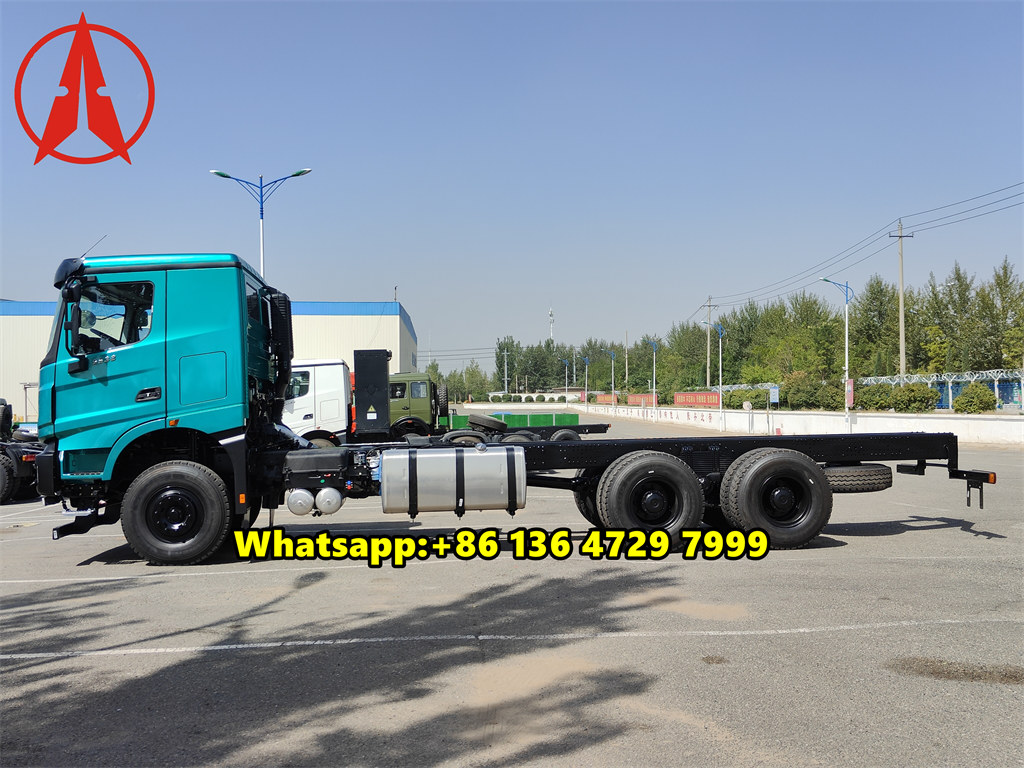

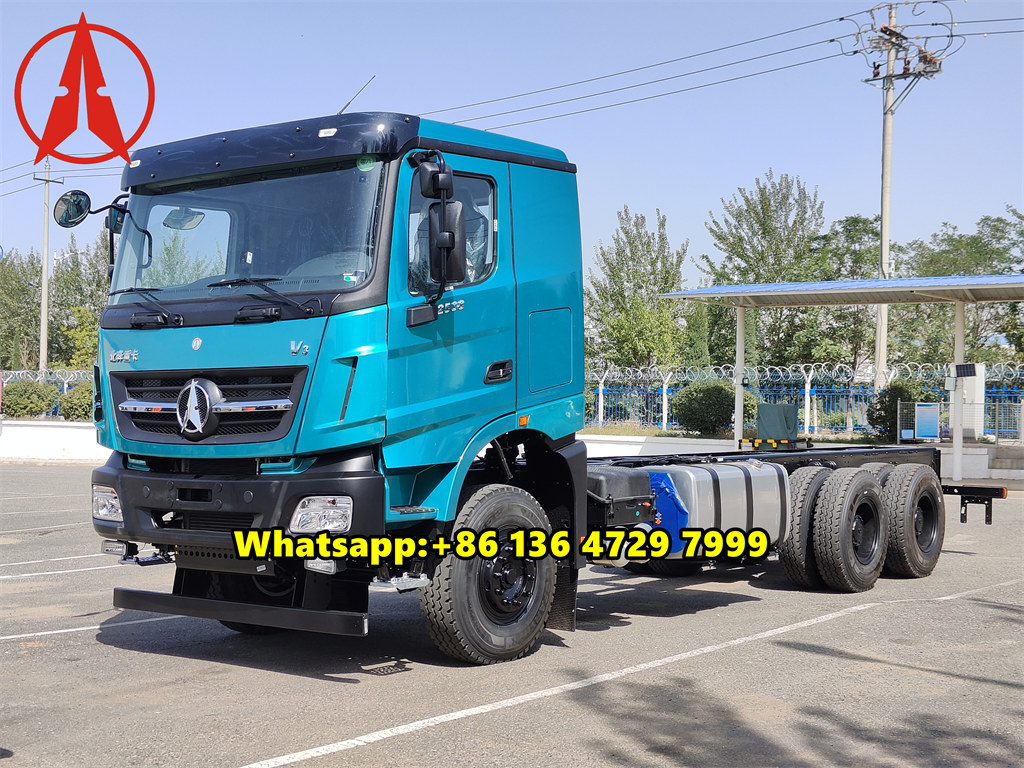

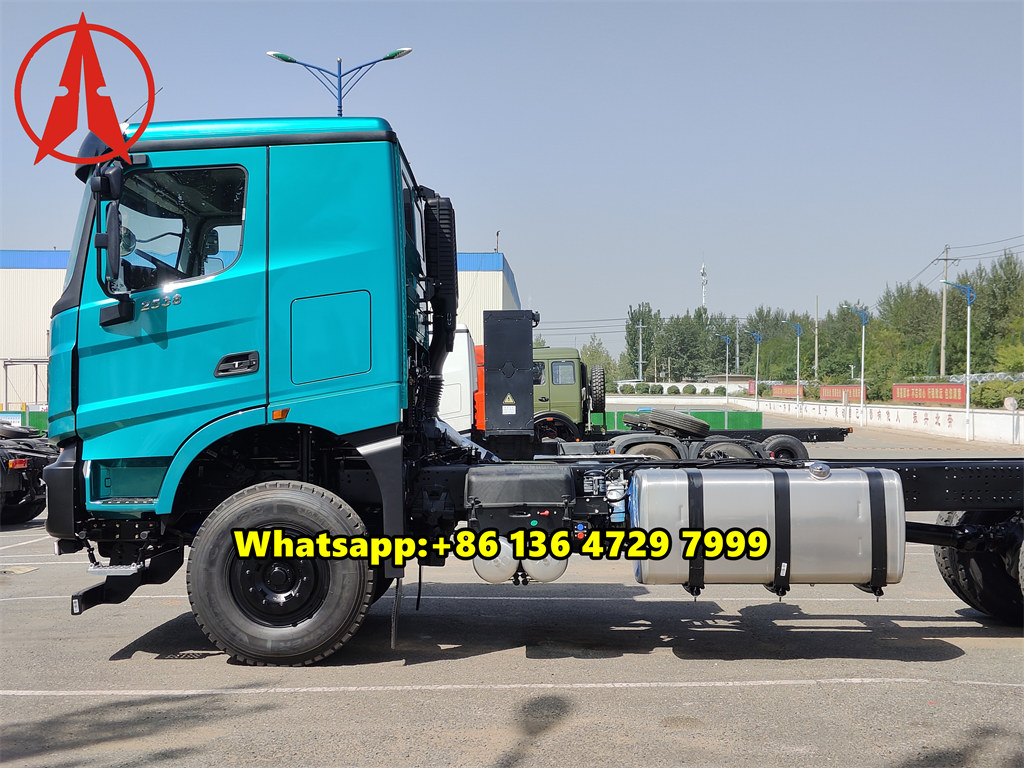

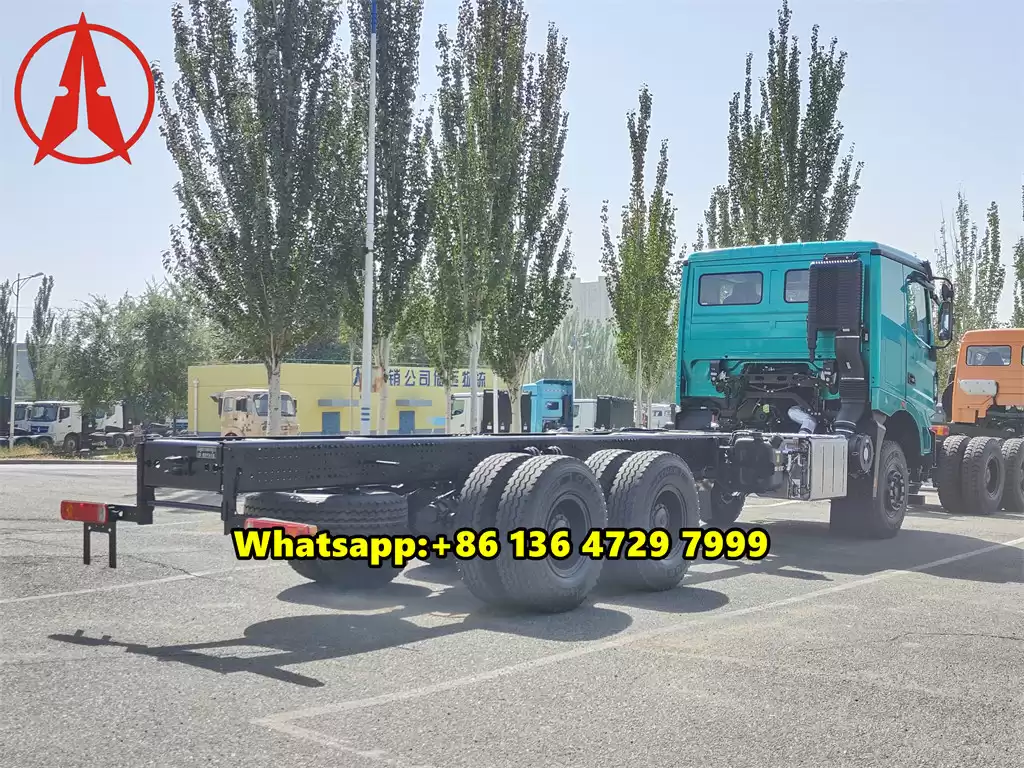

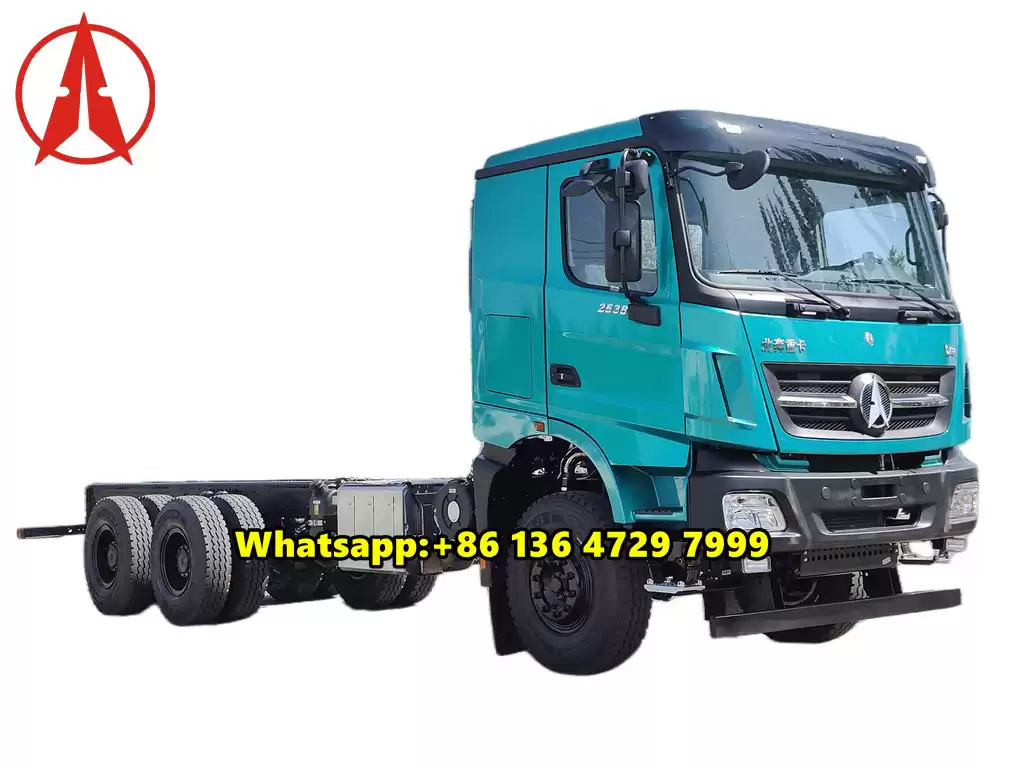

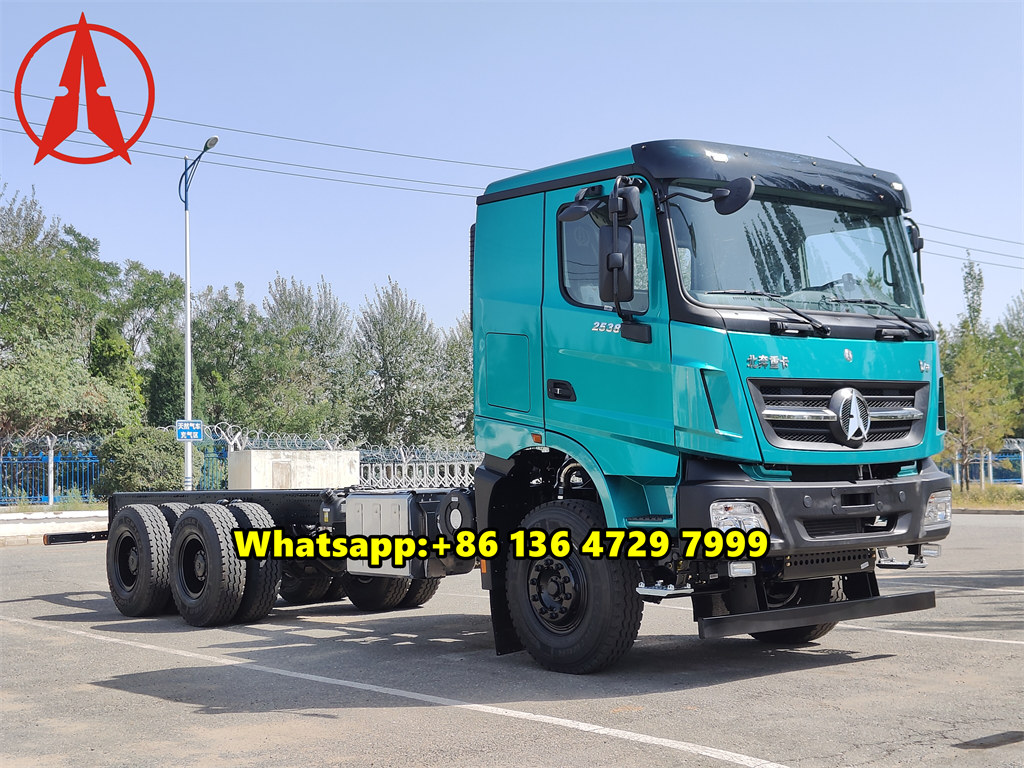

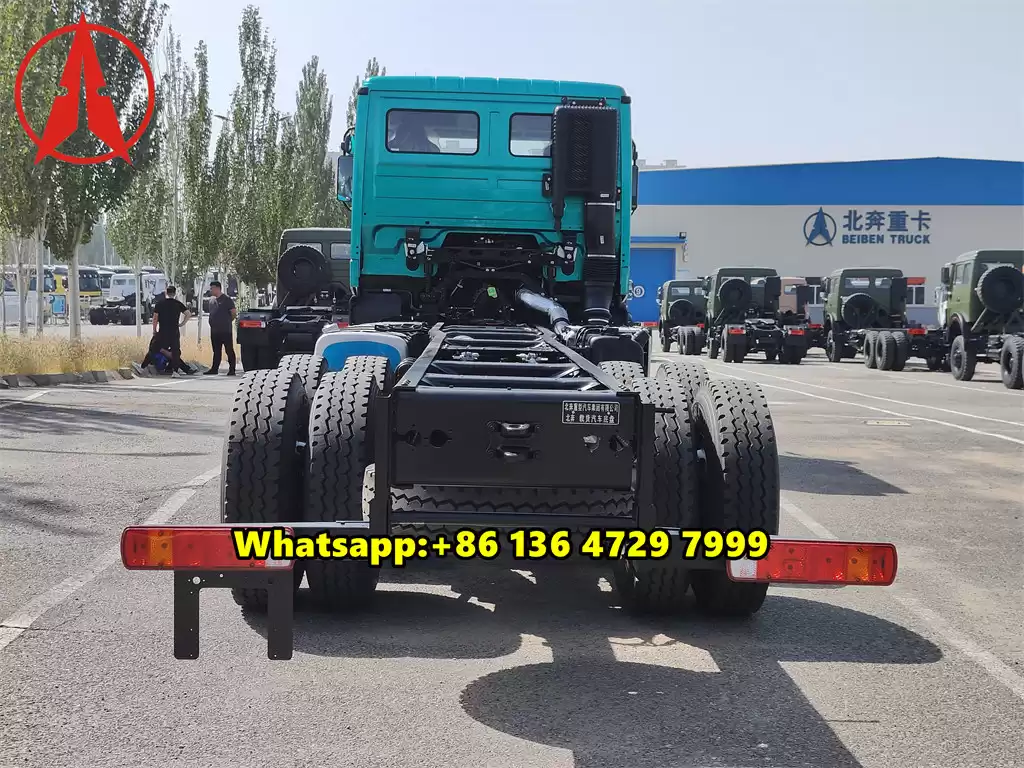

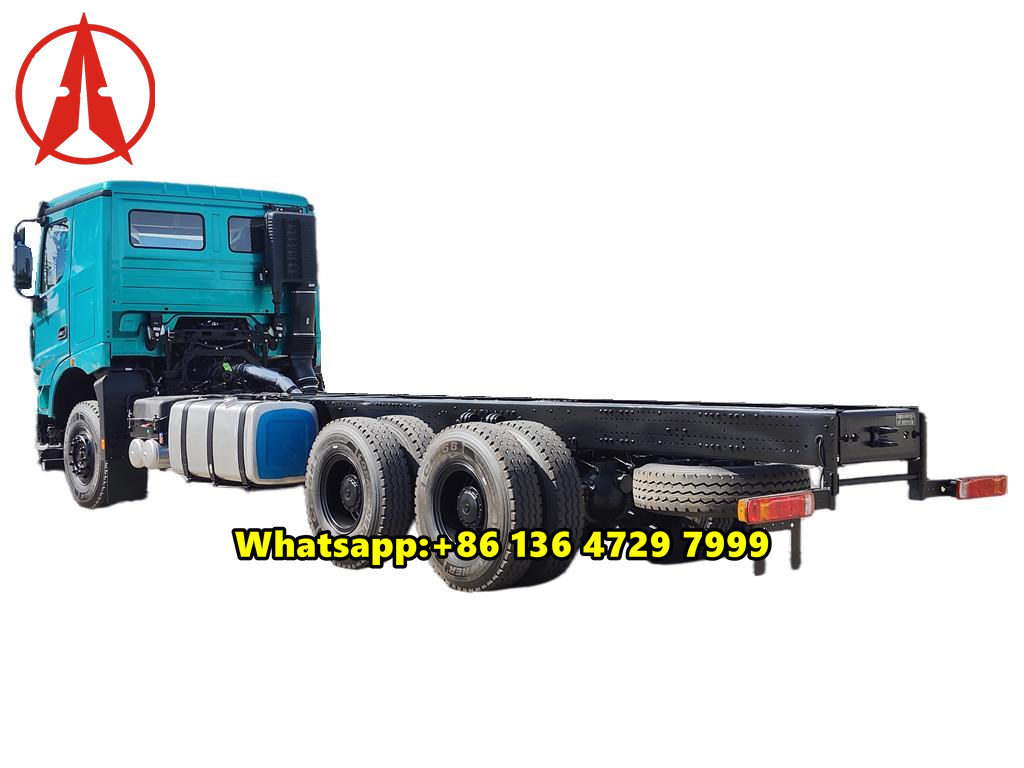

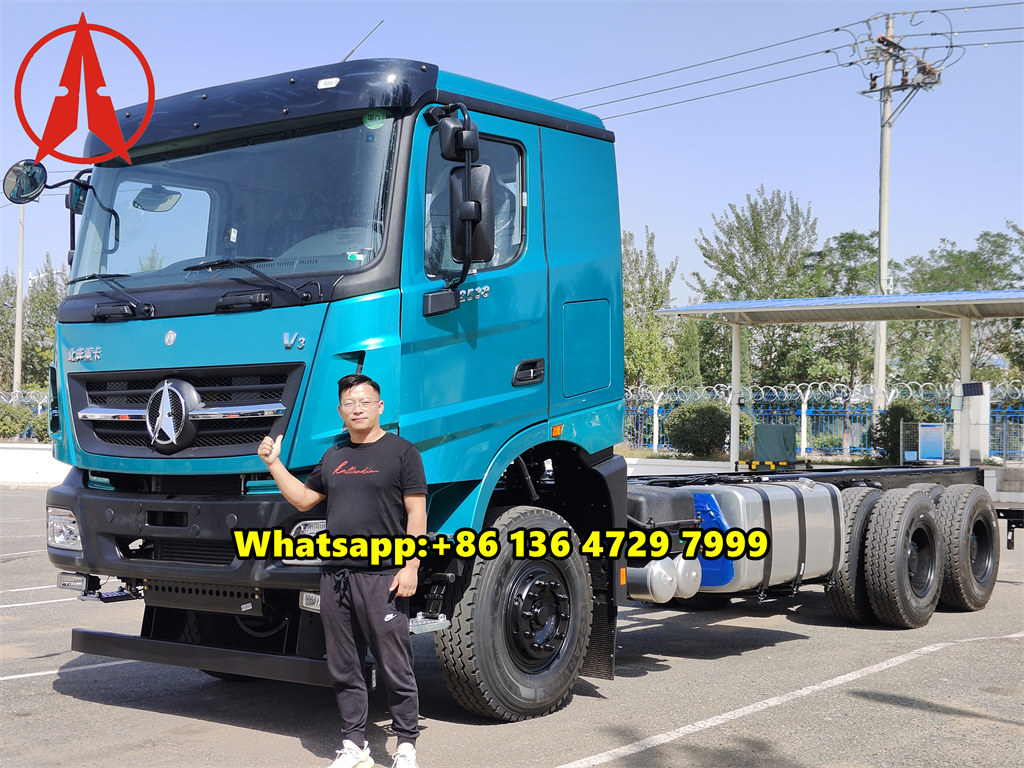

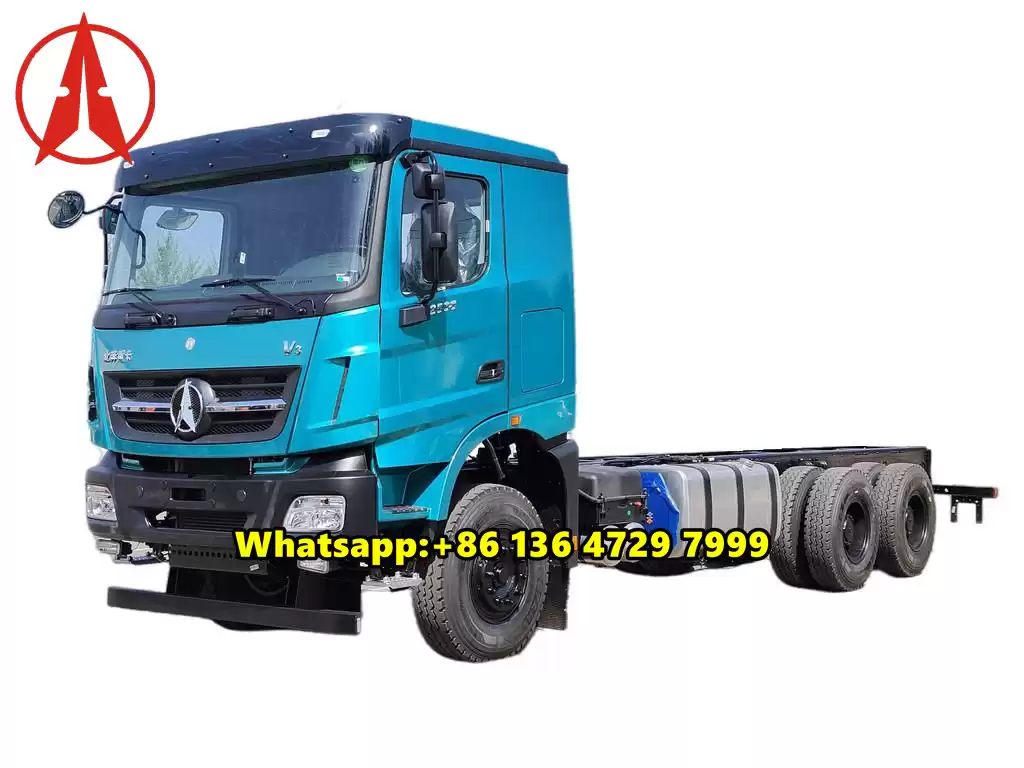

Beiben 2538 V3 cargo truck

Beiben 2538 V3 cargo truck, this chassis may be designed based on the heavy-duty tractor or dump truck of V3 series, with high strength and stability. Beiben 2538 2638 2642 heavy Benz 6x4 truck with V3 cabin, which have excellent capability, ideal for driving on rough road. Powerful and passble Benz 6x4 6x6 truck chassis, high load capacity can be up to 50tons, very popular in the Africa countries DRC, Tanzania, Zimbabwe, Uganda, etc. Beiben V3 new type cargo truck chassis adopt the Benz truck technology, the chassis is stable and durable, with a WEICHAI WP10.380E32 diesel engine and maximum torque of 1250N.m, emission can be 9726cc. suitable for africa market. it is more impressive in terms of manoeuvrability.


  • Working Capcity30-40 tons
  • Payment termsTT
  • Production time30-35days
  • Engine power380HP
  • Drive system6x4

Considering that the V3 series models are mostly used for heavy-load transportation, the Beiben 2538 V3 cargo truck chassis may also be suitable for transportation scenarios that require high load capacity and stability. Beiben Benz V3 truck usually provides a complete vehicle series and accessories including Benz truck chassis, so the Beiben 2538 V3 lorry truck chassis may come with or be compatible with a variety of cabs, axles, engine brackets, wheels and other accessories.

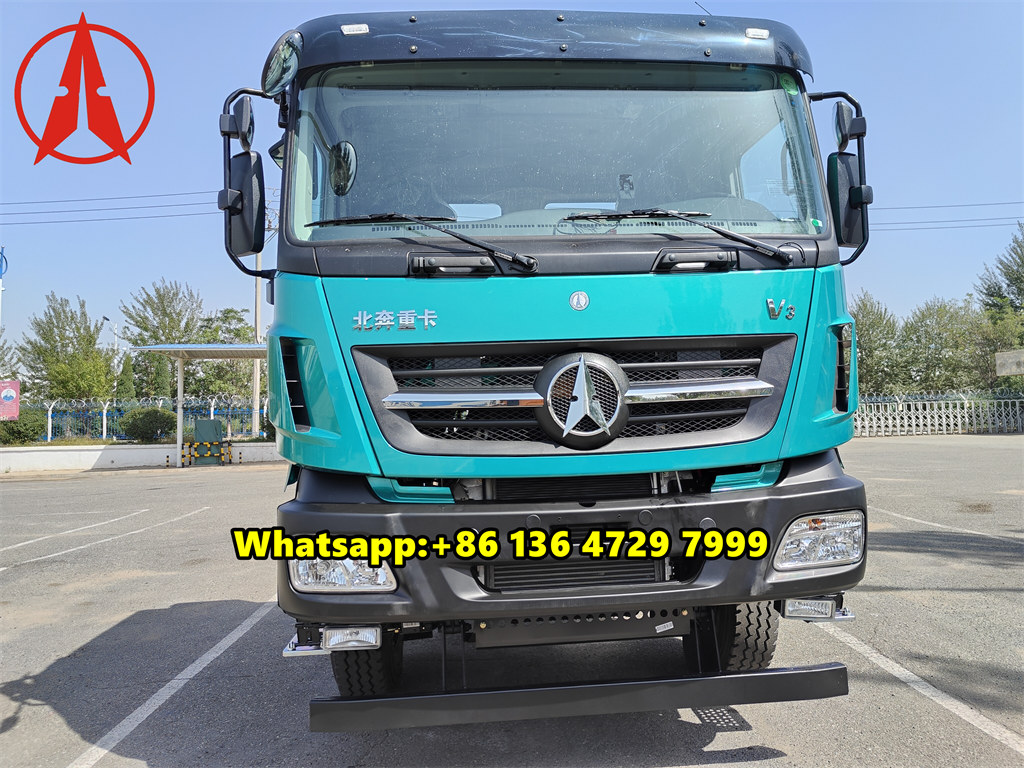

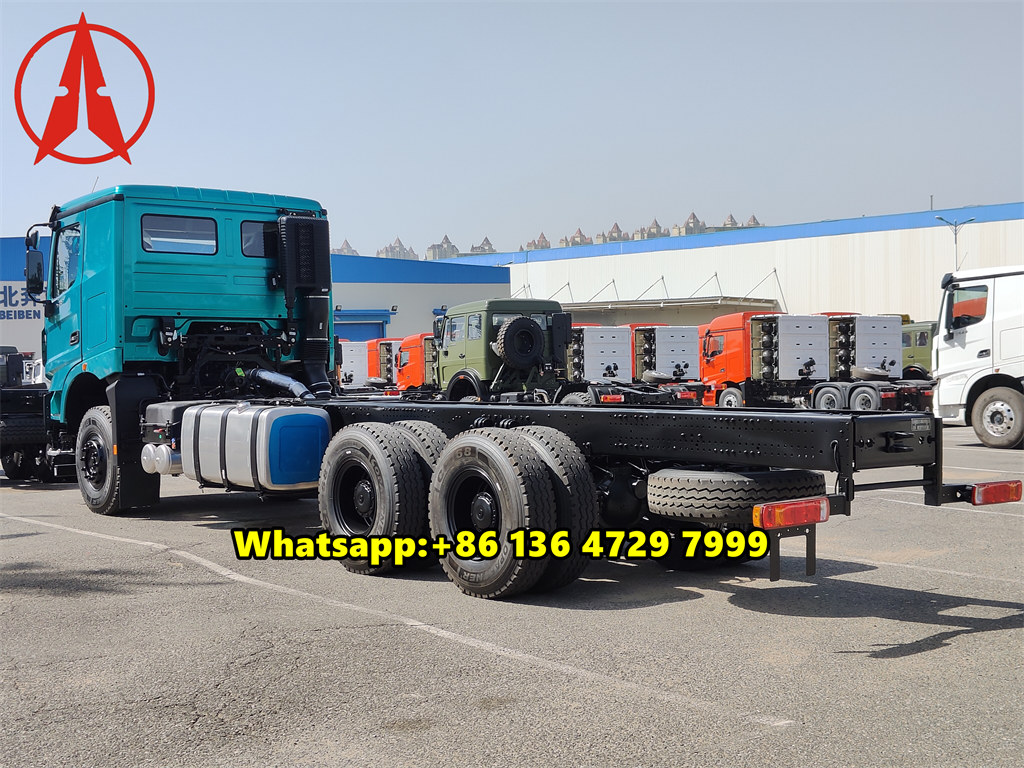

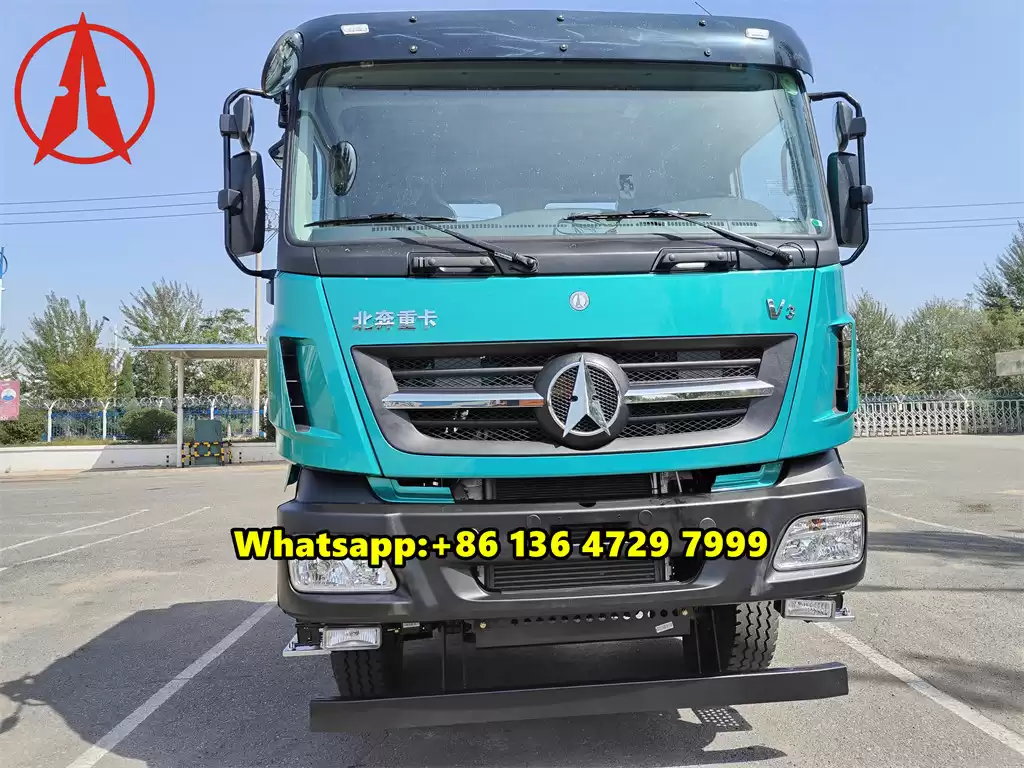

Beiben 6x4 LHD V3 2538 Cargo Truck, equipped with newly designed V3 truck cabin, long cab with double sleeper, WEICHAI Brand WP10.380E32 new Model 380hp diesel engine with emission 9726cc. Gear box is FAST brand with 9 speeds (9JS180) with 9 forwarder and 1 reverse back. Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Mercedes Benz technology front axle(7.5t), Rear axle is Mercedes Benz strengthened axle 13 tons double axles (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Tyres model is 12.00R20 with 10+1 pcs. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30, Overall dimension(mm)8900x2500x3500.



Beiben 2538 V3 new cabin cargo truck chassis is widely used in the field of heavy trucks and special vehicles due to its high strength, and can provide stable support and efficient transportation capacity, and is an ideal choice for modifying various special vehicles.

Wheel base          4450+1450mm Steering system ZF8098, whole circulation in ball type, hydraulic boosting
Overall Dimension           8900X2500X3200 Frame Fish belly shape, variable width, variable sections
Based on Germany Benz Technology
Curb weight (kg)              9800 Cross section of frame 317X70X8.5+7mm
Front overhang/
rear overhang
1435/1940mm Front axle 7.5tons driving steering axle
Approach angle/
Departure angle

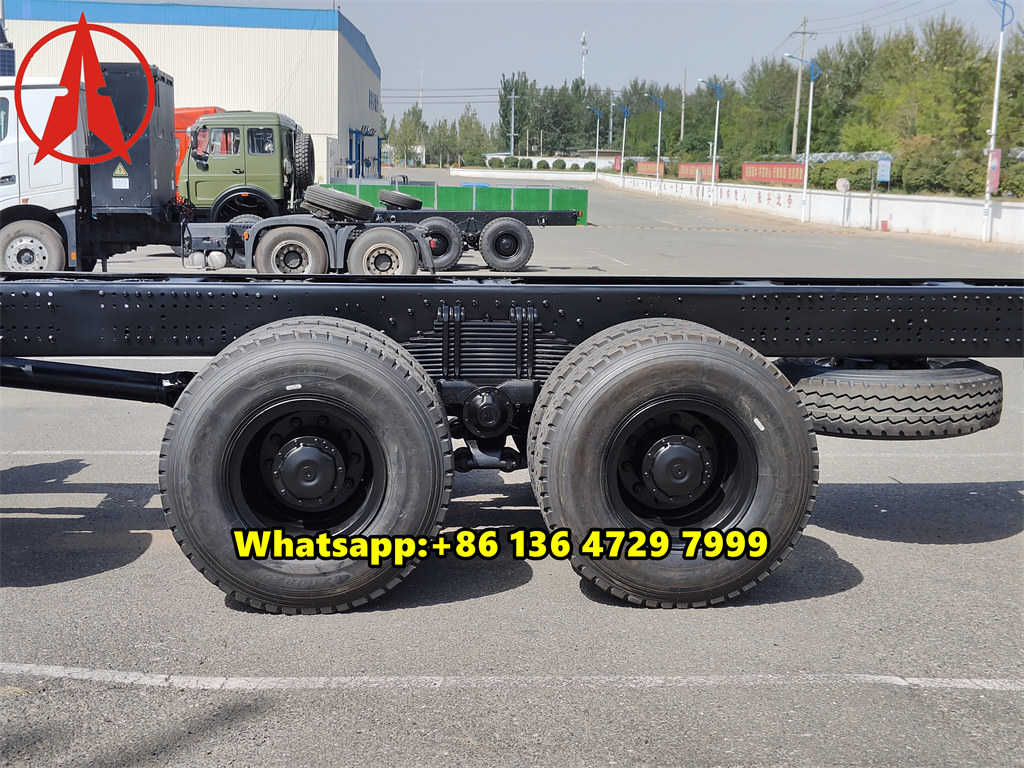

26/20 Middle and Rear axle Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13 ton double reduction driving axle, speed ratio 5.263
Max Speed:(Km/h)     ≤90km/h Tire     12.00R20  radial tire
Engine WP10.380E32, Cab   V3 new cabin, Left hand drive
Fuel tanker capacity 400L  Iron         Gearbox 9JS180T  mechanical type,Based on Fuller Eaton technology ,9 Forward speed gear.
Clutch
#430, Single dry frictional disc Transfer case
NULL






The reasons why Beiben 2538 V3 cargo trucks are exported in large quantities to the Democratic Republic of the Congo in Africa mainly include market demand, product advantages, policy support, local cooperation and other factors. These factors work together to promote the rapid development of Beiben trucks in the African market. The reasons why Beiben 6x4 cargo trucks are exported in large quantities to the DRC as follows:

Market demand:
Infrastructure development: Africa's infrastructure construction policies have undergone new changes in recent years, especially in the central and eastern regions, where projects such as railway construction and power network interconnection are being promoted. This provides a huge market demand for heavy trucks and transportation equipment. And Beiben cargo trucks can easily meet all requirement.
Transportation demand: As a landlocked country, the DR Congo's geographical location and climatic conditions make transportation essential to its economic and social development. Especially in the rainy season, when river water levels rise, land transportation becomes a more reliable mode of transportation. Therefore, Beiben NG80 heavy trucks, Beiben 2638 cargo truck, Beiben 2642 offroad cargo truck play an important role in the transportation of materials.

Product advantages:
Reliable quality: As a well-known heavy truck brand in China, Beiben V3 trucks and Beiben NG80B cargo trucks have been widely recognized by the market for quality, performance and durability. This reliable product quality meets the demand for heavy trucks in Africa.
Price advantage: Compared with truck brands in developed regions such as Europe and North America, Beiben heavy duty Offroad Cargo Trucks is more competitive in price. This gives it a greater price advantage in the African market, thereby attracting more customers.

Local cooperation:
Localized production: Beiben Trucks may cooperate with enterprises in the Democratic Republic of the Congo or other African countries to carry out localized production. This can not only reduce production costs, but also improve product competitiveness and market share.
After-sales service: By cooperating with local enterprises, Beiben Trucks can establish a more complete after-sales service system and provide customers with more timely and professional services. This helps to enhance brand image and customer satisfaction.

Other factors:
Geographical advantage: China and Africa are geographically close, and transportation methods such as sea and land transportation are convenient. This provides geographical convenience for Beiben trucks to enter the African market.
Cultural exchange: With the increase in cultural exchanges between China and Africa, the recognition and acceptance of Chinese brands and products in the African market are also increasing. This helps the promotion and sales of Beiben trucks in the African market.
