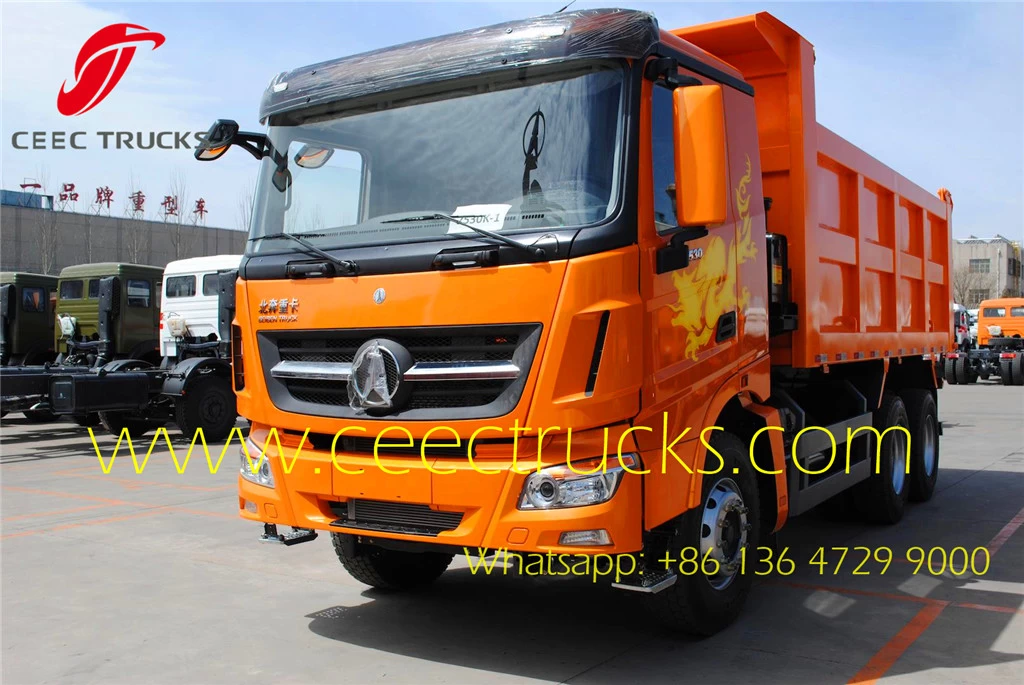

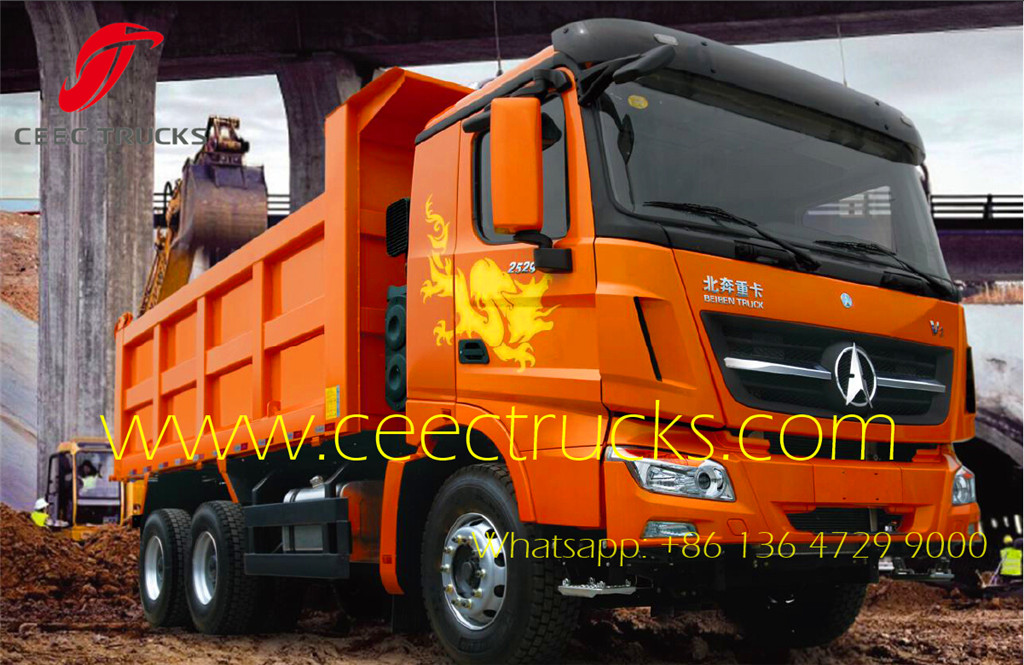

Beiben 2538 V3 dump truck

BEIBEN 25TON TIPPER TRUCK FOR SALE 10 WHEEL TIPPER 2538K /6×4/3800+1450/Short Cab/LHD or RHD Dimension 8880*2500*3430mm Cargo box 6000x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom/side 8mm



CEEC TRUCKS produced beiben 4*2, 6*4, 8*4 dump trucks are widely export to Africa countries including kenya, Algeria, Nigeria, Tanzania, Cameroon, etc. Mainly used for building, road construction, also service for mining projectin Africa.



Best selling Beiben 2538 V3 Tipper Trucks

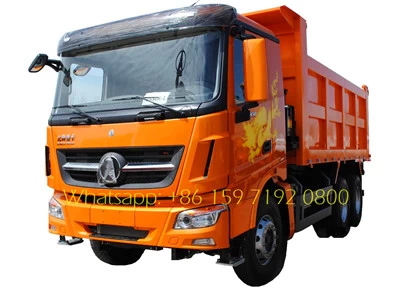

beiben 2538 V3 tipper trucks



Export Africa Beiben 2538 mining dumper truck advanced featuers:

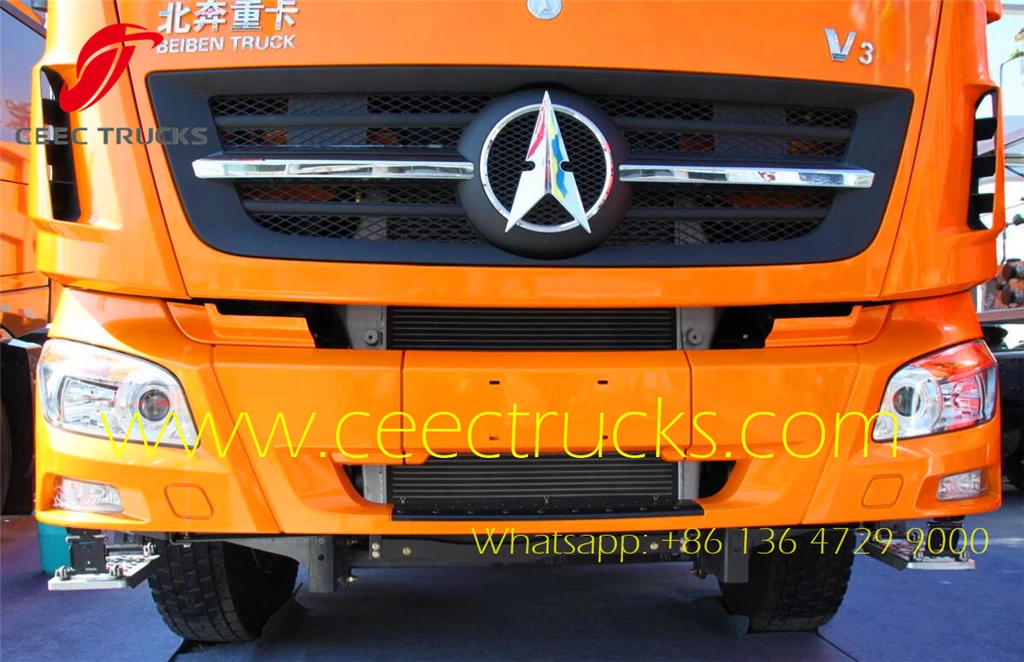

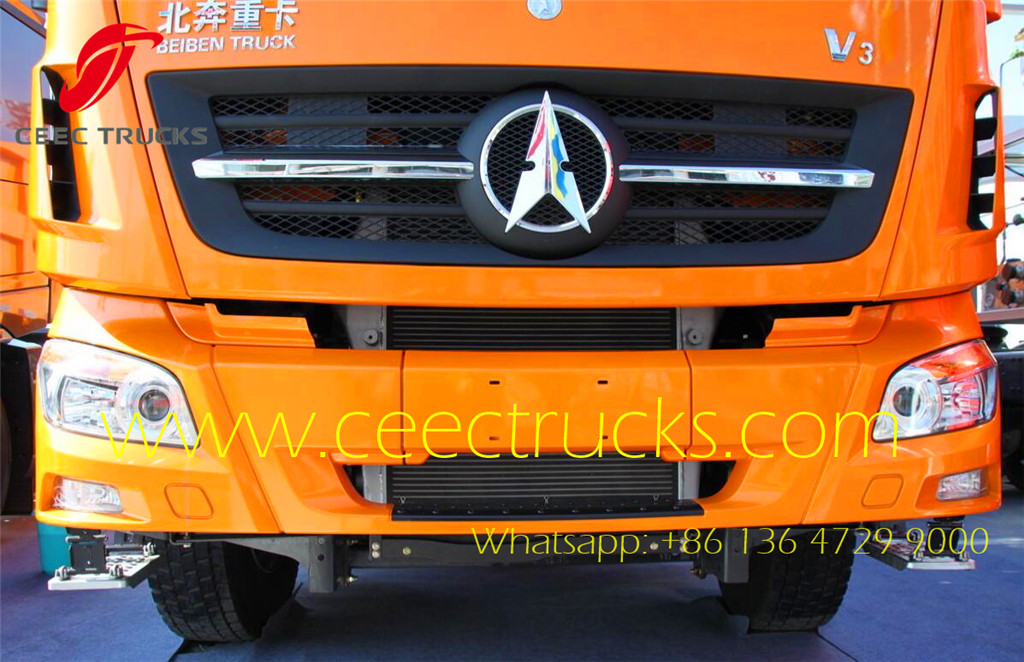

â—† Germany Mecedes BENZ technology chassis with high durability andreliability, Newly V3 cabin for sale

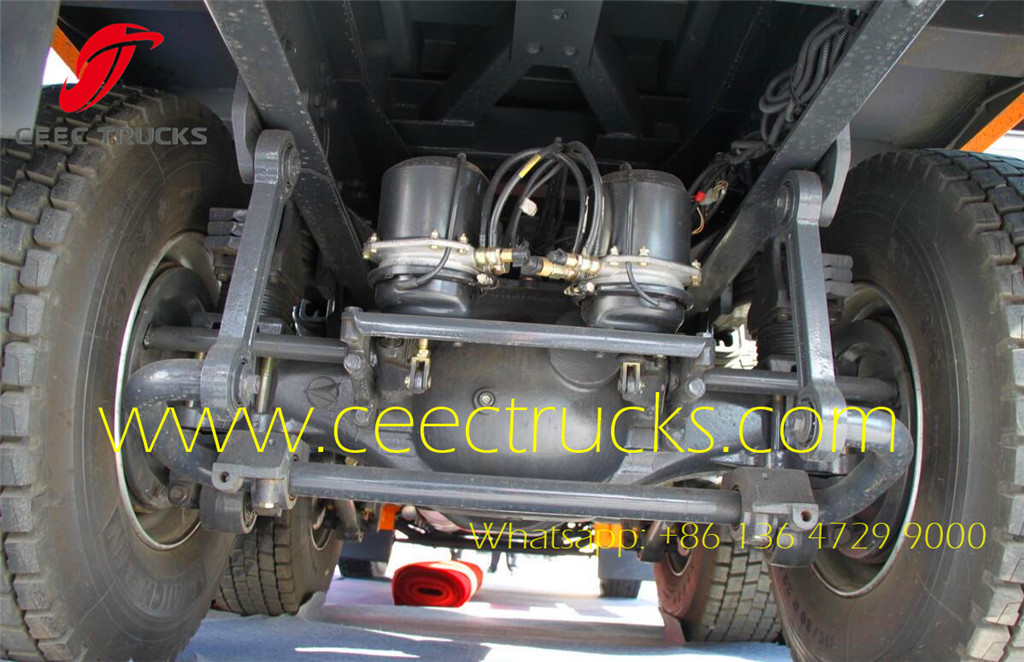

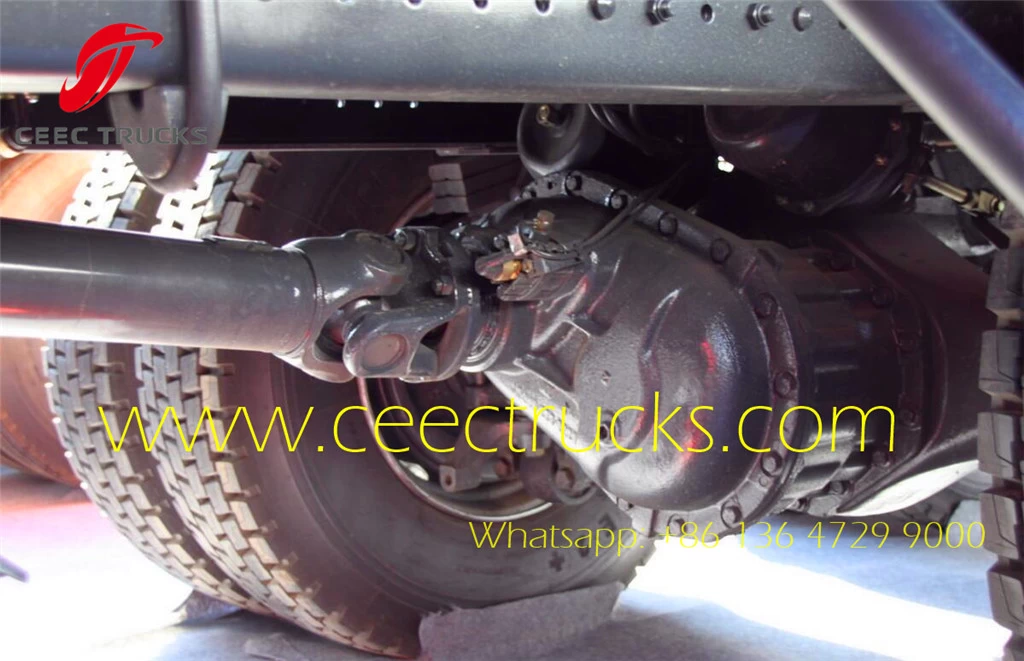

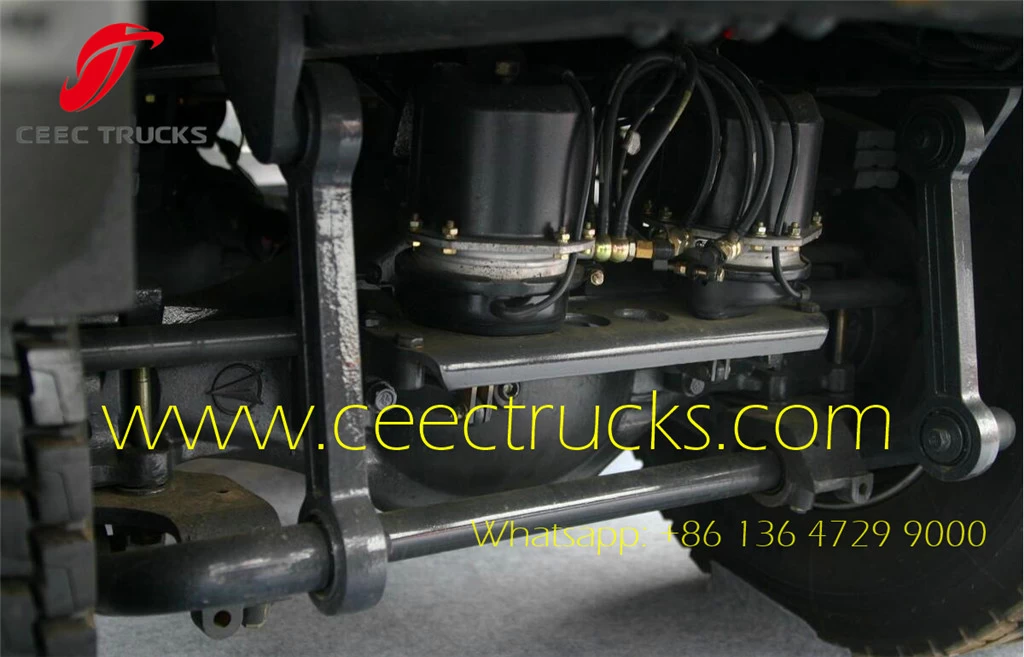

â—† BENZ technology engine combined with original rear axle reducer gear and differential gear

â—† Continuous welding throughout body for additional strength, Fulldepth rear corner post with full depth rear crossmember.

â—† Enhanced body, and the motherboard adopts variable cross-sectionbeams.

â—† Special beiben 60 t Dumper Body Design are optional

â—† Other customer requirements are welcome



Beiben 40T dumper truck supplier

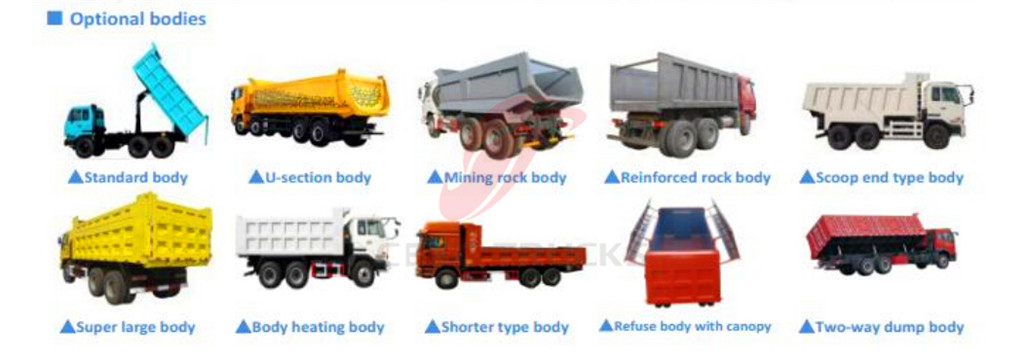

we provides greater durability and superior performance with its newly Beiben V3 2538 reinforced heavy-duty trucks of responding to customer’s needs, Beiben tipper trucks carbo box can be as below:



Beiben 40T dumper truck supplier



beiben 2538 V3 tipper trucks supplier

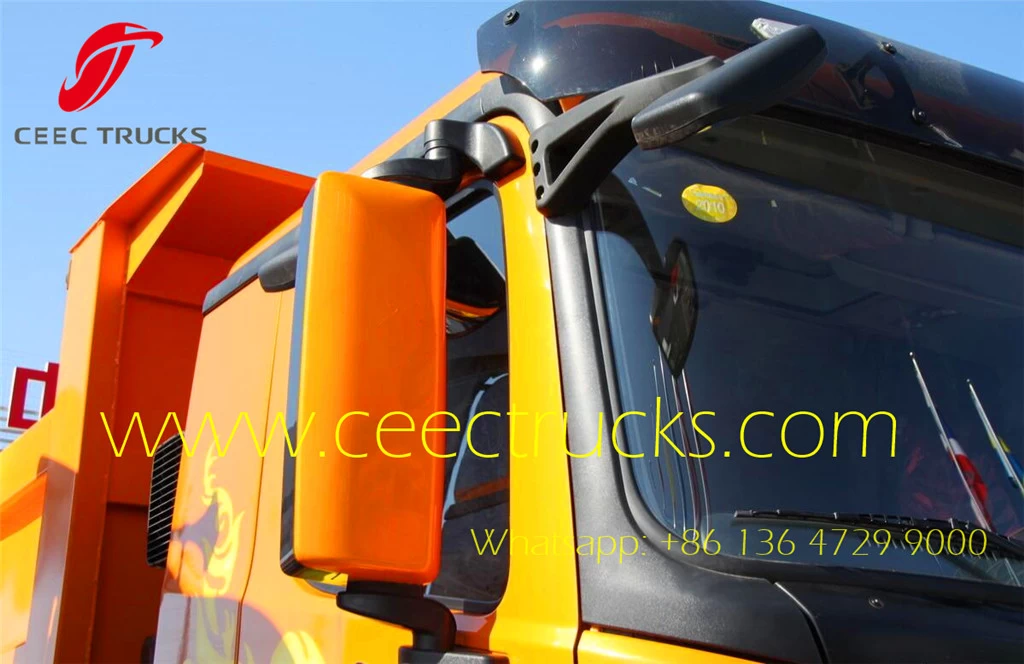

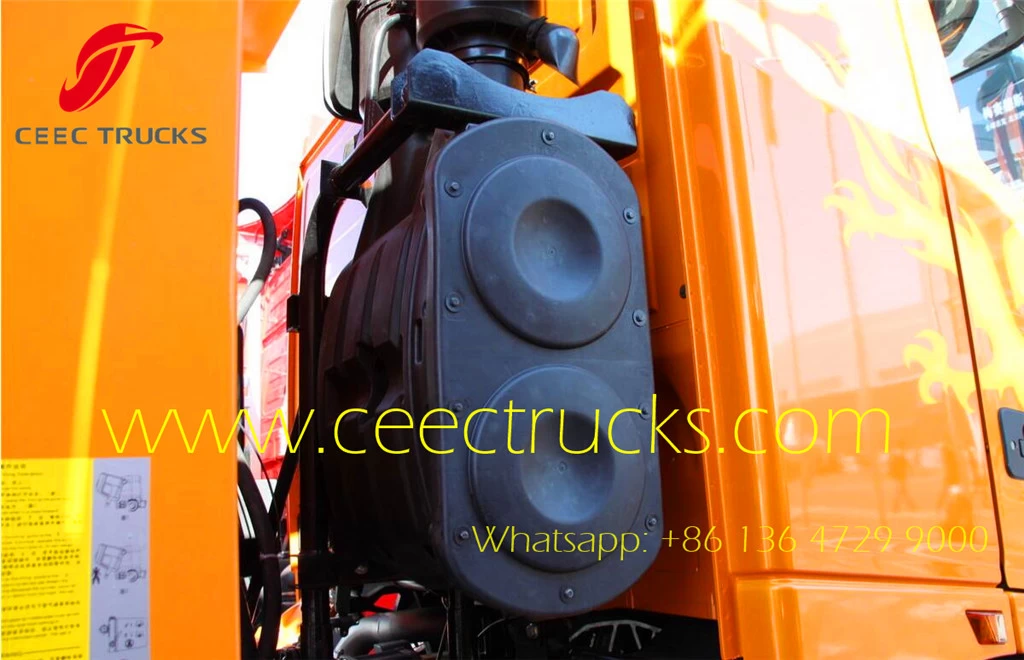

beiben 2538 V3 tipper trucks supplier    beiben 2538 V3 tipper trucks supplier

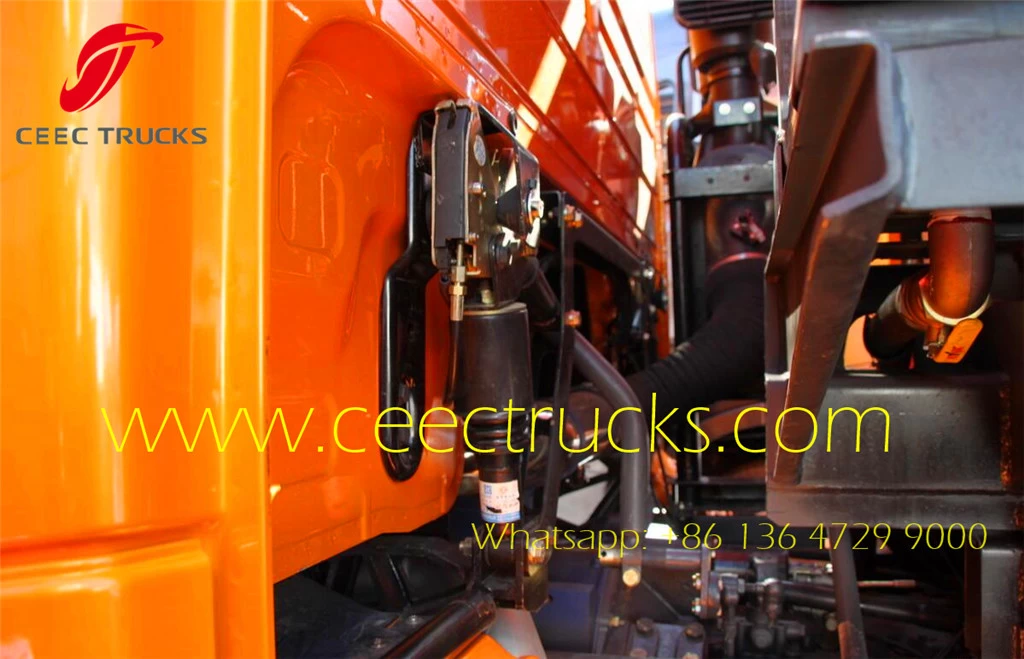

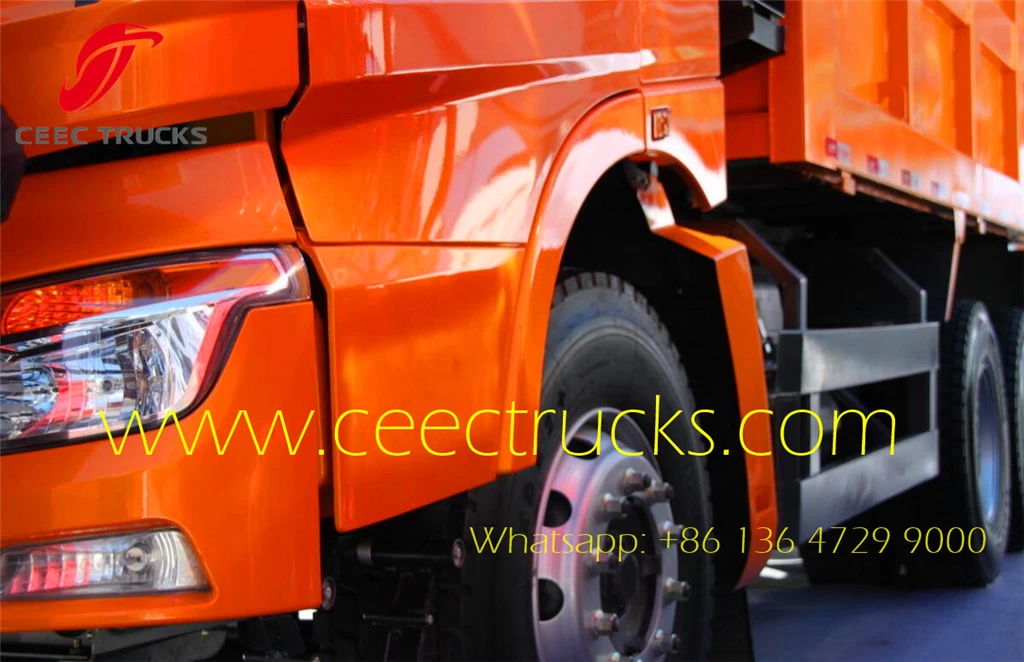

beiben 2538 V3 tipper trucks supplier    beiben 2538 V3 tipper trucks supplier



Similar key words: beiben 2538 dumper truck, north benz 2538 dump truck, beiben 2538 tipping truck, beiben 2538 dump truck price, africa beiben dumper manufacturer, kenya beiben dumper truck, congo beiben 6*4, 8*4 dump truck, baotou beiben 2538 dump truck supplier.



beiben 2538 V3 tipper trucks beiben Vechicle information list

Truck brand

North benz / Beiben

Truck model

ND3253B38 dump truck

Total mass

25000

Rated mass

12700

Vechicle size

8347×2500×3384

Cyrb weight

12170

Box size

5600×2300×1150

Cabin seat

2





A/D angle

26/30

F/R hang

1410/1687

Axles

3

Wheel base

3800+1450

Axles loading

7000/18000(double rear axis )

Max speed

85

Dump body information

The 2538k dump truck .

The body size:5600x2300x1500mm

The body information : side thickness 10mm,the floor thickness 16mm,all steel use manganese steel.

side has 9 pcs Vertical reinforcement support

5 Pcs Stringer plate.

Hayv tipping system .

Chassis information

Chassis model

ND1251B38

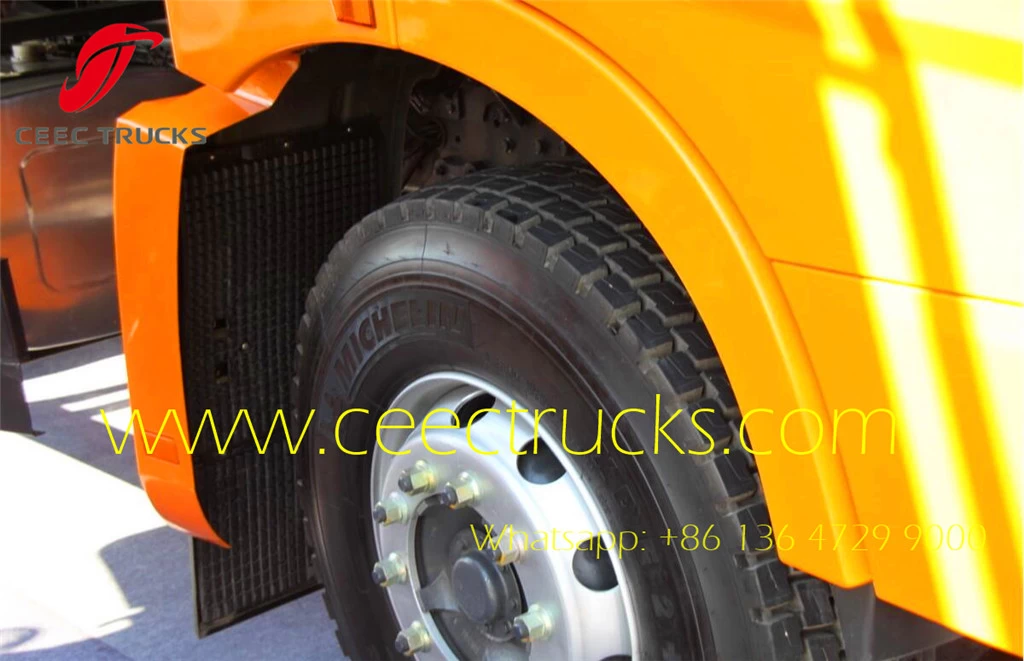

Tyre size

12.00-20 spare tyre

Tyre quantity

10

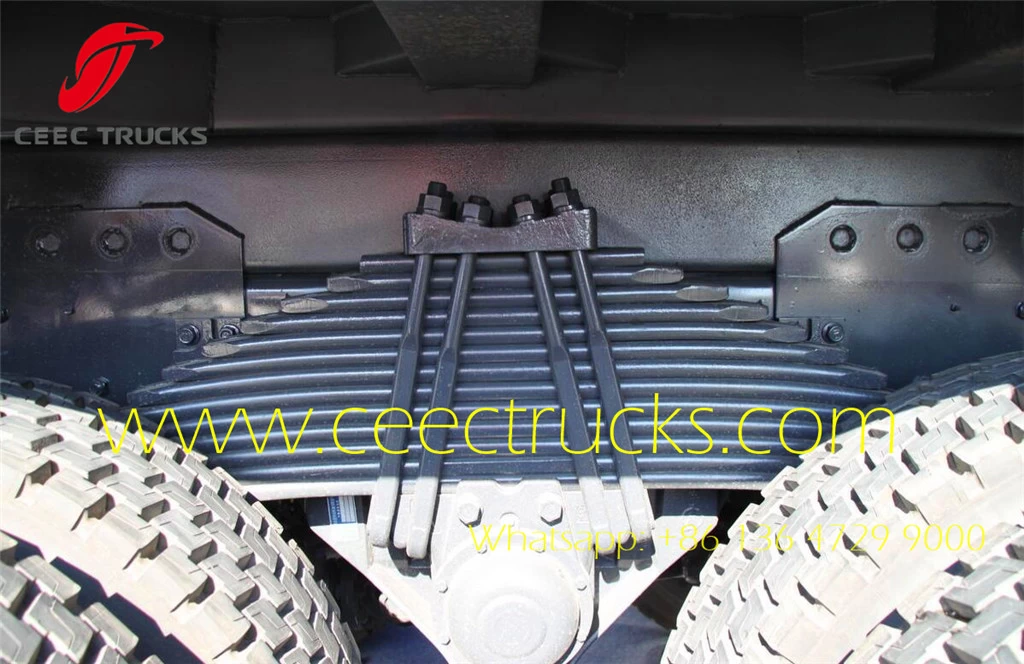

Leaf spring quantity

10/13

Front track

1995

Fuel type

Diesel

Rear track

1800/1800

Engine model

WP10.380E32

Water cooled

Inline

6-cylinder

4 stroke

Displacement/power

9726ml/213kw

Trasimission (gear box)

10-speed,high and low speed

Warranty

12months

Delivery time

20-30days

Price valid

2 months

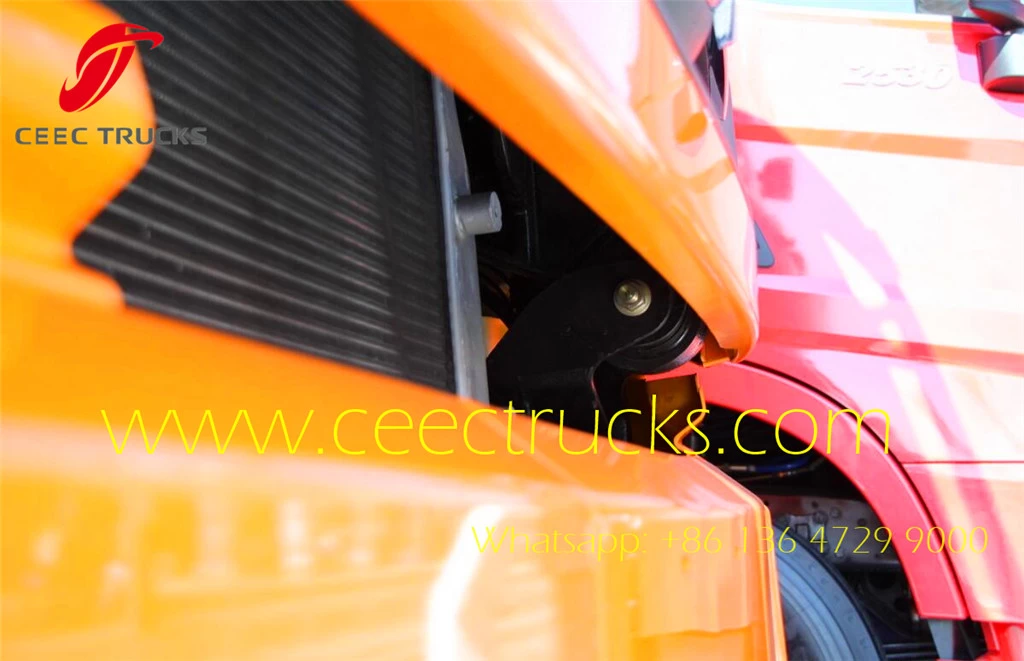

beiben 2538 V3 tipper trucks supplier

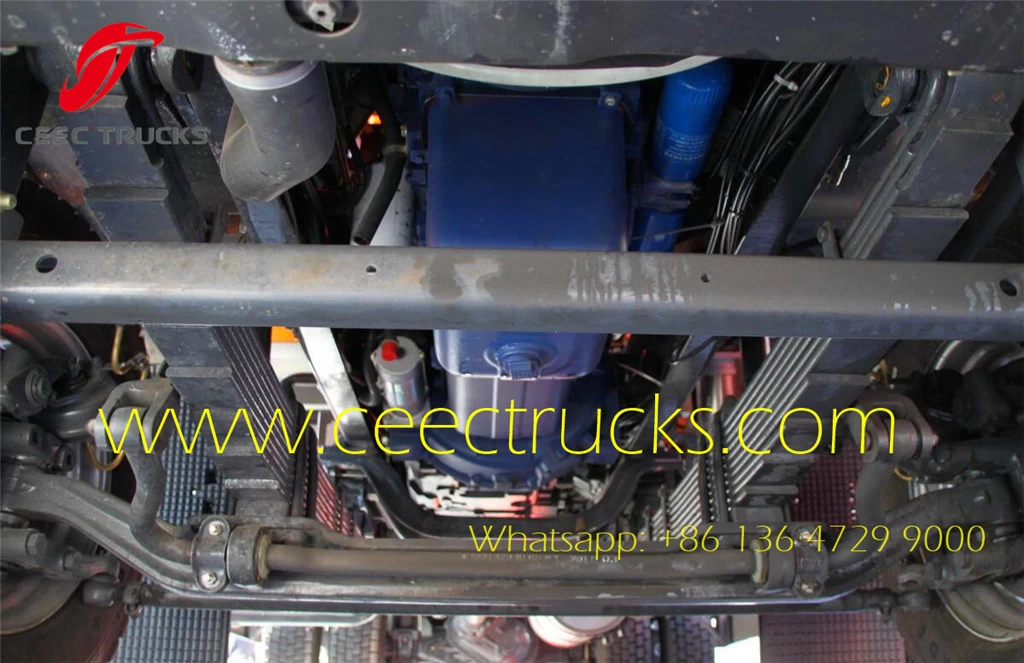

beiben 2538 V3 tipper trucks supplier

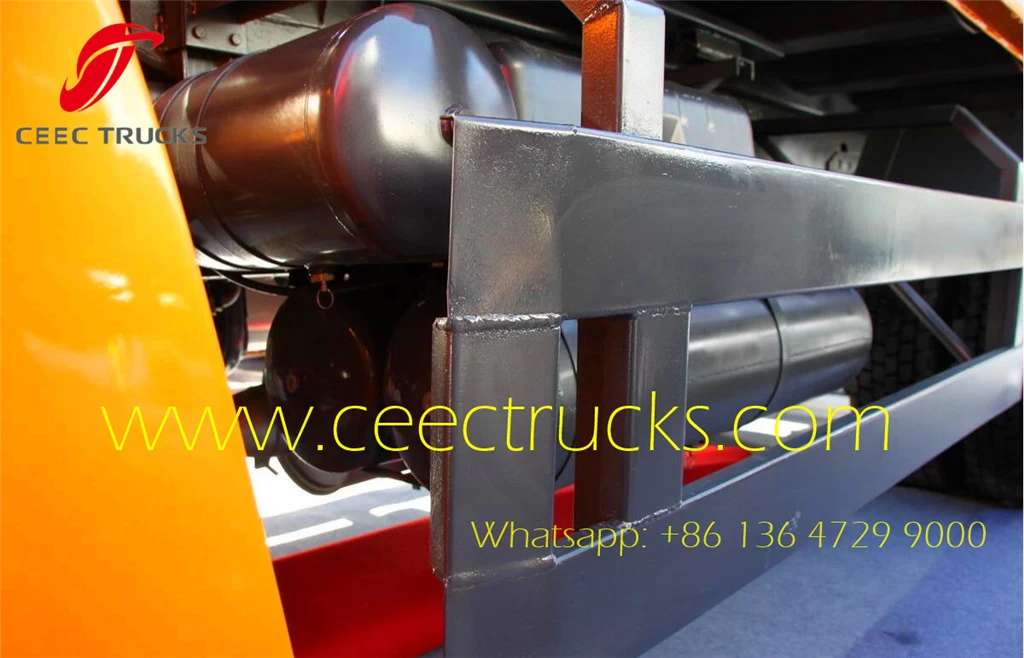

beiben 2538 V3 tipper trucks supplier

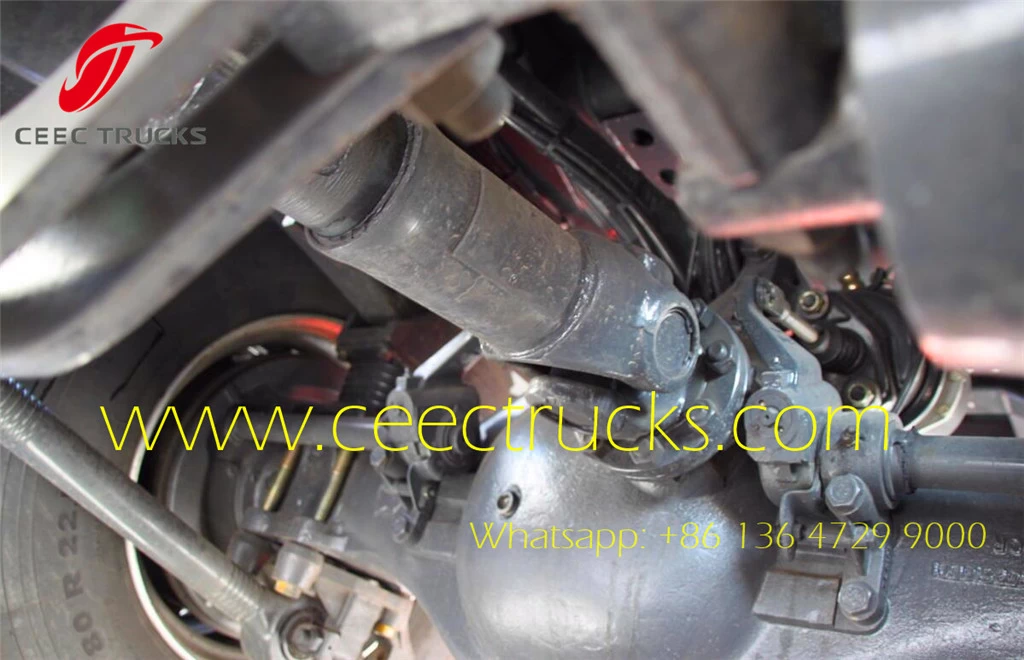

beiben 2538 V3 tipper trucks supplier    beiben 2538 V3 tipper trucks supplier
