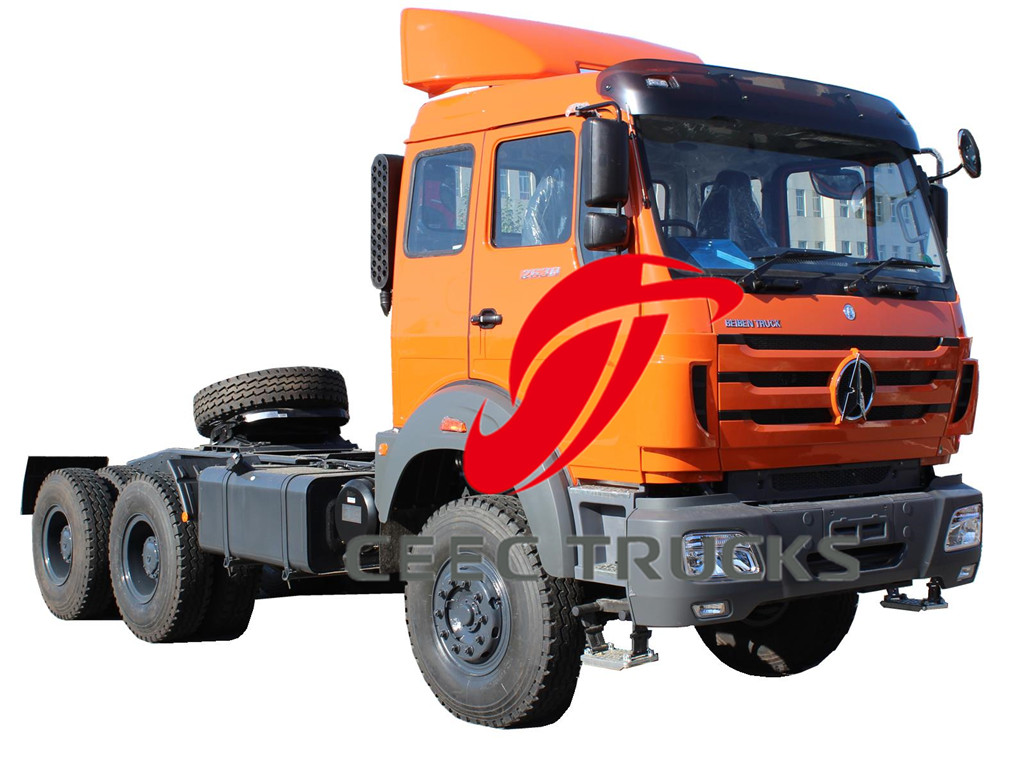

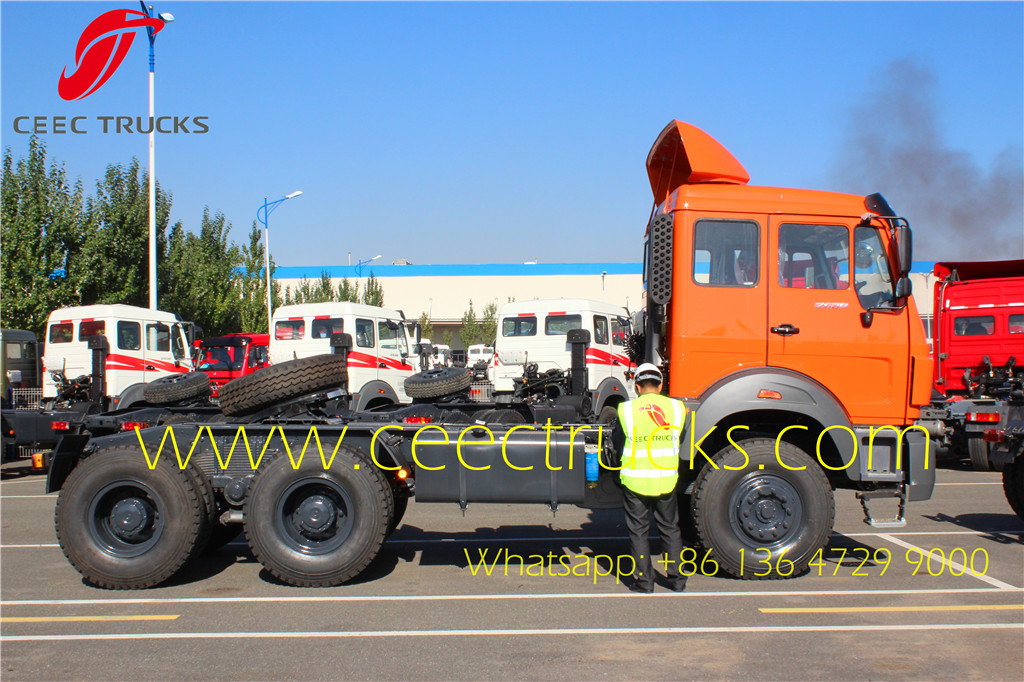

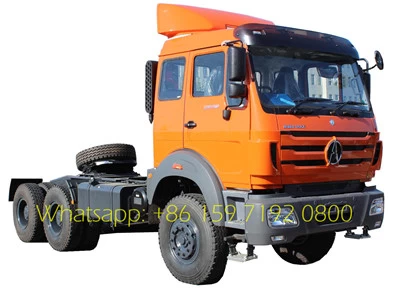

100% brand New beiben RHD 2538 tractor trucks Supplier
Authorized beiben trucks supplier CEEC TRUCKS can supply different model north benz tractor trucks: Beiben 1927, 1828 tractor trucks, beiben 2534, 2538, 2542 tractor head, north benz 2630, 2636, 2638 towing trucks. which are widely used for towing 2 axle semitrailers and 3 axle semi trailers. Top quality Beiben 6 wheeler tractors and 10 wheeler truck tractor with LHD & RHD are wide export Myanmar, Kenya, Tanzania, Congo, Togo, Djibouti, Cameroon, Cote d'Ivoire, Angola, etc.
Kenya and Zambia customer choose Beiben RHD tractor trucks advantages:

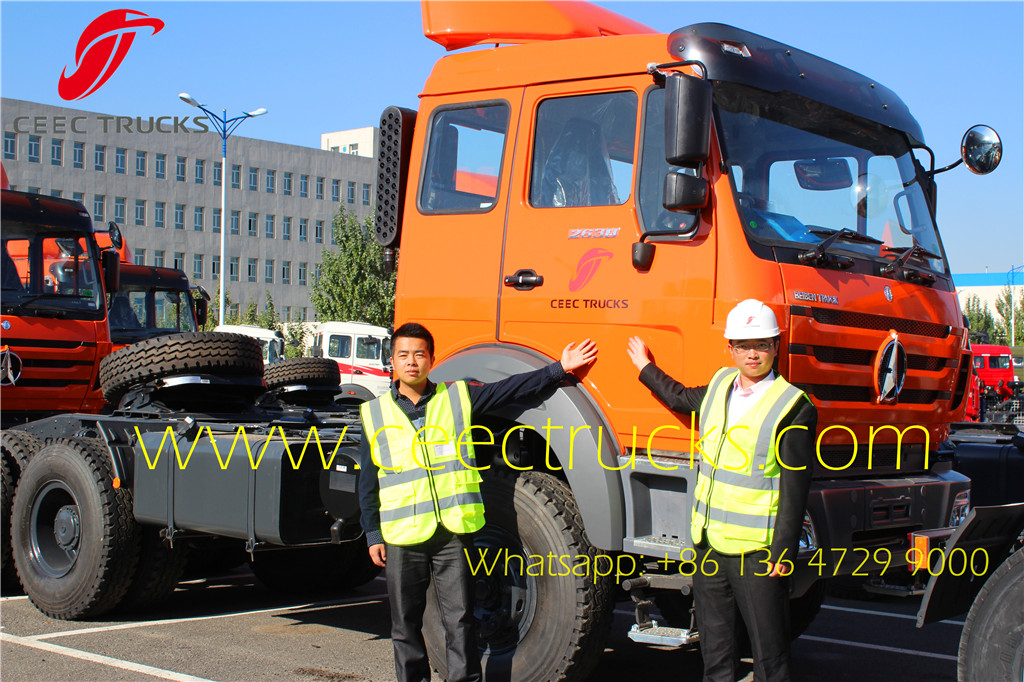

★ The driver's cab uses BeiBen new NG80B with attractive appearance
★ Specific heavy truck metallic framework + stressed-skin construction, possessing security of same level of European automobiles,
★ Fulfils European ECER29 safety and regulatory requirements
★ Stamping molding of frame only once ensures girder strength.
★ Axle of Bei Ben, unique technique of Benz, increasing reliability, oil-saving with high attendance rate
★ Reinforced structure is suitable for all kinds of heavy cargos.
Similar Key Works: Beiben RHD 6*4 tractor truck, Beiben 2638 RHD tractor head, benz 2638 towing trucks, Beiben 6*4 prime mover, Beiben 2538, 2638 tractor trucks, North benz 2542 towing truck, Kenya beiben 6*6 tractor trucks

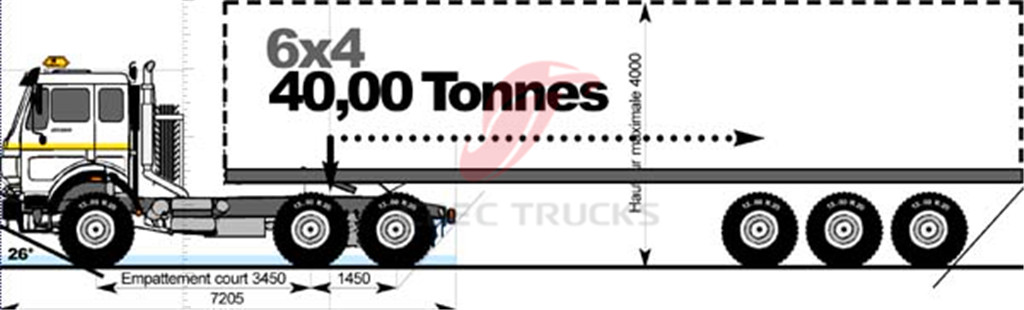

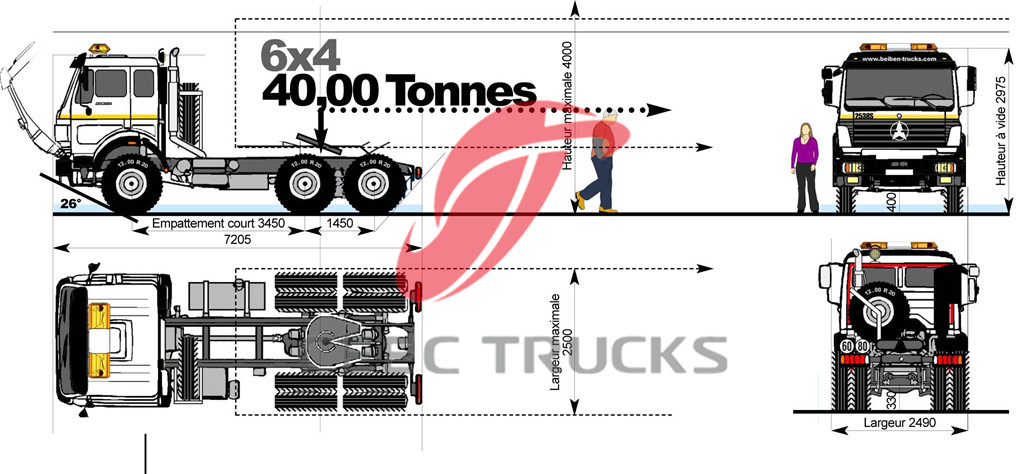

| Wheel base (mm) |

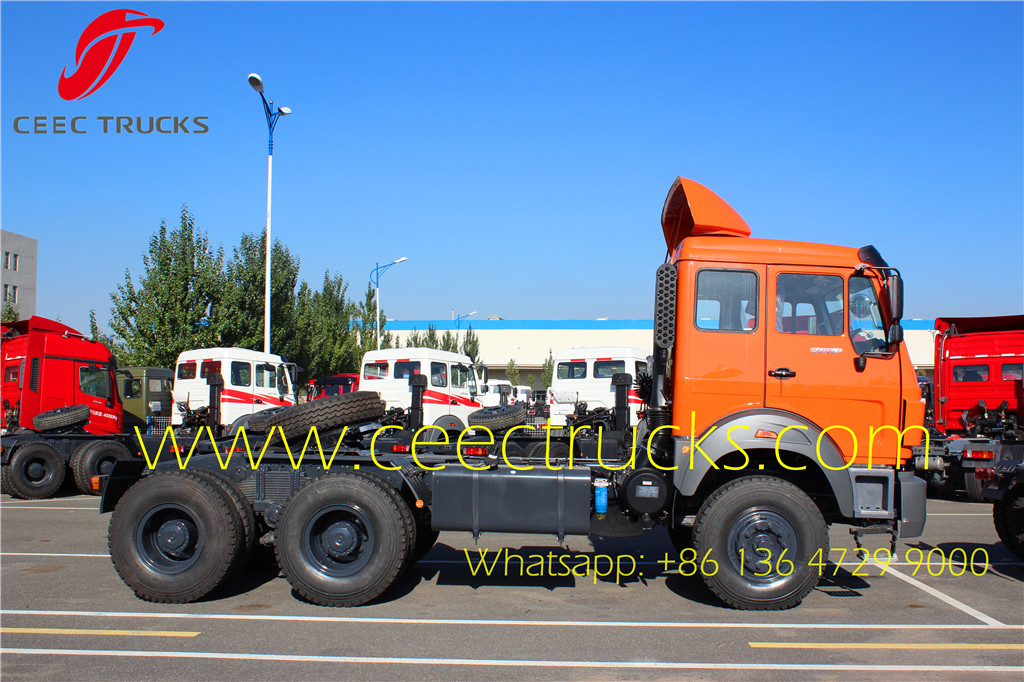

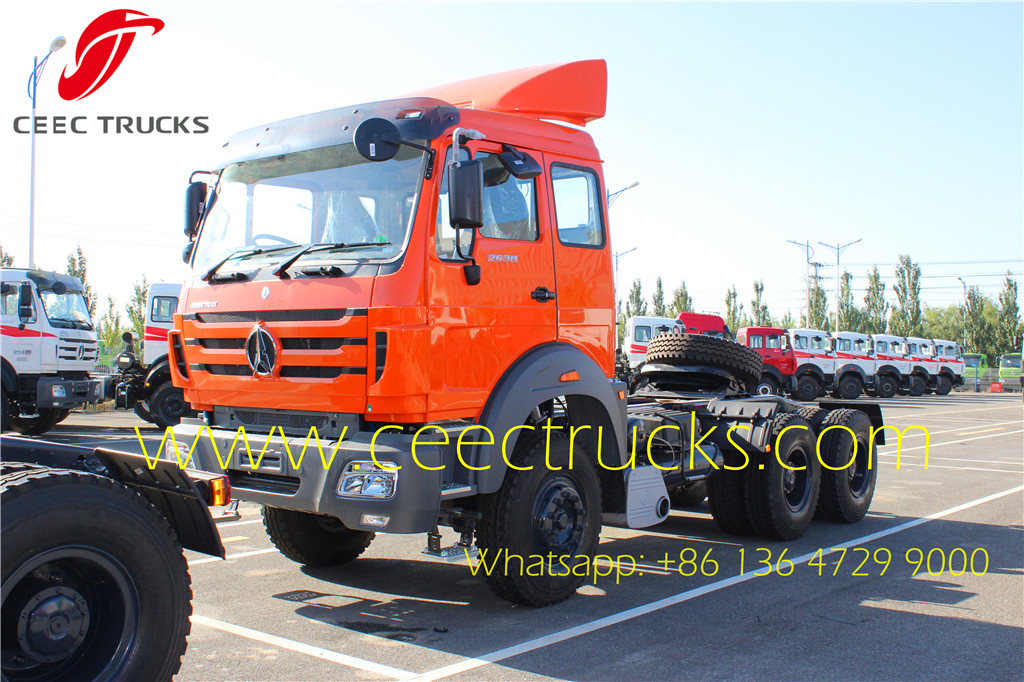

3450+1450 Beiben RHD 2538 tractor trucks for Kenya Mombasa
|
| Curb weight (kg)
|
9200
|
| Max Speed:(Km/h)
|
≥90
|
| Engine
|
Model
|

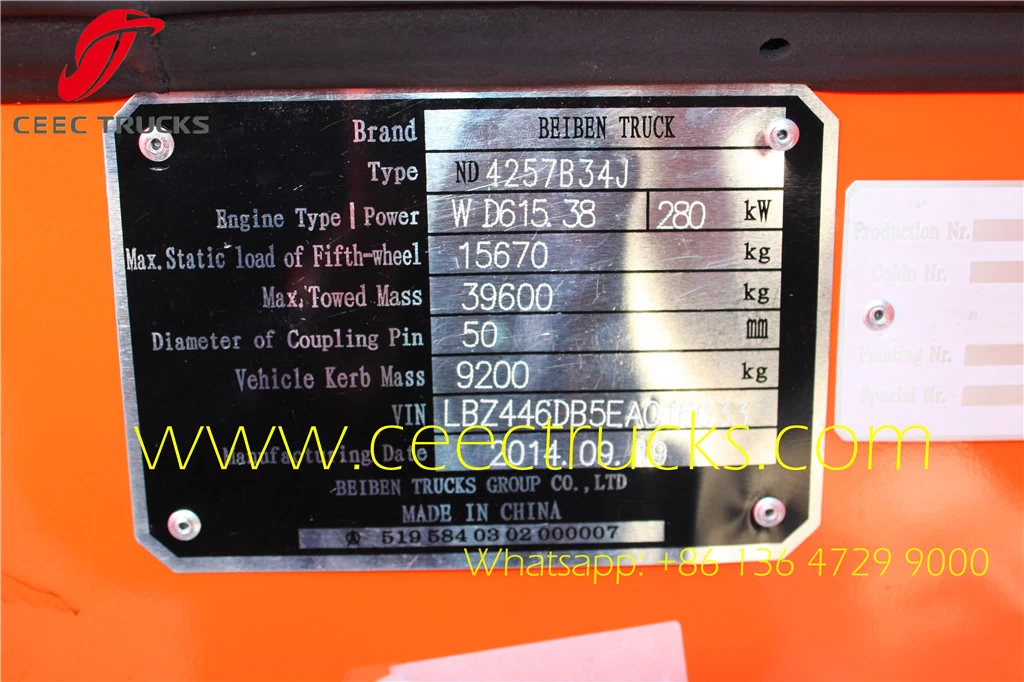

WD615.38, 380HP, water-cooled, four strokes, 6 cylinders straight in line, turbocharged
|
| Fuel type
|
diesel
|
| Min rate of consuming fuel(g/(kW.h))
|
≤198
|
| Rated Power / rotating
(KW/(r/min)
|
280Kw/2400rpm
|
| Emission
|
EURO Ⅱ
|
| Maximum Torque
rotating speed(N.m/(r/min))
|
1460Nm/1400-1600rpm
|
| Displacement(ml)
|
9726
|
| Fuel tanker capacity (L)
|
400
|
| Clutch
|
Model
|
#430, Single dry frictional disc, Hydraulic boosting
|
| Gearbox
|
Model
|
12JS200T, mechanical type,12 Forward speed gear, 2 reverse gear
|
| Gear ratio
|
12.1/9.41/7.31/5.71/4.46/3.48/2.71/2.11/1.64/1.28/1.00/0.78R1: 11.56 R2: 2.59
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
Model
|
ZF8098, whole circulation in ball type, hydraulic boosting
|
| Suspension system
|
Front Suspension
|
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension
|

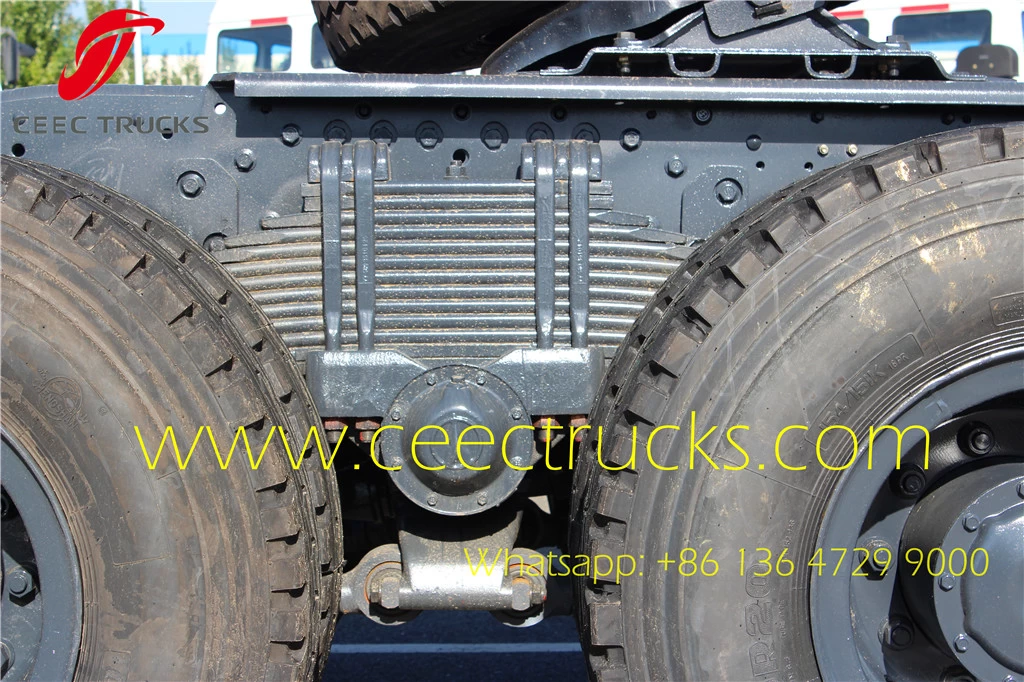

| Rear Suspension
|
Non-free standing stabilization spring, stabilization suspension
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| Cross section dimension of frame(mm)
|
317×70×8.5+7+8
|
| Front axle
|
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.263
|
| Middle and Rear axle
|
Double-shoe pneumatic brake, ductile casting casing,
with hub redactor, double reduction driving axle
Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263
|
| Tire
|
12.00-24 (one spare tire)
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|
| Cab
|

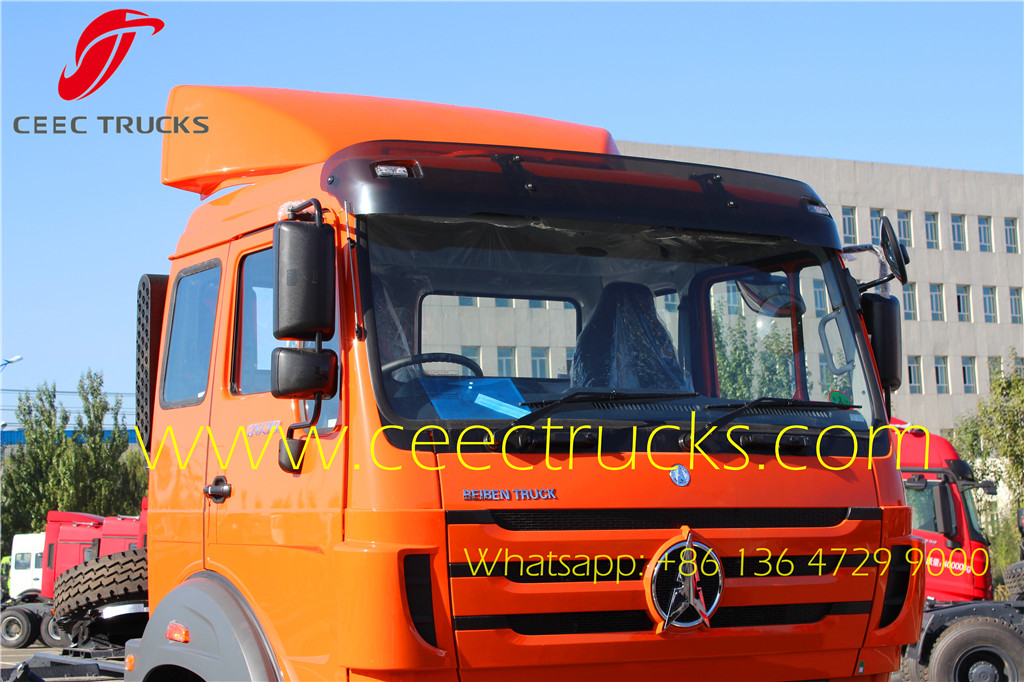

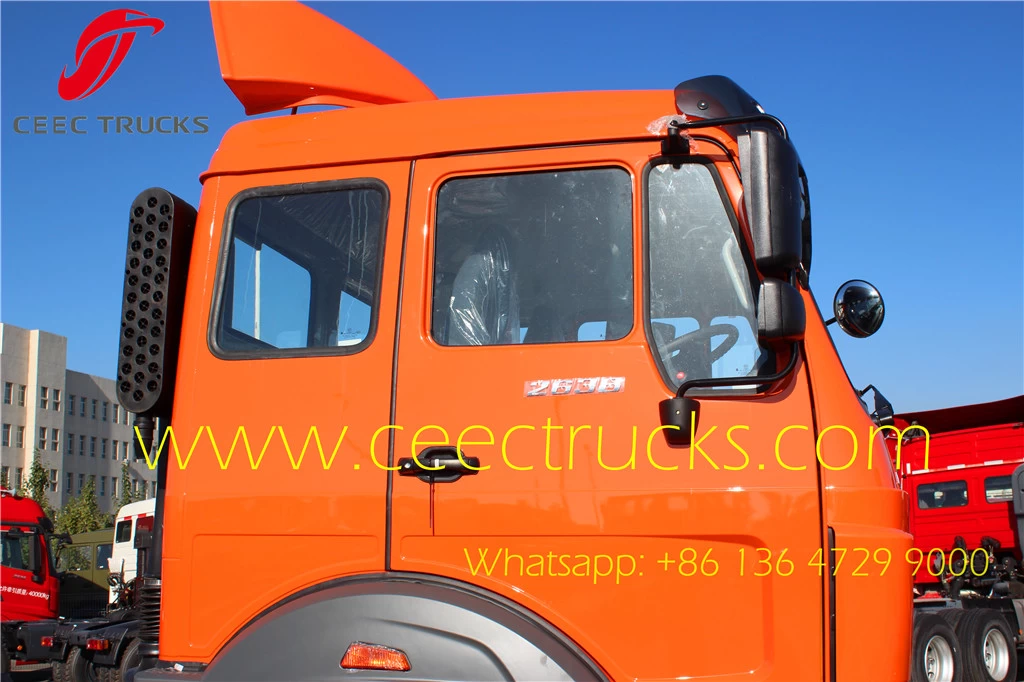

Short cab, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; with Air deflector
|

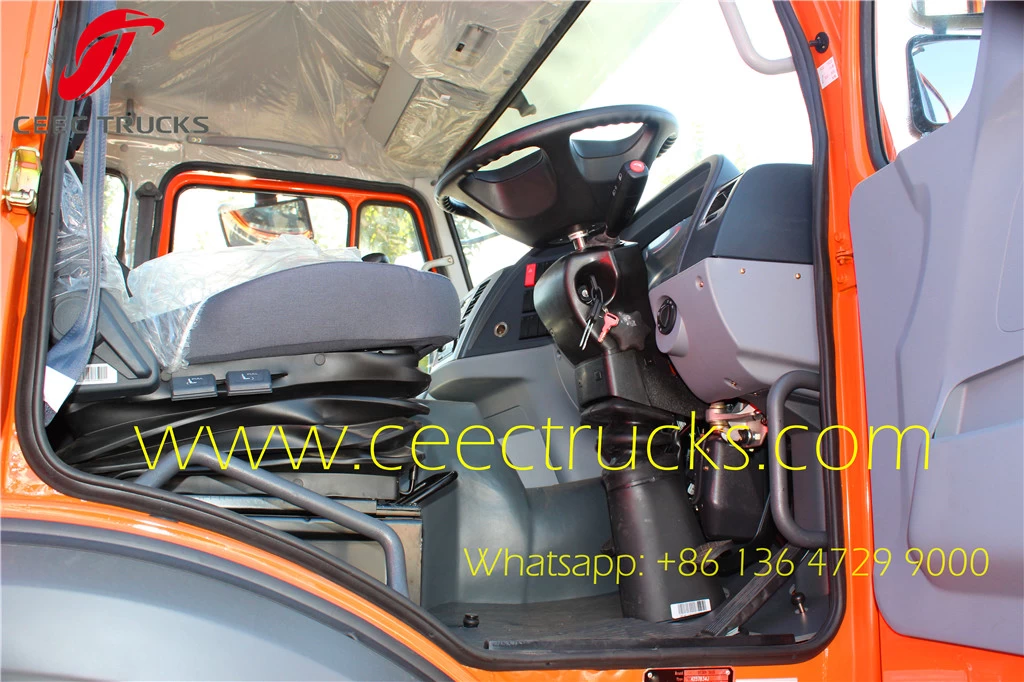

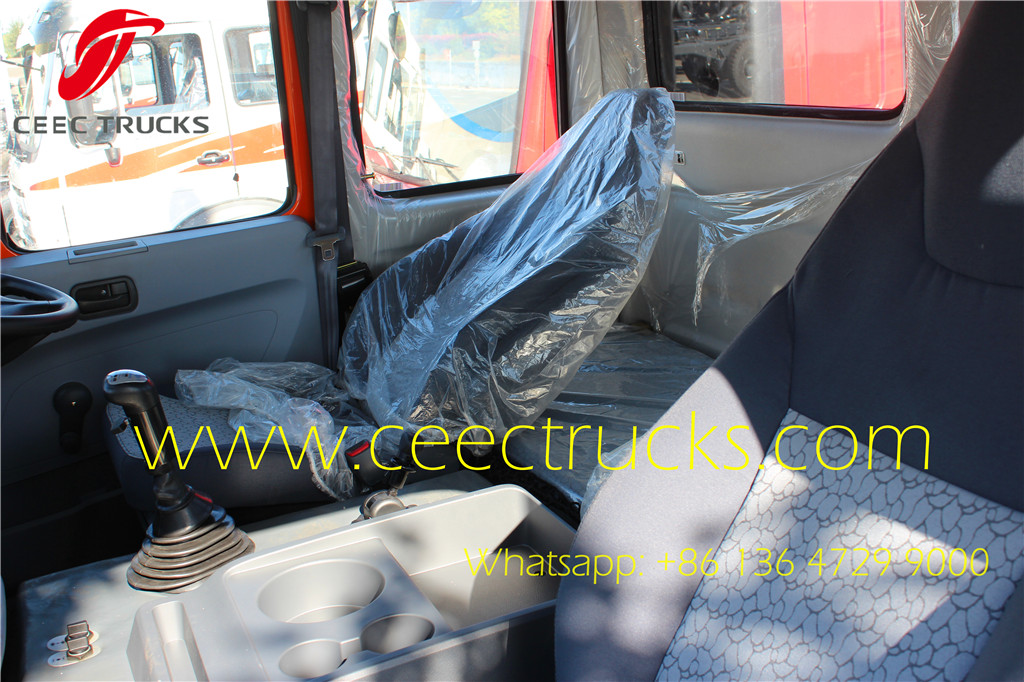

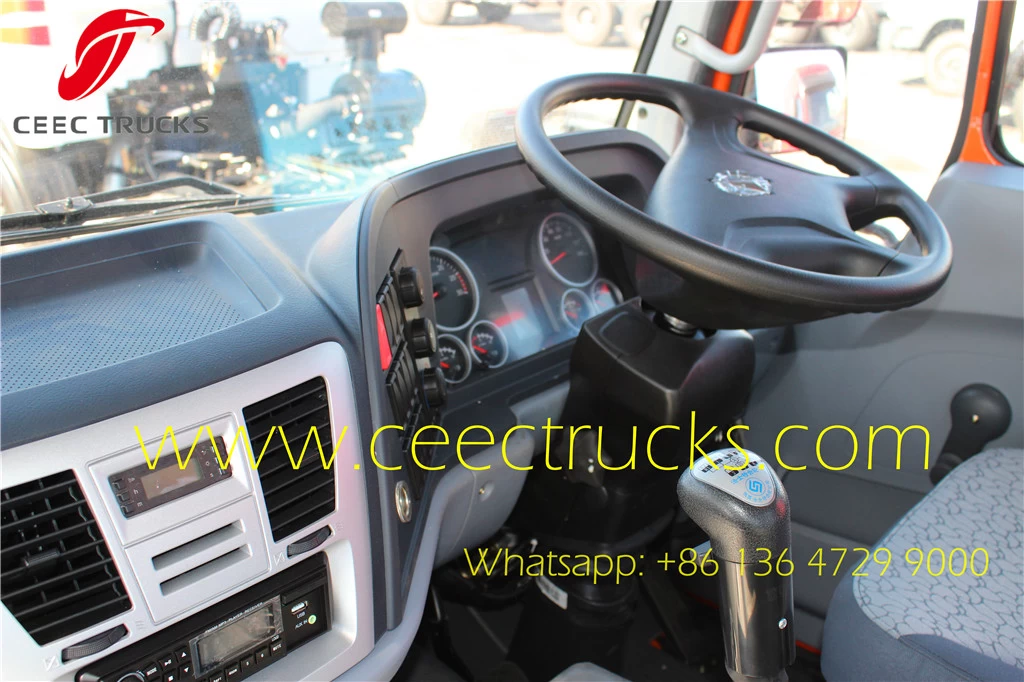

| Interior trimming: Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.
|
| Exterior trimming: Single layer road bumper, three steps, with new mirror. with outer sun visor
|

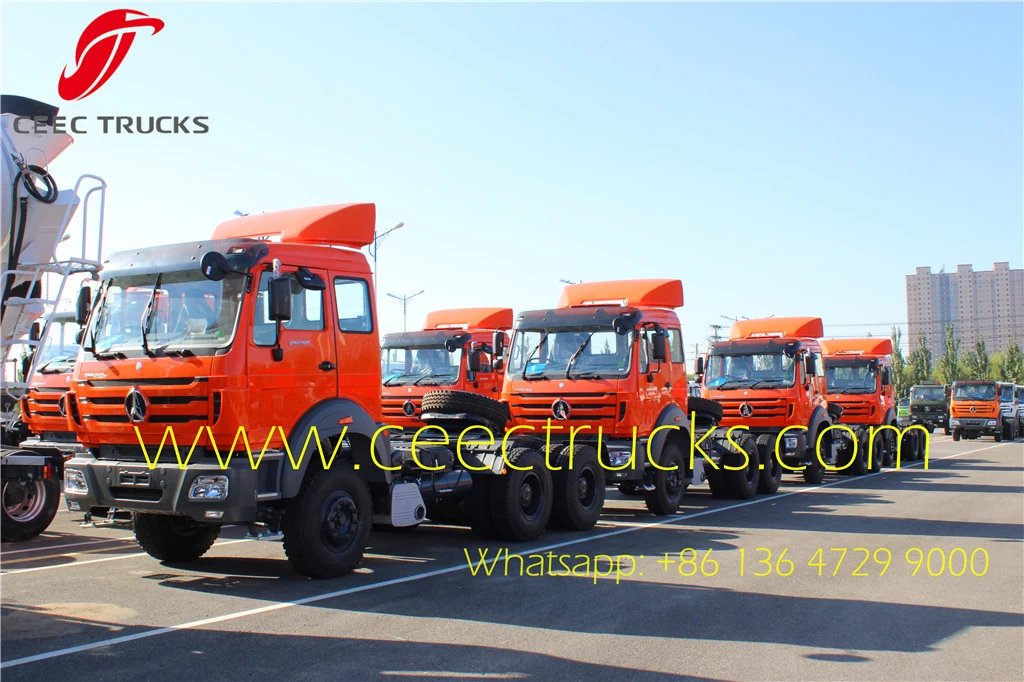

Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale
