Beiben 2629 offroad 6x6 truck

Beiben 6x6 offroad cargo truck also called Beiben 6x6 all driven cargo truck, which with excellent offroad capability, ideal for driving on rough roads, Powerful and passable chassis, high load capacity, very popular in Africa, including DRC, Tanzania, Nigeria, Ethiopia, Zimbabwe, etc. The Beiben cargot ruck cahssis adopt the Mercedes Benz truck technology, the chassis is stable and very durable, with Top 1 Chinese brand WEICHAI diesel engine, and customized engine power range from 290HP to 420HP, with maximum torque of 1250N.m, it is even more impressive in terms of manoeuvrability. The Beiben 6x6 model 6 wheeler cargo truck brake system including the service brake, assistant brake and park brake. The beiben cargo truck NG80B cabin can have the painting 100% customized.


  • Production time30-35days
  • Payment termsTT
  • Working Capcity20-25 tons
  • Engine power290HP
  • Drive system6x6

The BEIBEN 6x6 all-wheel drive truck chassis is known for its powerful off-road capabilities, stable transmission system and reliable braking performance, and is suitable for heavy-load transportation work under complex road conditions. Beiben 6x6 offroad cargo truck also called Beiben 6x6 truck, Beiben 6x6 cargo truck, North benz 6x6 offroad truck. with details configuration as below showing:

Drive type: North Benz 6x6 all-wheel drive. Provides excellent off-road capabilities and traction, suitable for transportation needs on complex road conditions.

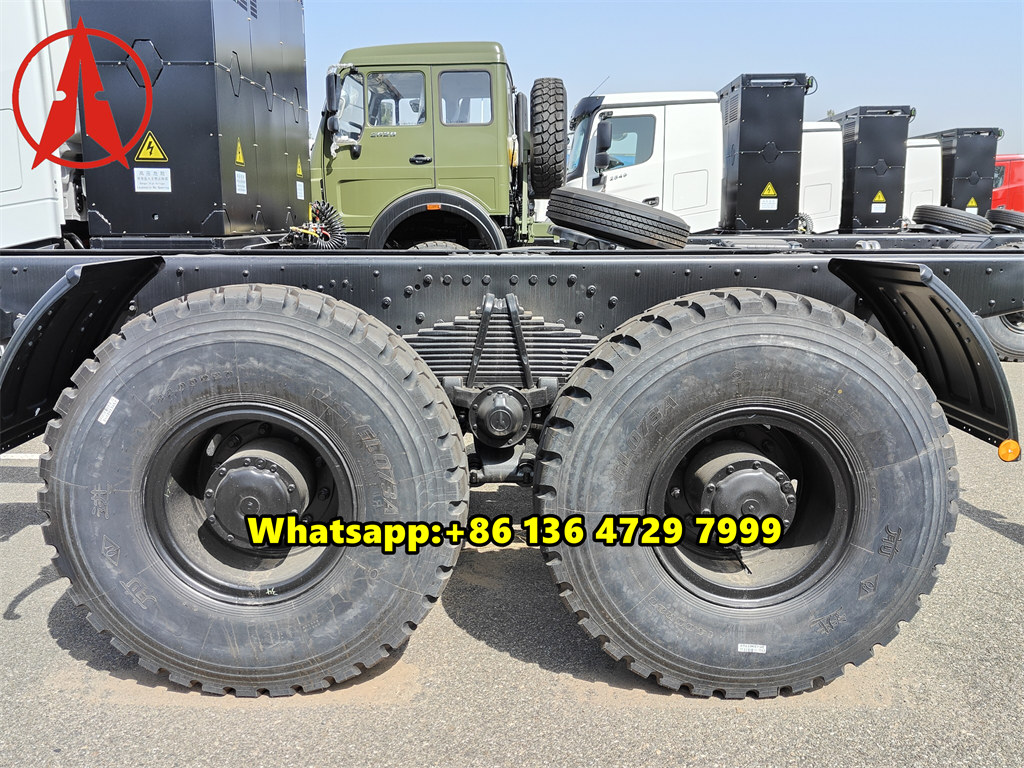

Number of axles: Standard 3 axles, all based on original Germany Mercedes Benz technology, with front axle 7500kg capacity and rear double axles 13000+13000 kgs capacity.
Number of tires: 6 wheeler as customzied 12.00R24 model, very large size and suitable for tough road. Distributed on the front 2 tires, middle 2 tires and rear axles 2 tires of the vehicle, providing sufficient stability and traction.


Engine configuration
Engine model: The specific model can be customized, but considering the brand characteristics of BEIBEN, Top 1 Chinese brand WEICHAI diesel engine are used with engine power optional 290HP, 340HP, 380HP, 420HP.
Fuel type: Diesel as standard, which is efficient and economical, suitable for long-term and heavy-load transportation work.
Emission standard: The specific standard of emission can be customized based on requirement, such as Africa countries to be equipped with EURO 2 and EURO3 engine, Also can customized EURO 4 and EURO 5 engine for Philippines Market.

Beiben Cargo Chassis structure
Chassis wheelbase: According to the characteristics of the model, it may be adjusted according to the vehicle length and load requirements, And the beiben 6x6 offroad cargo truck can be customized to build different type special trucks, including Beiben 6x6 tanker truck, Beiben 6x6 dump truck, Beiben 6x6 cargo truck, Beiben 6x6 sewage truck, Beiben 6x6 road recovery truck, etc.
Chassis quality: The beiben 6x6 military cargo truck chassis use Mercedes Benz technology axles, considering the characteristics of all-wheel drive and heavy load, the chassis structure is usually strong and heavy, the
Germany Mercedes Benz technology, with front axle 7500kg capacity and rear double axles 13000+13000 kgs capacity.

Gearbox: The China north benz 6x6 offroad cargo truck equipped with FAST brand fearbox, with customized 9 speed, 10 speed, 12 speed, the gearbox that matches the engine and vehicle load is usually used to ensure good power transmission and fuel economy.
Braking system: North Benz cargo truck with an efficient and reliable braking system is expected to be used to ensure driving safety under complex road conditions.
Fuel tank capacity: The Beiben cargo truck fuel tanker with reasonably designed based on the vehicle mileage and fuel consumption. Standard is one tanker device with capacity 400L, but also can be customized to be up to 800L and 1200L.

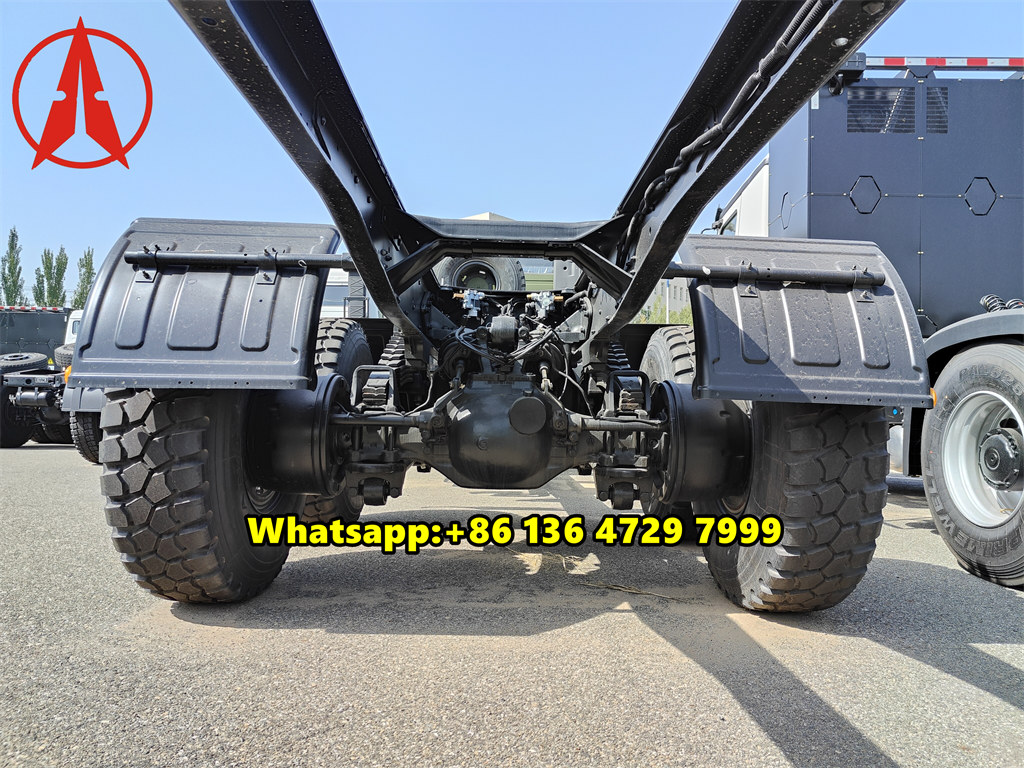

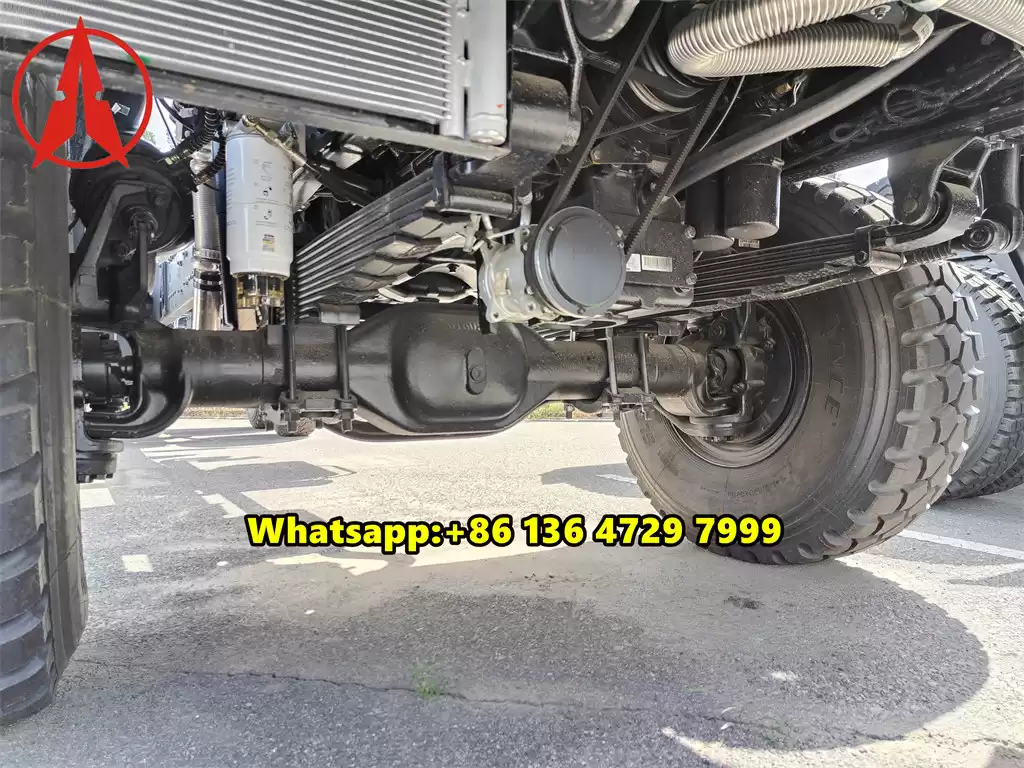

Axle description: The Benz 6 wheeler all wheel drive truck chassis with front and rear axles all for driven, but according to the characteristics of all-wheel drive, the rear axle usually has a high load-bearing capacity and reliability



The Beiben 6x6 single tire all-wheel drive North Benz cargo truck chassis is suitable for scenarios that require strong passability and traction, such as mines, construction sites, and complex terrain transportation. Which mounted with China Number 1 brand diesel engine WEICHAI WP10.290E32 type, powerful 290HP and emission 9726cc, with below chart showing details of the WEICHAI diesel engine of Beiben 6x6 AWD 2629 cargo truck

Engine Model

WEICHAI

Engine Manufacturer

BEIBEN

Application

Beiben 2629 Cargo Truck

Air Intake

Turbocharged and Inter-cooling

Cylinder

6

Fuel Type

Diesel

Cylinder Arrangement

Inline

Displacement

9.726L

Emission Standard

EURO 3

Max. Power Output

213kW

Rated Speed

2200rpm

Max. Engine Power

290 HP

Max. Torque

1500N.m

Max. Torque Speed

1100-1600rpm

Min. Fuel Consumption at Full Loading

193g/kW.h

Engine Model

Water cooled, 4 stroke, exhaust brake, direct injection, turbocharged and Inter-cooling

Engine Weight

850kg

Compression Ratio

17:01

Noise 1m Away

98dB

Bore x Stroke

126x130mm

Number of Valves per Cylinder

2 units

Ignition Order

1-5-3-6-2-4
