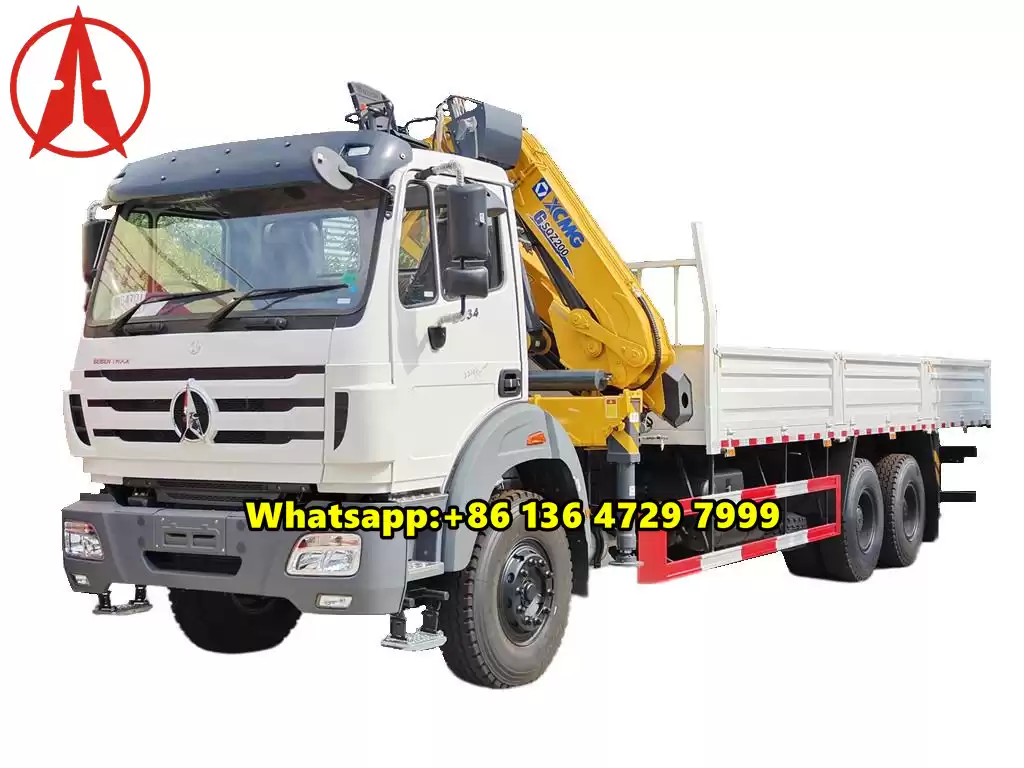

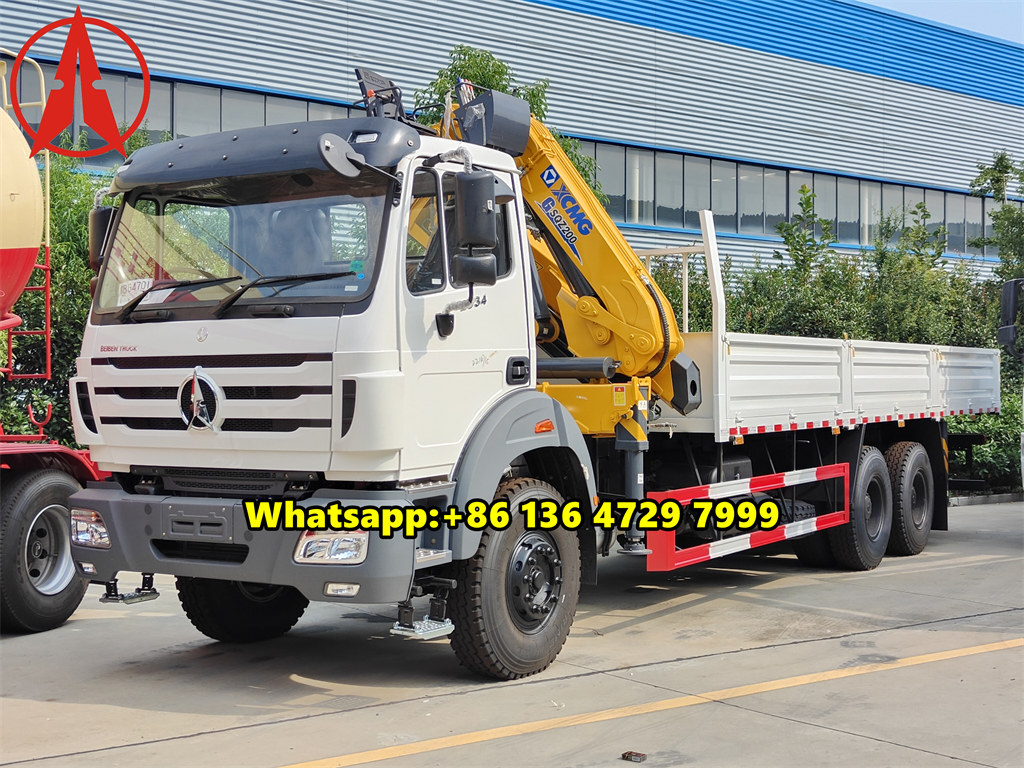

Beiben 2634 truck crane transporter is a special transport vehicle equipped with a truck crane, mainly used for self-loading and unloading of goods. The Beiben crane truck is also called North Benz truck mounted crane, Beiben crane truck, Beiben truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional cargo truck crane supplier in China, we can manufacture the crane boom is from 2 ton to 160 ton. The drive type of our Beiben truck crane for sale are 4x2, 4x4, 6x4, 6x6, 8x4, 8x8, etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be different brand crane, CEEC crane, Palfinger crane, UNIC crane, XCMG crane, etc
-

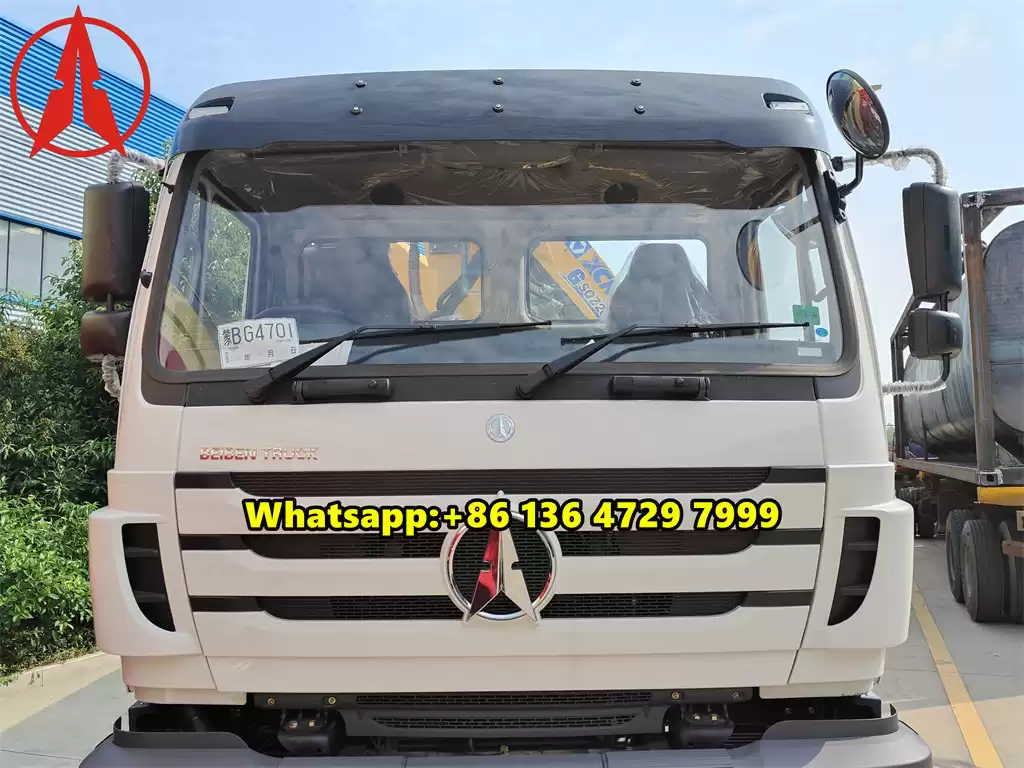

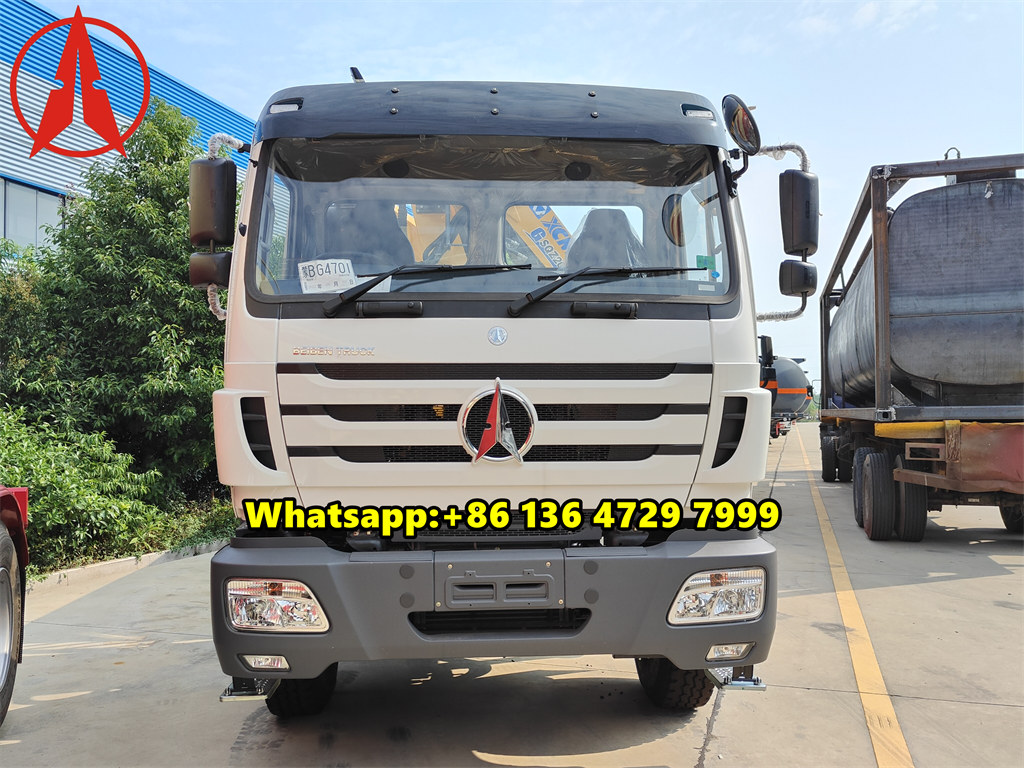

Beiben crane truck NG80 truck
-

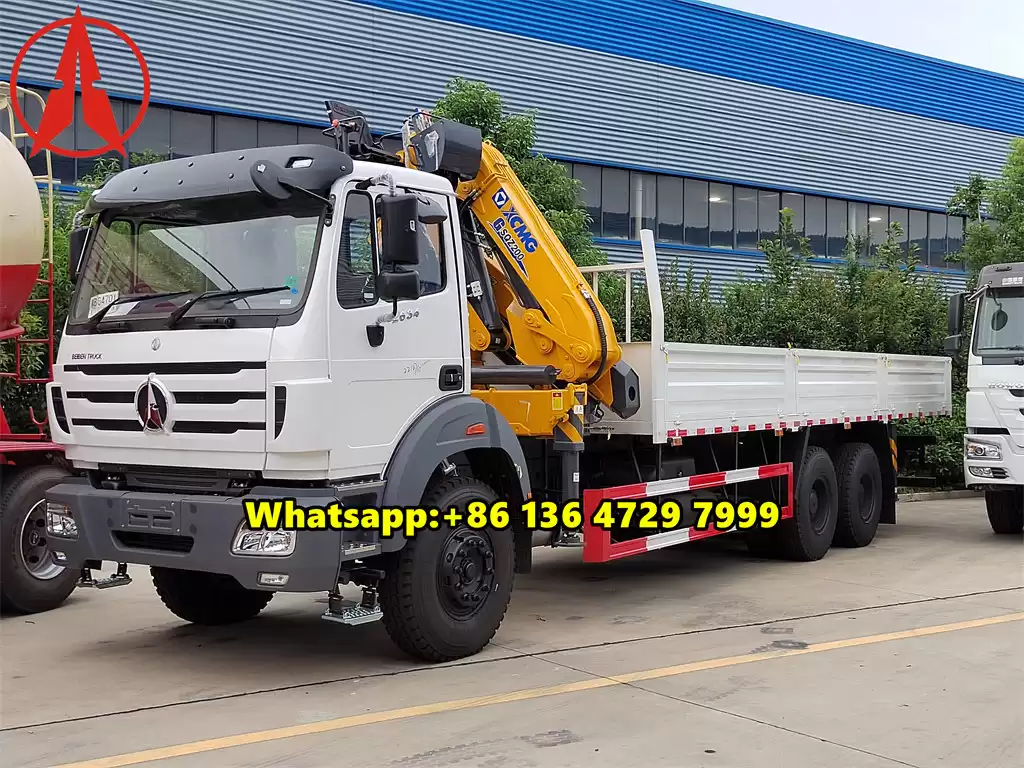

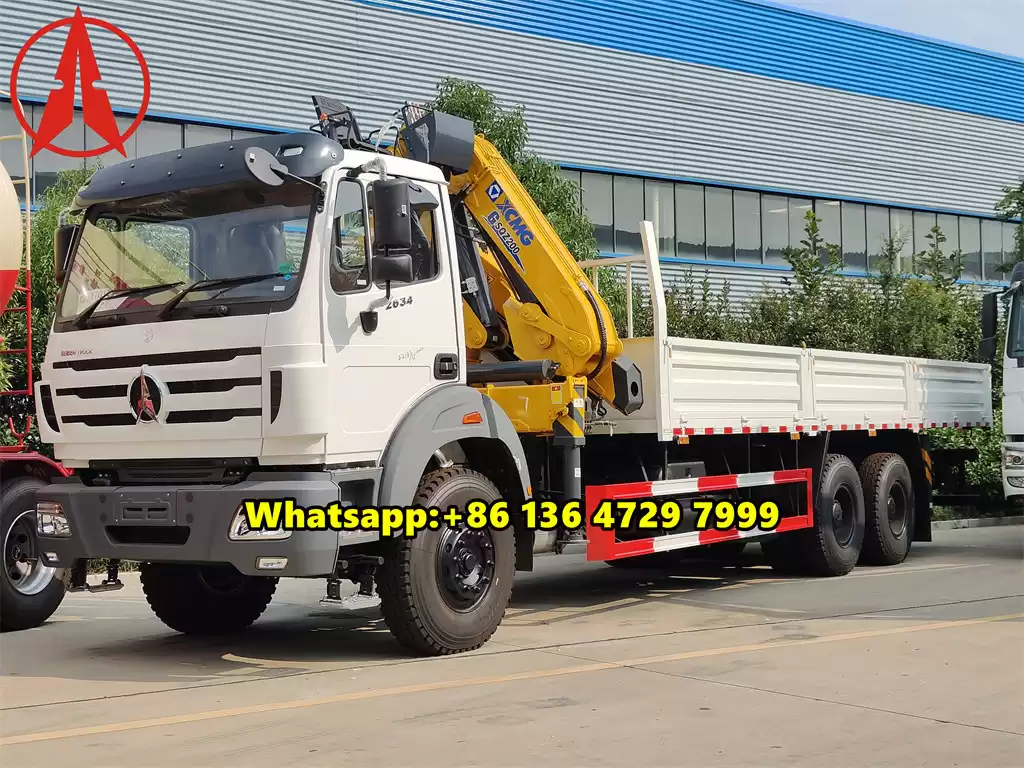

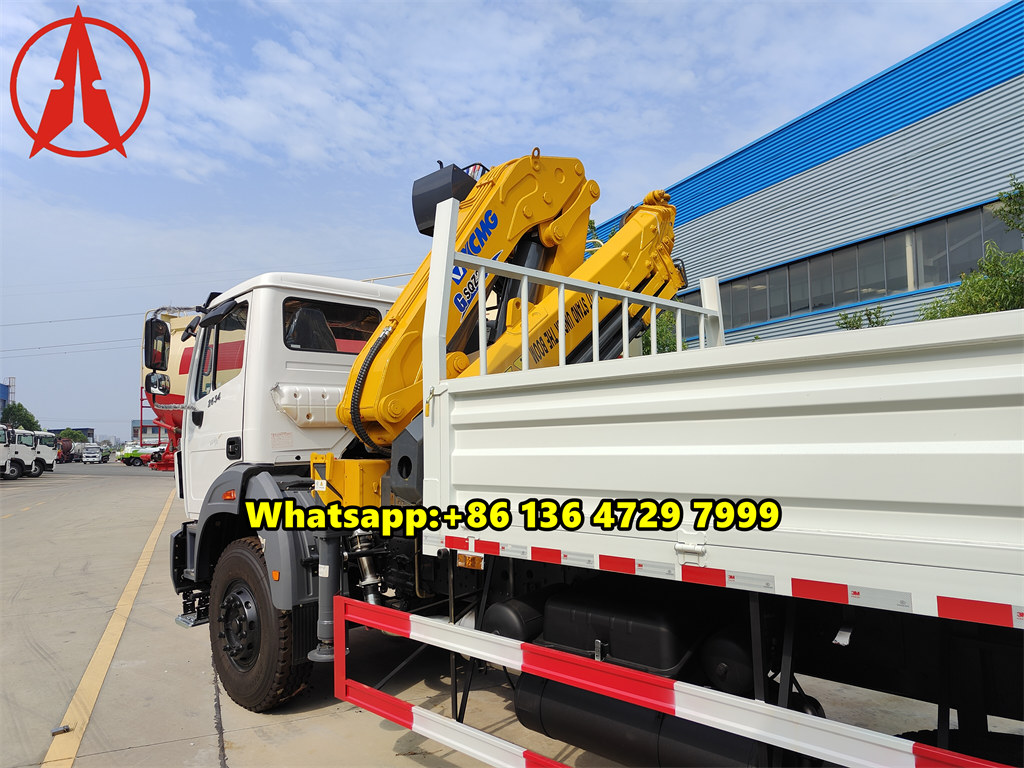

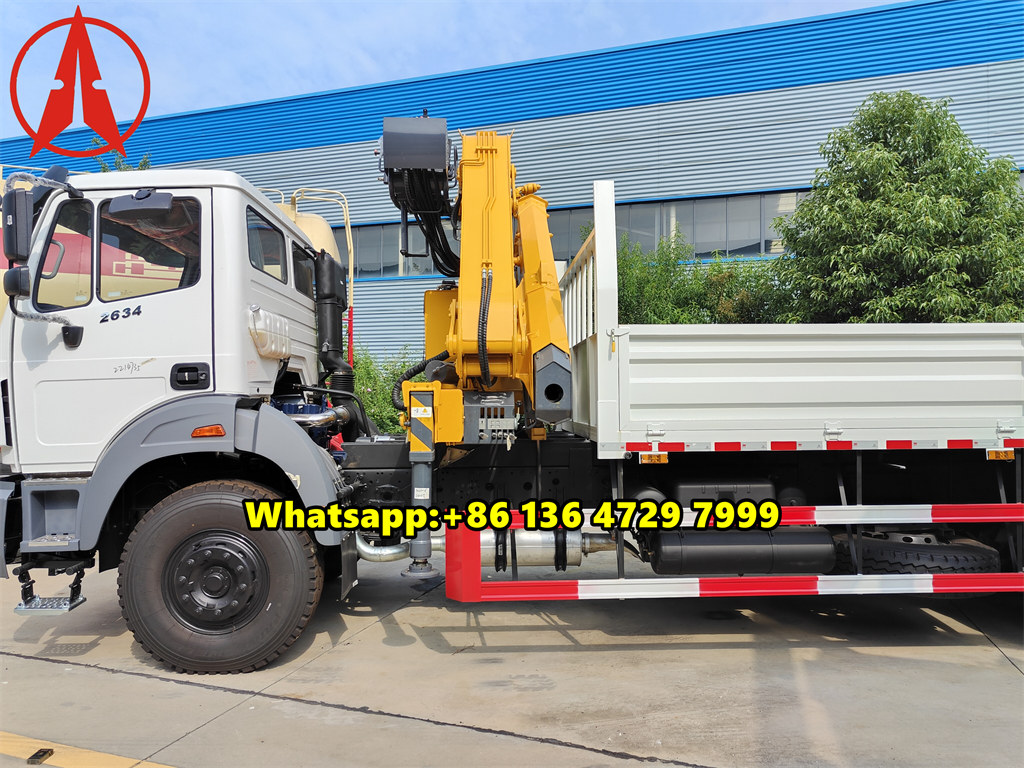

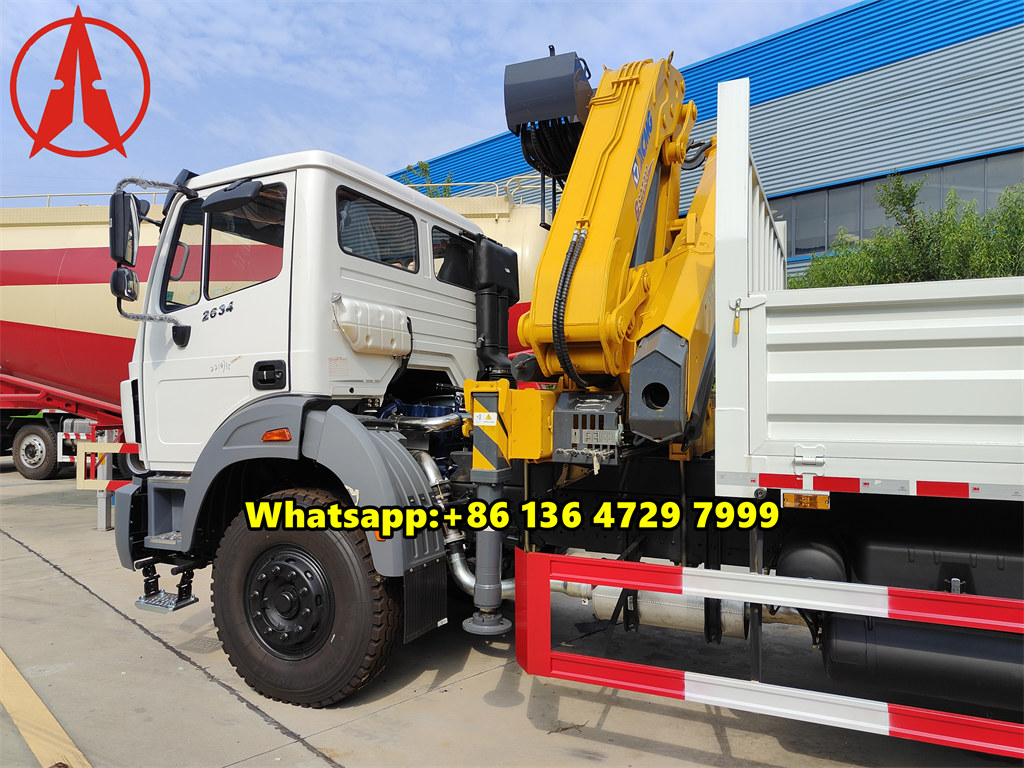

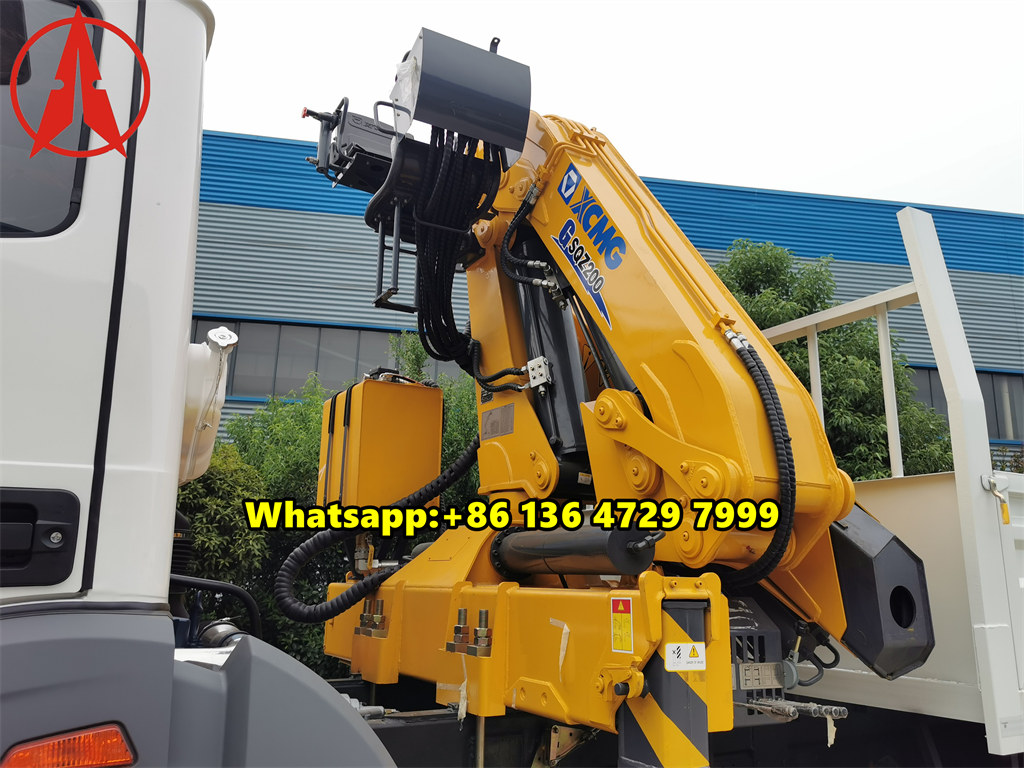

Beiben crane truck mounted SQZ200 XCMG crane
-

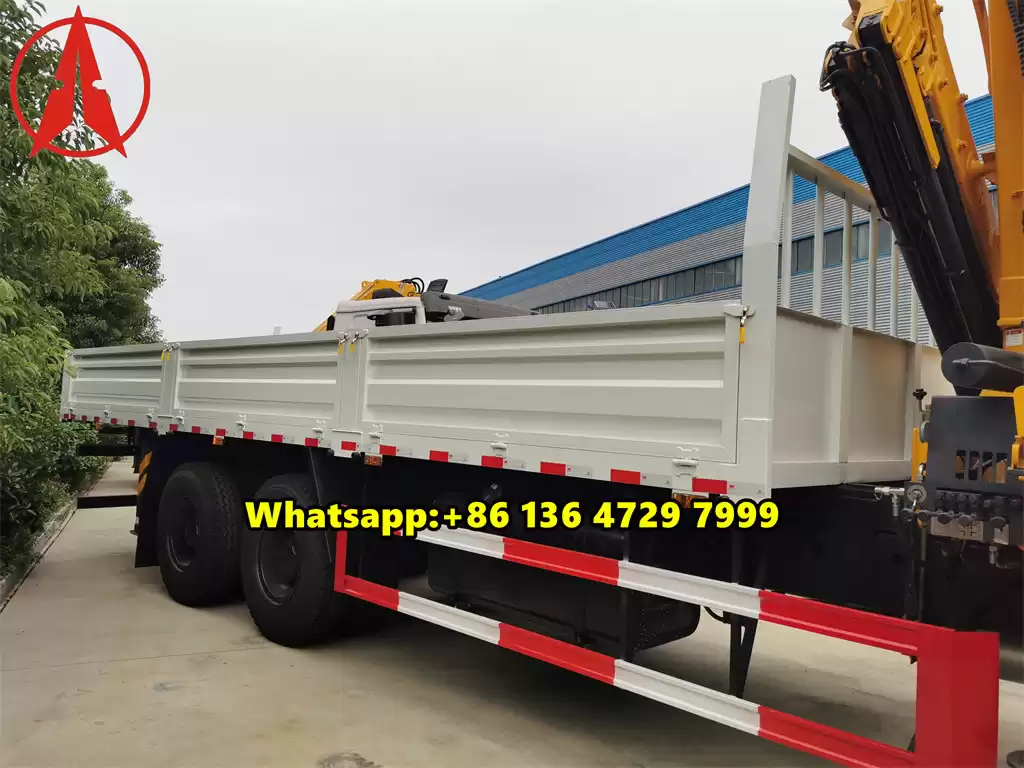

Beiben boom crane truck cargo body with Lock for Container
Truck crane transporter, referred to as Beiben truck crane, is a device that uses a hydraulic lifting and telescopic system to achieve the lifting, rotation and lifting of goods, usually installed on a truck. Beiben 2634 boom truck mounted crane transporter specifically refers to the truck crane transporter model using Beiben chassis.The North Benz 2634 crane truck transporters can be divided into three types according to chassis differences: single-vehicle type, semi-trailer type and semi-trailer tractor type. Beiben 2634 truck crane transporter is a type of single-vehicle truck crane transporter.
| BEIBEN 6x6 truck mounted 8Ton telescopic boom crane |
| Emission Standard |
EUR 3 |
| Chassis model |
ND5250GGSA |
| Driving Type |
6×4 |
| Dimensions |
| Wheelbase(mm) |
5050+1450 |
| Overall Dimension(mm) |
9200×2500×3458 |
| Cargo box dimension(mm) |
6000x2300x800 |
| Weight parameters |
| GVW(kg) |
25,000kgs |
| Curb weight(kg) |
12,450kgs |
| Real load weight(kg) |
12,150kgs |
| Chassis parameter |
| Front axle |
7 Ton front axle load capacity, Double shoe disc air break |
| Rear/middle axle |
18Ton/axle (2 axle combined)
Dual-circuit air braking system,driving axle,ductalloy axle cover
with wheel side reducer |
| Front axle span(mm) |
1940 |
| Rear axle span(mm) |
1847/1847 |
| Front/rear overhang(mm) |
1410/2530 |
| Approach angle(°) |
34 |
| Departure angle(°) |
24 |
| Max speed(km/h) |
80 |
| Suspension |
Leaf spring suspension |
| Engine performance |
| Engine model |
WP10.340(From WEICHAI engine) |
| Engine type |
Straight in-line,6 cylinders,4 strokes,water-cooling
Turbo charge with inter-cooling,diesel engine |
| No. of cylinders |
Straight-6 cylinders |
| Displacement(L) |
9.726L |
| Max. Output (KW) |
250kw (340hp) |
| Fuel type |
Diesel |
| Max. output (kw/Ps/rpm) |
250kw(340ps)/2200 rpm |
| Max torque/Speed(N.m/rpm) |
1250 N.m/1400-1600rpm |
| Tire specification |
12.00R20,total 6 units off-road tire+1 spare tire |
| Drive Line |
|
| Clutch description |
¢430,dry single plate, hydraulic control booster,mechanical
operation with hydraulic assistance |
| Transmission |
FAST 9 forwarder, 2 reverse gear, synchronous meshing,manual |
| Braking system |
Service brake:Brake gap can be adjusted automatically
double circulation air brake system
Assistant brake:WEVB(Engine exhaust brake)
Park brake:Spring brake effect to middle and rear tires |
| Suspension system |
| Front axle |
Semi-elliptic leaf springs shock absorbers |
| Rear axle |
Torsion bar semi-elliptic leaf springs |
| Electrical Equipment |
| Voltage |
24V |
| Batteries |
2X12V/135Ah |
| Starter |
6.2Kw/24V |
| Cab description |
NG80 short cab,cooling and heating air-conditioner,all steel bumper
With FM,AM radio player,with manual windows |
Chassis: The chassis of the Beiben brand is used, which is famous for its strong load-bearing capacity and good stability, providing solid support for the truck crane.
Truck crane: As an upper component, the truck crane (truck crane) is the core part of the Beiben 2634 truck crane transporter, which is used to realize the lifting, lifting and rotation of goods. Truck cranes can be divided into straight arm type and folding arm type according to type, and cranes of different tonnages meet the lifting needs of different weights.

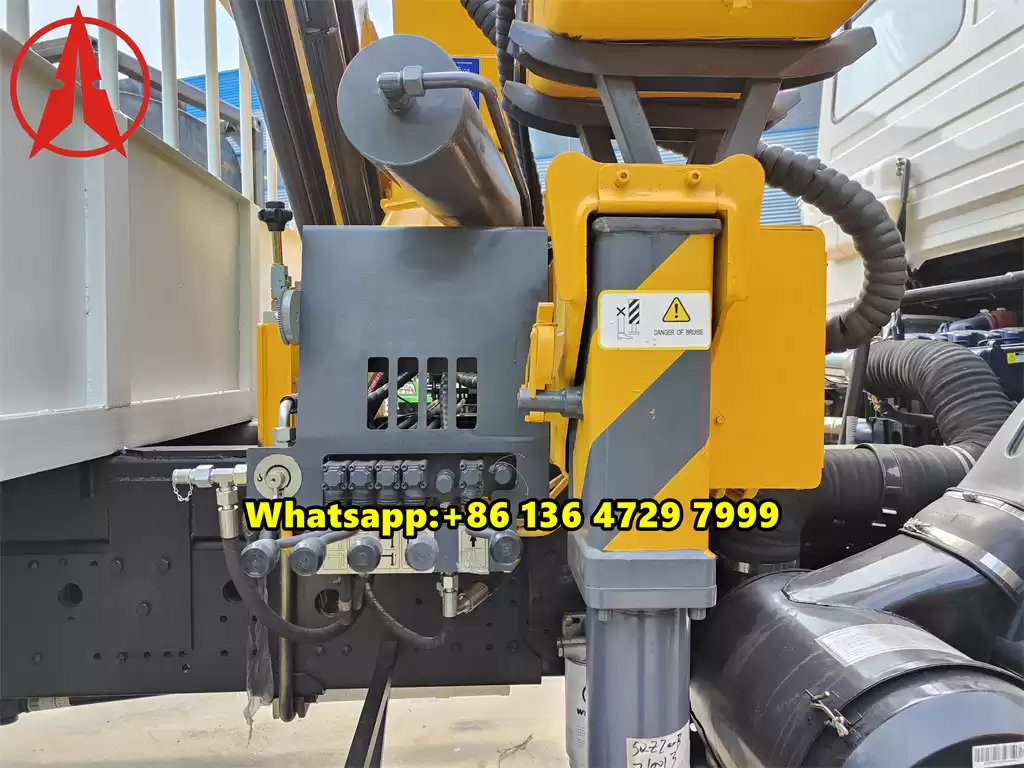

Power take-off: used to obtain power from the chassis engine to drive the truck crane to work.

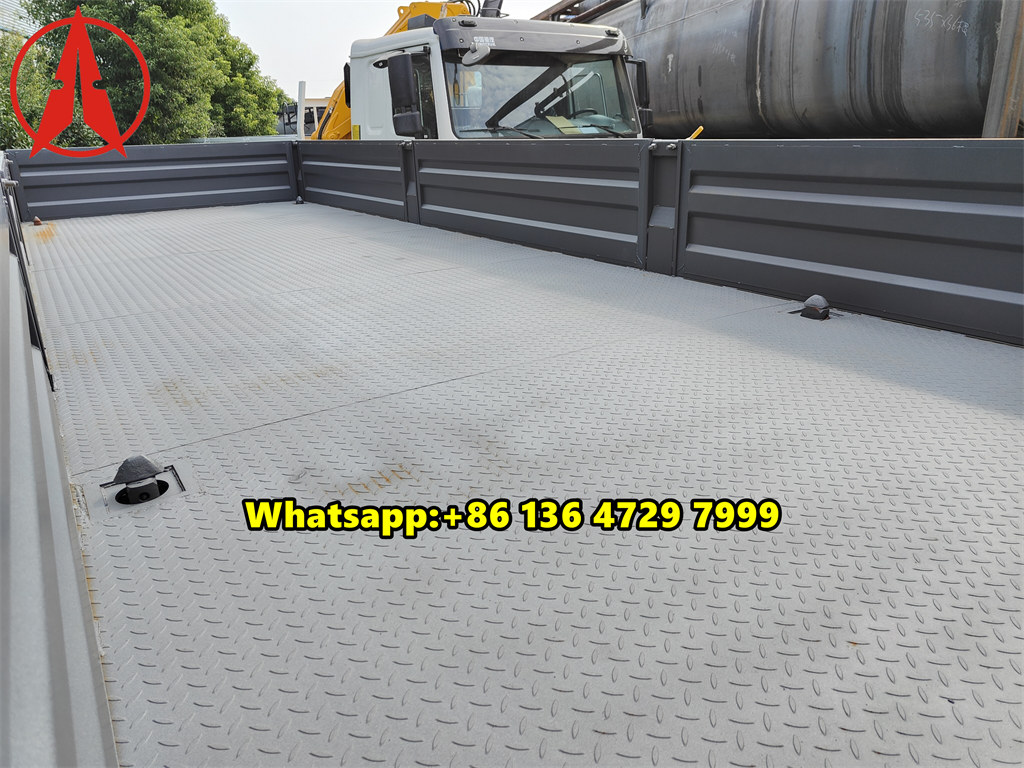

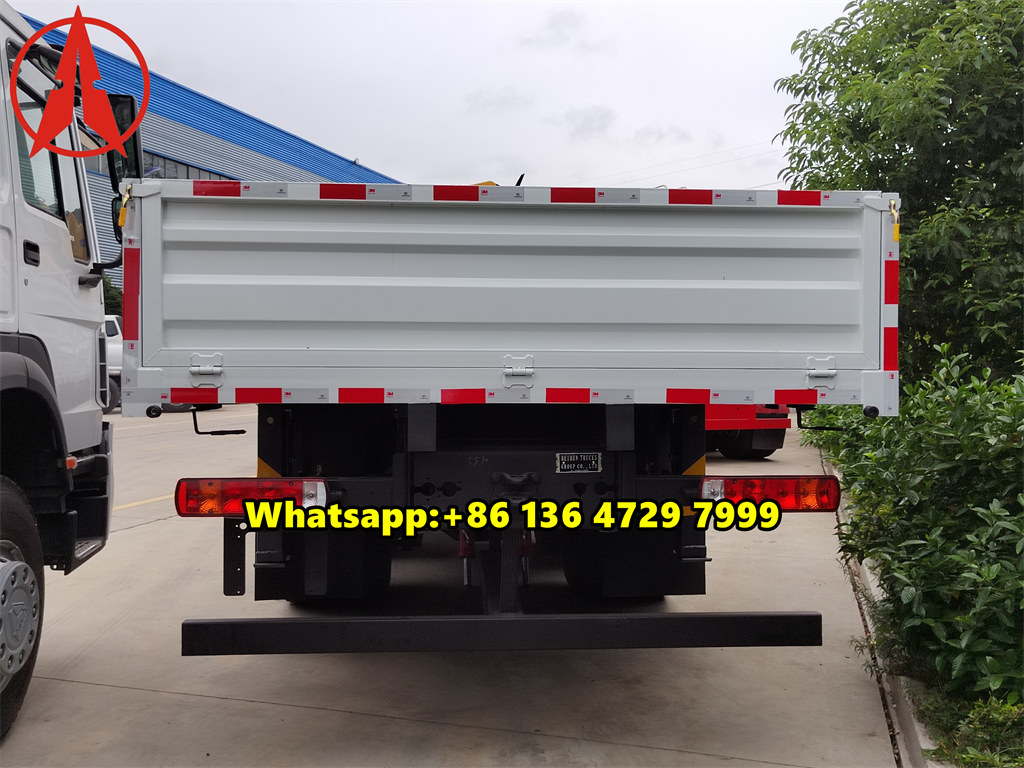

Cargo compartment: Cargo compartments of different lengths can be configured according to needs for loading goods.
The specifications of 10Ton folding arm boom crane specifications
| 10Ton knuckle boom crane specifications |
This type of crane have many advantage than others.The main character of this crane is high speed,and strong grade ability,etc. Crane arm can lift rapidly ,operate easily,high efficient and energy conservation ability.

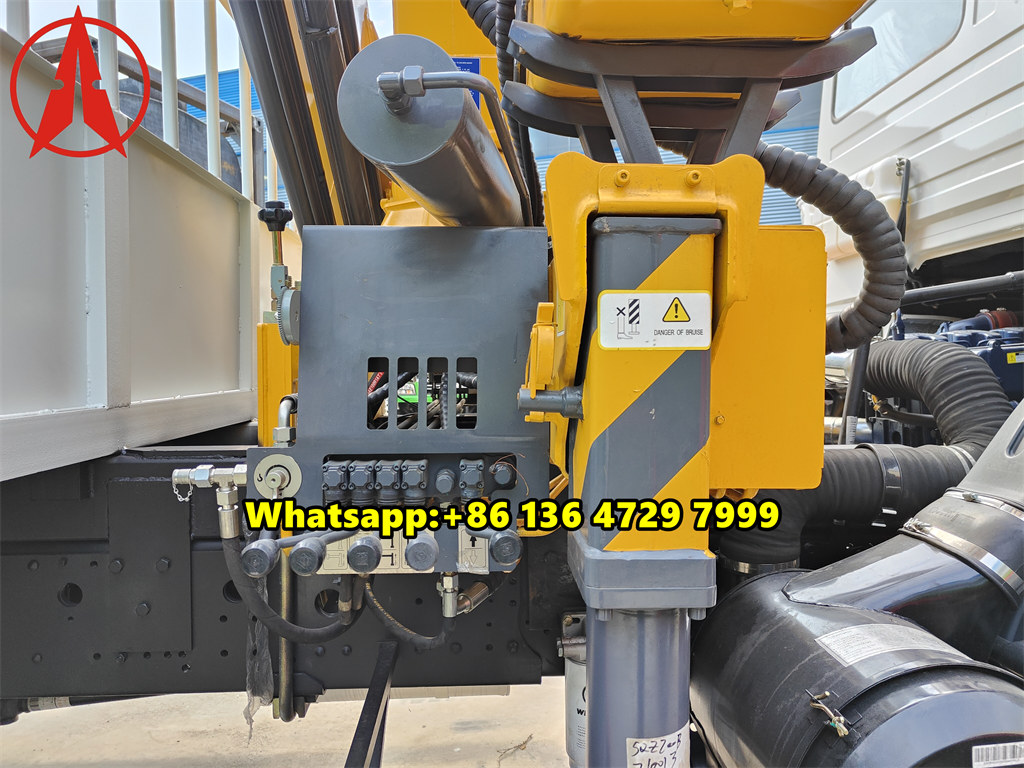

This 10Ton crane is folding boom crane,model:SQ10ZK3Q,with 4 section booms.It can rotation at 360 degree.It with 2 units telescopic all hydraulic support landing gear which guarantee the stability and reliability when at working status |
| Crane model |
SQ10ZK3Q(4 booms) |
Unit |
| Max lifting capacity |
10000 |
kg |
| Max lifting moment |
20 |
T.M |
| Recommend power |
28 |
kw |
| Max Oil Flow of Hydraulic System |
40 |
L/min |
| Max Pressure of Hydraulic system |
28 |
Mpa |
| Oil Tank Capacity |
140 |
L |
| Rotation Angle |
All rotation |
| Crane Weight |
3477 |
kg |
| Installation Space |
1150 |
mm |
| Max lifting height(m) |
12.5 |
m |
| Max.working radius(m) |
9.755 |
m |
| Work radius(m) 2.00m 4.17m 5.99m 7.87m 9.75m |
| Lifting capacity(kg) 10000kg 4600kg 3050kg 2280kg 1700kg |
Performance characteristics for North Benz 340HP crane truck:
Good maneuverability: Beiben 2634 truck crane transporter combines transportation and lifting functions in one, with strong maneuverability and rapid transfer.
High lifting efficiency: Through the hydraulic lifting and telescopic system, the goods can be lifted quickly and accurately, improving the working efficiency.
Wide range of applications: widely used in many fields such as construction, railways, ships, forestry, aerospace, electricity, fire protection, sanitation, measurement, obstacle removal and rescue, and national defense.
Beiben 2634 truck crane transport vehicle is a special vehicle that integrates transportation and lifting functions. It has good mobility, high lifting efficiency, and a wide range of applications. And widely used for transporting, unloading and lifting various construction materials, such as steel bars, concrete, bricks, etc.
Road construction: plays an important role in dismantling and installing roads, moving equipment, lifting bridges, etc.
Logistics warehousing: transporting packages and large goods with heavy weight to improve transportation efficiency and safety.
