Product Description
The Beiben 2634 dump truck chassis is a high-performance product specifically designed for heavy-duty transportation and construction sites. Its exceptional design and robust features make it a prominent model in the market. This chassis is equipped with a Beiben NG80 long cab, featuring a bed, left-hand drive design, fully constructed with steel, and a double hollow cavity structure that ensures excellent collision resistance. The overall dimensions of the vehicle are 8530×2500×3410mm, with a maximum load capacity of 30 tons. The exterior color options include orange, red, green, or white, catering to the personalized needs of different users.
The Beiben 2634 truck chassis is equipped with a GFX420 clutch, utilizing a single dry friction plate and hydraulic assistance design, ensuring smooth and reliable shifting. The FAST brand 9JS150A 9-speed manual transmission provides more precise gear selection, adapting to the demands of various complex road conditions. In terms of the braking system, the service brake adopts a dual-circuit air brake system with automatic adjustment of brake clearance, guaranteeing sensitive and stable braking performance. The auxiliary brake employs engine exhaust braking, further enhancing the braking effect. The parking brake is achieved through potential springs on the middle and rear wheels, ensuring safety when the vehicle is parked.
The front axle of the Beiben 2634 chassis adopts a double-shoe type pneumatic brake non-drive steering axle designed with Mercedes-Benz technology. The middle and rear axles also utilize Mercedes-Benz technology, equipped with double-shoe type pneumatic brakes, nodular cast iron axle housings, and double-reduction drive axles with wheel-side reducers. The speed ratio can be selected as 5.921 or 5.2, further enhancing the vehicle's load capacity and driving stability.
Product Specifications
|
North Benz/Beiben Tipper truck / dump truck chassis specifications
|
|
Wheel base (mm)
|
3800+1450 wheel
|
|
Model
|
BEIBEN 2634
|
|
Curb weight
|
12160 kg
|
|
Engine
|
Brand
|
WEICHAI
|
|
Model
|
WP10.340E32
|
|
Power
|
340HP
|
|
Rated speed
|
2200 rpm
|
|
Displacement
|
9726 ml
|
|
Emission standard
|
EURO III
|
|
Fuel tanker capacity
|
400 L
|
|
Clutch
|
Model
|
GFX420, Single dry frictional disc, hydraulic boosting
|
|
Gearbox
|
Model
|
FAST, 9JS150A, 9-speed, manual
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels.
|
|
Steering system
|
Model
|
TAS85
|
|
Frame of vehicle
|
Fish belly shape, variable width, variable section side beam structure
|
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle, ratio:5.921 or 5.2
|
|
Tyre
|
12.00R20
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cabin
|
NG80 long cab with one bed, left hand, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.
|
|
Overall dimension
|
8530*2500*3410mm
|
|
Max loading
|
30 tons
|
|
Color
|
Orange, red, green or white.
|

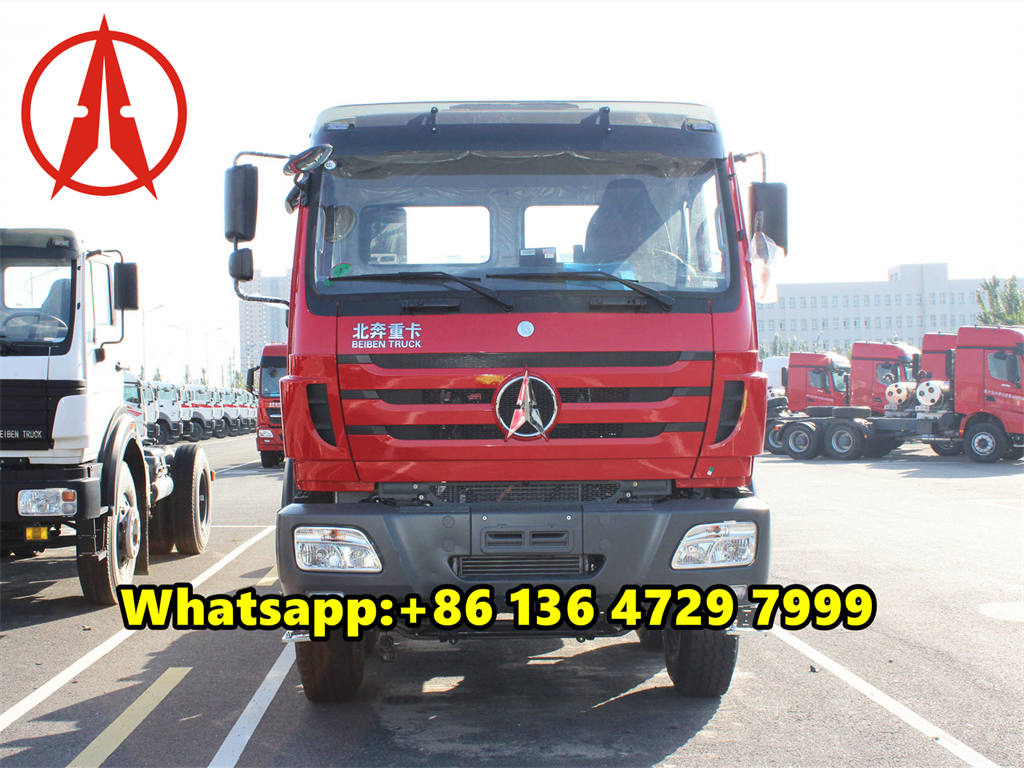

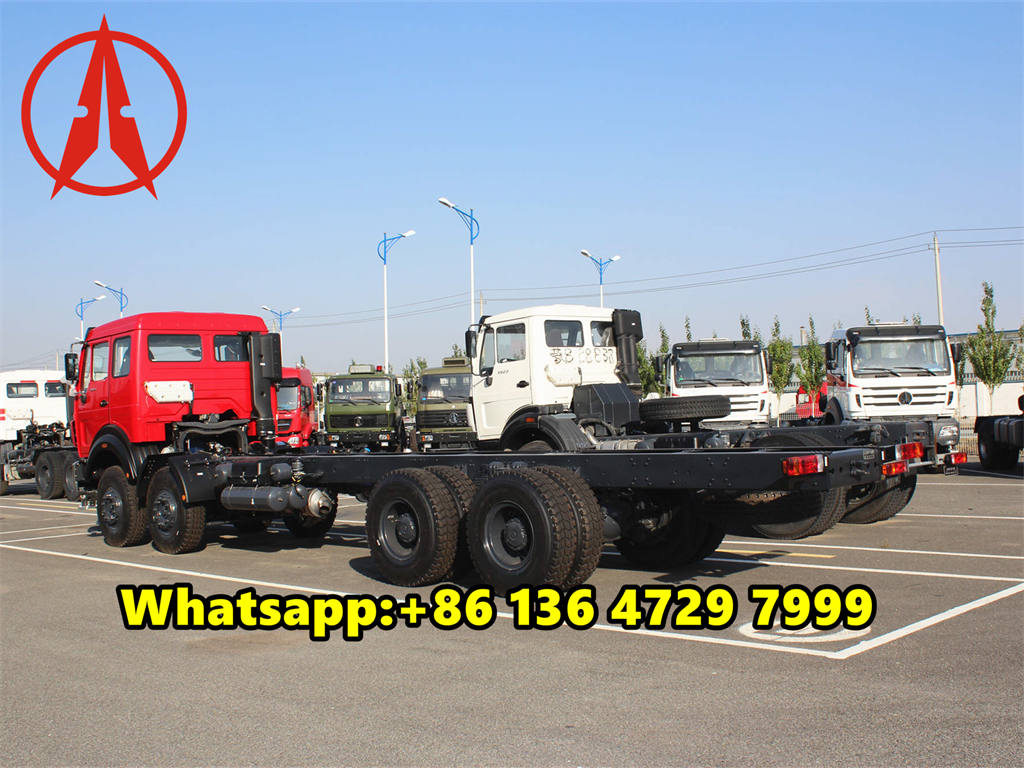

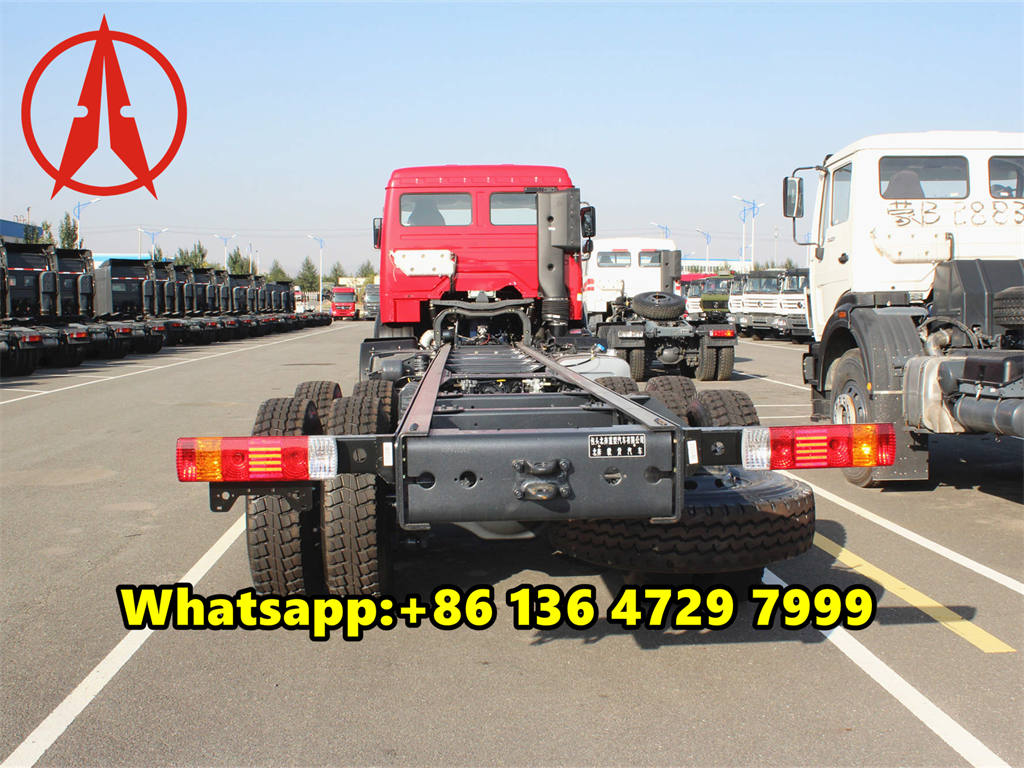

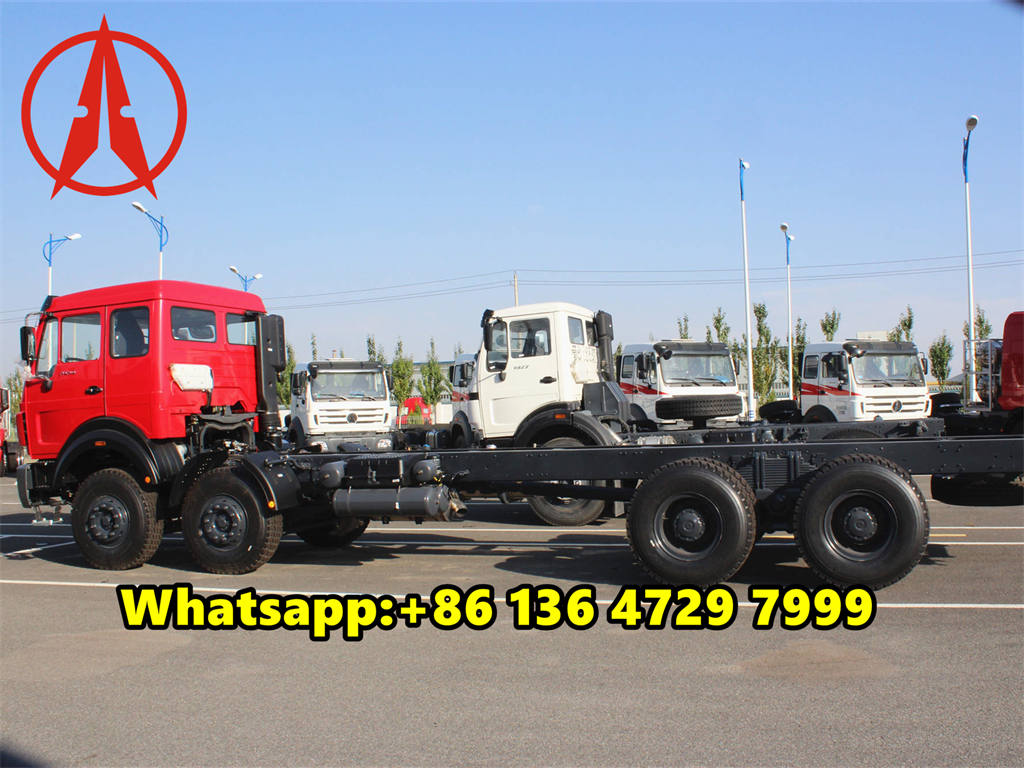

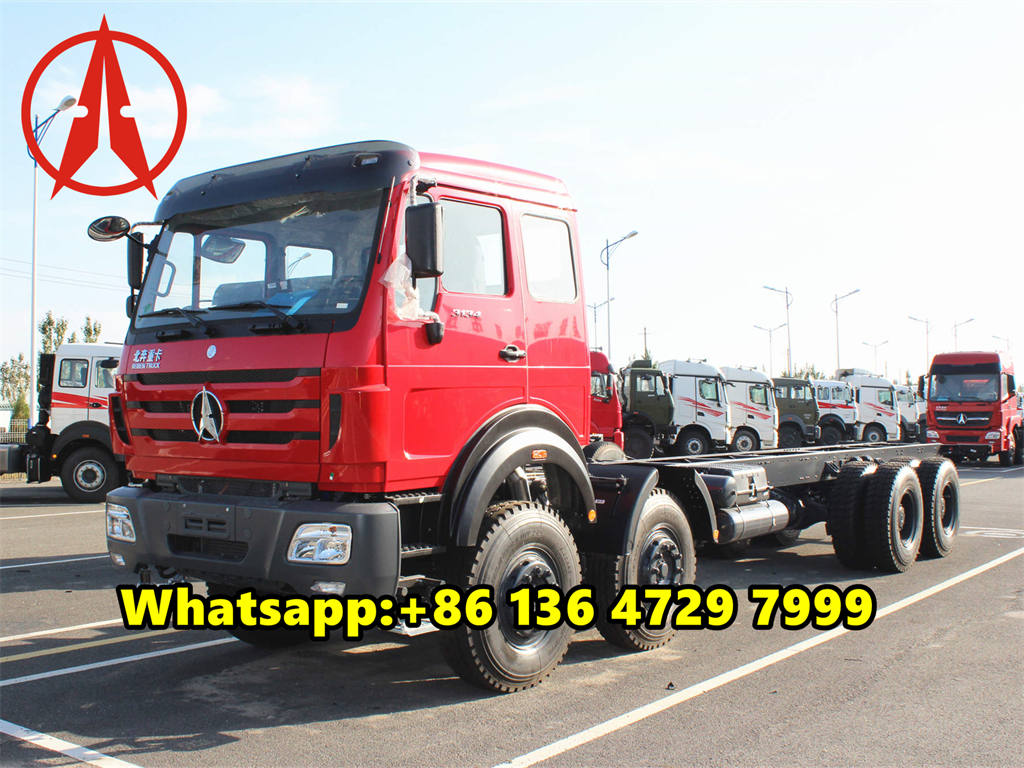

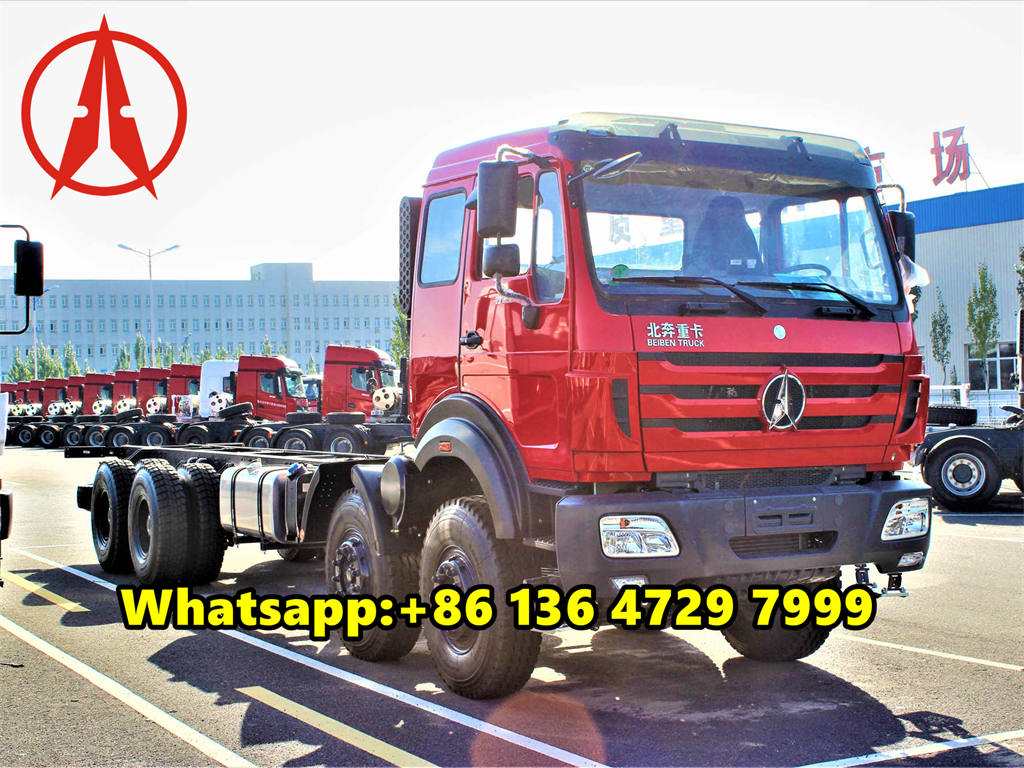

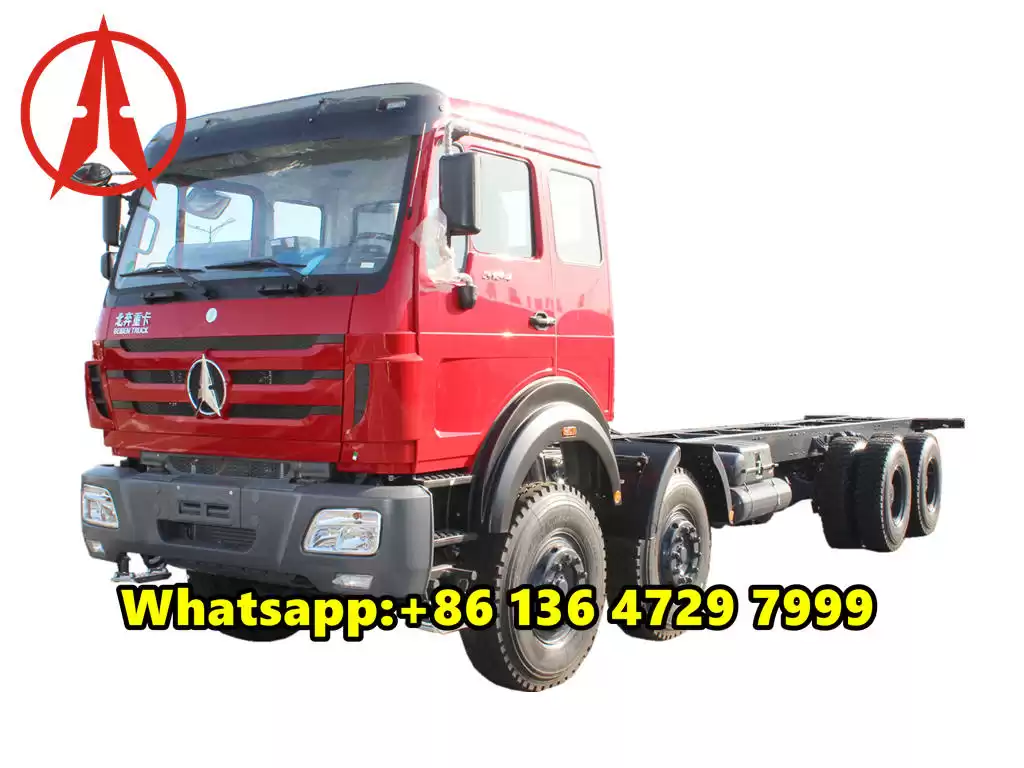

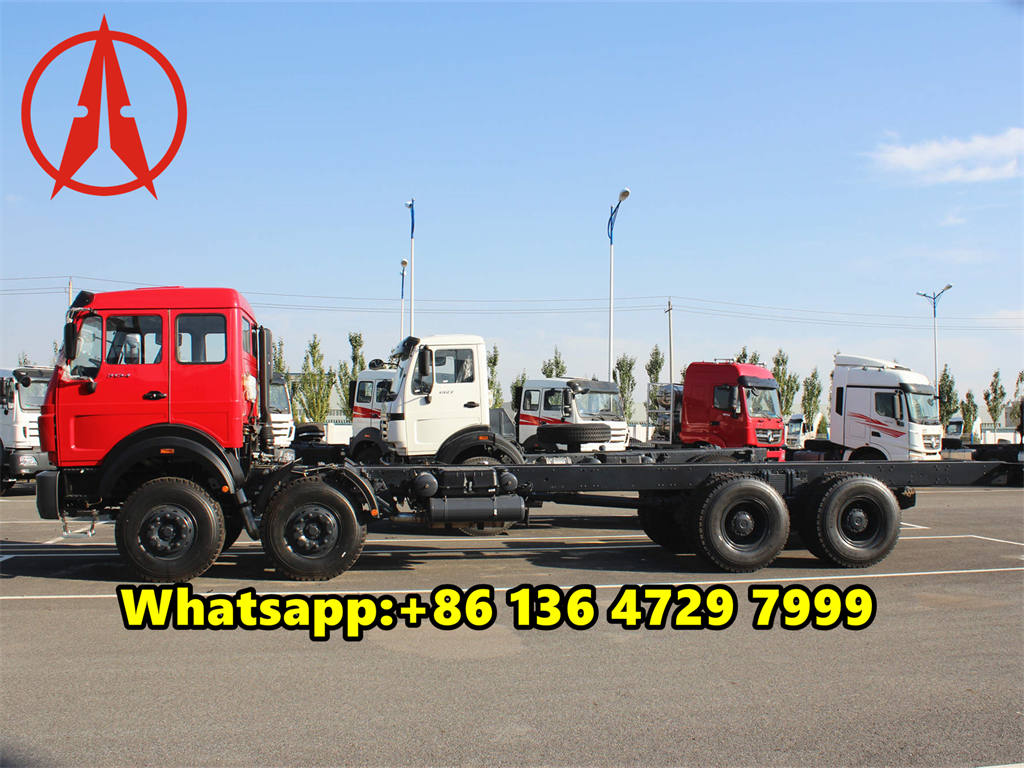

Product Details
