Dimension(Lx Wx H)(mm)
|
9365*2500*3500 (360 degree fire gun)
|
|
Track(front/rear) (mm)
|
1990/1800,1800
|
|
Wheel distance(mm)
|
4450+1450
|
|
Configuration
|
6×4
|
|
Curb weight(kg)
|
13,450
|
|
Max speed (km/h)
|
85
|
|
Engine
|
WP10.340E32, direct injection 4strokes,6 cylinder in line, turbo-charge inter cooler diesel engine
|
|
Displacement (L)
|
9.726
|
|
Max. power (kw/rpm)
|
250/2200
|
|
Max torque (n.m/rpm)
|
1250/1400-1600
|
|
Emission stardard
|
Euro 3
|
|
Clutch
|
Valeo 430
|
|
Dry single plate, hydraulic control booster
|
|
Gear box
|
12JS160T
|
|
mechanism,12 gears,2 reverse gear, manual, synchronization, with PTO interface
|
|
Braking
|
Service Brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Spring loaded press on middle and rear wheels
|
|
Steering
|
Whole circulation in ball, hydraulic booster
|
|
Vehicle Frame
( Mercedes Benz Technology)
|
Fish belly shape, variable width, variable section, side beam trapezium structure
|
|

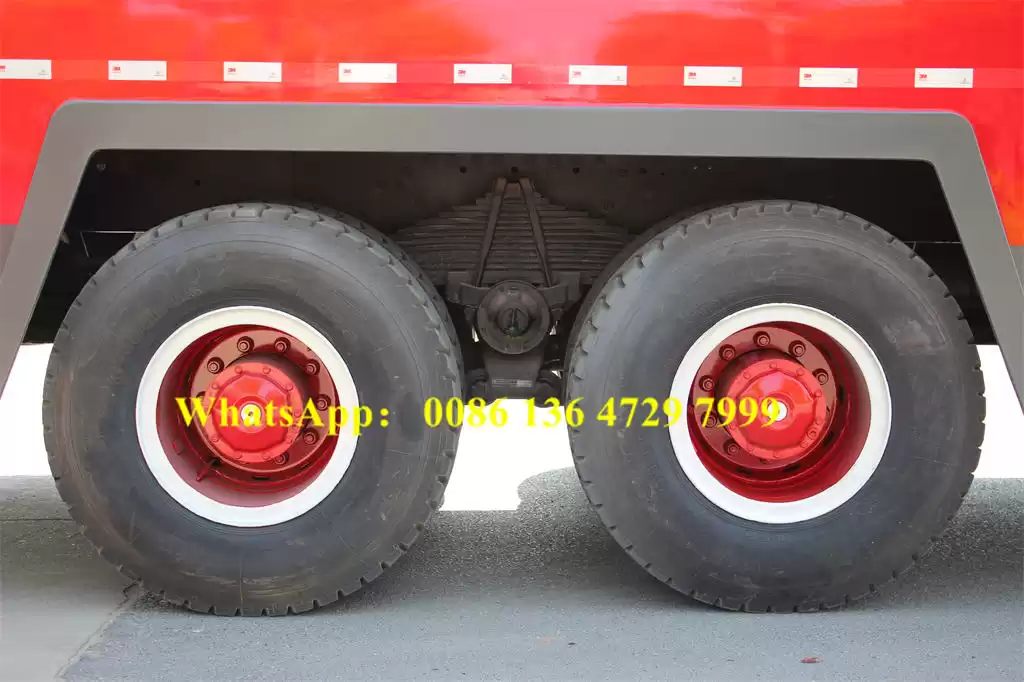

Tire and number
|
12.00R20 10+1 spare wheel
|
|
Electrical system
|
Battery
|
2x12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4KW/24V
|
|
Cab (Mercedes Benz Technology)
|
NG80 double row cab, made by full steel material forming empty body inside
|
|

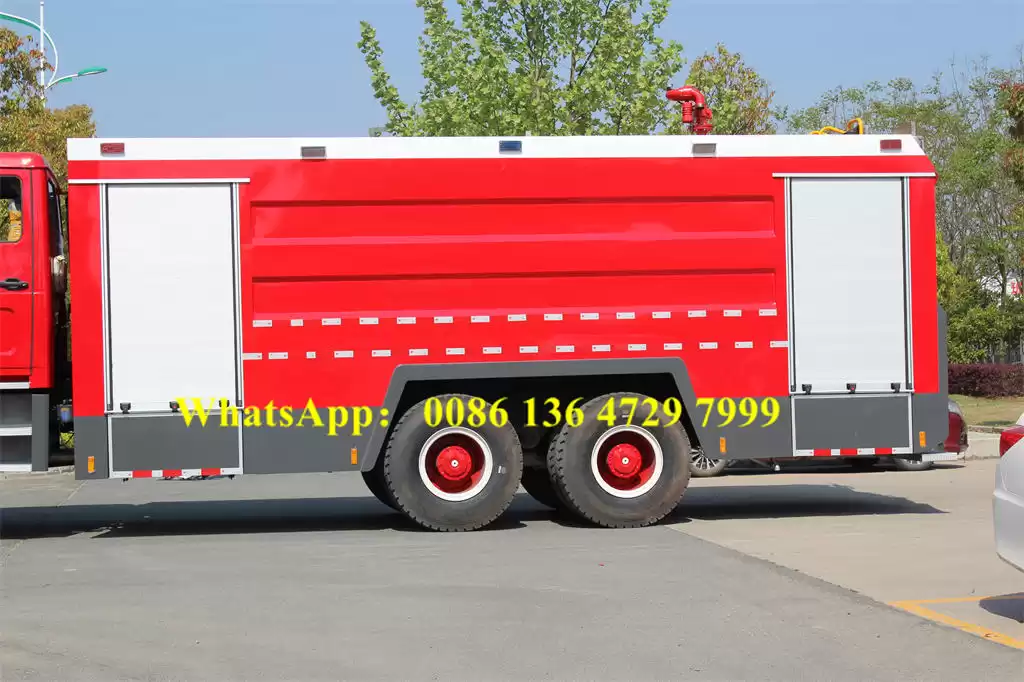

Water - foam tank
Fire truck of water and fire foam with alarms and row-style lights and lights and light, and outline marker light control switch etc.
|
|
Water tank volume
|
10000L
|
|
Foam tank volume
|
2000L
|
|
Material
|
Water tank: High quality carbon steel plate
Foam tank: Stainless steel
|
|
Structure
|
The whole welded structure
|
|
Equipment
|
2-Entrance holies, With quick locking and opening device, 1-Vacuum valve device, 2-Level indication sensors, 2-drain outlet with ball valve, 4-Gathering points, Both sides of the tank from the vehicle injection,
|
|
Fire pump system
|
|
Model
|
CB20.10/30.60 Low and medium-pressure fire pump
|
|
Low pressure/flow volume
|
1.0Mpa/60L/s
|
|
medium-pressure/flow volume
|
2.0Mpa/30L/s
|
|
Foam mixer
|
mixing ratio 6%
|
|
Assembly
|
rear-mounted type pump
|
|
Priming pump
|
piston type
|
|
Effective suction head
|
≥7m
|
|
Diversion
|
≤35s
|
|

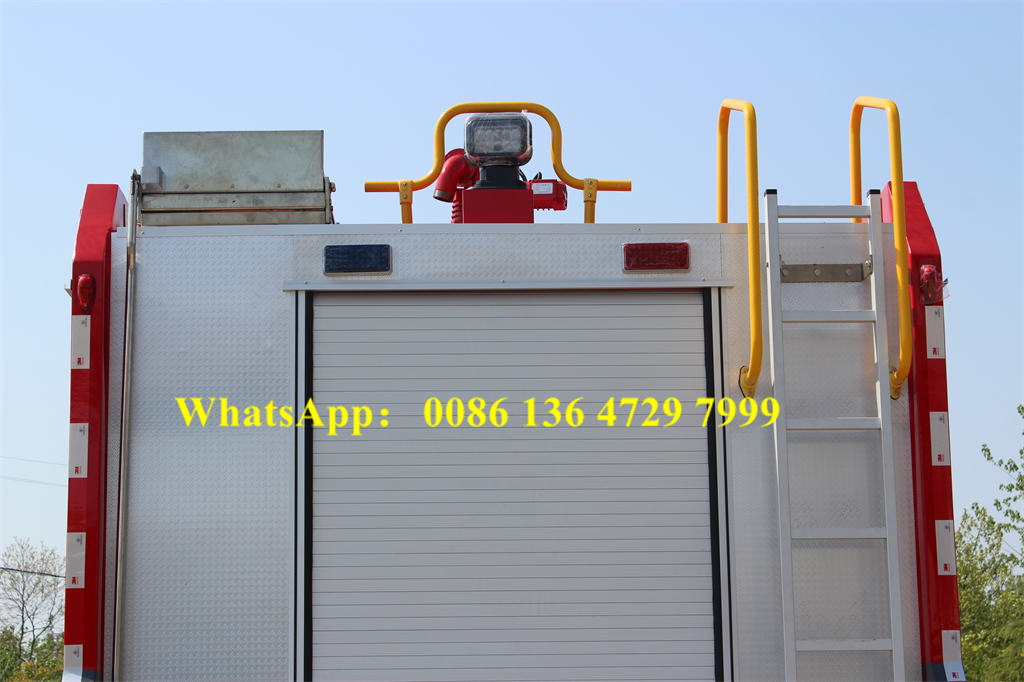

Fire gun
|
|
Model
|
PLKD48 fire gun (Dual-use foam and water)
|
|
Pressure
|
1.0Mpa
|
|
Water flow
|
50L/s
|
|
Spray water range
|
≥65m
|
|
Foam flow
|
48/s
|
|
Spray foam range
|
≥60m
|
|
Power take-off
|
|
Type
|
Sandwich
|
|
Operation mode
|
Gas Control
|
|
Equipment room and pump room
|
|
Material
|
Skeleton made of high quality carbon steel sections, the exposed skin of high quality aluminum plate bonding
|
|
Structure
|
Equipment, tanks and pumping stations within the framework of the use of welded structures
|
|
Foot flap
|
|
Material
|
Frame quality carbon steel sections, foot-slip surface pattern for the high-quality aluminum
|
|
Structure
|
Supported by gas springs and locking
|
|
Electrical system
|
|
Structure
|
Long row of red and blue cab roof mount style lights, sirens hosts power 100W, sirens, lights and control switch installed in the cab. Room is equipped with power take off switch, located inside the upper side lights, side marker lamps fitted with the lower part, the rear compartment with lights.
|
|
Painting
|
|
Color
|
High quality paint (Fire Red)
|
