Function:
Construction, Mining
and quarries,
Normal material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Advantage:
★ Euro 2 engine, fuel consumption save 20%
★30% price lower than BENZ tractor trucks
★12 months free fast moving spare parts
★Authorized beiben trucks exporter.
★Training service for north benz tractor trucks
★ CEEC TRUCKS , FOR YOUR SUCCESS. China famous beiben tractor truck exporter.
Axles from Mercedes Benz technology
Specification:
Similar key words beiben 2628 towing trucks supplier, china beiben 2628 tracteur camions, north benz 2628 tractor trucks, beiben 280 hp euro 2 engine tractor vehicle.
China famous brand beiben 2528 tractor truck,for using in logistic, seaport, airport, fuel transporation.
Best supplier of beiben 2828 tractor truck, beiben 2636 tractor truck, beiben 2642,2646,2648 prime mover, we have great reputation in africa country for supplying beiben 4*2 tractor truck, beiben 4*4 tractor truck, beiben 6*4 tractor truck and beiben 6*6 tractor trucks.
CEEC TRUCKS aims at supplying best quality beiben EURO 2 engine, 2634,2638,2636,2642,2648 tractor trucks for all africa customer, range from congo beiben trucks, kenya beiben trucks, tanzania beiben trucks, and algeria beiben trucks.

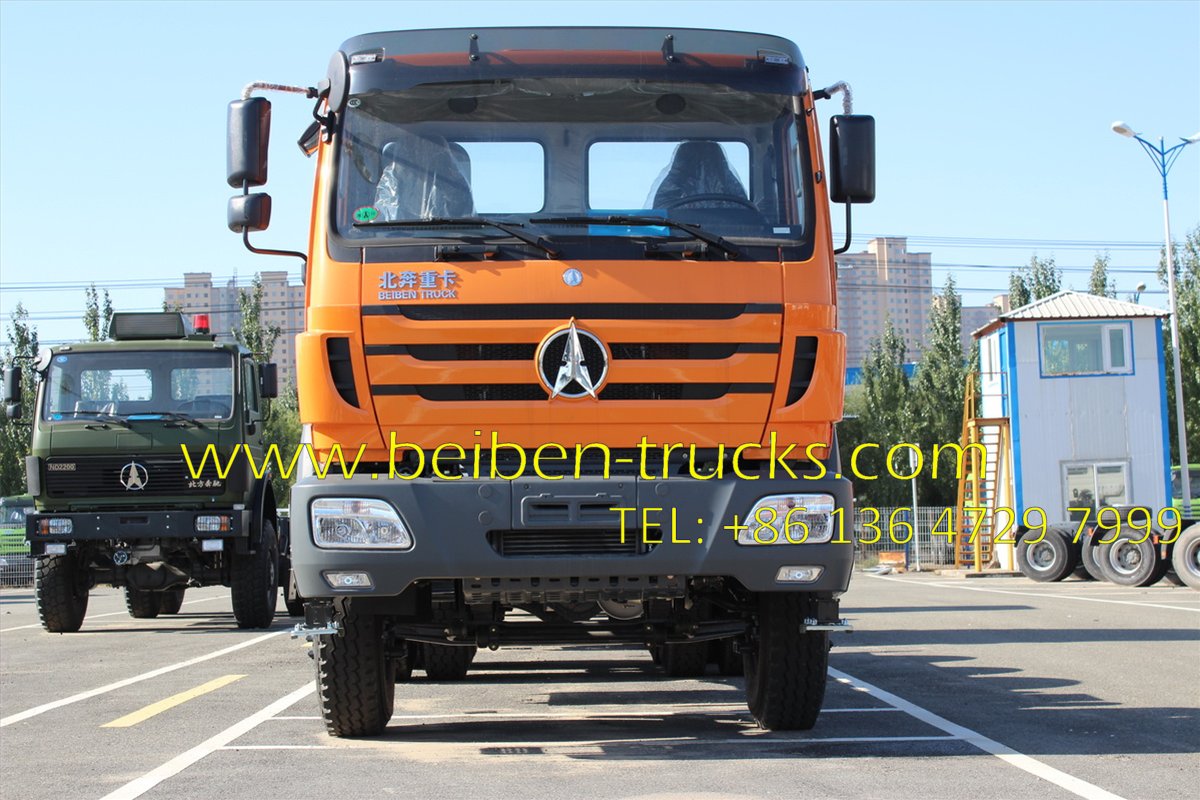

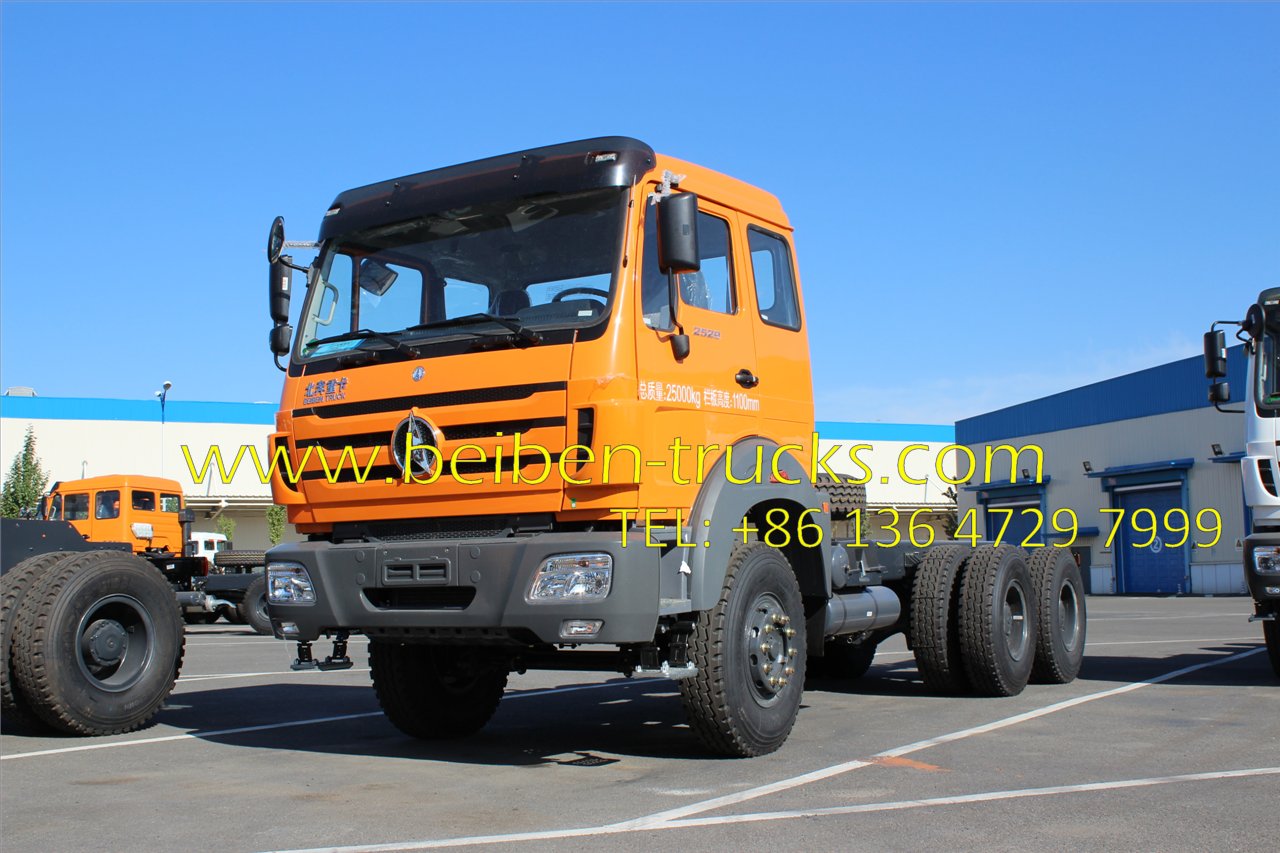

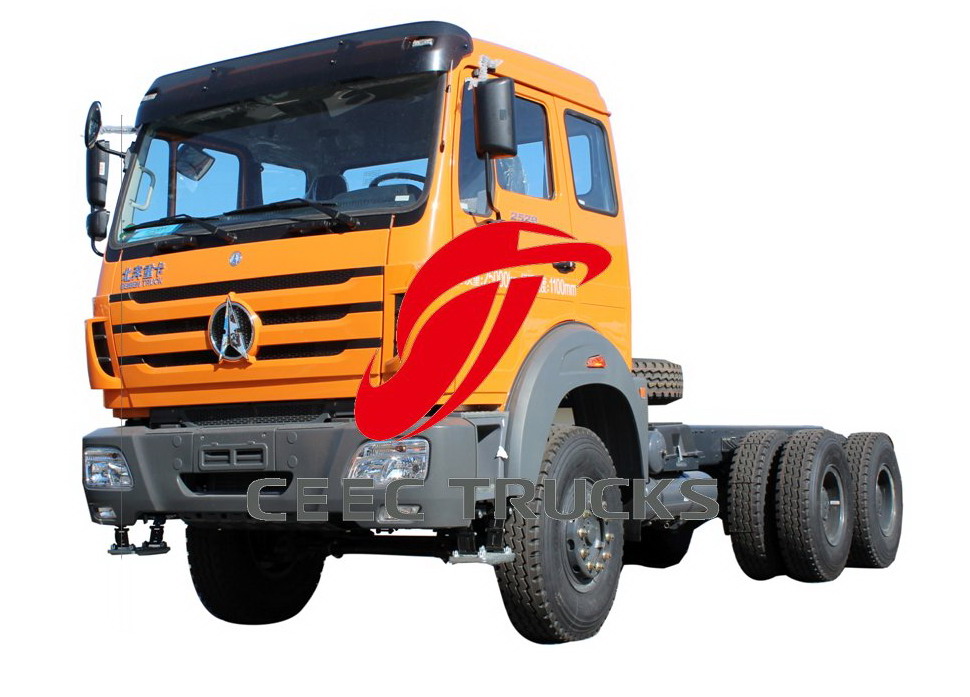

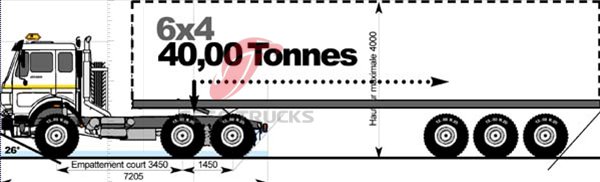

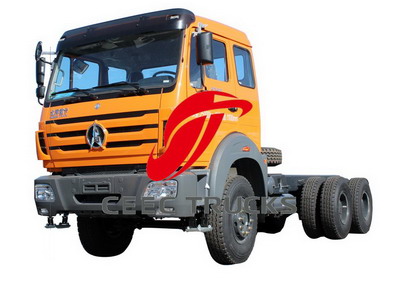

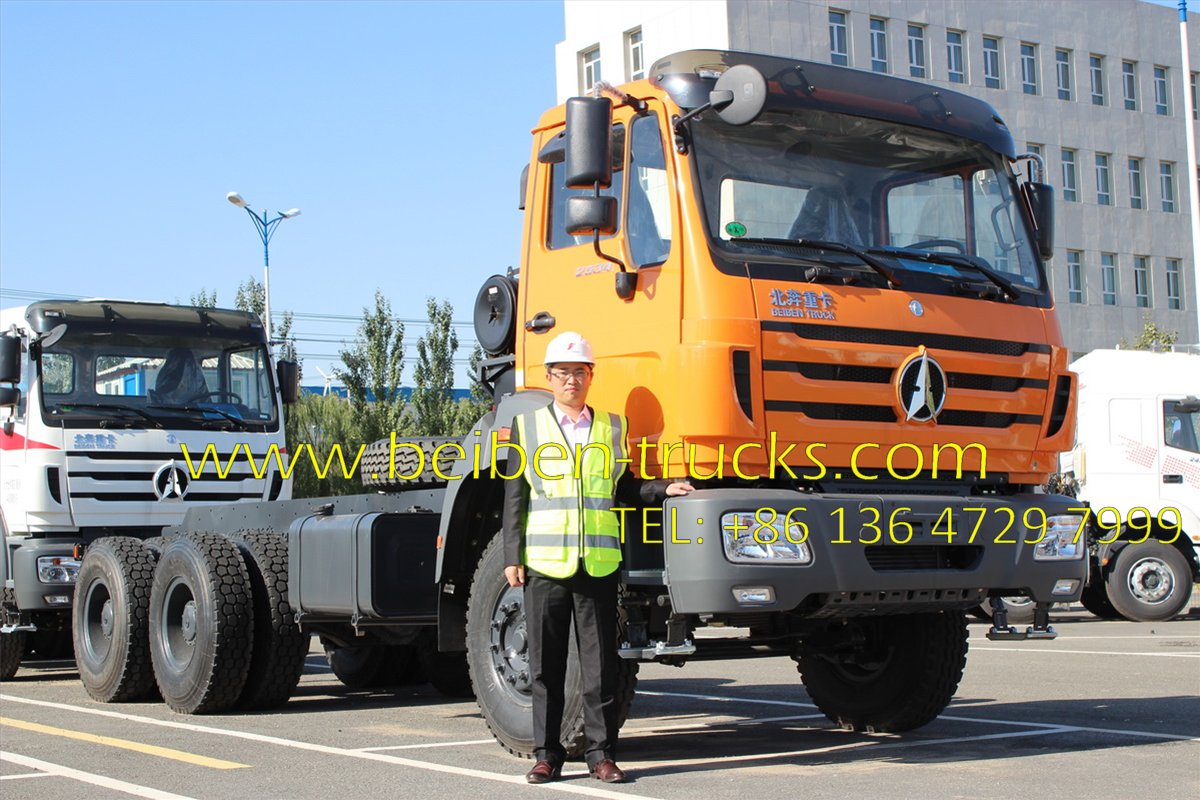

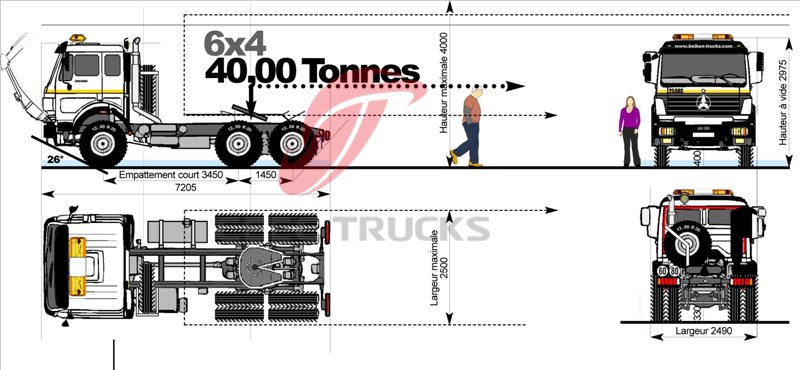

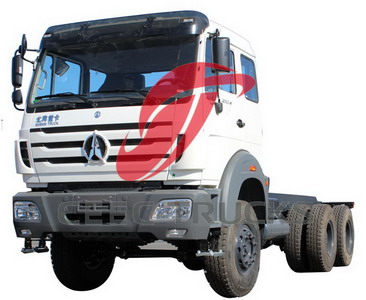

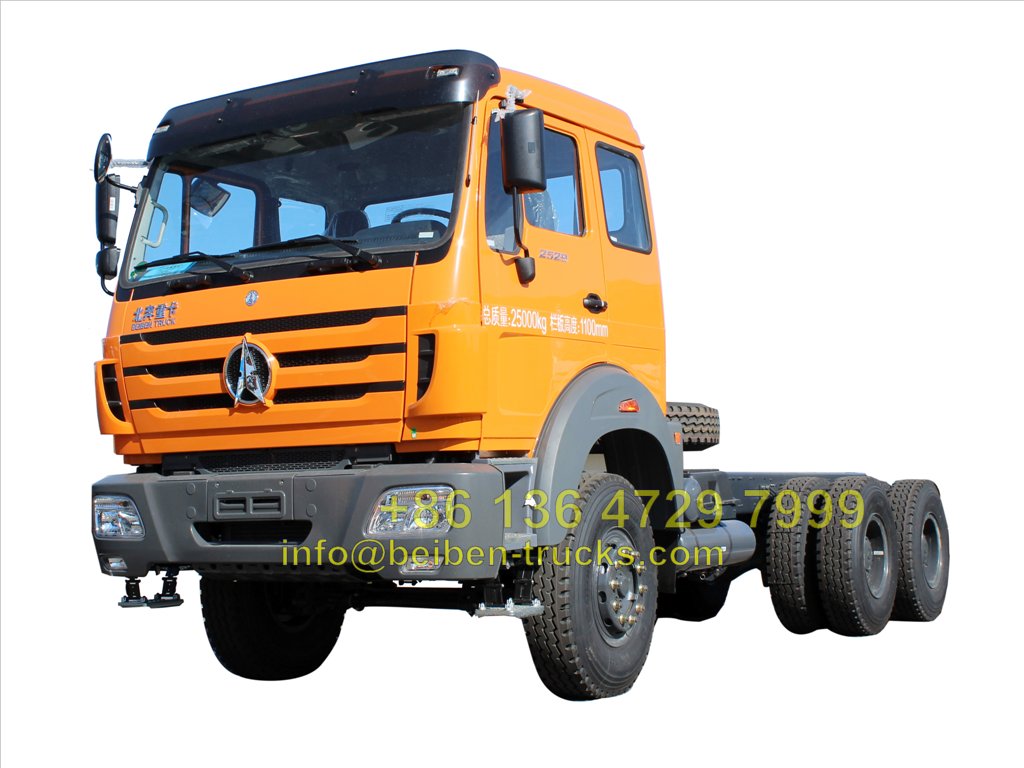

| Beiben 2536SZ tractor truck /6×4/3450+1450/Long Cab/LHD
|
|
Dimension
|
7136*2495*3180mm
|
|
Approaching angle/Departure angle
|
26/64°
|
|
Overhang(front/rear)
|
1410/825mm
|
|
Wheel base
|
3450+1450mm
|
|
Max speed
|
90km/h
|
|
Curb weight
|
9200kg
|
|
Max towing weight
|
36900kg
|
|
Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP10.360E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
60/2200 (kw/rpm)
|
|
Max.torque
|
1460/1200-1600（Nm/rpm）
|
|
Emission stantard
|
EuroⅢ
|
|
Fuel tanker capacity
|
400L
|
|
Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
|
Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
|
Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|
|
Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
|
|
Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
|
Frame
|
Fish belly shape, variable width, variable sections
|
|
Model
|
JOST ∮90 single direction
|
|
Height of fifth wheel(mm) (unload)
|
1410
|
|
Radius of front gap (mm)
|
2300
|
|
Radius of rear slew (mm)
|
2600
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
|
Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
|
Tyre
|
12.00-R20
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cabin
|
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C |
