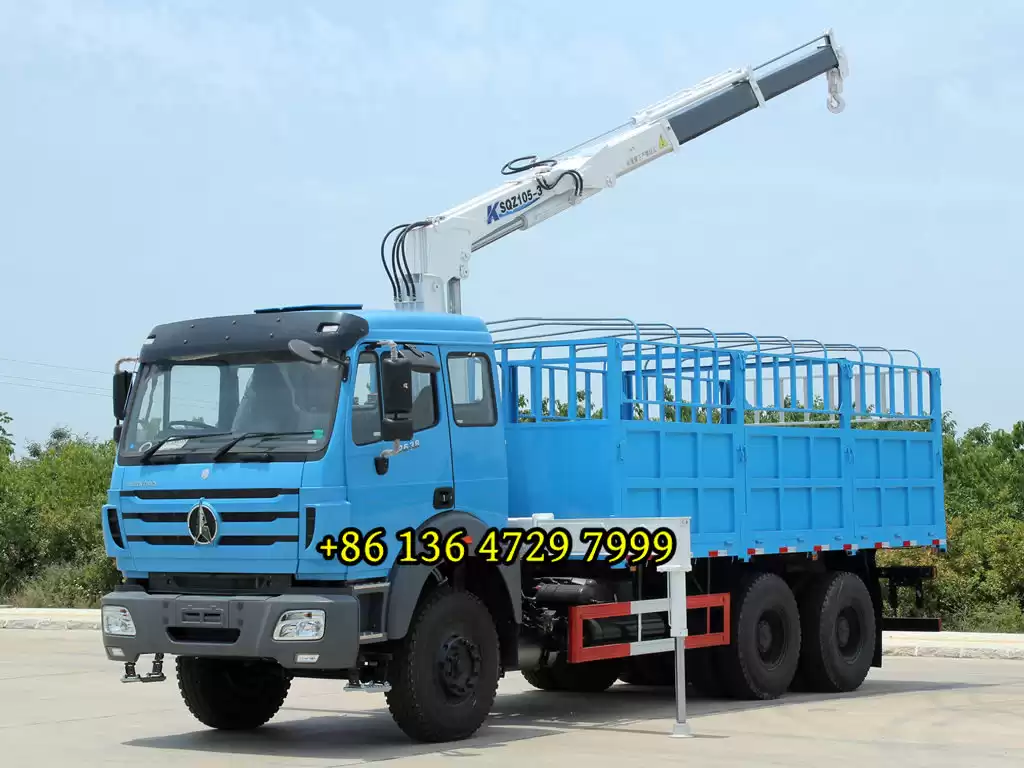

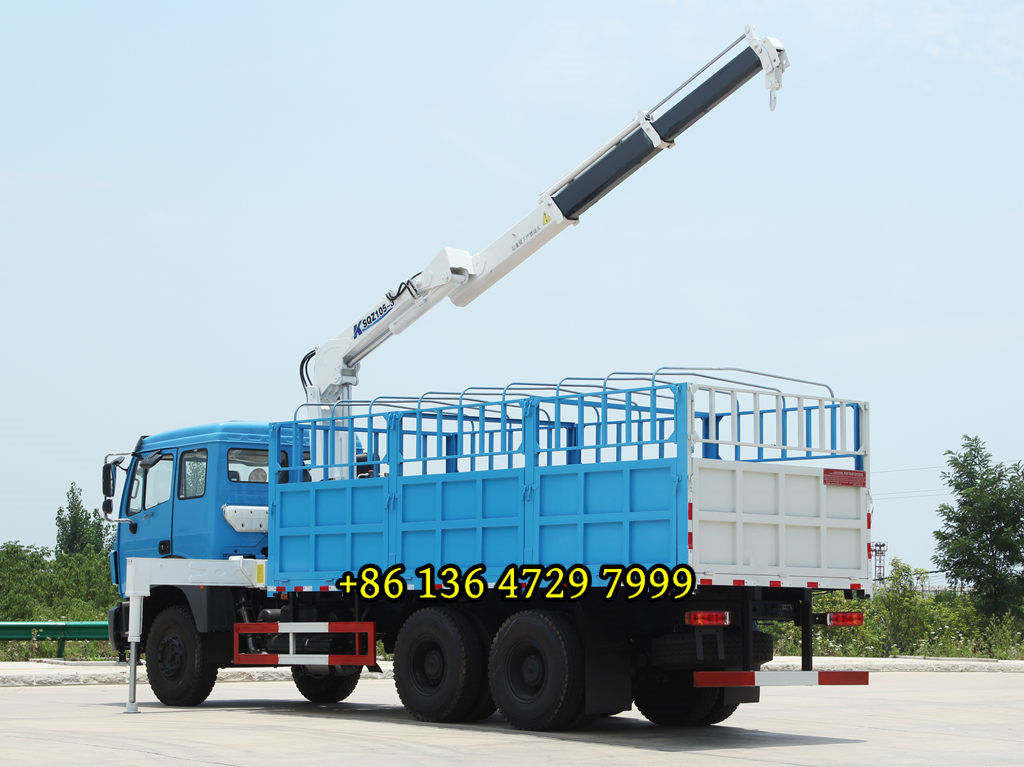

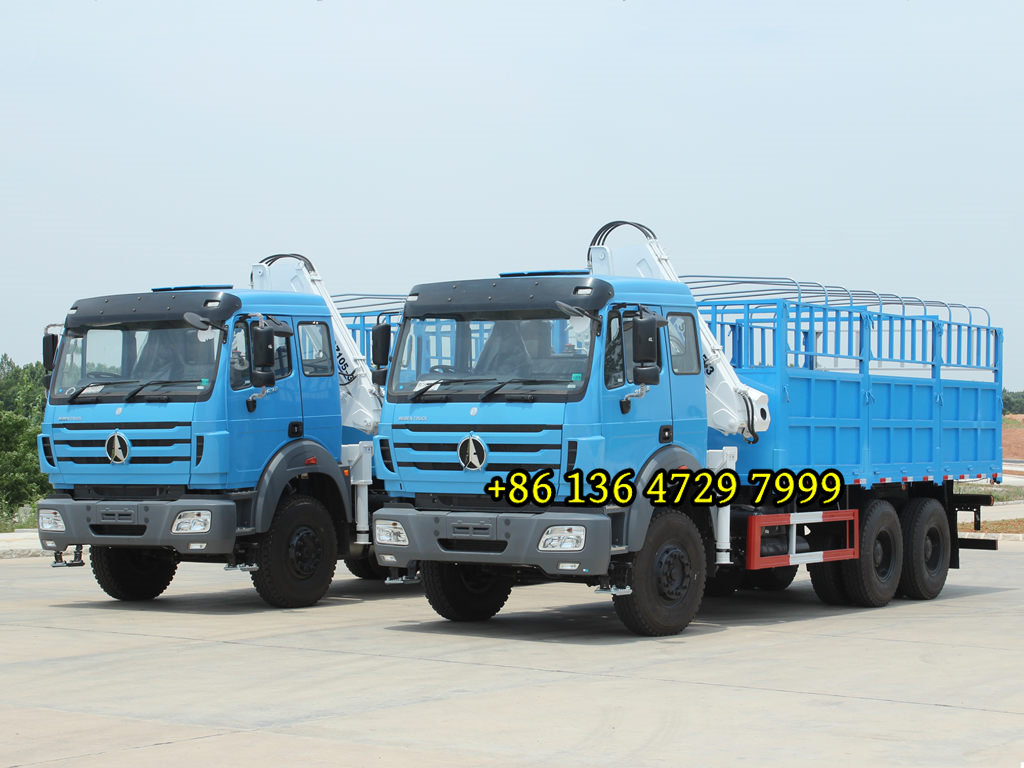

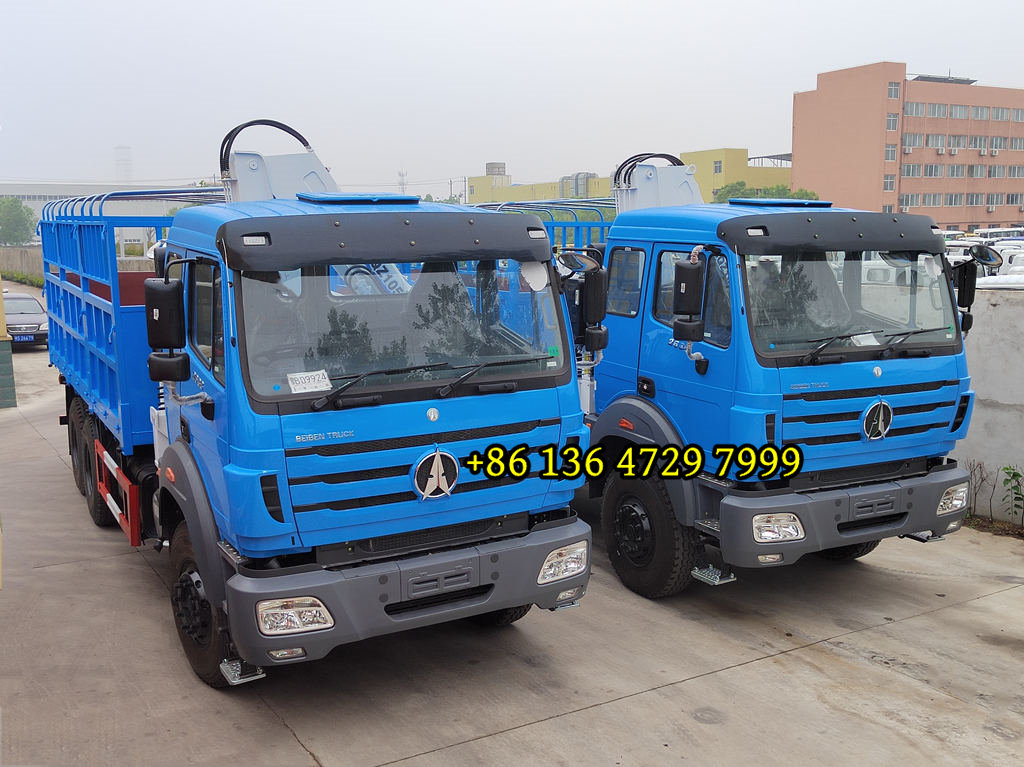

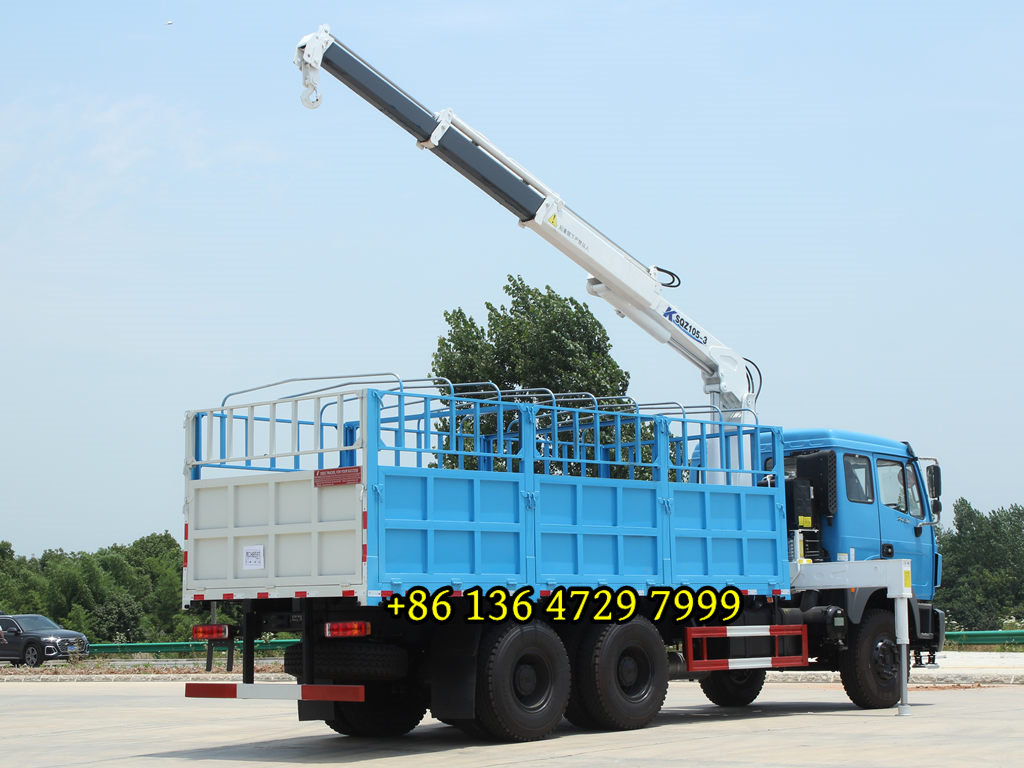

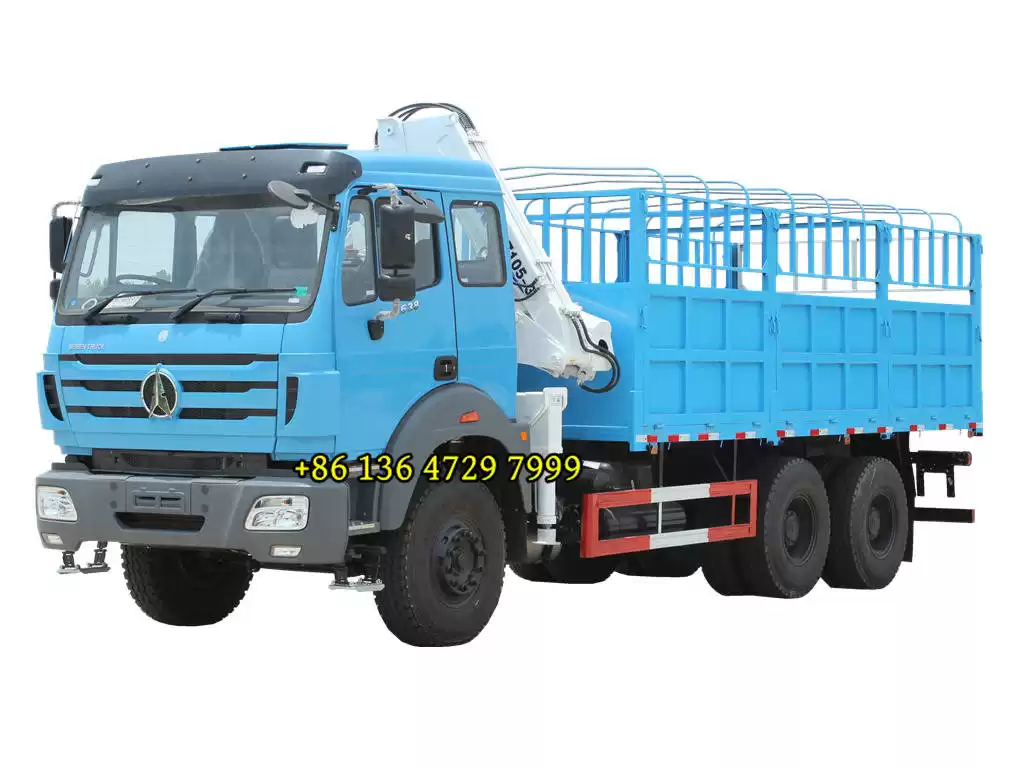

Beiben 2638 boom truck crane with XCMG crane

Beiben 2638 with XCMG 5-ton folding arm truck crane is a heavy-duty engineering machinery with stable performance, safety and reliability. As the chassis that carries this crane, Beiben 2638 has strong power output and excellent control performance, ensuring the efficient operation of the crane at the construction site. The XCMG 5-ton folding arm truck crane has a stable lifting capacity and flexible folding arm design, which can meet the lifting needs in different construction scenarios.



Beiben truck mounted crane ,also called boom truck crane,mobile truck crane ,folding boom crane, truck with crane, hydraulic crane telescopic boom,self loader truck with boom crane, knuckle boom truck,etc.

The main function of Beiben 2638 knuckle boom truck is to provide stable lifting support during the handling process, effectively improving the loading and unloading efficiency and operation safety. Beiben 2638 folding boom crane can lift and transport items, which makes it widely used in many fields such as municipal construction, coal mining engineering, and landscaping.





As a form of truck crane, beiben 2638 knuckle boom truck has the characteristics of flexibility and versatility. The arm design of beiben knuckle boom truck can be flexibly extended and folded, and can be adjusted according to specific operation needs, which improves the adaptability and flexibility of lifting. Compared with fixed arm crane, knuckle boom truck has higher operating efficiency in a small space and is more suitable for handling operations in small environments such as urban construction sites. In addition, beiben knuckle boom truck can also effectively change the lifting position and angle, improving the accuracy and efficiency of the operation.



beiben folding boom crane has high operating efficiency. Because the arm design of the folding arm crane is relatively flexible, it can be extended and adjusted according to needs, thereby improving the efficiency and speed of the operation. In many emergency situations, beiben folding boom crane can quickly adjust the lifting position and height, quickly complete the operation task, and reduce the operation time and cost. In addition, the folding arm crane can also realize a variety of lifting methods in the operation, such as rotating lifting, translation lifting, etc., which improves the diversity and adaptability of the operation. Therefore, beiben folding boom crane has obvious advantages in improving operation efficiency.

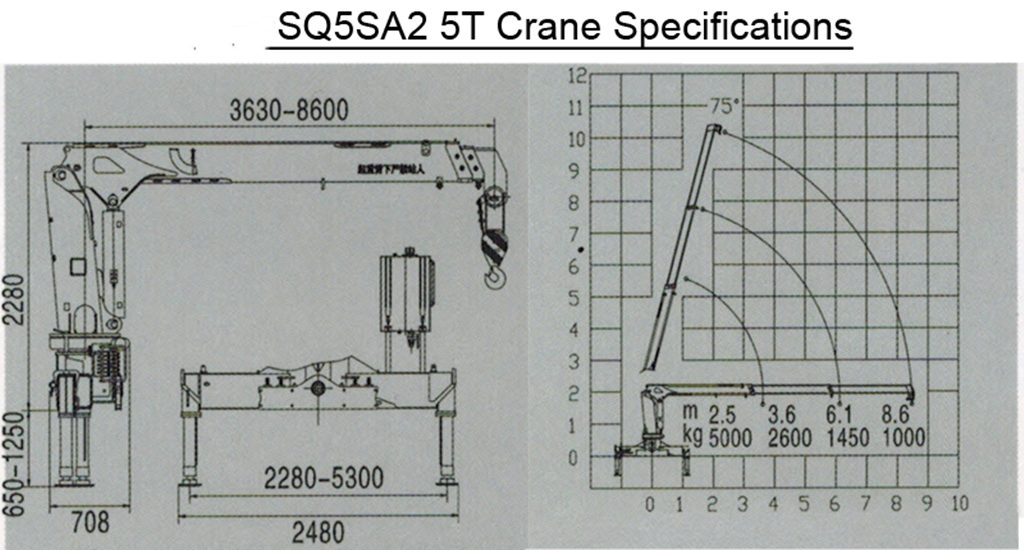

Upper Body

Crane

Type

folding arm

Max lifting capacity(T)

5

Max torque(T.M)

25

Hook part line ratio

6

Max operating range(M)

8

Max lifting height(M)

11

Boom number

3

Control position

Ground control

Optional high seat control

Cargo box

Cargo box Dimension

6200*2500*1200MM

Thicness

bottom: 4mm, side: 3mm

Material

Carbon steel



Beiben 2638 chassis detailed parameters

Required Technical Specification

Basic parameter



Model

2638KZ / 6×4

Length×width×height(mm)

8875×2500×3340

Wheel-base(mm)

3800+1450

Curb weight(kg)

12000

Engine parameter



Model (six cylinder in line)

WP10.380E32

Max. Power (HP/rpm)

380

Max. Torque(Nm/rpm)

1500/14001600

Displacement(lit)

9.726 L

Fuel tank capacity

400L Iron

Transmission system



Clutch

430 Single disc, dry type, friction clutch

Gearbox

9JS150A+QH50Spline

Mechanical, 9 forward gear, manual

Steering system

Steering gear

8098 Circulating ball steering gear, hydraulic booster

Brake system



Service brake

Double circulation air brake system equipped

Parking brake

Energy storage spring brake

Assisted brake

Engine exhaust brake

Electrical system



Battery

2X12V/135Ah

Generator

28V-70A

Starter

5.58Kw/24V



Chassis parameter



Frame

Variable width and section  317×70×8.5+7+8.5 mm

Front axle

7.5T, Non-driving steering axle, drum brake

Middle & Rear axle

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.921

Front and rear suspension

Front/rear: Leaf spring, 10/13 pieces

Tire

12.00R20

Cab

NG80B Long/right Cabin Flat roof with single sleeper

Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).

Interior trimming:

Air suspension seat, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument, electric window lifter
