Product Description
Beiben 2638 tipper truck, as a heavy-duty engineering transport vehicle, has been widely praised in the market for its excellent performance and stable performance. Beiben 2638 dump truck adopts 6×4 drive type, with excellent load-bearing capacity and off-road performance, and can easily cope with both rugged construction sites and transportation routes with complex road conditions.
This Beiben dump truck is equipped with WEICHAI BRAND's WP10.380E32 engine, with a maximum power of 280kw/380hp and a maximum torque between 1500--1800rpm, providing strong power support for the vehicle. FAST brand 9JS180 gearbox, 9 forward gears and 1 reverse gear transmission options, allow the driver to flexibly adjust the vehicle speed according to actual needs and improve transportation efficiency.
Beiben 2638 tipper lorry has reasonable body size, with a maximum length of 9880mm, a maximum width of 2500mm and a maximum height of 3630mm, ensuring the vehicle's passability under various road conditions. The cargo box is 5600mm long, 2500mm wide and 1500mm high, which can meet the transportation needs of different engineering projects.
Product Specifications
|
Drive Type
|
6x4 LHD/RHD
|
|
Cab Type
|
Short Cabin
|
|
Equipment
|
With Air Condition, no bed
|
|
Weight
|
|
|
Kerb mass(kg)
|
12800
|
|
GVW(kg)
|
12800+45000
|
|
Dimensions
|
|
Max. length(mm)
|
9880
|
|
Max. width(mm)
|
2500
|
|
Max. height(mm)
|
3630
|
|
Front/Rear overhang(chassis)
|
1410/1870
|
|
Wheel base(mm)
|
4750+1450
|
|
Track width(mm)
|
1995/1808
|
|
Box size
|
|
Length (mm)
|
5600
|
|
Width (mm)
|
2500
|
|
Height (mm)
|
1500
|
|
Thickness of Steel
|
Floor 8mm, side 6mm
|
|

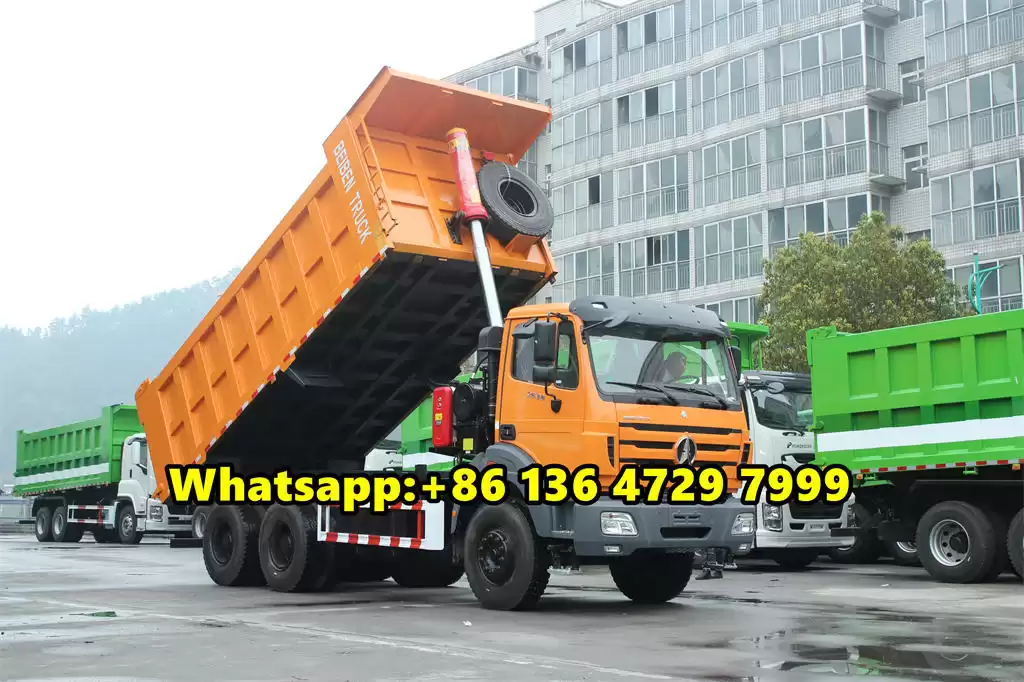

Tipping type
|
Front tipping
|
|
Performance
|
|
Max. speed (km/h)
|
75
|
|
Max. gradeability (%)
|
30
|
|
Approach/Departure angel (°)
|
26/32
|
|
Engine
|
|
Brand
|
WEICHAI BRAND
|
|
Model
|
WP10.380E32
|
|
Power (kw/hp)
|
280kw/380hp
|
|
Max torque (N.M)/rpm
|
1500--1800
|
|
Displacement (L)
|
9.726
|
|
Emission Standards
|
Euro III (optional)
|
|
Transmission
|
|
Brand
|
FAST
|
|
Model
|
9JS180
|
|
Control type
|
Manual
|
|
Gear Shift
|
9-forward & 1-reverse speeds
|
|
Clutch
|
|
Type
|
Single plate,diaphragm spring
|
|
Diameter (mm)
|
Φ430
|
|
Action
|
hydraulically operating with air assistance
|
|
Brakes
|
|
Type
|
Drum
|
|
Service Brake
|
With dual-circuit compressed air brake
|
|
Park Brake
|
Power spring brake acting on rear wheel
|
|
Auxiliary Brake
|
WEVB
|
|
Steering
|
ZJ120D/D50/TAS85
|
|
Chassis
|
Ladder structure with parallel straight
|
|
Dimensions (mm)
|
300x90x8+6+8
|
|
Suspension
|
|
Front
|
Longitudinal leaf spring
|
|
Rear
|
Inverted leaf spring stabilizator suspension
|
|
Axles
|
BENZ TECHNOLOGY
|
|
Front
|
BENZ TYPE: 7.5 tons
|
|
Rear
|
BENZ TYPE: 13tons
|
|
Ratio
|
5.921
|
|
Tyre
|
12.00R20 radial tire
|
|
Fuel tank
|
|
Tank capacity(L)
|
300
|
|
Material
|
Aluminum alloy
|
|
Electrics
|
|
Type
|
24V
|
|
Starter
|
5.58kw (24)
|
|
Generator
|
2.0kw (28V 70A)
|
|
Battery
|
2x135Ah
|

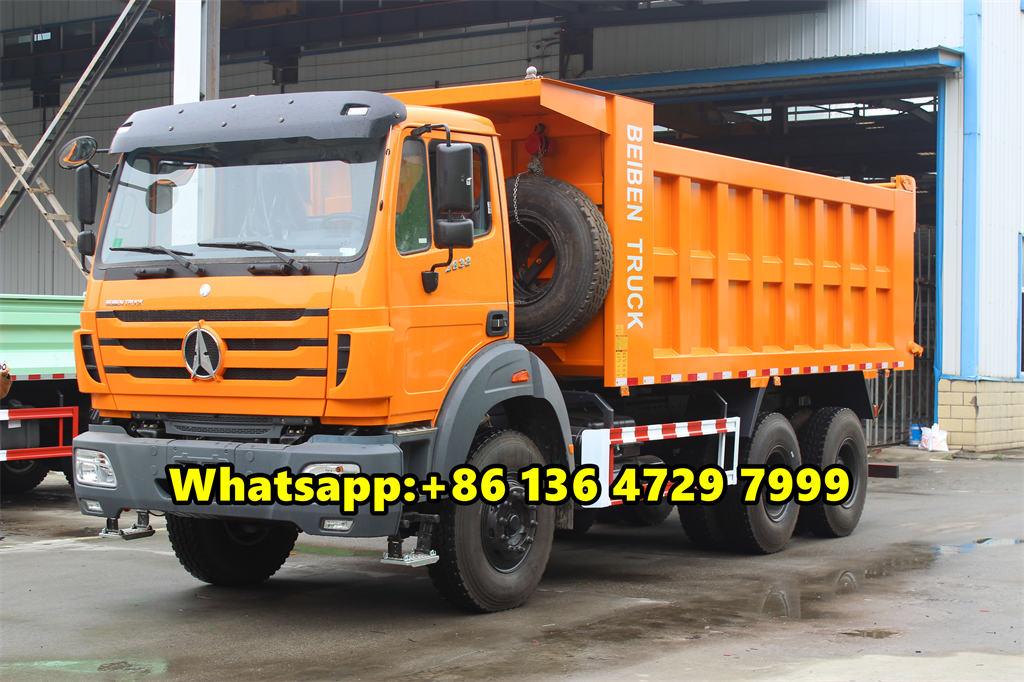

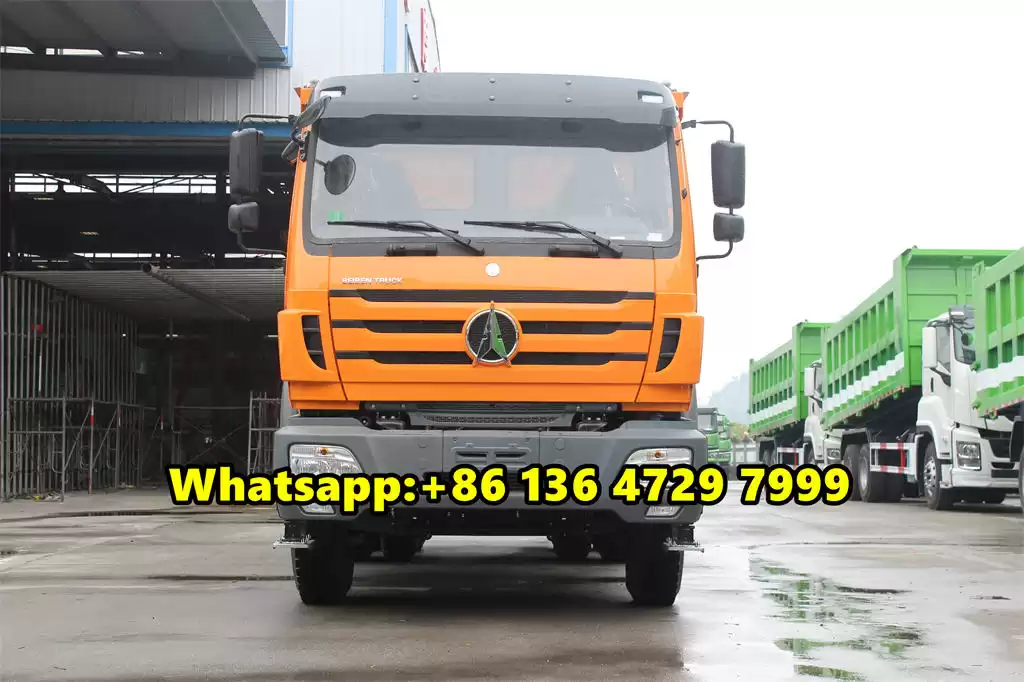

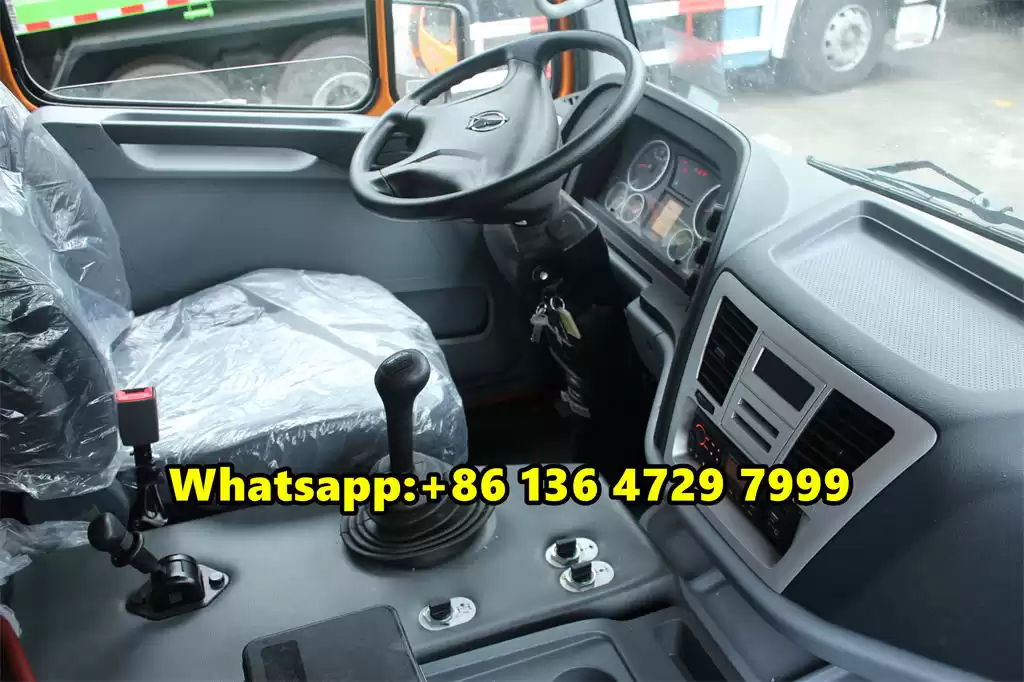

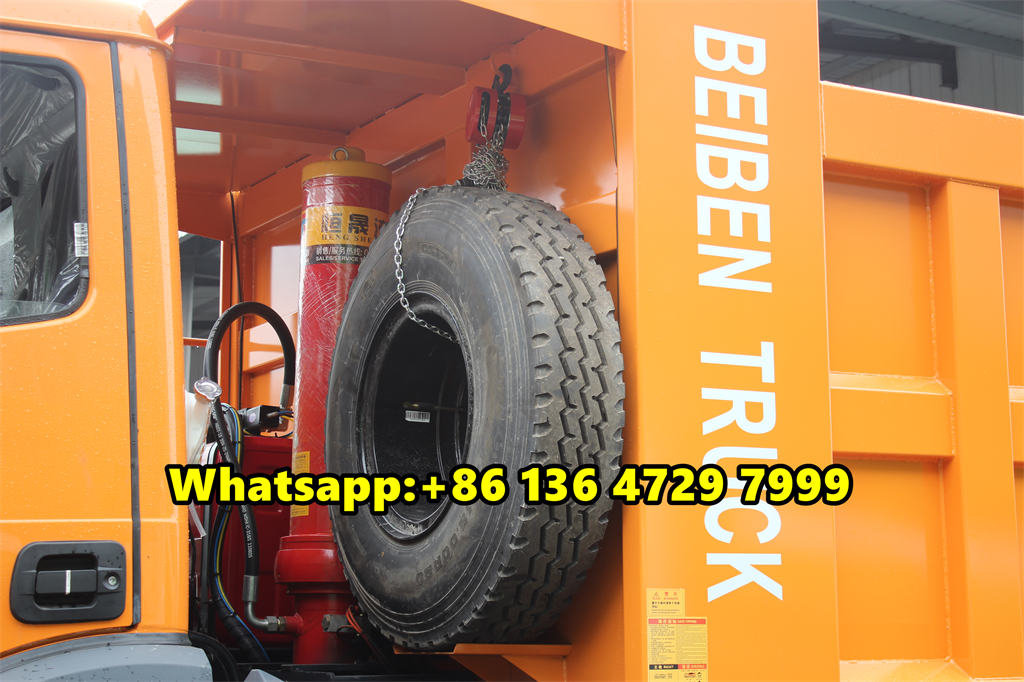

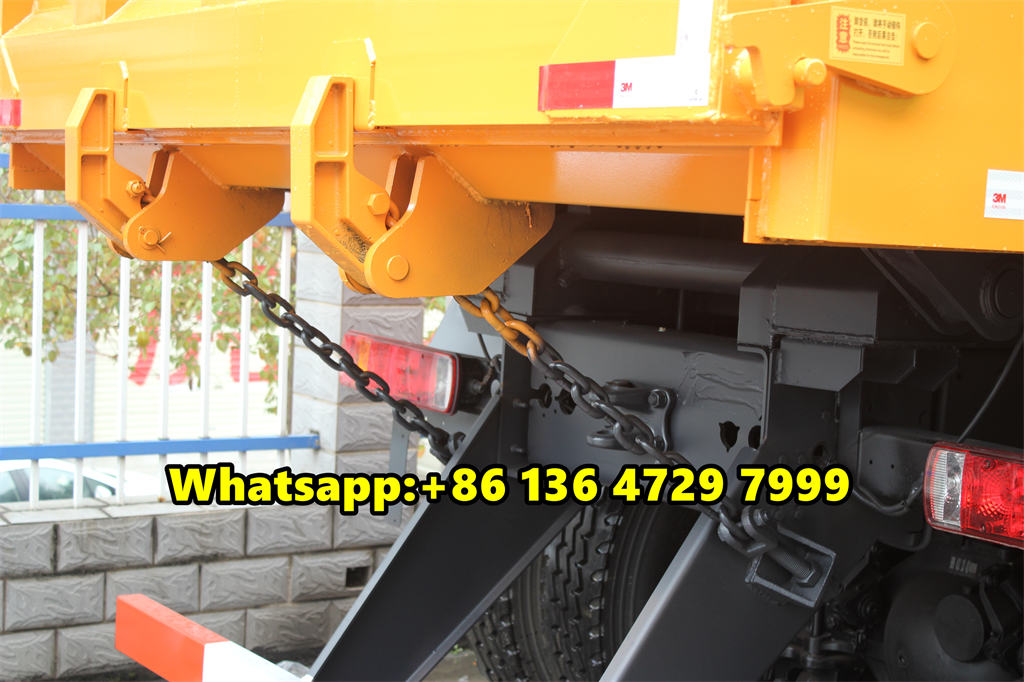

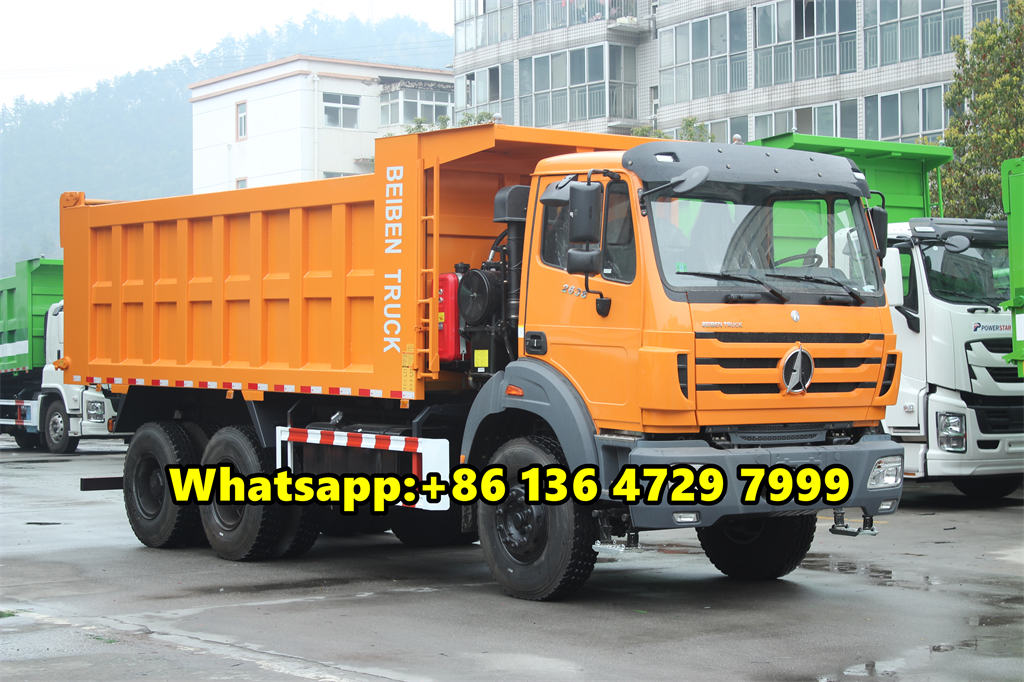

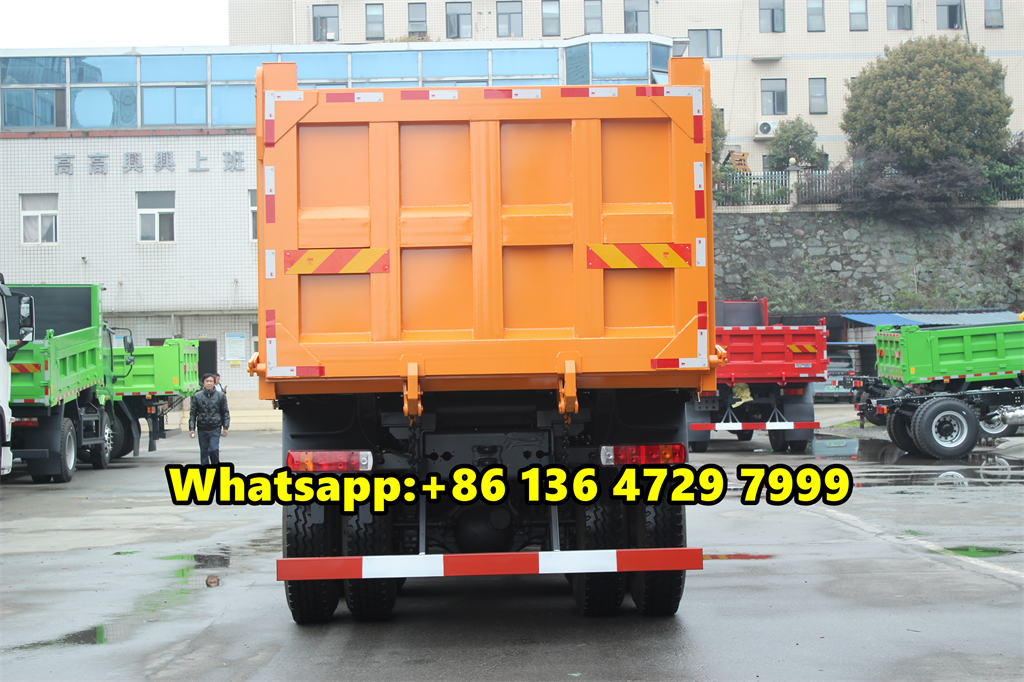

Product Details
