Product Descriptions
The Beiben 2638 tractor head is a high-performance, multi-functional heavy-duty vehicle designed to tackle a variety of complex transportation tasks. Its exceptional performance and robust structure set it apart from other tractors, making it an ideal choice for long-distance logistics, heavy-duty cargo transportation, and other fields.
The Beiben 2638 trailer tractor features a 6X4 drive configuration, which not only enhances the vehicle's stability and traction but also allows it to excel in various challenging road conditions. The driver's cab is located on the left side, in line with driving habits in most countries, facilitating easy operation for the driver. The vehicle adopts the Beiben NG80 long-cab, providing ample interior space equipped with two seats, a sleeper, and an air conditioning system, offering a comfortable driving and resting environment for the driver.
The Beiben heavy tractor truck is powered by a WEICHAI diesel engine, model WP10.380E32. This engine employs four-stroke direct injection technology, features six cylinders with water cooling, turbocharging, and intercooling, and meets EURO III emission standards. With a maximum output of 380 horsepower at 2200 rpm, it provides robust power support for the vehicle. The engine's displacement is 9.726 liters, ensuring sufficient torque and power reserve.
In terms of the transmission system, the vehicle is equipped with a FAST 12JS200T transmission with 12 forward gears, ensuring smooth shifting and high transmission efficiency. The clutch is a 430mm hydraulically operated type with air assistance, providing lightweight and reliable operation. The steering system adopts the ZF8098 from Germany, ensuring the vehicle's maneuverability and stability.
Thanks to its outstanding performance and wide range of applications, the Beiben2638 tractor is extensively used in the domestic automotive transportation sector. It is particularly suitable for long-distance logistics, where its strong carrying capacity and traction allow it to easily handle the transportation of various large cargoes. In heavy-duty cargo transportation, its sturdy structure and stable performance ensure the safety of cargo during transit. Additionally, in the field of engineering construction, the Beiben 2638 tractor is often used for transporting large machinery and building materials.
Product Specifications
|
Traction type
|
6X4
|
|
Driving type
|
Left hand drive
|
|
Cab
|
Beiben NG80 long cabin, 2 seats, one sleeper, A/C
|
|
Dimensions in (mm)
|
Wheelbase(mm): 3450+1450
|
|
Overall size(mm): 7140x2500x3200
|
|
Weight in kg
|
Kerb weight 8800kg
|
|
Total mass 25000kg
|
|
Towing weight 40000kg
|
|
Engine
|
Make: WEICHAI
|
|
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbocharging & intercooling
|
|
Engine model: WP10.380E32
|
|
Emission Standard: EURO 3
|
|
Maximum output: 380HP /2200 rpm
|
|
Number of cylinders: 6
|
|
Displacement: 9.726L
|
|
Clutch
|
430mm, hydraulically operating with air assistance
|
|
Transmission
|
Brand: FAST
|
|
Model: 12JS200T (12 speeds)
|
|
Steering
|
ZF8098 (from Germany)
|
|
Front Axle
|
Benz technology 7.5ton
|
|
Rear Axle
|
Benz 13ton double reduction driving axle, Ratio:1:5.263
|
|
Types
|
12.00R20 Radial tire
|
|
No. of tire
|
10+1(spare)
|
|

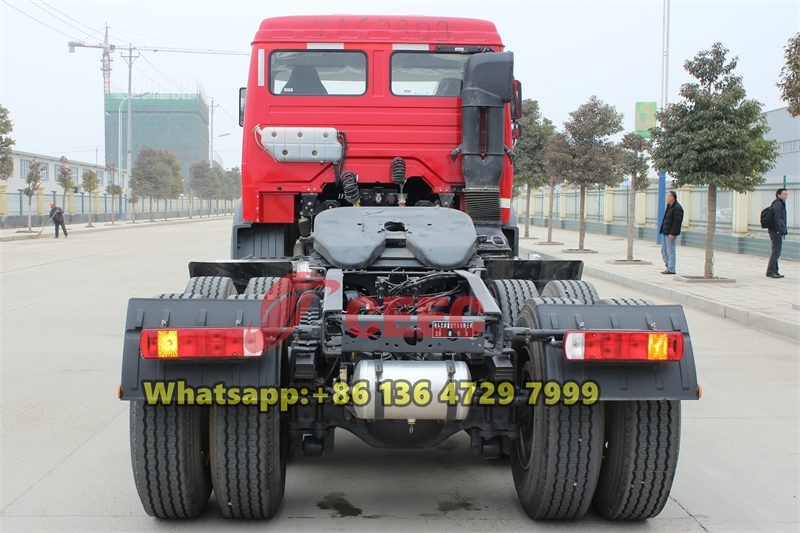

Fifth wheel
|
3.5'(90#)
|
|

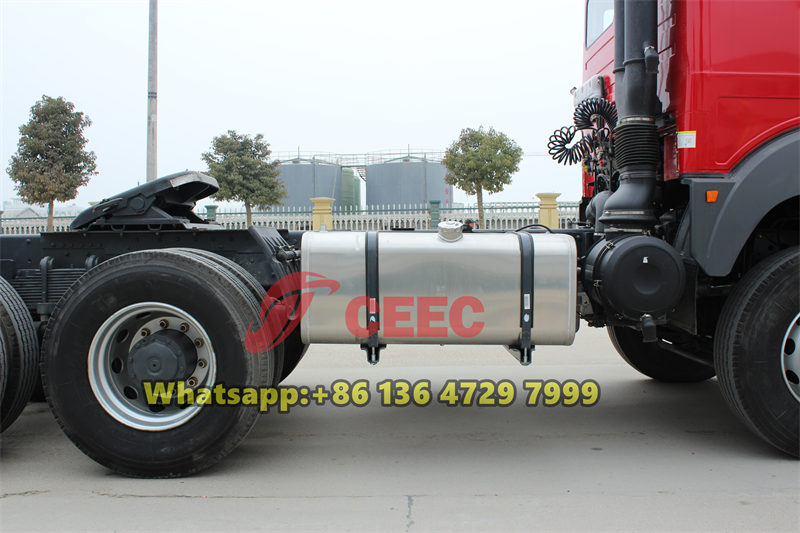

Fuel tank(L)
|
400
|
|
Electrics
|
Operating voltage: 24V, negative grounded
|
|
Weight in kg
|
Kerb weight 8800kg
|
|
Total mass 25000kg
|
|
Performance
|
Maximum driving speed(km/h) 100
|
|
Strengthened equipment
|
Strengthened crossbeam(317*70*8.5+7+8mm),
strengthened frame, strengthened rear spring(22mm),4 pieces U-type bolts, axle differential lock, wheel differential lock, strengthened transmission shaft and rim
|

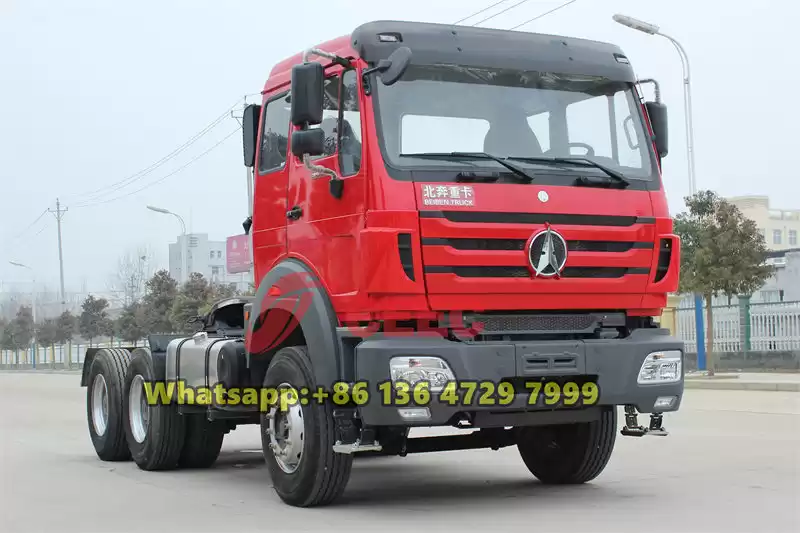

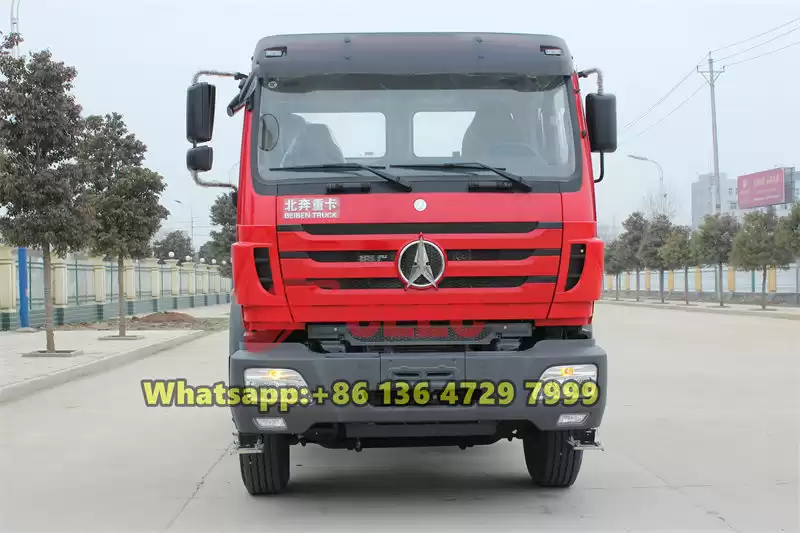

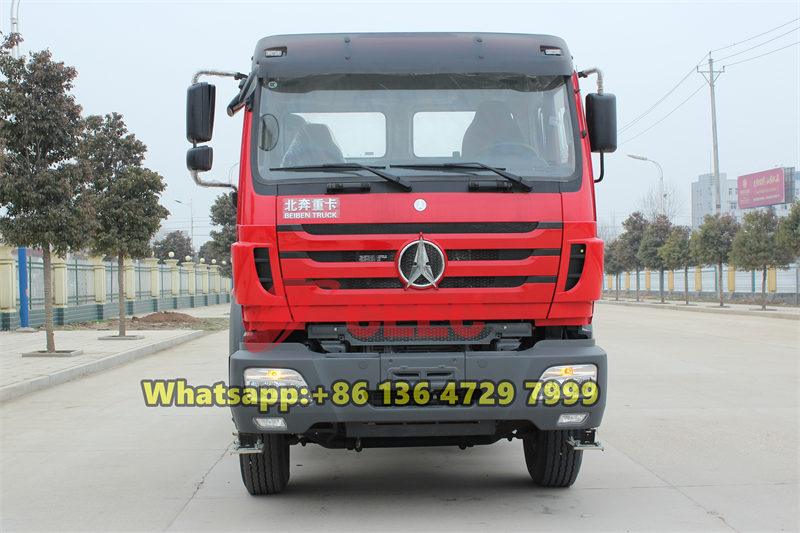

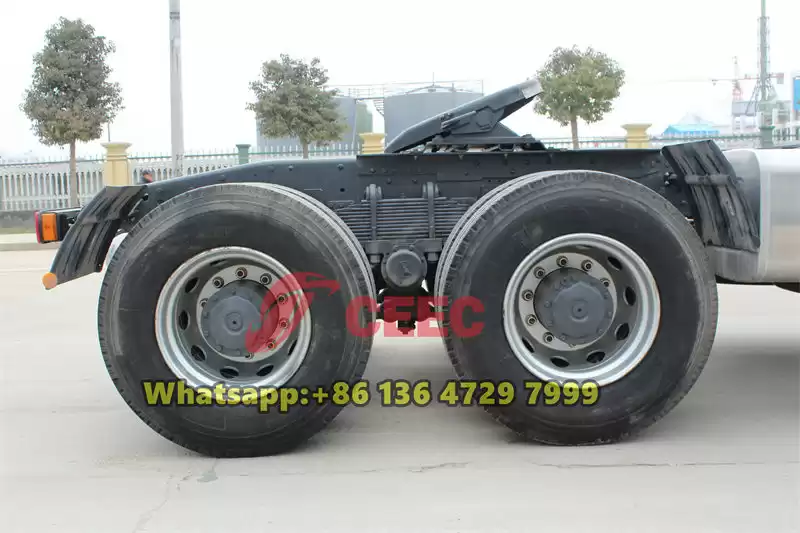

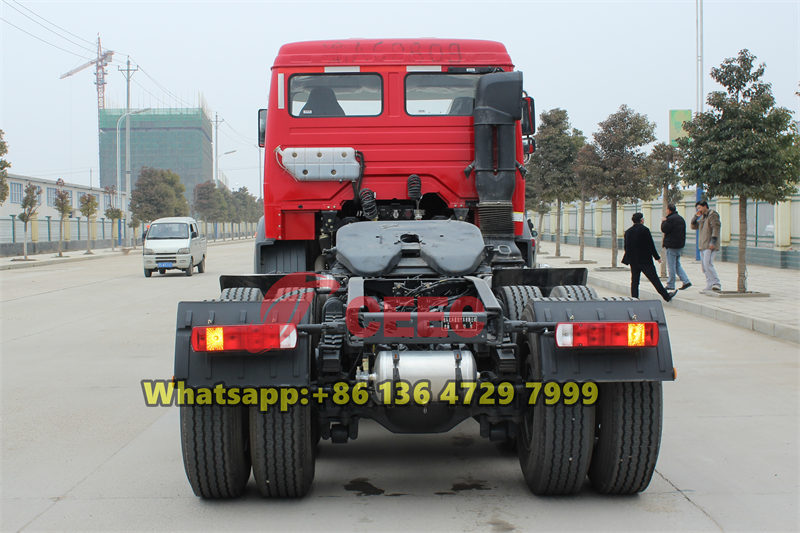

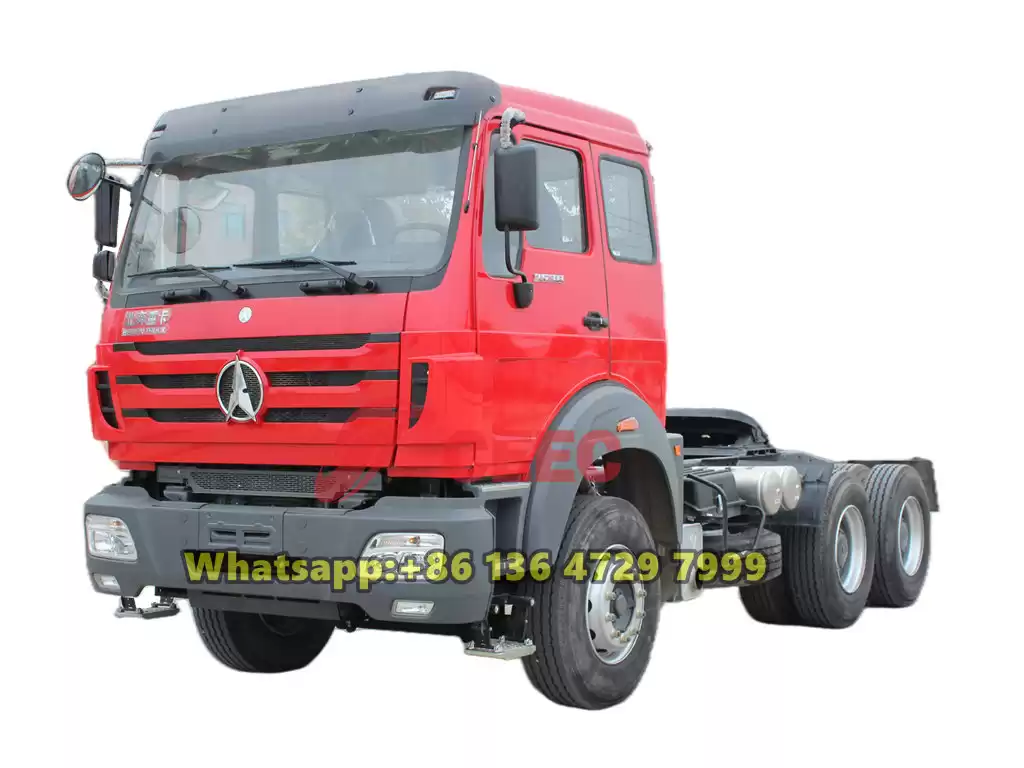

Product Details
