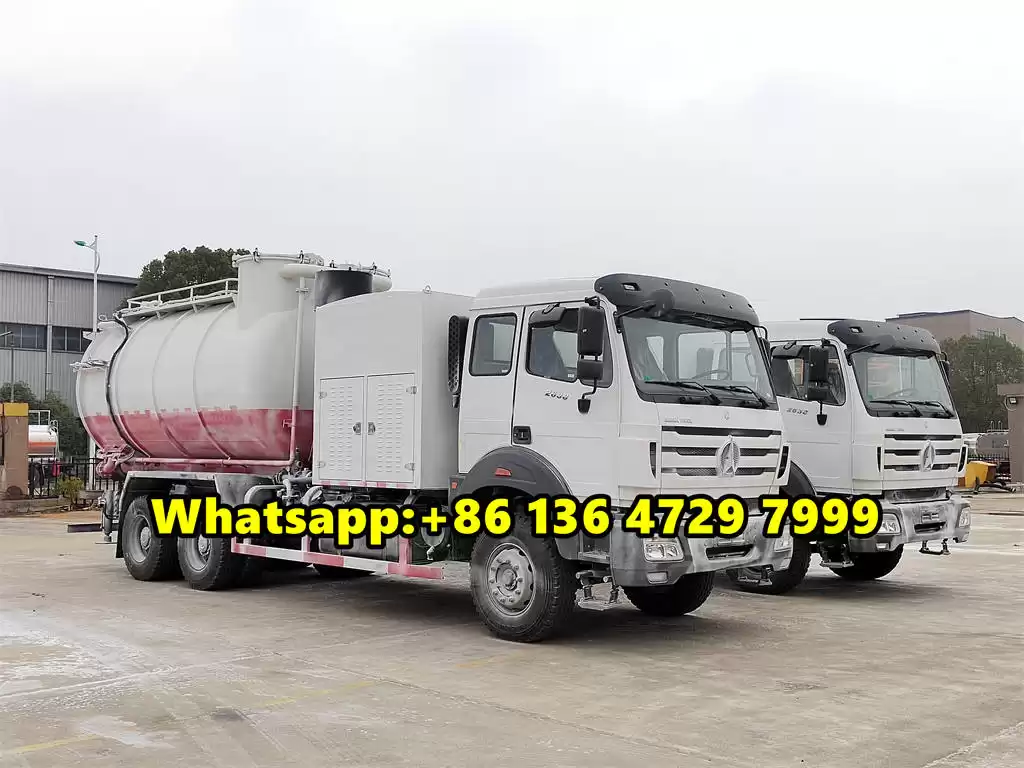

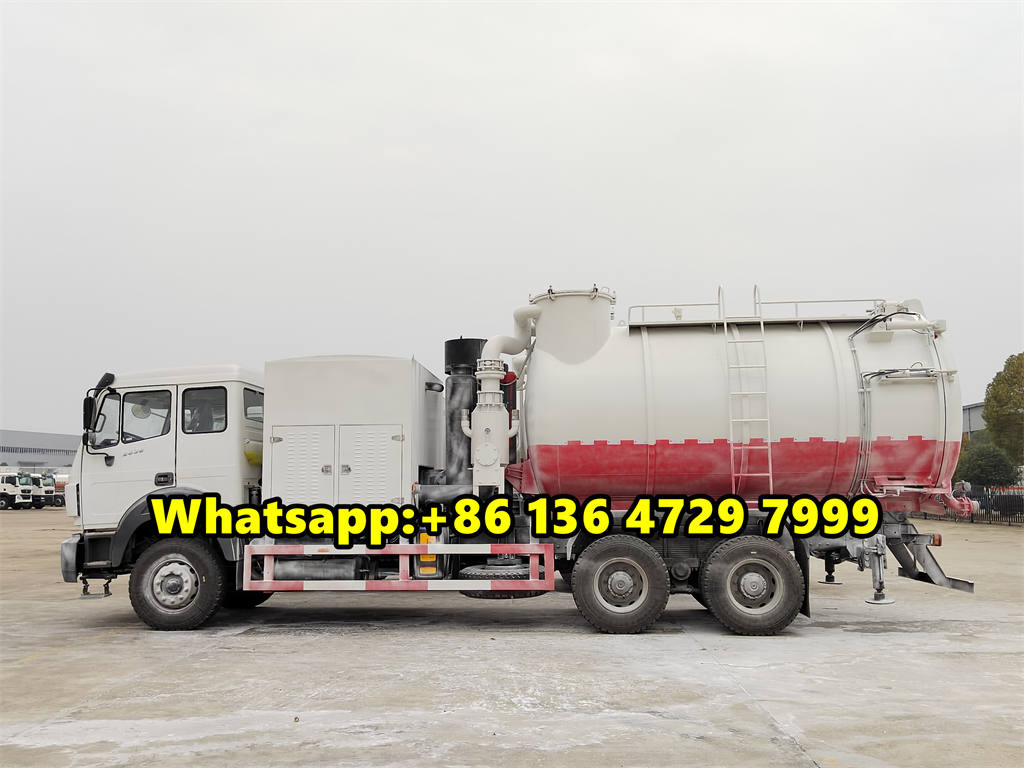

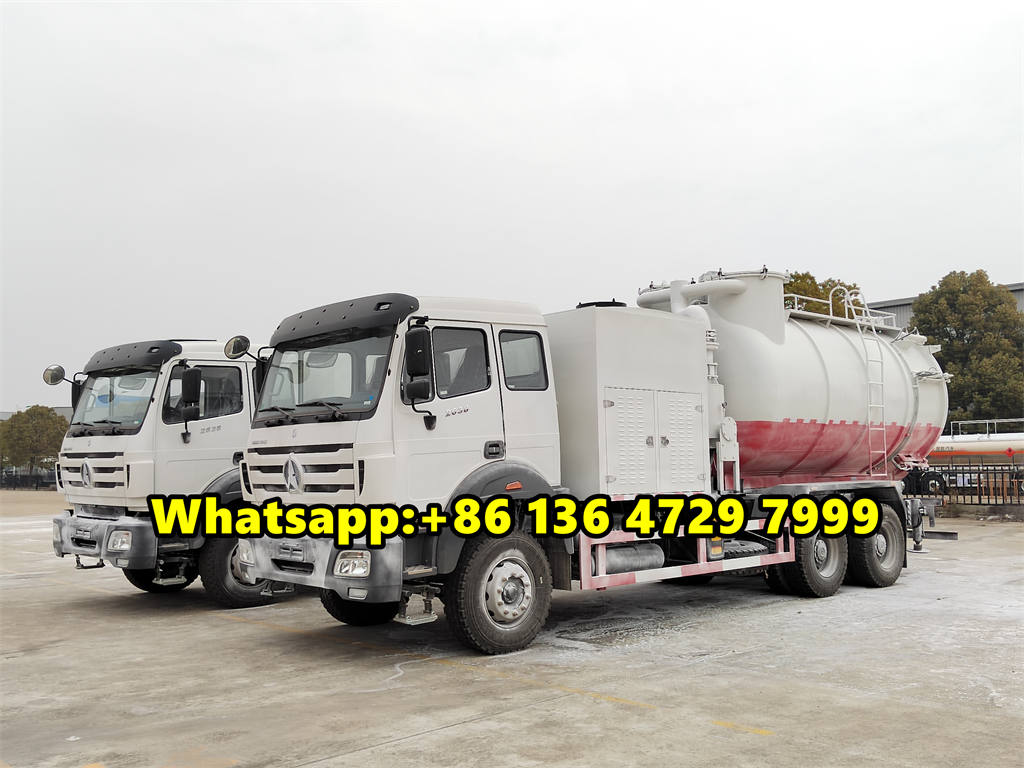

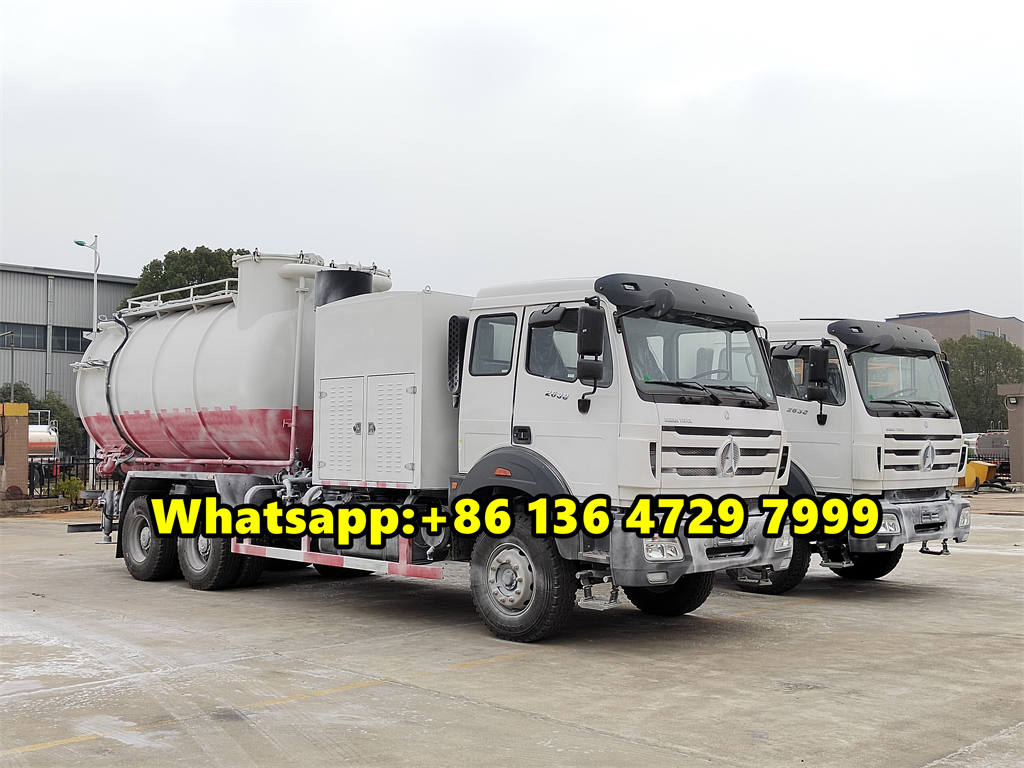

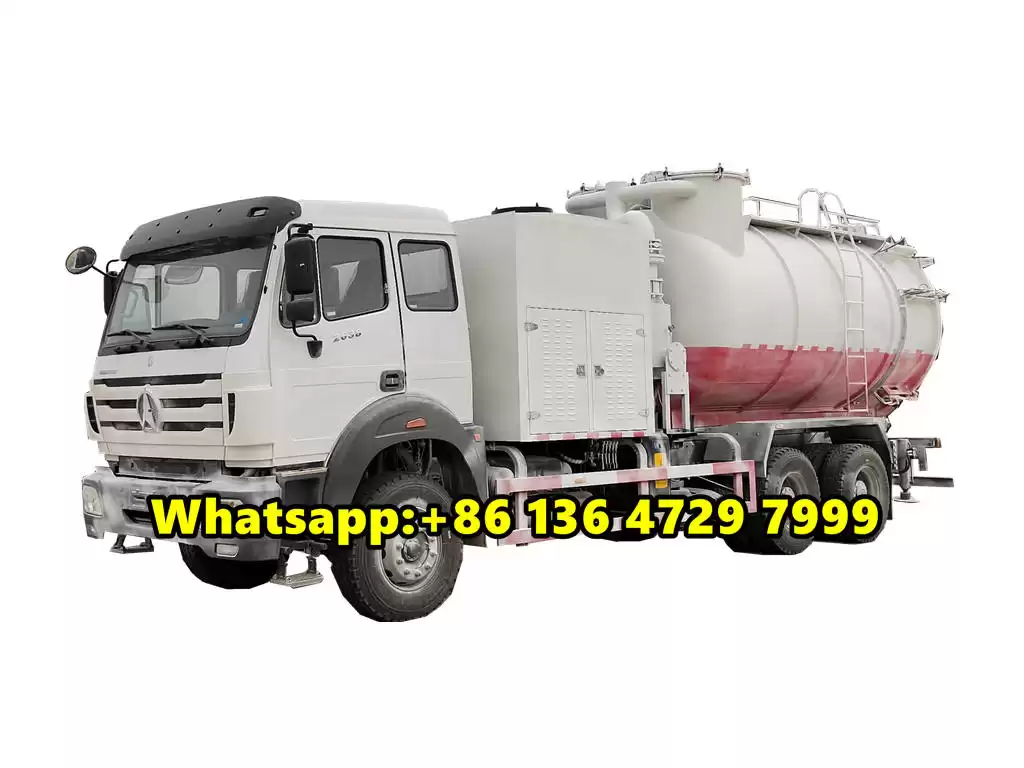

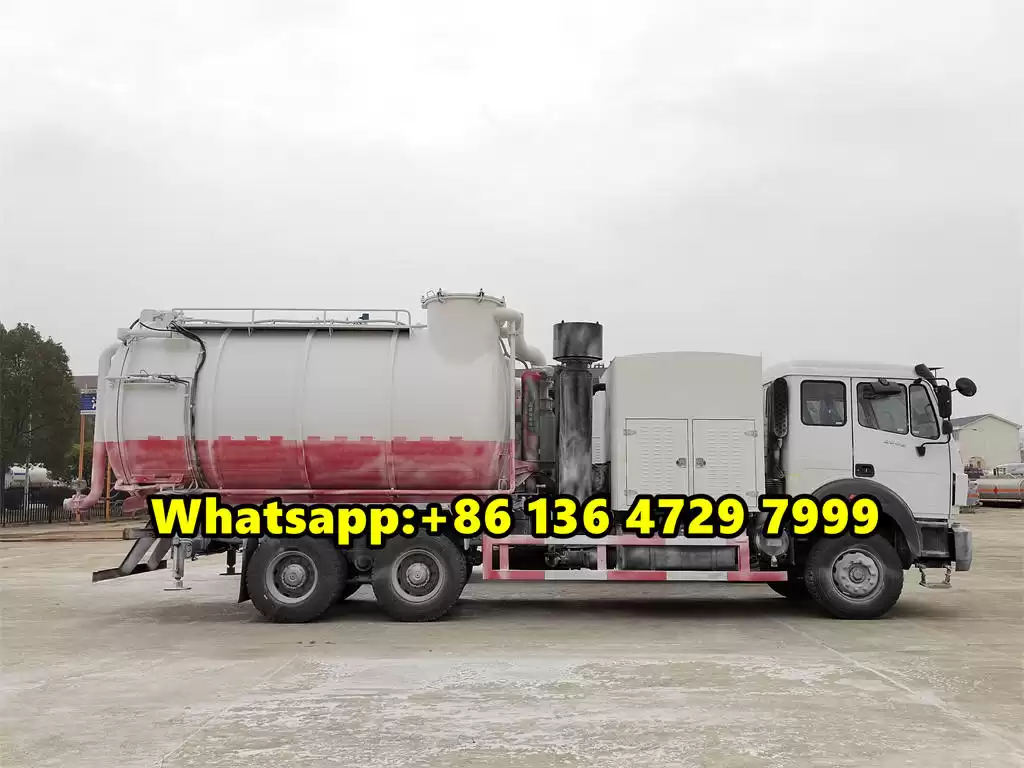

Beiben 2638 industrial vacuum truck

Beiben 2638 vacuum jetter truck is a multifunctional vacuum tank vehicle designed for the industrial field. It is equipped with Beiben NG80 long cab and provides a comfortable driving environment. The vehicle is equipped with WEICHAI brand WP10.380E32 engine with a power of 380HP and meets Euro 3 emission standards. The vacuum tank has a volume of 12000L and is made of 16Mn low-carbon steel with a design pressure of -0.9bar. The vehicle is also equipped with advanced suction and filtration systems and vacuum systems to ensure efficient and stable operating performance.


  • Engine power380 HP
  • Drive system6×4, LHD
  • Working Capcity12000 liters
  • Payment terms30% TT deposit and balance before delivery
  • Production time40 days

Product Description



Beiben 2638 vacuum jetter truck, also known as Beiben truck mounted sewer jetter or Beiben industrial vacuum truck, is a special production equipment that combines the principles of negative pressure pneumatic conveying and positive pressure pneumatic conveying. It uses air as the conveying carrier of the material, and automatically completes the suction (loading), closed transportation and automatic discharge (unloading) of the material in a closed space.





Beiben 2638 vacuum jetter truck combines the advantages of negative pressure pneumatic conveying and positive pressure pneumatic conveying, and realizes the automatic collection and transfer of materials in a closed system through the action of air flow. The negative pressure system is used to suck the material from the source into the on-board tank, while the positive pressure system is used to discharge the material from the tank to the target location. During the whole process, the material is separated from the air to ensure that the dust does not leak out and meet the environmental protection requirements.

Beiben 2638 industrial vacuum truck is widely used in metallurgy, chemical industry, energy, building materials, coal, mining, terminal transportation and other industries, especially suitable for the in-plant transportation of dust materials such as ironmaking, steelmaking, sintering, coking, smelting desiliconization, desulfurization, dephosphorization agent, blast furnace, converter dust removal ash, etc. It can efficiently and safely complete the collection, transportation and transportation of various dust and powder materials.





Product Specifications



Item

Description

Product name

Beiben 2638 industrial vacuum truck

Chassis

Cab

Beiben NG80 long cabin, with sleeper, power steering, A/C

Driving type

6×4, left hand drive

Max. driving speed

90km/h

GVW

25000 kg

Wheelbase

4300+1350 mm

 Tire

12.00R20

Engine

Brand

WEICHAI

Model

WP10.380E32

Power

380HP/280KW

Emission standard

Euro 3

Rated speed

2200 rpm

Gearbox

Brand

FAST

Type

12-speed, manual

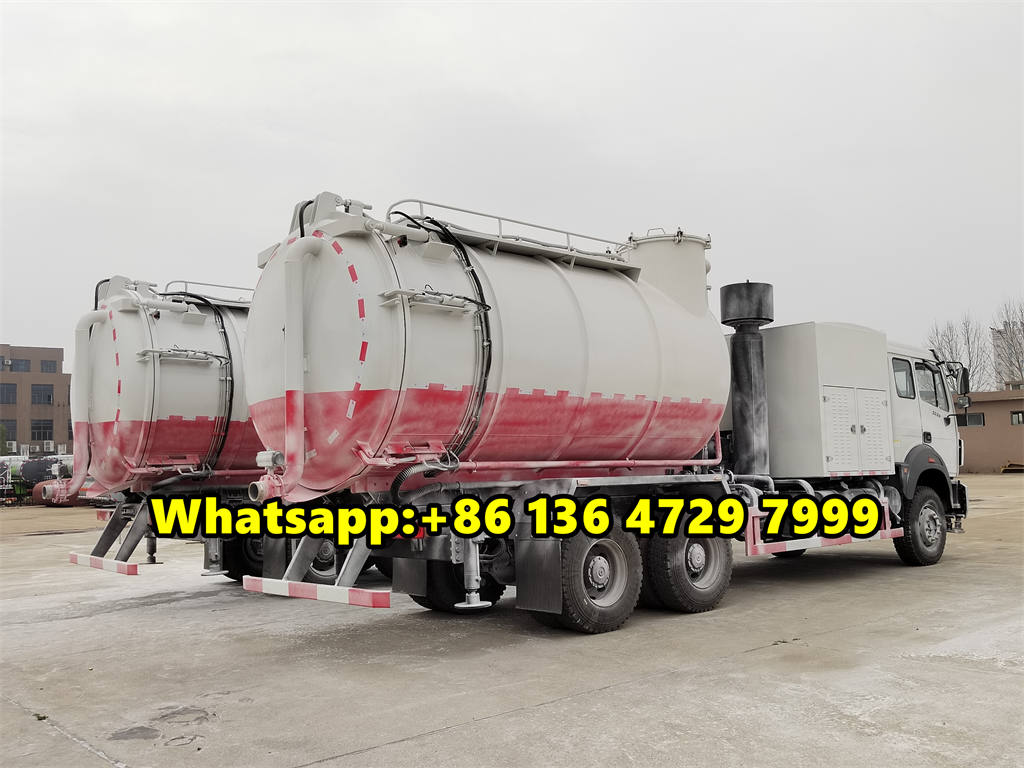

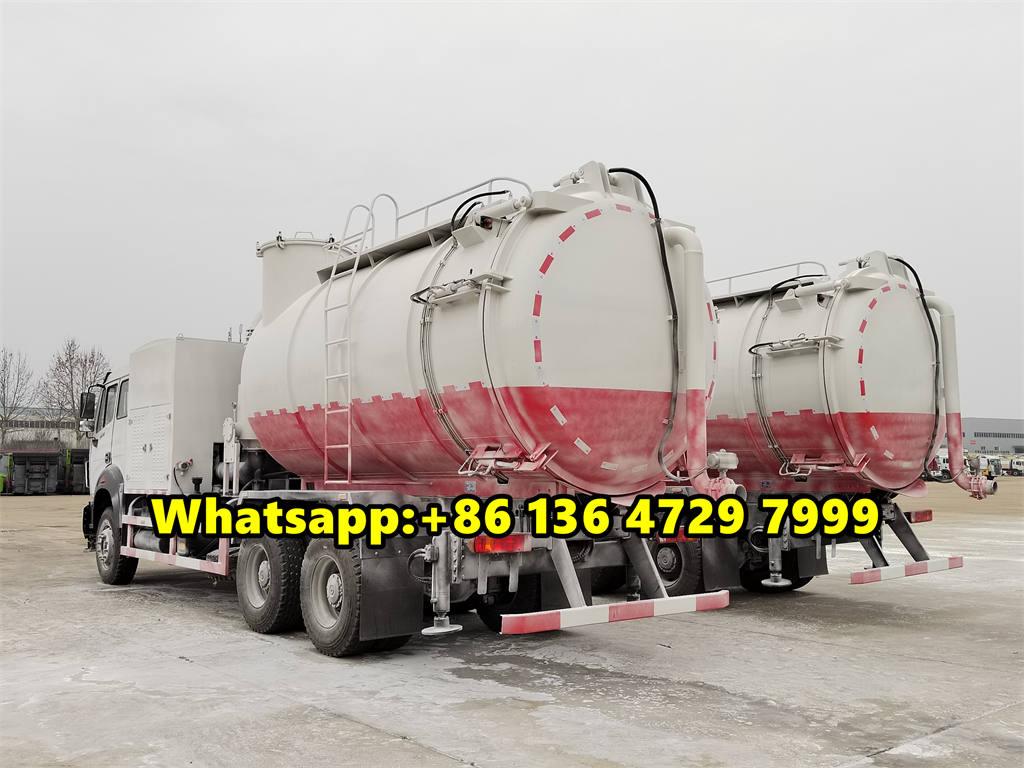

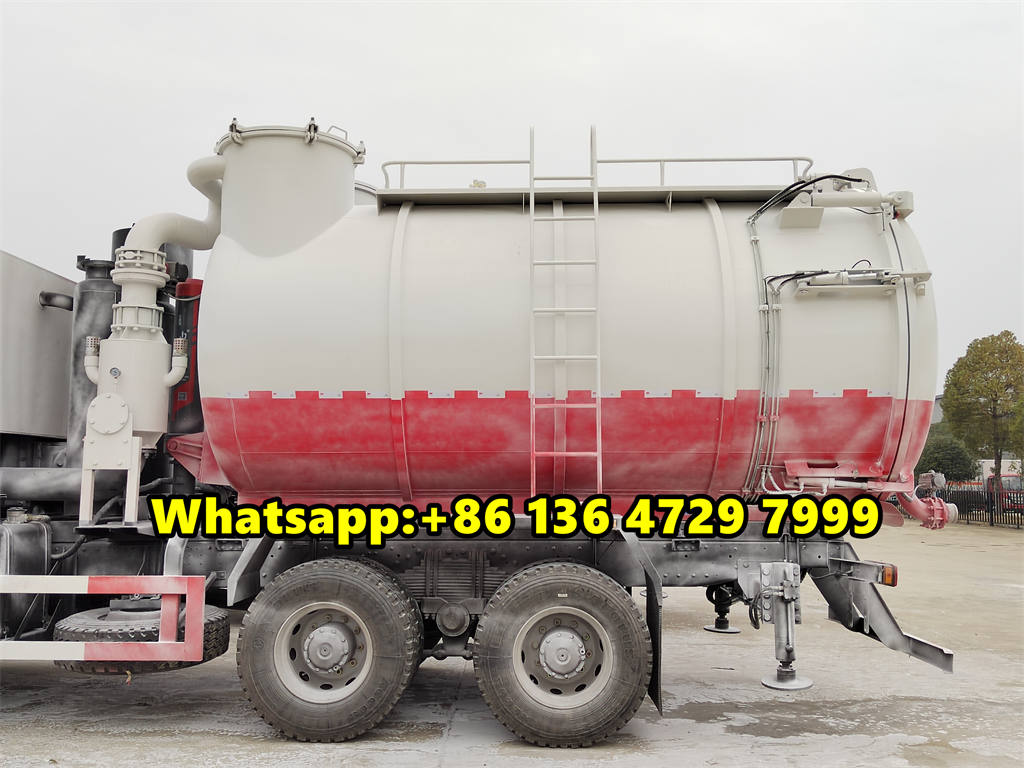

Vacuum tank

Volume

12,000L

Material

16Mn mild steel

Tank shell thickness

6mm

Manhole

450mm

Designed pressure

-0.9bar

Inlet valve

6inch

Tipping angle

≥50degree

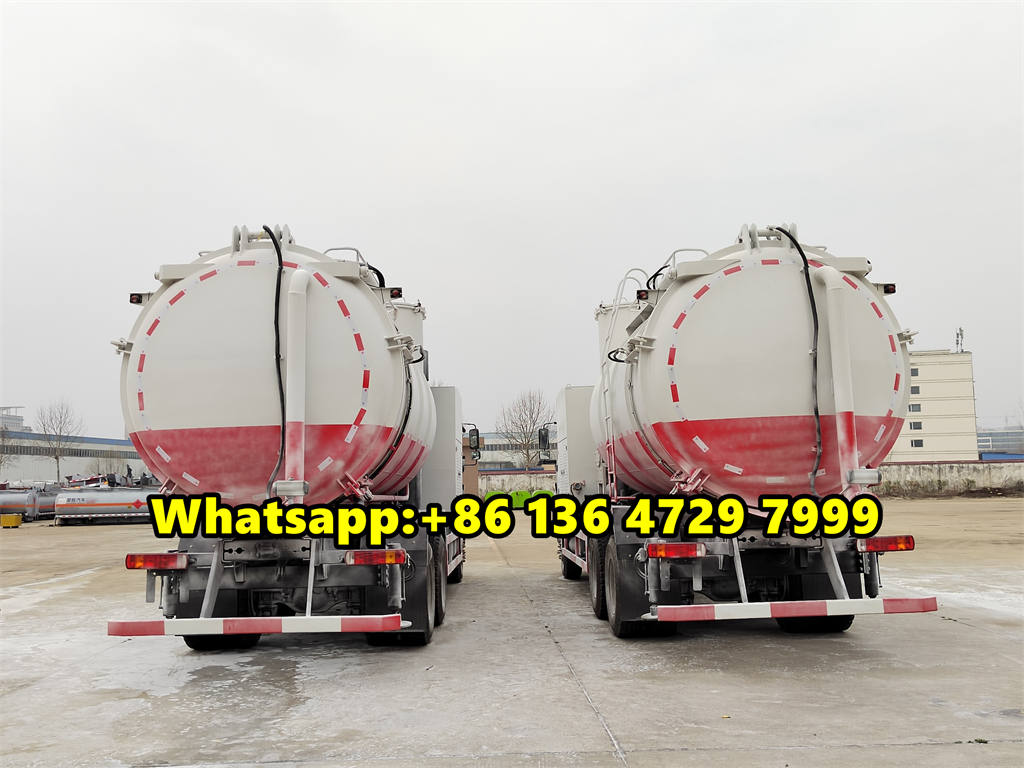

Rear door

Hydraulically open and lock

 3 grades shut off

Float ball

SS304

solid material amount measurer

 Equipped

ultrasonic liquid level indicator

Works as double float ball, cut off vacuum pump once tank is full

Suction filtration system

Bag filter unit

32units of filters, with heat-resistant and anti-corrosion

Manhole

450mm

Filter mesh

equipped

Vacuum system

Brand

China famous brand

Type

Roots Blower

Power source

Driven by PTO

Vacuum level

-0.5bar

Air flow

5700cu.m3/h

Material dimension

15mm

Suction horizontal distance

≥50m

Silencer

 Equipped

Discharge system

Compressor brand

Outstanding brand

Working pressure

2bar

Discharge flow

500m3/h

Discharge ability

30-70t/h

Discharge height

15-30m

Outlet valve

4inch, SS304

Material left

≤2‰

Butterfly valves

SS304

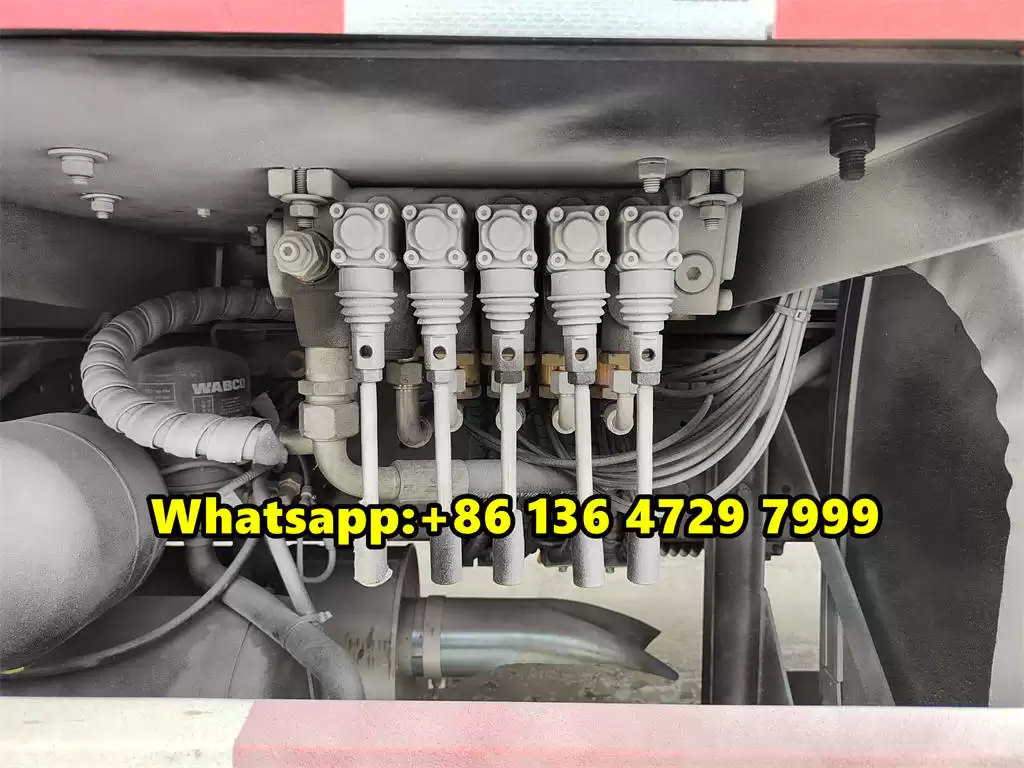

Hydraulic control

Pressurized oil pipe

SS304 pipe

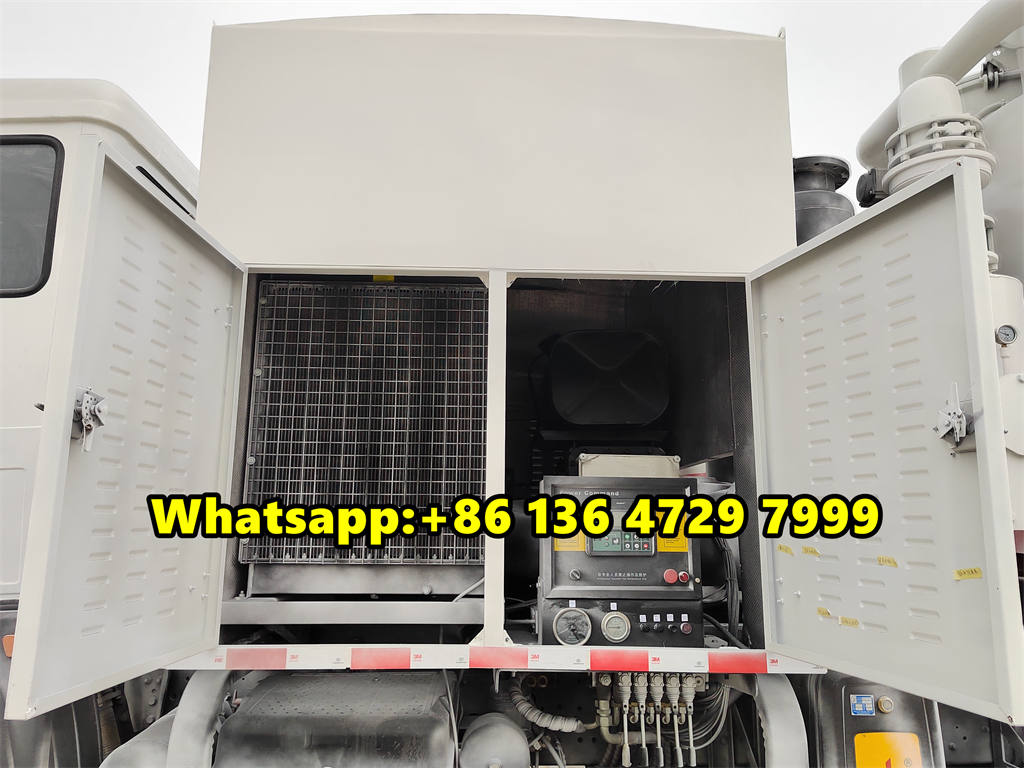

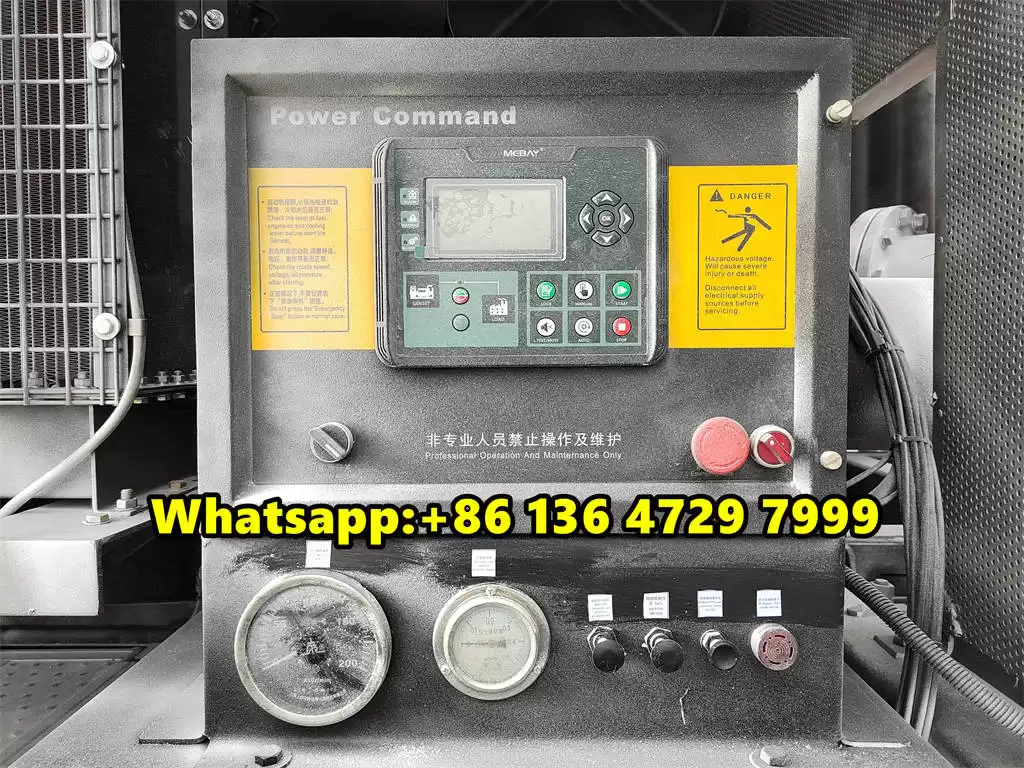

Control box

Manual control and radio remote control
Pump and engine speed meters, pressure meters, switches, emergency stop,  boom control, English labels...

Painting

All steel parts are sand blasted before painting.
Passiviation
One coat of anti rust primer inside and outside of the tank
Two coat of finish painting.
Heat dry process
Color and logo on truck body advised by customer.





Product Composition

Beiben 2638 vacuum jetter truck is mainly composed of the following parts:


1. Truck chassis: Based on Beiben 2638 truck chassis, it ensures the vehicle's carrying capacity and driving stability.

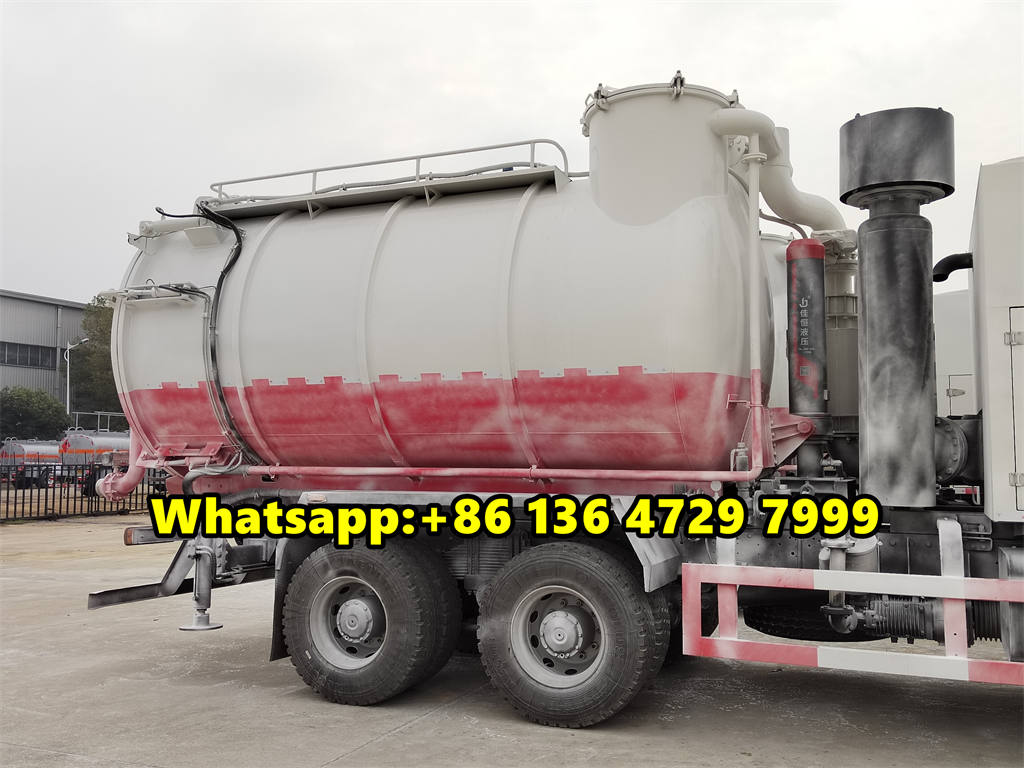

2. Vacuum tank: The tank is horizontal cylindrical, made of high-quality cold-rolled steel plate, and is designed and manufactured in strict accordance with pressure vessel standards. The tank volume can be customized according to demand.


3. Negative pressure suction system: It consists of a vacuum pump, pipes and valves. The vacuum pump generates negative pressure to suck the material into the tank. The system uses wear-resistant materials to make key components to ensure long life and efficient operation.


4. Positive pressure discharge system: It consists of air compressors, pipes, valves, etc. The air compressor generates positive pressure to discharge the material from the tank to the target location. The system also uses wear-resistant materials and quick connectors to ensure fast and reliable unloading.


5. Filtration separation and recovery system: It is mainly composed of gravity sedimentation device, cyclone separation device and bag device. It is used to separate materials and air to ensure that the quality of filtered air meets environmental protection standards.


6. Other auxiliary systems: including hydraulic system, central control system, material level display and alarm system, etc., which are used to control the conversion operation of various tasks of the vehicle, prompt and warn about the material loading status, etc.
