Product Descriptions

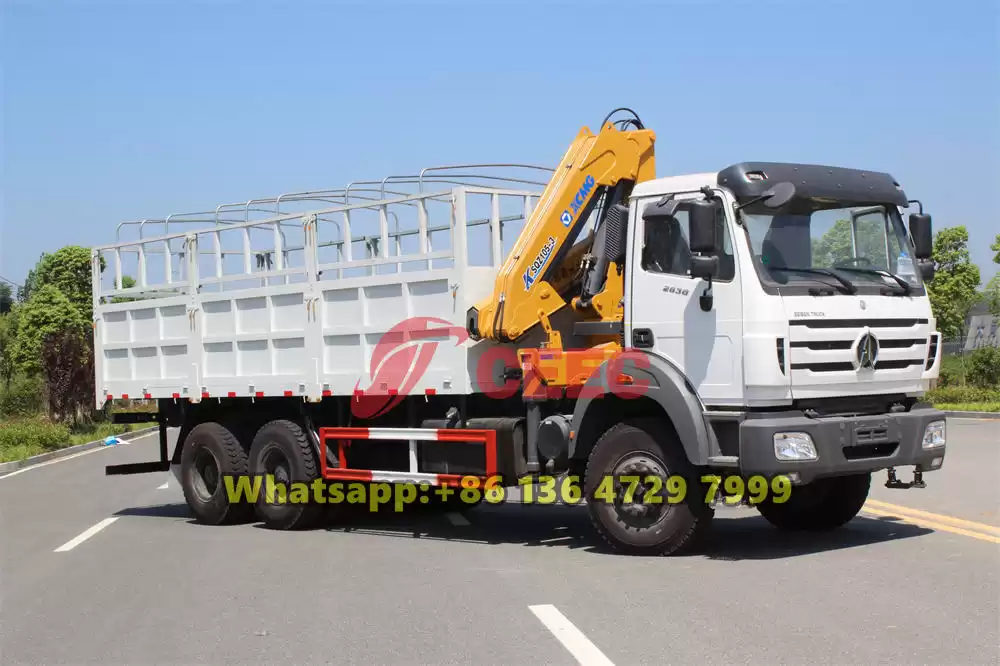

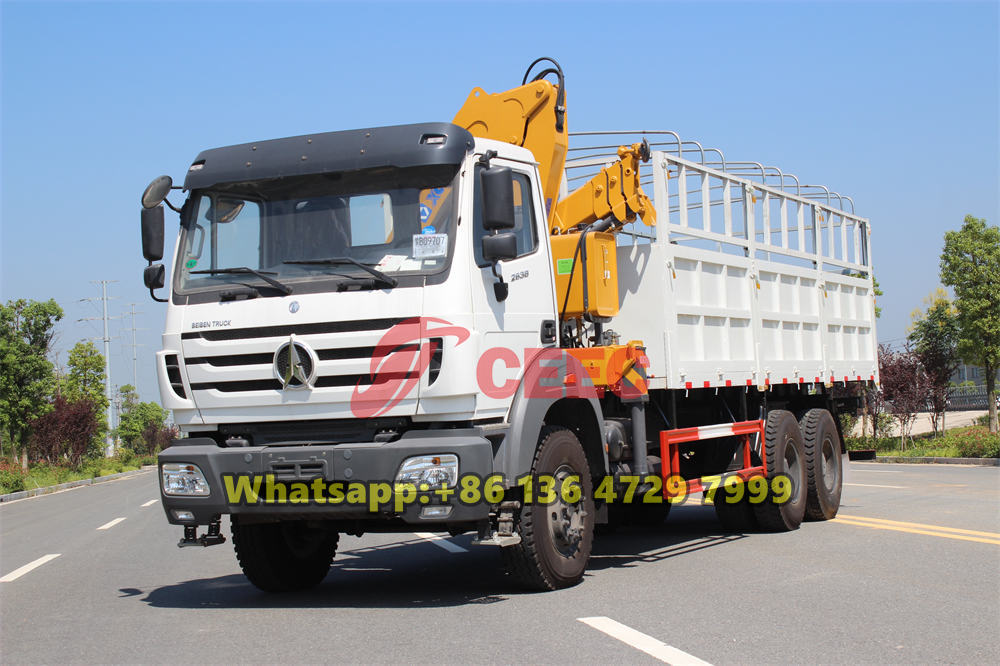

The Beiben 2638 6×4 knuckle boom crane truck, with its excellent performance and reliable quality, holds a significant position in heavy-duty lifting operations. The model of this vehicle is CEEC5256JSQB6, specifically designed to tackle various complex lifting tasks. Adopting a 6×4 drive configuration, it provides powerful output and stable driving performance. With a total weight of 26,000 kg and a curb weight of 12,200 kg, it ensures stability and safety even when fully loaded. The vehicle is equipped with a WP10.380E32 engine, featuring a displacement of 9.726 liters, a rated speed of 2,200 RPM, a rated power of 280 kW and a maximum horsepower of 380HP, complying with Euro III emission standards. This power configuration provides robust support for the crane truck.

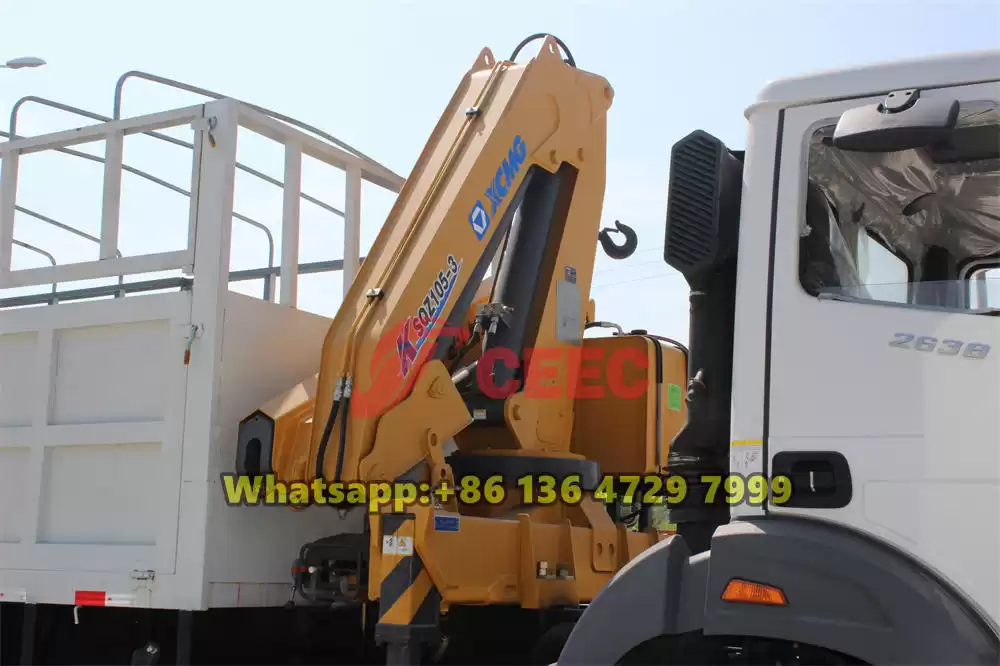

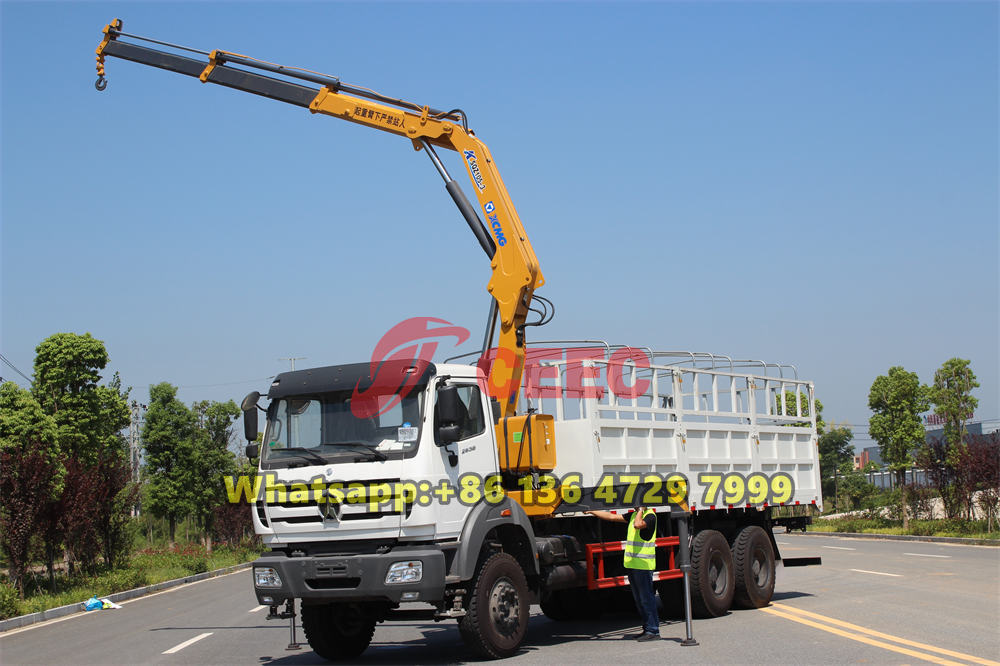

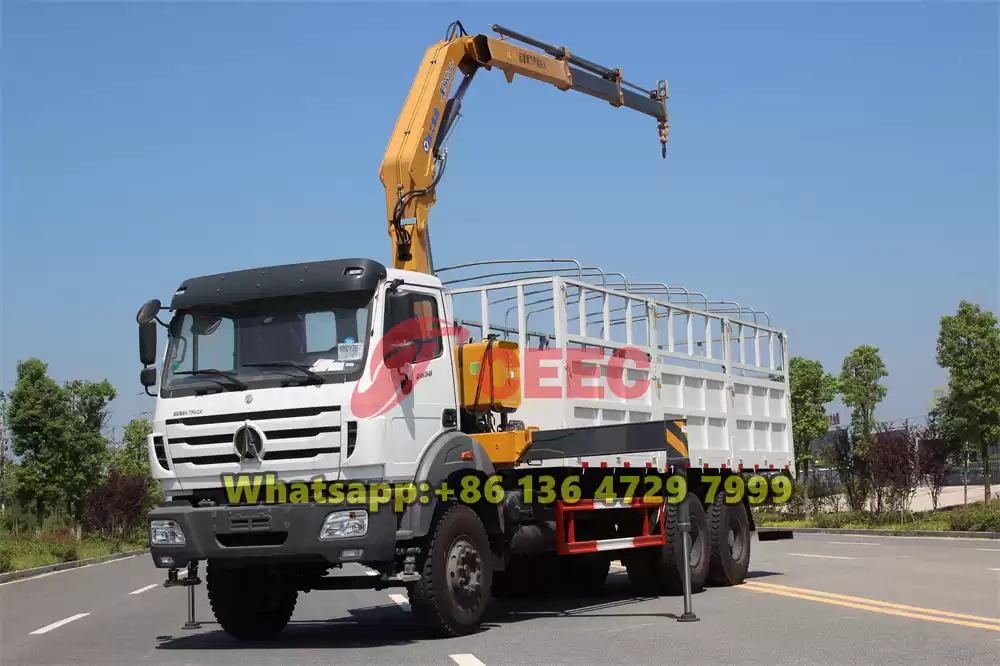

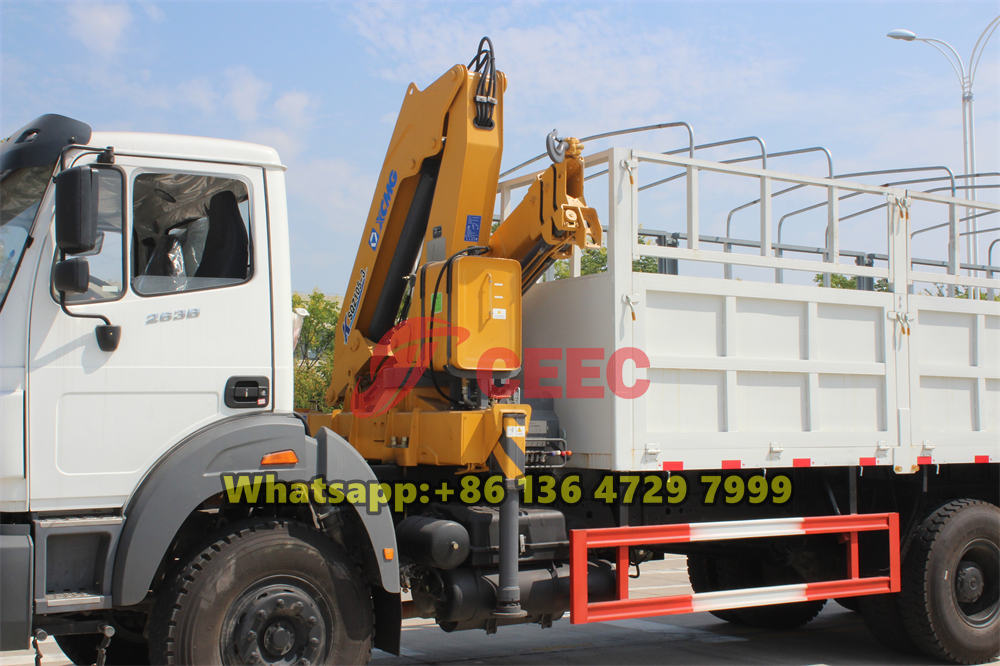

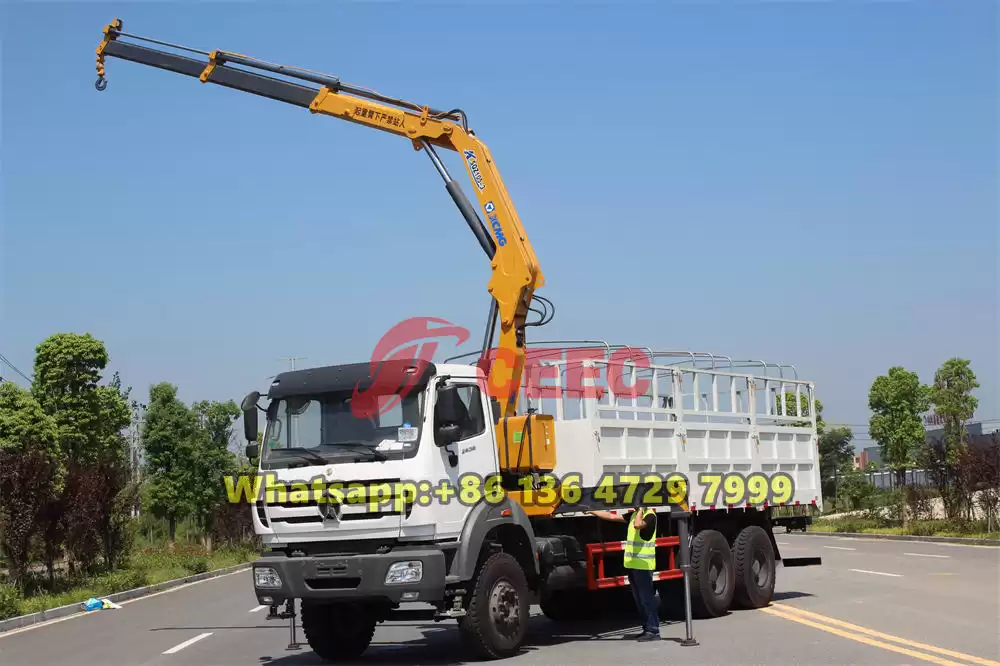

The XCMG knuckle boom crane is the core component of this Beiben crane truck, with a maximum lifting capacity of 5 tons, a maximum lifting height of 10.3 meters, and a rotation angle of 420°, capable of meeting diverse lifting requirements. The crane's maximum working pressure is 28 MPa, ensuring efficient and stable lifting operations. With an outrigger span of 5,210 mm, it offers excellent operational stability. The knuckle boom design allows for flexible operation in confined spaces, making it suitable for various scenarios such as urban construction and logistics loading and unloading. Furthermore, the crane's hydraulic system has been optimized for smooth operation and quick response, further enhancing work efficiency.

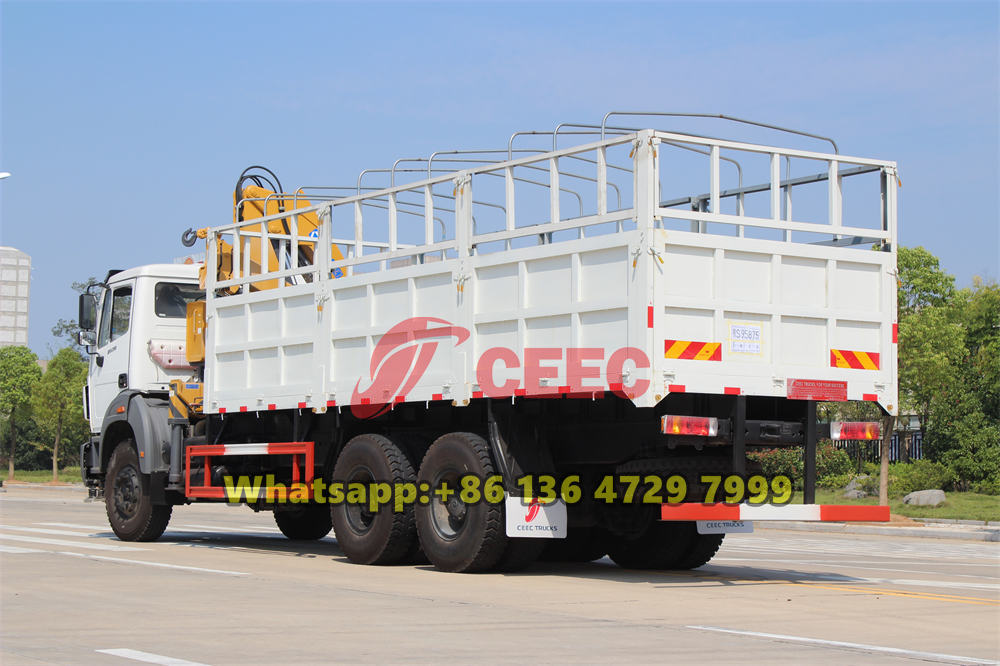

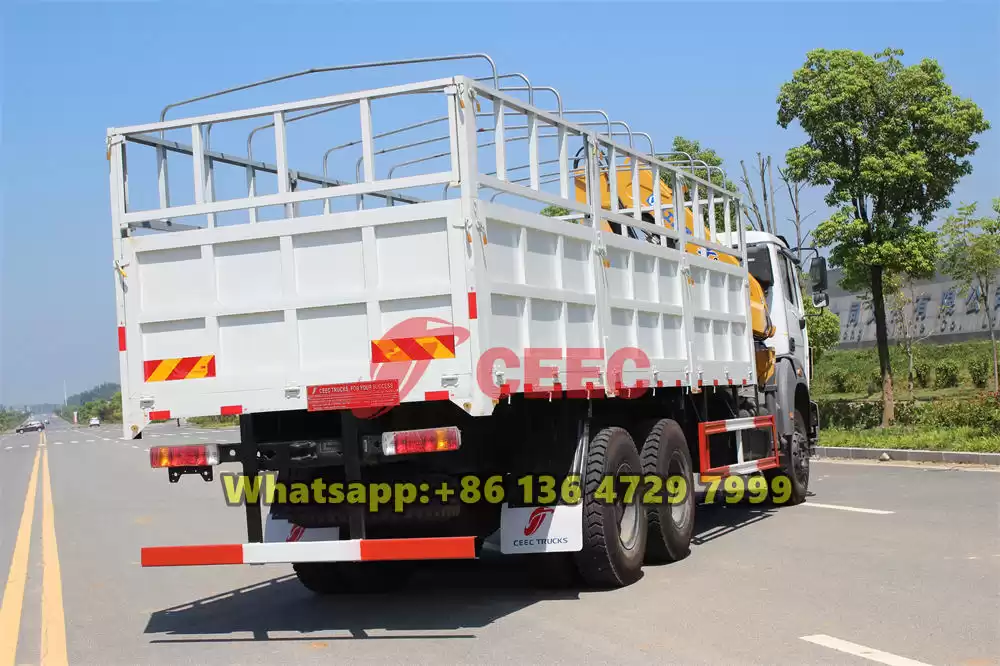

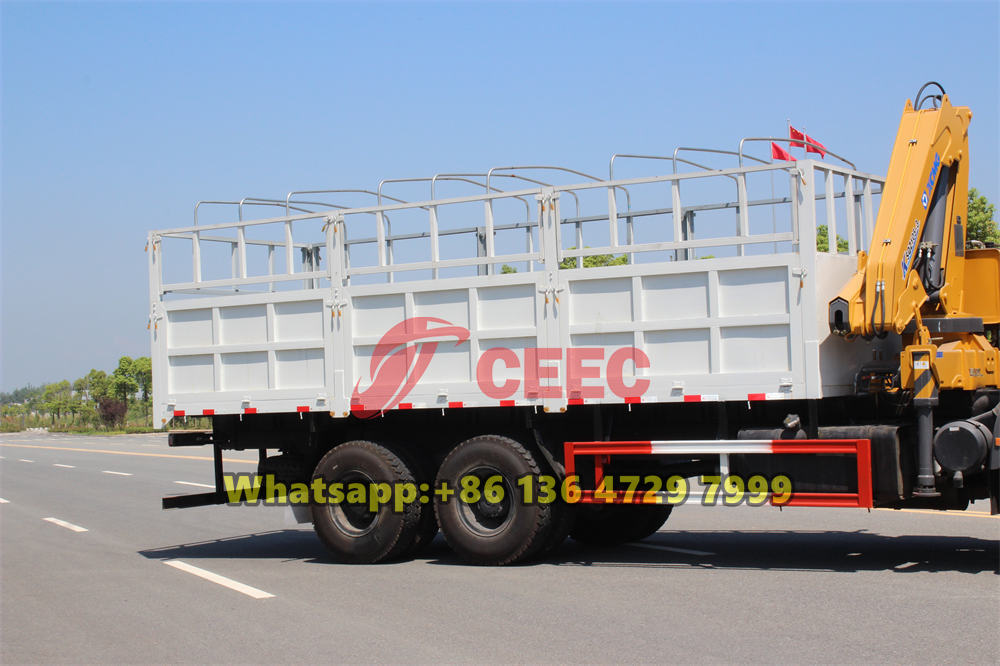

The cargo box is also a crucial part of the crane truck, and its design is equally important. The cargo box of the Beiben 2638 truck mounted crane measures 7,000×2,550×600 mm and is made of Q235 carbon steel with a wall thickness of 4 mm and a bottom thickness of 5 mm. This design not only ensures the cargo box's load-bearing capacity but also extends its service life. Whether transporting building materials, machinery and equipment, or other heavy cargo, the Beiben 2638 knuckle boom crane truck can handle the task with ease.
Product Specifications
|
BEIBEN 2638 6×4 Knuckle Boom Crane Truck Specifications
|
|
Vehicle Model
|
CEEC5256JSQB6
|
|
Basic Vehicle Parameters
|
Drive Type
|
6×4
|
|
Total Weight (kg)
|
26000
|
|
Curb Weight(kg)
|
12200
|
|
Vehicle Appearance Parameters
|
Length (mm)
|
9800
|
|
Width (mm)
|
2550
|
|
Height (mm)
|
3750
|
|
Wheelbase (mm)
|
4100+1450
|
|
Performance Parameters
|
Maximum Speed (km/h)
|
90
|
|
Maximum Climbing Grade (°)
|
30%
|
|
Chassis Parameters
|
Engine
|
Model
|
WP10.380E32
|
|
Engine Emission Standards
|
Euro III
|
|
Manufacturer
|
Weichai Power Co., Ltd
|
|
Displacement(L)
|
9.726
|
|
Rated speed (RPM)
|
2200
|
|
Rated Power (Kw)
|
280 kW
|
|
Max. hose power
|
380 HP
|
|
Cab
|
Type
|
Flat Roof Cab
|
|
Model
|
NG80B
|
|
Standard Configuration
|
Integral Rearview Mirror, Bluetooth Player, Manual Hydraulic Flip, Driver Airbag Seat, Laminated Glass, Electric Doors And Windows, Wide Bumper, Central Locking, Multi-Function Steering Wheel
|
|
Gearbox
|
Gearbox Type
|
Manual, FAST 9-speed
|
|
Front Axle
|
Type
|
Drum Brake
|
|
Loadable Weight (Kg)
|
7000
|
|
Rear Axle
|
Gearbox Type
|
Drum Brake
|
|
Loadable Weight (Kg)
|
13000
|
|
Speed Ratio
|
5.143
|
|
Frame
|
Section Size (mm)
|
317×70×8.5 Full Three-Layer Outsourcing
|
|
Leaf Spring
|
Number of pieces
|
12Front Springs, 12 Rear Springs
|
|
Tire
|
Type
|
Radial tire
|
|
Quantity
|
10+1
|
|
Model
|
12.00R20
|
|
Steering System
|
Type
|
Hydraulic Power Steering System
|
|
Braking System
|
Brake Type
|
Drum Brakes With ABS Anti-Lock Braking System
|
|
Service Brake System Type
|
Dual Circuit Air Brake
|
|
Parking Brake System Type
|
Spring Brake
|
|
Parking Control Type
|
Manual Brake Operation
|
|
Electrical System
|
System Voltage
|
24V
|
|
Battery
|
140AH Dual Battery
|
|
Upper Body Parameters
|
Crane
|
Maximum Lifting Weight (Kg)
|
5000
|
|
Crane Brand
|
XCMG
|
|
Maximum Lifting Height (M)
|
10.3
|
|
Rotation Angle (°)
|
420
|
|
Maximum Working Pressure (MPa)
|
28
|
|
Outrigger span (mm)
|
52100
|
|
Cargo Box
|
Cargo Box Size (mm)
|
7000×2550×600
|
|
Material
|
Q235 carbon steel
|
|
Material Thickness
|
Wall thickness 4; Bottom thickness 5
|

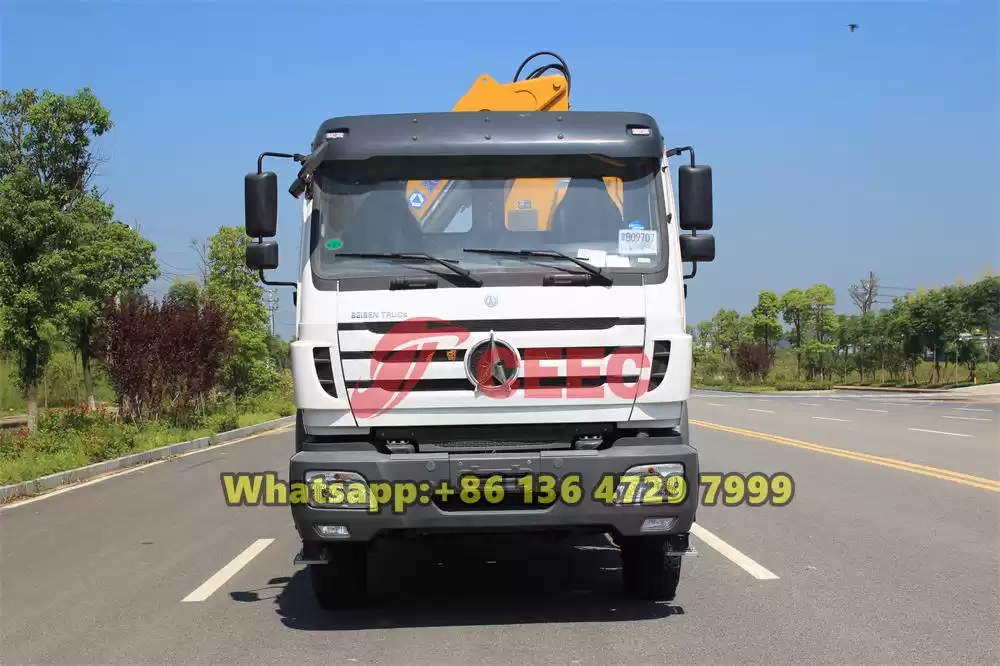

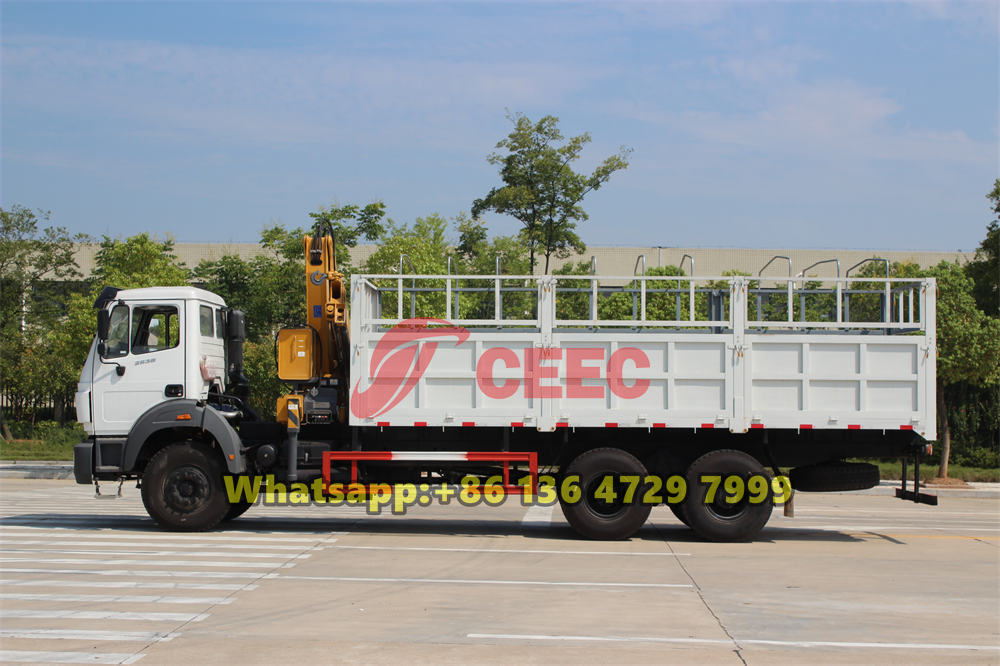

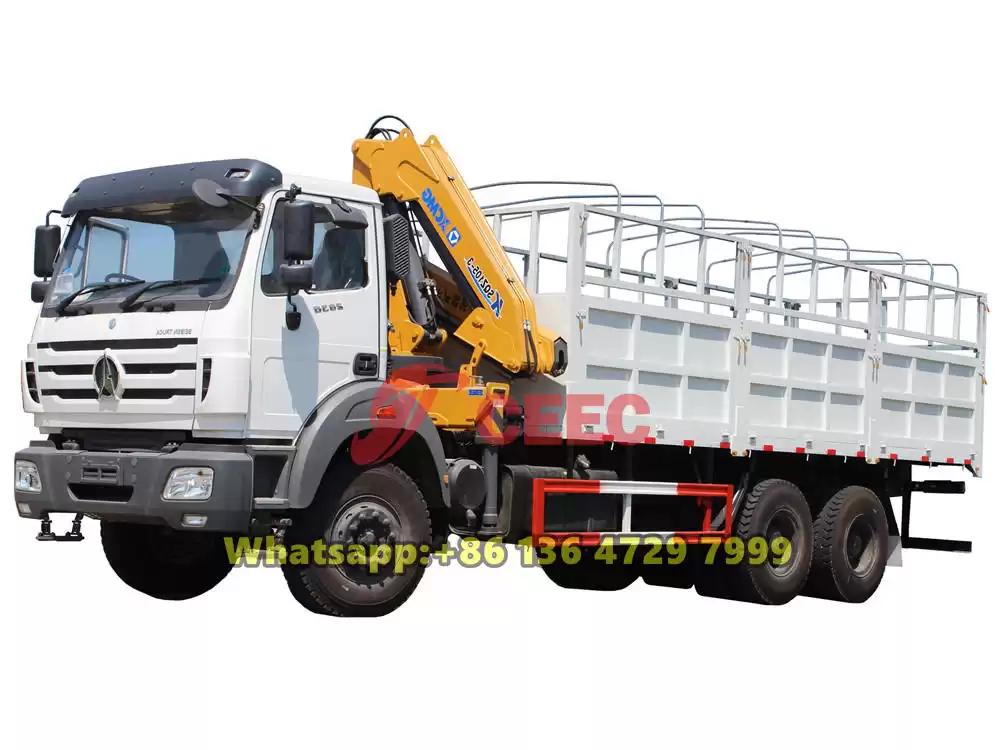

Product Details
