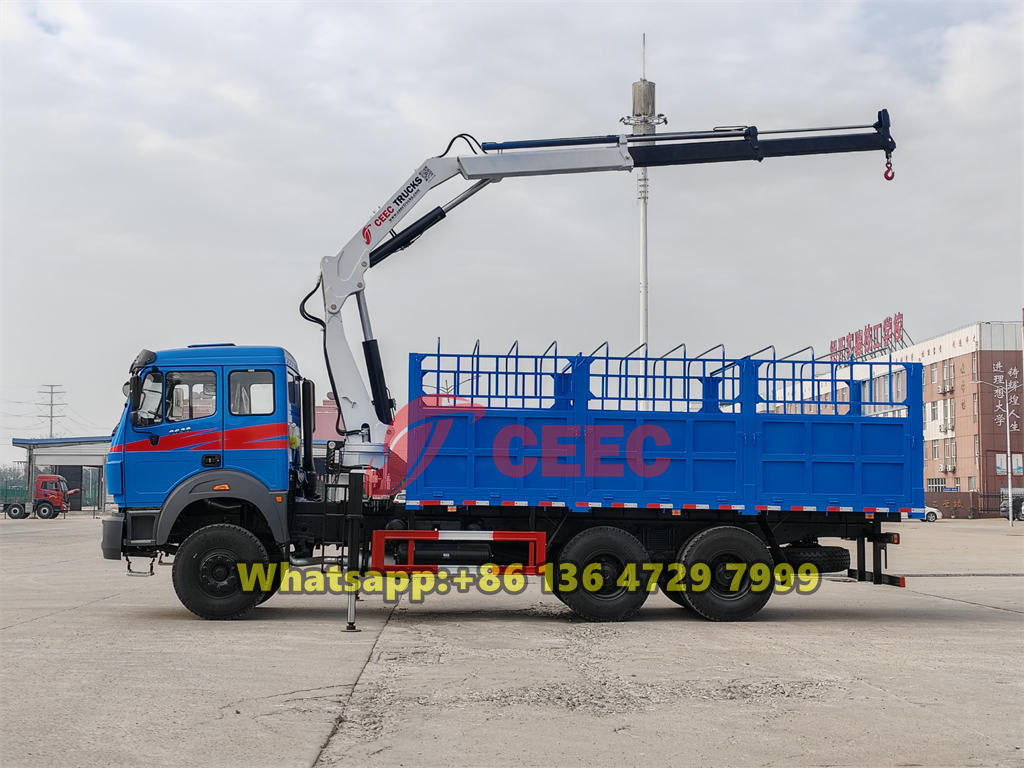

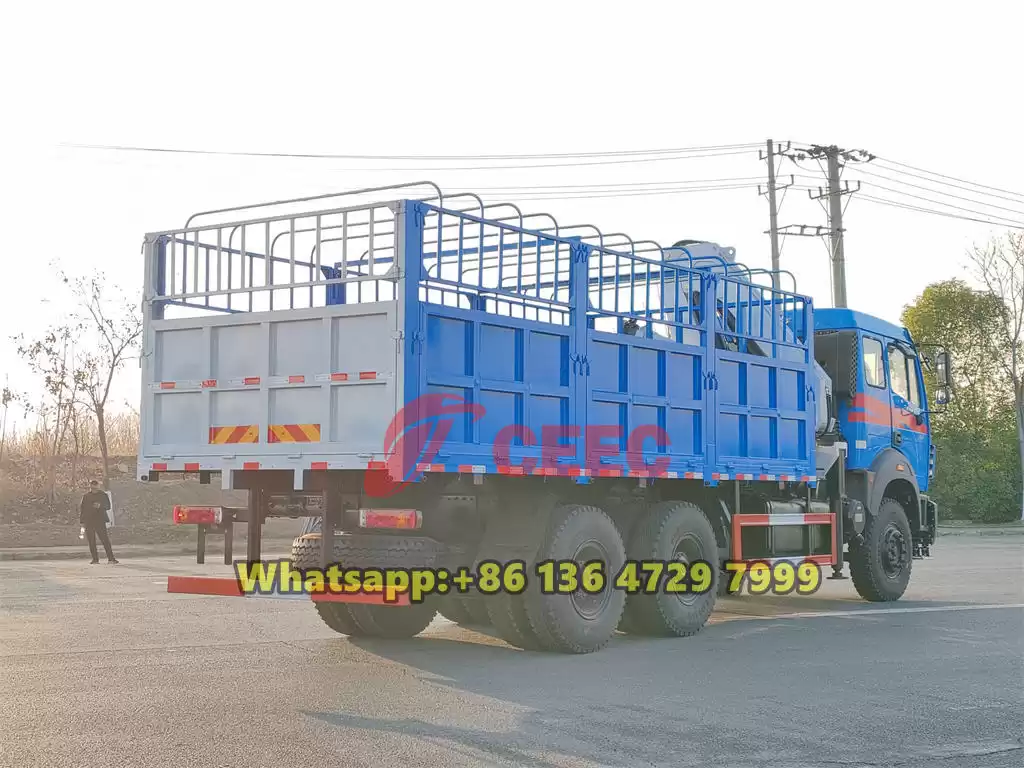

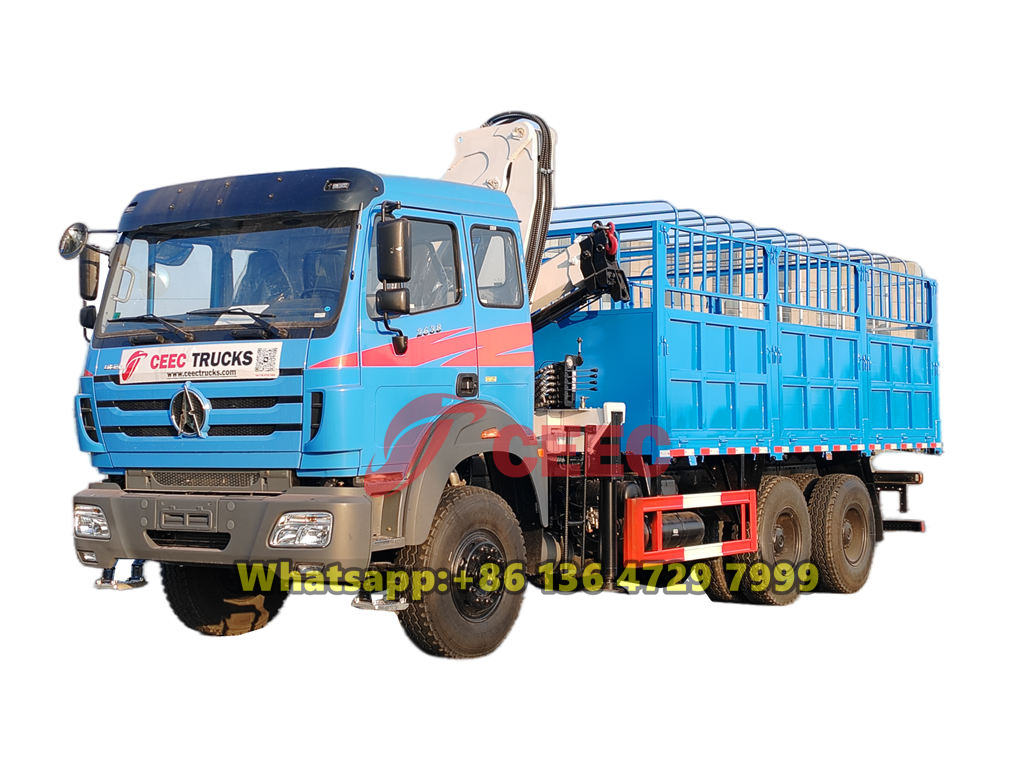

Beiben 2638 knucle boom crane truck
The Beiben 5-ton knuckle boom crane truck is a specialized vehicle that integrates cargo transportation and lifting operations. It adopts a high-quality chassis from the Beiben brand, paired with a 5-ton knuckle boom crane, making it suitable for lifting operations in various complex environments. Whether it's for construction sites or municipal maintenance within cities, or for road repairs and agricultural operations in rural areas, this truck-mounted crane can meet the diverse needs of users with its outstanding performance.
- Production time40 days
- Payment termsT/T
- Working Capcity25 tons
- Engine power380 HP
- Drive system6×4, LHD
Product Descriptions

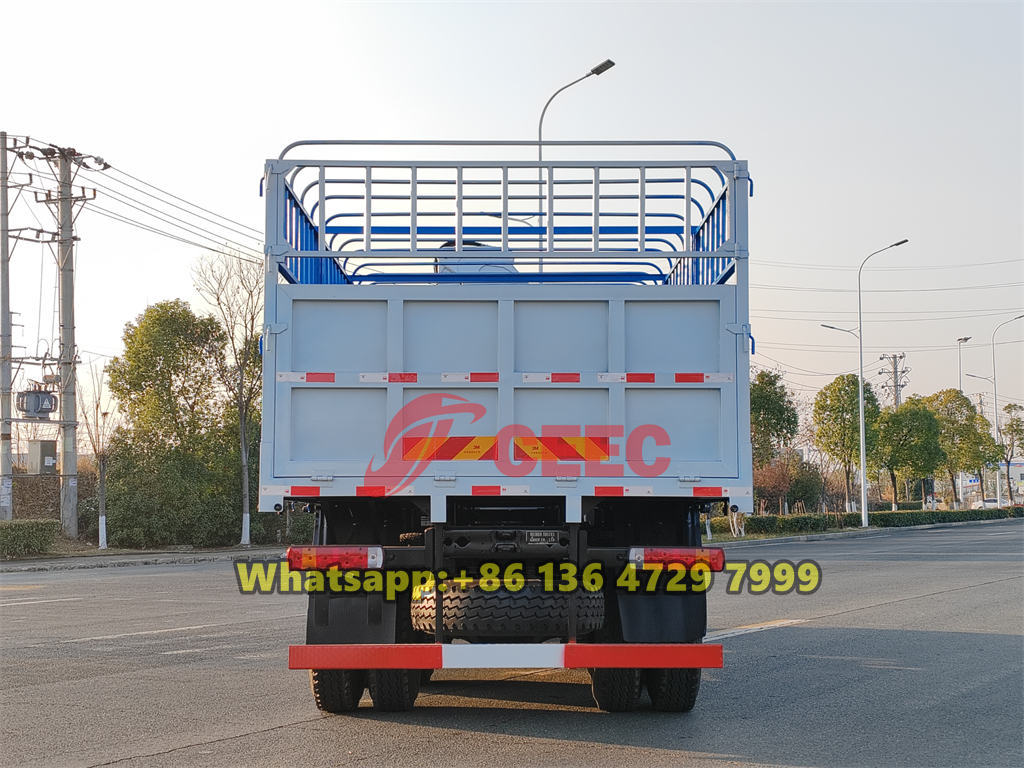

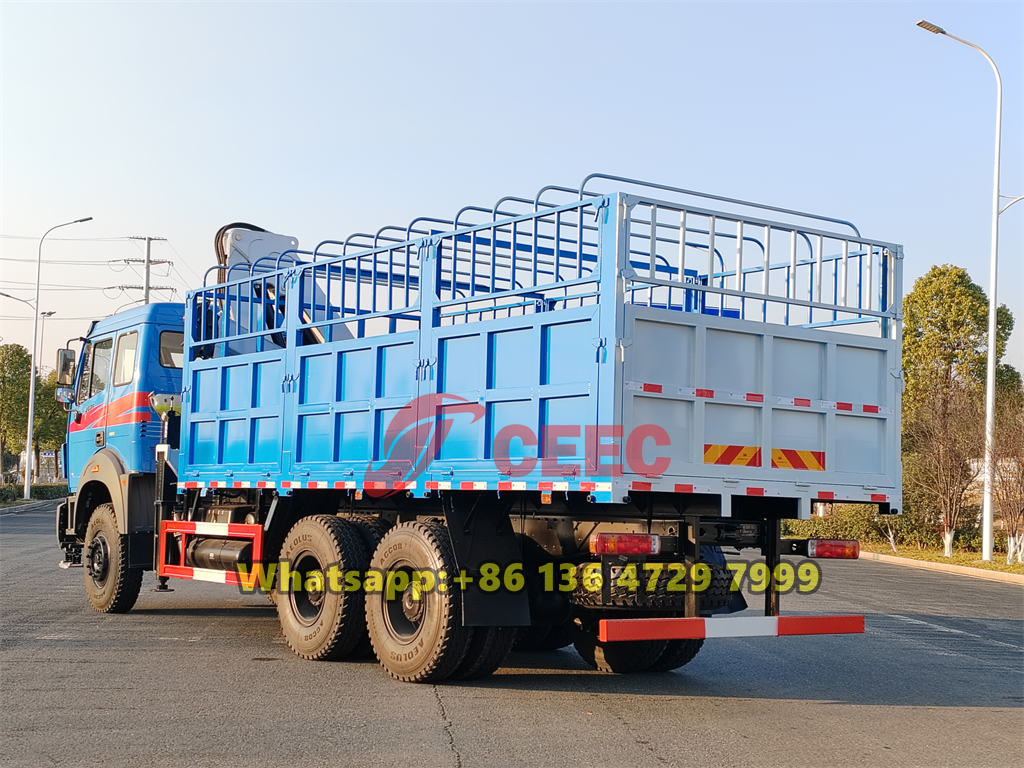

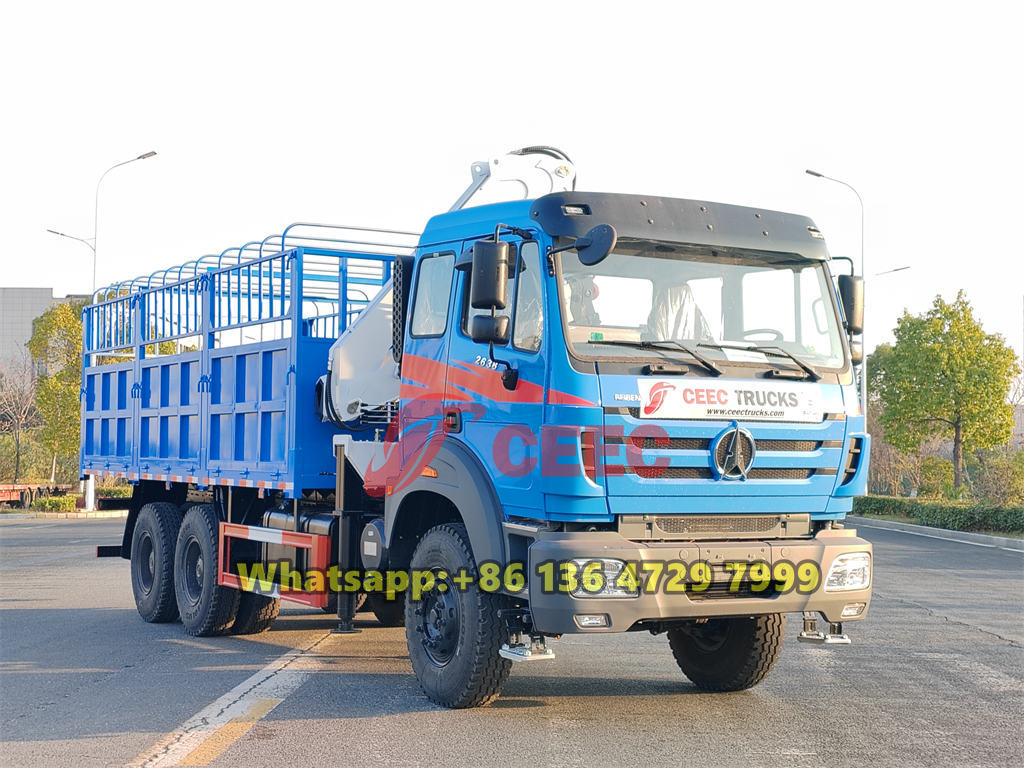

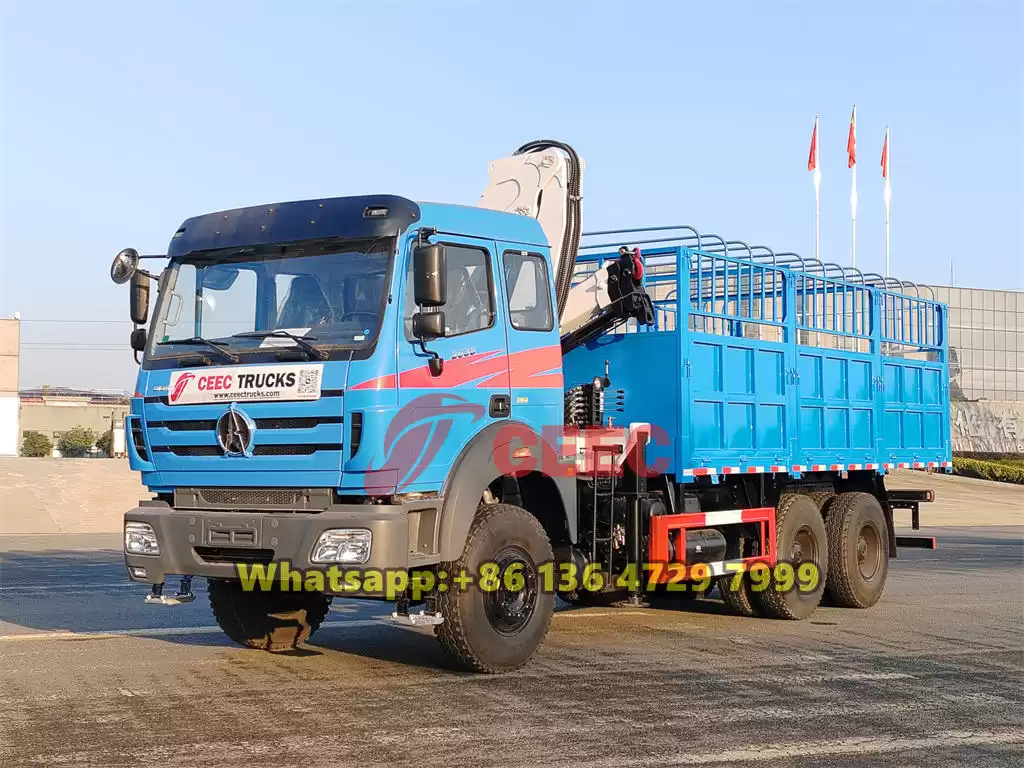

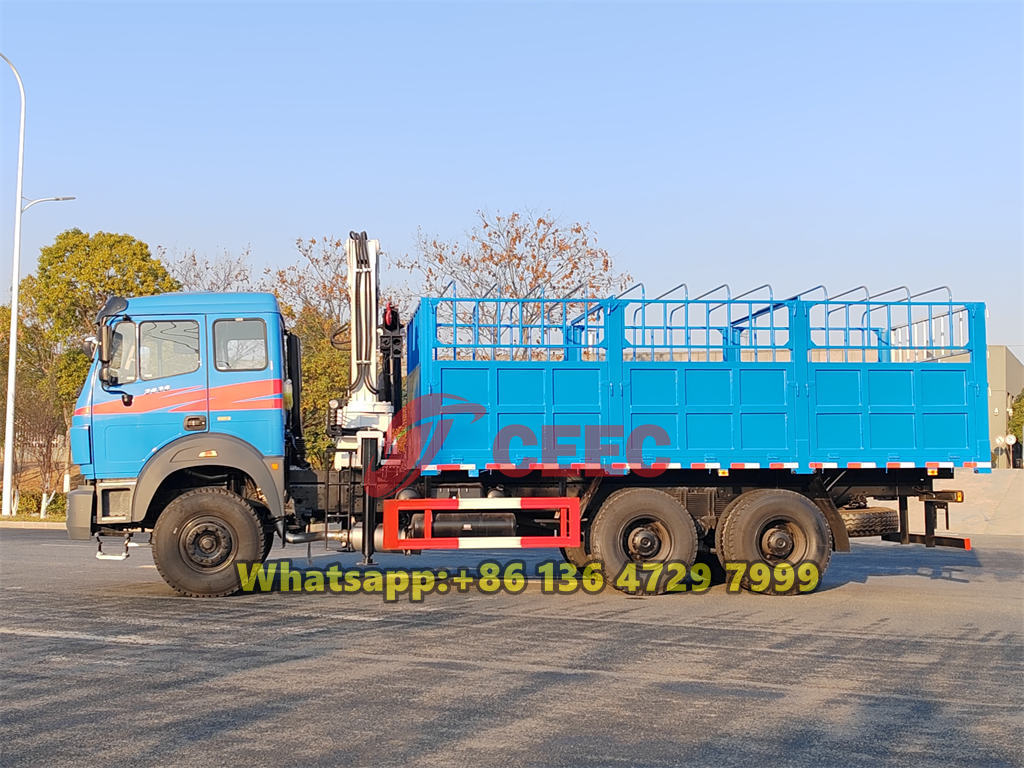

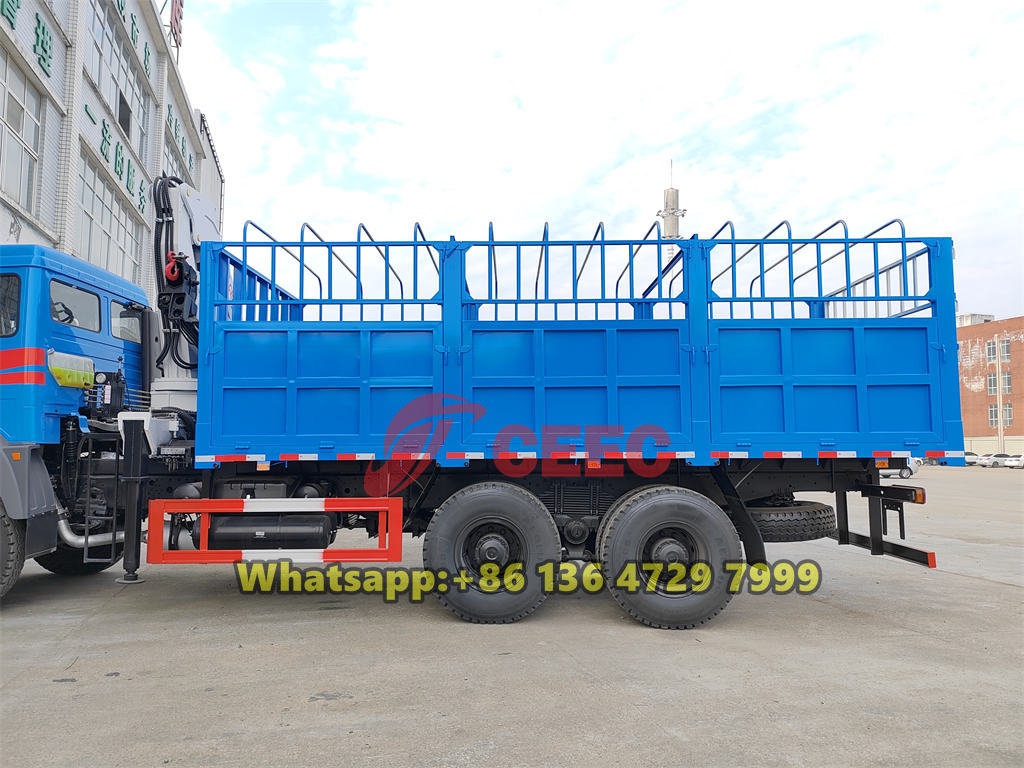

The Beiben 2638 knuckle boom crane truck is a specialized transport vehicle built on the high-quality chassis of the Beiben brand. It adopts a 6×4 drive configuration, ensuring powerful off-road capability and stability under various road conditions. The overall length of the vehicle is approximately 9,960mm, with a width of 2,500mm and a height of 3,348mm, providing ample transport space thanks to its dimensional design. The cargo box measures 7,000mm×2,300mm×800mm, capable of carrying large volumes of goods to meet the transport needs of different customers.
The cab of this Beiben truck-mounted crane features the NG80 long cab design, offering a spacious and comfortable interior. The cab is equipped with facilities such as heating and cooling air conditioning, a hydraulic suspension driver's seat, and more, providing a pleasant driving environment for the driver. Additionally, the cab is equipped with a four-point seat belt, an FM/AM radio player, USB ports, and other configurations, enhancing driving safety and convenience.
The Beiben 2638 crane truck is equipped with a WP10.380 engine, a straight-six, four-stroke, water-cooled, turbocharged with intercooler, diesel engine produced by Weichai Power. With a displacement of 9.726 liters, the engine delivers a maximum power of 279 kW (380 horsepower) and a maximum torque of 1,460 Nm, reaching its maximum torque within the range of 1,200-1,600 rpm. This power performance ensures robust power output under various operating conditions, whether it's climbing fully loaded or traveling at high speeds, all handled with ease.

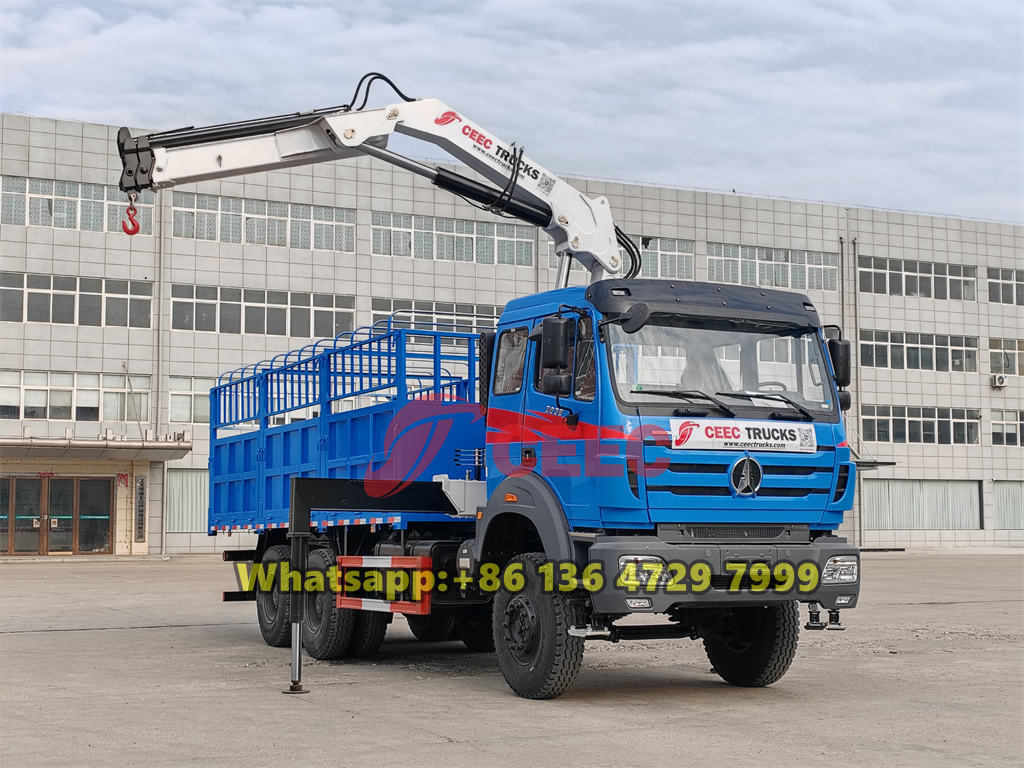

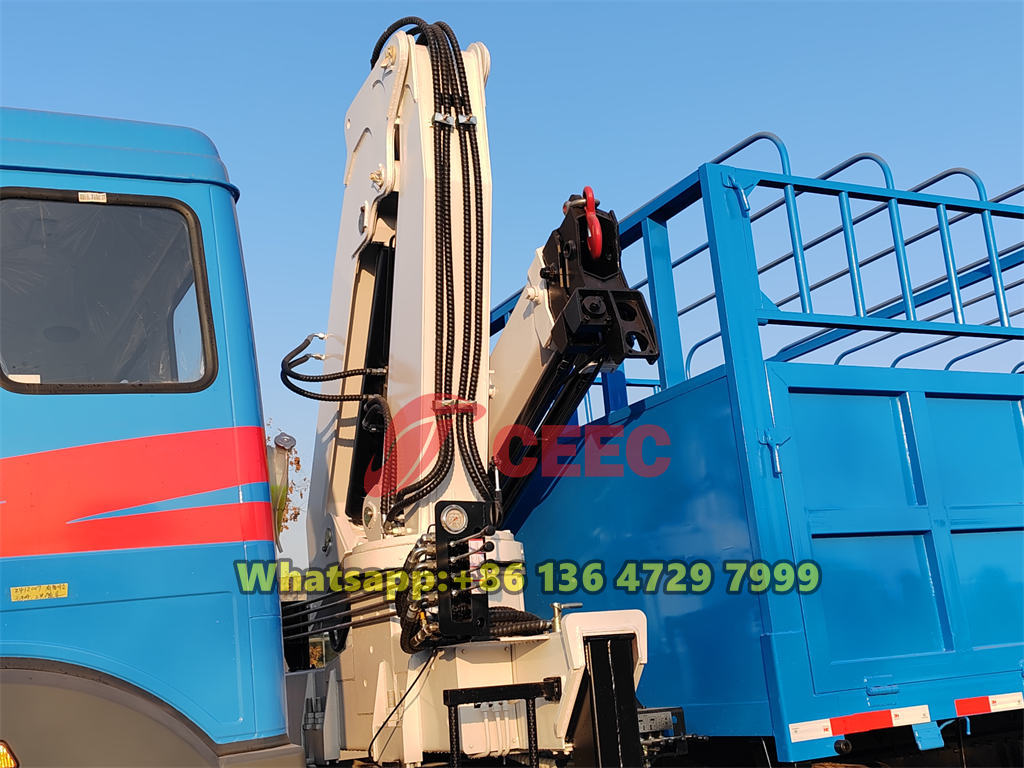

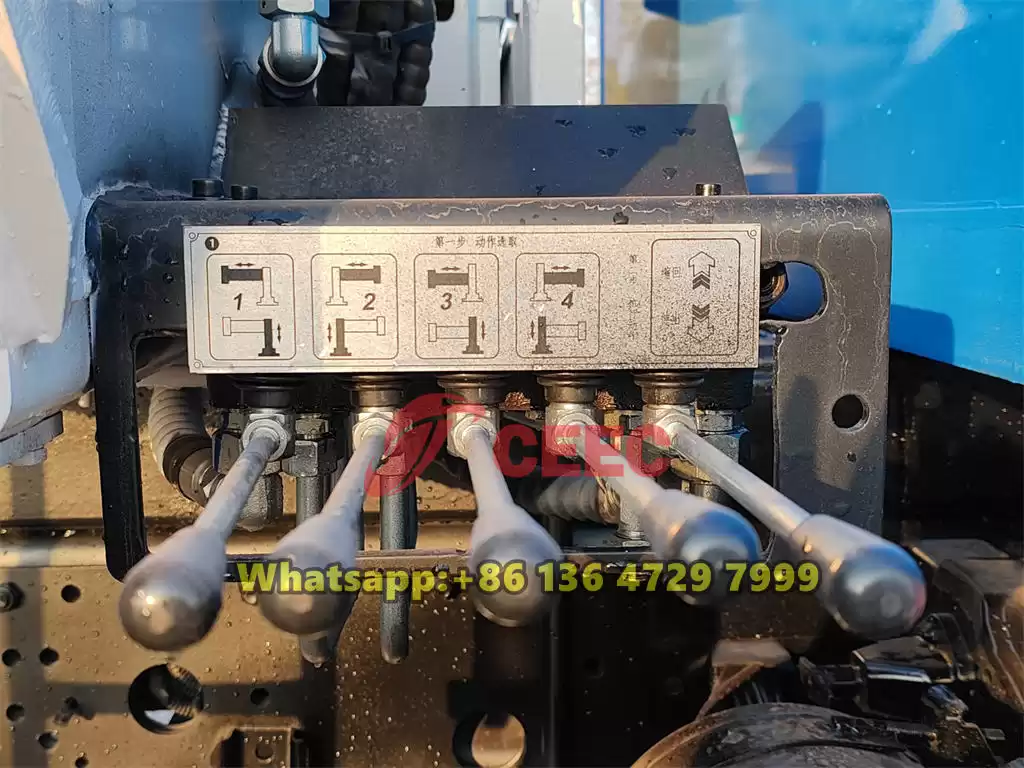

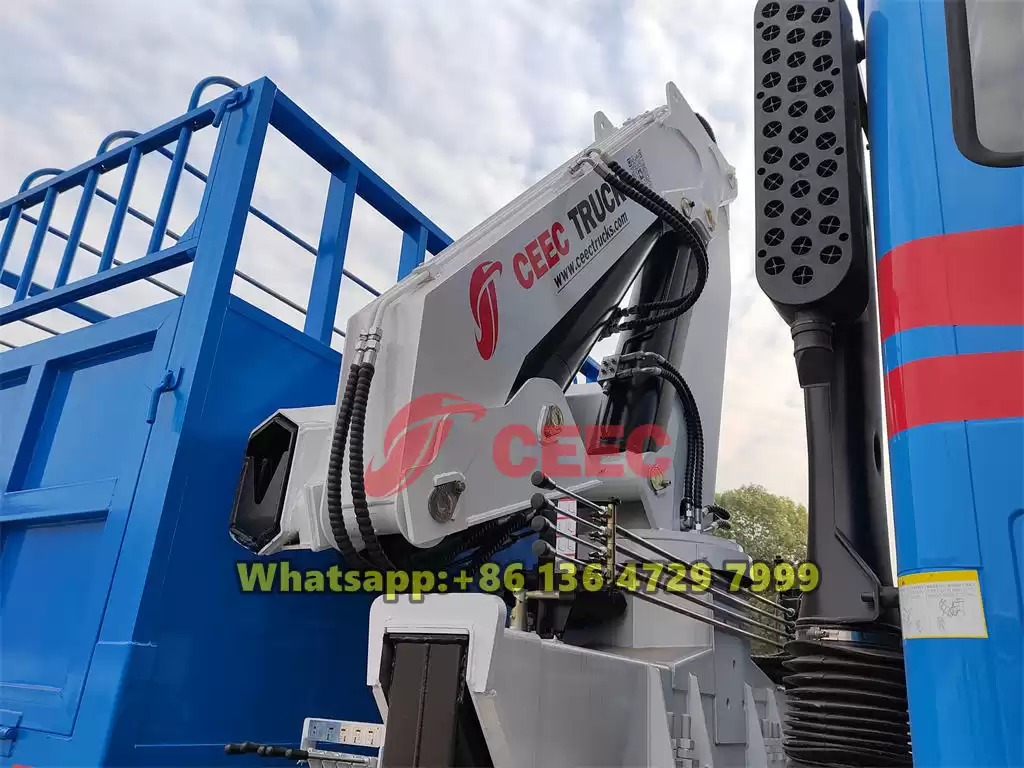

The knuckle boom crane is one of the core components of this Beiben 2638 truck with crane. It adopts an advanced hydraulic system design, ensuring rapid and precise movements for lifting and telescoping the boom. The crane has a maximum lifting capacity of 5 tons, a maximum lifting height of 12.8 meters, and a maximum working range of 10 meters. These performance parameters meet the operational requirements under various complex conditions. Furthermore, the knuckle boom structure makes the crane more flexible during operation, allowing it to complete lifting tasks in confined spaces and improving work efficiency.
Product Specifications
|
BEIBEN 6x4 truck mounted 5Ton knuckle boom crane |
|
|
Emission Standard |
EURO 3 |
|
Chassis type |
Cargo truck type |
|
Chassis brand |
Beiben |
|
Driving Type |
6×4 |
|
Dimensions |
|
|
Wheelbase(mm) |
4450+1450 |
|
Overall Dimension(mm) |
Approx. 9960×2500×3348 |
|
Cargo box dimension(mm) |
7000x2300x800 |
|
Weight parameters |
|
|
GVW(kg) |
25,000kgs |
|
Curb weight(kg) |
Approx. 13,550kgs |
|
Real load weight(kg) |
More than 20,000kgs |
|
Chassis parameter |
|
|
Front axle |
7 Ton load capacity, drum brake |
|
Rear/middle axle |
18Ton/axle (2 axle combined) |
|
Front/rear overhang(mm) |
1410/2530 |
|
Approach angle (°) |
34 |
|
Departure angle (°) |
24 |
|
Max speed (km/h) |
85 |
|
Suspension |
Leaf spring suspension |
|
Engine performance |
|
|
Engine model |
WP10.380 (WEICHAI brand) |
|
Engine type |
Straight in-line, 6 cylinders, 4 strokes, water-cooling, Turbo charge with inter-cooling, diesel engine |
|
No. of cylinders |
Straight-6 cylinders |
|
Displacement(L) |
9.726L |
|
Max. output (KW) |
279kw (380hp) |
|
Fuel type |
Diesel |
|
Max. output (kw/Ps/rpm) |
279kw(380ps) /2200 rpm |
|
Max torque/Speed (N.m/rpm) |
1460 N.m/1200-1600rpm |
|
Tire specification |
12.00R20, total 10 units tire+1 spare tire |
|
Drive Line |
|
|
Clutch description |
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
Transmission |
12 forwarder, 2 reverse gear, synchronous meshing by manual |
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
|
Suspension system |
|
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
Electrical Equipment |
|
|
Voltage |
24V |
|
Batteries |
2X12V/135Ah |
|
Starter |
6.2Kw/24V |
|
Cab description |
|
|
NG80 long cab, with one sleeper, cool and heating air-conditioner, Hydraulic suspension driver's seat, four point safety belt for driver and co-driver With FM/AM radio player, USB interface |
|
|
Crane |
|
|
Type |
Knuckle boom crane, 4 sections |
|
Max. lifting capacity |
5000 kg |
|
Max. lifting height |
12.8 meters |
|
Max. working range |
10 meters |
|

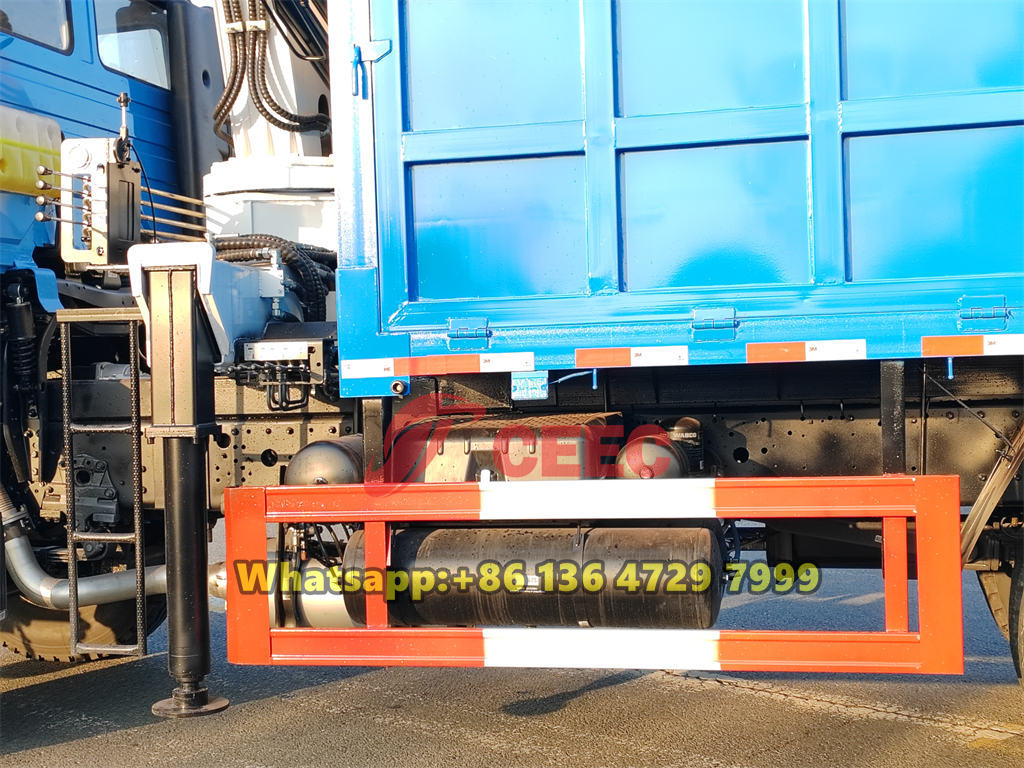

Hydraulic outriggers |
2 units |
