Product Description
Efficient and safe transportation of logs is crucial in the forestry and wood processing industries. To meet this demand, the Beiben 2638 logging truck has emerged. As a professional vehicle designed specifically for heavy-load transportation, it integrates advanced chassis technology and semi-trailer design, perfectly adapting to the transportation needs of long-sized and heavy cargo such as logs.
The chassis parameters and technical features of the Beiben 2638 log transport truck are outstanding. It meets Euro 3 emission standards, being both environmentally friendly and economical. The powerful diesel engine provides 280KW/380HP of power, ensuring stable driving performance on various road conditions. Coupled with a transmission with 12 forward gears and 2 reverse gears, gear shifting is smooth, making driving even more effortless.
The design of the semi-trailer part is equally impressive. With overall dimensions of 13000mm in length, 2500mm in width, and 4000mm in height, it offers ample loading space. While its tare weight is 10700kg, its loading capacity is up to 60000kg, fully meeting the demands of heavy-load transportation. The main beams are made of Q345 high-strength steel, ensuring load-bearing capacity and durability. Additionally, the equipped 3mm-thick diamond-shaped steel plate floor and 1.5m-high steel plate fence further guarantee the safety of the cargo during transportation.
The Beiben 2638 log transport truck is primarily used in forestry, wood processing plants, construction sites, and other locations, responsible for rapidly and safely transporting large quantities of logs, lumber, and other cargo. Its strong loading capacity and stable driving performance enable it to maintain efficient transportation capabilities on various complex road conditions, saving users time and costs.
Product Sepcifications
|
Chassis specifications
|
|
Chassis model
|
Beiben 2638
|
|
Emission Standard
|
Euro 3
|
|
Fuel Type
|
Diesel
|
|
Drive type
|
6×4, left hand drive
|
|
Fuel tanker capacity
|
400L
|
|
Engine
|
WP10.380E30, water-cooled, four strokes, 6 cylinders in line
|
|
Engine power
|
280KW/380HP
|
|
Gearbox
|
12JS200T, mechanism, 12 forward gears, 2 reverse gear, manual operated
|
|
Tyre
|
12.00R20
|
|
Overhang(front/rear)
|
1410/1687mm
|
|
Wheel base
|
3800+1450mm
|
|
Displacement
|
9726 ml
|
|
Clutch
|
430, Single dry frictional disc, Hydraulic boosting
|
|
Transfer box
|
BEIBEN LF200
|
|
Frame
|
Fish belly shape, variable width, variable sections
|
|
Log transport semi-trailer specifications
|
|
Assembly
|
Composition
|
Specification
|
Optional
|
|
Dimensions
|
Size(LxWxH)
|
13000x2500x4000mm
|
|
|
Curb weight
|
10700kg
|
|
|
Loading weight
|
60000kg
|
|
|
Chassis
|
Main beam
|
Q345 Steel; The height of the beam is 500mm; Upper plate is 14mm; Middle plate is 8mm; Down plate is 16mm.
|
|
|
Cross beam
|
16# channel steel
|
|
|
Side beam
|
25# channel steel
|
|
|
King pin
|
2'' or 3.5'' traction pin
|
Optional JOST
|
|
Floor
|
3mm diamond steel plate
|
|
|
Fence
|
1.5m steel plate 600mm height, fence 500mm+200mm
|
|
|
Support leg
|
China brand 28Tons (Double speed)
|
|
|
Suspension
|
Type
|
Common mechanical
|
Optional Air suspension
|
|
Steel spring
|
90(W)mm*13(Thick)mm*10 Layer
|
|
|
Axle
|
Brand
|
Fuwa(13000kgx3)
|
Optional BPW
|
|
Wheel rim
|
9.0-22.5 steel wheel rim
|
|
|
Tire
|
12.00R22.5
|
Optional 12.00-20
|
|
Brake system
|
Brake chamber
|
WEBCO, 6 big chamber
|
|
|
Brake valve
|
KTL/WEBCO
|
|
|
Brake syste
|
Dual line brake system
|
Optional ABS
|
|
Other
|
Light
|
Tail lamp with tum signal, brake light & reflector, side lamp etc.
|
|
|
Landing gear
|
28 Ton manual operating, heavy duty landing gear.
|
Optional JOST
|
|
Tool box
|
1 set standard tool box
|
|
|
Spare tire carrier
|
2 pcs
|
|
|
Painting
|
1 coat of anticorrosive prime, 2 coats of final paint
|
|

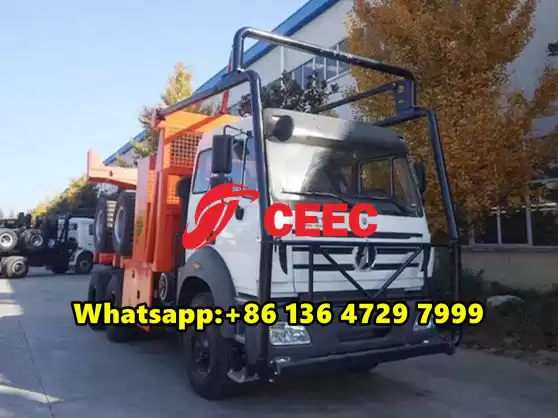

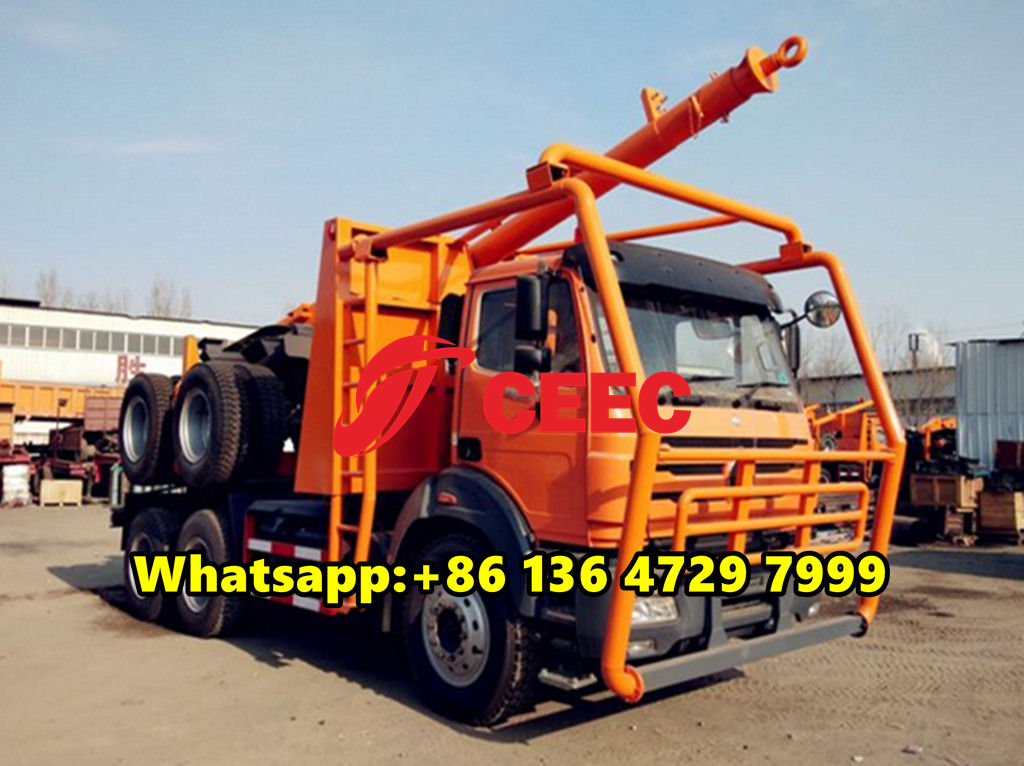

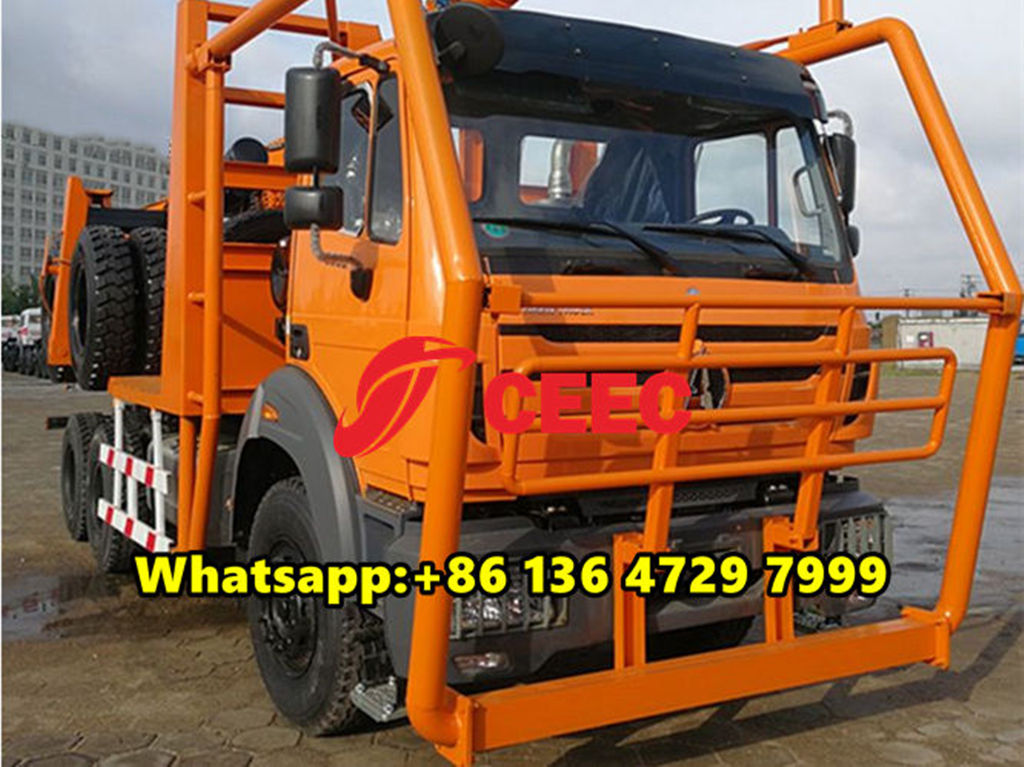

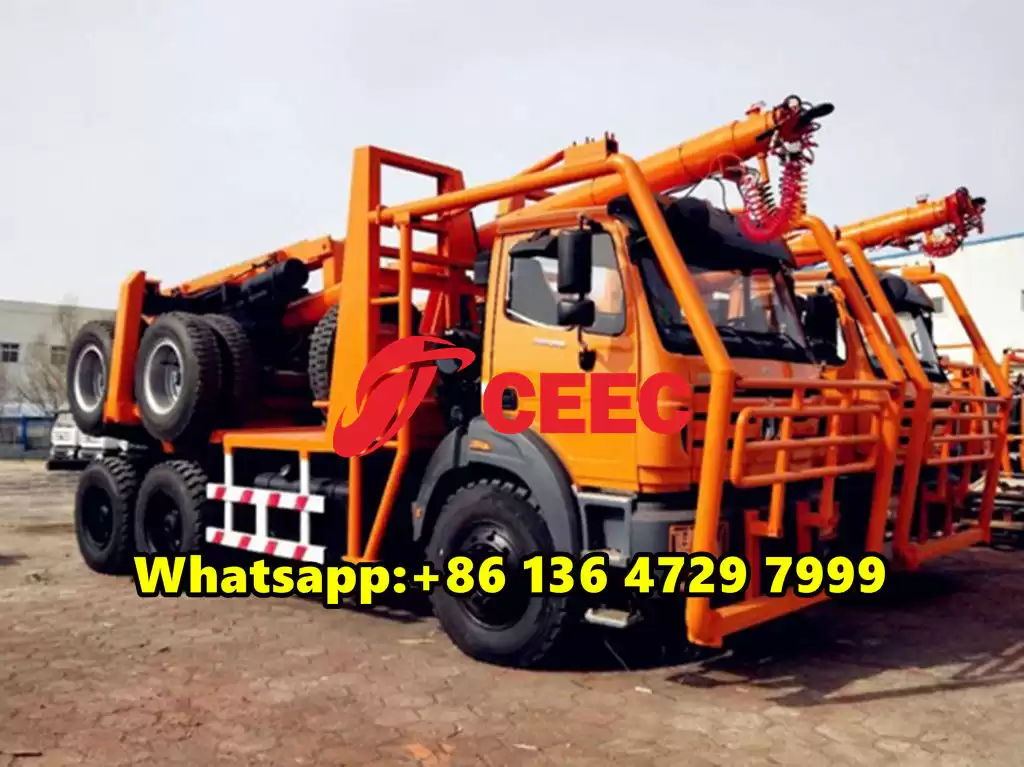

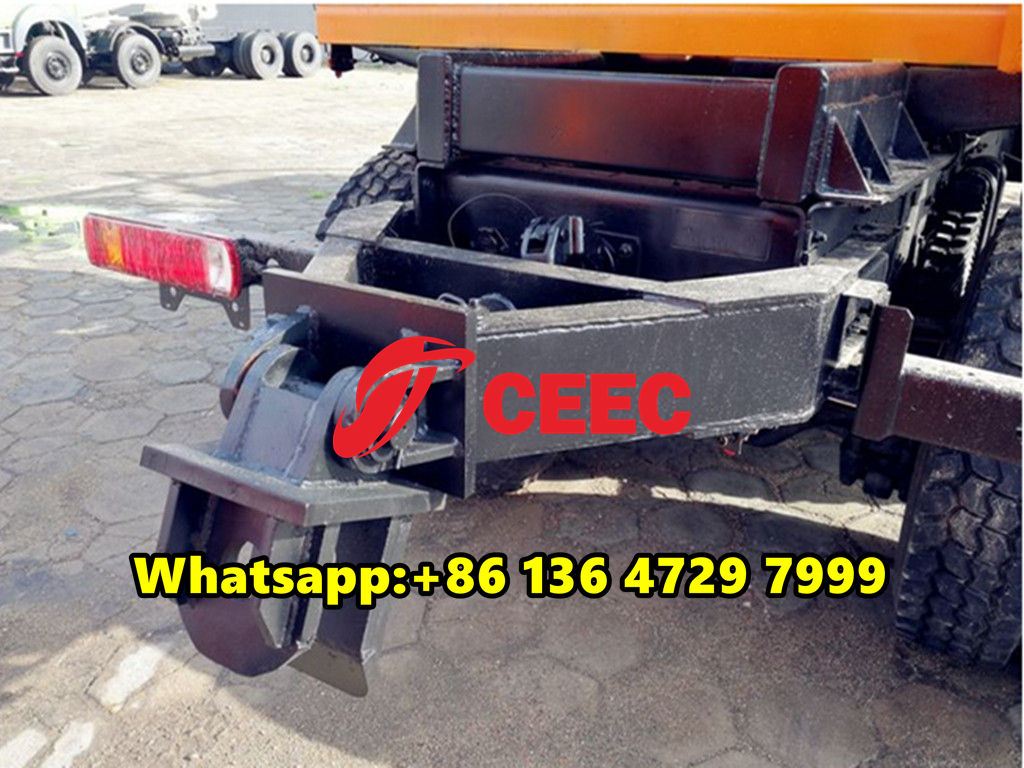

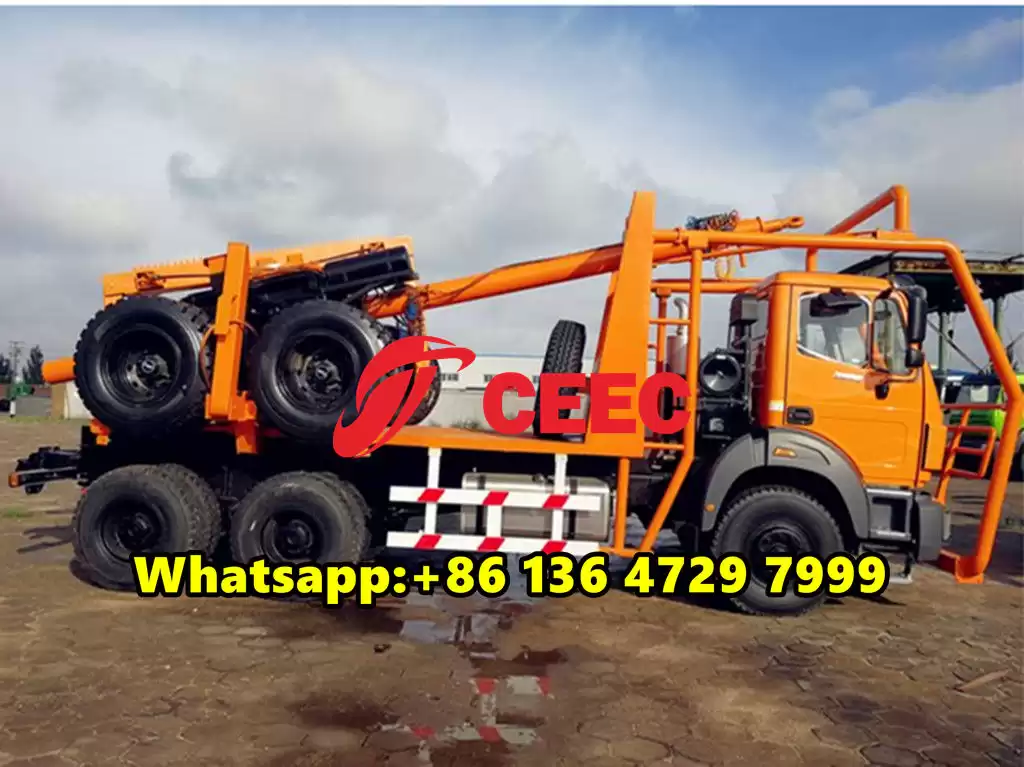

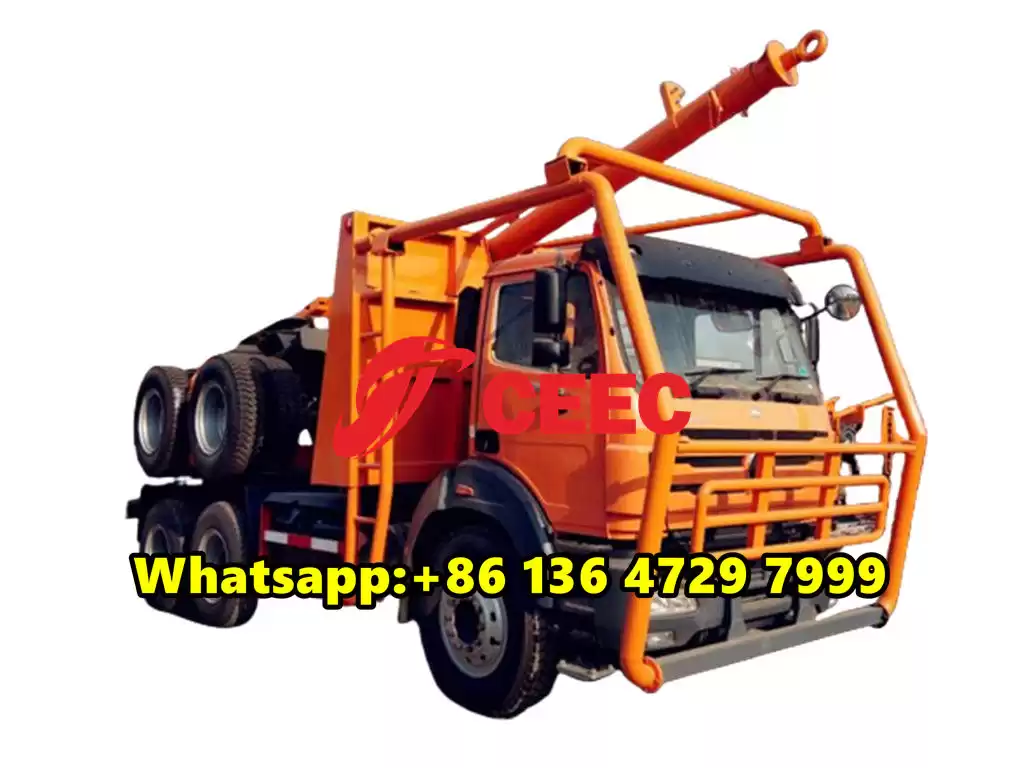

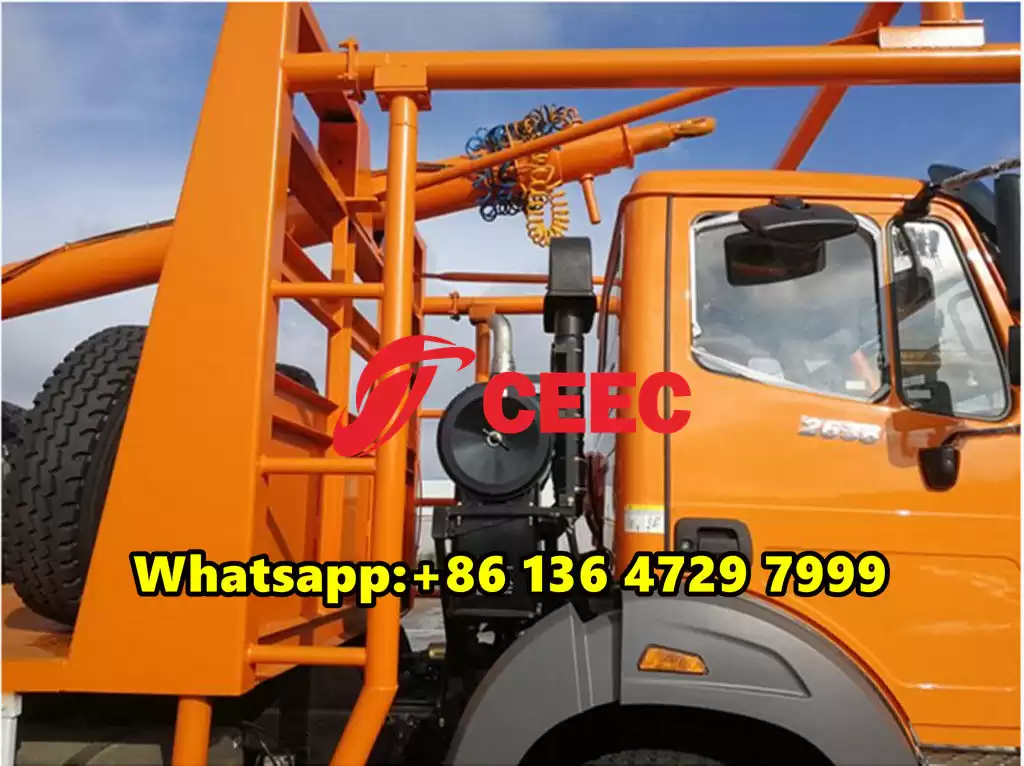

Product Detailed Pictures
