Product Details
Applications:

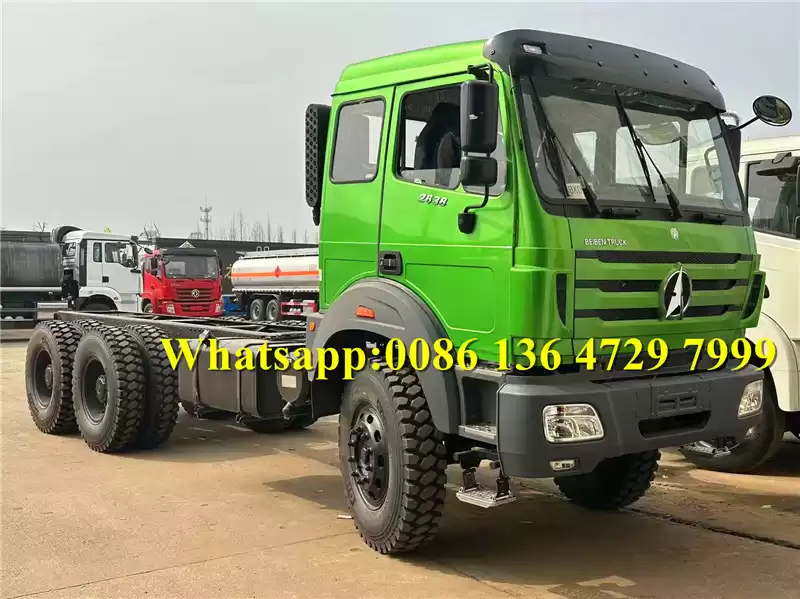

The Beiben 2638 cargo truck, also called as beiben 2638 cargo truck chassis, beiben 2638 truck chassis, beiben 2638 long cargo truck. It is heavy duty truck chassis that is
designed for use in demanding applications such as construction, mining,
and transportation of heavy goods.
The Beiben 2638 truck features a 6x4 drivetrain
with a strong and durable chassis and suspension system that can carry
up to 38 tons of cargo. It is powered by a Weichai WP10.380E32 engine
that delivers up to 380 horsepower and 1,800 Nm of torque, which is
transmitted through a 12-speed manual gearbox.
The cabin of the Beiben 2638 truck is spacious and
comfortable, with air conditioning, power windows, and an adjustable
driver’s seat. It also has modern safety features like ABS brakes and an
electronic stability control system.
Key Features:
---- BEIBEN NG80B cabin, benz technology
---- ZF8098 fuller steering system, convenient.
---- 9JS150A transmission, super combination.
---- Mercedes benz technology front axle, rear axle.

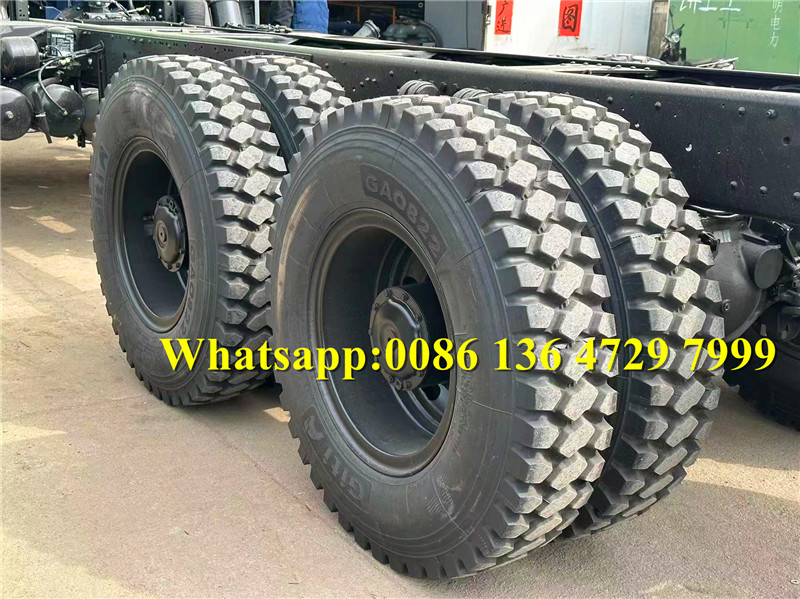

---- Off road tyres, 12.00R24 big tyre.
Specifications:
|
Required Technical Specification 参数
|
|
Basic parameter
基础参数
|
Model
型号
|
2638PZ/6×4
|
|
Length×width×height(mm)
长×宽×高
|
9526×2500×3385
|
|
Wheel-base(mm)
轴距
|
4450+1450
|
|
Curb
weight(kg) 底盘整备质量
|
11400
|
|
Engine
parameter
发动机参数
|
Model
(six cylinder in line) 型号（六缸）
|
WP10.380E32
|
|
Max.
Power (HP/rpm) 最大马力
|
380
|
|
Max.
Torque(Nm/rpm) 最大扭矩
|
1600/1400～1600
|
|
Displacement(lit)
排量
|
9.726
L
|
|
Fuel
tank capacity 油箱容量
|
400L
Iron oil tanker 400L铁
|
|
Transmission
system
传动系统
|
Clutch 离合器
|
430
Single disc, dry type, friction clutch；
430单片，干式摩擦离合器，液压辅助可调式；
|
|
Gearbox 变速箱
|
Mechanical,
9JS150A
|
|
Steering
system
转向系统
|
Steering gear 转向机
|
8098 Circulating ball steering
gear, hydraulic booster；循环球式，液压助力；
|
|
Brake
system
制动系统
|
Service brake 行车制动器
|
Double circulation air brake
system equipped；
双回路气压制动；
|
|
Parking brake 驻车制动器
|
Energy storage spring brake 弹簧储能制动；
|
|
Assisted
brake 辅助制动
|
Engine
exhaust brake 发动机排气制动；
|
|
Chassis
parameter
底盘参数
|
Frame
车架
|
Variable
width and section 317×70×8.5+7+8.5 mm；
不等宽，变截面 317×70×8.5+7+8.5
mm；
|
|
Front
axle 前桥
|
7.5 T, no-driving steering axle, drum
brake；
7.5吨驱动转向桥，鼓式制动；
|
|
Middle
& Rear axle 中后桥
|
13T,
Double-shoe pneumatic brake, double reduction driving axle, differential
lock, speed ratio is 5.263；
双蹄片式气压制动，双减速驱动桥，差速锁，速比5.263
|
|
Front
and rear suspension 前悬挂/后悬挂
|
Front/rear:
Leaf spring, 13/13 pieces；
前/后板簧：13/13片簧；
|
|
Tire 轮胎
|
12.00R20
|
|
Cab
驾驶室
|
NG80B
Long Cabin/ Flat roof/Left drive
Exterior
trimming:
Metal
bumper, three steps, outer sun visor, sun roof (Manual), front under-ride
bumper, rear view mirror (Manual).
NG80B长驾平顶/左驾带双卧
外饰：金属保险杠、三步软车梯、外遮阳板、手动天窗、手动调节后视镜。
|
|
Interior
trimming:
Air
suspension seat, Single bunk with sleeper, cooling and heating air
conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with
MP3), digital instrument
内饰：气悬浮主座椅、单卧铺、冷暖空调、可调方向盘、手动门锁、收放机（带MP3功能）、数字仪表。
|
|
Offer
报价
|
1.工厂自提含税价格：以具体核算为准。
2.支付方式：30%现金定金，70%现金尾款，款到发车。
3.交货期：收到30%定金后，正常交货期为45天交付货物。交货期需要在签订合同前再次确认。
4.报价有效期：1个月 。有效期过后，需要重新报价。
5.该车辆不含质保，如需质保，需要另行商议。
|

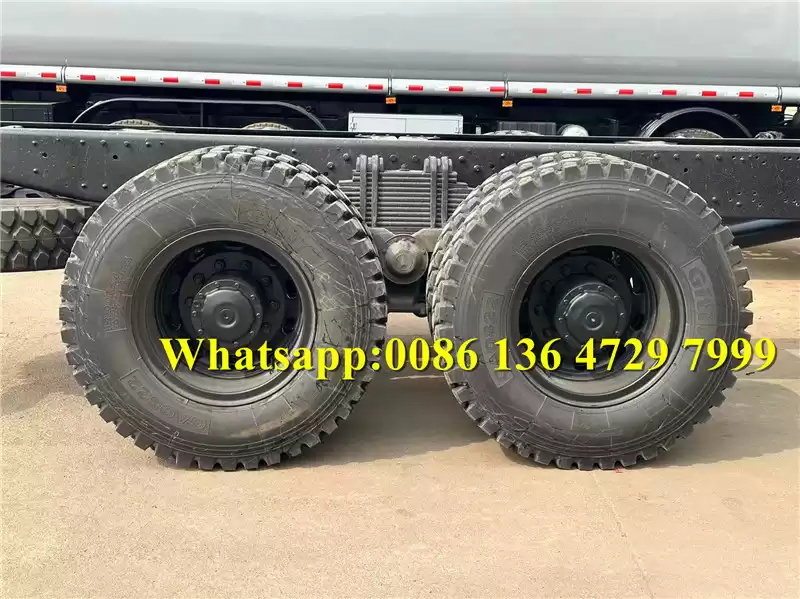

Off road suspension system.
