Product Descriptions

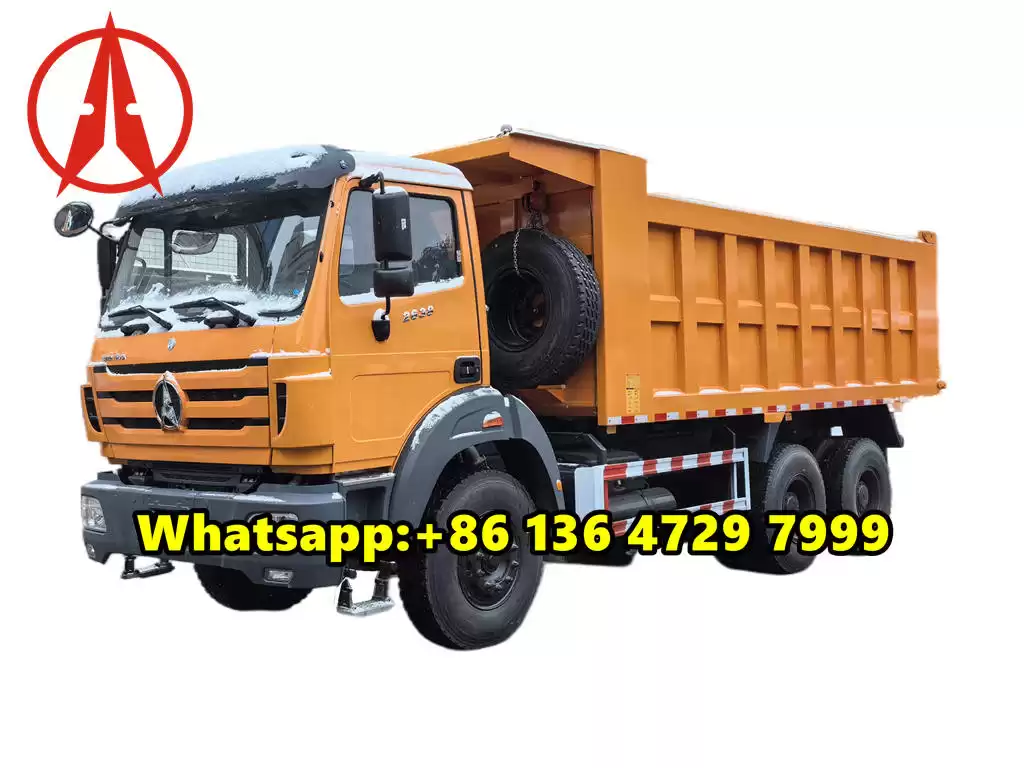

The Beiben 2638 dump truck is a powerful model specifically designed for heavy-duty transportation tasks, distinguished by its exceptional load capacity and efficient performance in the market. The Beiben 2638 dump truck adopts a 6x4 drive configuration and features a chassis model of ND1252B38. Its overall dimensions are 8600x2500x3450mm, with a wheelbase of 3800+1450mm. This size design ensures stability and maneuverability during vehicle operation. This dump truck has a rated loading capacity of 30 tons and a maximum speed of 90km/h. Whether for short-distance transportation or long-distance journeys, the Beiben dump truck can meet various transportation demands with its outstanding speed and load capacity.
The Beiben 2638 tipper truck is equipped with the WP10.380E32 engine, which has 6 cylinders and uses diesel as fuel, with a displacement of 9.726L. It meets Euro III emission standards and has an output power of 380 horsepower, providing robust power support for the vehicle. This model is equipped with a 9JS150A transmission, featuring manual transmission. There are 9 forward gears and 1 reverse gear, allowing the driver to flexibly select gears based on different road conditions, enhancing driving comfort and efficiency.

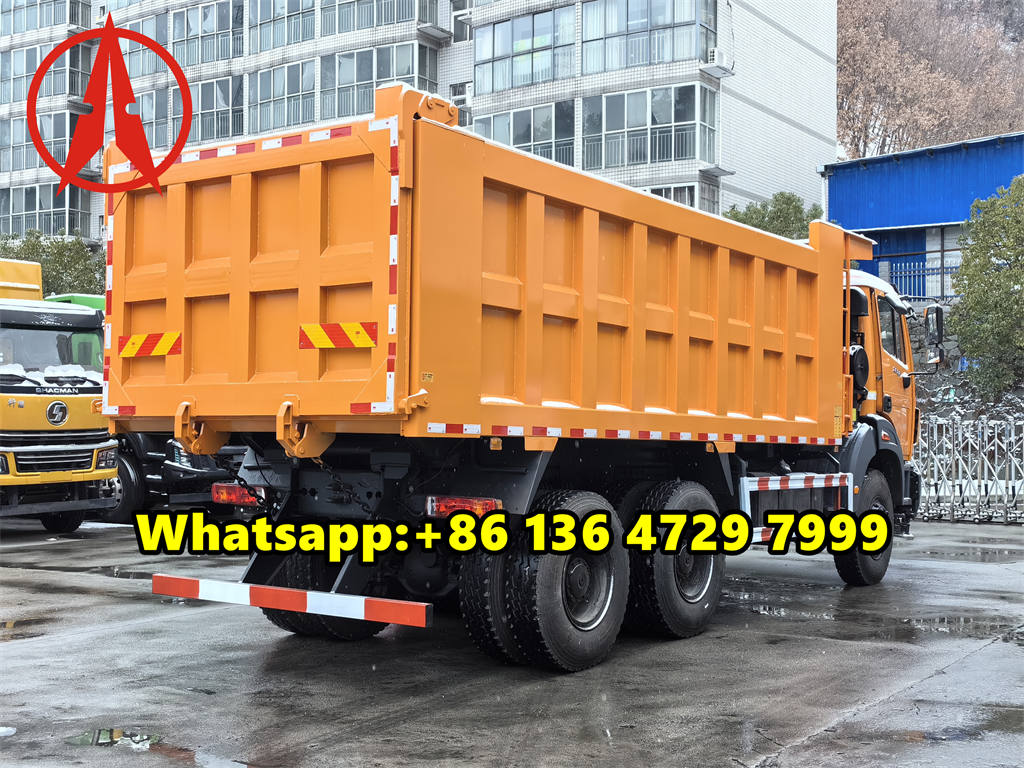

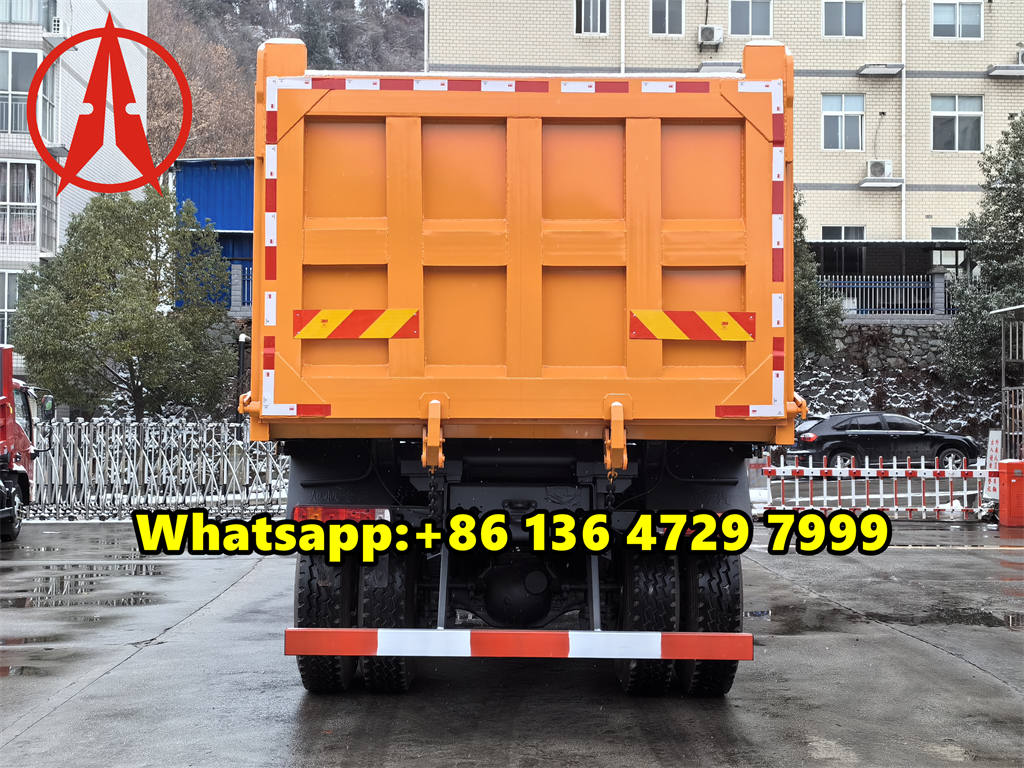

The cargo box of the Beiben 2638 tipper lorry measures 5800x2300x1500mm and adopts a front-lifting hydraulic system. The floor thickness of the cargo box is 8mm, and the side thickness is 6mm. This design ensures the durability of the cargo box while reducing the vehicle's weight. It is worth mentioning that the cargo box can be customized according to the actual needs of customers to meet different transportation requirements.
Product Specifications
|
Driving type
|
6x4
|
Chassis Model
|
ND1252B38
|
|
Overall dimension
|
8600x2500x3450mm
|
Wheel base
|
3800+1450mm
|
|
Loading weight
|
30 ton
|
Max speed
|
90km/h
|
|
Engine
|
|
Engine No
|
WP10.380E32
|
Cylinder No
|
6
|
|
Fuel type
|
Diesel
|
Displacement
|
9.726L
|
|
Emission standard
|
Euro 3
|
Horse power
|
380 hp
|
|
Gearbox
|
|
Gearbox model
|
9JS150A
|
Transmission type
|
Manual
|
|
Forward
|
9 speed
|
Reverse
|
1 speed
|
|
Dump truck chassis and tire
|
|
Front axle
|
Beiben
|
Front axle loading
|
7500kg
|
|
Rear axle
|
Beiben Double-reduction axle
|
Rear axle loading
|
13000kg×2
|
|
Tires
|
12.00R20
|
Tire quantity
|
11, with spare tire
|
|
Dump box
|
|
Box dimension
|
5800x2300x1500mm
|
Hydraulic system
|
Front lift
|
|
Floor thickness
|
8mm
|
Side thickness
|
6mm
|
|
Note: Box of dump truck can be customized as customer's request.
|

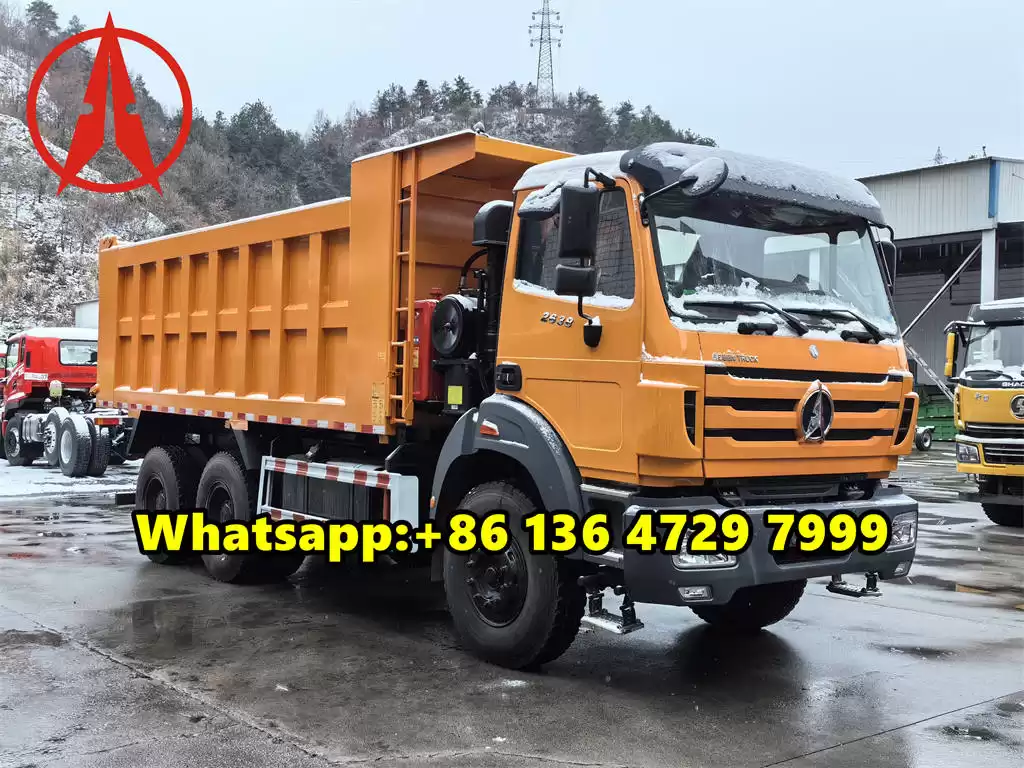

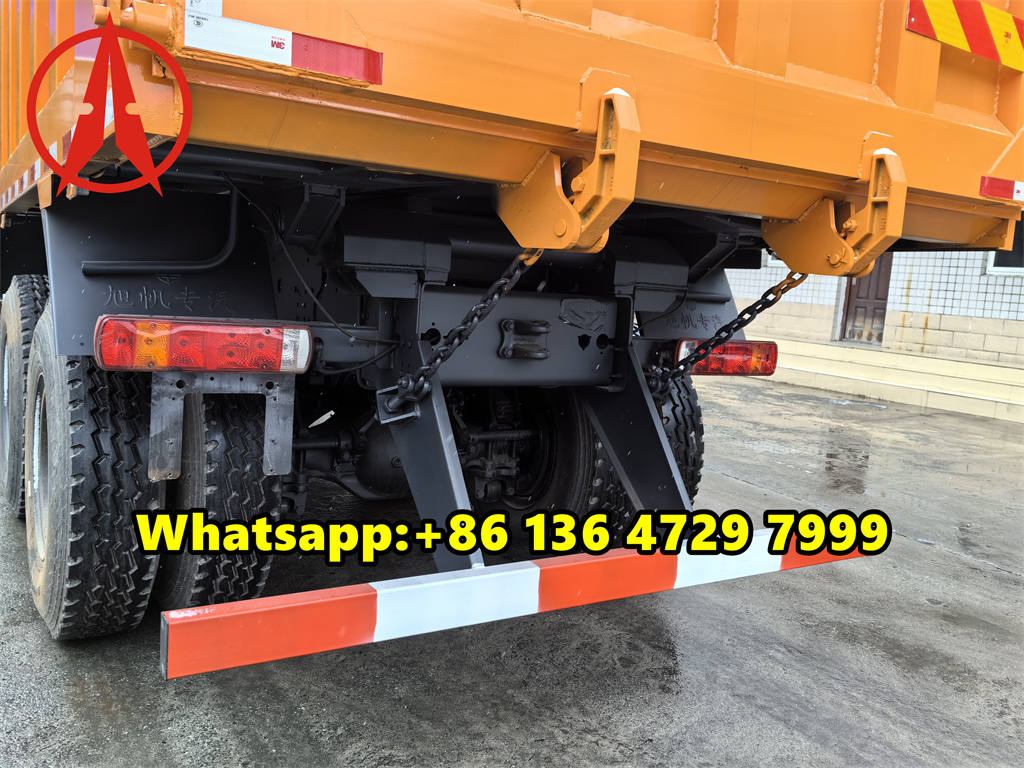

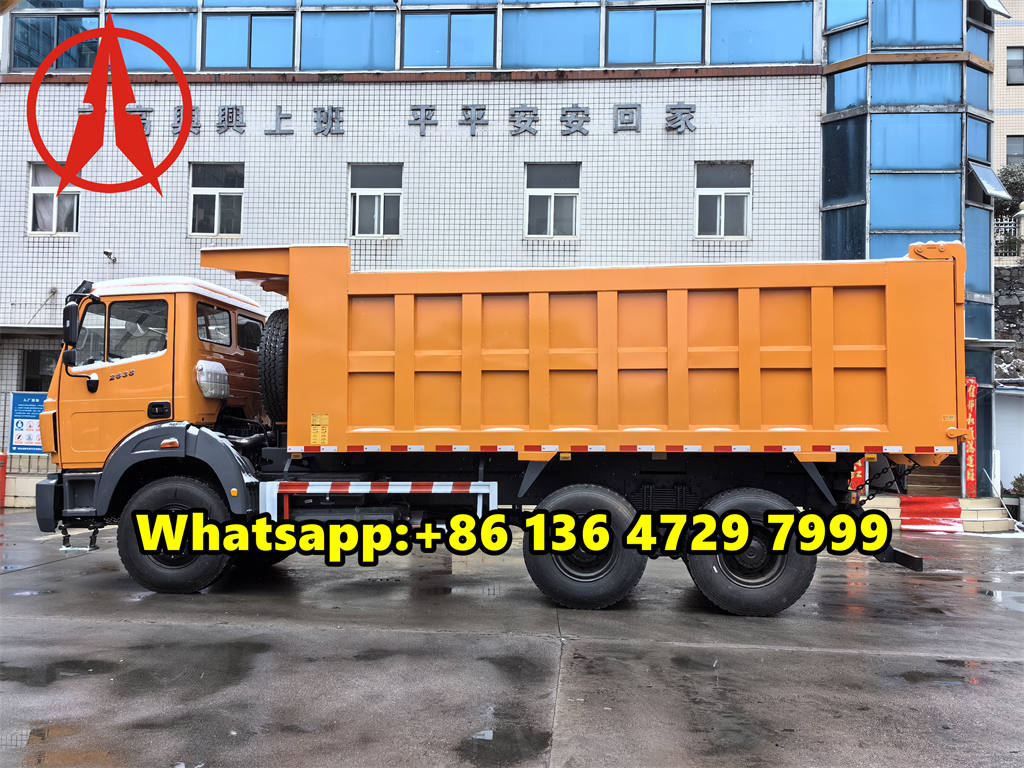

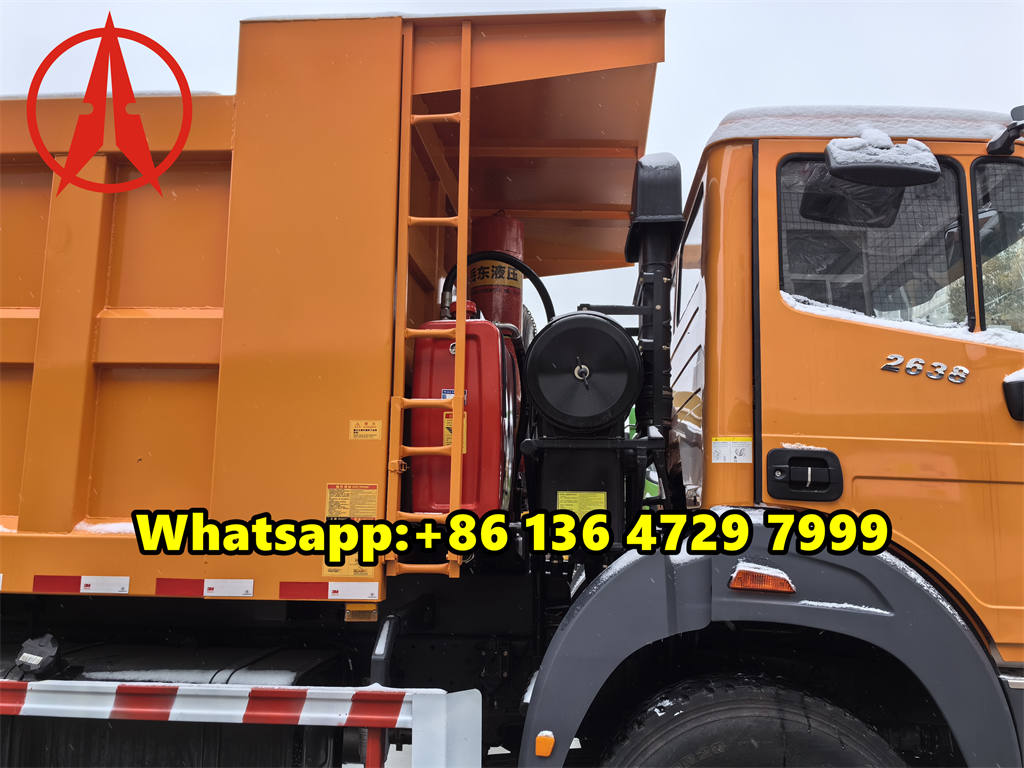

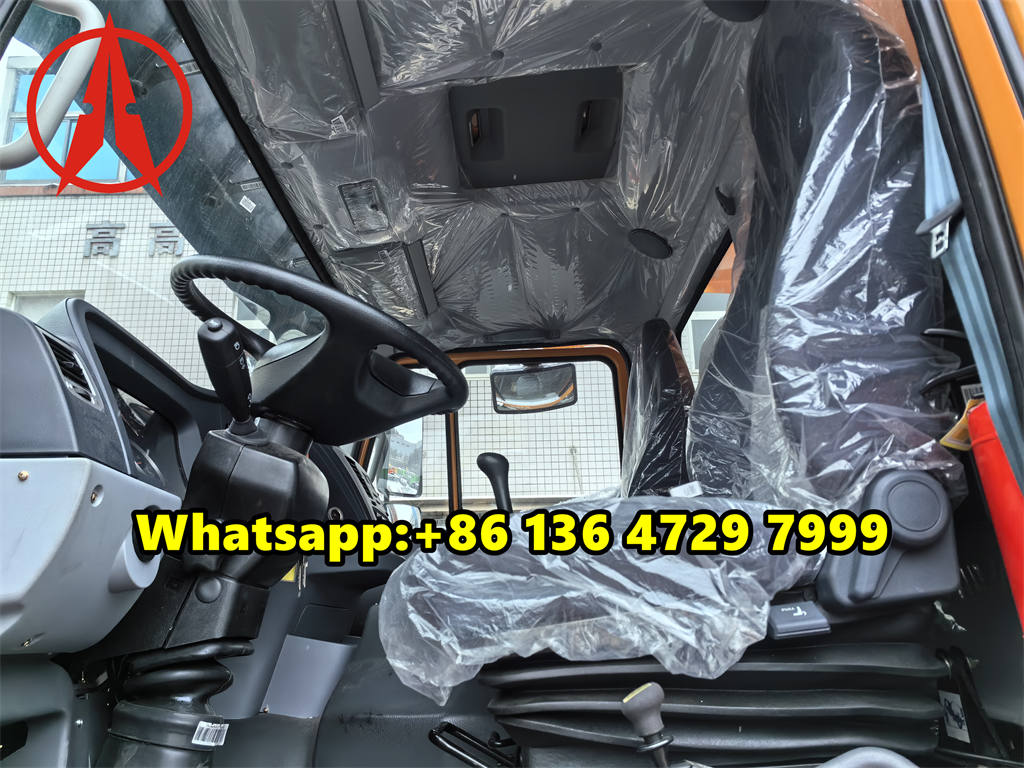

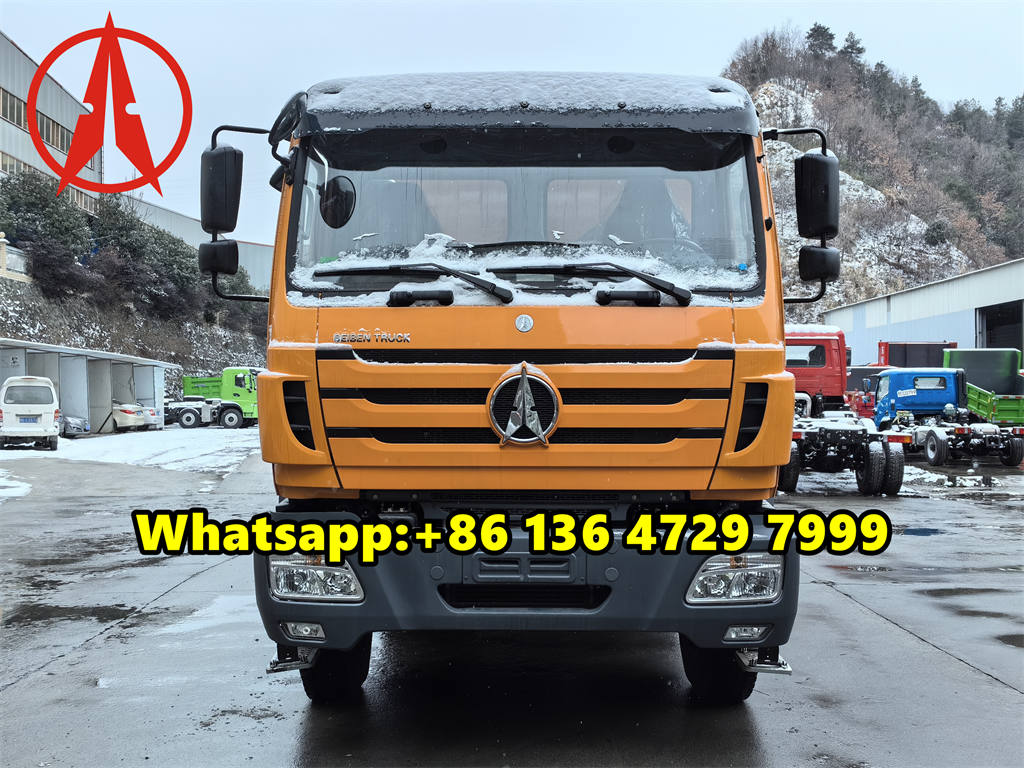

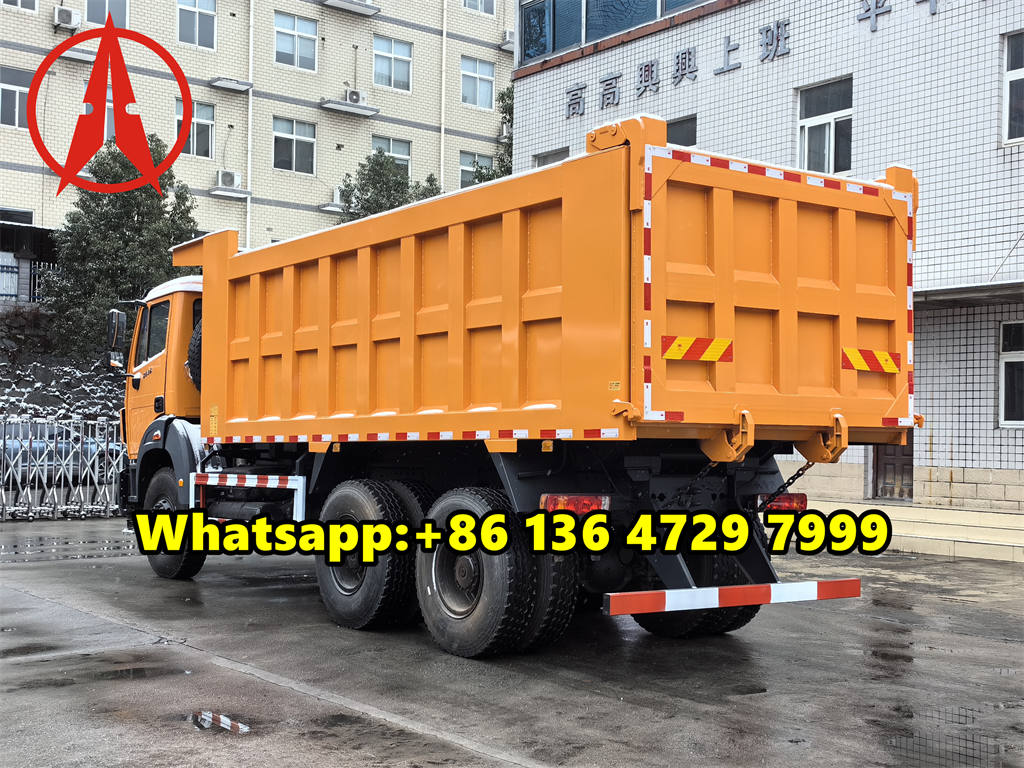

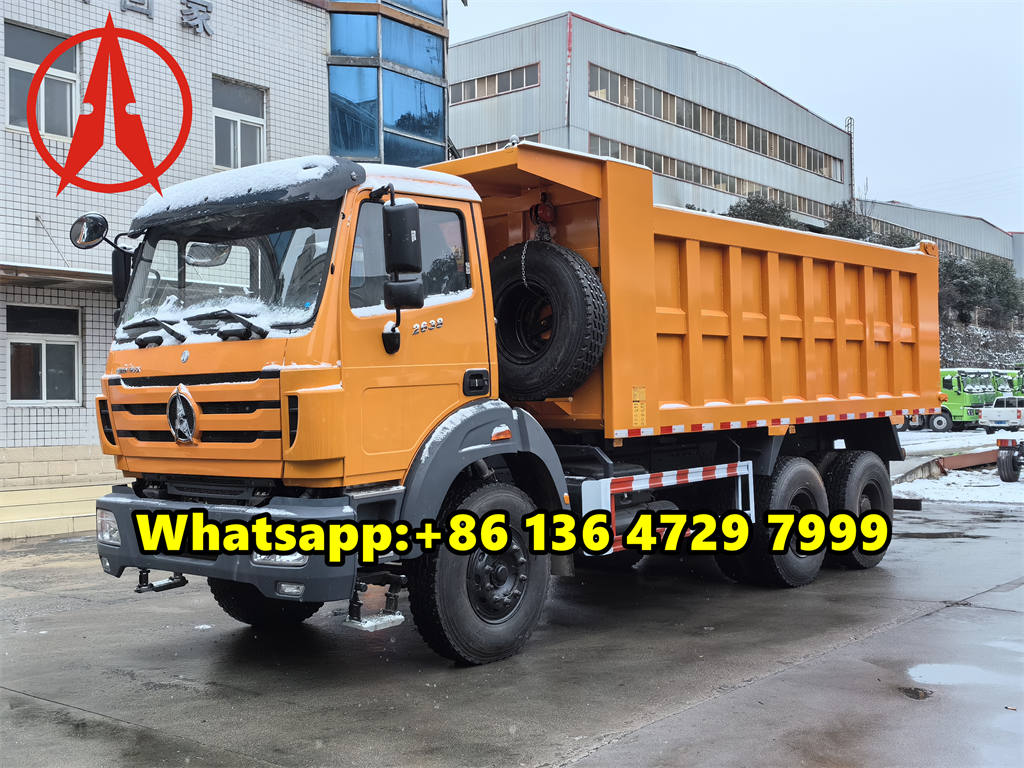

Product Details
