Product Description
In the field of logistics and transportation, the performance of tractor trucks is directly related to transportation efficiency and operational costs. With its excellent design, powerful engine, high load-carrying capacity, and reliable performance, the Beiben 2638 tractor truck has become the first choice for many logistics companies and transportation firms. The overall dimensions of the Beiben tractor truck are 7150×2500×3200 mm, and its compact body design allows it to maneuver flexibly on city streets and highways, adapting to complex transportation environments. With a curb weight of 9920 kg and a maximum towing capacity of 40 tons, it can meet the demands of large-scale logistics transportation.
The Beiben NG80 tractor head is equipped with a Weichai WP10.380E32 engine, a high-performance engine that complies with Euro III emission standards. With a displacement of 9.726 L, it boasts an output power of 280 kW (380 hp) and a maximum torque of 1500 Nm at a speed range of 1300-1600 rpm, providing robust power support for the vehicle. Whether it's long-distance transportation or heavy-load operations, this engine can handle them with ease, ensuring transportation efficiency. Paired with the engine is a FAST 12JS200T mechanical transmission with 12 forward gears, offering smooth shifting and quick response. Whether in congested urban conditions or highway cruising, it provides an optimal shifting experience. Additionally, the transmission is reliable and durable, ensuring long-term use of the vehicle.
The cab of the Beiben 6×4 tractor truck adopts the NG80B long cab design, equipped with a single sleeper berth, providing a spacious and comfortable resting space for the driver. The cab features a full steel frame structure with double-layer steel plates on the exterior, which not only enhances the rigidity and safety of the vehicle but also effectively reduces noise and vibration, creating a quieter driving environment for the driver. The interior of the cab adopts an integrated design, with the instrument panel, center console, and other components laid out reasonably and easy to operate. The digital instrument panel clearly displays various operating parameters of the vehicle, allowing the driver to monitor the vehicle's status at all times. Furthermore, the vehicle is equipped with luxurious features such as a radio (with USB port + MP3) and air conditioning, providing a more enjoyable driving experience for the driver. In terms of seating, the Beiben high-end tractor truck is equipped with high-back, shock-absorbing seats, offering good support and comfort for the driver. Additionally, the steering wheel can be adjusted according to the driver's needs, further enhancing driving convenience.
Product Specifications
|
Wheel base (mm)
|
3450+1450
|
|
Curb weight (kg)
|
9920
|
|
Max towing weight (kg)
|
40 tons
|
|
Max Speed (Km/h)
|
≤85
|
|
Dimension (Length*Width*Height)
|
7150×2500×3200mm
|
|
Front overhang/rear overhang (mm)
|
1410/740
|
|
Approach angle/Departure angle
|
26/64
|
|
Engine (WEICHAI)
|
Model
|
WP10.380E32, water-cooled, four strokes,6 cylinders straight in line, turbocharged.
|
|
Fuel type
|
Diesel
|
|
Emission
|
EURO III
|
|
Rated Power /rotating(kw/r/min)
|
280Kw(380HP)/2200rpm
|
|
Maximum Torque /rotating speed (n.m/(r/min)
|
1500Nm/1300-1600rpm
|
|
Displacement(L)
|
9.726
|
|
Fuel tanker capacity (L)
|
400L
|
|
Clutch
|
Model
|
Φ430, Diaphragm Spring, Hydraulic boosting
|
|
Gearbox
|
Model
|
FAST 12JS200T, mechanical type,12 Forward speed gear.
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
Model
|
ZF8098
|
|
Suspension system
|
Front Suspension
|
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension, 13pcs springs
|
|

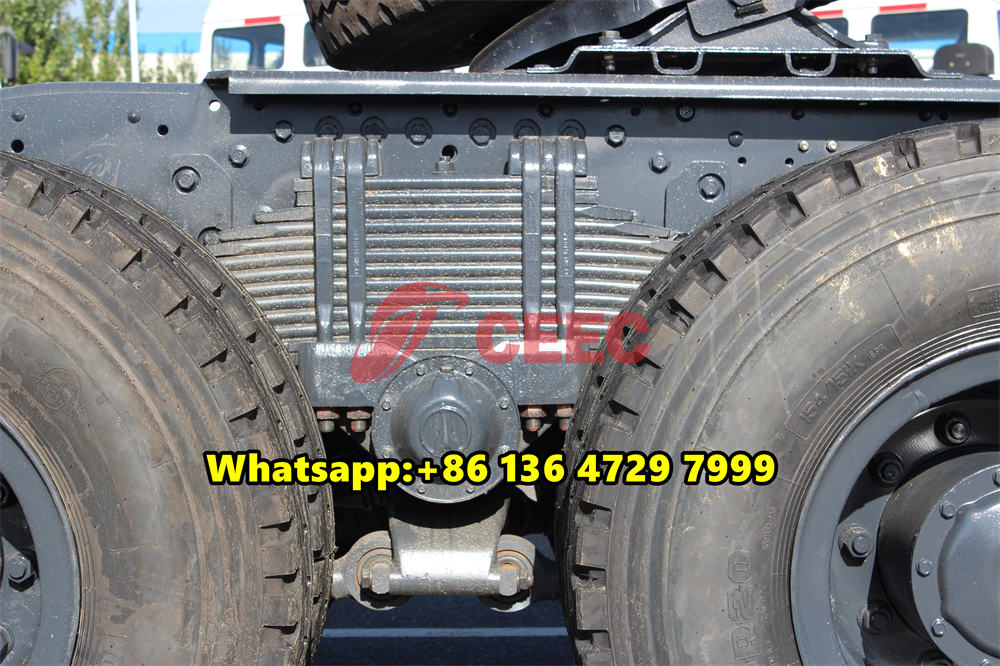

Rear Suspension
|
Non-free standing stabilization spring, stabilization suspension,13pcs springs
|
|
Frame (Benz Technology)
|
Fish belly shape, variable width, variable sections
|
|
Cross section dimension of frame(mm)
|
317×70×8.5+7+12mm
|
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake,7.5tons non-driving steering axle
|
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio 5.263
Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263
|
|
Tire
|
12.00R20 radial tire
|
|
Qty of tire
|
11 (10+1)
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-70A
|
|
Starter
|
5.58Kw/24V
|
|

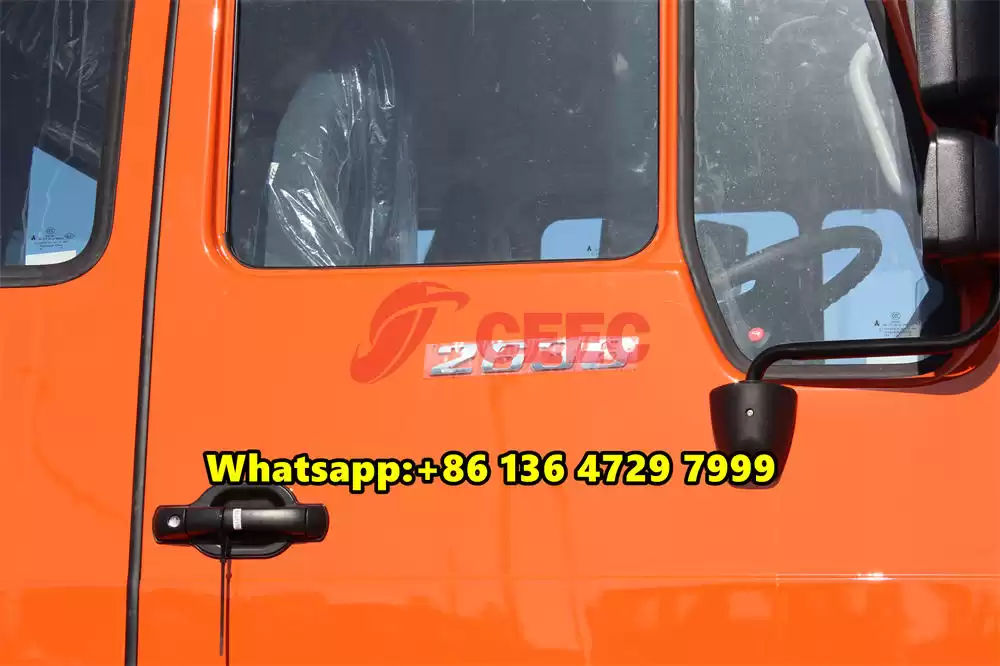

Cab
|
NG80B right hand drive;
NG80B Long cab with single sleeper;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
|
|
Interior trimming:
Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C.
|
|
Exterior trimming:
NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.
|
|
Fifth wheel
|
#90 single direction
|

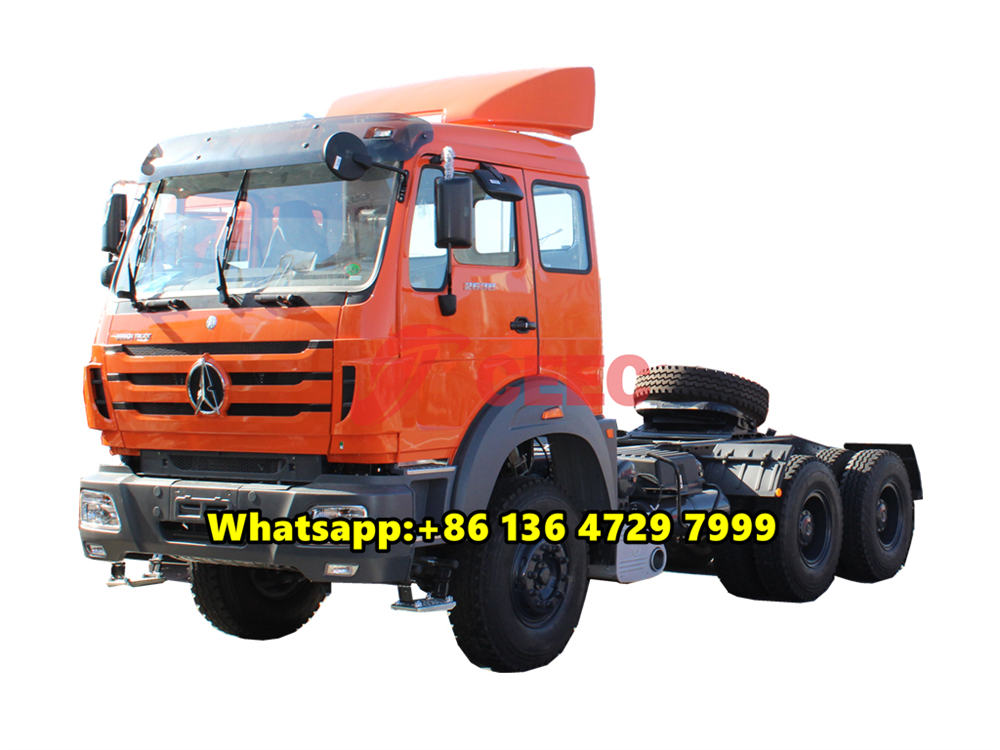

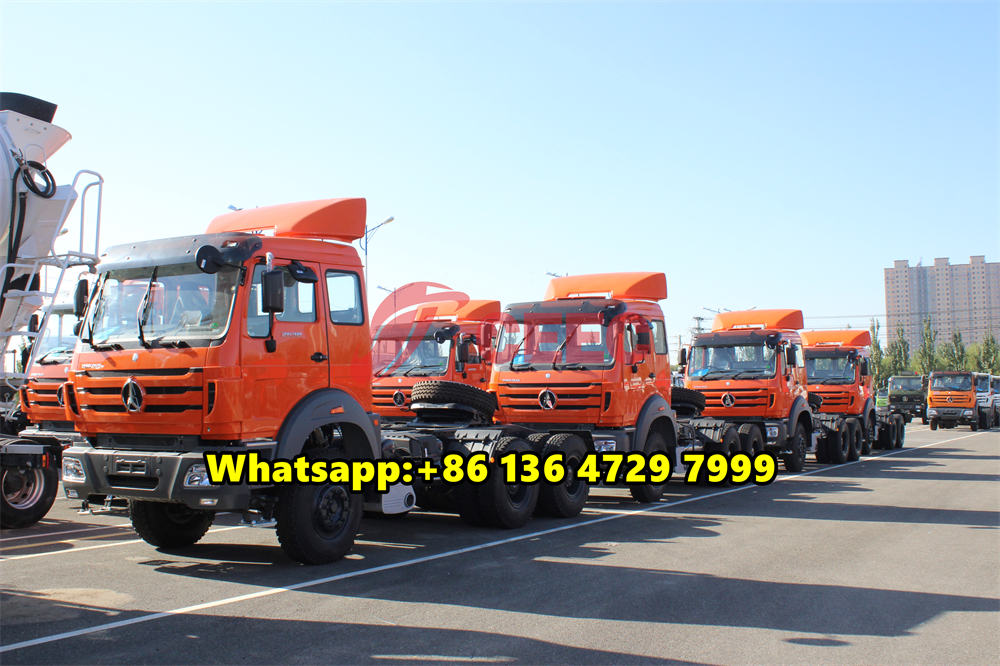

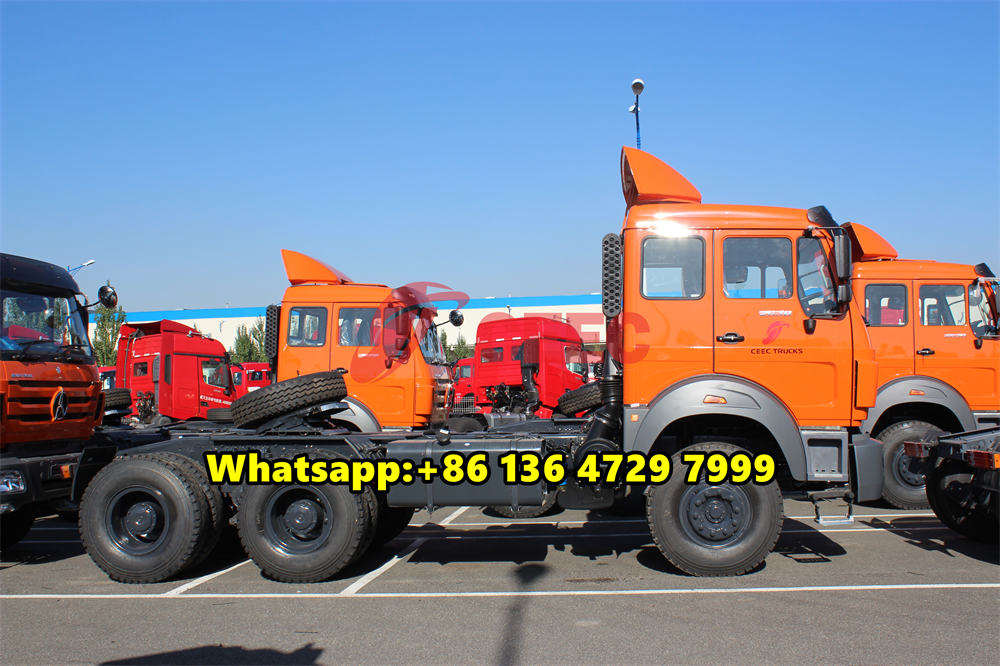

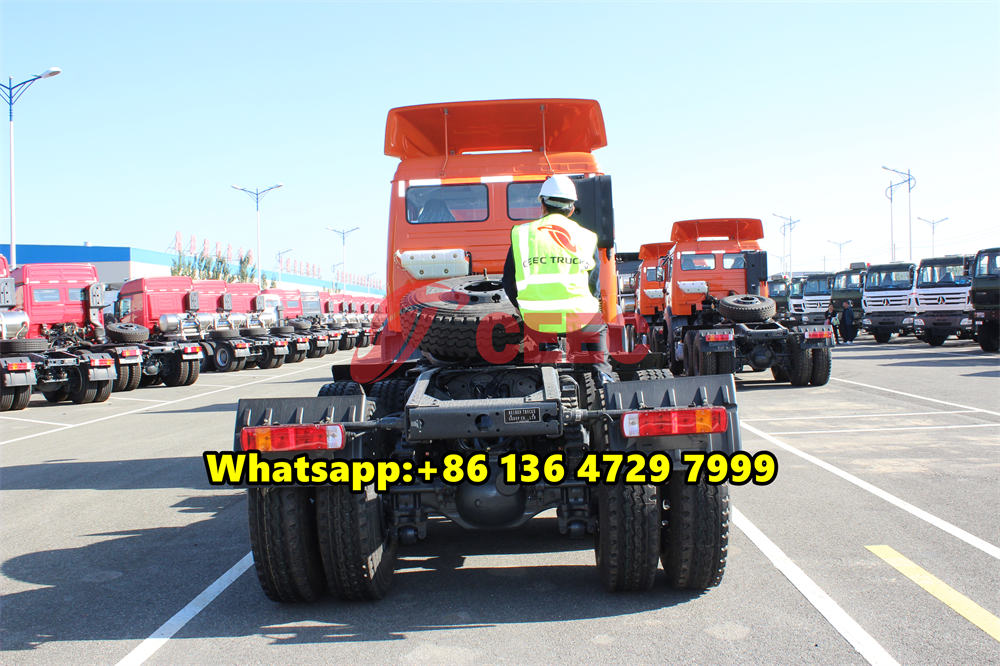

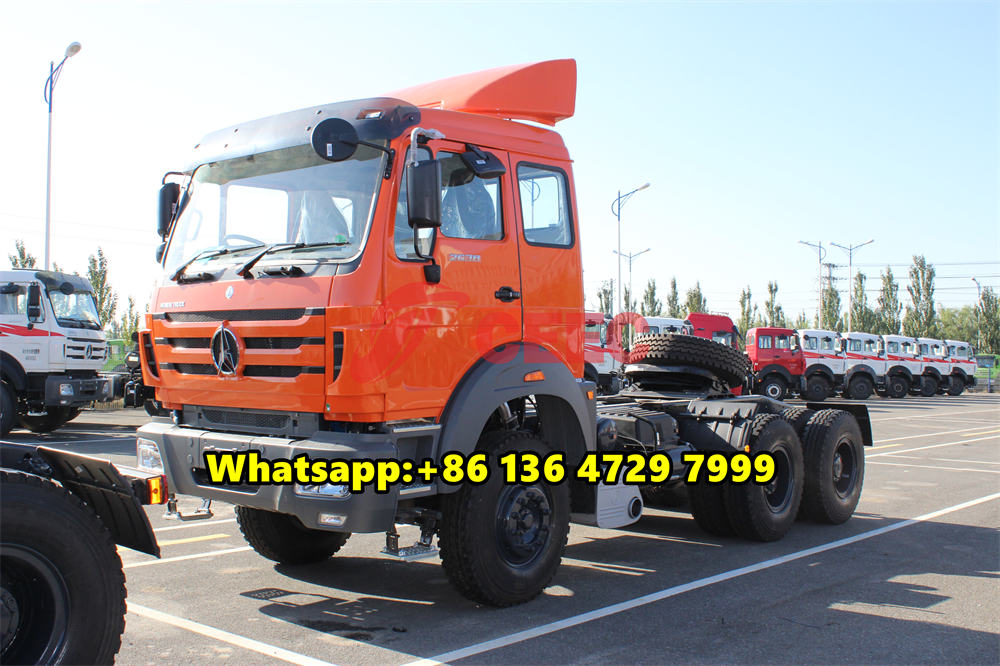

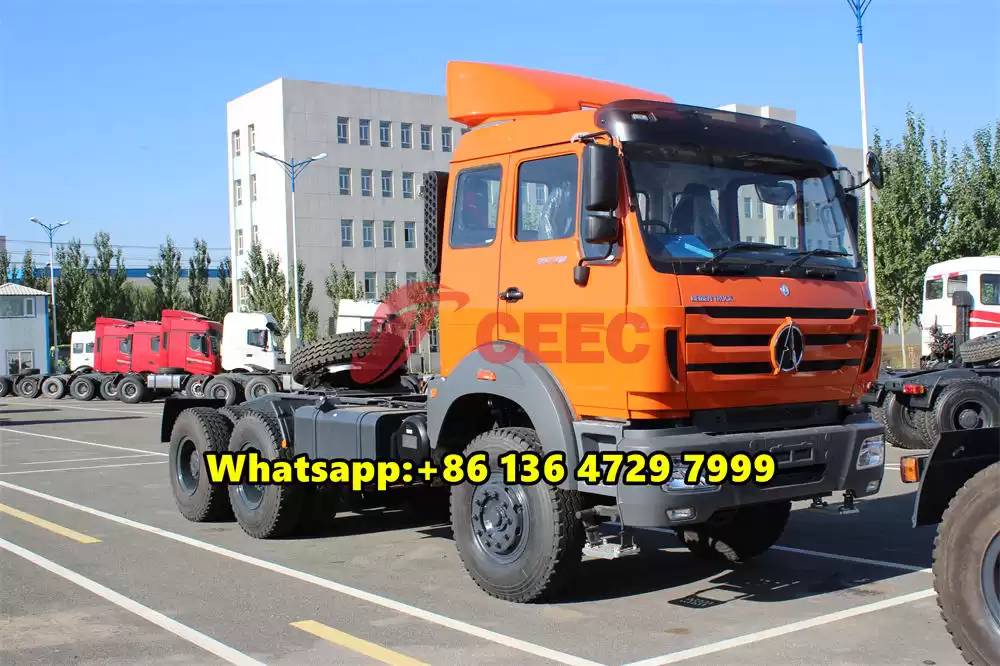

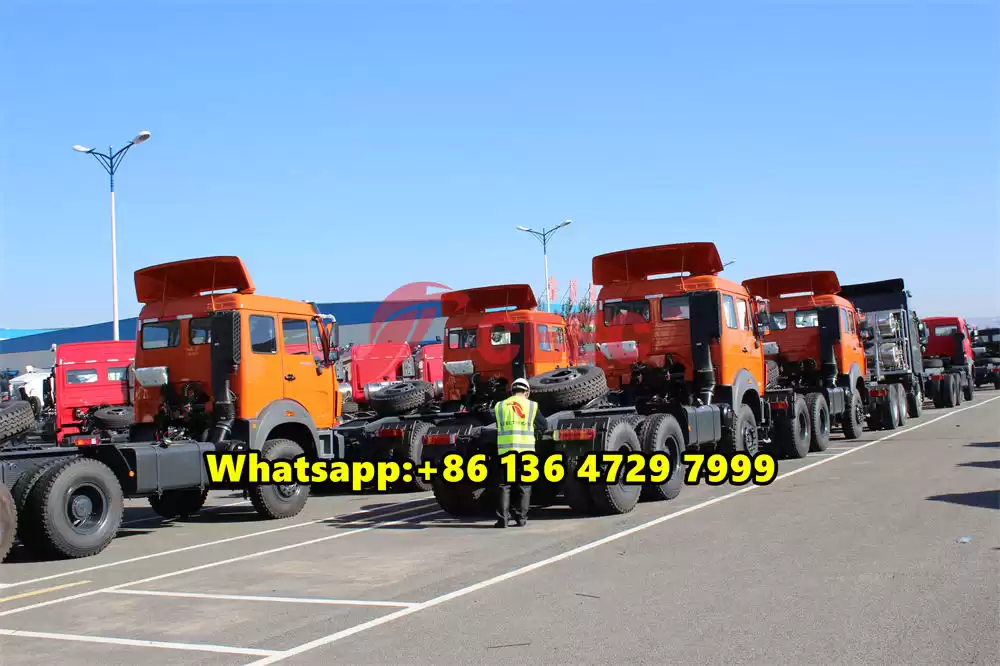

Product Pictures
