Function:
Construction, Mining
and quarries,
Heavy duty material transportation
Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Advantage:
★World famous Bezn technology tractor truck,
★Mercedez-benz technology
★China best quality beiben tractor truck spplier
★.Genuine beiben tractor truck parts service
★Congo,kenya, tanzania,ghana, algeria local agent
★ CEEC TRUCKS 20 years experience on beiben 2538 tractor trucks exporting.
Specification:
Similar key words congo beiben 2534 tracteur camions, beiben 2538 tracteur camions, north benz 2538 tracteur camions, china beiben tracteur camions supplier.
China famous brand beiben 2534 tractor truck,for using in logistic, seaport, airport, fuel transporation.
Baotou
beiben 2538 tractor trucks are widely applied for high way , seaport,
logistic, fuel oil project transportation. With reliable benz
technology, benz 6*4 tractor truck are well accepted in congo, kenya,
tanzania and nigeria.
Our prices are considerably lower than European, American and
Asian competitors; including Mercedes Benz Actros 2538tractor trucks..

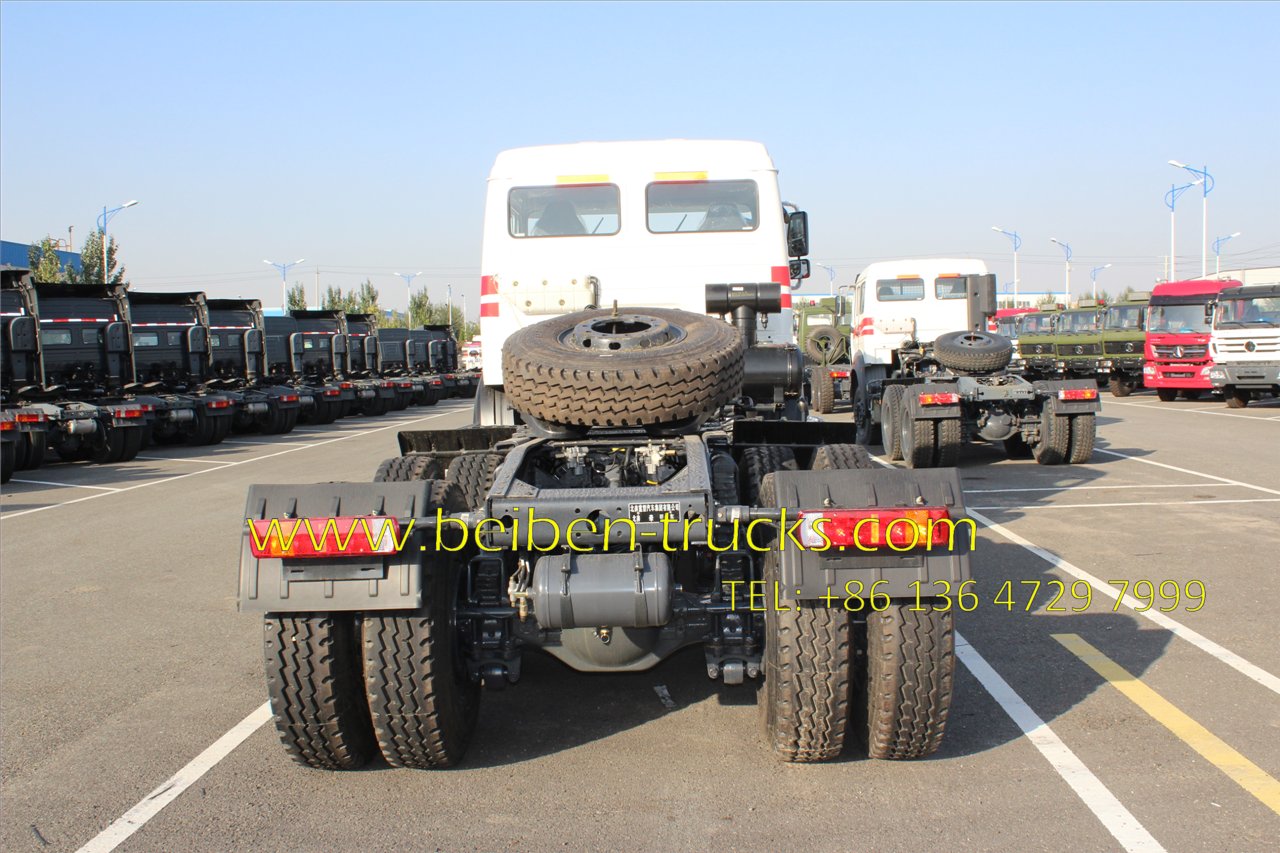

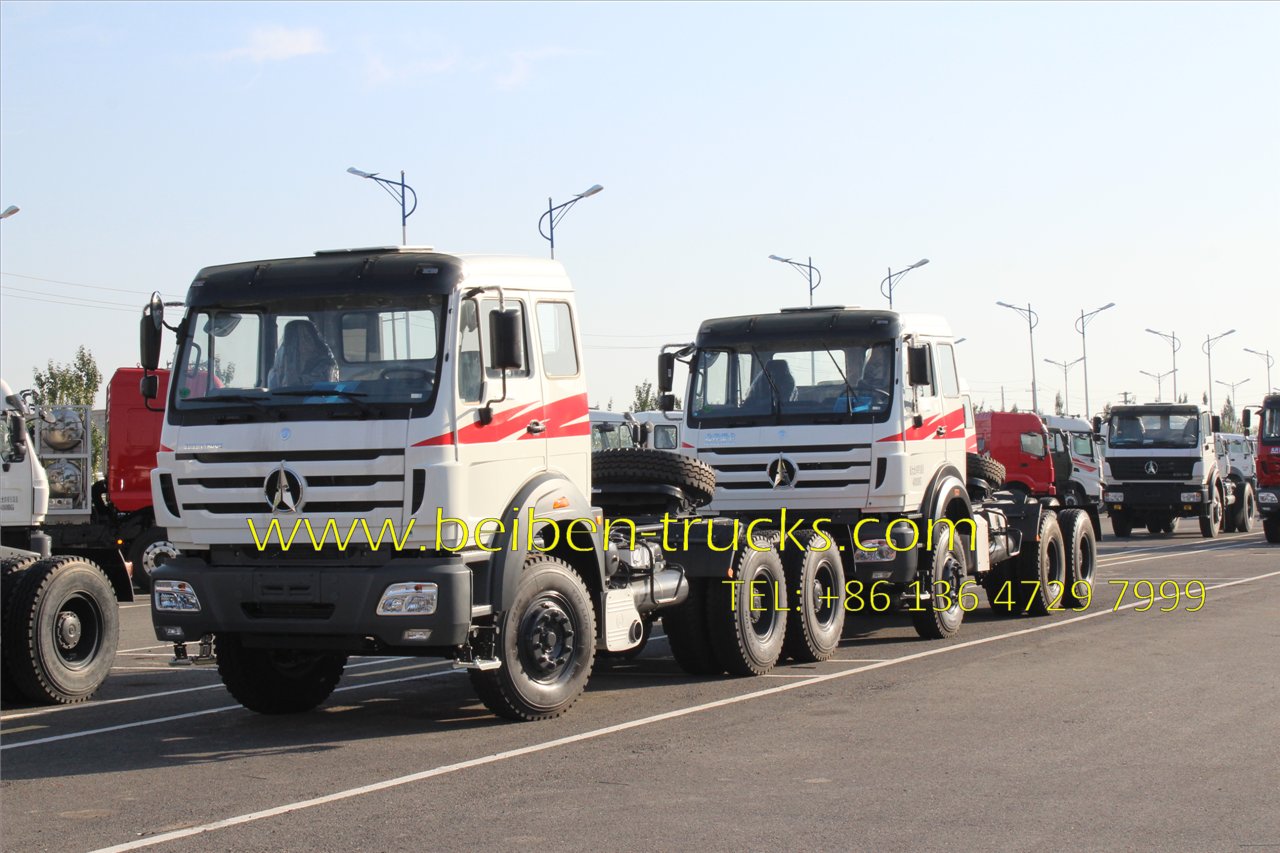

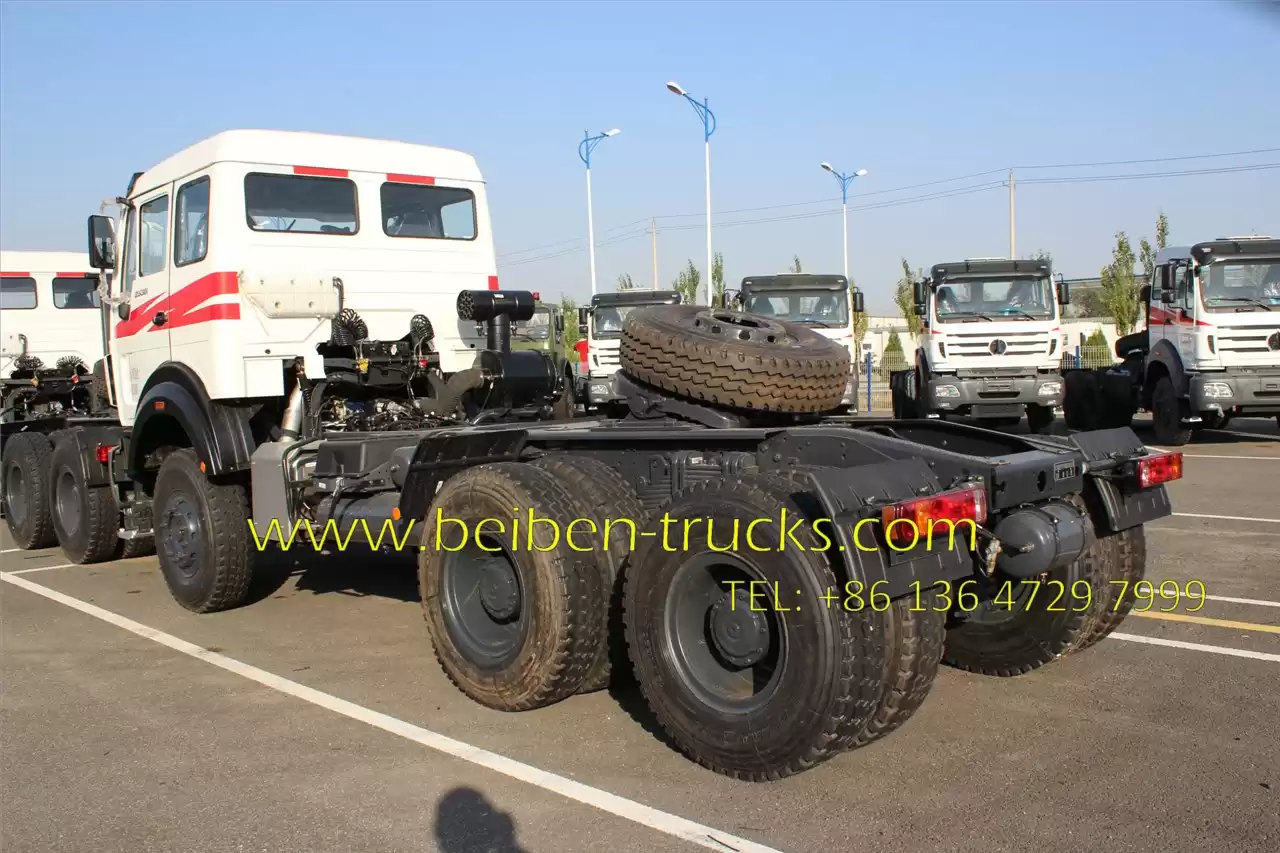

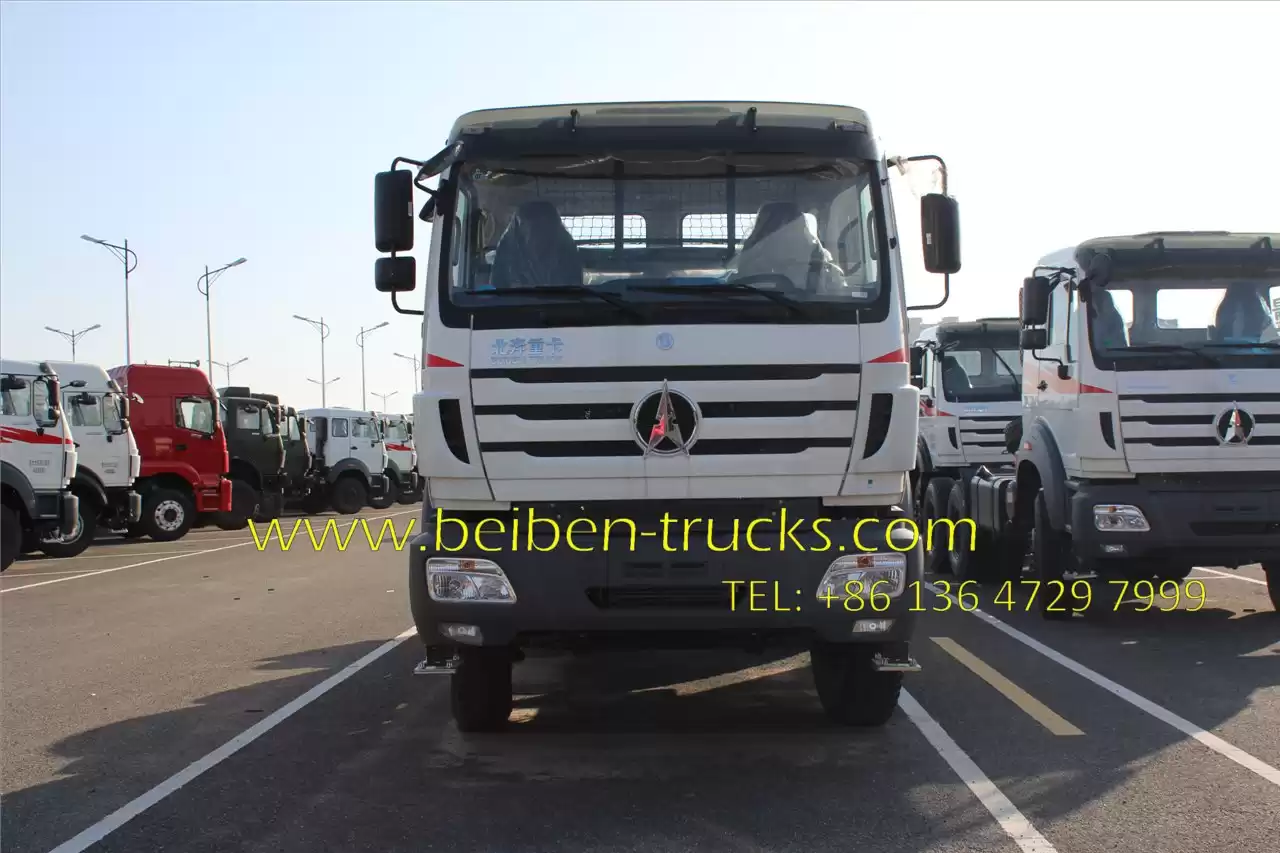

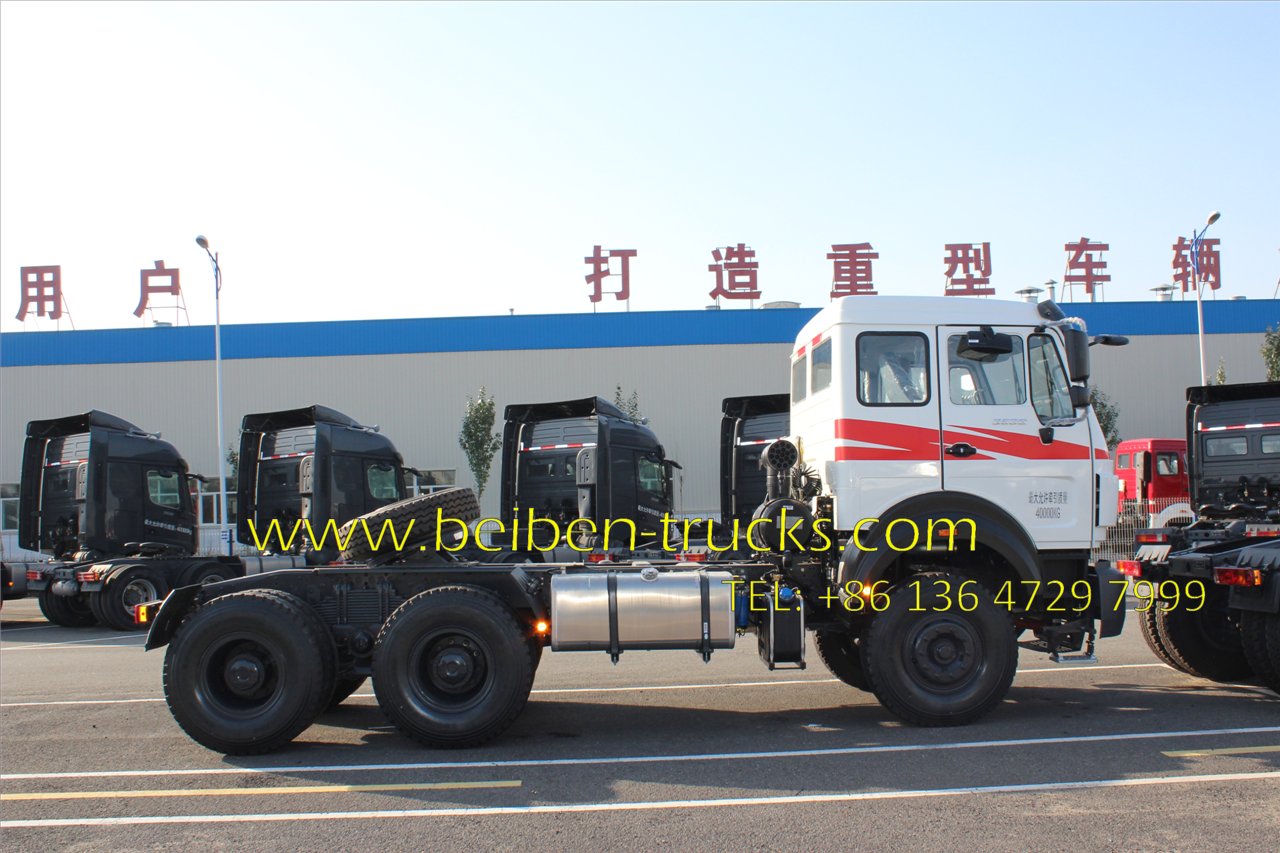

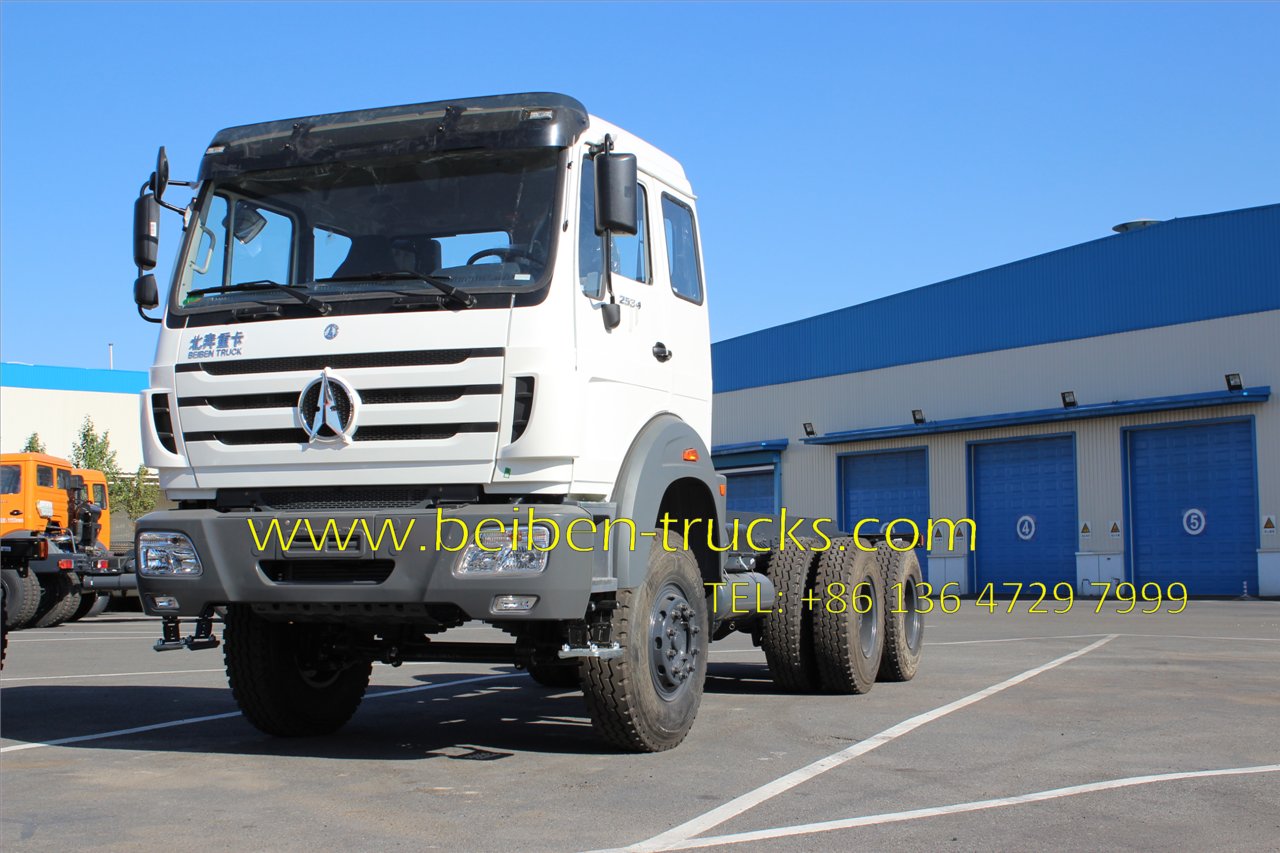

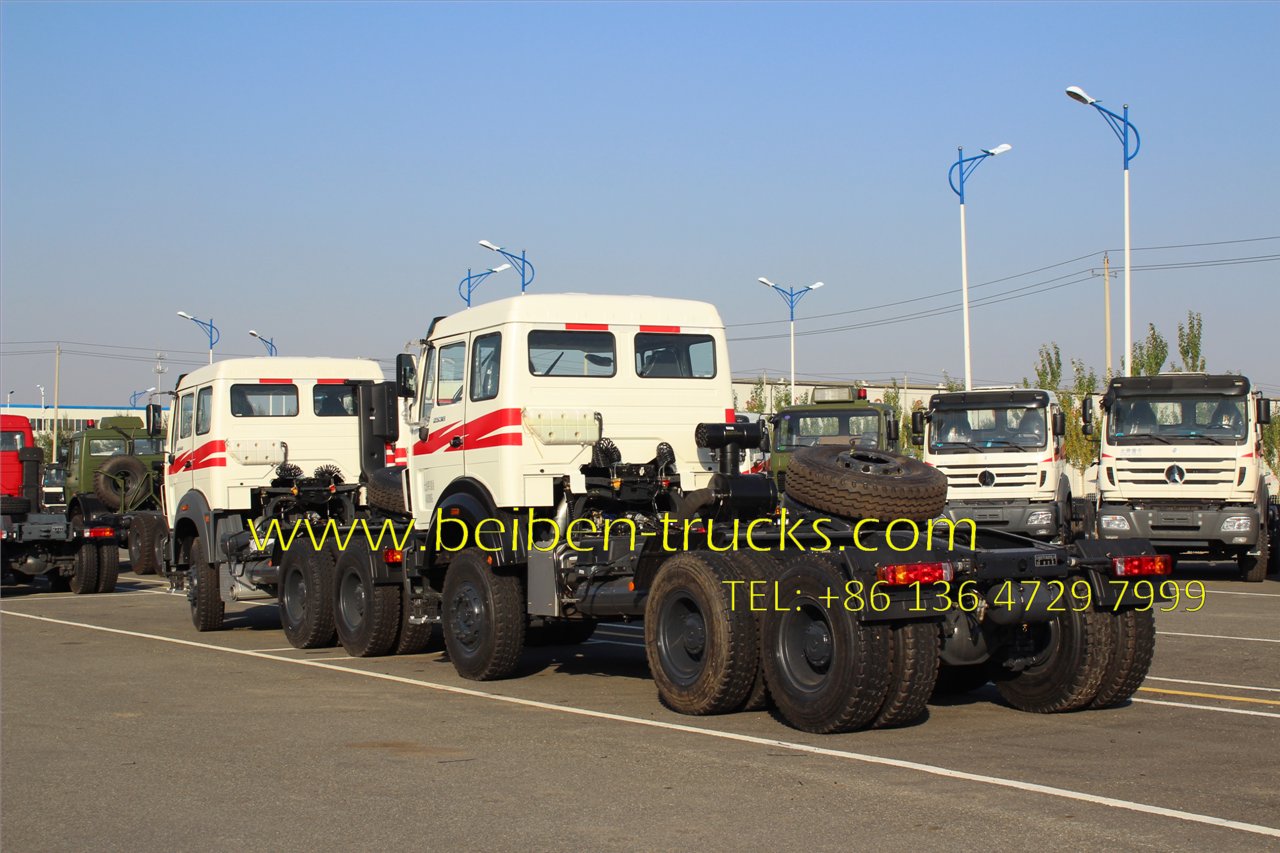

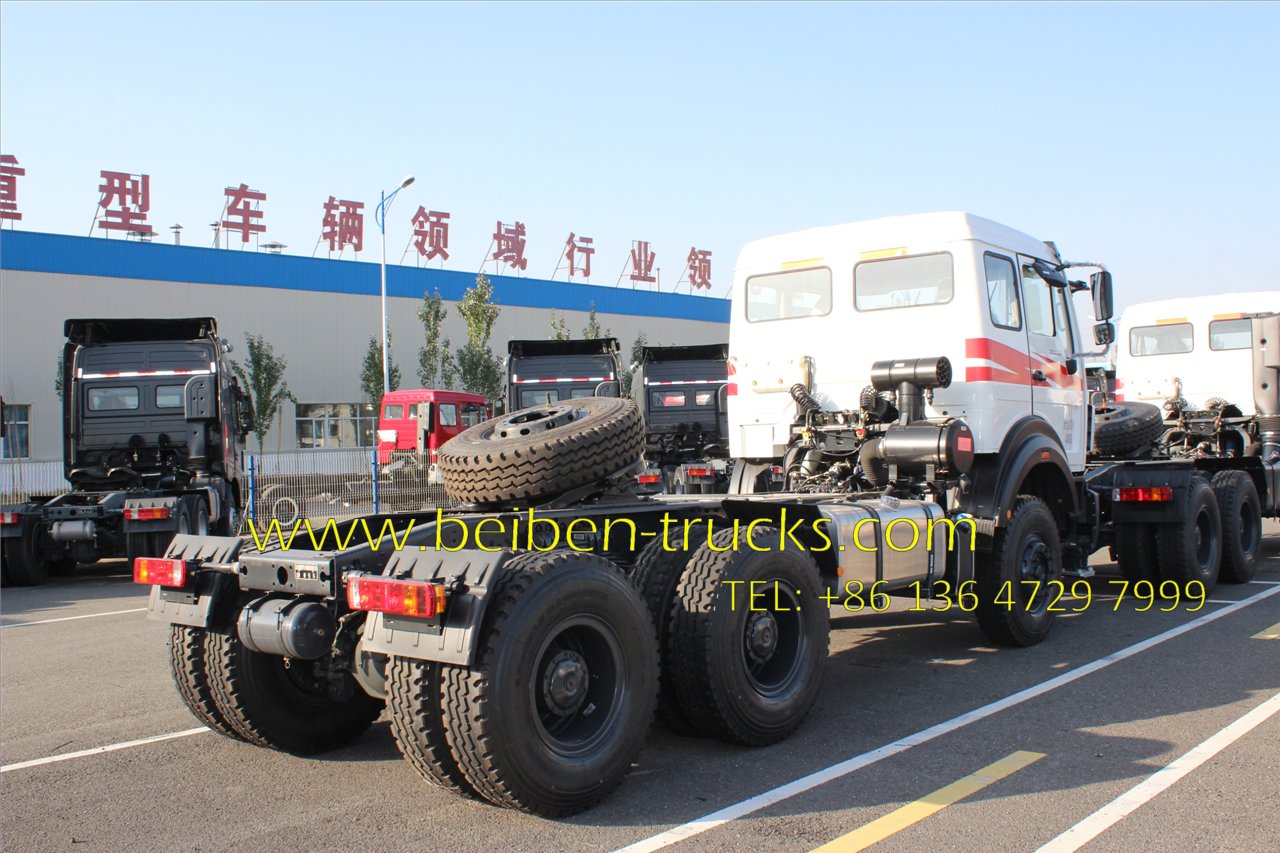

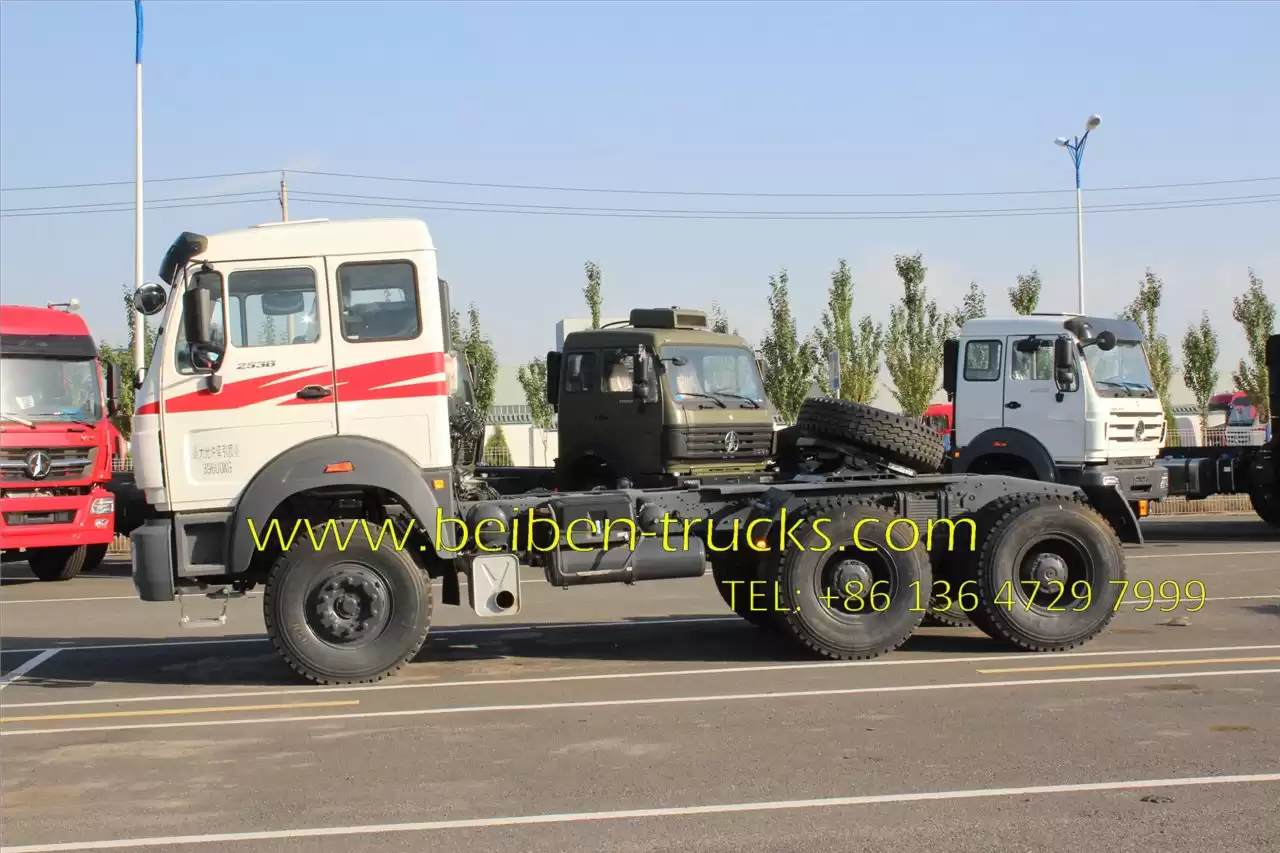

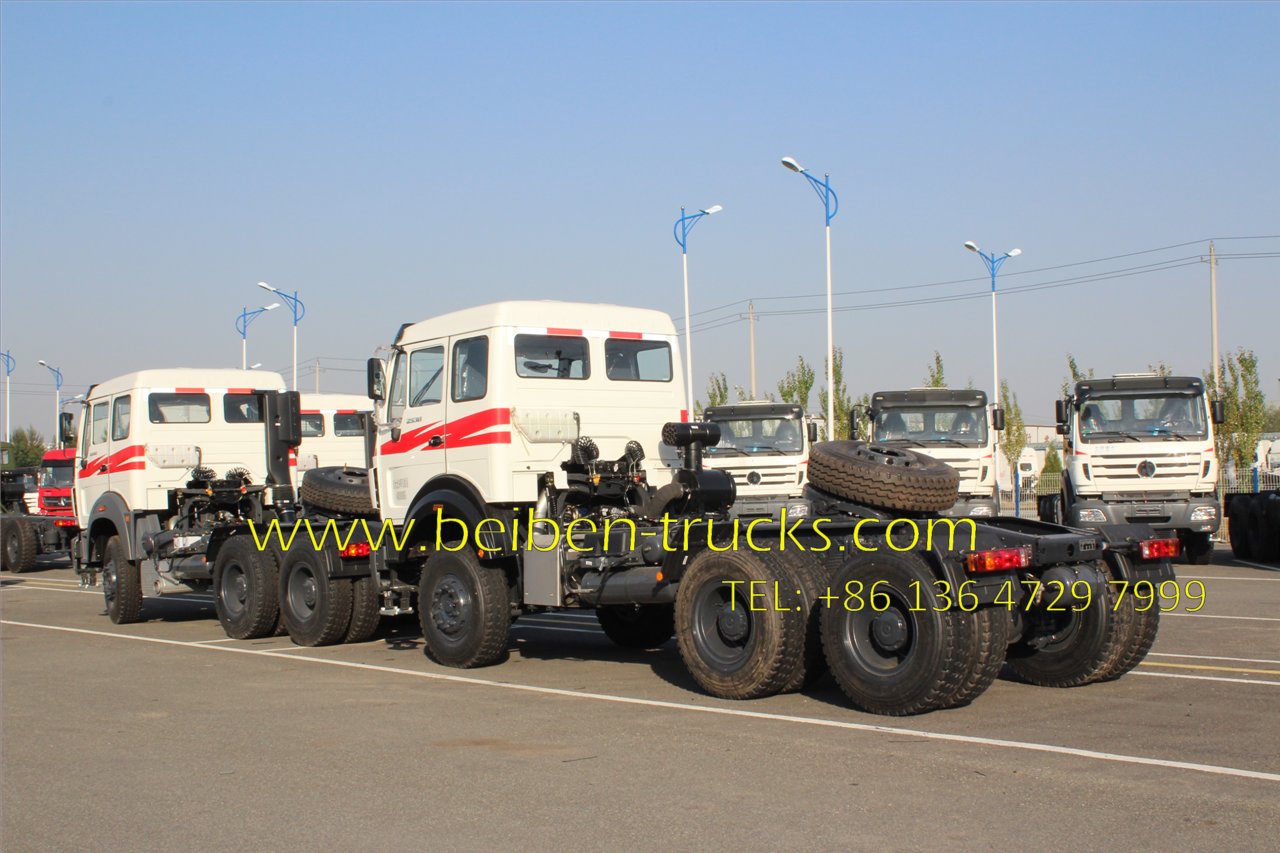

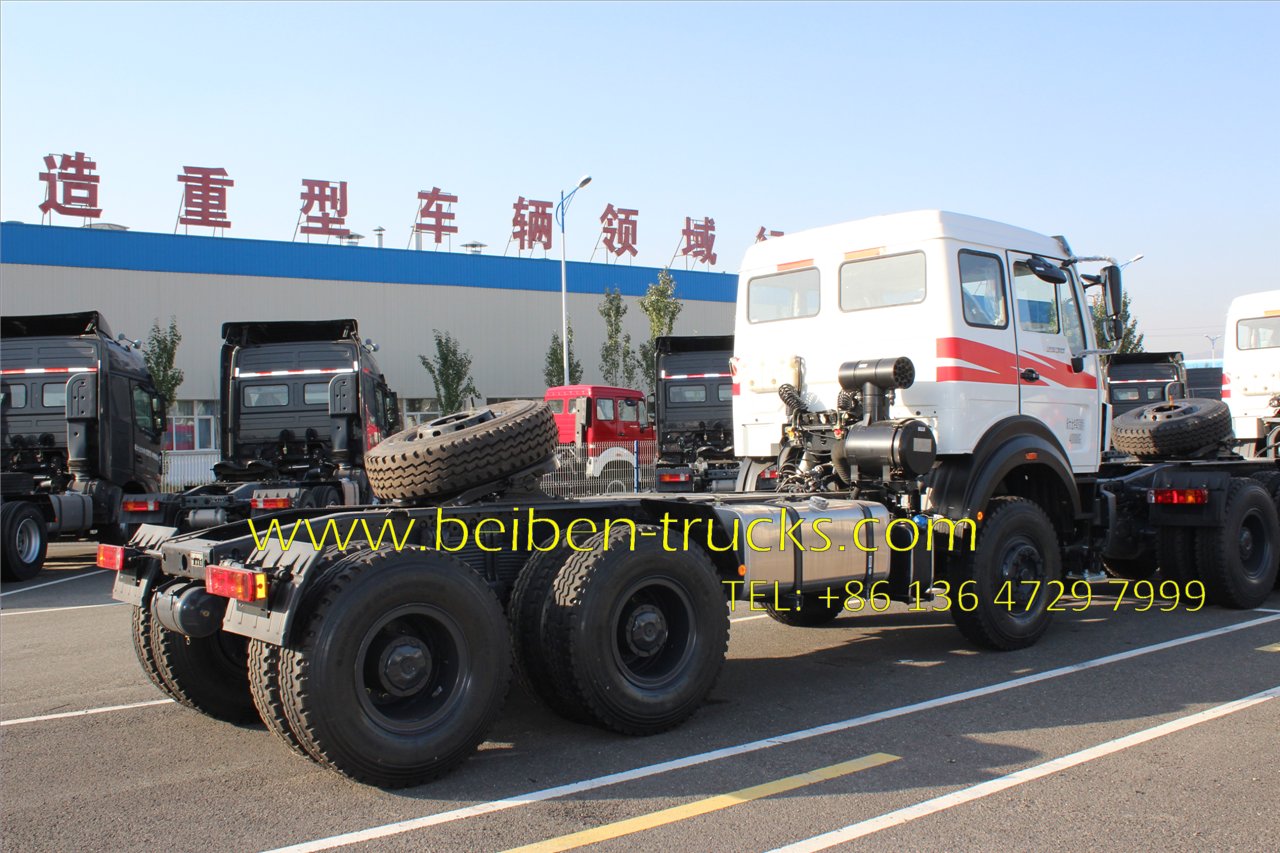

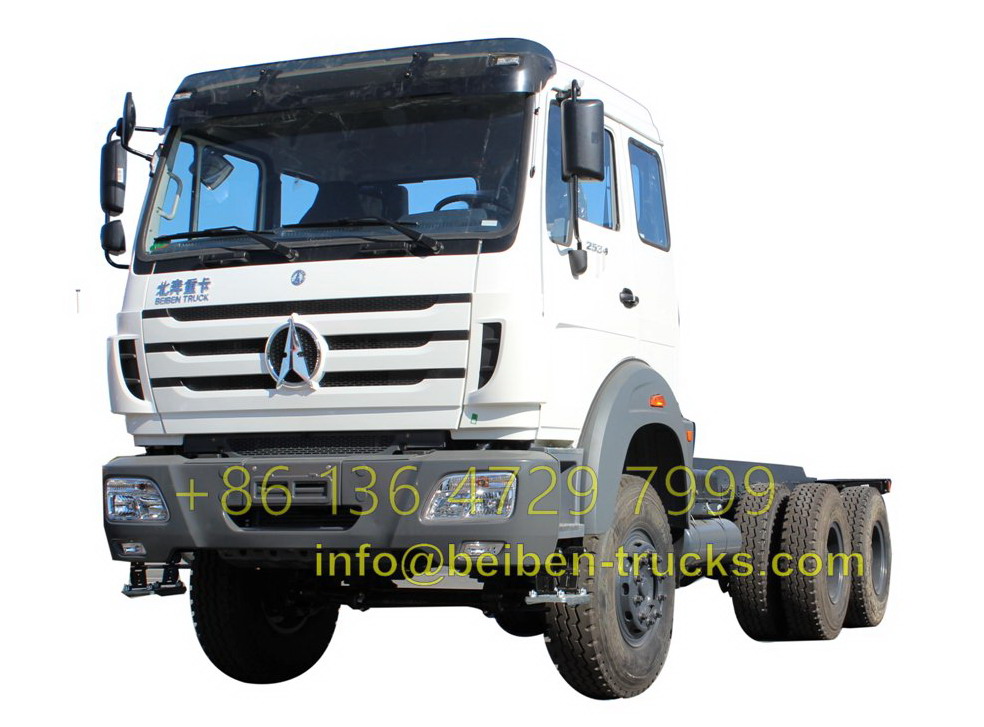

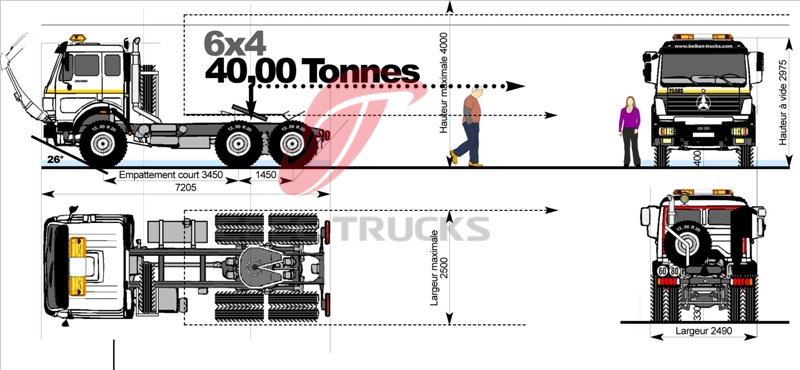

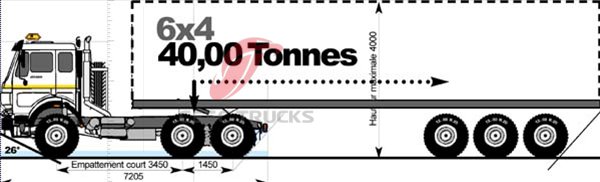

| Beiben 2638SZ tractor truck /6×4/3450+1450/Long Cab/LHD
|
|
Dimension
|
7136*2495*3180mm
|
|
Approaching angle/Departure angle
|
26/64°
|
|
Overhang(front/rear)
|
1410/825mm
|
|
Wheel base
|
3450+1450mm
|
|
Max speed
|
90km/h
|
|
Curb weight
|
9200kg
|
|
Max towing weight
|
36900kg
|
|
Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP10.380E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
280/2200 (kw/rpm)
|
|
Max.torque
|
1460/1200-1600（Nm/rpm）
|
|
Emission stantard
|
EuroⅢ
|
|
Fuel tanker capacity
|
400L
|
|
Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
|
Gearbox
|
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
|
Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
|
|
Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
|
|
Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
|
Frame
|
Fish belly shape, variable width, variable sections
|
|
Model
|
JOST ∮90 single direction
|
|
Height of fifth wheel(mm) (unload)
|
1410
|
|
Radius of front gap (mm)
|
2300
|
|
Radius of rear slew (mm)
|
2600
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
|
Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
|
Tyre
|
12.00-R20
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cabin
|
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C |
