Product Descriptions
The terrain in Africa is complex and varied, placing extremely high demands on the performance of transportation vehicles. Especially in countries like Congo, the challenging terrain and poor road conditions require vehicles with exceptional performance. In this context, the Beiben 2638 tractor truck has become the preferred choice for many transportation companies and individual users due to its outstanding performance and adaptability.
The Beiben 2638 tractor head is equipped with the advanced Weichai WP10.380E32 engine, renowned for its efficiency, reliability, and environmental friendliness. With a powerful 380 horsepower, the vehicle excels in various complex road conditions. Whether navigating steep mountain roads or soft sandy terrain, the Beiben 2638 tractor handles with ease, demonstrating exceptional off-road capabilities and stability.
The chassis design of the Beiben trailer tractor truck is equally impressive. The wheelbase of 3450+1450mm ensures both stability and flexibility during driving. With a curb weight of 9,200kg and a towing capacity of 40 tons, the Beiben 2638 tractor trucks can easily handle the transportation needs of various heavy goods. Additionally, the vehicle's maximum speed of 90km/h ensures enhanced transport efficiency.
The comfortable design of the cab is also a highlight of the Beiben tractor truck. The spacious driving area, comfortable seats, and convenient control layout provide drivers with an excellent driving environment. This not only helps alleviate driver fatigue but also improves driving efficiency, ensuring the timeliness and accuracy of logistics transportation.
Product Specifications
|

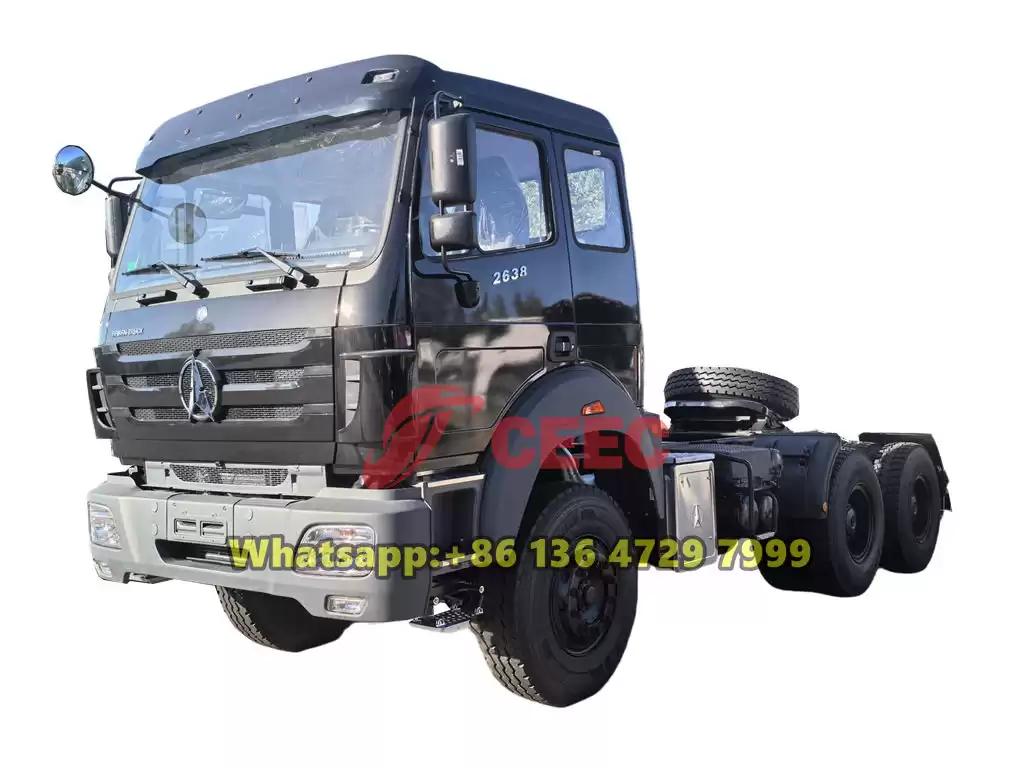

Beiben 6x4 380HP Tractor Truck for Congo
|
|
Wheel base (mm)
|
3450+1450
|
|
Curb weight (kg)
|
9200
|
|
Towing weight (kg)
|
40 tons
|
|
Max Speed (Km/h)
|
≤90
|
|
Dimension (Length*Width*Height)
|
7150×2500×3200mm
|
|
Front overhang/rear overhang (mm)
|
1410/740
|
|
Approach angle/Departure angle
|
26/64
|
|
|
Brand
|
Weichai
|
|
Engine
|
Model
|
WP10.380E32
|
|
Type
|
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged
|
|
Fuel type
|
Diesel
|
|
POWER
|
380HP(280KW)
|
|
Emission
|
EURO III
|
|
Displacement(L)
|
9.726
|
|

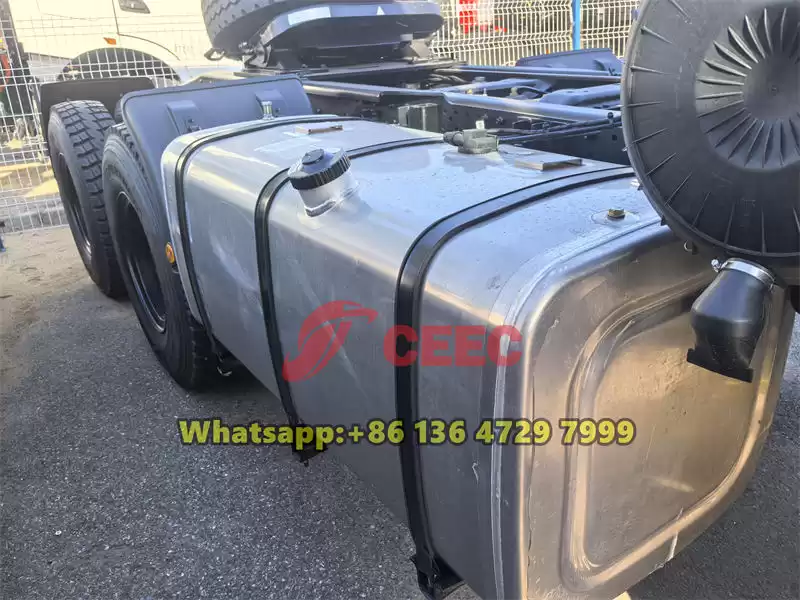

Fuel tanker capacity (L)
|
400L Aluminum alloy
|
|
Clutch
|
Φ430, Diaphragm Spring, Hydraulic boosting
|
|
Gearbox
|
FAST 12JS200T, mechanical type,12 Forward speed gear.
|
|
Steering system
|
ZF8098
|
|
Front axle (Mercedes Benz
Technology)
|
Double-shoe pneumatic brake,7.5tons non-driving steering axle
|
|
Middle and Rear axle
(Mercedes Benz technology)
|
Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263
|
|
Tire
|
12.00R20 radial tire 11 (10+1)
|
|
Cab
|
NG80B Long cab with single sleeper,
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
|
|

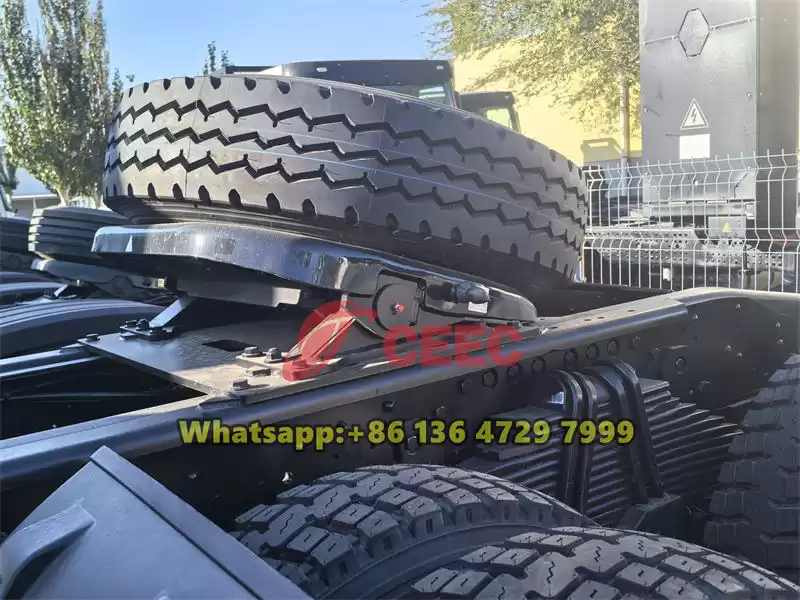

Fifth wheel
|
#90 single direction
|

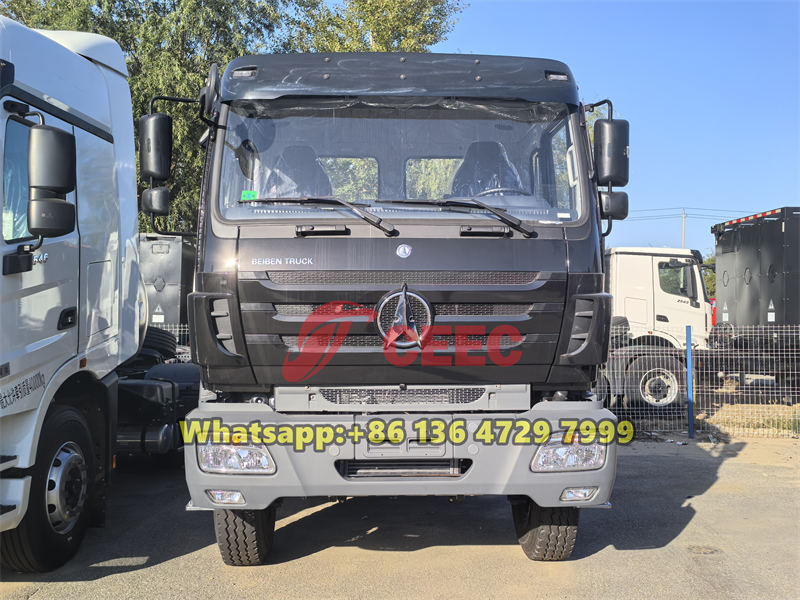

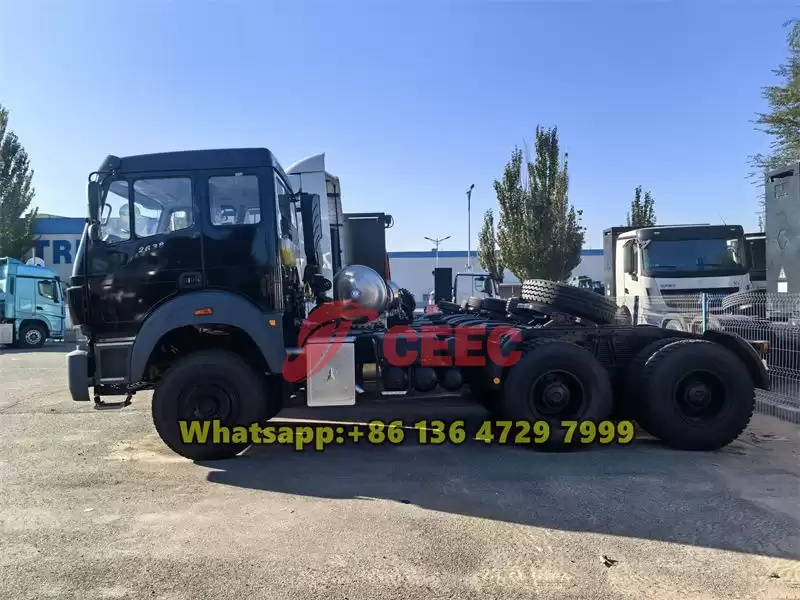

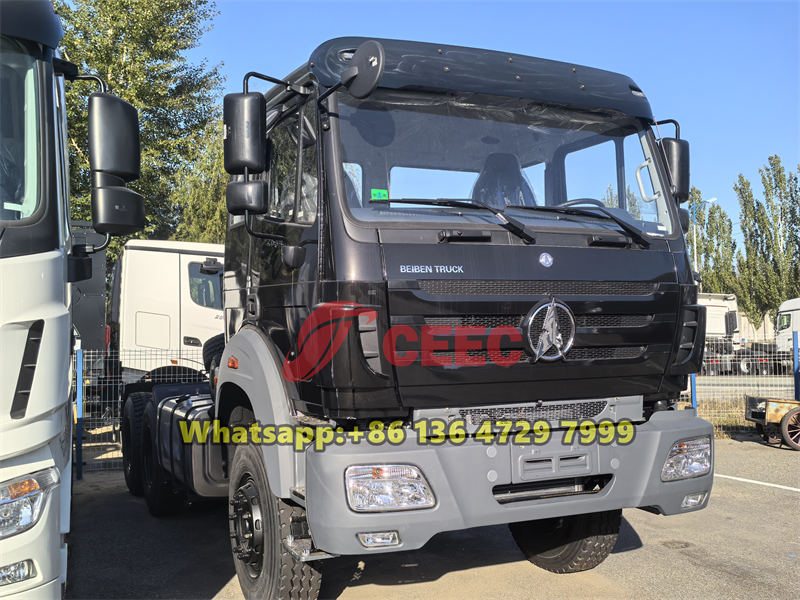

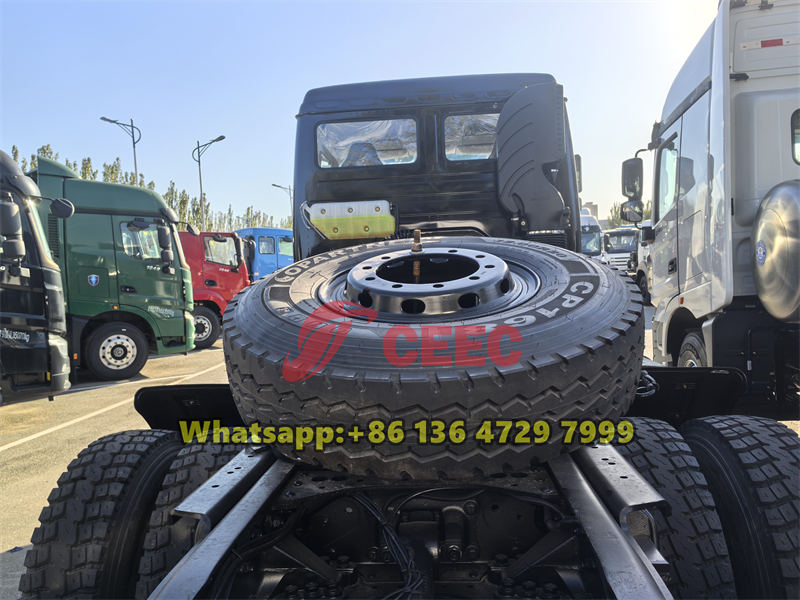

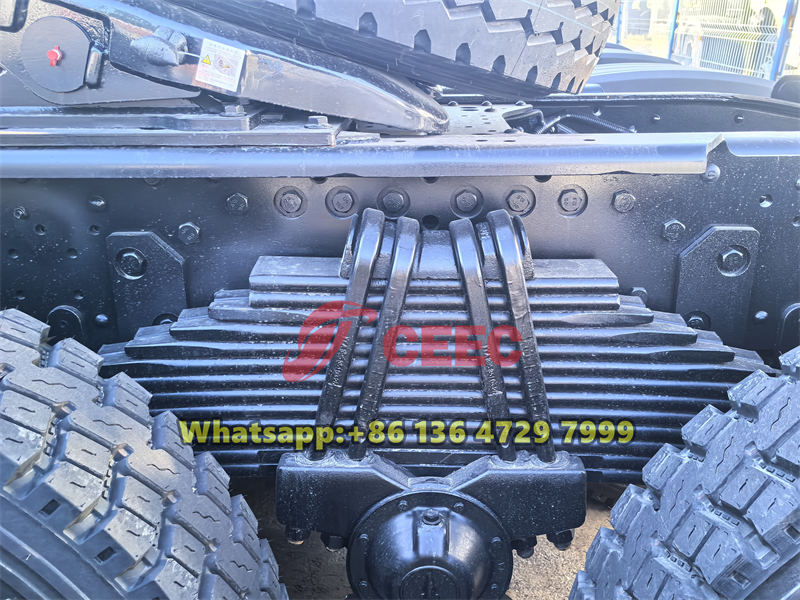

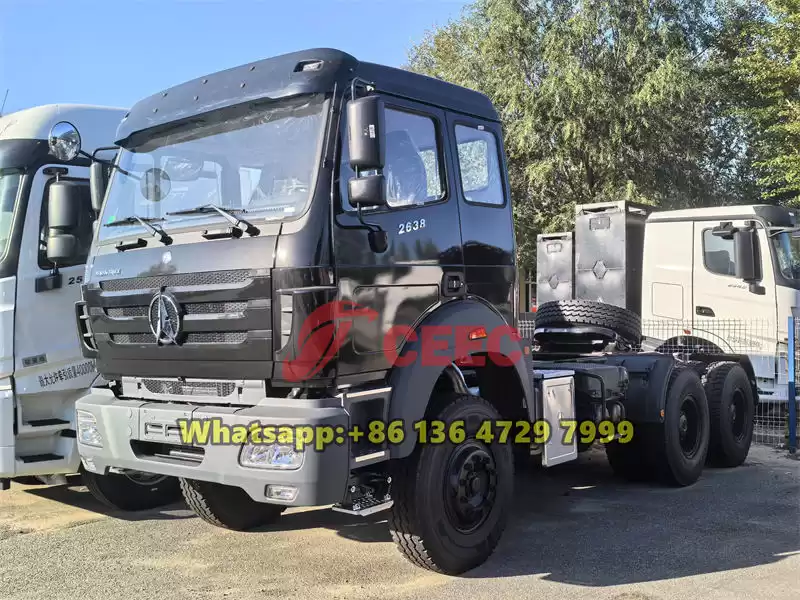

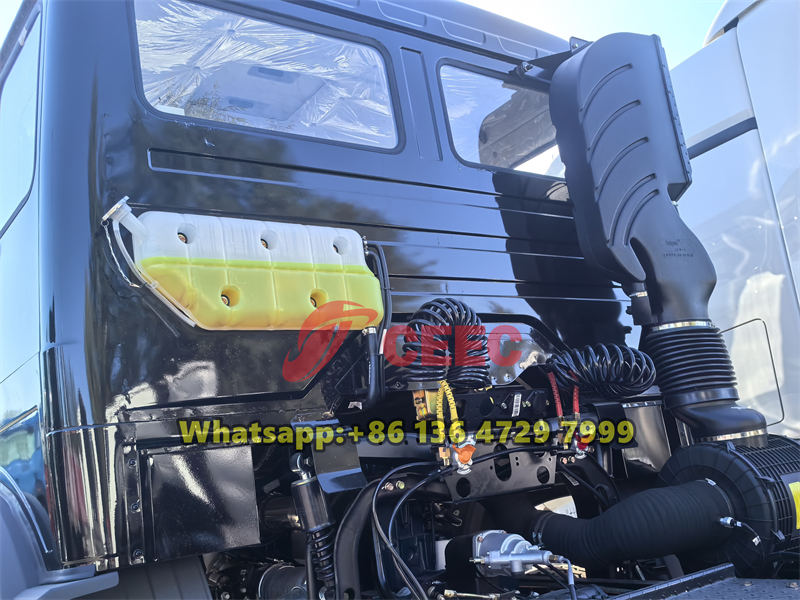

Product Pictures
