Product Description
The Beiben 2638 trailer tractor is a heavy-duty tractor that combines efficient power, outstanding safety, and advanced technology, specifically designed for long-distance transportation and heavy-load traction. With overall dimensions of 7050×2495×3340mm and a wheelbase of 3450+1450mm, it adopts a 6x4 drive mode, ensuring stability and passability under complex road conditions. The curb weight of the vehicle is 8800kg, and the maximum traction weight can reach 40000kg, demonstrating its powerful carrying capacity. Whether it's long-distance logistics or heavy equipment transportation, the Beiben 2638 tractor head can easily handle the task, meeting users' demands for efficient transportation.

In terms of the power system, the Beiben 2638 tractor truck is equipped with a Weichai WP10.380 engine, with a maximum power output of 380 horsepower, providing strong power for the vehicle. It is matched with a 12JS200T mechanical transmission, based on Fuller Eaton technology, featuring 12 forward gears for smooth and efficient shifting, adapting to various complex road conditions and load requirements. Additionally, the vehicle's chassis technology originates from Germany's Mercedes-Benz, with the front, middle, and rear axles all adopting Mercedes-Benz technology, further enhancing the vehicle's reliability and durability. The braking system is designed with multiple safety measures, including service brakes, assistant brakes, and parking brakes, ensuring the vehicle's safety under various operating conditions. The steering system adopts the ZF8098 model, offering flexible and precise operation, greatly reducing driver fatigue.
The Beiben 2638 tractor head particularly excels in safety performance. Its cab features an all-steel frame structure, covered with double-layer steel plates, providing extremely high impact resistance and maximizing driver safety in the event of a collision. The braking system employs a triple safety design, including service brakes, assistant brakes, and parking brakes, ensuring the vehicle can stop quickly and stably under various operating conditions. The assistant braking system (such as engine exhaust braking) effectively reduces wear on the primary brakes on long downhill sections, extending the lifespan of the braking system.

Product Specifications
Overall dimension (mm)
|
7050×2495×3340
|
Driving Model
|
6x4
|
Wheel base (mm)
|
3450+1450
|
Curb weight (kg)
|
8800
|
Gross towing trailer weight (kg)
|
40000
|
Engine Model
|
WP10.380, WEICHAI brand, Power: 380hp
|
Gearbox Model
|
12JS200T, mechanical type,Based on Fuller Eaton technology ,12Forward speed gear.
|
Frame
|
Based on Germany Benz Technology
|
Axle(Front, Middle and Rear)
|
Based on Mercedes Benz Technology
|
Brake system
|
Safe(consist of Service brake, Assistant brake and Park brake)
|
Steering system Model
|
ZF8098
|
Fuel tanker capacity (L)
|
400
|
Clutch Model
|
430,Hydraulic boosting
|
Tire
|
12.00R20 radial tire
|
Electrical system
|
2 Batteries (12V/135Ah each )
|
Safe Cab(driver die Zero record)
|
full steel skeleton structure, covered with double layer steel plate;
|
Fifth wheel
|
90 JOST brand
|

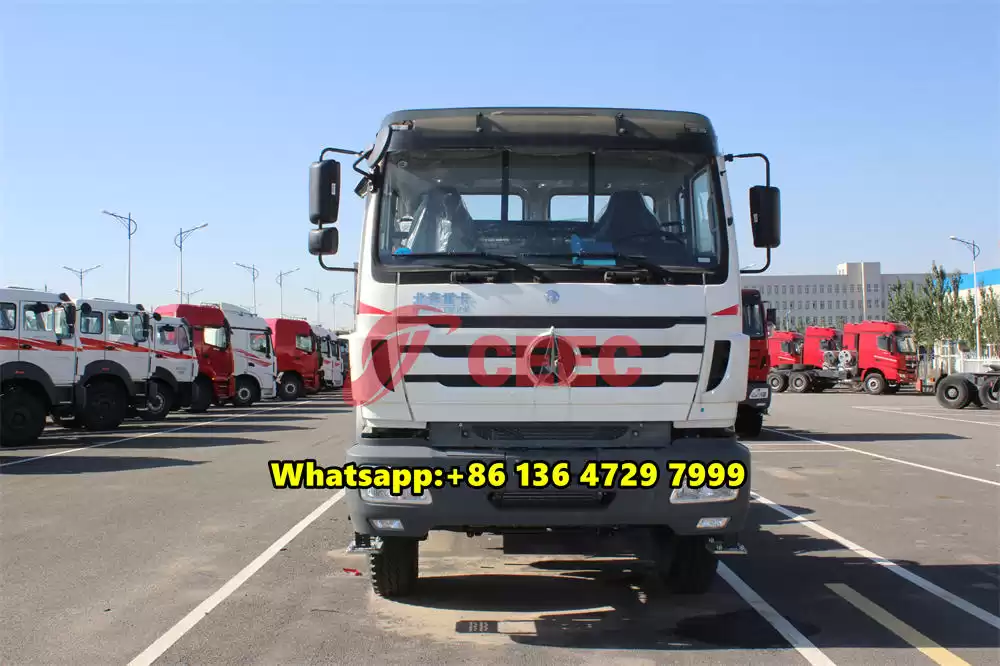

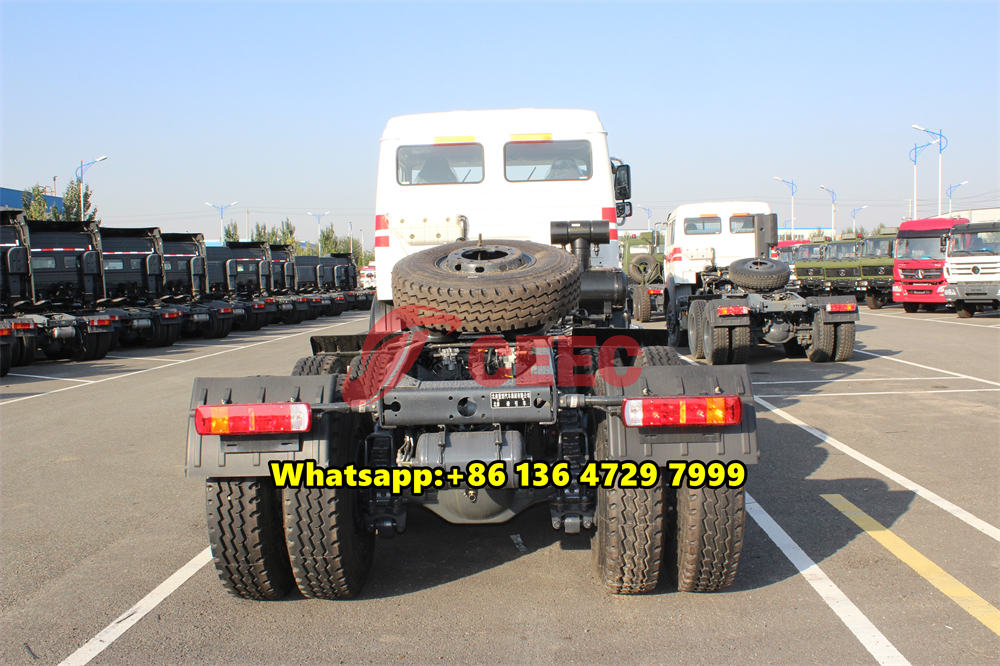

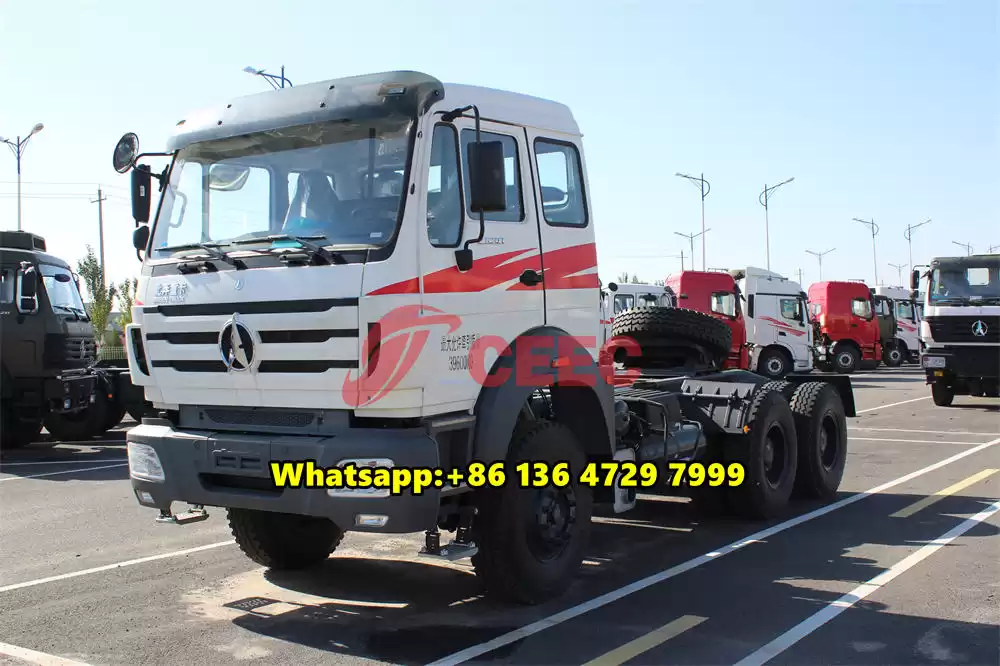

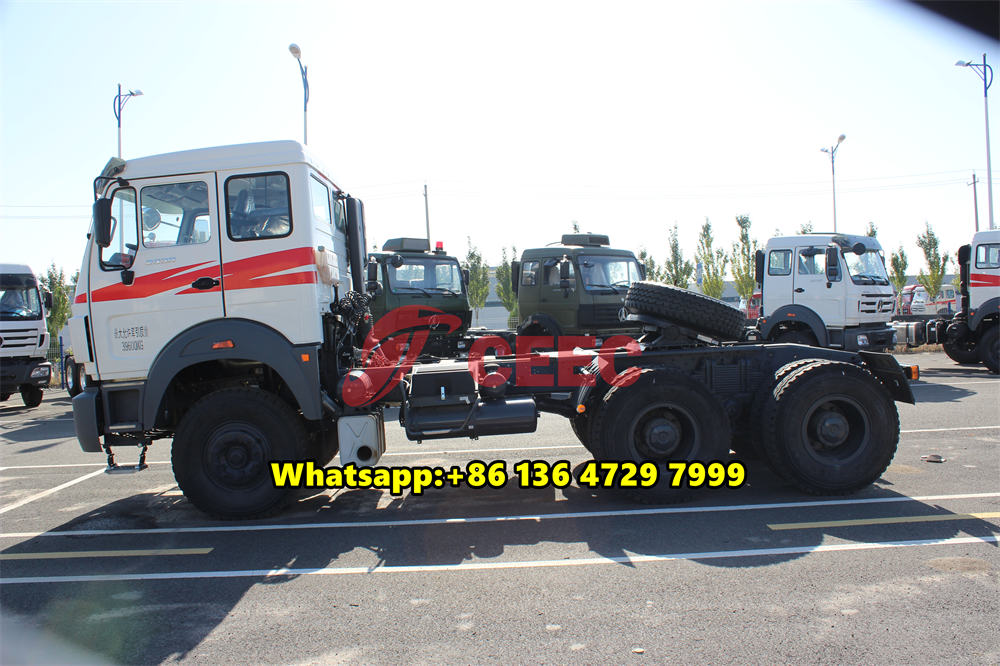

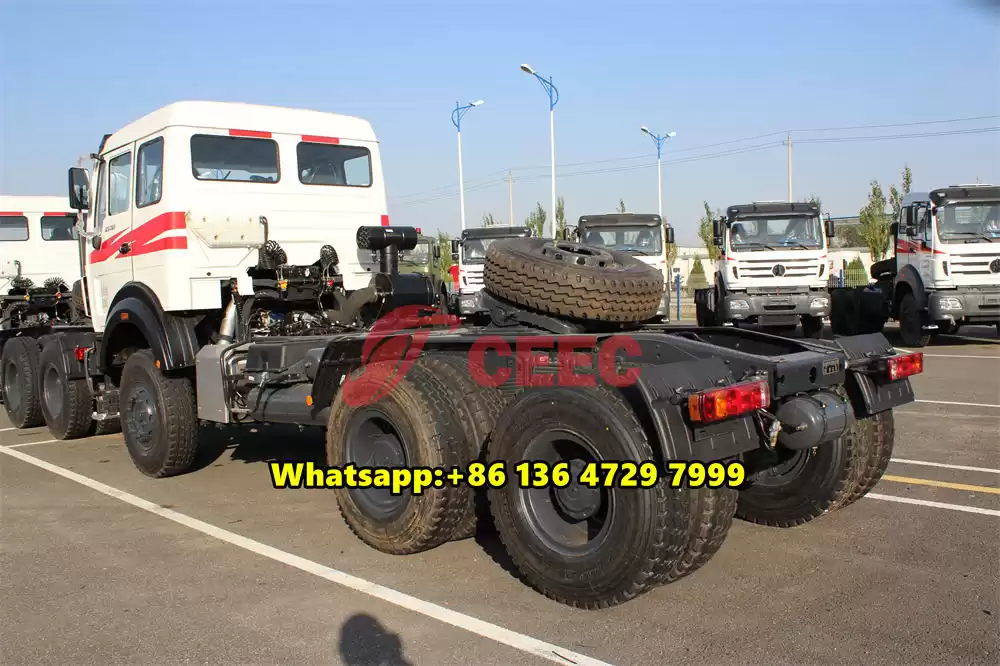

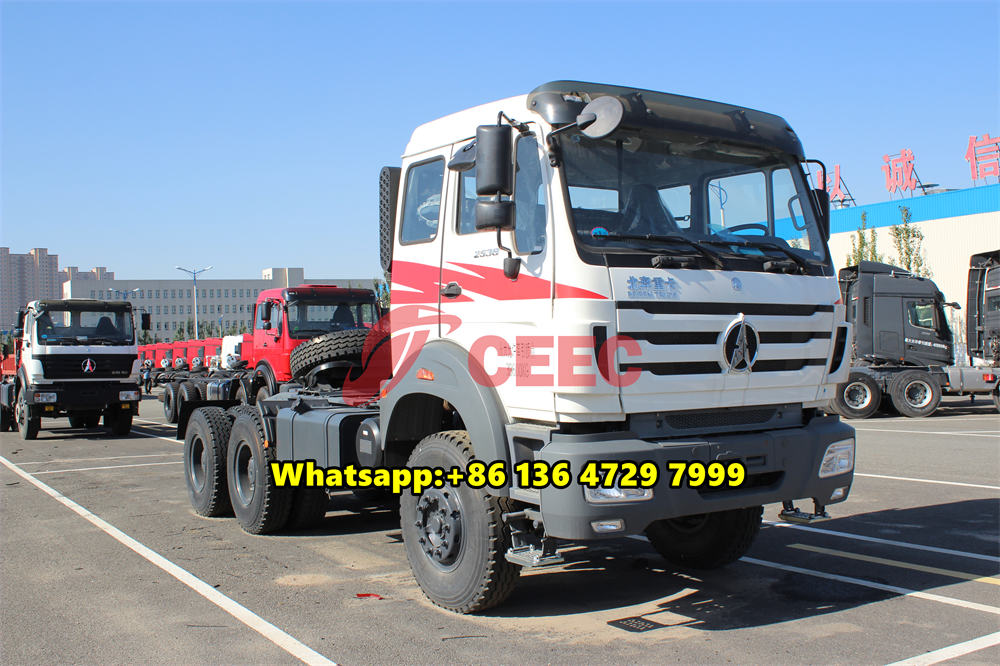

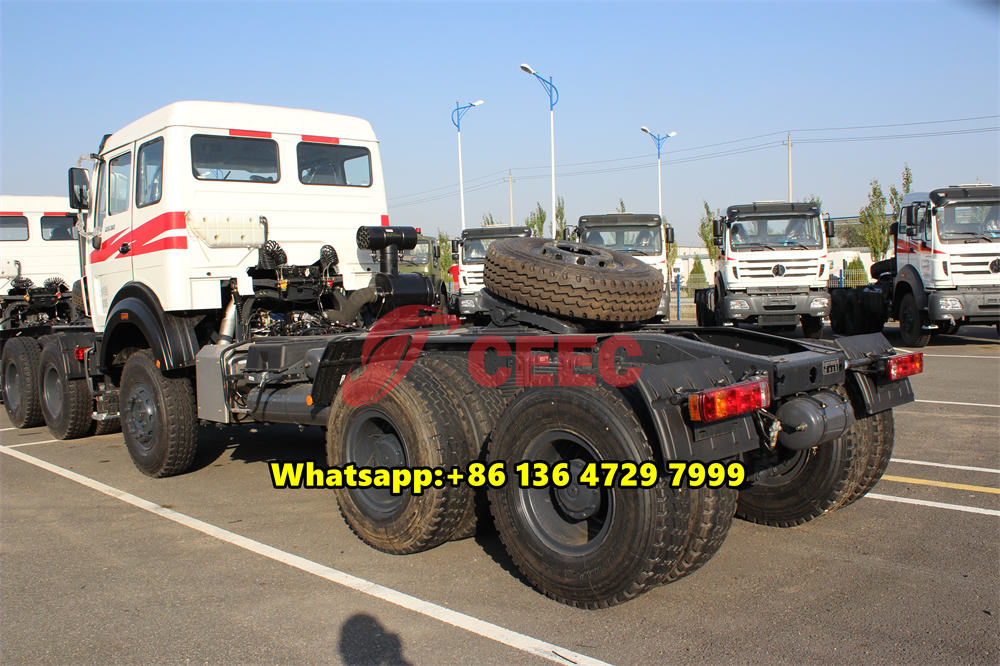

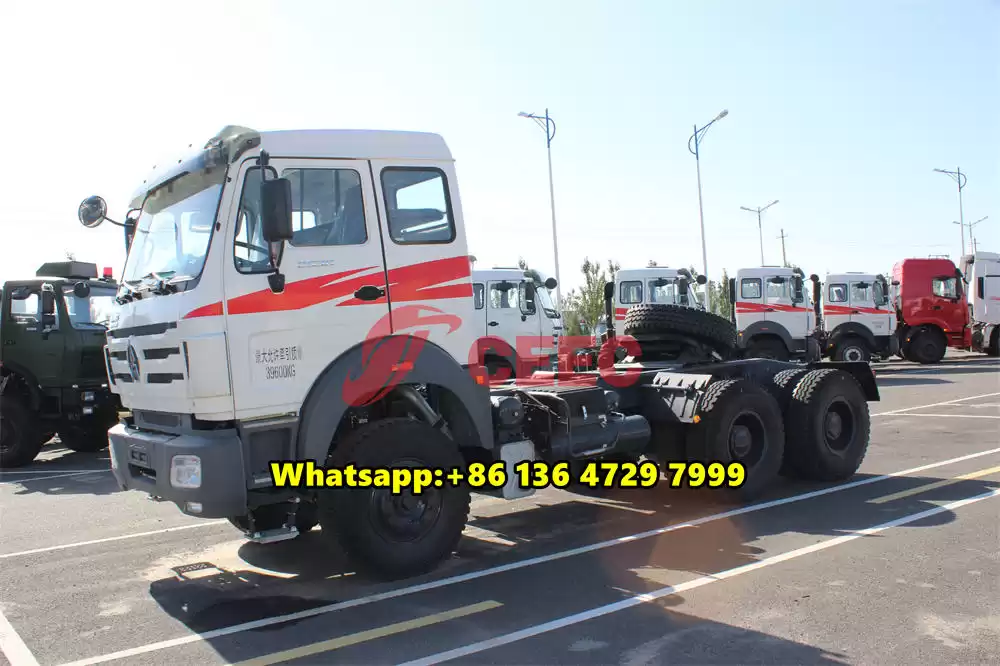

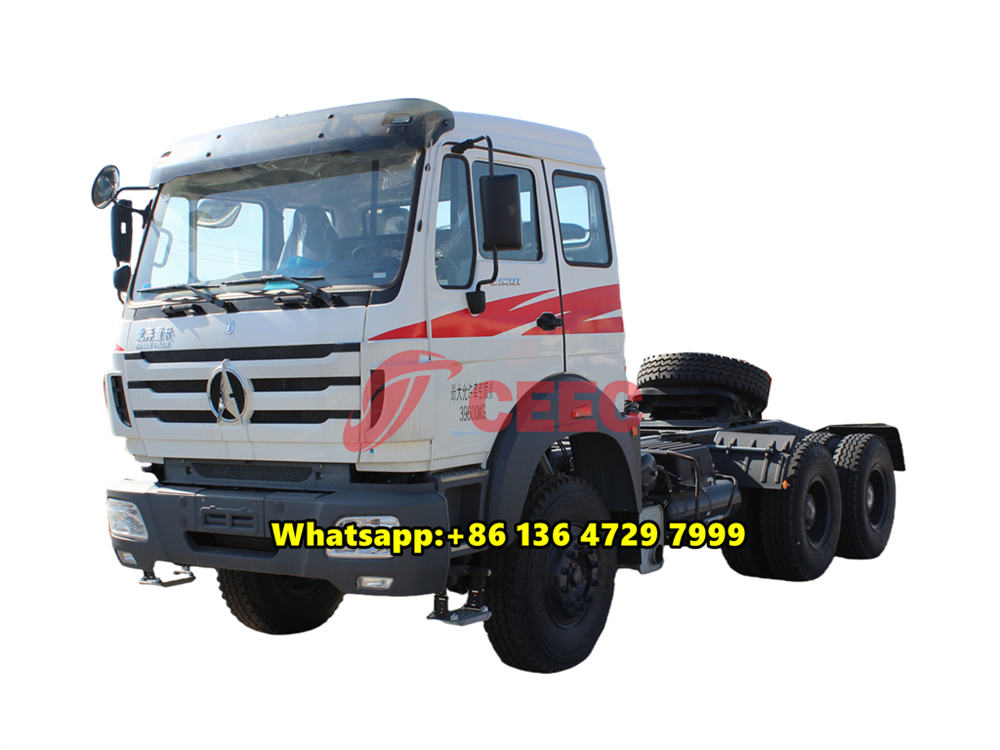

Product Pictures
