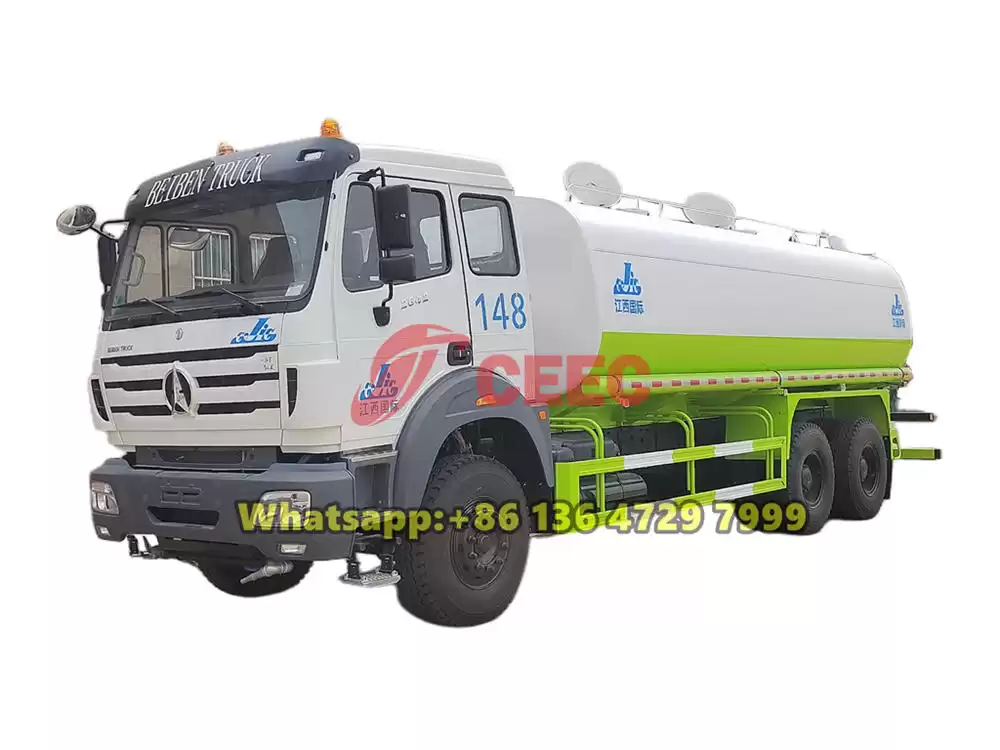

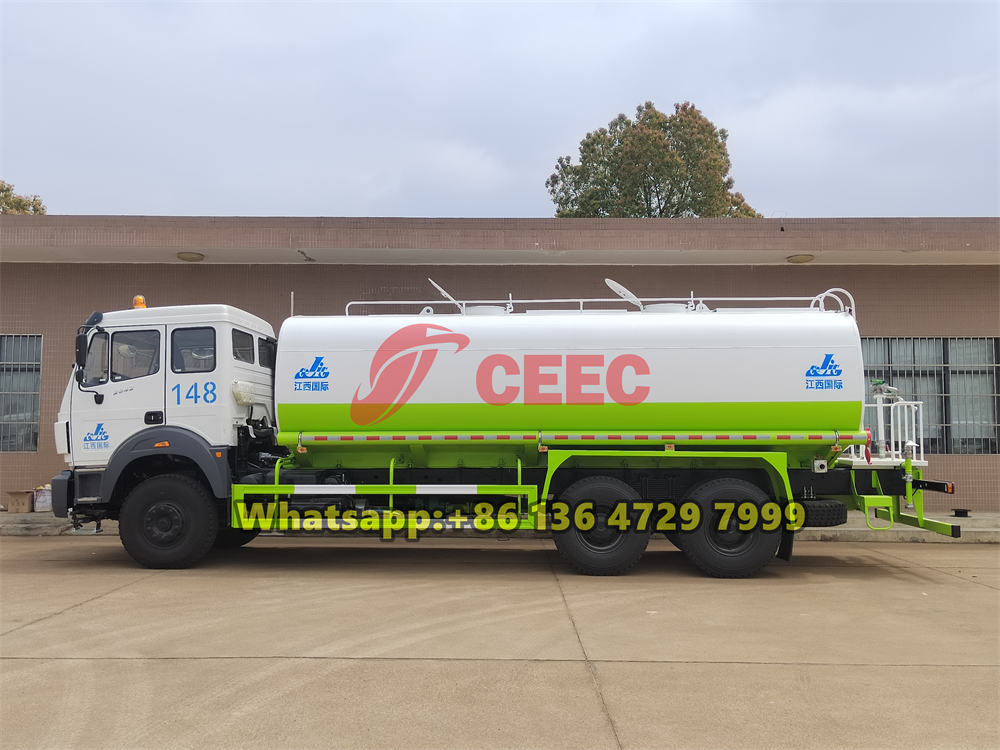

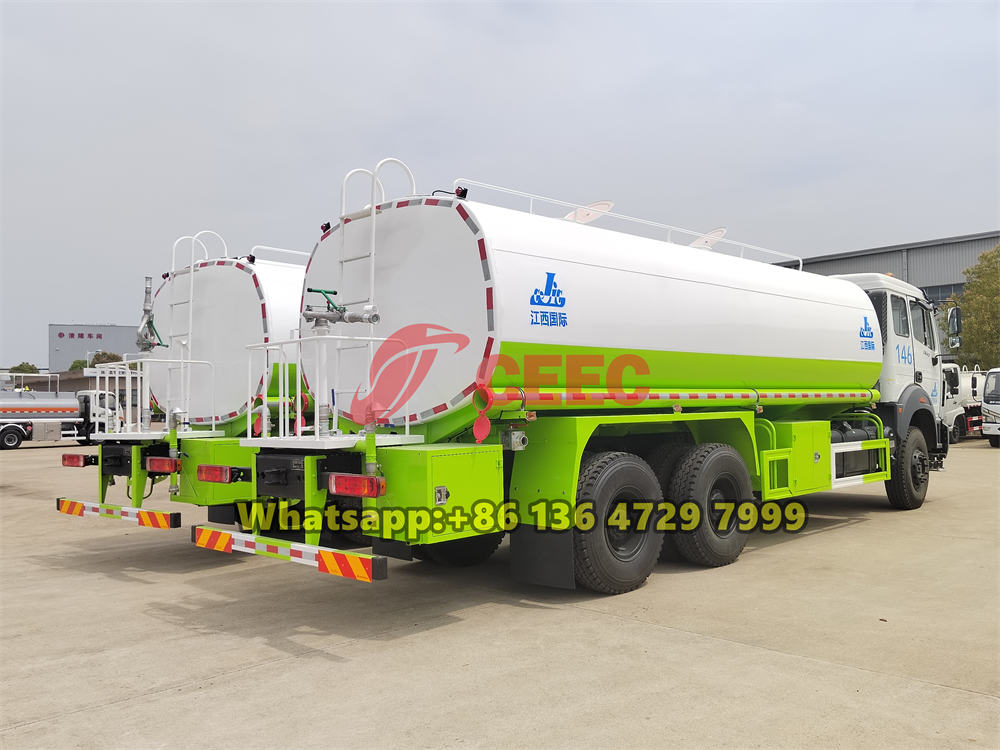

Beiben 2642 20000 liters water bowser

The Beiben 20,000L water tanker truck is built on the ND1252 chassis, equipped with a WP12.420E32 engine that boasts a power of 309 kW (420HP) and complies with the Euro 3 emission standard. The water tank has a capacity of 20,000 liters, constructed from carbon steel with an oval design. It is fitted with a WEILONG 80QZF60/90S water pump, capable of delivering a flow rate of 60m3/h and a lift of 90m, supporting multi-functional operations including front flushing, rear sprinkling, side spraying, and high-position spraying. This vehicle is suitable for various applications such as urban cleaning, green space irrigation, dust suppression at construction sites, and emergency fire fighting, offering high efficiency and versatility.


  • Engine power420 HP
  • Working Capcity20000 liters
  • Payment termsTT
  • Production time40 days
  • Drive system6×4

Product Description



The Beiben 20,000L water tanker truck is built on the ND1252 chassis, equipped with a WP12.420E32 engine that boasts a power of 309 kW (420HP) and complies with the Euro 3 emission standard. The water tank has a capacity of 20,000 liters, constructed from carbon steel with an oval design, and measures 6000×2300×1500 mm. It is fitted with a WEILONG 80QZF60/90S water pump, capable of delivering a flow rate of 60m3/h and a lift of 90m, supporting multi-functional operations including front flushing, rear sprinkling, side spraying, and high-position spraying. This vehicle is suitable for various applications such as urban cleaning, green space irrigation, dust suppression at construction sites, and emergency fire fighting, offering high efficiency and versatility.





The Beiben 20,000L Water Tanker Truck is a large-scale sanitation vehicle built on the Beiben ND1252 chassis, primarily used for various scenarios including urban road cleaning, green space irrigation, dust suppression at construction sites, and emergency firefighting. Renowned for its large capacity, high efficiency, and multifunctionality, the truck boasts a water tank capacity of up to 20,000 liters, capable of meeting the demands of large-area operations. It is equipped with a WP12.420E32 engine that complies with the Euro 3 emission standard, offering powerful performance and excellent environmental protection. Additionally, its WEILONG brand water pump and efficient spraying system ensure high operational efficiency and reliability. The Beiben 20,000L Water Bowser is not only suitable for urban sanitation tasks but also for dust suppression and green space maintenance in industrial parks, construction sites, and other locations, making it a multifunctional and highly efficient sanitation equipment.

The water tank is one of the core components of the water tanker truck. The Beiben 2642 Water Spraying Truck features a water tank with a capacity of 20,000 liters, designed in an oval shape with dimensions of 6000×2300×1500 mm. This design not only lowers the vehicle's center of gravity, enhancing driving stability, but also effectively reduces water sloshing within the tank, ensuring operational safety. Made of carbon steel, the water tank exhibits excellent corrosion resistance and durability, adapting to various water qualities and environmental conditions.

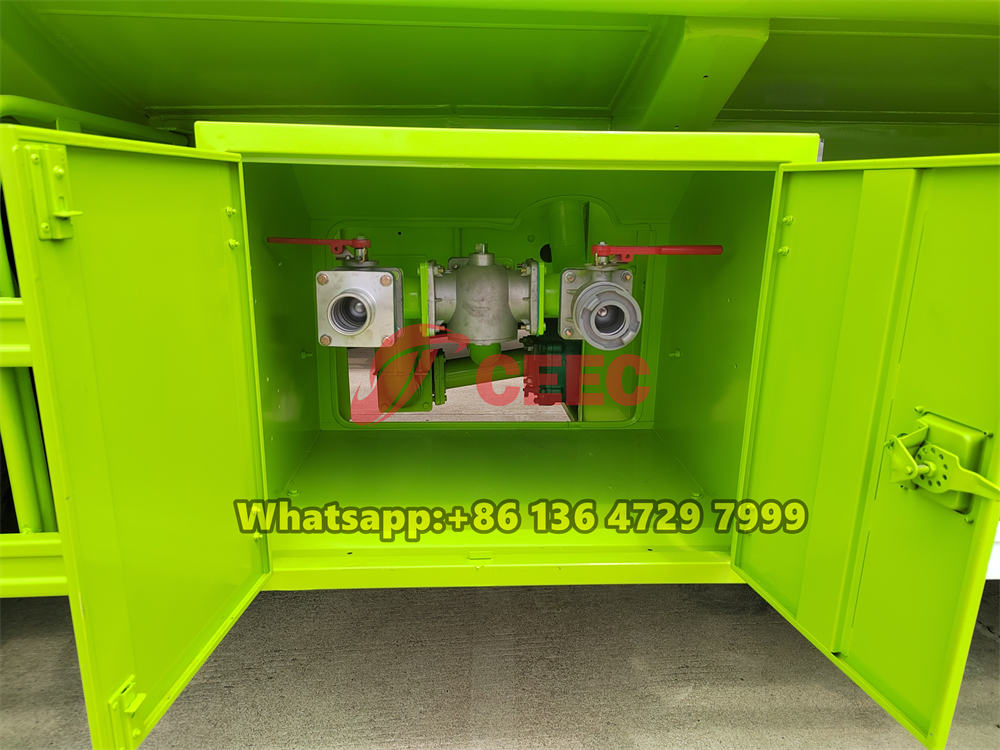

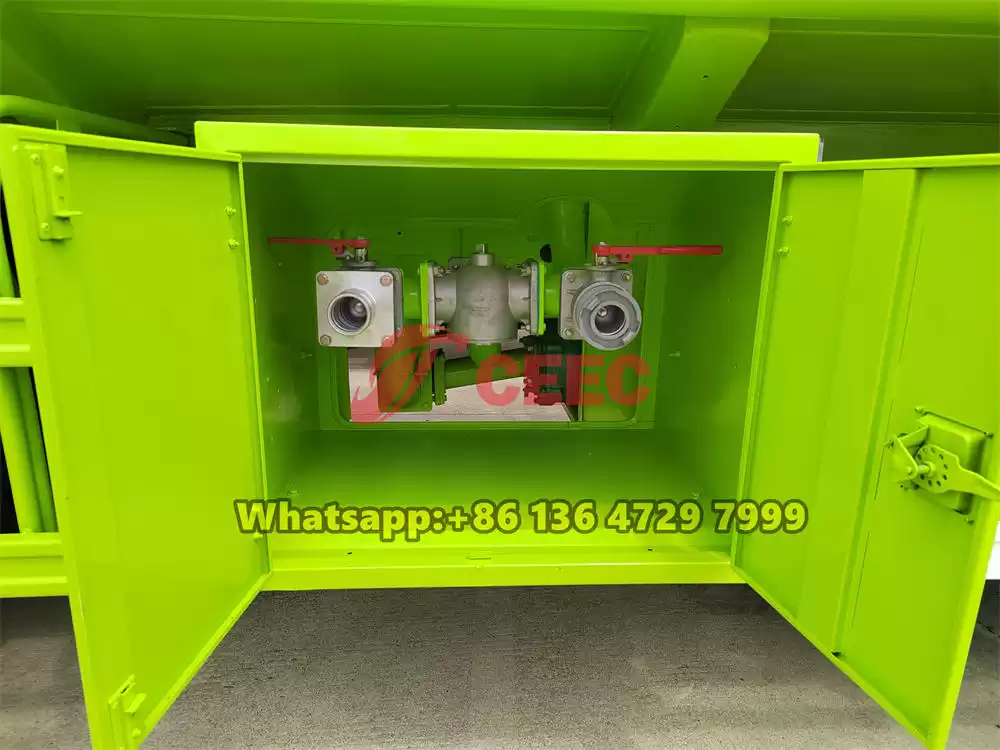

The water pump system utilizes the WEILONG brand, model 80QZF60/90S, with a flow rate of 60 cubic meters per hour, a lift of 90 meters, and a self-priming height of 6.5 meters, delivering superior performance. The water pump system supports rapid water filling and efficient spraying, capable of meeting the demands of large-area operations. Furthermore, the water pump features a self-priming function, allowing it to directly draw water from water sources, further enhancing operational convenience.

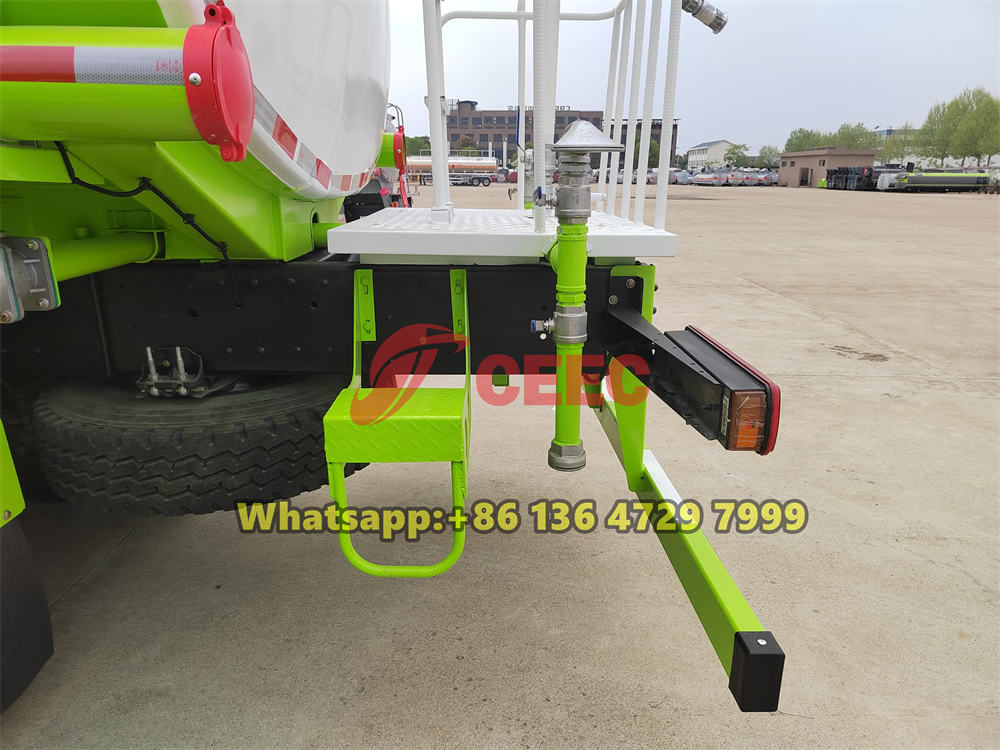

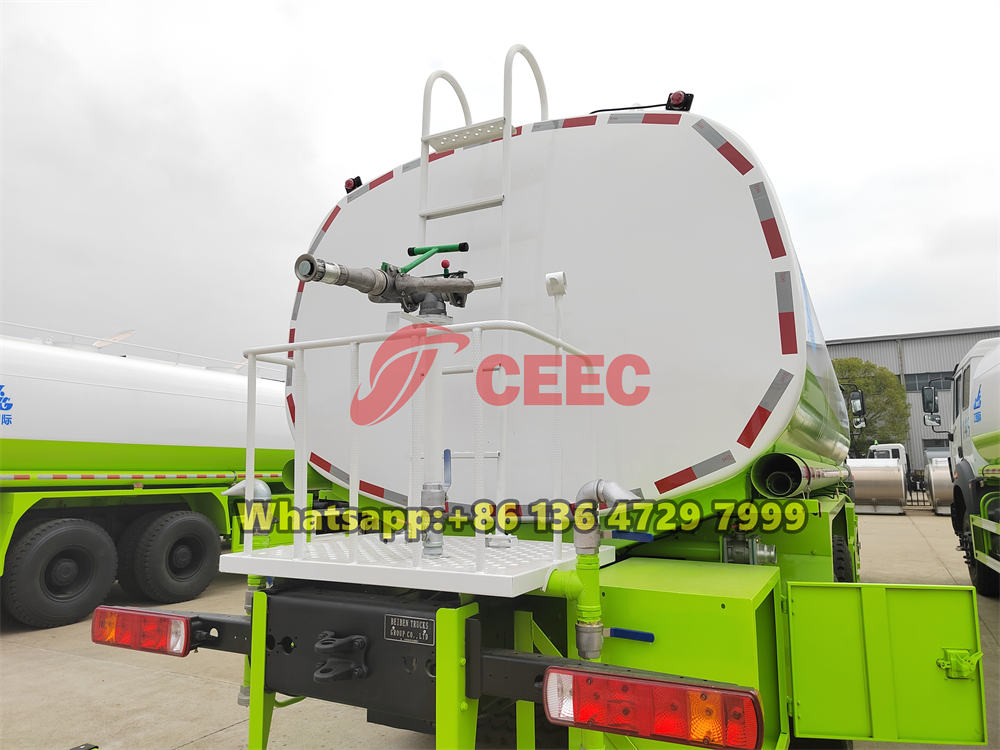

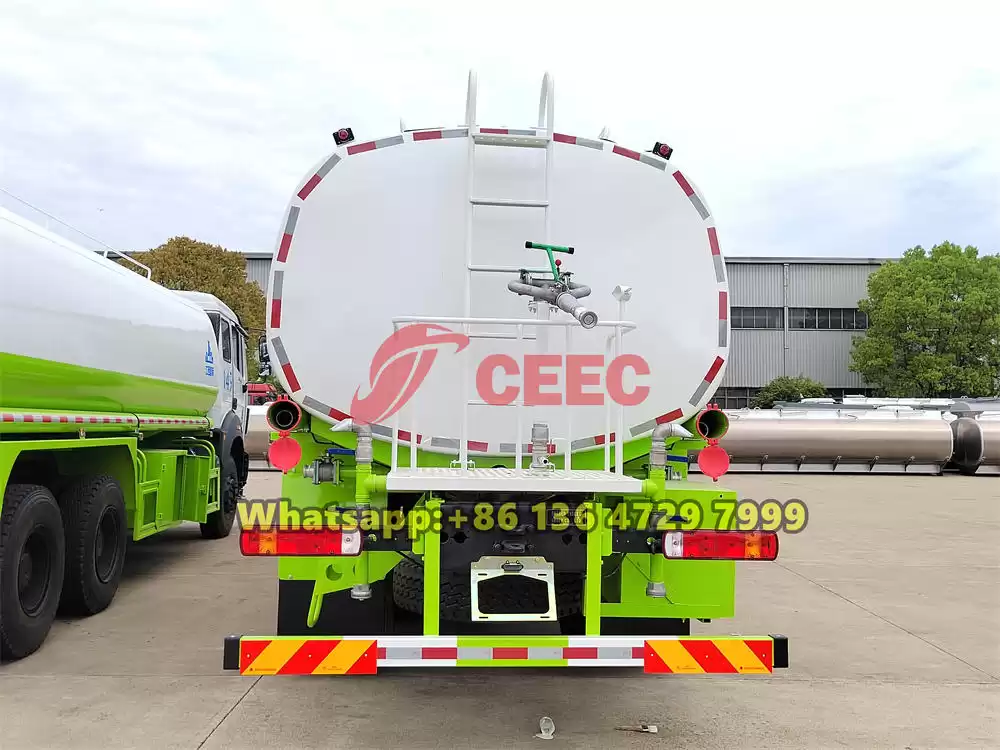

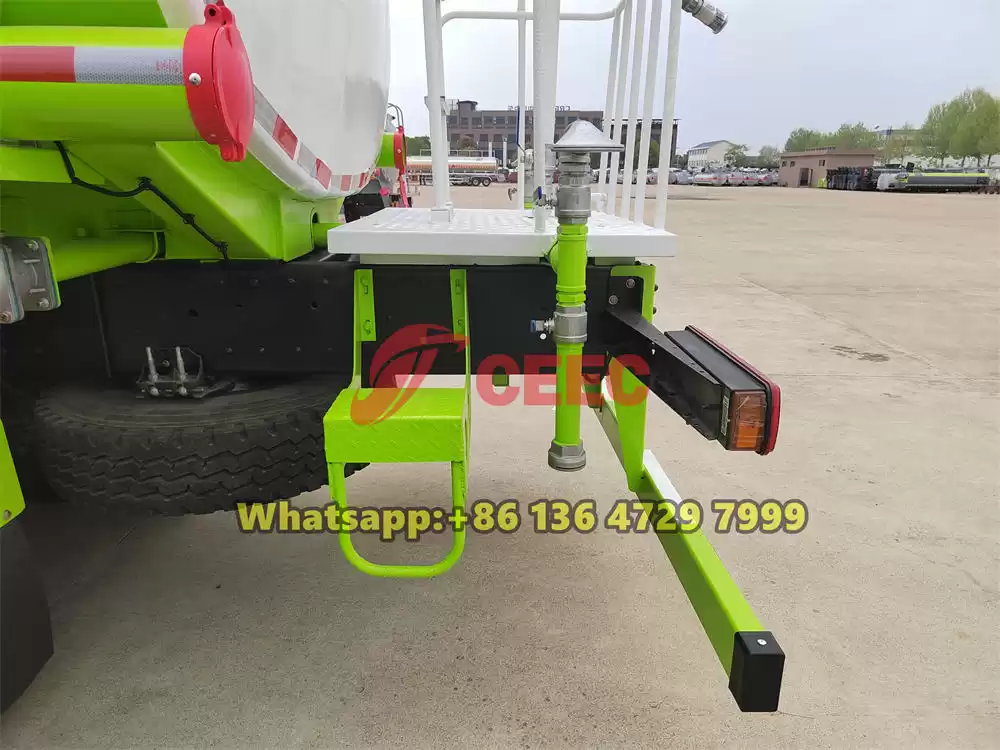

The spraying system of the Beiben 2642 20,000L Water Truck includes multiple functions such as front flushing, rear sprinkling, side spraying, and high-position spraying, catering to the operational needs of different scenarios. The front flushing function is mainly used for road cleaning, utilizing high-pressure water to wash away dirt and dust from the road surface. The rear sprinkling function is suitable for road cooling and moistening, particularly during hot weather for road maintenance. The side spraying function can be used for irrigating green belts, while the high-position spraying is ideal for tree irrigation and emergency fire fighting. The spraying system is hydraulically driven, offering easy operation and wide spraying coverage, capable of reaching large areas. The vehicle's working principle involves the water pump drawing water from the tank and delivering it through a piping system to various nozzles for efficient spraying. The pressure and flow rate of the spraying system can be adjusted according to actual needs, ensuring precise and efficient operations.





Product Specifications



Water Tank Truck Model

North Benz 6x4 water tanker truck

Cabin / Passenger Capacity

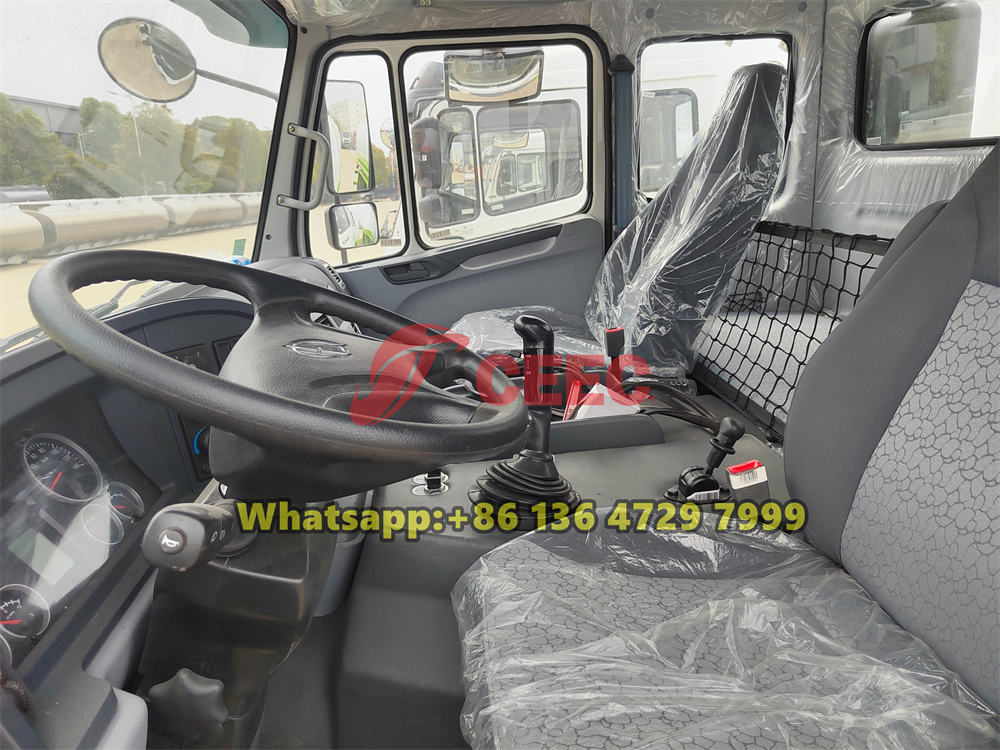

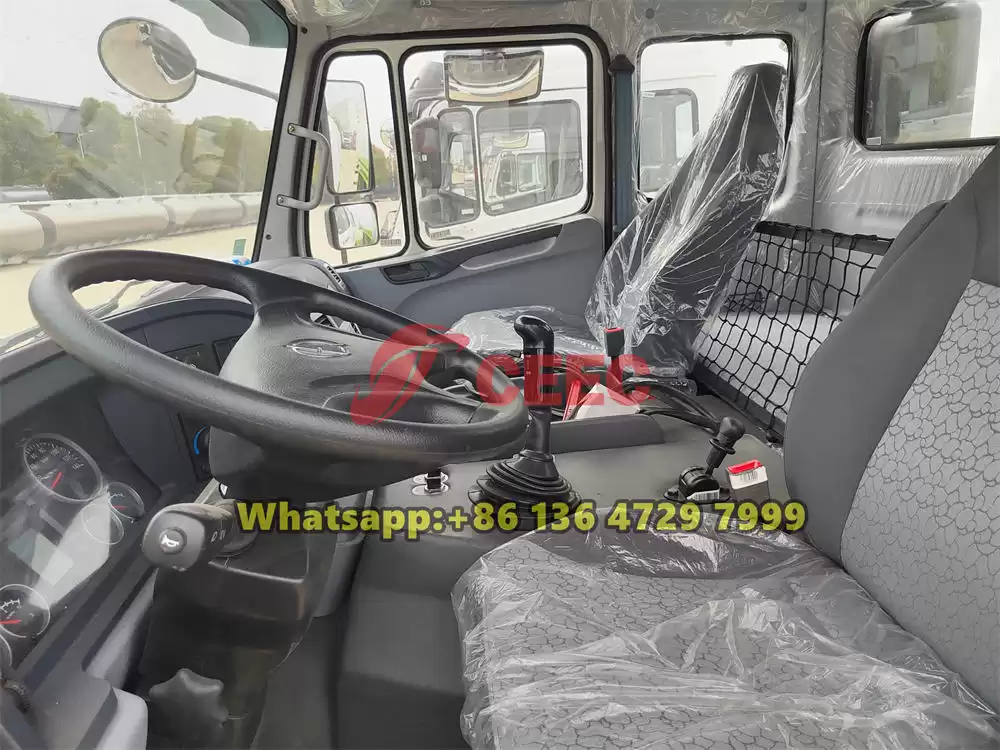

One and half row Seat (optional one row cabin), flat top with a bed, tiltable, with air conditioner, 2+1 passenger

Chassis

Model

ND1252

Overall dimensions

9465*2500*3370 mm

G.V.W

25000 kg

Net weight

11800 kg

Design load

23000 kg

Drive type

6x4

Suspension F/R

1410/2205 mm

Wheelbase

4500+1350 mm

Number of axles

3

Axle-load

7000/18000 kg (two rear driving axle)

Approach/Departure Angle

12/12 °

Number of Spring leafs

9/10

Track F/R

2020/1847/1847 mm

Tire ( No. & specification)

11.00-20, 10pcs+1pc (optional 11.00R20)

Max speed (Km/h)

≥ 96 km/h

Brake system

Pneumatic braking

Steering

Power steering

Transmission

FAST 12-speed, Mechanical

Engine

Engine model

WP12.420E32 (EURO 3 emission)

Type of fuel

diesel

Power

309 kw (420 hp)

Exhaust

11596 ml

Water Tank

Tank capacity

20000 Liters

Tank shape

Oval shape.

Water tanker size

6000*2300*1500 mm

Tank material

Carbon steel

Water pump

Brand

WEILONG

Model

80QZF60/90S

Flow rate

60 m3/h

Lifting

90 m

Self-suction Height (m)

6.5 m

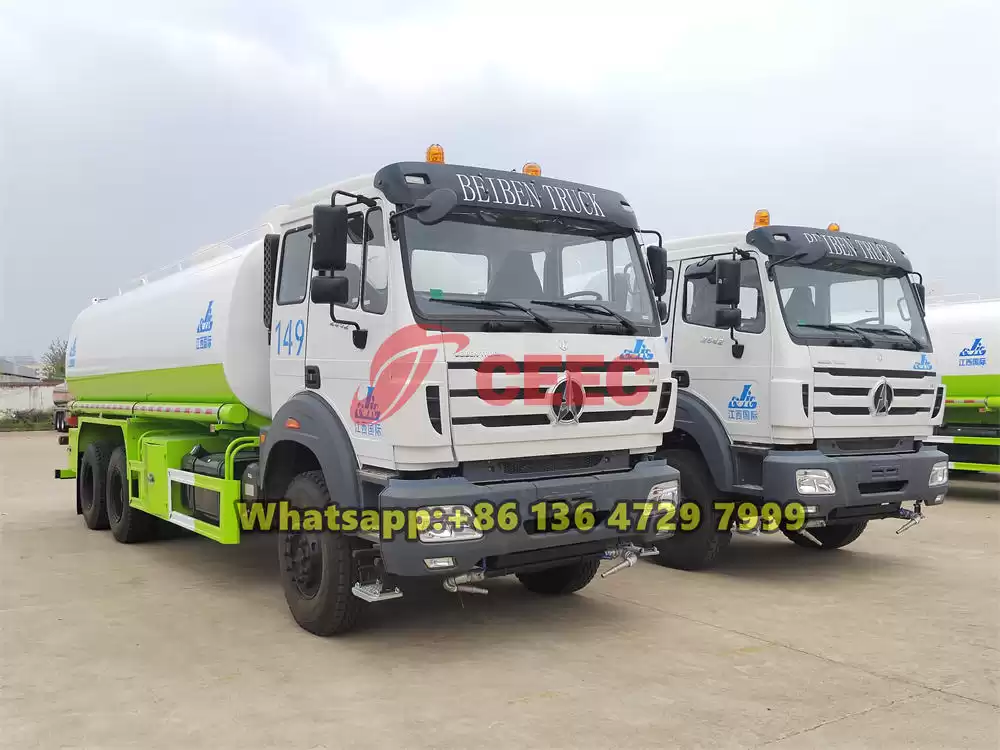

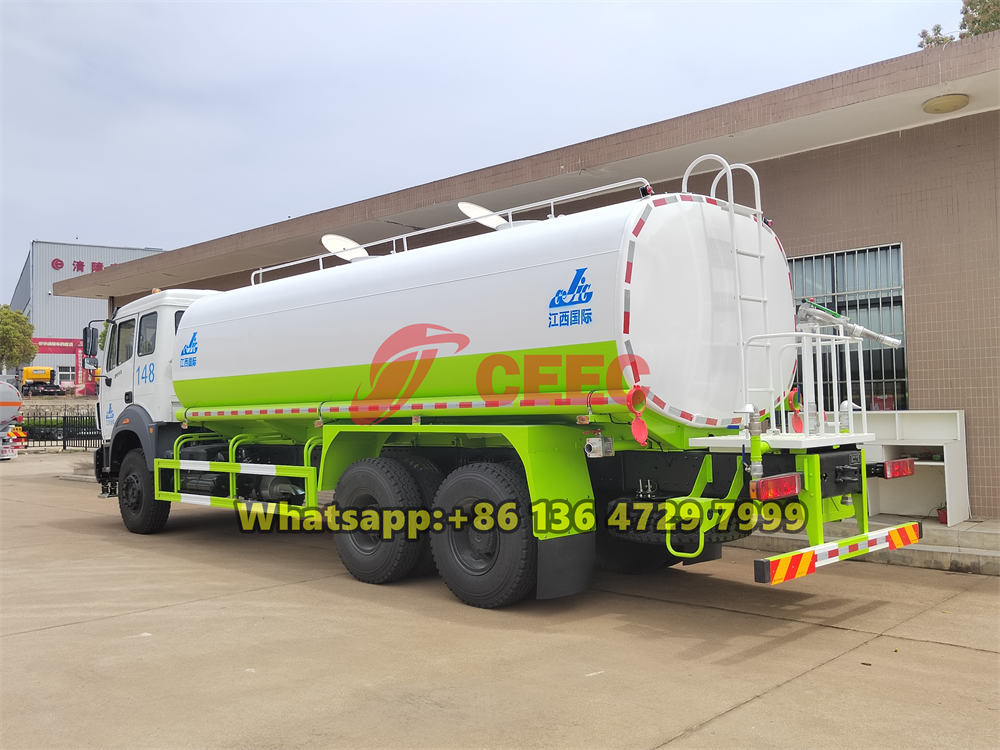

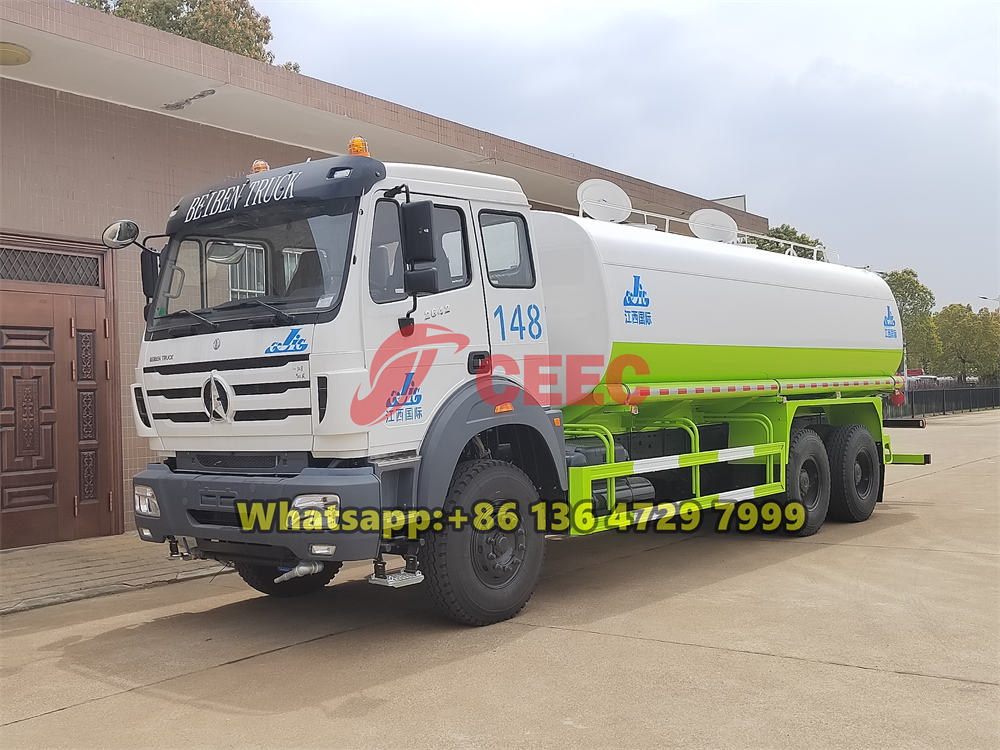

Product Pictures
