Product Description

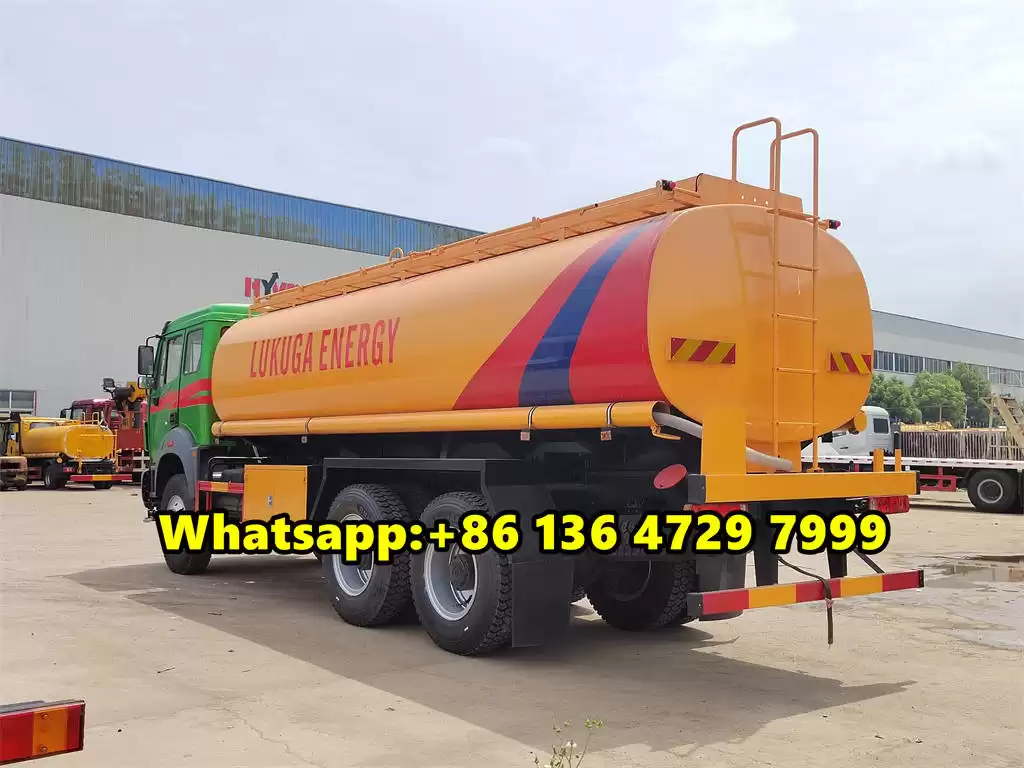

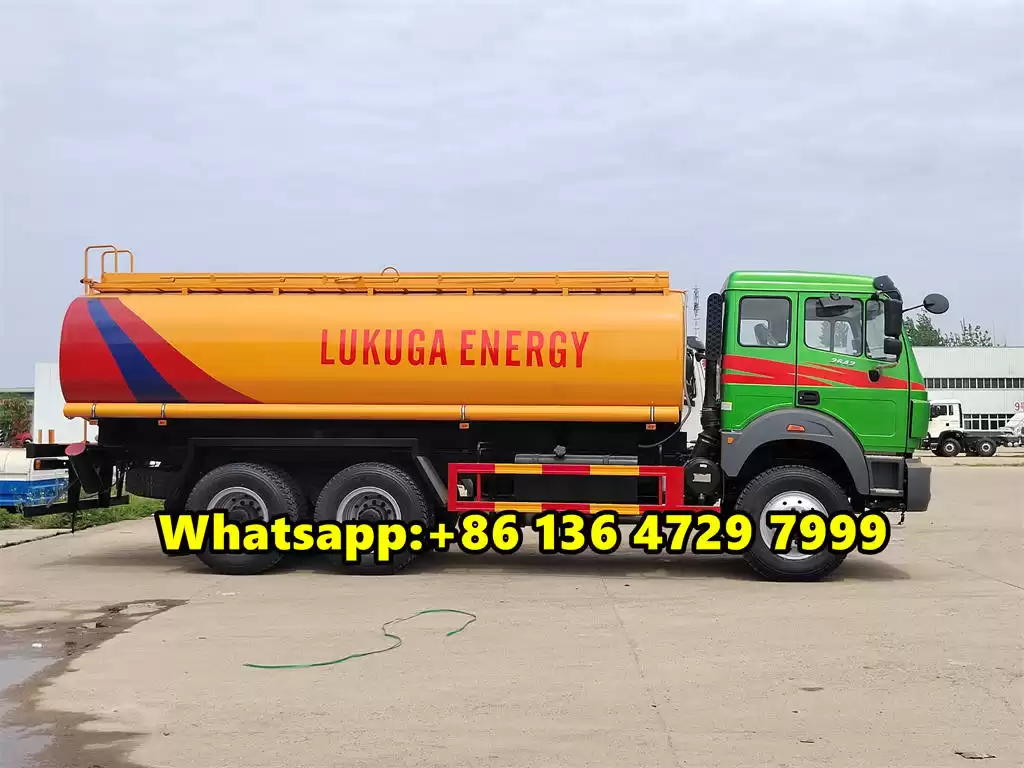

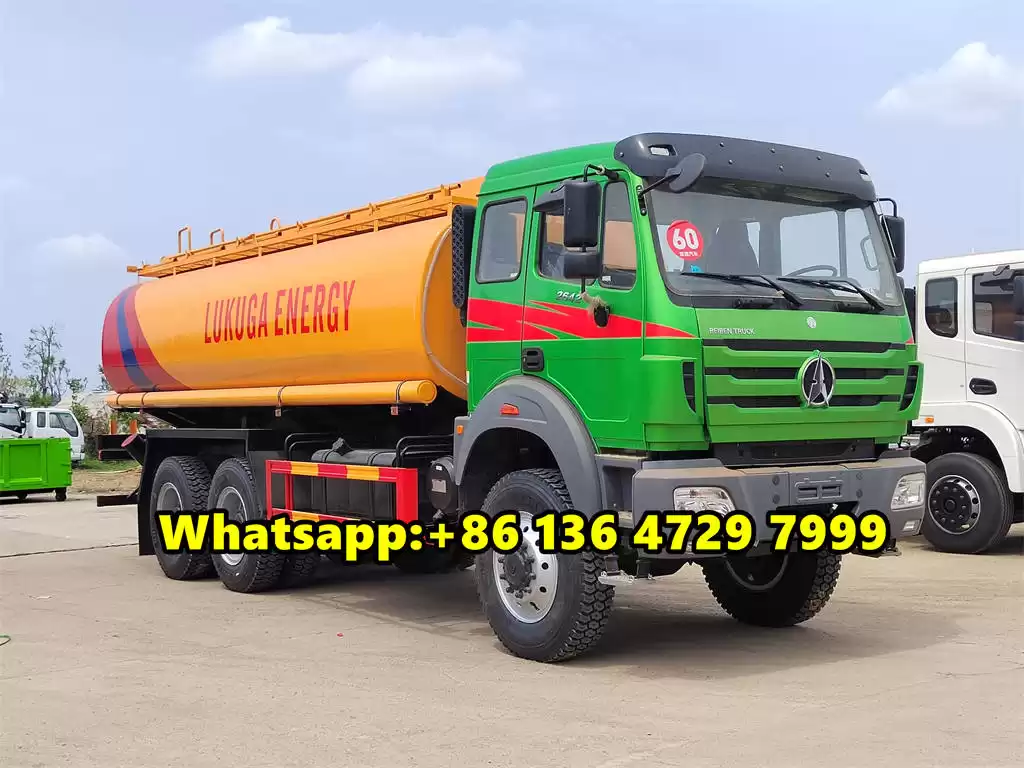

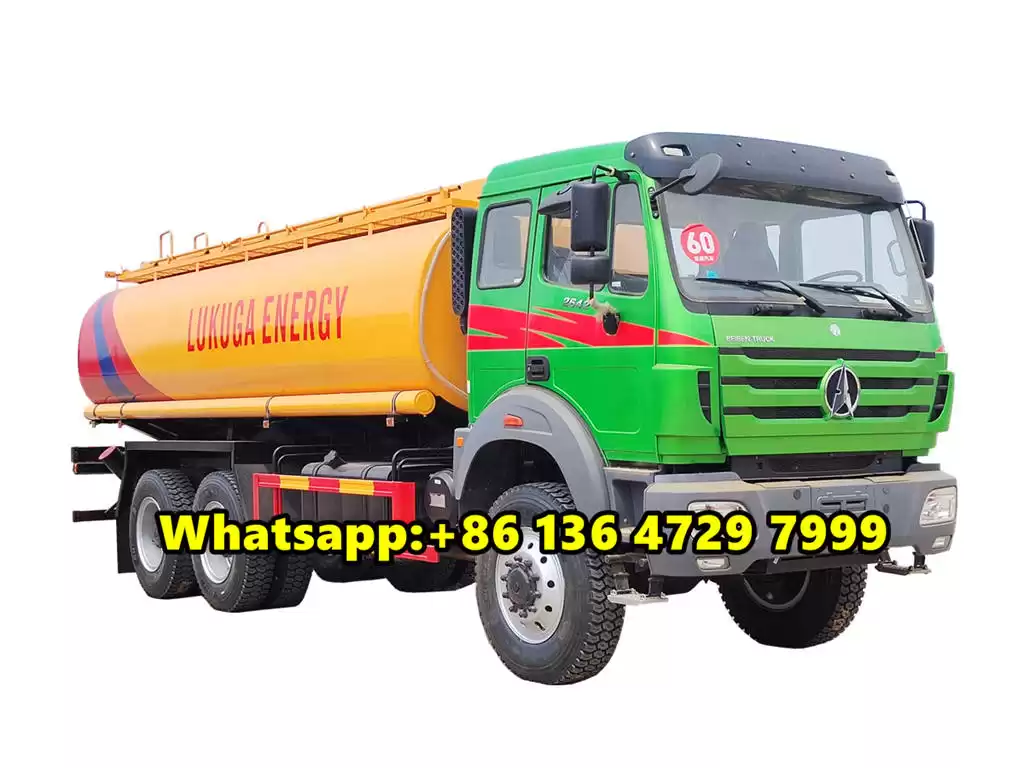

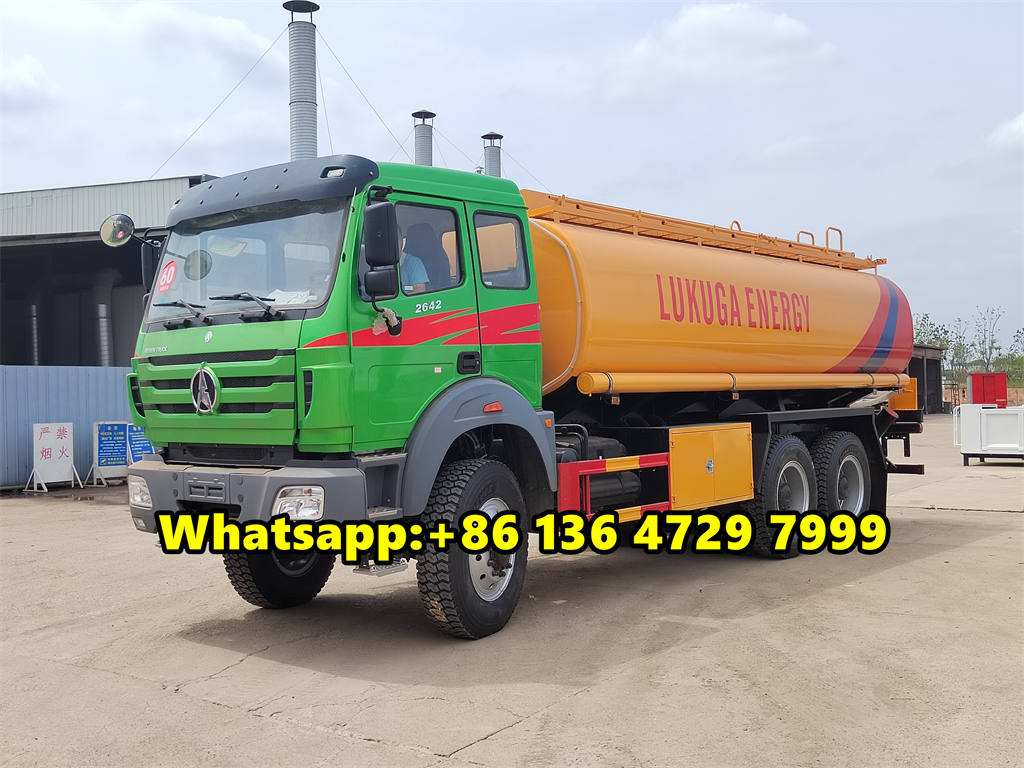

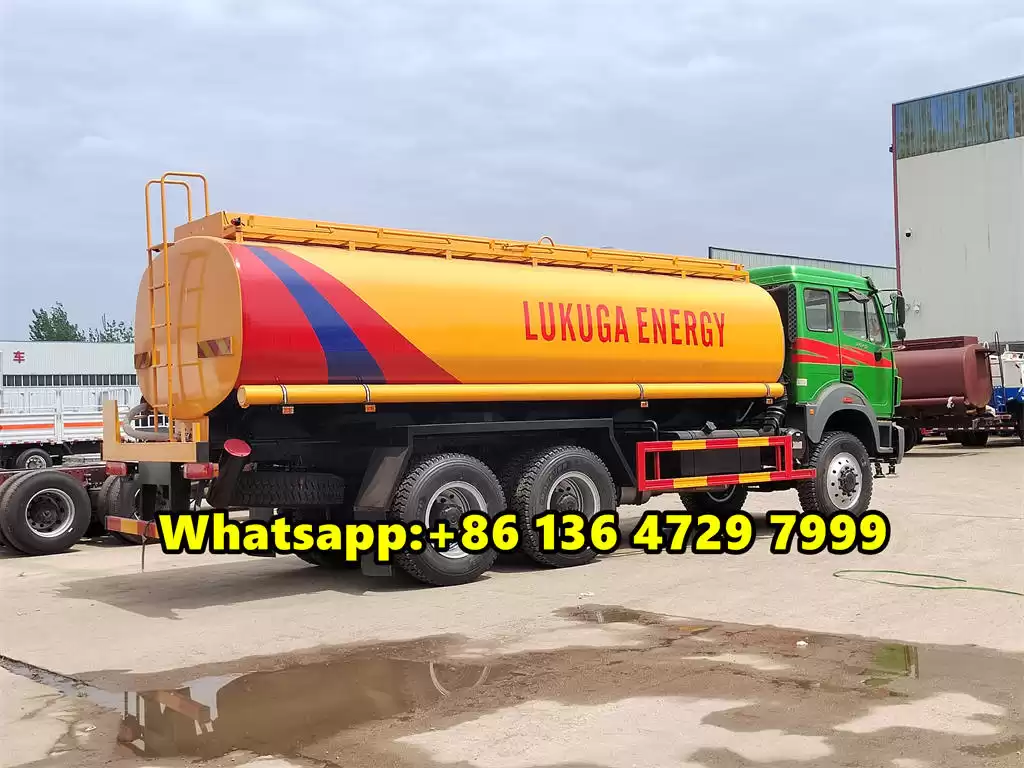

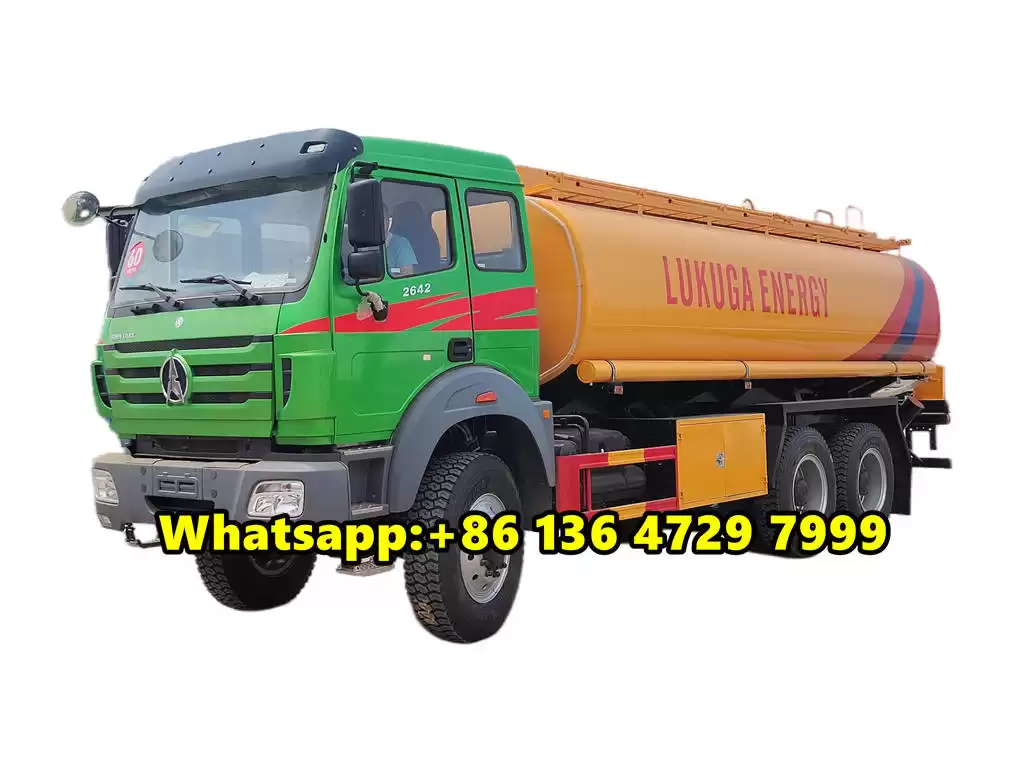

Beiben 2642 6×6 oil tanker is a heavy-duty tanker designed for long-distance transportation and complex road conditions. Its excellent performance and sturdy structure make it an ideal choice for transporting diesel, gasoline or other liquids. Beiben 2642 oil tanker is made on the basis of Beiben 2642 chassis. Its 6×6 drive form, that is, all-wheel drive, provides the vehicle with excellent off-road performance and climbing ability, allowing it to easily cope with various complex road conditions.
This Beiben 6×6 fuel tanker truck is equipped with a WEICHAI brand WP12.420E32 engine and uses diesel as fuel. This four-stroke, direct-injection, turbocharged engine has a displacement of 11596 ml, a maximum output power of 309 kW (420 hp), a rated speed of 2100 rpm, and a maximum torque of 1750 Nm, providing strong power for the vehicle.
The Beiben 2642 off-road fuel truck is the core part of this oil tanker, with a capacity of 20,000 liters, divided into 4 compartments, and a square design. The fuel tank is made of high-quality carbon steel with a thickness of 4 mm and can be painted according to customer needs. The bottom of the tank is equipped with safety accessories such as API discharge valve, pumping inlet and outlet, oil and gas recovery valve, anti-overflow anti-static socket and filter to ensure safety and convenience during transportation. Beiben 2642 diesel tanker truck is also equipped with safety accessories such as European standard inspection hole cover, anti-overflow probe and oil and gas recovery joint. In addition, the vehicle is also equipped with practical configurations such as flow meter, discharge pipe, discharge pipe box, fire extinguisher, a spare tire, ladder and heavy-duty rear bumper, which improves the convenience and safety of the vehicle.
Product Specifications
|
Chassis Specification
|
|
Cab
|
Single row cab, with power steering. Electronic flameout
|
|
Driving Type
|
6*6 Left hand driving
|
|
Max Speed (km/h)
|
90
|
|
Overall dimension (mm)
|
10090×2160×2200
|
|
GVW (kg)
|
25000
|
|
Mass in working order (kg)
|
12000
|
|
Wheelbase (mm)
|
4500+1350
|
|
F/R track base (mm)
|
1500/1425
|
|
F/R overhang (mm)
|
1015/1620
|
|
Approach/Departure Angel
|
24/15
|
|
Tire
|
12.00R20
|
|
Clutch
|
Single-plate dry diaphragm spring clutch
|
|
Steering
|
Hydraulic steering with power assistance
|
|
Gear box
|
FAST, 12-speed
|
|
Axles
|
Front axle
|
7T
|
|
Rear axle
|
16T*2
|
|
Engine
|
Brand
|
WEICHAI
|
|
Model
|
WP12.420E32
|
|
Fuel Type
|
Diesel fuel
|
|
Type
|
Water-cooled four-stroke, direct injection, turbocharged
|
|
Exhaust (ml)
|
11596
|
|
Max output power
|
309KW/420HP
|
|
Rated speed
|
2100 rpm
|
|
Max. torque
|
1750N.m
|
|
Braking system
|
Service Brake
|
Air brake
|
|
Park Brake
|
Spring energy
|
|
Electric system
|
24v
|
|
Superstructure Specification
|
|
Fuel tank
|
|
Volume of tank
|
20000L
|
|
Compartment
|
4
|
|
Tank shape
|
Quadrate
|
|
Material of tanker
|
High Quality Carbon Steel
|
|
Thickness of tank
|
4mm
|
|
Color of the tanker
|
According your demands
|
|
Transport medium
|
Diesel oil, gasoil or others
|
|
Safety accessories
|
|

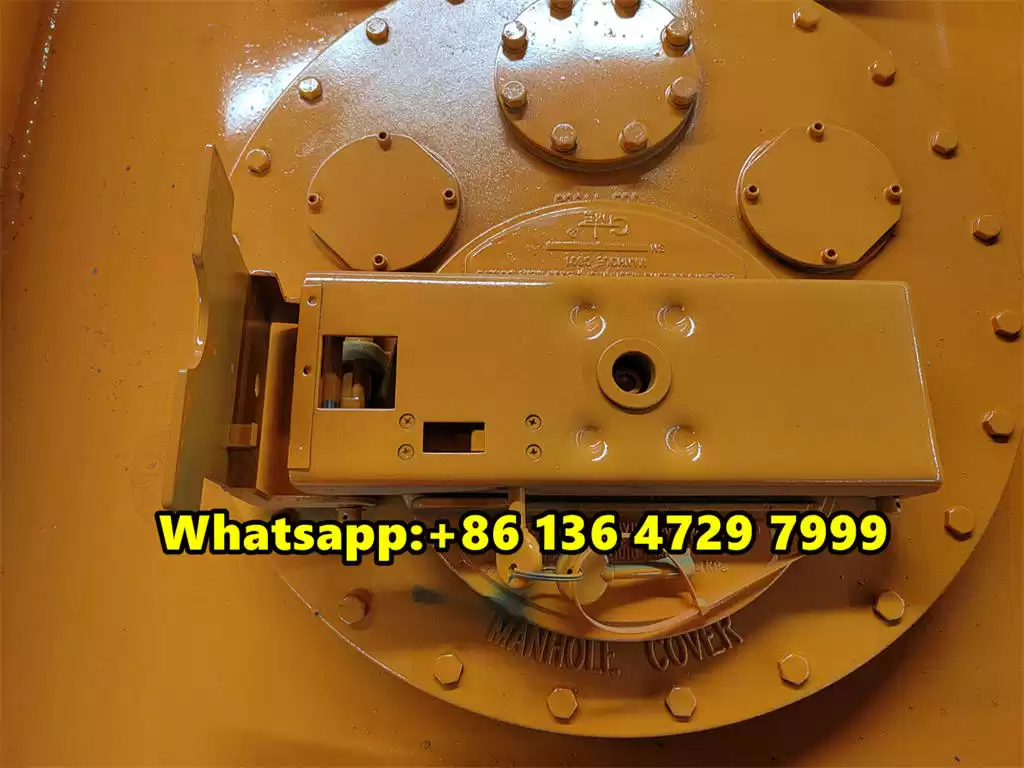

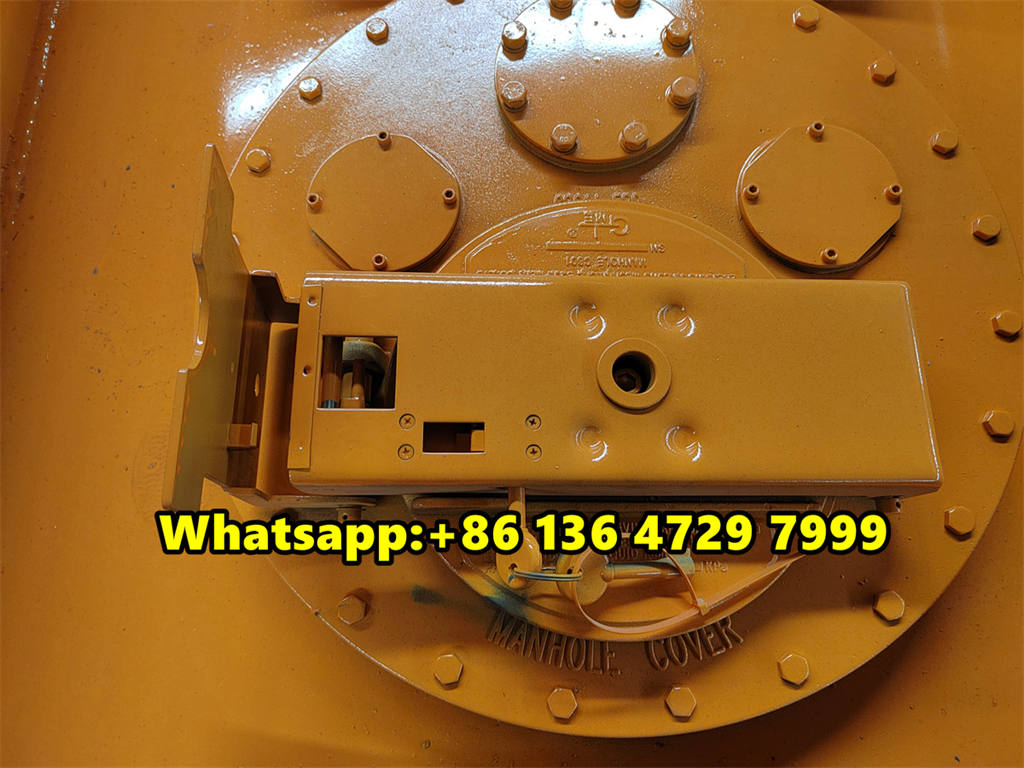

Manhole cover
|
European standard cover
|
|
Anti-overflow probe
|
|
Gas recovery joint
|
|

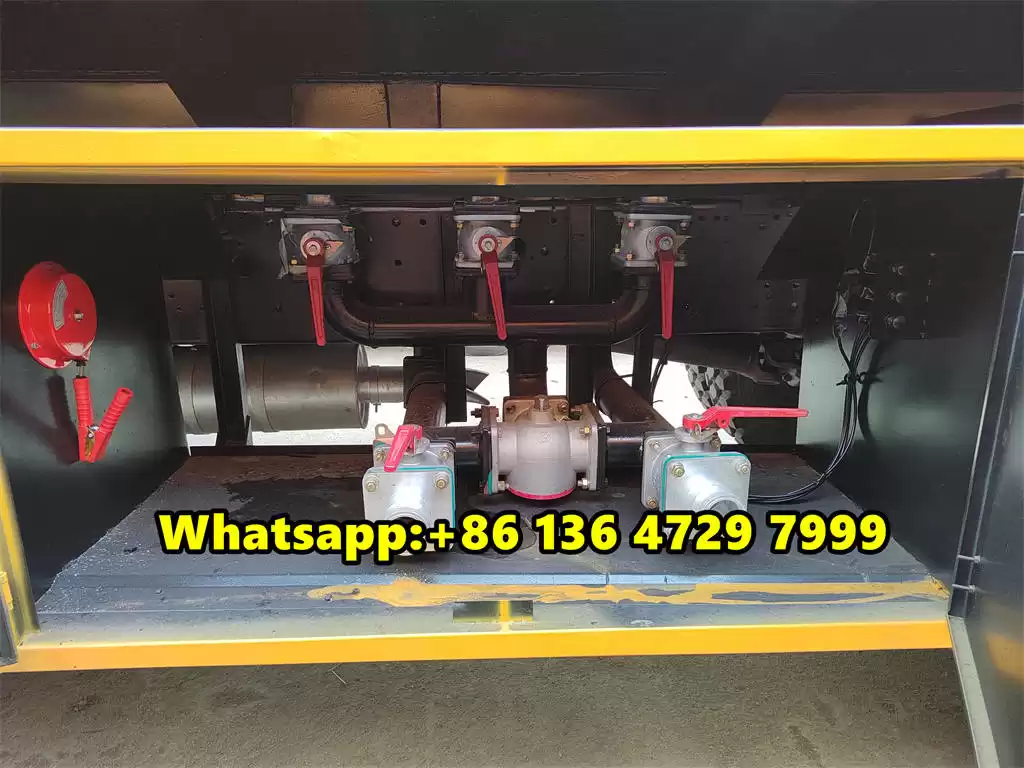

Bottom Filling Device
|
API discharge valve
|
|
Pumping outlet & inlet
|
|
Oil and gas recovery valve
|
|
Anti-overflow anti-static socket
|
|
Percolator
|
|
Bottom of tank valve
|
Emergency valve
|
|
Fittings
|
PTO oil pump
|
|
Discharging Pipe
|
|
Discharging Pipe box fitted on both side of tank
|
|
Fire extinguisher
|
|
One spare tire
|
|

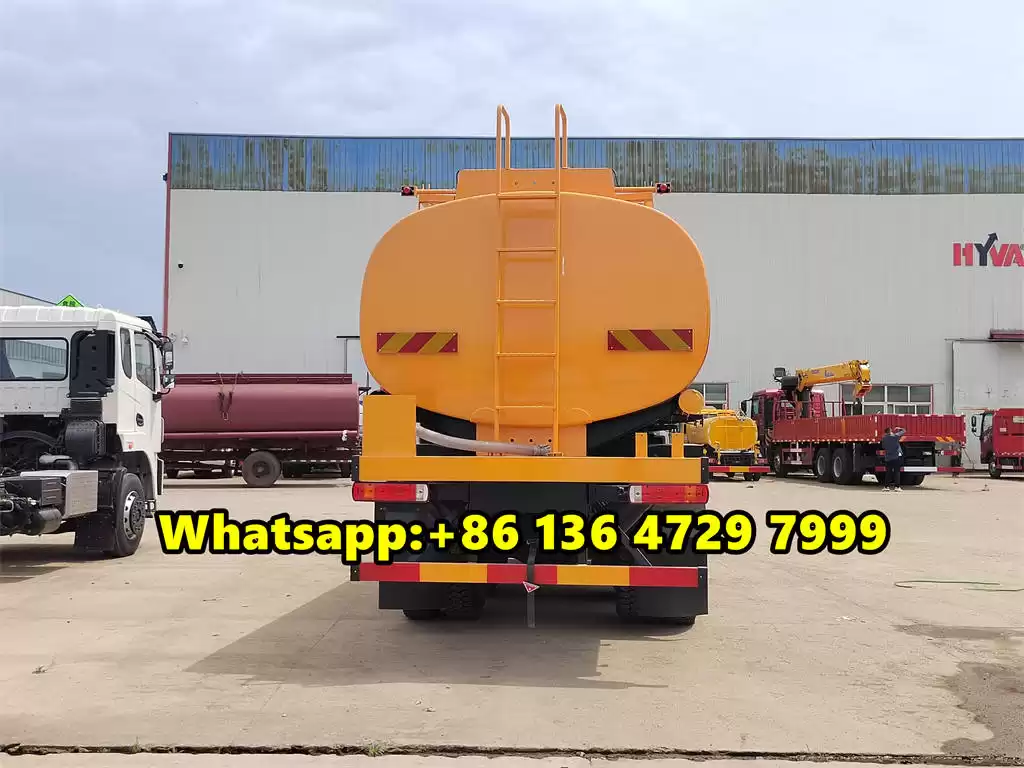

Ladder: For access to top of tank complete with cat walk on top of tank
|
|
Heavy-duty rear bumper
|
Product Detials
